Bester Antenna

[Hamza 43]

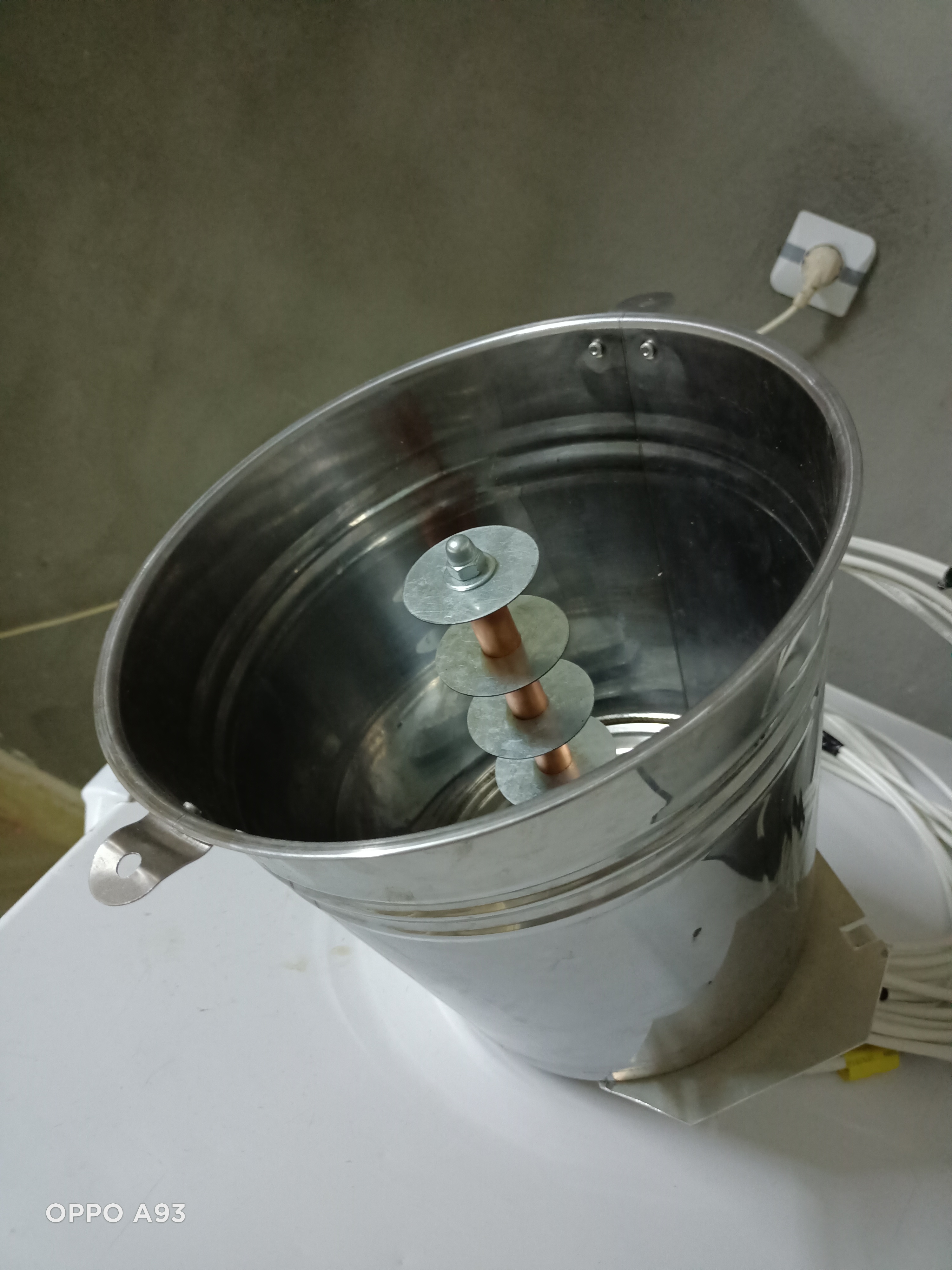

My antenna bucket horn for 1800 LTE Mimo

[Admin 2421]

,,,wrong...!!!

[Hamza 43]



11 minutes ago, Admin said:

,,,wrong...!!!



Edited August 6, 2021 by Hamza
Errore

[Hamza 43]

j

[Hamza 43]

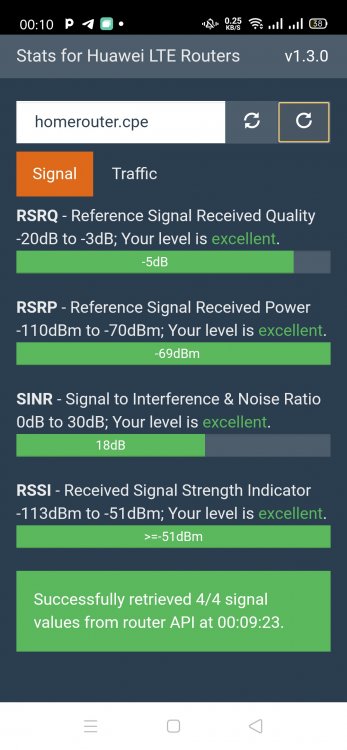

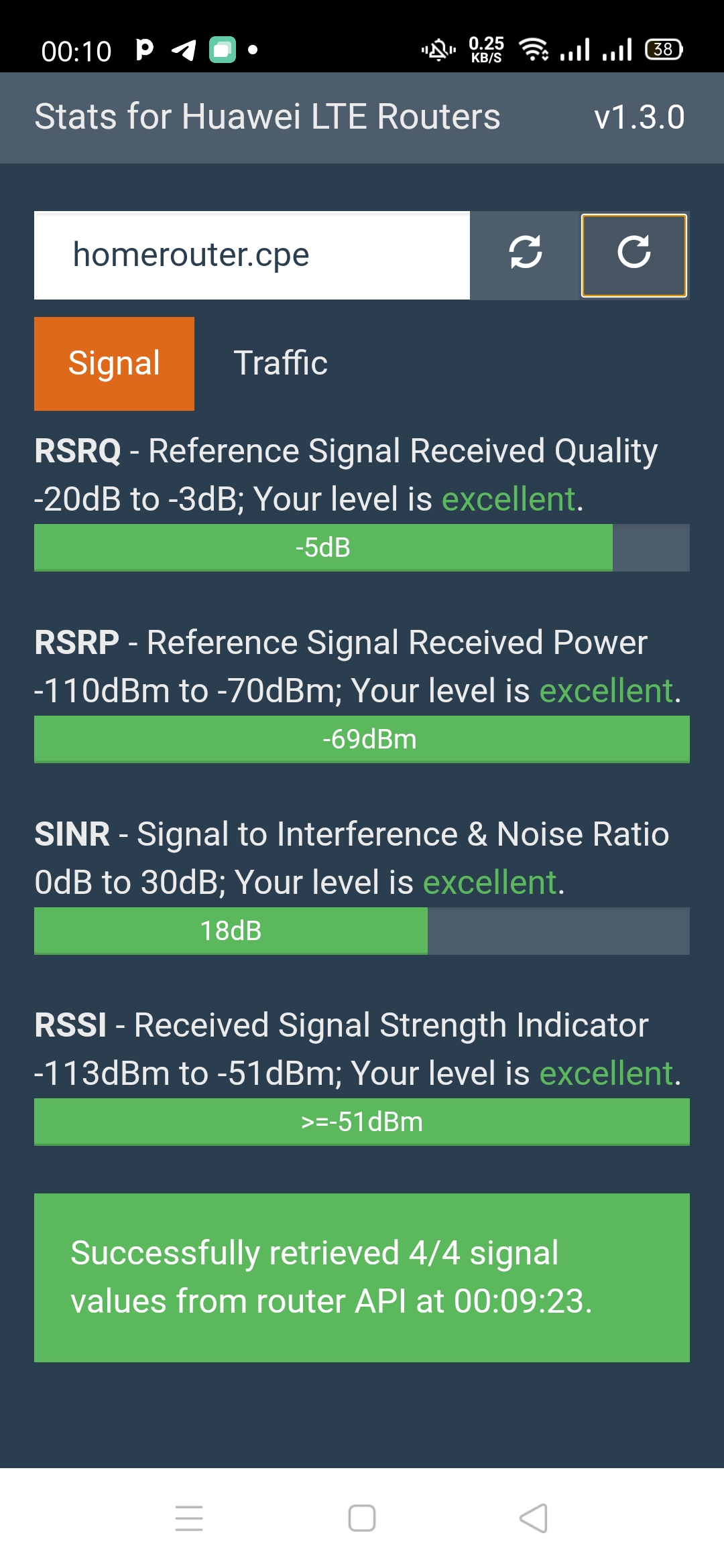

Look Jomy   I got Very excellent result  !

And where is the fault !??



[clanon 215]

2 hours ago, Hamza said:

Look Jomy   I got Very excellent result  !

And where is the fault !??



[Hamza 43]

Clanon the 2 options  are possible and mine is stronger  construction

[Hamza 43]

https://youtu.be/De99N1V_E-0

[Admin 2421]

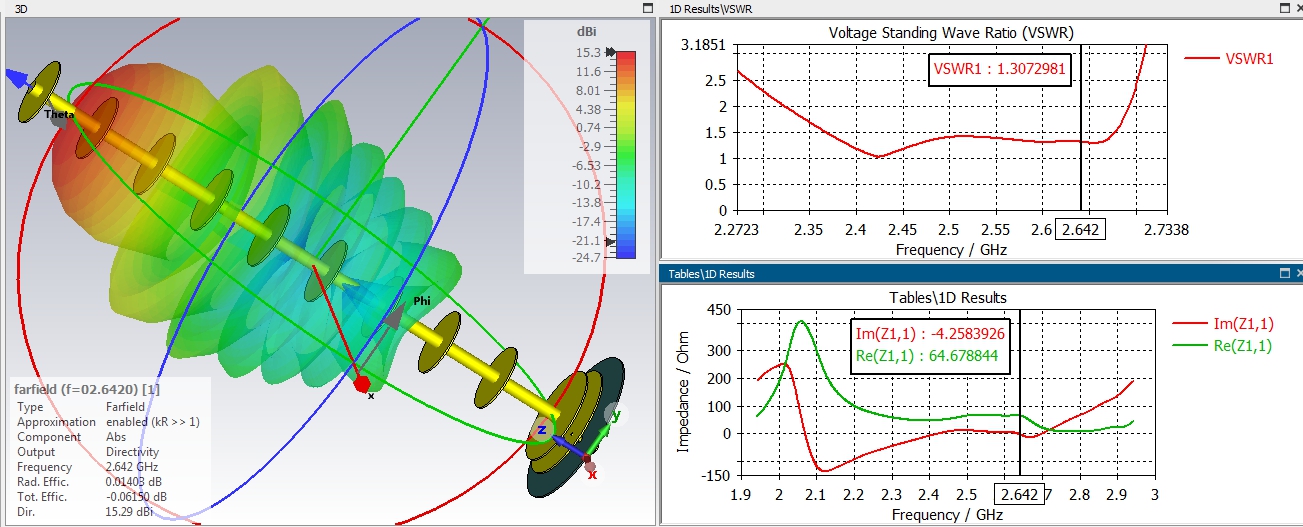

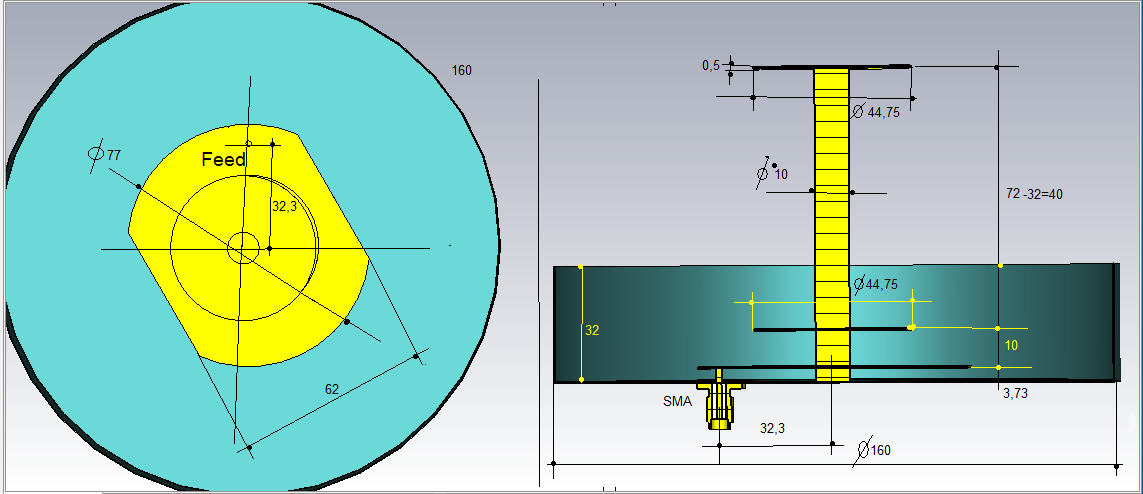

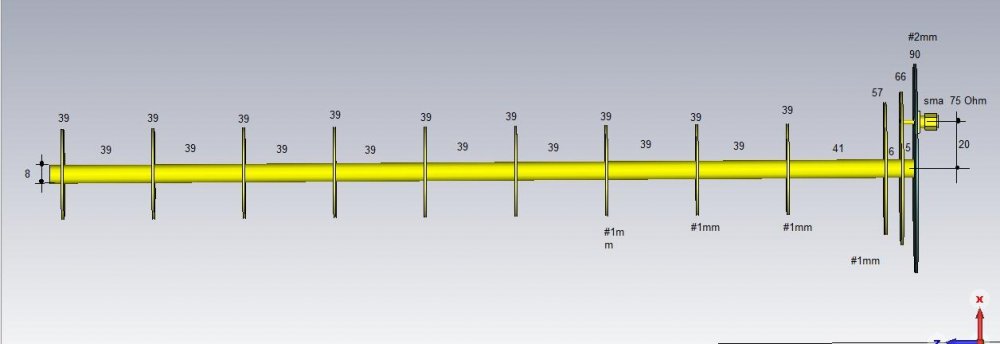

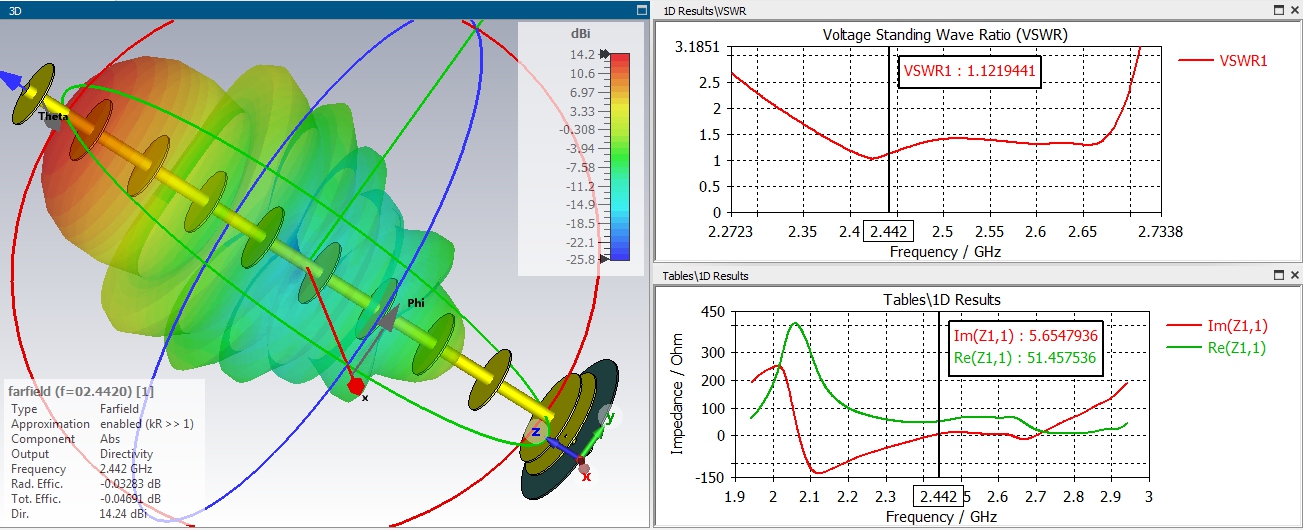

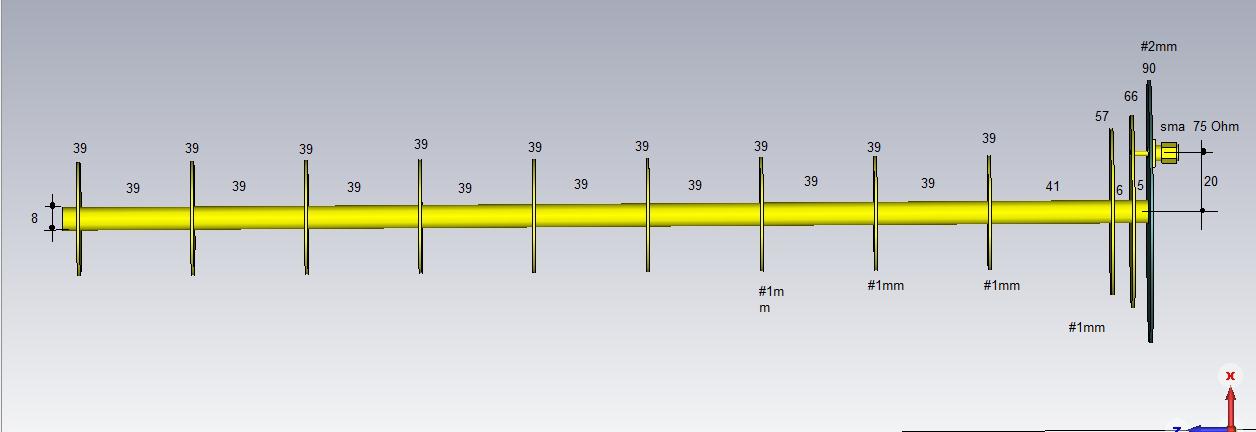

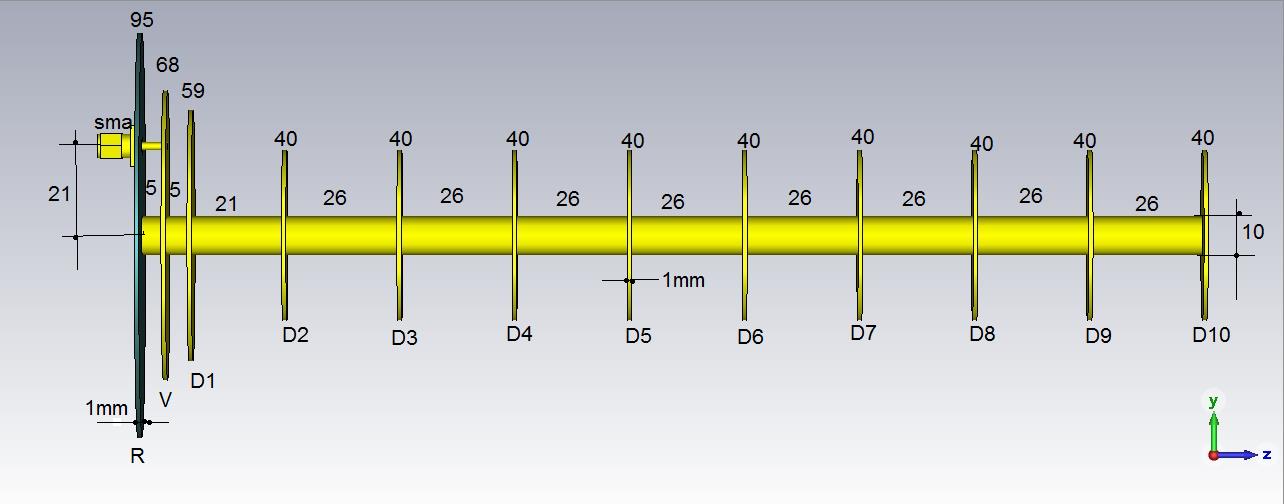

,,,a Bester Antenna  after Harry36...

[Harry36 135]

1 hour ago, Admin said:

`` Антенна Бестера после Harry36 ...

I'm glad you like my antenna.

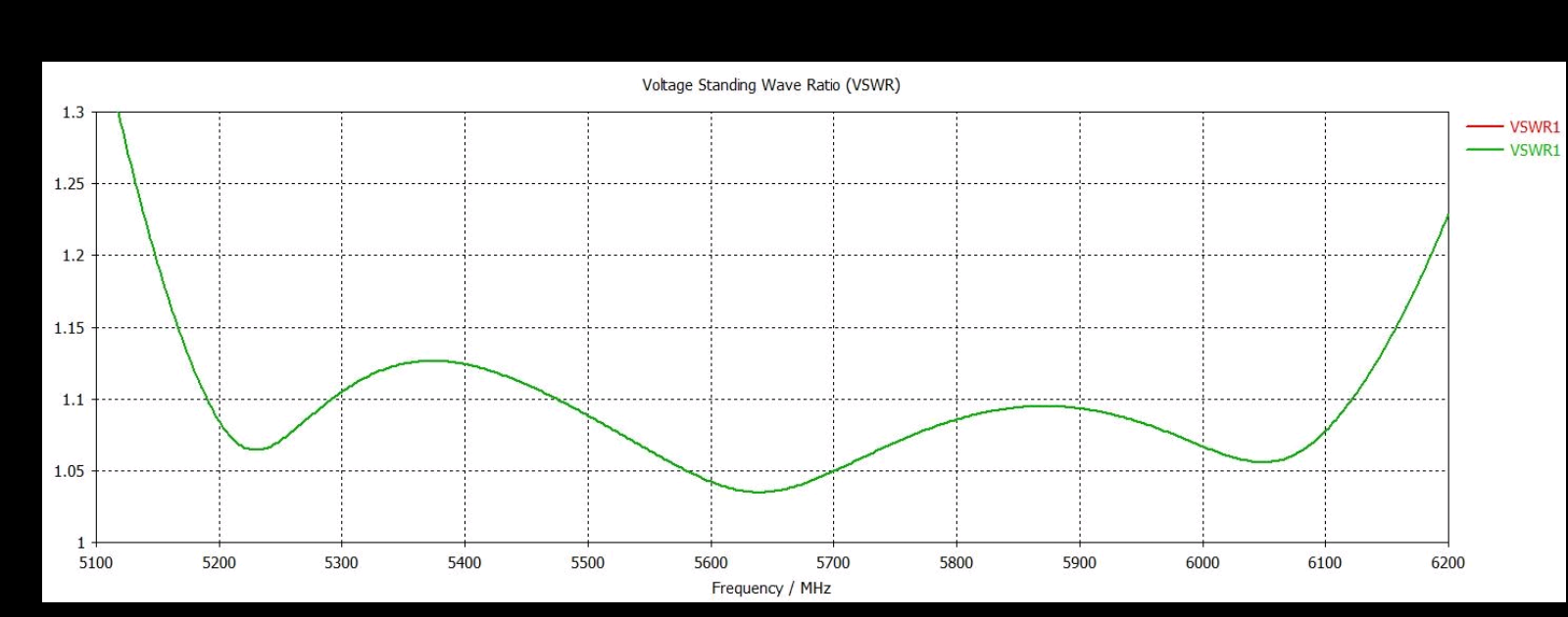

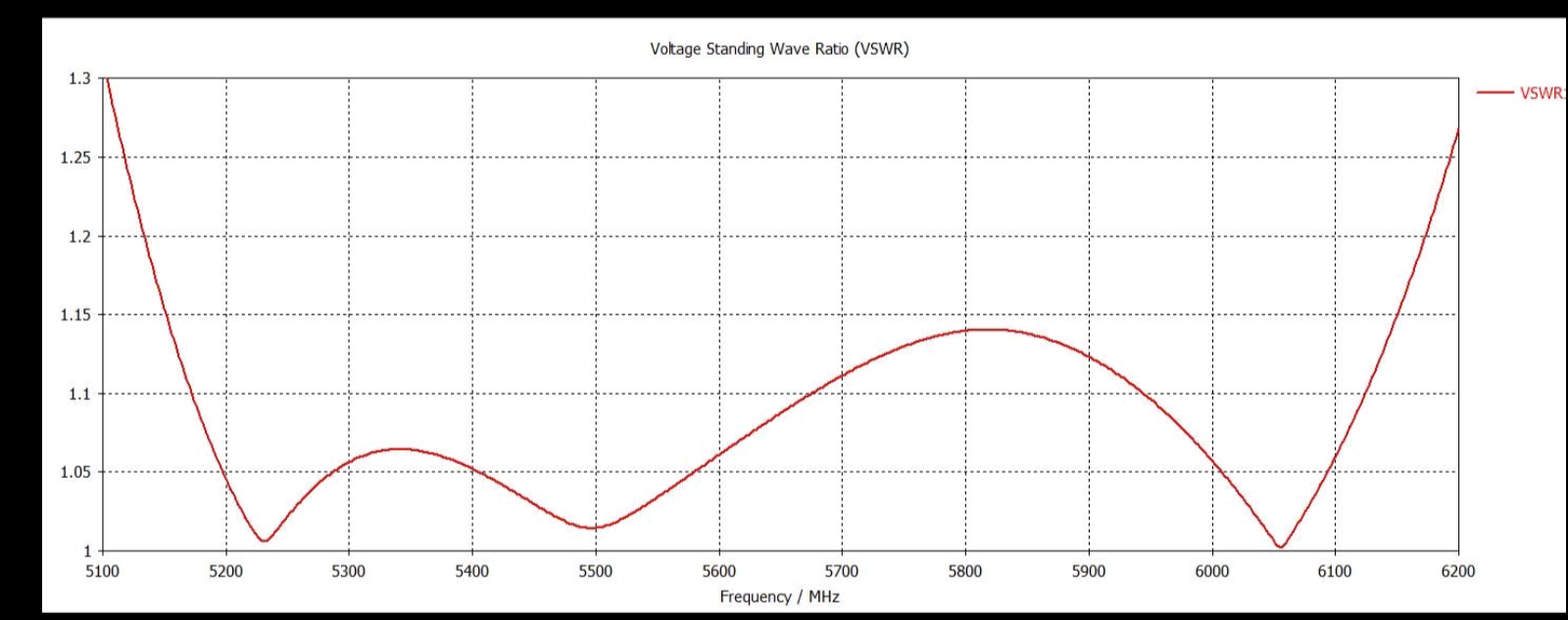

You are wrong with the choice of the disk size. Antenna SWR with optimal dimensions should not exceed 1.15

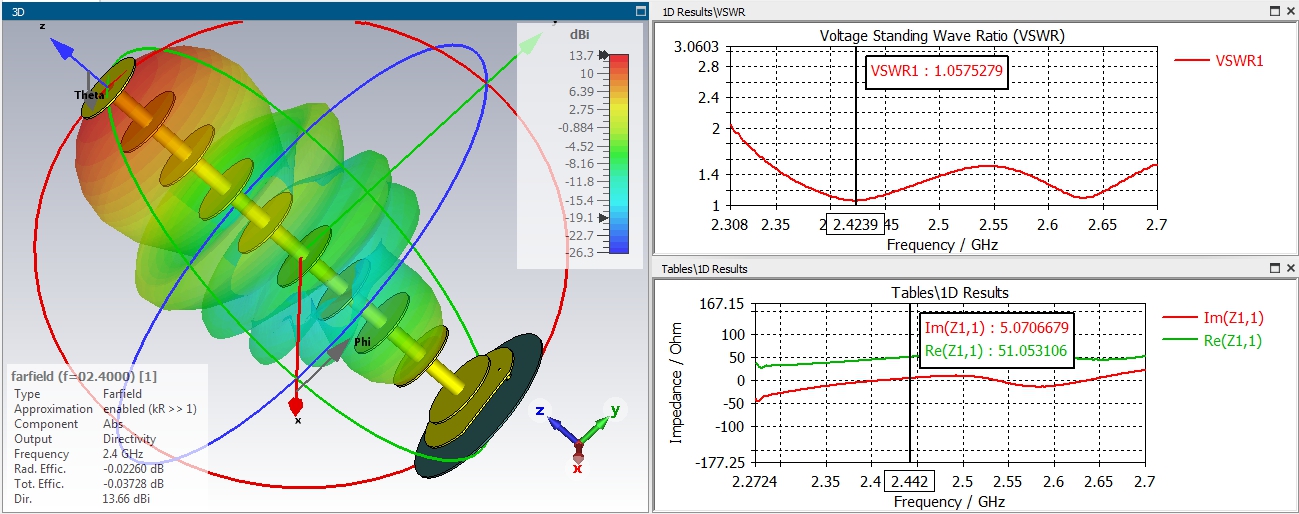

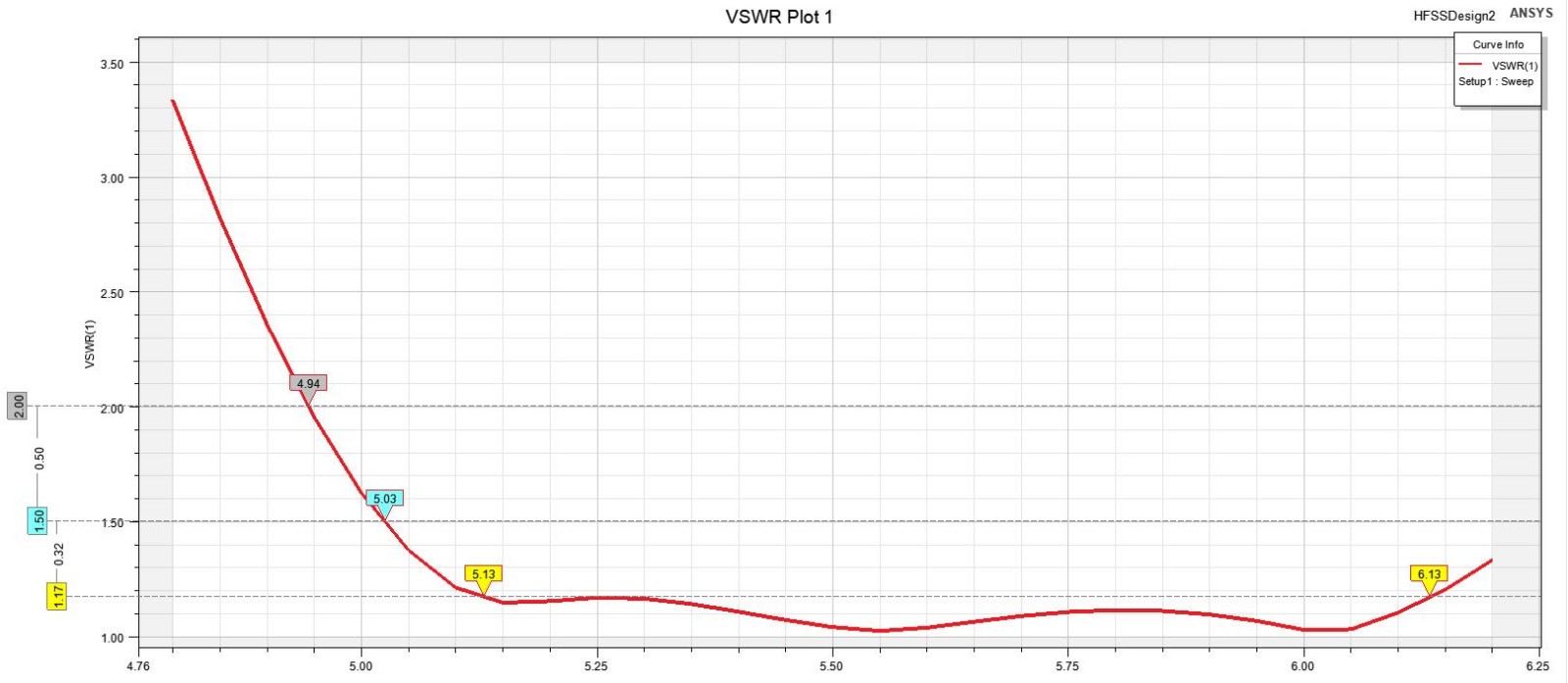

For example, here are two calculations, the first in FD and the second in TD. And in HFSS

[Admin 2421]

,,, then try to transposes this type of antenna on the frequency range 1.7-2.7 GHz...!!!

[Admin 2421]

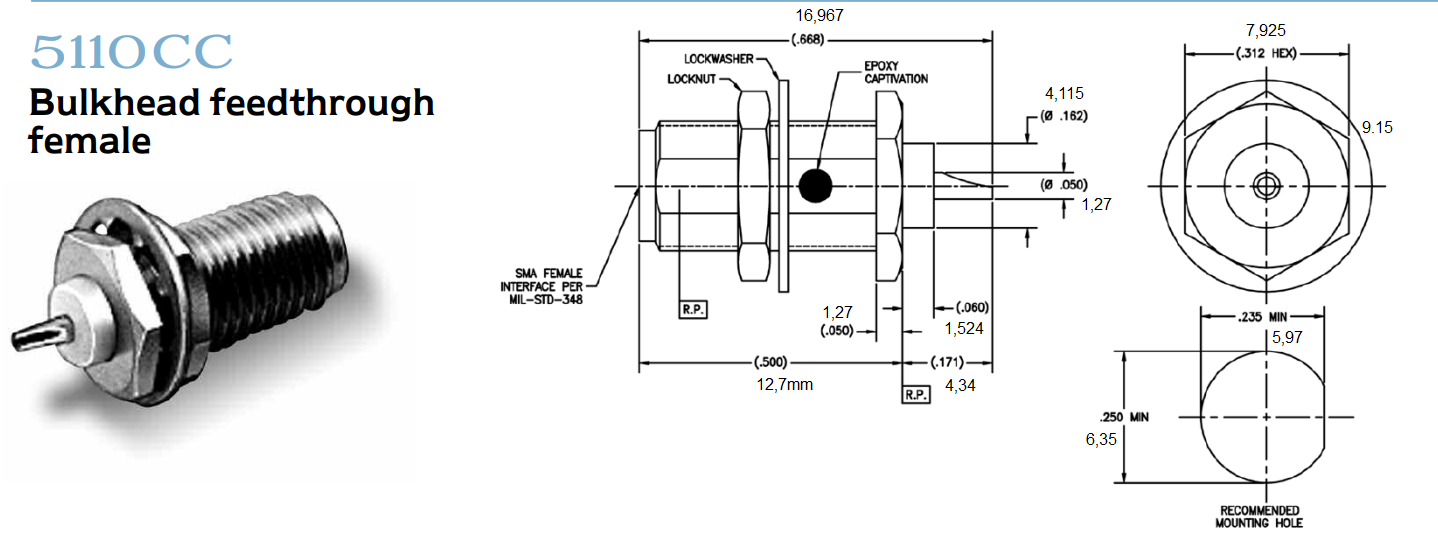

,,, with this type of connector ...

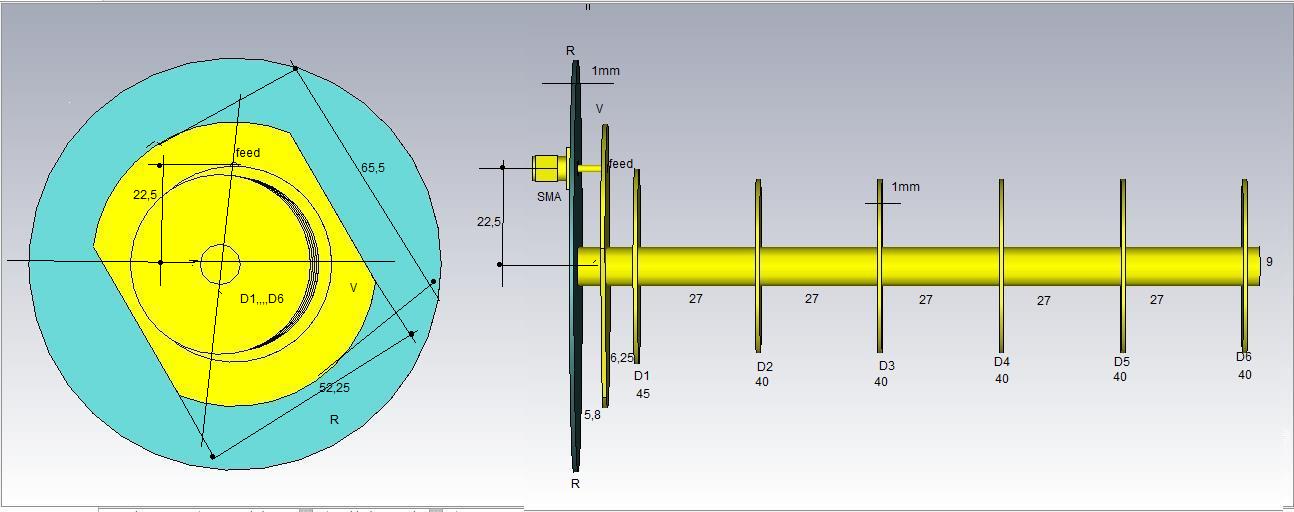

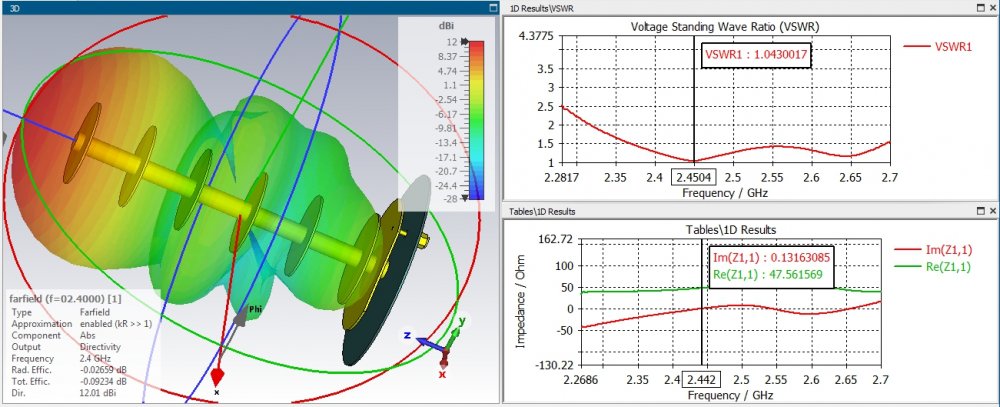

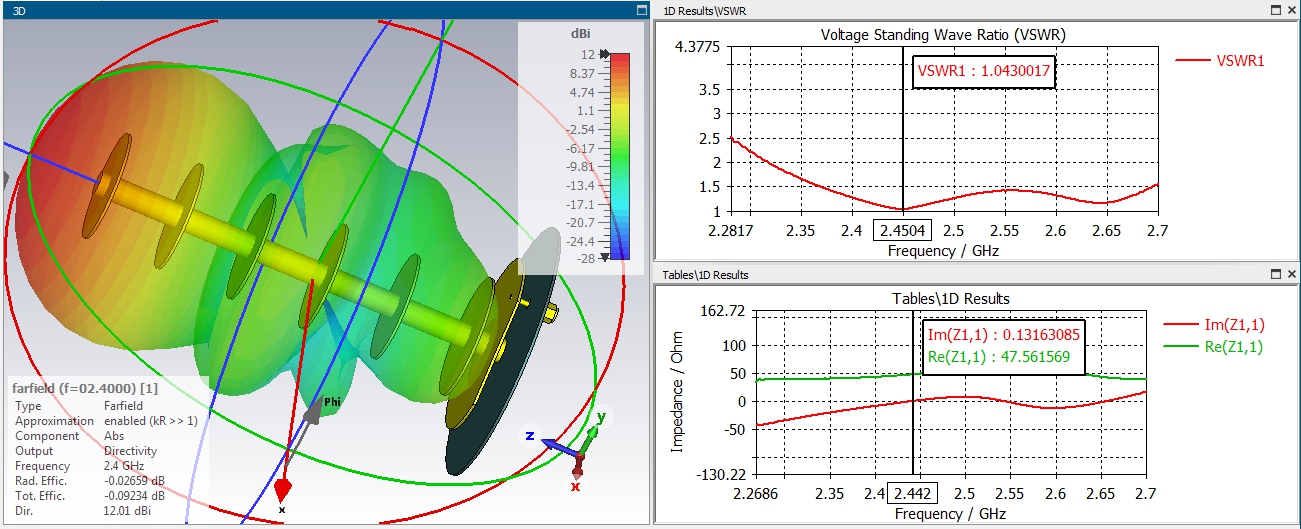

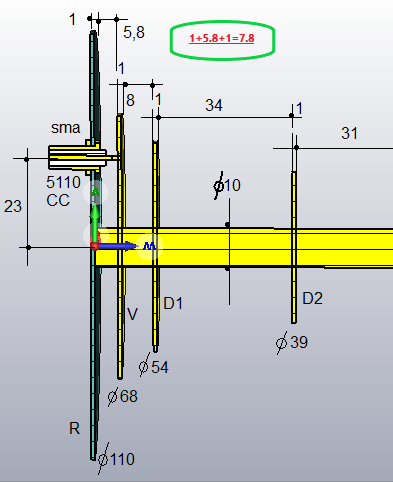

I adapted this Bester antenna....

And here is the connector file for those interested....

sma 5110CC.cst

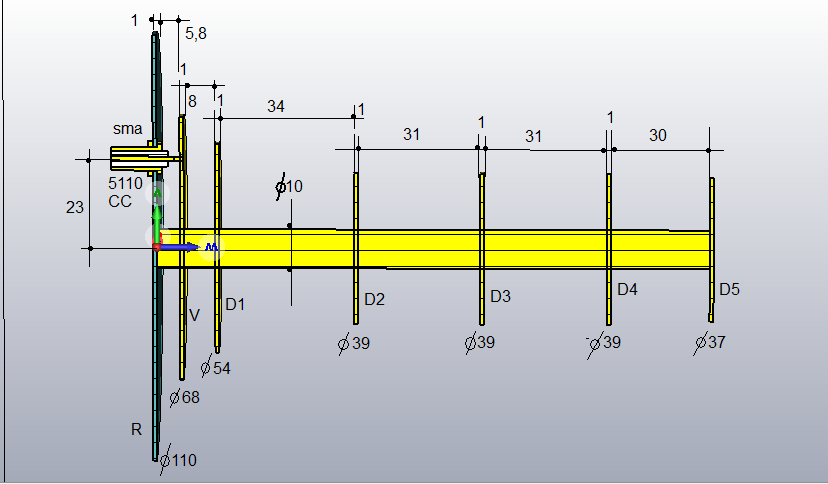

,,,and BesterM Antenna...

besterM.cst

[Harry36 135]

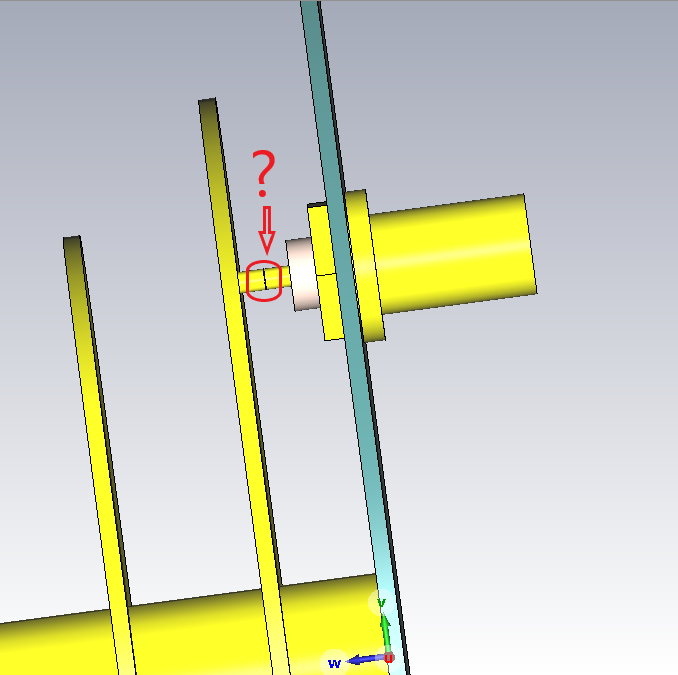

This type of connector is not suitable for the model's dimensions.



[Admin 2421]

8 minutes ago, Harry36 said:

This type of connector is not suitable for the model's dimensions.







,,, wrong, look at the calculation once again .... !!!!

[Harry36 135]

2 hours ago, Admin said:

,,, wrong, look at the calculation once again .... !!!!

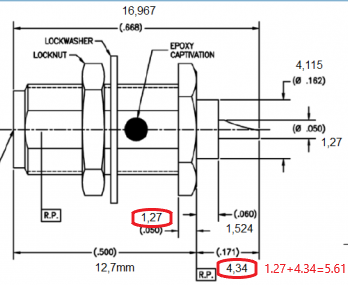

I don't need a calculator to add 3 numbers.

[Admin 2421]

,,, yes, I see that you are on the right track, I didn't understand what you meant before, why is not the suitable connector ... ?? ... !!!

[Harry36 135]

On 27.09.2021 at 8:08 AM, Admin said:

,,, yes, I see that you are on the right track, I didn't understand what you meant before, why is not the suitable connector ... ?? ... !!!

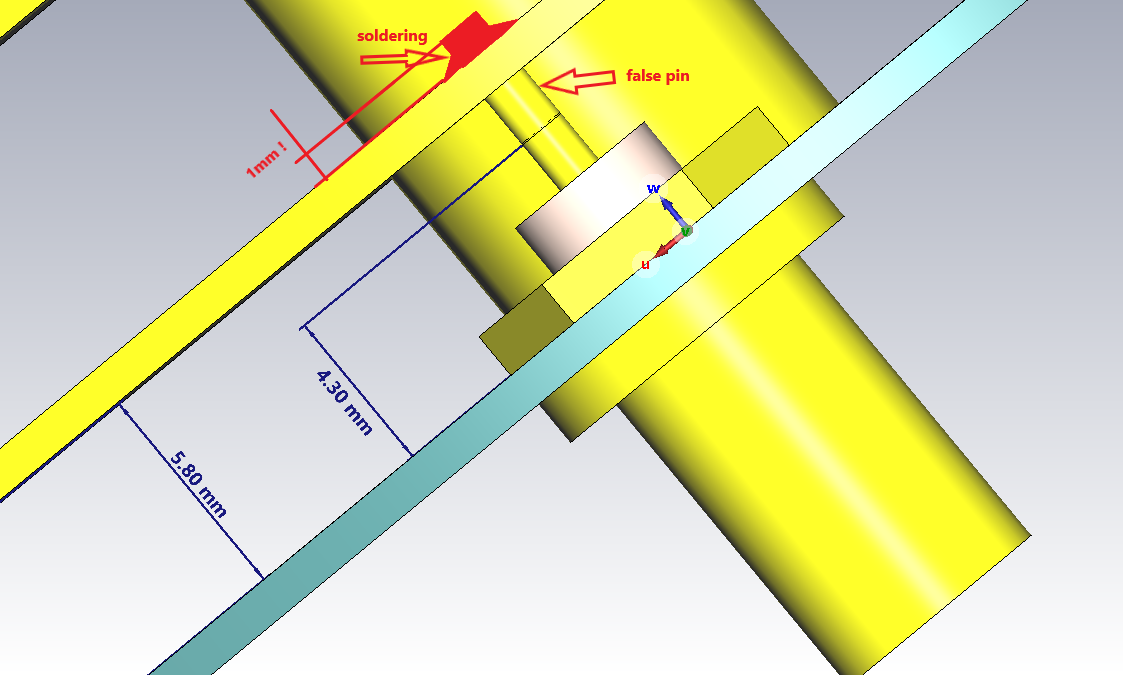

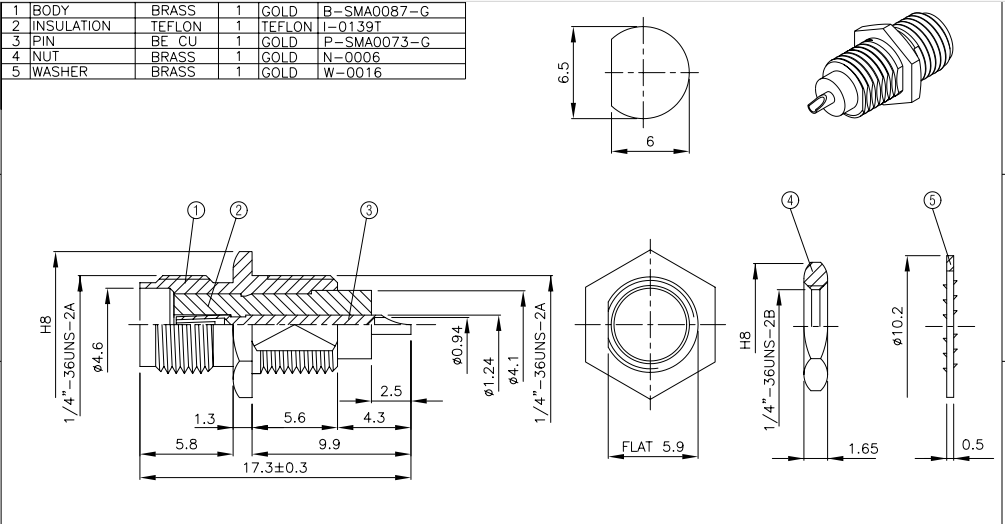

If you cut Teflon (0.6 mm) or place a washer under the back of the reflector, you can use the SMA-09V4-TGG connector.

DOC004011463.pdf

[Admin 2421]

,,,,yes, but the same can be done with my connector above...!!!

,,, okay, you can make a   * cst file with this connector...???



[Admin 2421]

,,yes, it's true, the distance between directors and the diameter of the directors, it would be best, I  think it is Lambda / Pi = 0,318*Lambda...!!!



[Admin 2421]

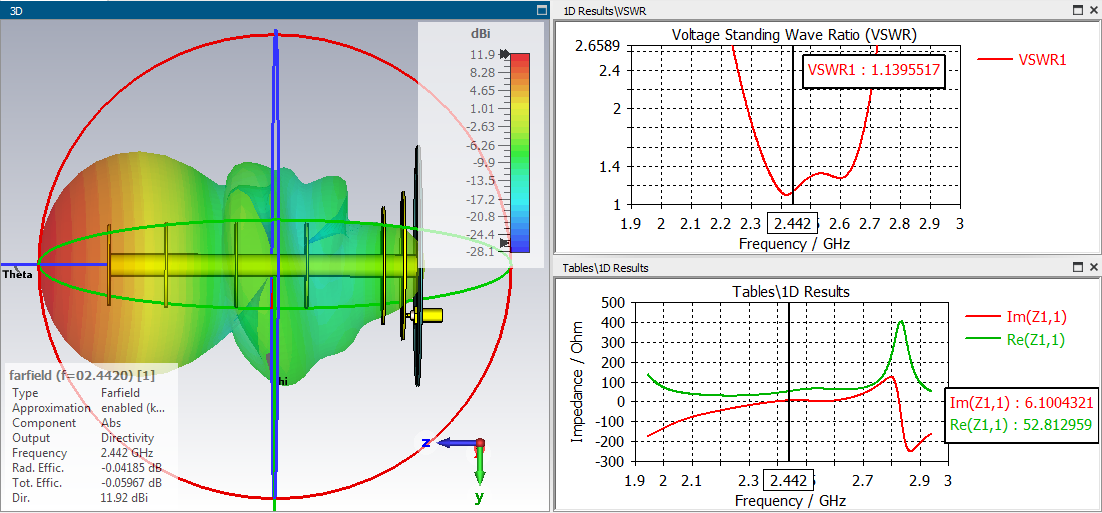

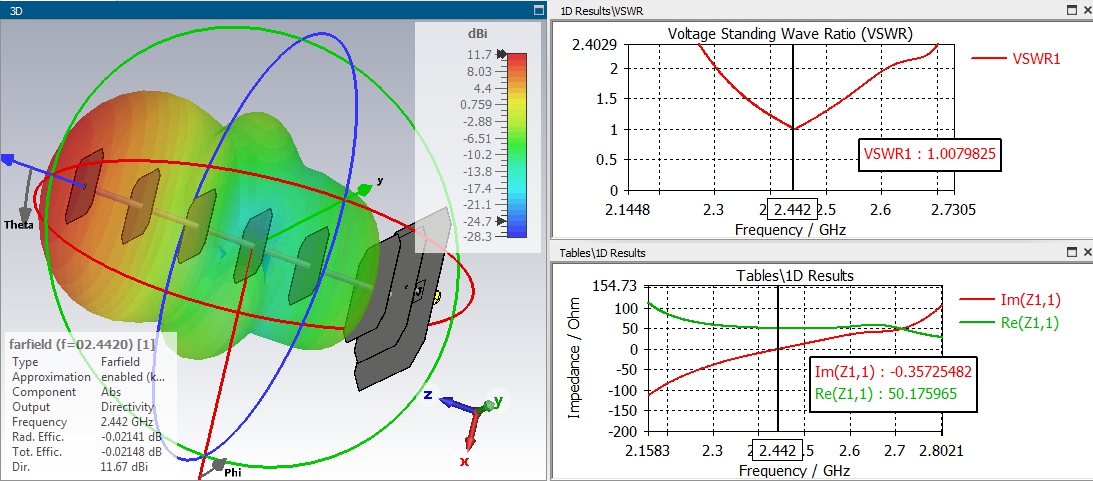

I think these Bester antenna sizes ensure a higher bandwidth

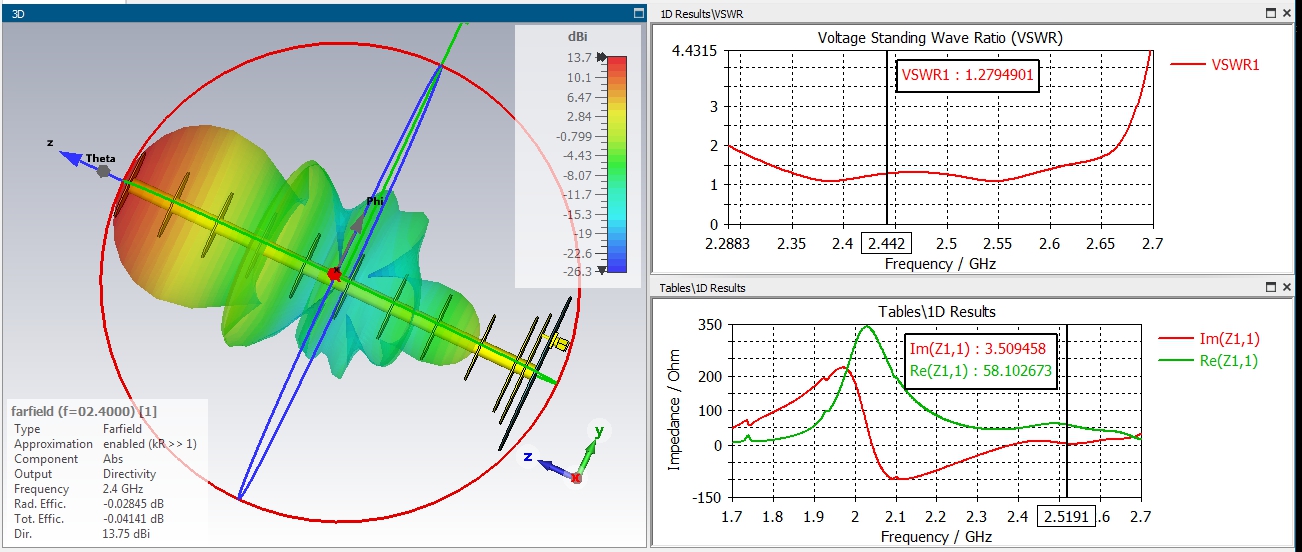

,,, or with 12 elements...

[Admin 2421]

,,,for which this antenna variant is also very good ... ???



[Admin 2421]

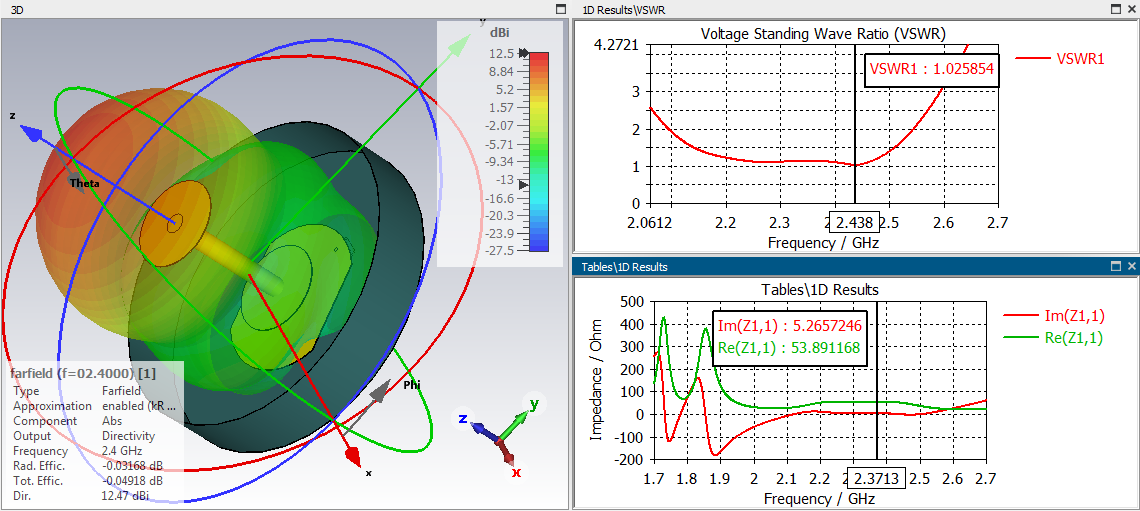

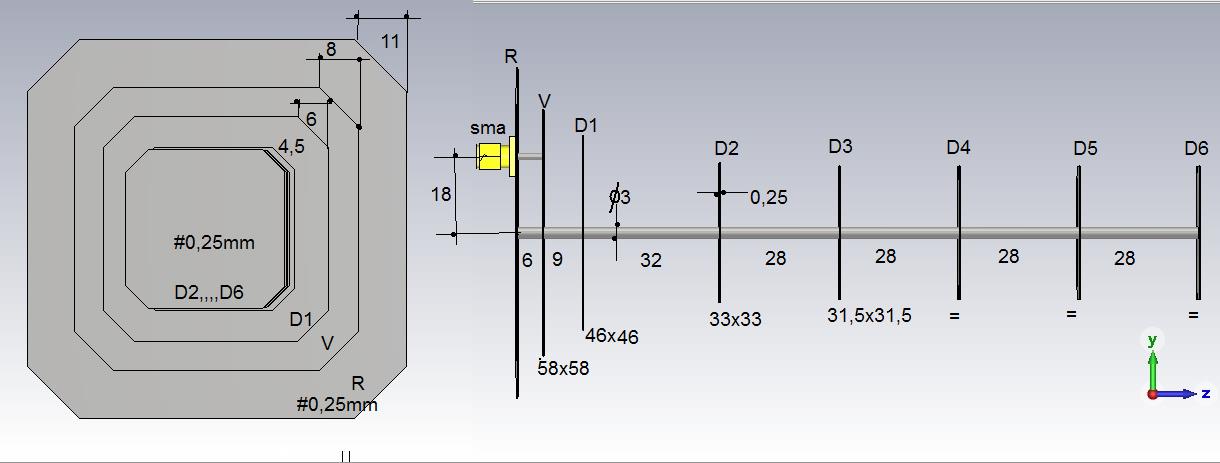

,,,an antenna with square elements cut corners...

[Admin 2421]

,,, and for the 1800MHz frequency...



1800rect-patch.cst

[Hamza 43]

nice job jomy  for 1800 mhz it will gives  good isolation for x polarisation  or  needs  to be recised ?



[Admin 2421]

On 4/17/2022 at 9:54 PM, Hamza said:

nice job jomy  for 1800 mhz it will gives  good isolation for x polarisation  or  needs  to be recised ?



,,, it might work, but the isolation between ports leaves much to be desired, it must be tried ... !!!
