Bester Antenna

118 posts in this topic

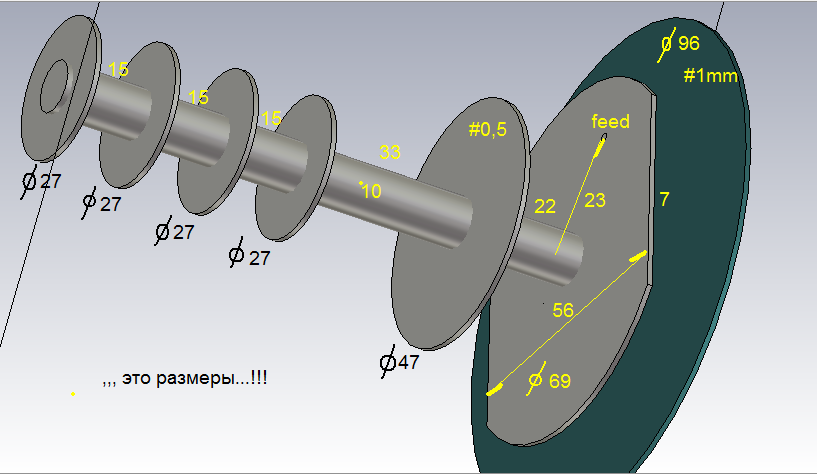

,,, so do you want ... ???


2 people like this

Share this post


Link to post
Share on other sites

Nice Great job , first time I see this design I mean other design jomy  with higher gain I ll try to find it

Share this post


Link to post
Share on other sites

Posted (edited)

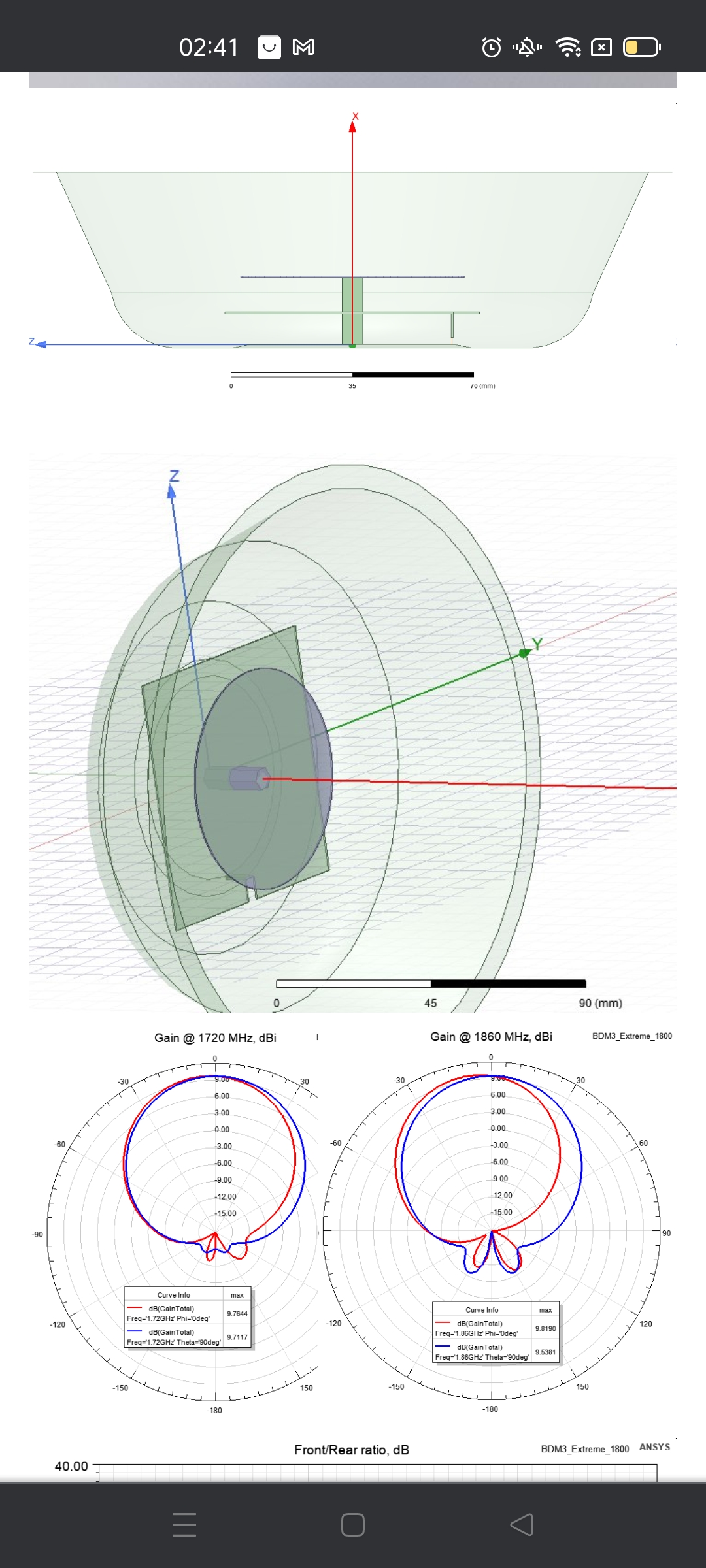

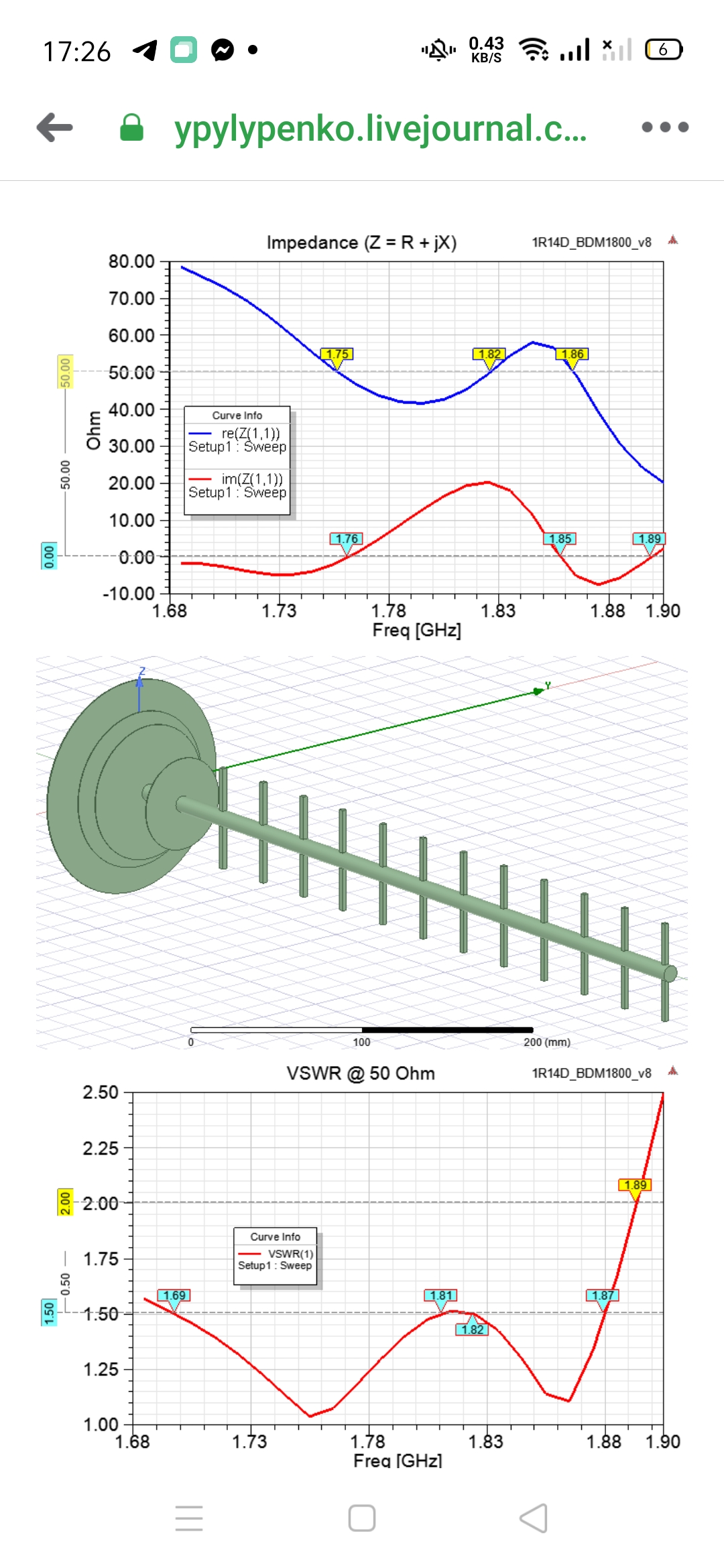

The  reflecter (130mm) DV (95mm) .first Direct ( 82mm)   2nd directer 56mm diameter and  ( 0- 7-8-39) of spacing like in BDM 2 1800 but the other directors are made of wire preferably with dielectric Boom if you can do optimisation in SISo system. Thanks by advance.

Edited by Hamza
1800

Share this post


Link to post
Share on other sites

Posted (edited)

On 5/15/2019 at 8:44 PM, Admin said:

More gain;

Improved radiation pattern;

More stable operating parameters;

Greater reliability;

Superior mechanical characteristics.

Is miniaturized.








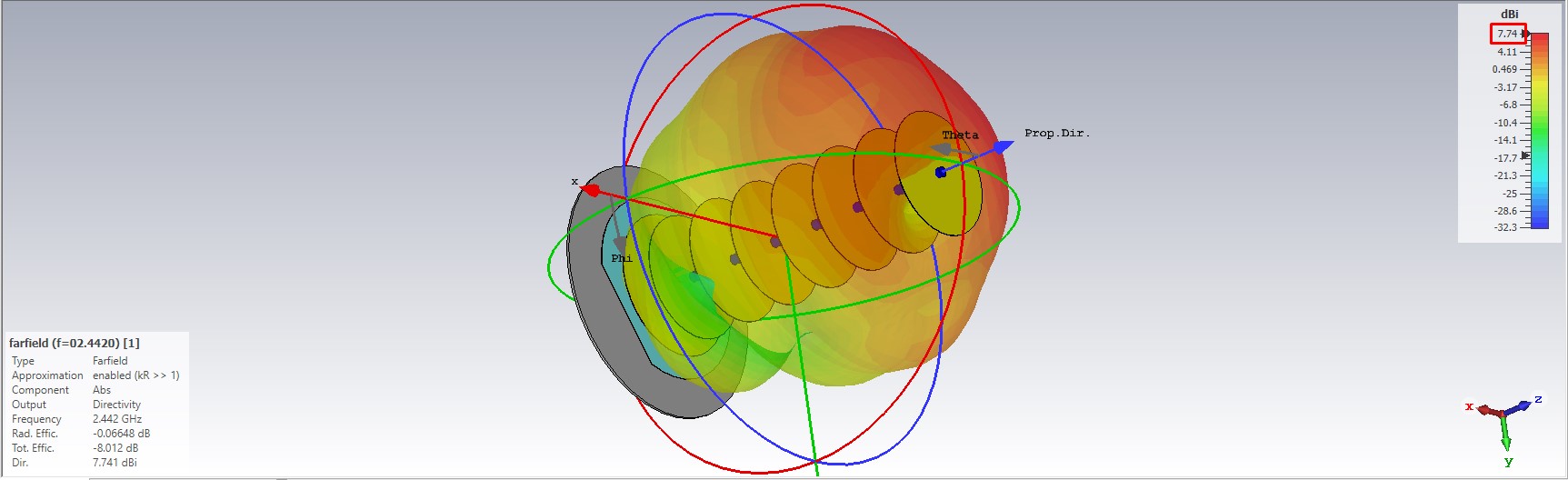

i try draw just got 7,7 dbi. i use copper disc and steel bolt.

can you corret me dude?


Edited by shosu.dsan@gmail.com
1 person likes this

Share this post


Link to post
Share on other sites

sorry we talk about 1800 BDM2 SISO  with wire directors ?!!!!!!!!!!!!! your model is already existed and discussed in the forum search well

Share this post


Link to post
Share on other sites
1 hour ago, shosu.dsan@gmail.com said:



i try draw just got 7,7 dbi. i use copper disc and steel bolt.

can you corret me dude?

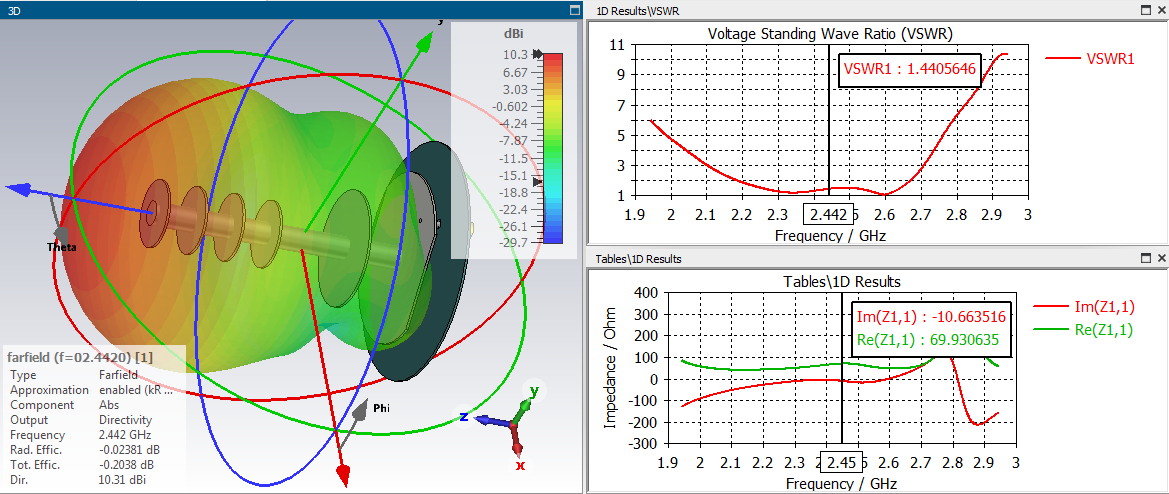

the deformations are caused by the bar (rod) in the middle...using REAL METALS instead of PEC would give less gain and  efficiency



1 person likes this

Share this post


Link to post
Share on other sites
On 30/11/2016 at 23:18, Admin said:

 Một ăng-ten 3G Bester ở tiêu điểm của phần bù parabol ...



3G ??????????.jpg






Share this post


Link to post
Share on other sites

Posted (edited)

On 5/7/2019 at 11:07 AM, Admin said:

,,,for this antenna, if there is put two directors again, you get a good one...!!!


Hi
What does happen if we isolate all discs from central rod (so isolate all from each other)? does it cause to increase gain or not?

Edited by bigbomber

Share this post


Link to post
Share on other sites
11 hours ago, bigbomber said:

Hi
What does happen if we isolate all discs from central rod (so isolate all from each other)? does it cause to increase gain or not?

,,,it happens that the gain increases a little but it is about the protection against electric discharges...!!!!

2 people like this

Share this post


Link to post
Share on other sites

on "THESE" getting more than 15dbi means using close to 20 directors...and EVEN then gain of yagis kinda HIT a maximum...maybe 16-17 dbi (Reflector AREA increase GAIN more than adding Directors) Use the BIGGER you can...imho

Share this post


Link to post
Share on other sites

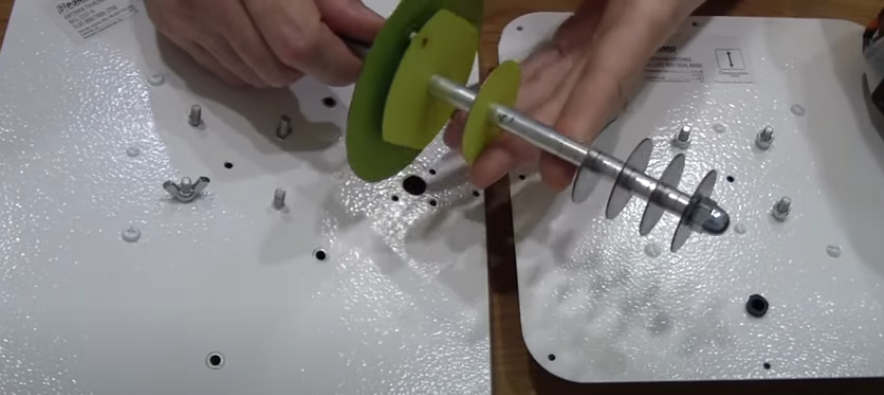

,,, a constructive variant of the user "com666" ... !!!




1 person likes this

Share this post


Link to post
Share on other sites
On 3/11/2019 at 10:25 PM, Admin said:

Диапазон LTE 2600 МГц.

4G antenna-LTE-абонентское устройство для улучшения приема сигналов операторами беспроводной передачи данных, работающими в 4G (LTE 2500-2700 МГц).



Приветствую тебя, джоми. У нас был такой спор о том, какую антенну лучше сделать, алюминиевую или медную. Я хотел бы знать ваше мнение!

Greetings, jomi. We had such a dispute about which antenna is better to make, aluminum or copper. I would like to know your opinion!

Share this post


Link to post
Share on other sites

I think the galvanized sheet is the best...!!!!

Share this post


Link to post
Share on other sites
20 hours ago, Admin said:

Я думаю, что оцинкованный лист-это самое лучшее...!!!!

ok

Share this post


Link to post
Share on other sites

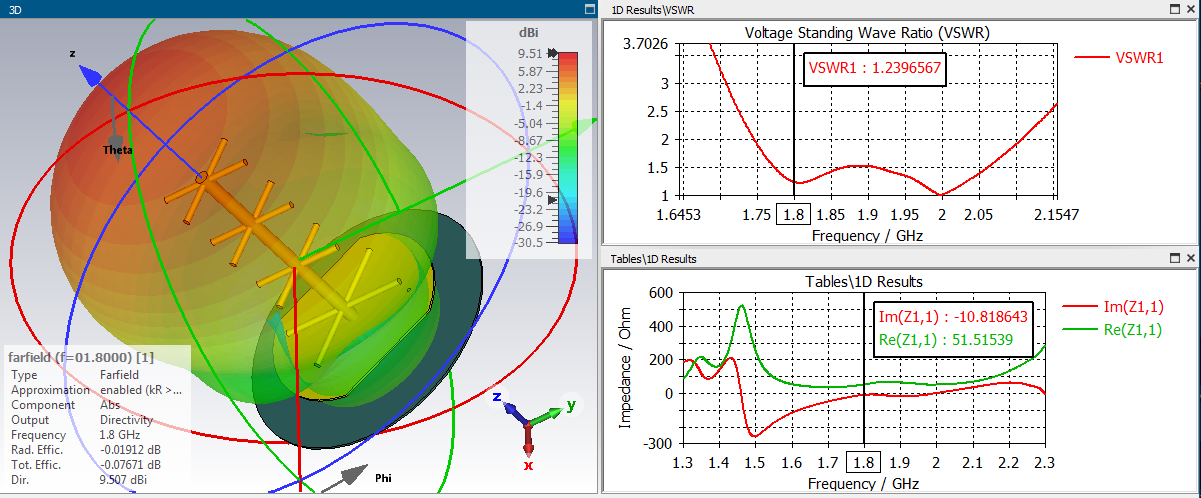

,,, maybe so ...


2 people like this

Share this post


Link to post
Share on other sites
On 7/16/2021 at 4:47 PM, Hamza said:



On 7/16/2021 at 4:47 PM, Hamza said:






Share this post


Link to post
Share on other sites
On 12/1/2016 at 0:18 AM, Admin said:

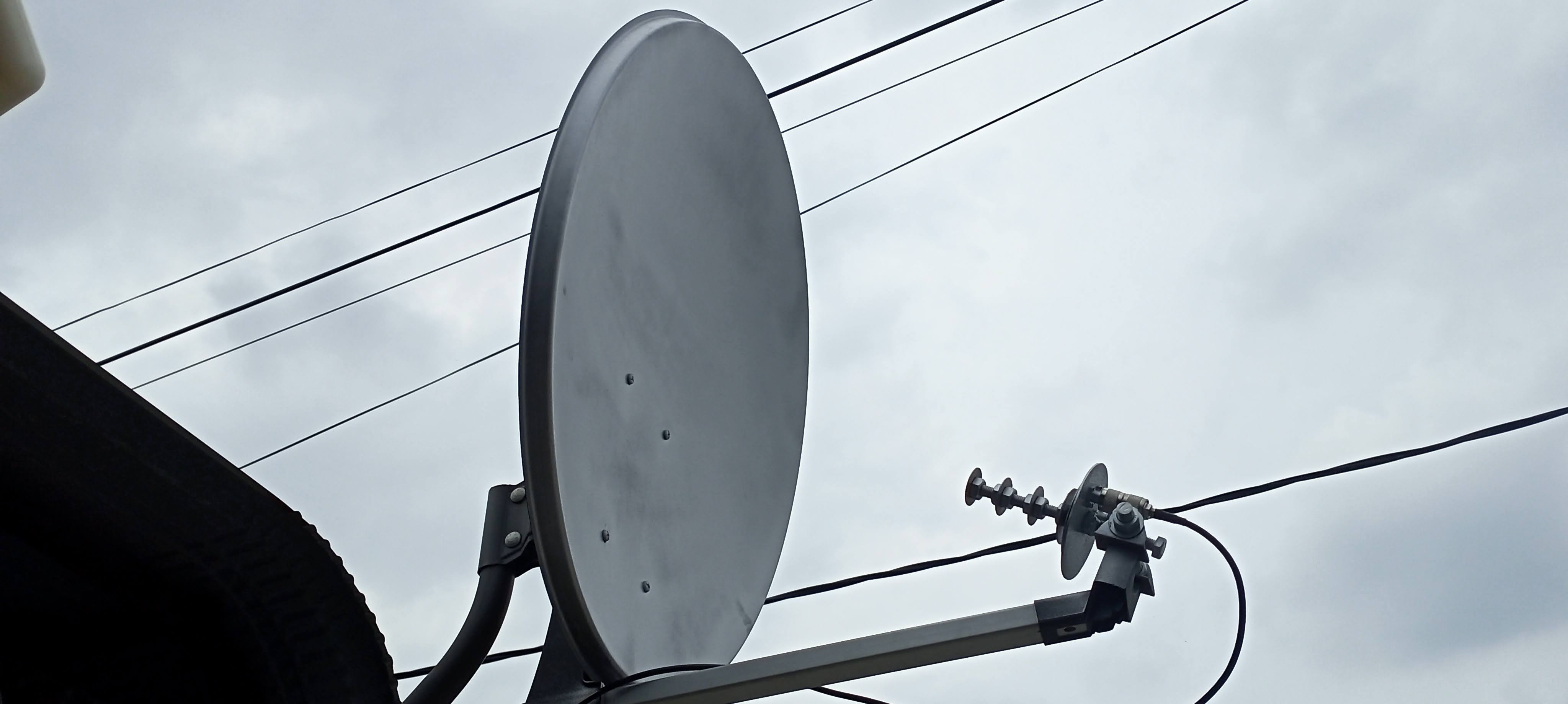

 A 3G antenna Bester in the focus of a parabola offset...



3G ??????????.jpg

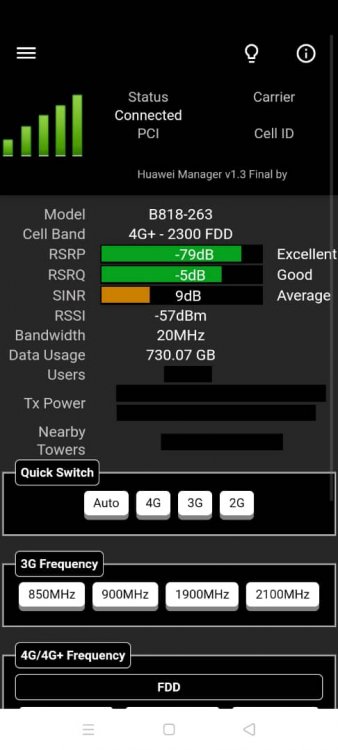

It work in 4g lte+ 2300 mhz ???

I have trying this antenna in 2100 mhz... look good

but if I resizing gap is that any changes will be ? to get 2300 mhz?

Share this post


Link to post
Share on other sites

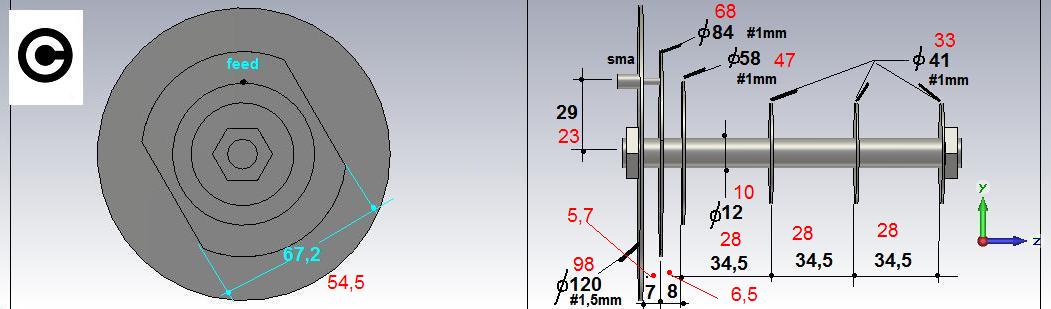

,,, these are the dimensions(in Red) for 2.3 GHz...


Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

,,, these are the dimensions(in Red) for 2.3 GHz...


Thanks...

I will update the result later

Share this post


Link to post
Share on other sites

Posted (edited)

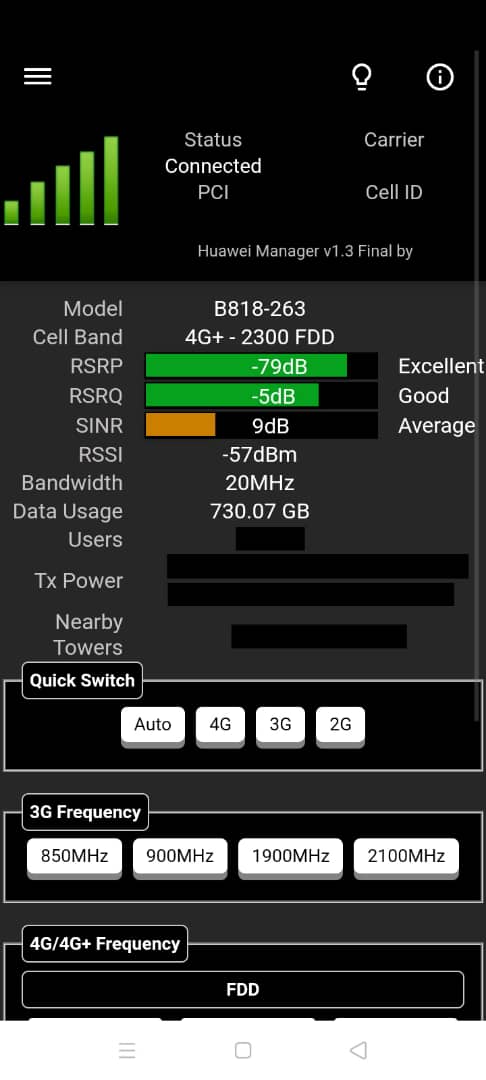

thank you for the advice.... the 2.3 GHz antenna is working good



Edited by khaiamin

Share this post


Link to post
Share on other sites

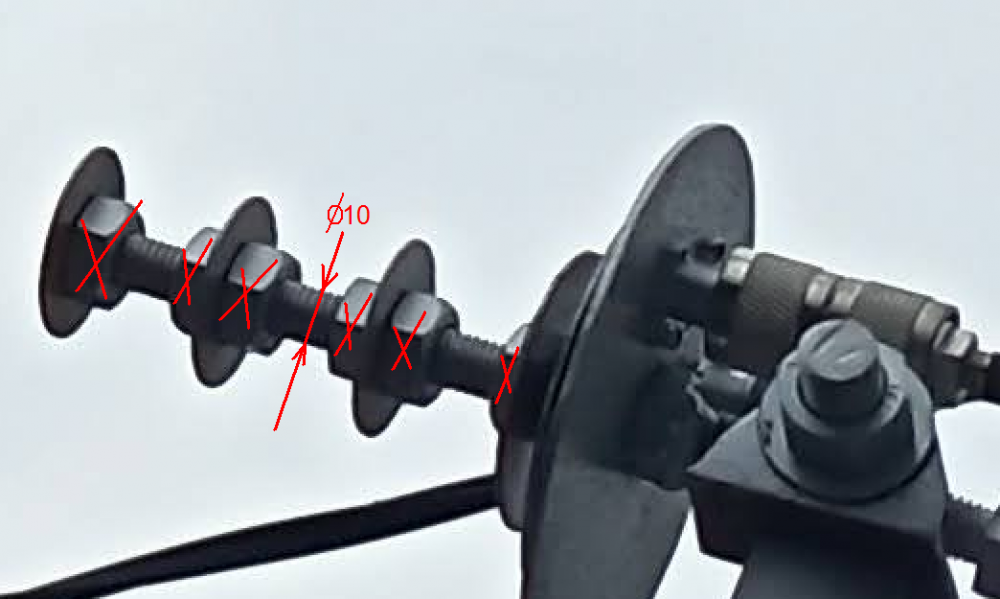

,,, give up the nuts and put spacers from the 10mm diameter pipe and M8 screw inside...!!!




1 person likes this

Share this post


Link to post
Share on other sites

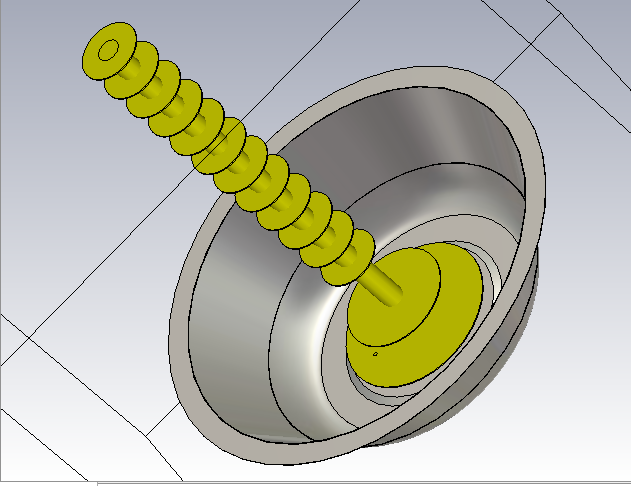

Put it inside bucket horn it works well ( I m HAMZA)

I put it inside bucket horn  it works so well.

Share this post


Link to post
Share on other sites
12 hours ago, Hamza said:

Put it inside bucket horn it works well ( I m HAMZA)

I put it inside bucket horn  it works so well.







1 person likes this

Share this post


Link to post
Share on other sites
