Bester Antenna

[DavidER 2]

23 минуты назад, Администратор сказал:

,,,да...!!!

2 антенны вместе? Или 1?

[Admin 2628]

,,,try as you like...I think two is better...!!!

[DavidER 2]

06.08.2024 в 15:48, Администратор сказал:

,,,испытайте как хотите...Я думаю, два лучше...!!!

What is the best way to position 2 antennas? Vertical, horizontal?

[Admin 2628]

,,,one antenna with horizontal polarization and the other with vertical polarization...!!!

[DavidER 2]

On 05.08.2024 at 16:12, Admin said:

ДэвидЭР,

,,,эта антенна Bester только для 50 Ом, для 75 Ом нужны другие размеры для питания...!!!

Is it possible to simulate a 75 ohm antenna?

[Admin 2628]

,,, yes it is possible, I told you before...!!!

[DavidER 2]

13 minutes ago, Admin said:

,,, да это возможно, я же говорил тебе раньше...!!!

Fine. Will the drawing be ready?

[Admin 2628]

,,,maybe later...!!!

[DavidER 2]

Where is the horizontal and vertical polarization to place 2 antennas?

[Admin 2628]

110---143mm

[DavidER 2]

Have you modeled a 75 ohm antenna?

[Admin 2628]

1 minute ago, DavidER said:

Have you modeled a 75 ohm antenna?

,,, may I try today ... !!!

[Admin 2628]

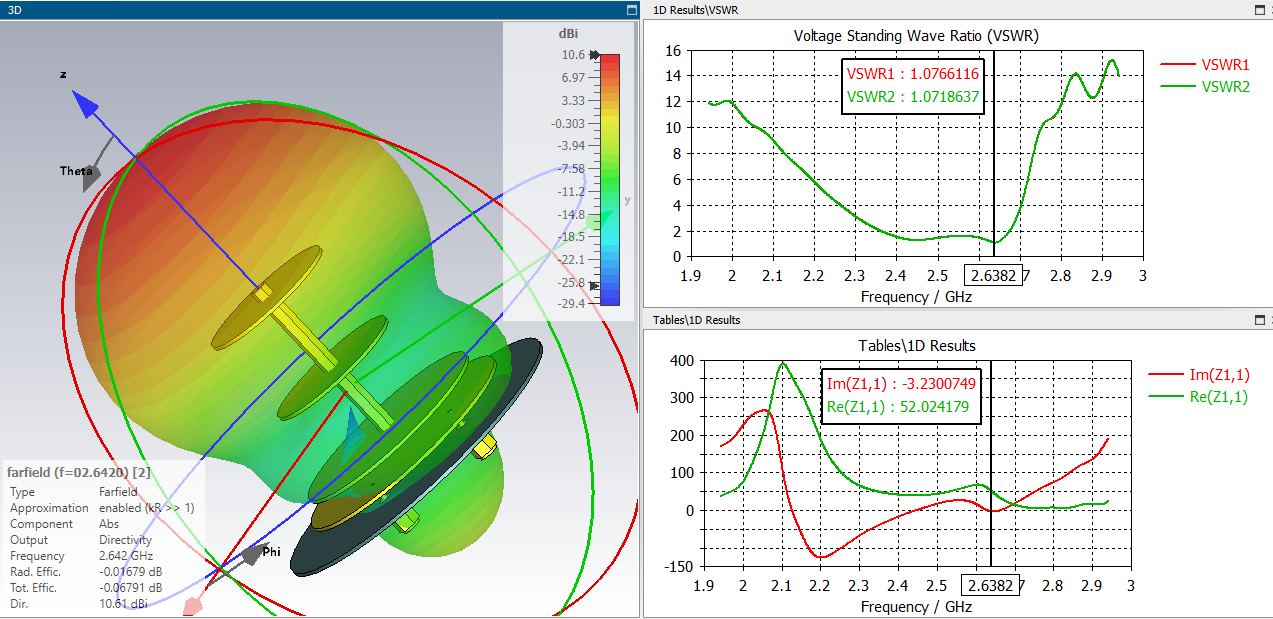

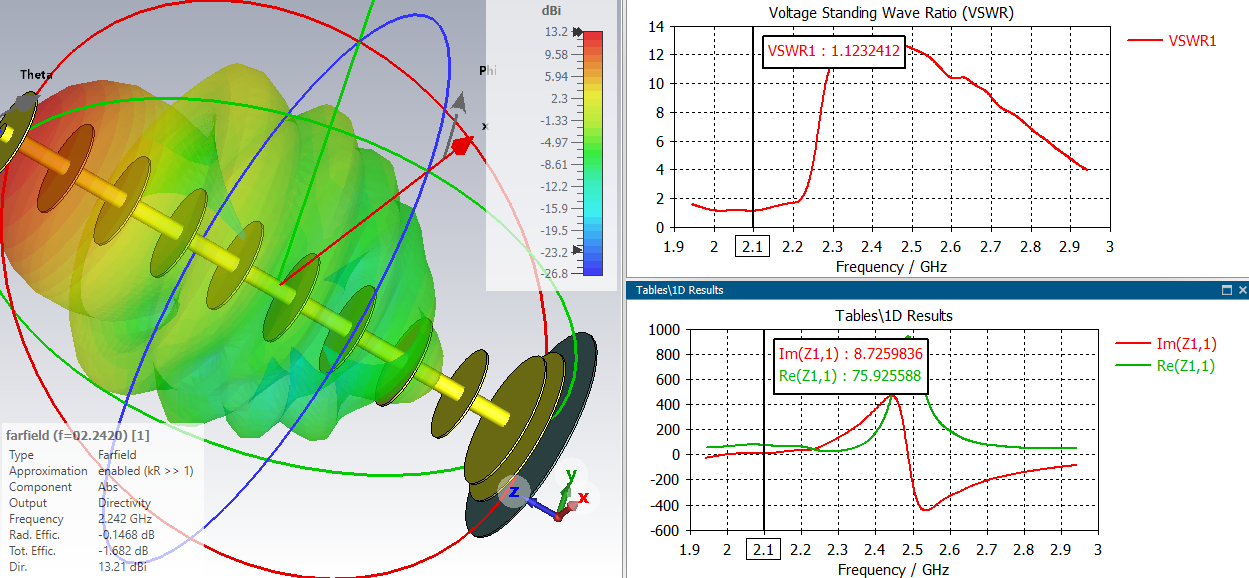

DavidER,finally, I managed to complete this antenna,.with 75 0hm impedance(1,95---2,2 GHz)...

[Admin 2628]

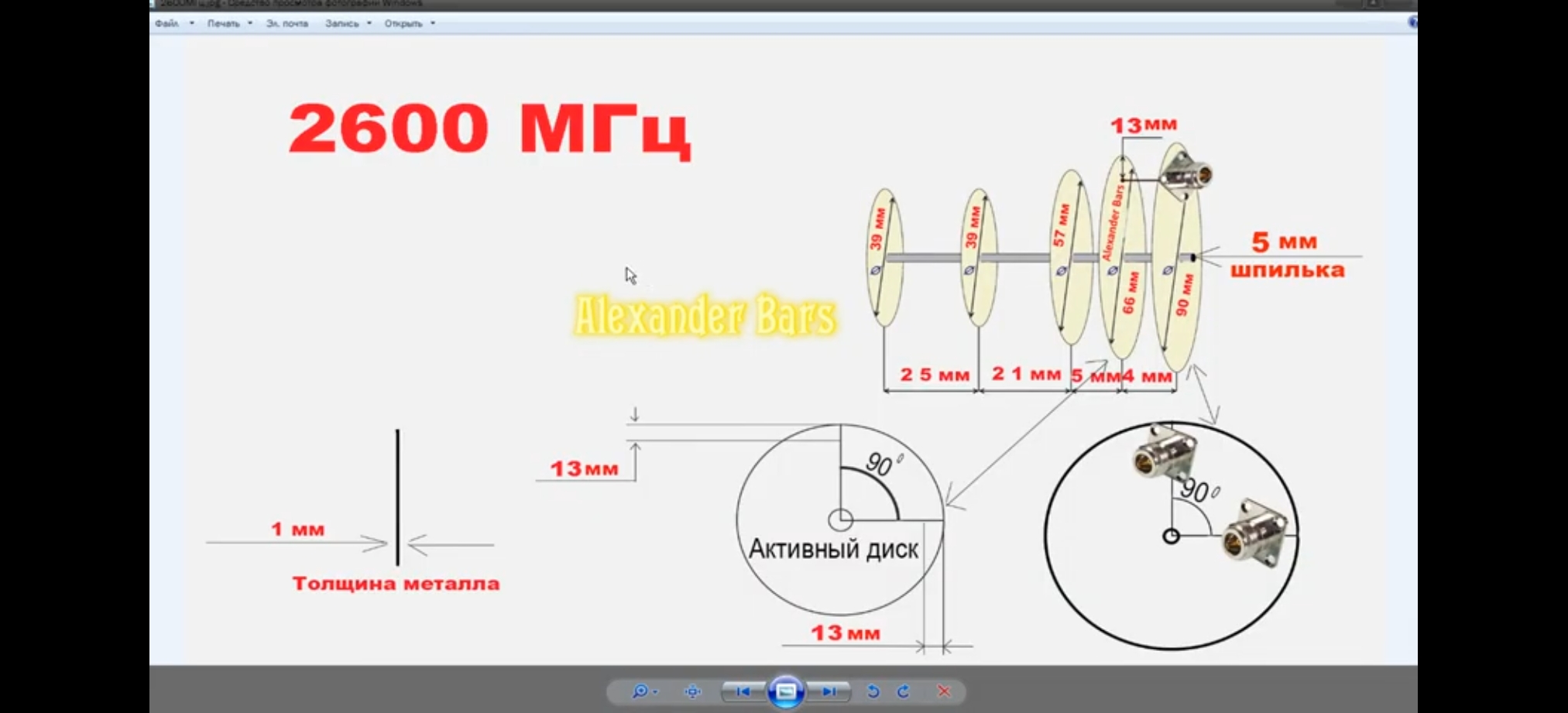

,,, another version of Bester Antenna by Alexander Bars....

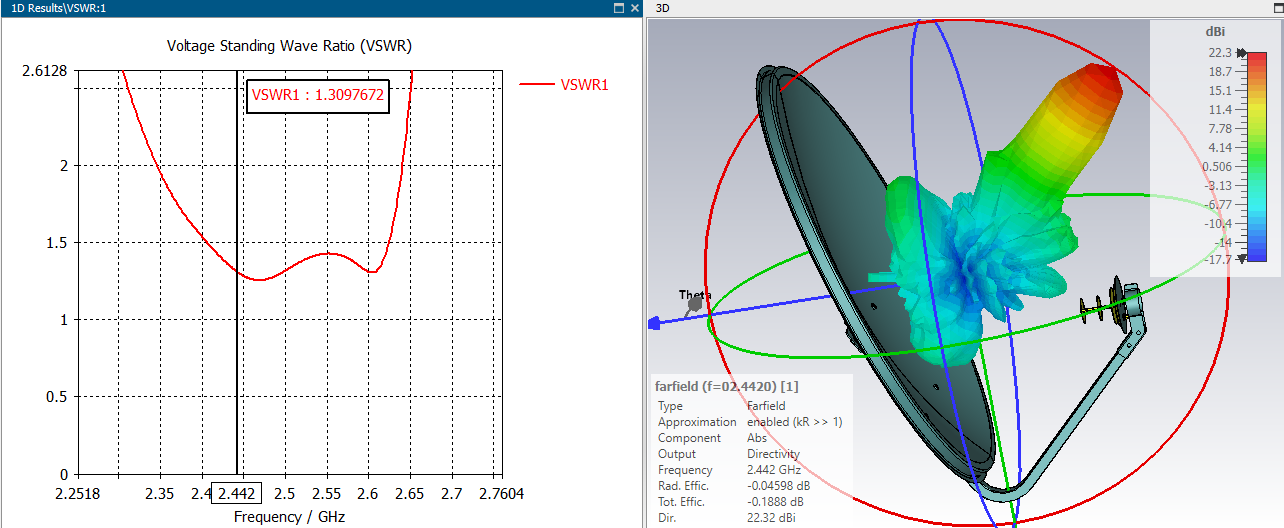

and positioning this antenna in the focus of an offset parabolic dish

[Admin 2628]

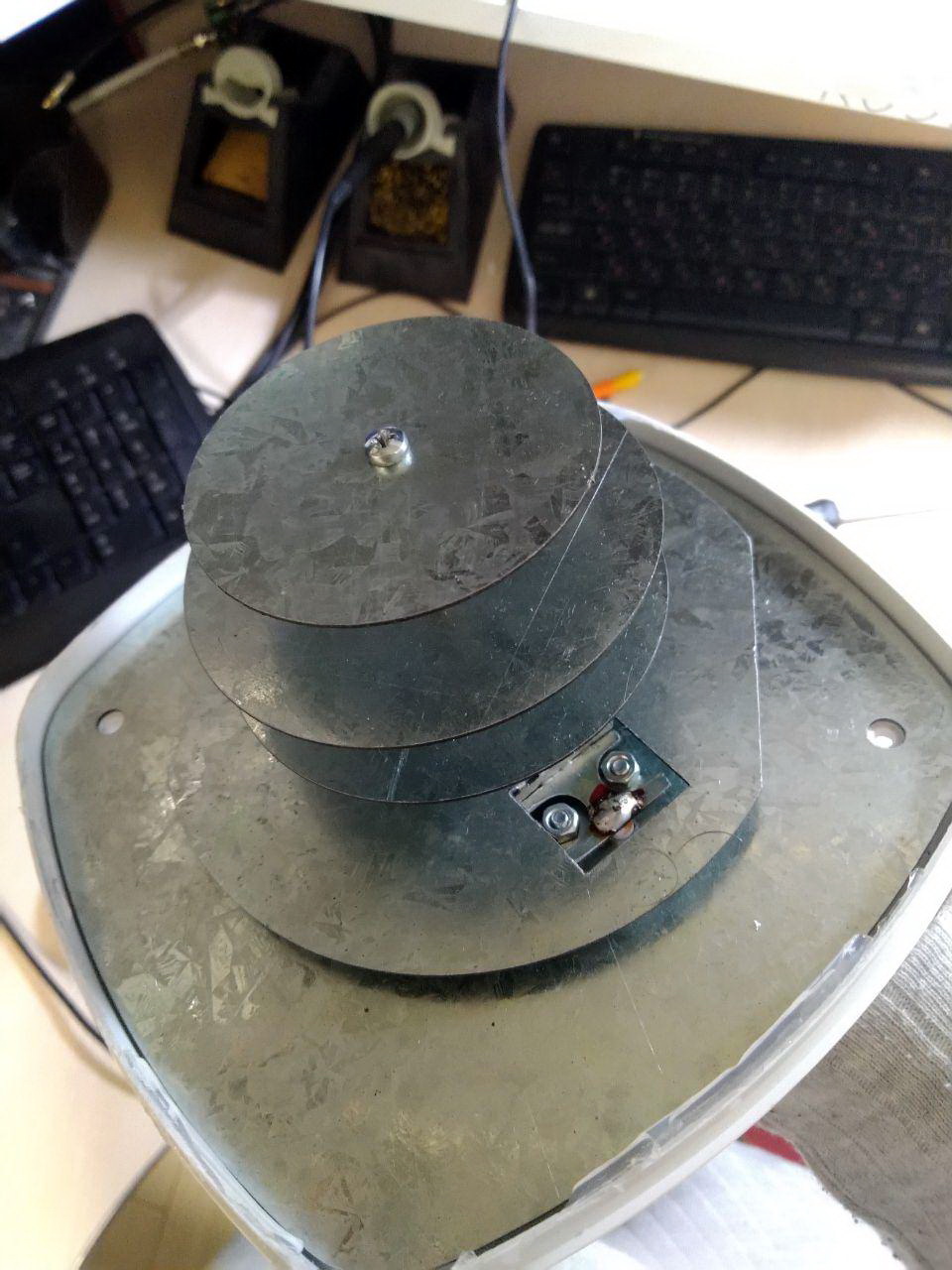

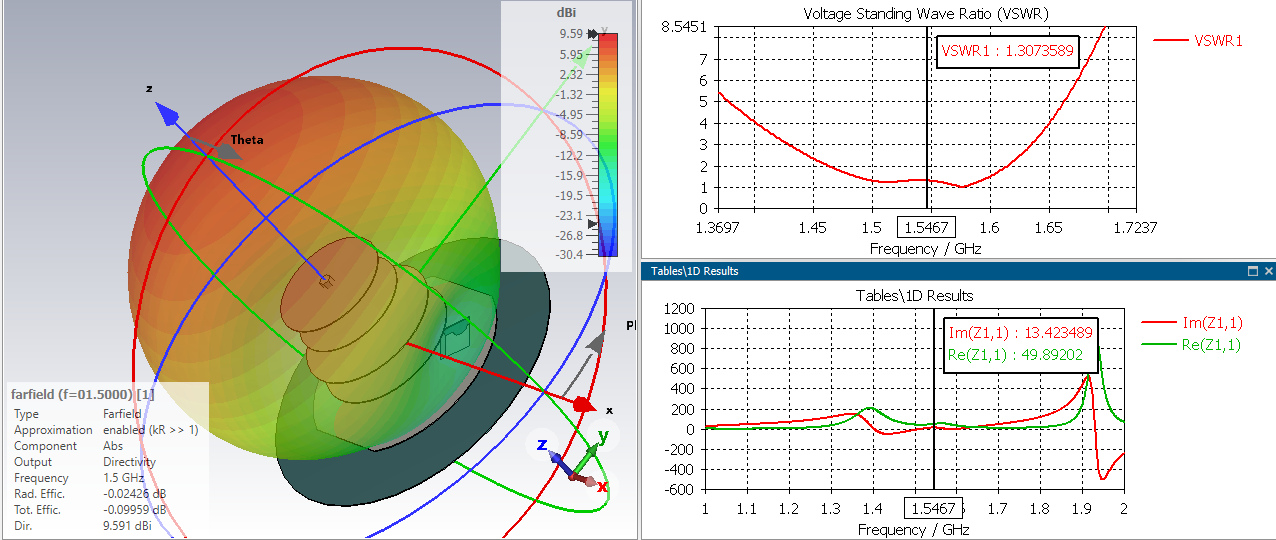

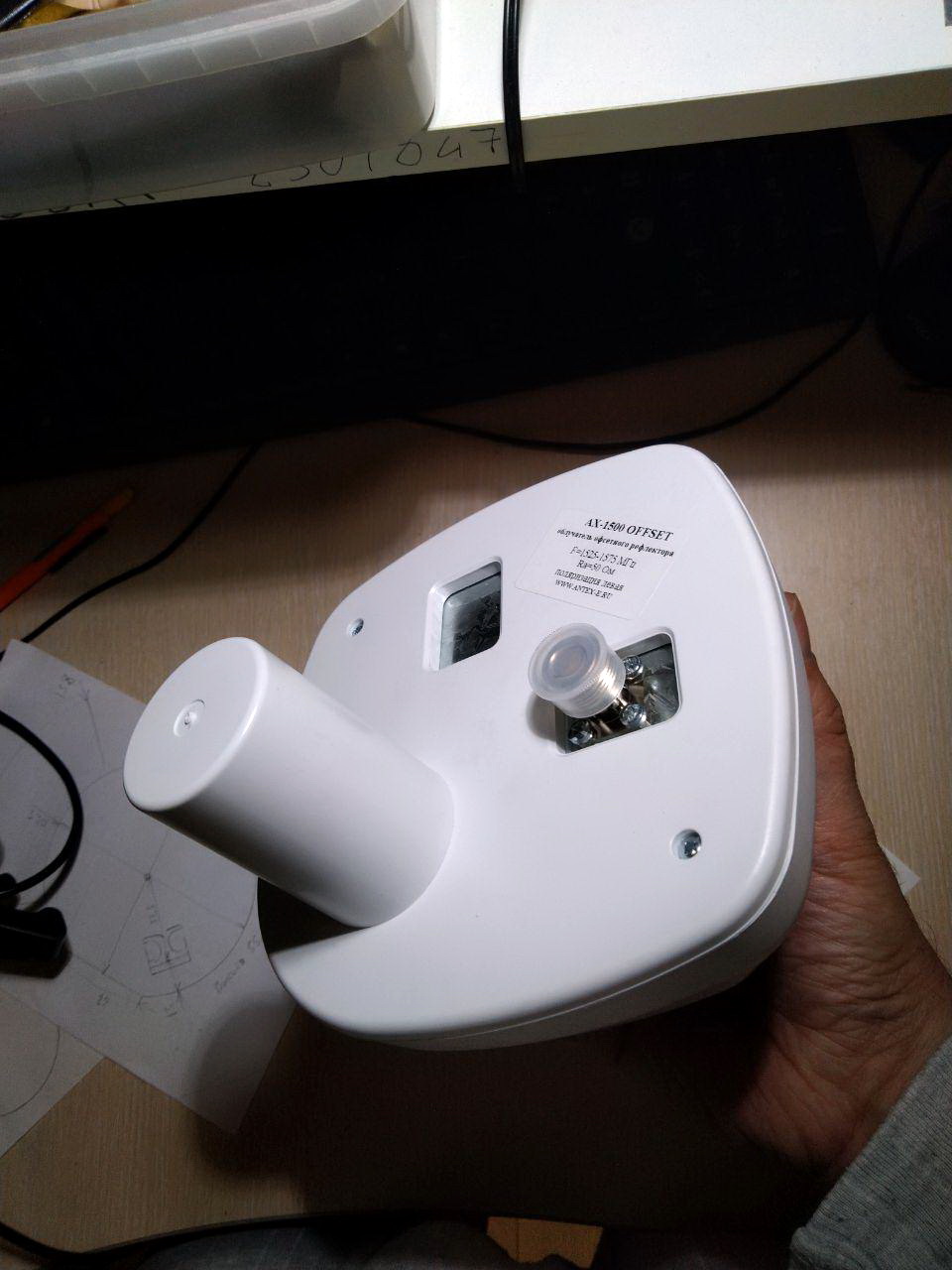

,,,another type of Bester Antenna ...

Article numberAX-1500 OFFSET BOX

Input impedance, Ohms50

Overall dimensions, m0, 145x0, 145x0, 154

Permissible power, W10

Protective coatingpowdered polymer paint

SWR in the operating frequency range, max.1,3

Weight300

Casing materialABS+Polycarbonate

Irradiator materialgalvanized steel

Polarisationleft\right circular map

Operating frequency range, MHz1525 - 1575

ConnectorsSMA-male on flexible cable

Resulting gain (and bottom width) for different dish diameters25,6dBi ; 16,8dBi ; 17,6dBi ; 21,1dBi ; 24,3dBi

The resulting gain and level width of the radiation pattern is 3dB0.55 m 16.8 dBi 23 gr. 0.6 m 17.6 dBi 21 gr. 0.9 m 21.1 dBi 14 gr. 1.3 m 24.3 dBi 9 gr. 1.5 m 25.6 dBi 8 gr.

Native gain, dBi10

Width of the DN lobes in the E-plane (horizontal), °110÷120

Width of the DN lobes in the H-plane (vertical), °110÷120



[Admin 2628]

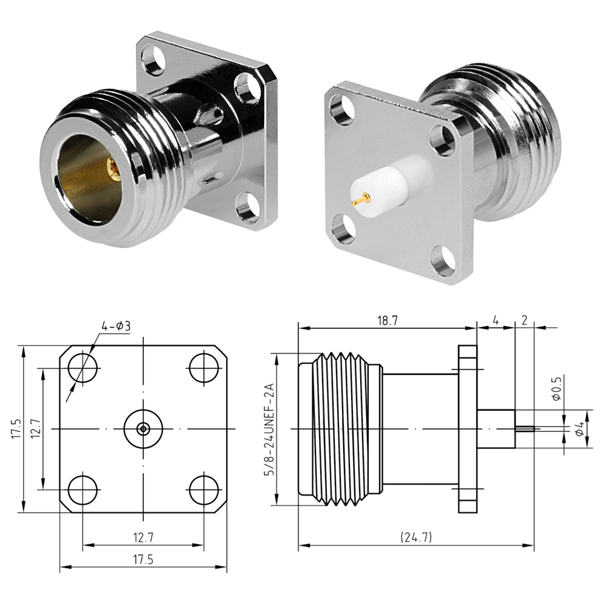

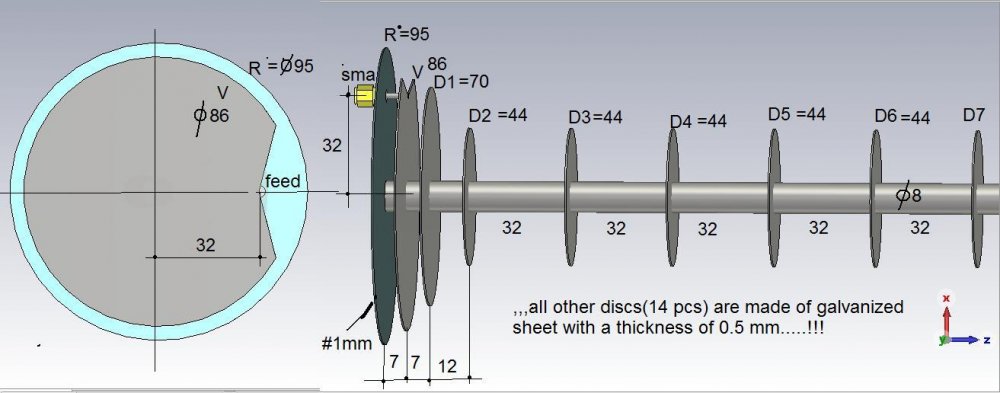

Bester antenna variant(2,4---2,7 GHz) with an N-P245 connector...



[DavidER 2]

On 01.11.2016 at 14:43, Admin said:

3G+4G(LTEАнтенна

Do you have a drawing for the antenna?

[Admin 2628]

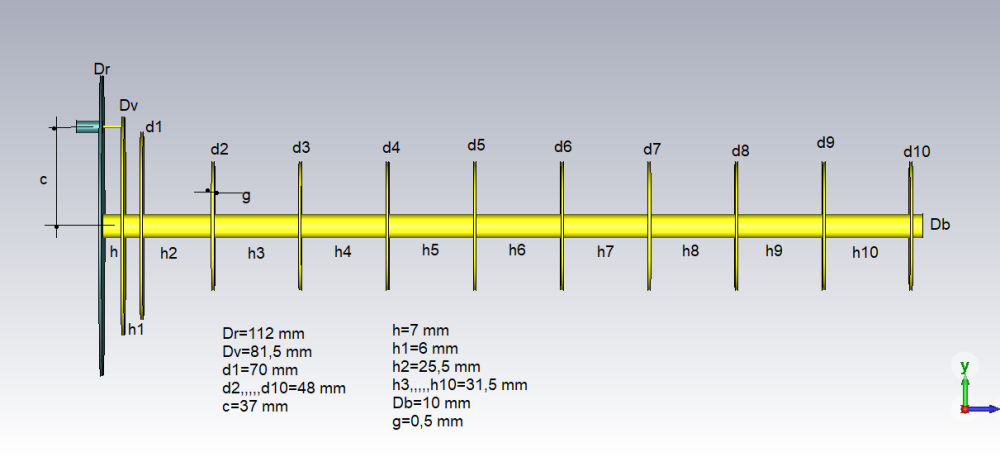

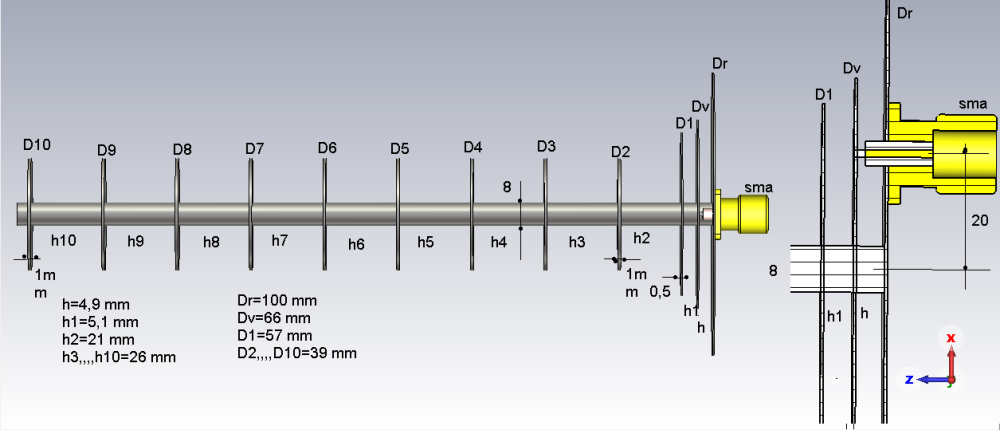

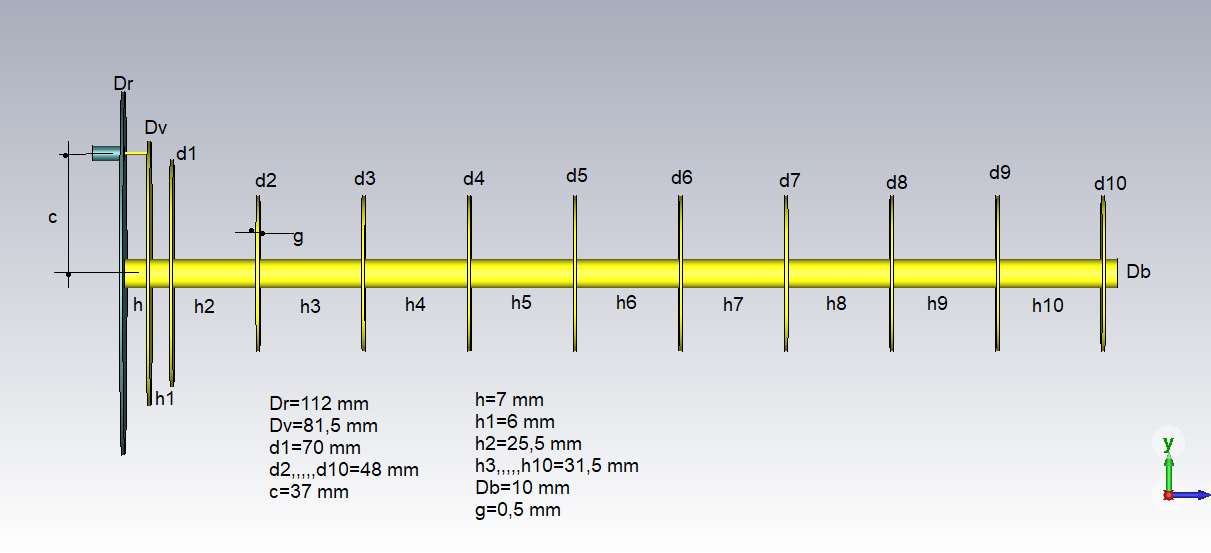

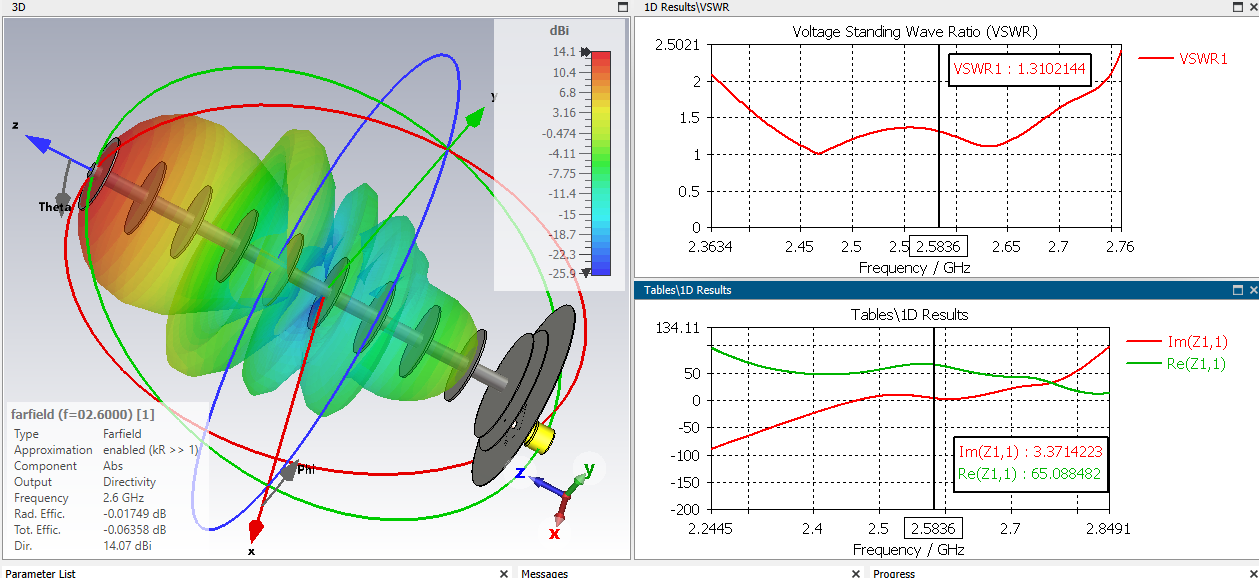

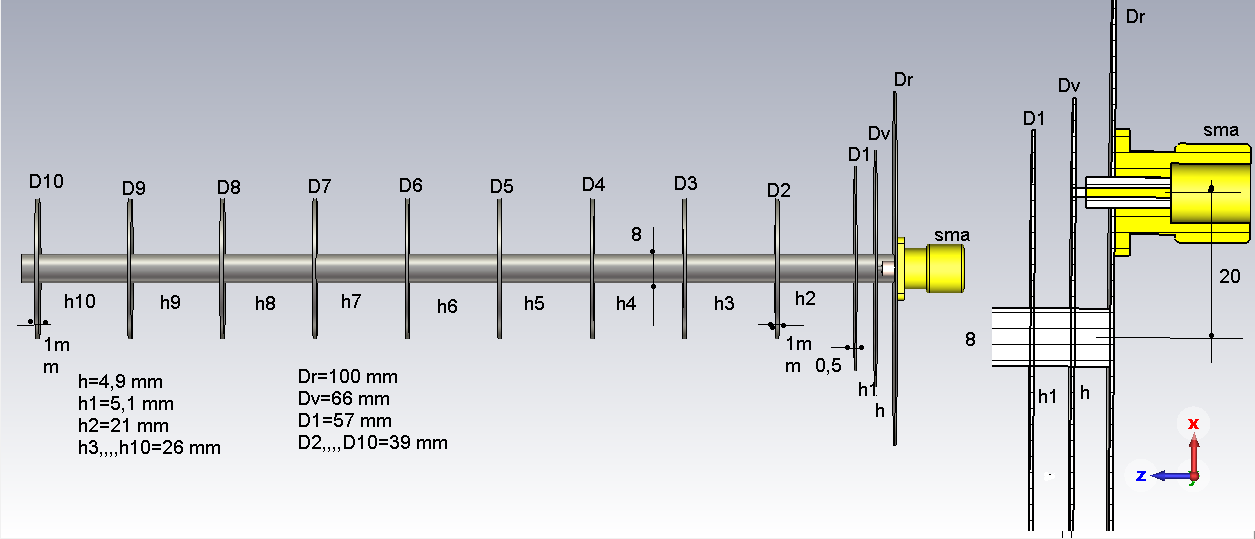

...the first image is for the (central) frequency of 2600 MHz (in red) and the second for the (central) frequency of 2100 MHz

[DavidER 2]

And besides the frequency 2500-2700, is 1800 used?

[Admin 2628]





Anyway, these dimensions I gave you must be verified by simulation.

[DavidER 2]

Will a 6-8mm stud with nuts work?

[Admin 2628]

2 minutes ago, DavidER said:

Will a 6-8mm stud with nuts work?

,,,,maybe, but simulations need to be done...!!!

[DavidER 2]

Okay, check it out.

[DavidER 2]

Is an n-male pigtail suitable for a length of 15-25 mm?

[Admin 2628]

I think it's possible, try it...!!!
