aurel

BatWing antenna 2.4 ghz

225 posts in this topic
On 12/9/2020 at 6:54 PM, Harry36 said:

I do not understand what you are talking about.
on Lan23 I'm Mr. Nemo. :)

:D;)

1 person likes this

Share this post


Link to post
Share on other sites

It's true this antenna could cover  800 to 2700 ?



1 person likes this

Share this post


Link to post
Share on other sites
On 15/02/2020 at 3:31 PM, Admin said:

,,, and finally, the latest UWB batwing  antenna model is optimized...!!!











It's dielectric support or metallic support?

Share this post


Link to post
Share on other sites
5 hours ago, Admin said:

,,,metal, M3 screw...!!!!

thanks jomy  .how  could i pass the  coax cable  ?

Share this post


Link to post
Share on other sites

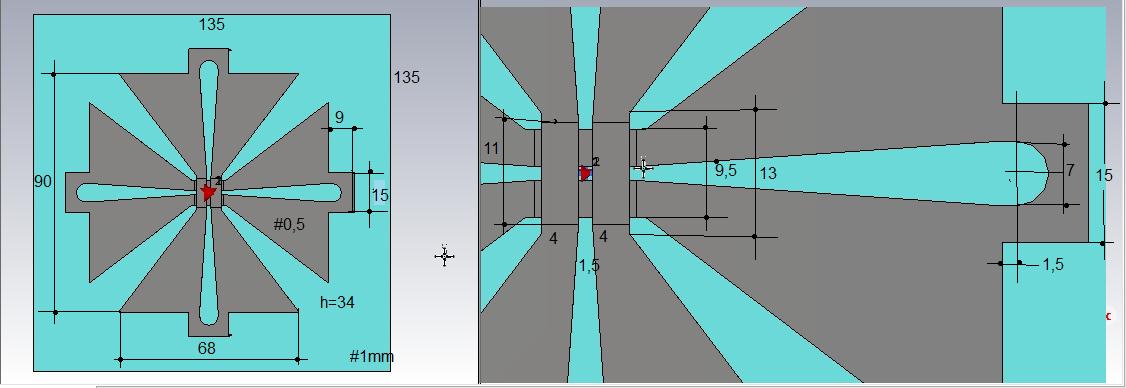

,,, something like that ...


 for cross polarization...



2 people like this

Share this post


Link to post
Share on other sites
On 15.02.2020 at 5:31 PM, Admin said:

,,, and finally, the latest UWB batwing  antenna model is optimized...!!!











Hi
One question - what about distance between the centers of batwings and reflector size for MIMO?

And 50 or 75 Om cable?

TNX!:)





Share this post


Link to post
Share on other sites

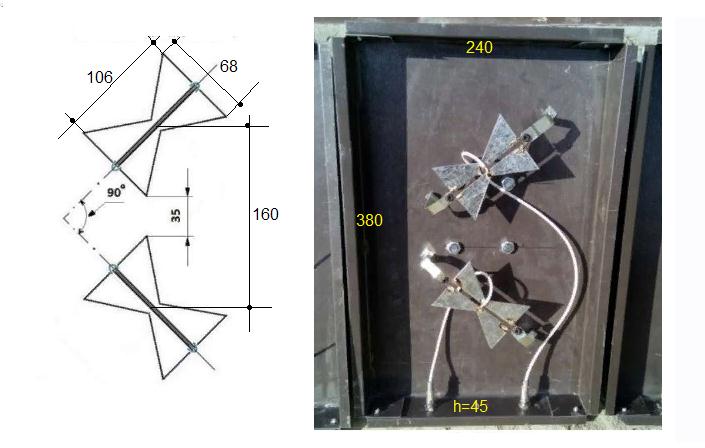

 ,,, coaxial cable with 50 Ohm impedance and a box with the dimensions below for MiMo Batwing antennas...


Share this post


Link to post
Share on other sites

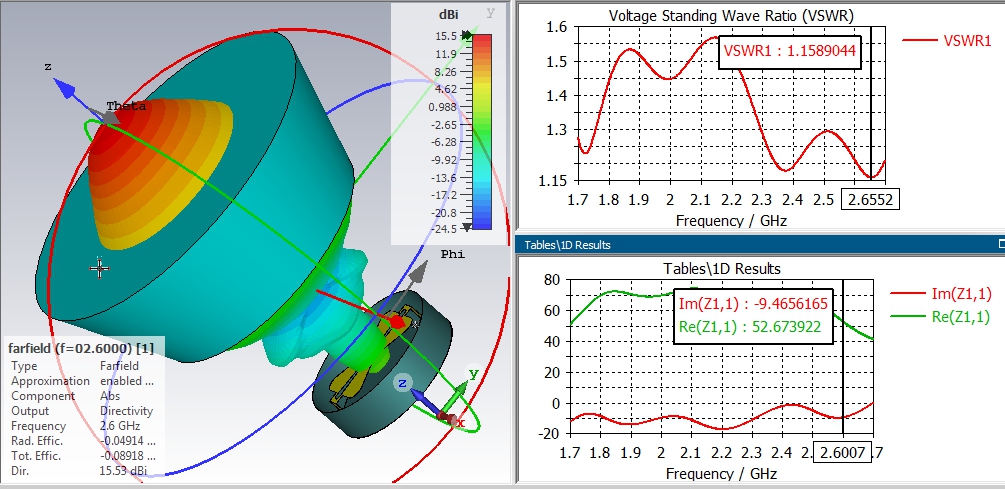

 ,,, an improvement of the Batwing antenna with dielectric lens...


1 person likes this

Share this post


Link to post
Share on other sites

,,, where do you see insulators at the wings of the box ... ???

Share this post


Link to post
Share on other sites

,,, of course, you can't see ... !!! ???

Share this post


Link to post
Share on other sites

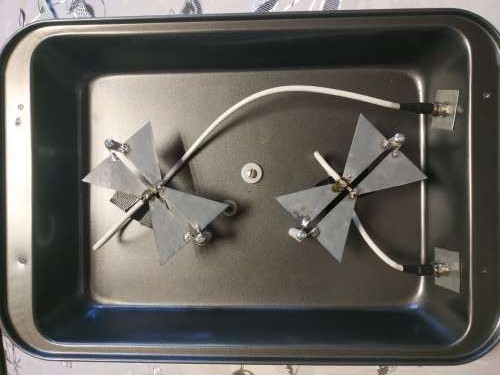

3 hours ago, mr.ab said:

are these metal elements?


JOMY how  about the isolation (coupling) of 2 ports  in this  mimo antenna ? IS it good ?

Share this post


Link to post
Share on other sites

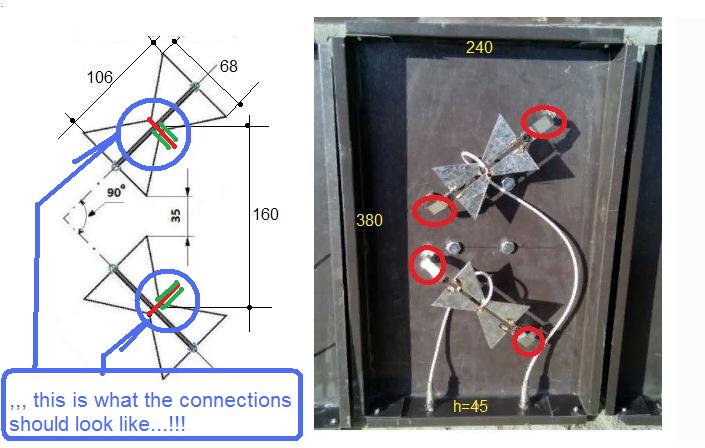

 I think this connection between ports is not the right one....!!!




1 person likes this

Share this post


Link to post
Share on other sites

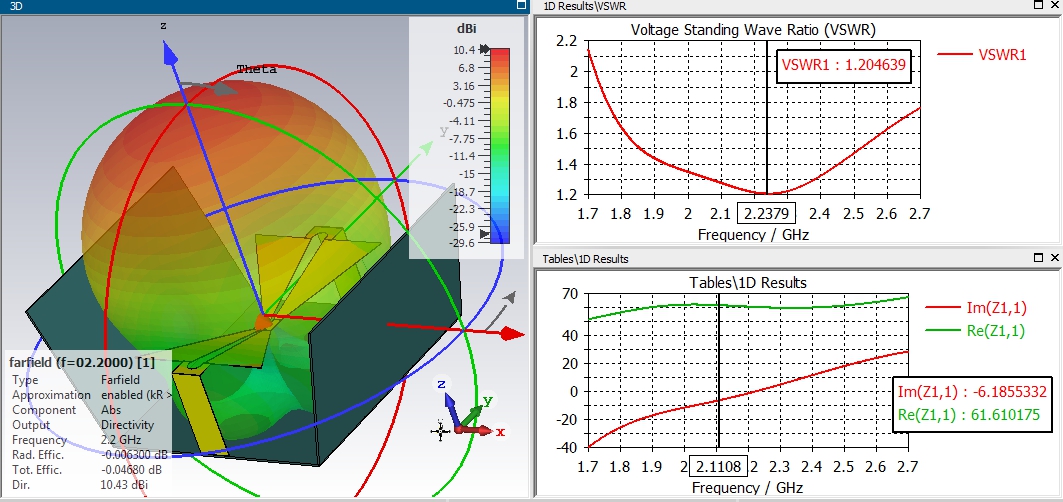

,,, a simple Batwing antenna made of thin sheet recovered from cans...!!!







,,,the *cst file...Pathe Batwing.cst

1 person likes this

Share this post


Link to post
Share on other sites
On 7/30/2020 at 8:26 PM, Sl4va said:

Made the first prototype



  Hide contents










Anyone had tested this SWR and gain? Thinking to make a dual polarized Bester feed out of this.

Edited by yeam

Share this post


Link to post
Share on other sites

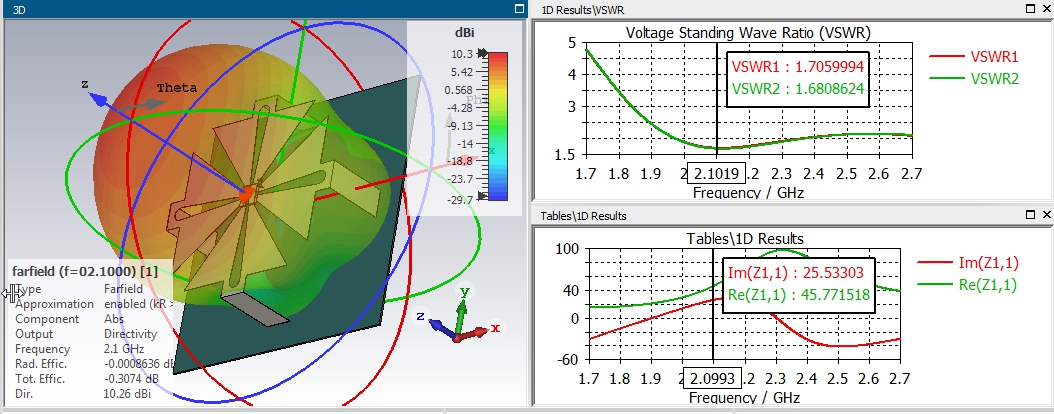

,,, a variant of cross polarization....






2 people like this

Share this post


Link to post
Share on other sites

If you make it in a "bucket"? Will the gain be added?

Share this post


Link to post
Share on other sites
9 hours ago, Sl4va said:

If you make it in a "bucket"? Will the gain be added?

,,,which one of them...???


1 person likes this

Share this post


Link to post
Share on other sites

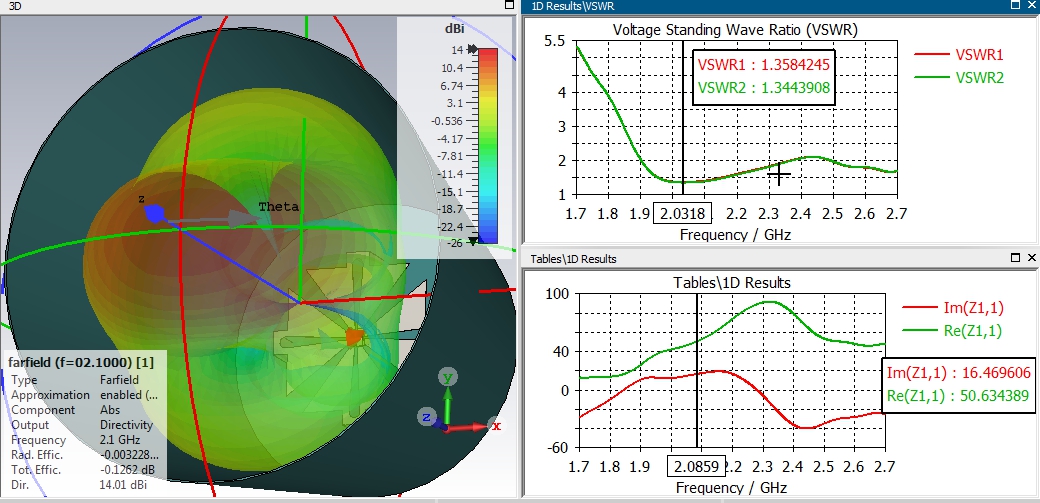

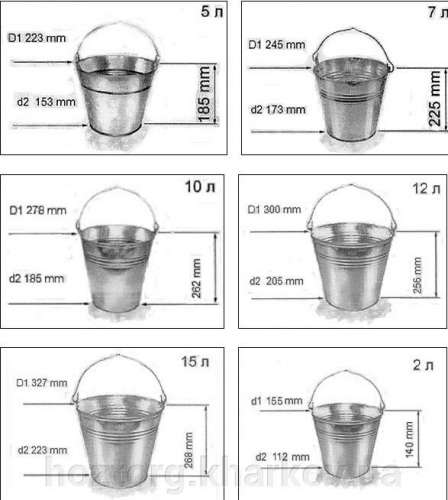

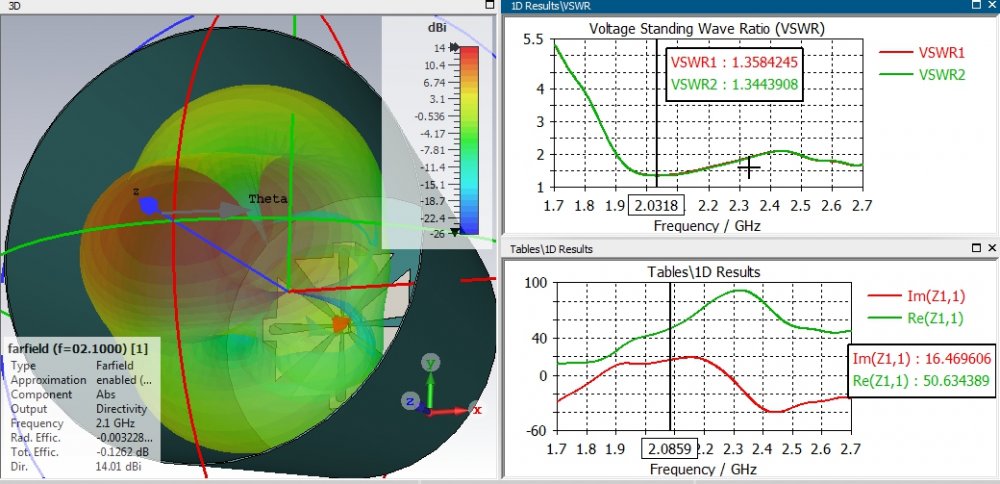

,,,with a bucket of 10 liters...


Share this post


Link to post
Share on other sites

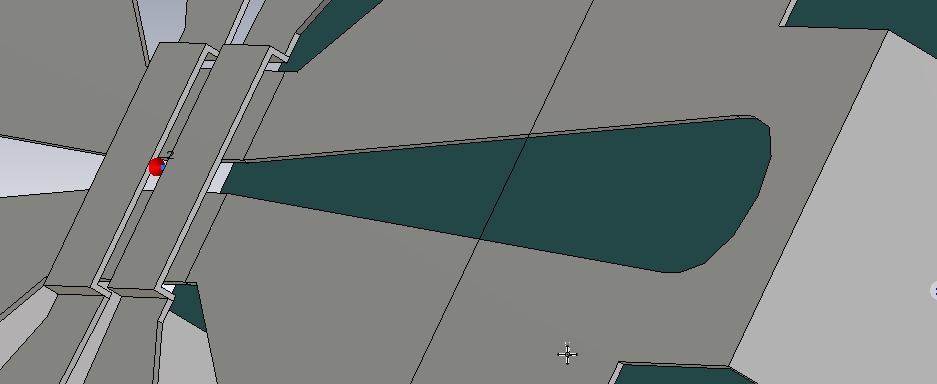

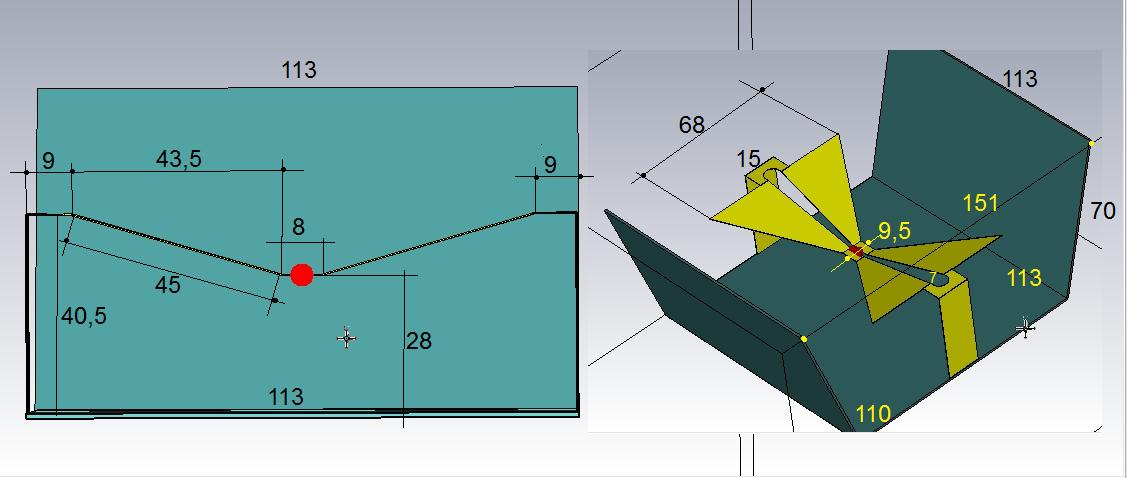

,, a simple improvement of the antenna..!!


,,, a wider impedance adaptation band is obtained .. !!

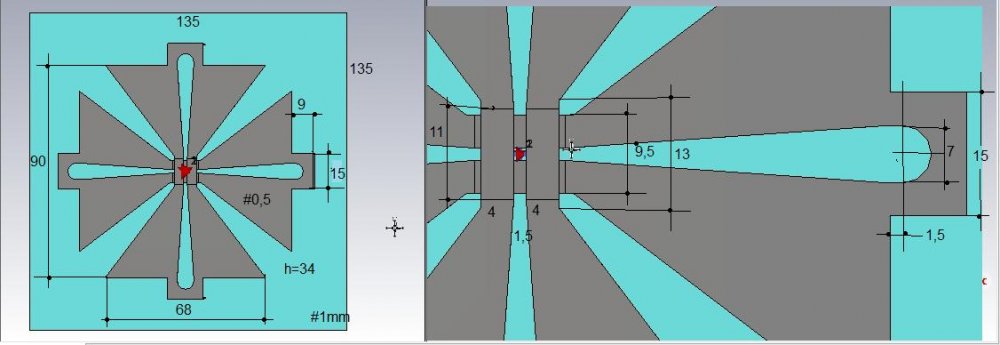

,,,design...


Share this post


Link to post
Share on other sites



Hi, what would happen to the antenna at batwing 2.4 if the size of the reflector make 78h130mm ?

I would like to insert 5.8 and 2.4 antennas into one case .





Share this post


Link to post
Share on other sites
