BatWing antenna 2.4 ghz

[Admin 2421]

,,, okay, so the program works and you know how to work with it...!!!???

[Sl4va 11]

1 minute ago, Admin said:

,,, okay, so the program works and you know how to work with it...!!!???

unfortunately I don’t know, I have no experience. But I will look to understand

[devton 21]

5 minutes ago, Sl4va said:

unfortunately I don’t know, I have no experience. But I will look to understand

you got few sets of sizes for BatwingS in this thread

you can just make it, you do not need program for this

[Sl4va 11]

31 minutes ago, devton said:

you got few sets of sizes for BatwingS in this thread

you can just make it, you do not need program for this

these parameters / calculations and dimensions are not available

[devton 21]

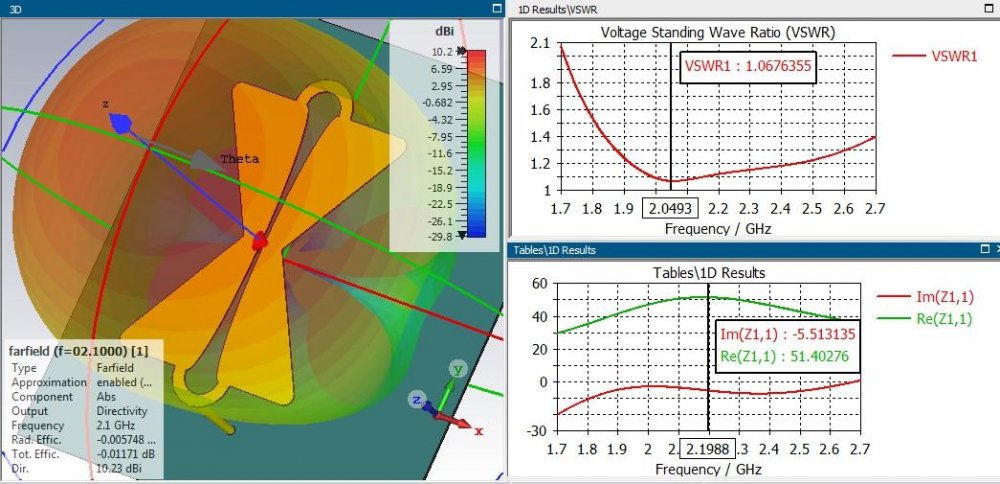

this 2 crossed even better...because almost no overlay

[Admin 2421]

For now,,,this it"s the best...!!!

,,, let's see further ...!!!



[Sl4va 11]

38 minutes ago, Admin said:

For now,,,this it"s the best...!!!

if used as an offset antenna feed - the size is too big

[Sl4va 11]

Theoretically, can it be done on a double-sided PCB, by etching?

[Sl4va 11]

18 hours ago, Admin said:

,,, let's see further ...!!!

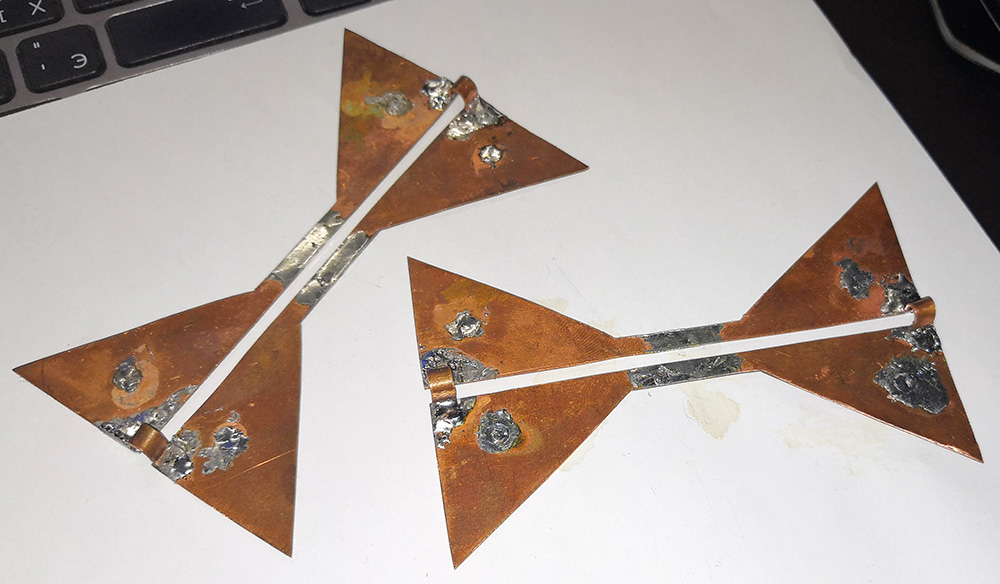

I made these a month ago.

Made for these sizes:

Material - copper sheet, 0.6 mm thick

Edited July 20, 2020 by Sl4va

[Sl4va 11]

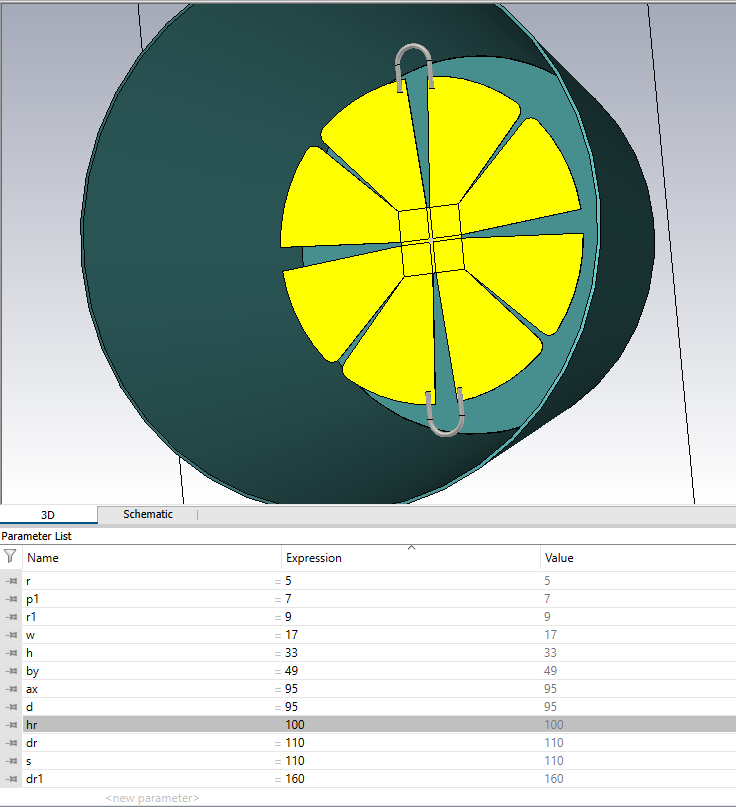

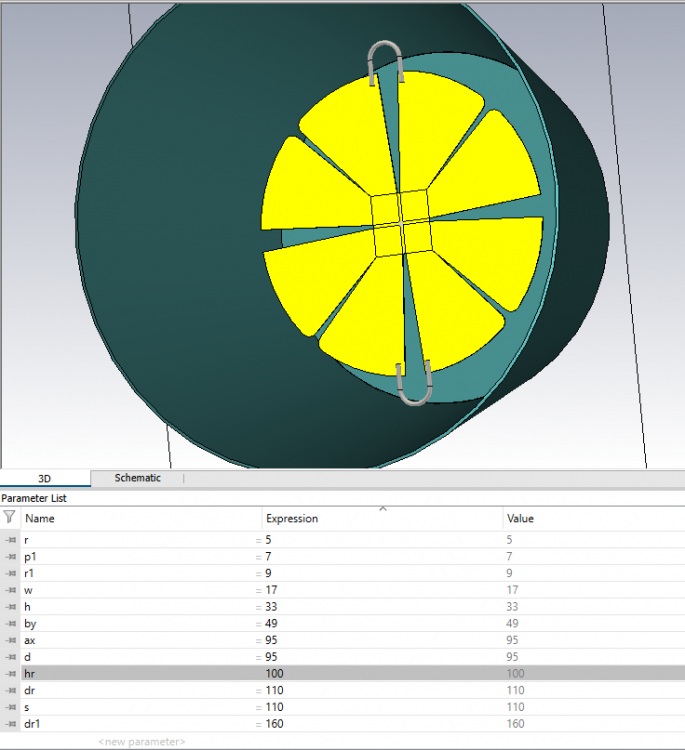

But what if you put it in a reduced size "bucket"

by type as below picture

Edited July 20, 2020 by Sl4va

[Sl4va 11]

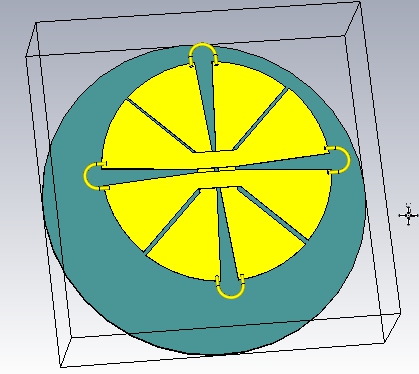

I have another idea....

put them crosswise and you get a decent distance between the points of contact. Maybe this is better?

[devton 21]

55 minutes ago, Sl4va said:

I have another idea....

put them crosswise and you get a decent distance between the points of contact. Maybe this is better?

this is some shit

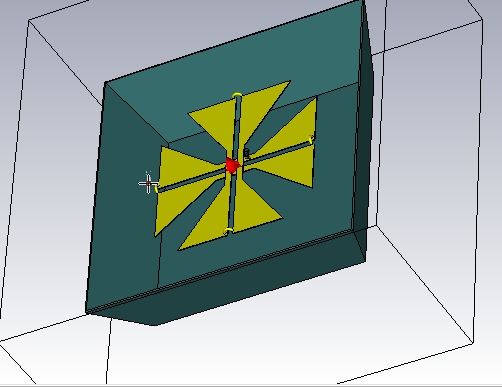

just maki this MIMO "nazi cross" with small flat reflector (without sides):

Edited July 20, 2020 by devton

[Sl4va 11]

38 minutes ago, devton said:

just maki this MIMO "nazi cross" with small flat reflector (without sides):

Initially, I started a conversation Batwing, how to compose for a satellite dish in Mimo

[devton 21]

5 minutes ago, Sl4va said:

Initially, I started a conversation Batwing, how to compose for a satellite dish in Mimo

one more time - to make irradiator for satellite dish just just make this MIMO "nazi cross" with small flat reflector (without sides)

MIMO "nazi cross" with small flat reflector = satellite dish irridator

[clanon 215]

2 hours ago, Sl4va said:

I have another idea....

put them crosswise and you get a decent distance between the points of contact. Maybe this is better?

You won't isolate by tweaking ONLY the feed point...the WHOLE electromagnetic diagram must be consider (All irradiating elements and surfaces)(for ISOLATION that is)

SIMPLY put...: TWO COMPLETELY SEPARATE ANTENNAS are better (for ISOLATION of Ports) than two in the same cavity or close to each other...ALWAYS

Edited July 20, 2020 by clanon

[Sl4va 11]

54 minutes ago, clanon said:

SIMPLY put...: TWO COMPLETELY SEPARATE ANTENNAS are better (for ISOLATION of Ports) than two in the same cavity or close to each other...ALWAYS

But what about Kroks and Antex? They are mimo



[Sl4va 11]

On 20.07.2020 at 4:05 PM, devton said:

this is some shit

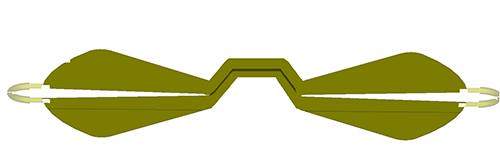

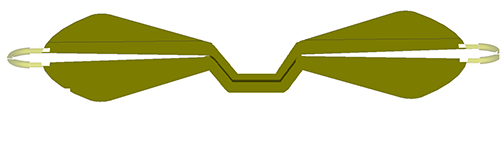

I wanted to show that it was so. Bend the middle so that the butwing petals lie in the same plane and do not touch

[devton 21]

1 hour ago, Sl4va said:

I wanted to show that it was so. Bend the middle so that the butwing petals lie in the same plane and do not touch

not sure you can feel the difference if you put one batwing 2-3 mm above another or use this fancy band in the middle

are you going to use it for 4G? if so, there will be no difference

Edited July 21, 2020 by devton

[Sl4va 11]

1 hour ago, devton said:

are you going to use it for 4G? if so, there will be no difference

Yes, for 4g!

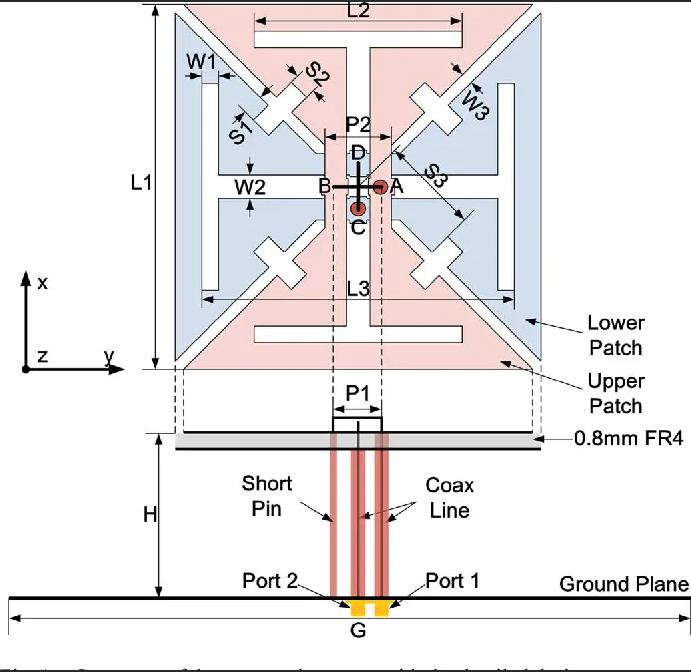

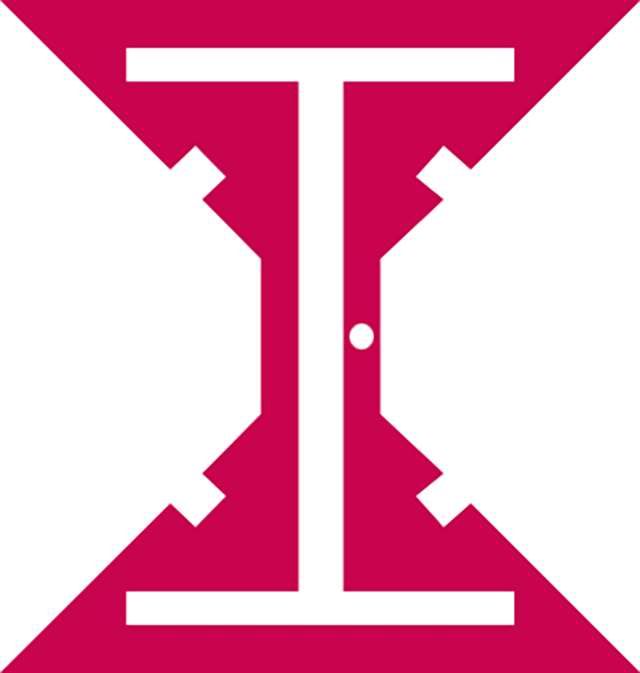

And about the intersection: I found a pair of intersecting feeds on the internet, just like the Batwing in the admin's photo. And one resembles the shape of a batwing.

Calculate its size. Who can help with this?



Edited July 21, 2020 by Sl4va
add spoiler

[Admin 2421]

Sl4va, post the source of this antenna...!!!

[Sl4va 11]

54 minutes ago, Admin said:

Sl4va, post the source of this antenna...!!!

https://www.semanticscholar.org/paper/Wideband-Dual-Polarized-Patch-Antenna-With-Low-and-Li-Yin/ac3ac6391584c1c979c384c6fc438e970b22358b

but the site does not open - found in Yandex pictures

here is a little similar -

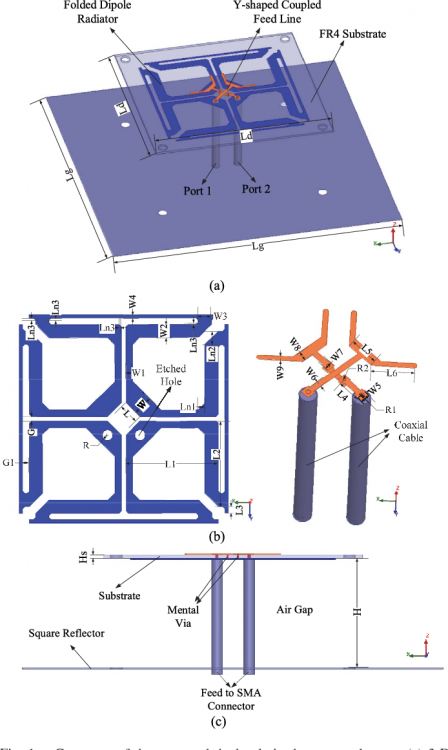

https://www.researchgate.net/figure/Configuration-of-the-proposed-dual-polarized-patch-antenna-a-The-top-view-b-Side_fig1_269435276

[Sl4va 11]

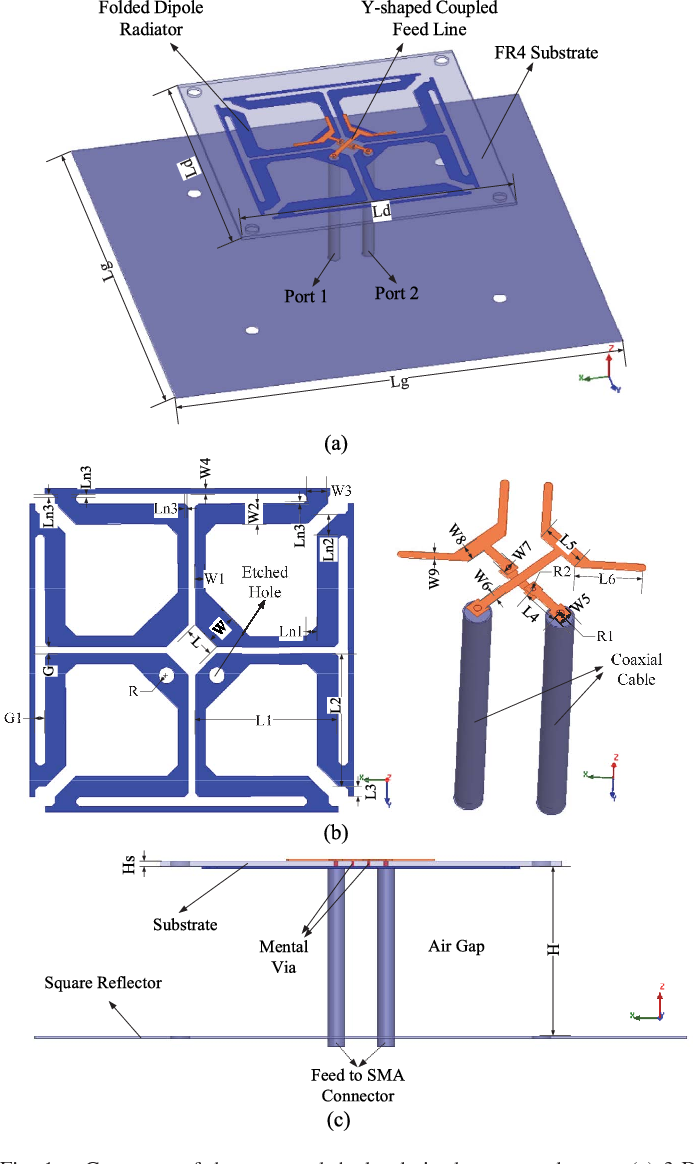

https://www.researchgate.net/publication/339674055_Dual_Polarized_Dual_Band_Collocated_Beam_Switching_Antennas_for_WLAN_Applications - another interesting antenna



[Sl4va 11]

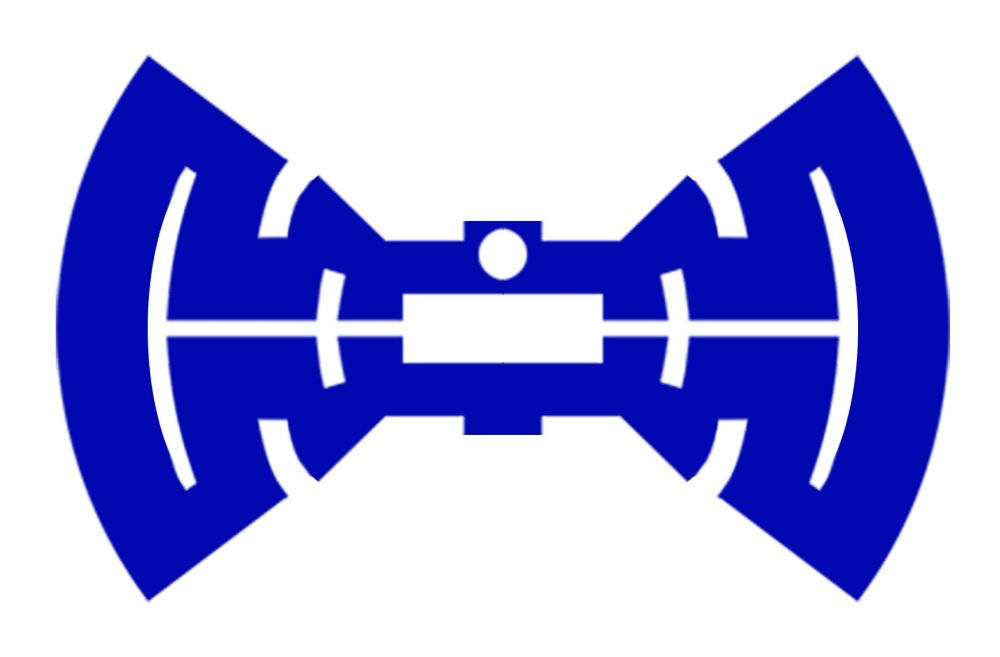

outlined the contours in Photoshop

Edited July 22, 2020 by Sl4va

[devton 21]

17 hours ago, Sl4va said:

Yes, for 4g!

And about the intersection: I found a pair of intersecting feeds on the internet, just like the Batwing in the admin's photo. And one resembles the shape of a batwing.

Calculate its size. Who can help with this?





  Reveal hidden contents

[Sl4va 11]

10 hours ago, devton said:

...

The administrator wrote that improved models with rounded corners are better
