BatWing antenna 2.4 ghz

Started by aurel,

355 posts in this topic

Posted

On 08/04/2024 at 5:31 AM, Admin said:

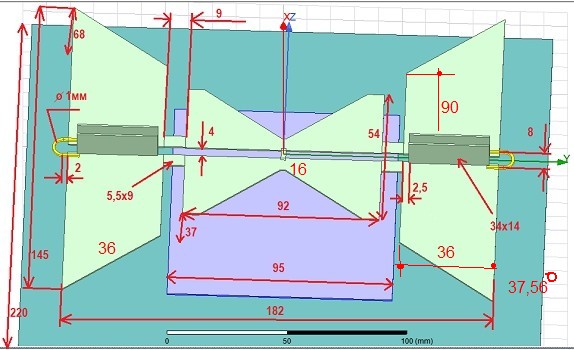

,,,I considered it sensible to resume Aurel's idea from the beginning and to present a version of the Batwing wire antenna...



Beautiful!



2 people like this

Share this post

Link to post
Share on other sites

Posted

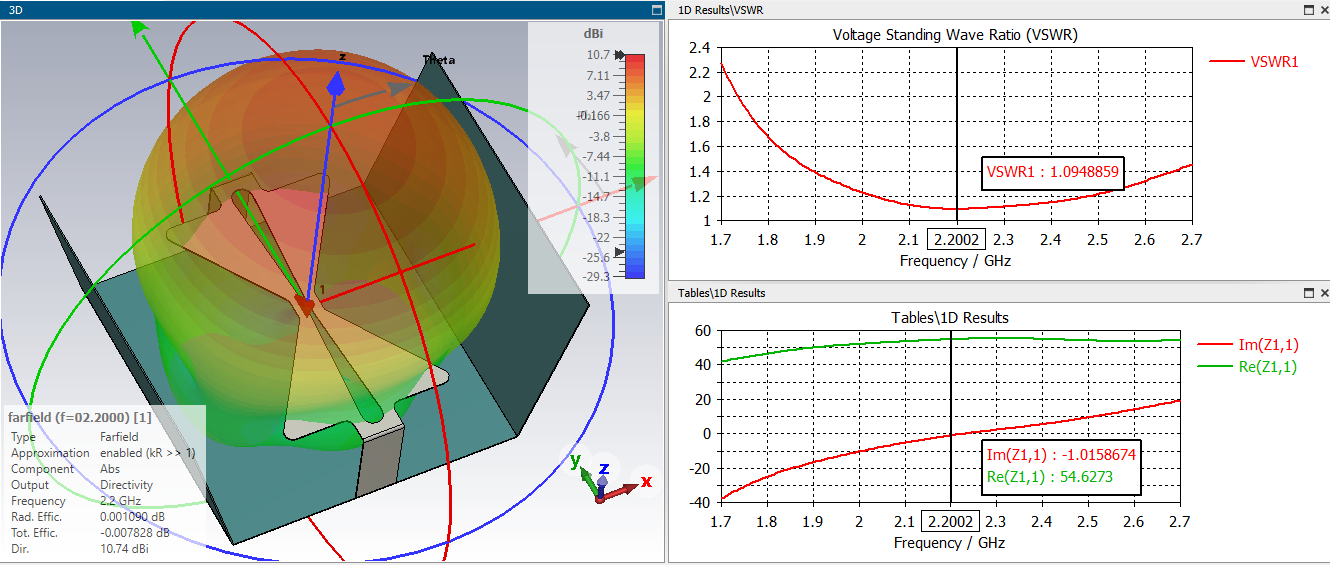

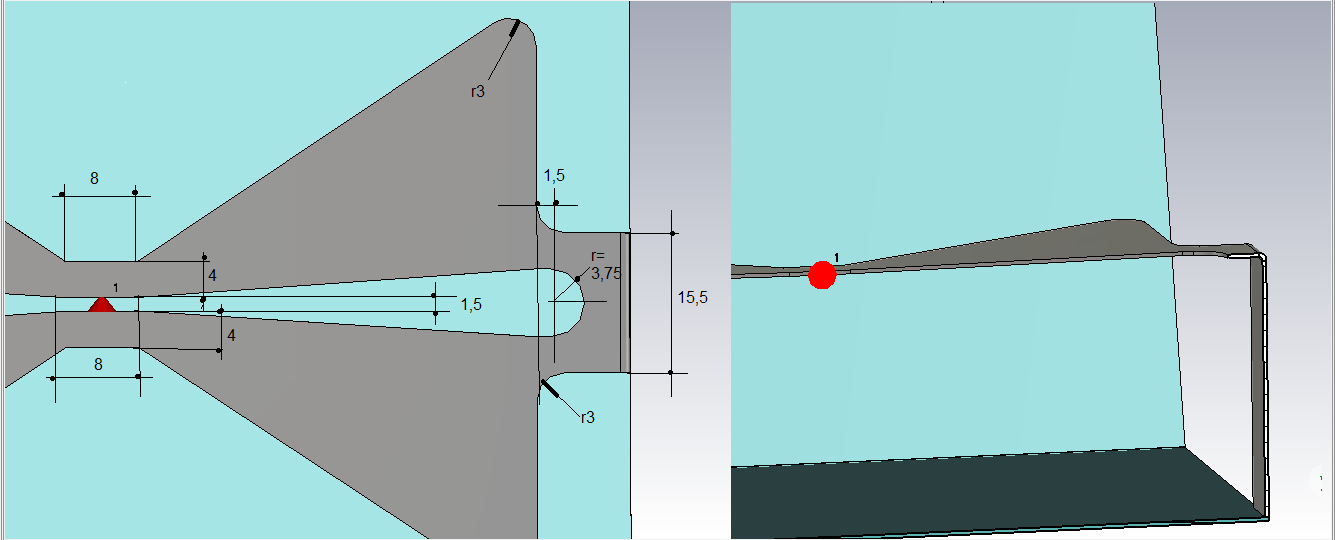

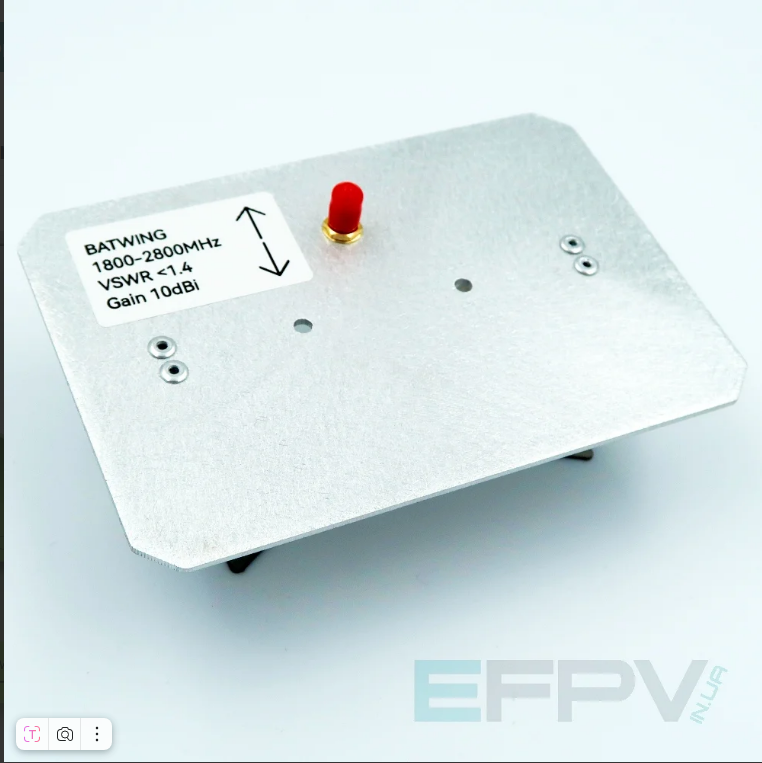

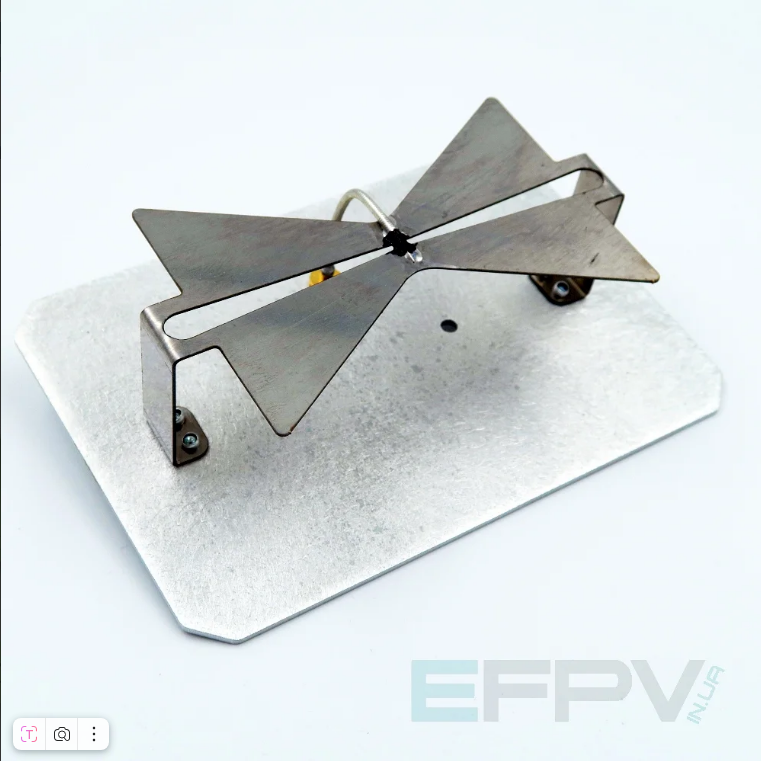

"I don't know exactly, it might exist on this site, but anyway I'll resume simulating this antenna...!!!

Anyway, look here...



1 person likes this

Share this post

Link to post
Share on other sites

Posted

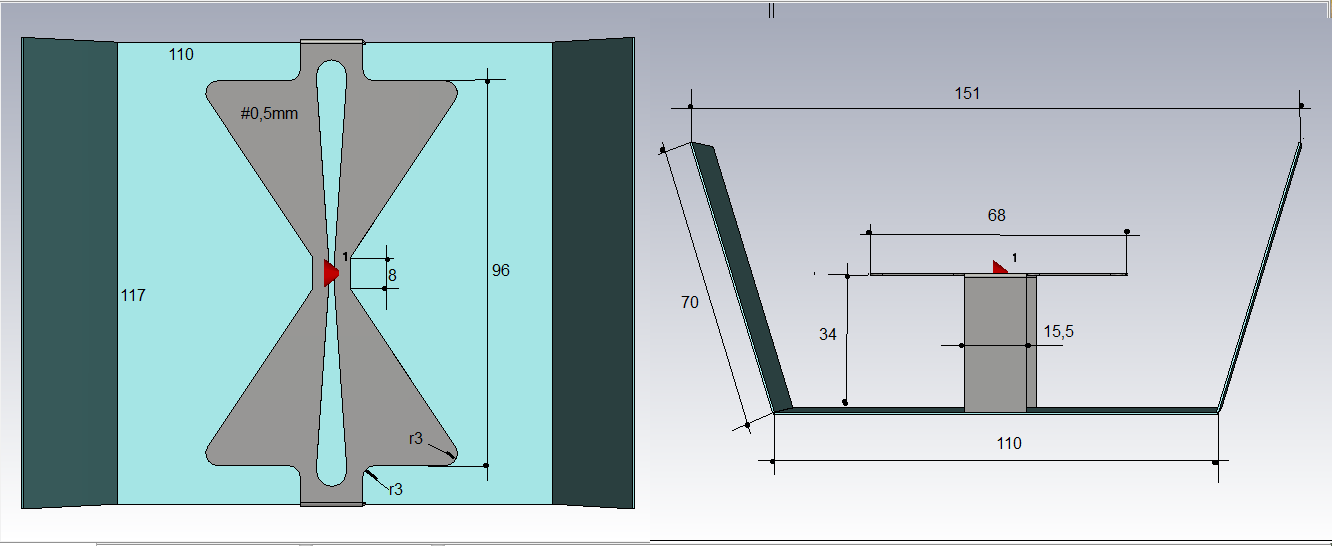

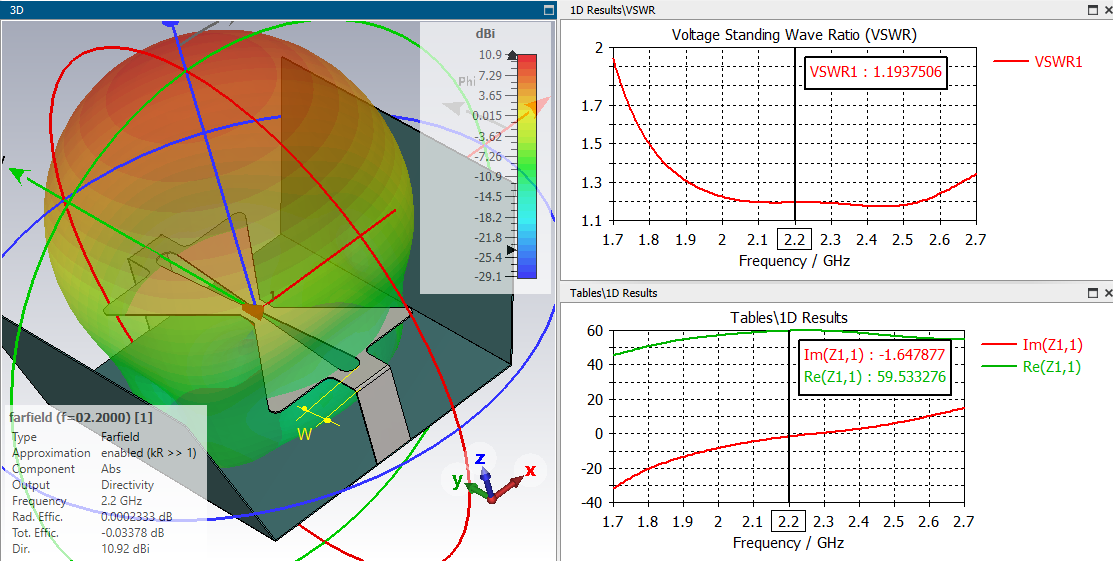

I'm still trying to make some optimizations for this kind of antenna.

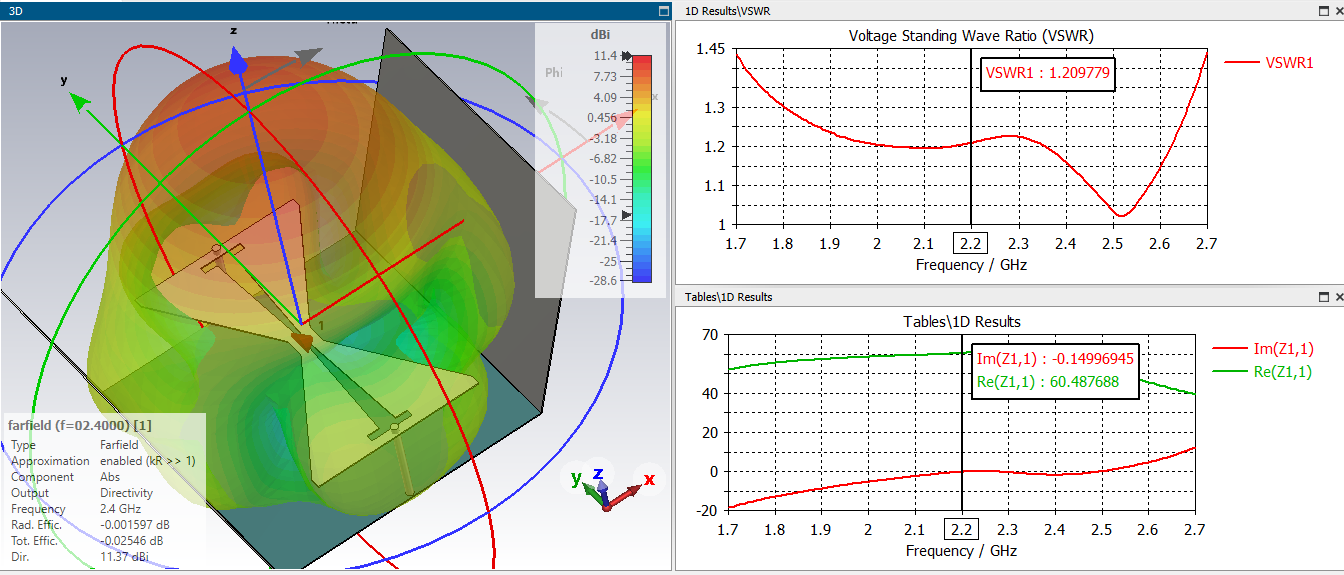

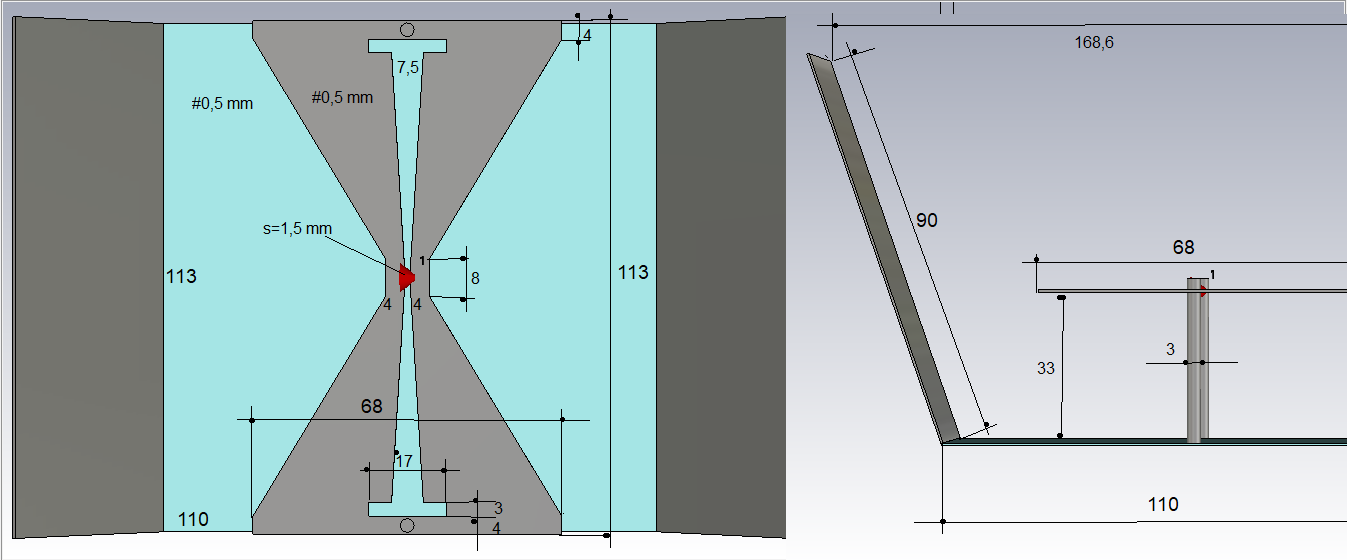

,,,and yet it can be done better by doubling the distance "w"...


1 person likes this

Share this post

Link to post
Share on other sites
