Biquad Antenna

307 posts in this topic

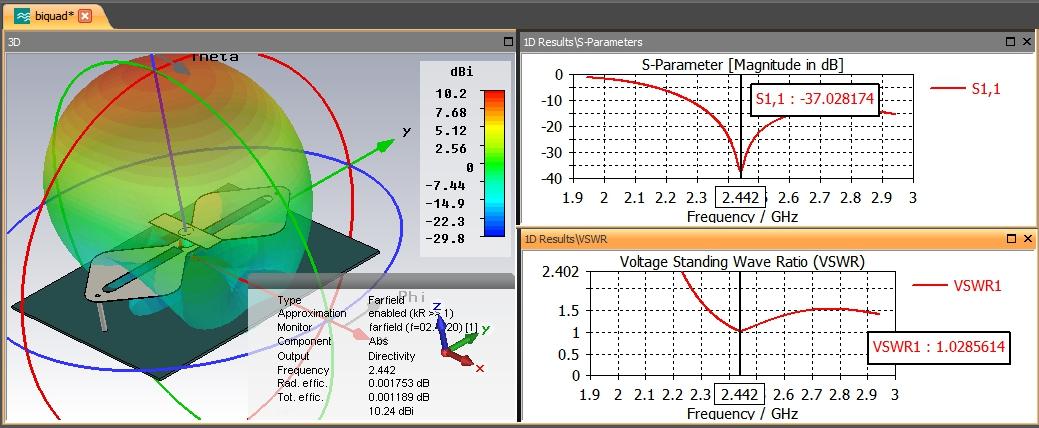

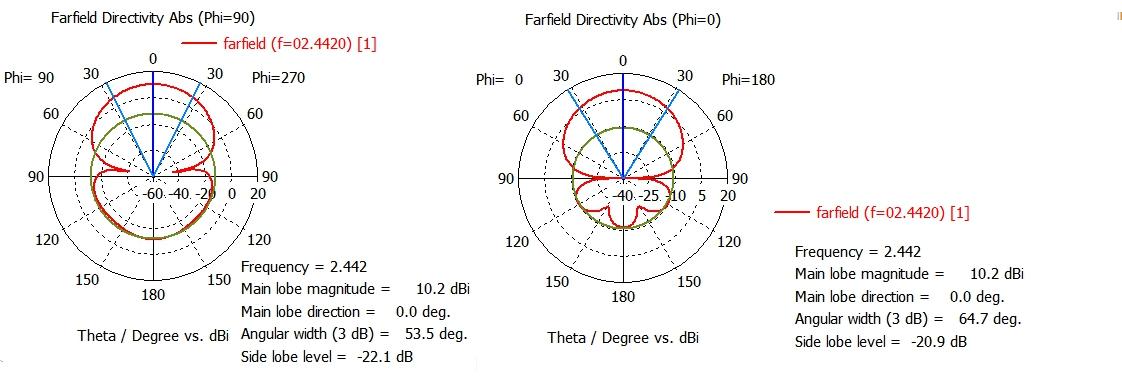

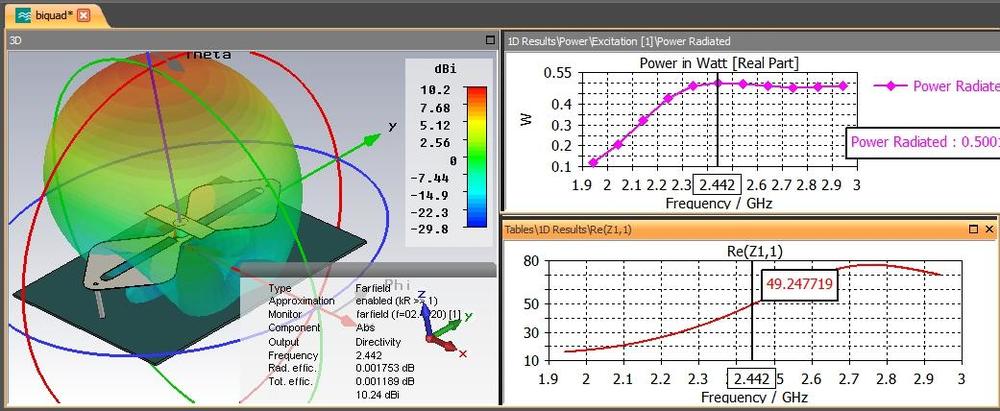

 What's so complicated to build it,,,??

A picture of a thousand words...!!!

Share this post


Link to post
Share on other sites
On 5/28/2017 at 0:17 AM, toobefree said:

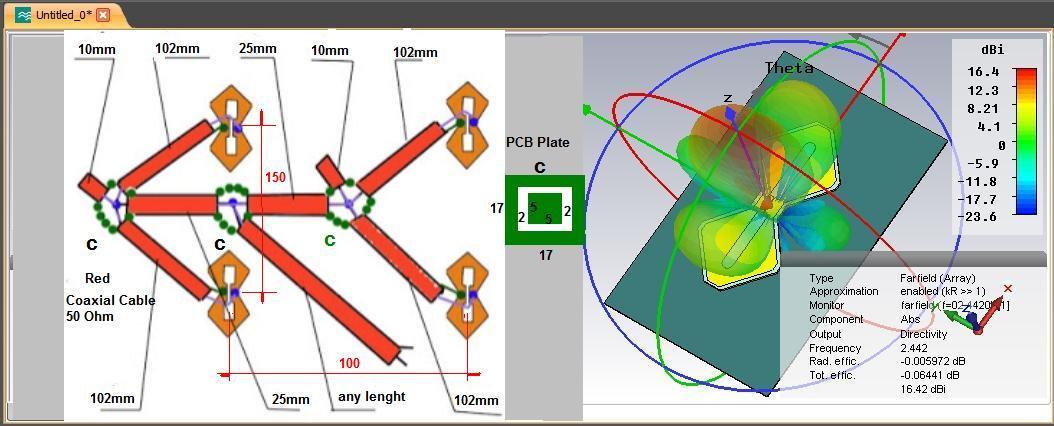

what are you getting 16.4dbi from?

can you post the CST files for this?

how is the cable connection made?



Share this post


Link to post
Share on other sites

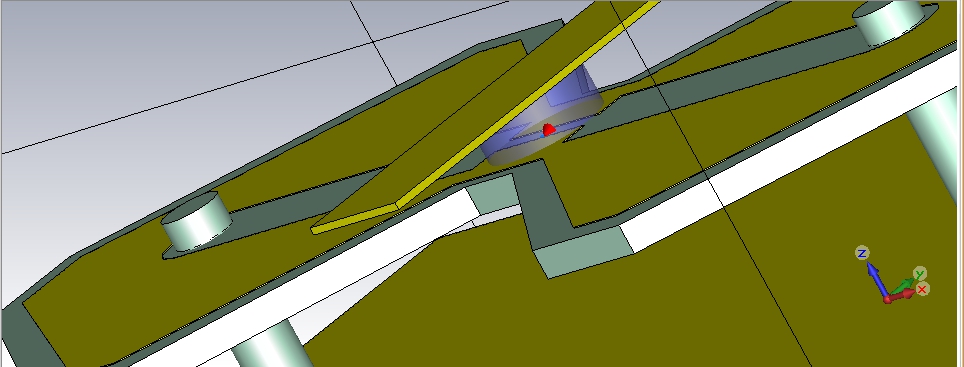

On 6/21/2017 at 2:19 PM, toobefree said:

how is the cable connection made?

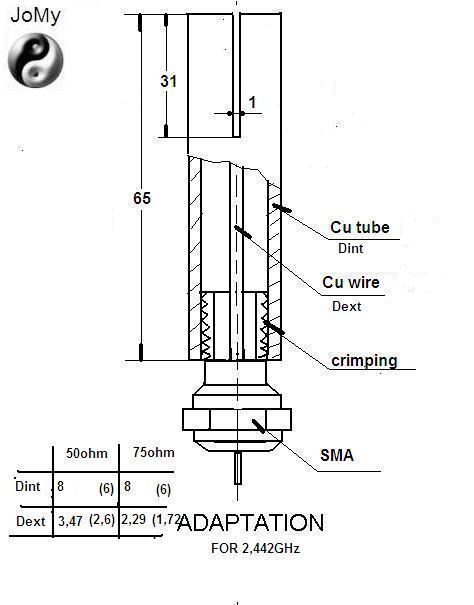

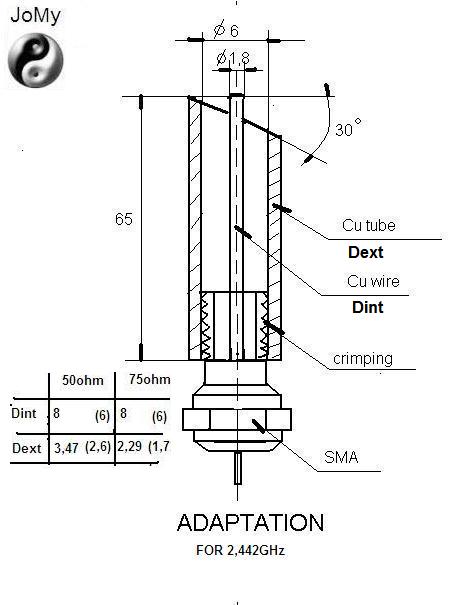

This should be the connection with 50 ohm coaxial cable


1 person likes this

Share this post


Link to post
Share on other sites

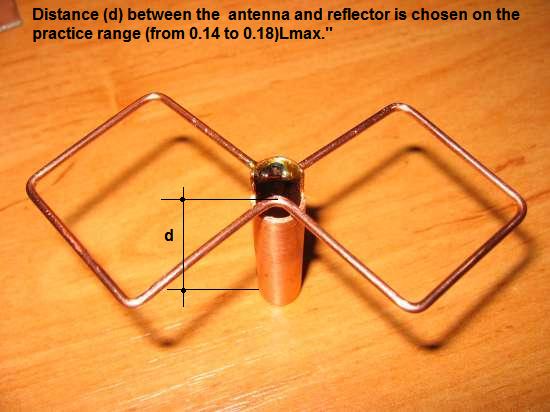

Depending on the type of coaxial cable, the length is calculated.

For the sketch that I made, the coaxial cable used has the velocity factor=0,83

rg 402  has a velocity factor=0.74

Share this post


Link to post
Share on other sites

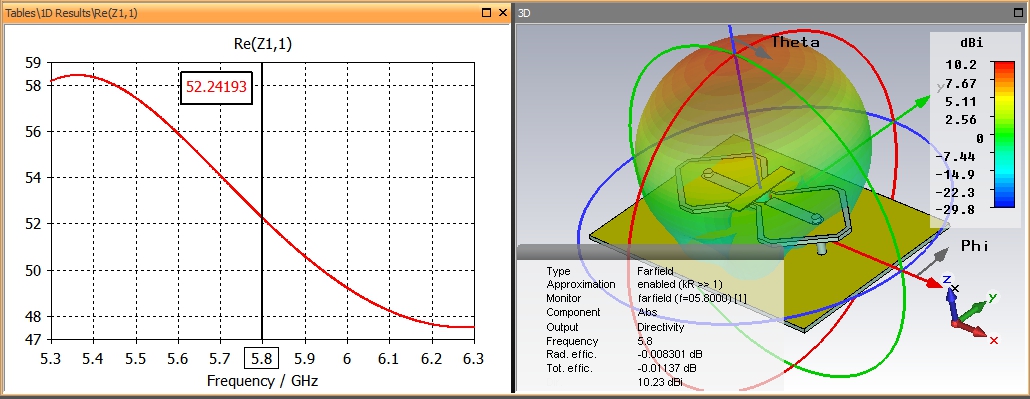

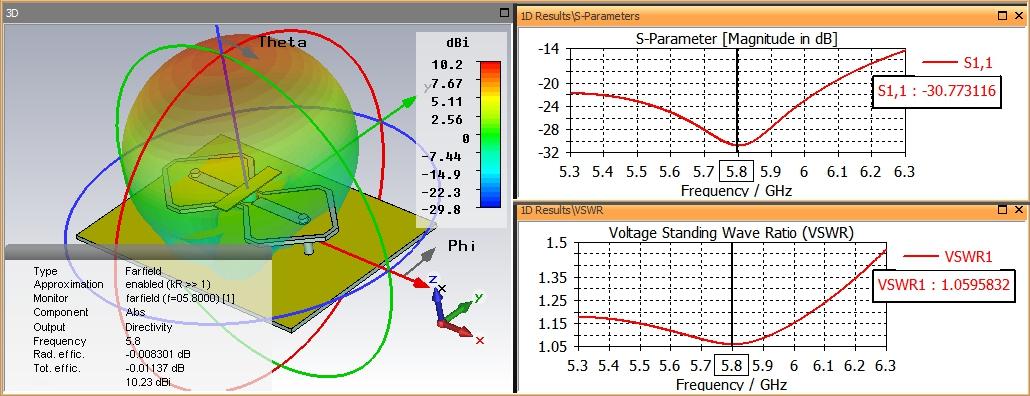

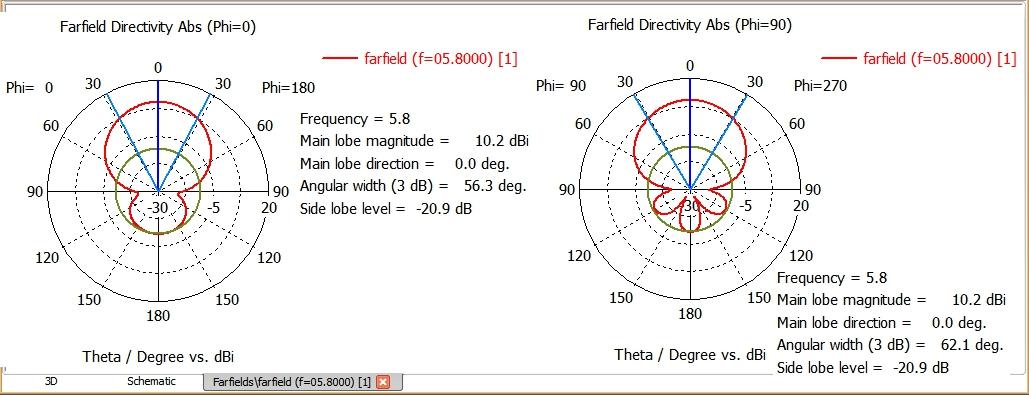

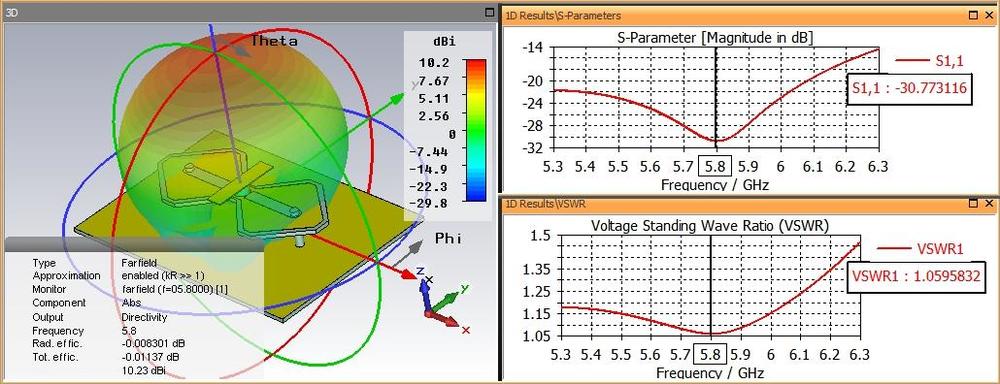

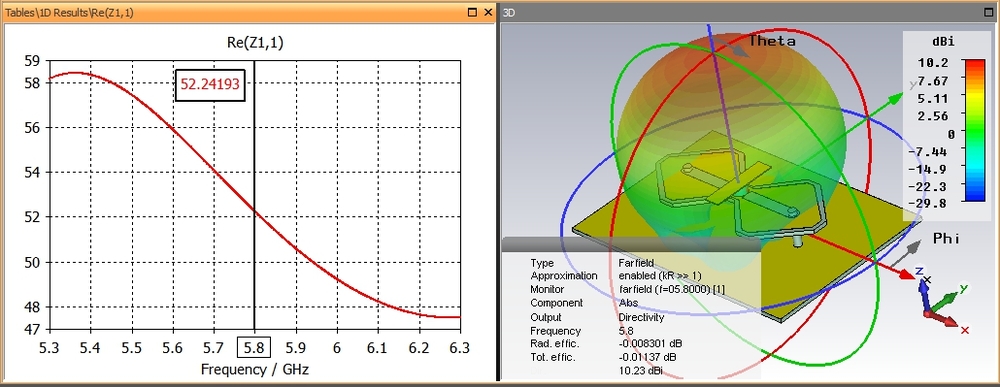

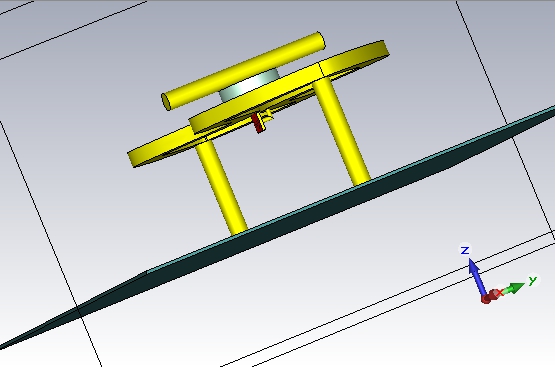

,,,biquad on PCB with parasitic director










Share this post


Link to post
Share on other sites

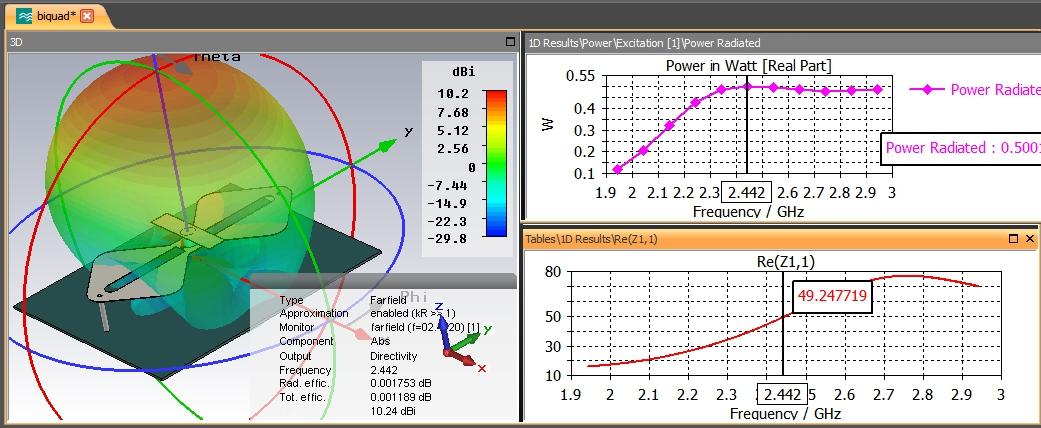

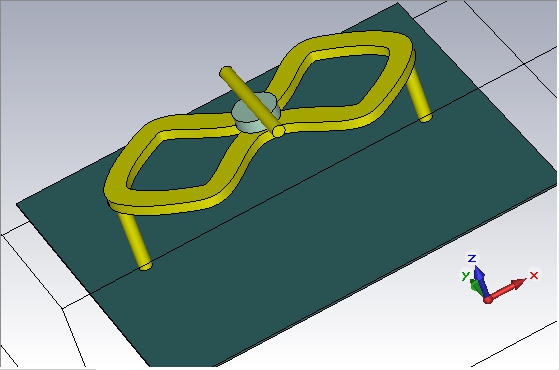

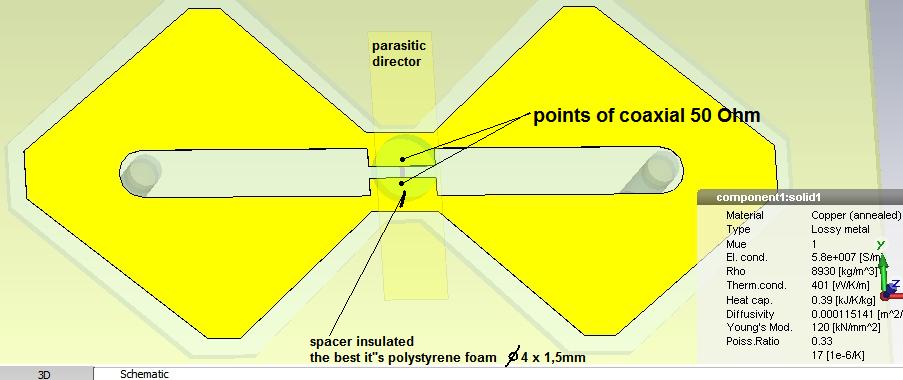

Biquad antenna in the air with parasitic director-it is necessary a laser cutting of the vibrator element (biquad patch)






Share this post


Link to post
Share on other sites
On 14.06.2017 at 1:36 PM, Admin said:


On 14.06.2017 at 7:43 AM, Admin said:

try this...


Hi.
As you can see. Found this forum very useful.

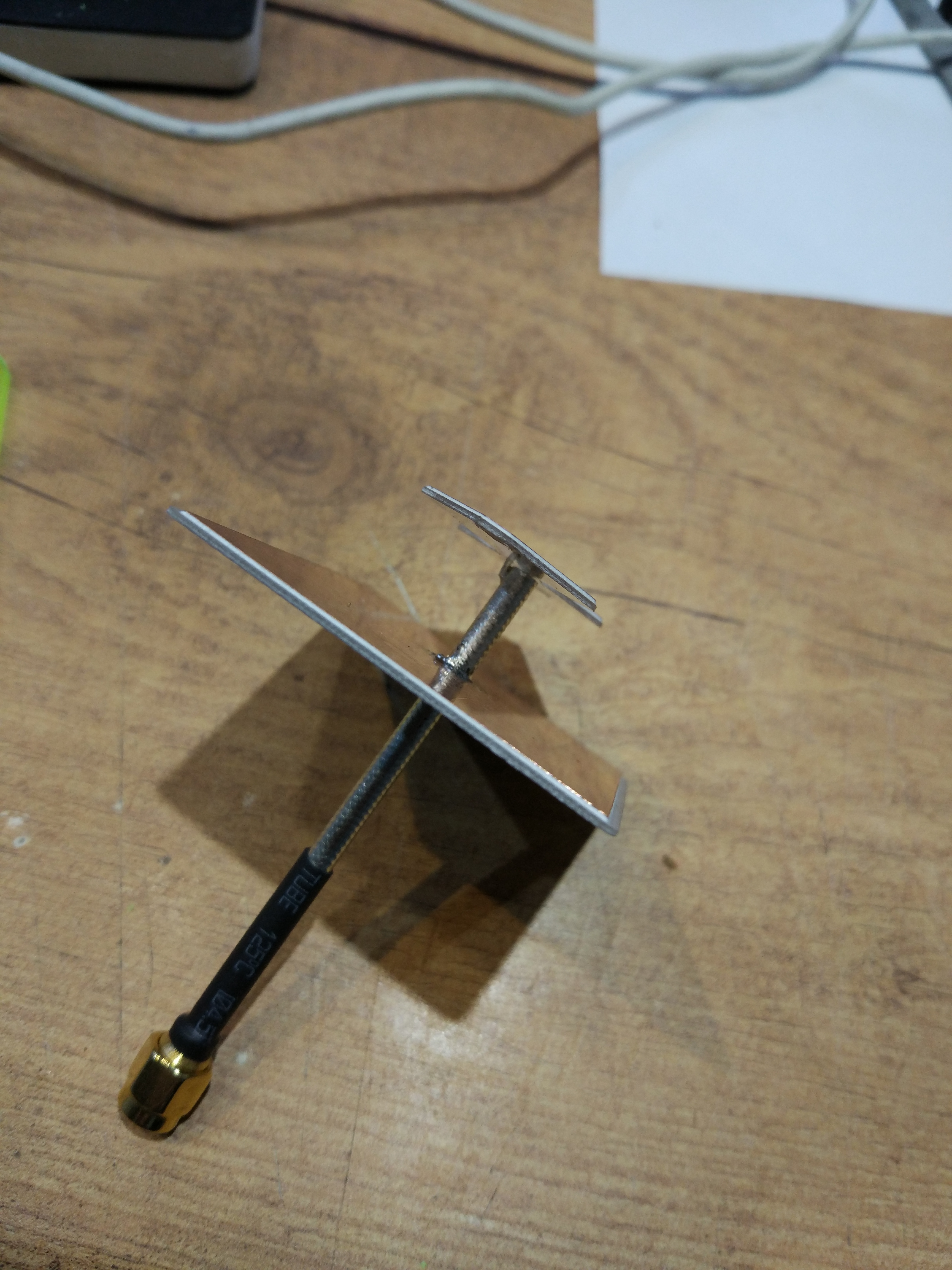

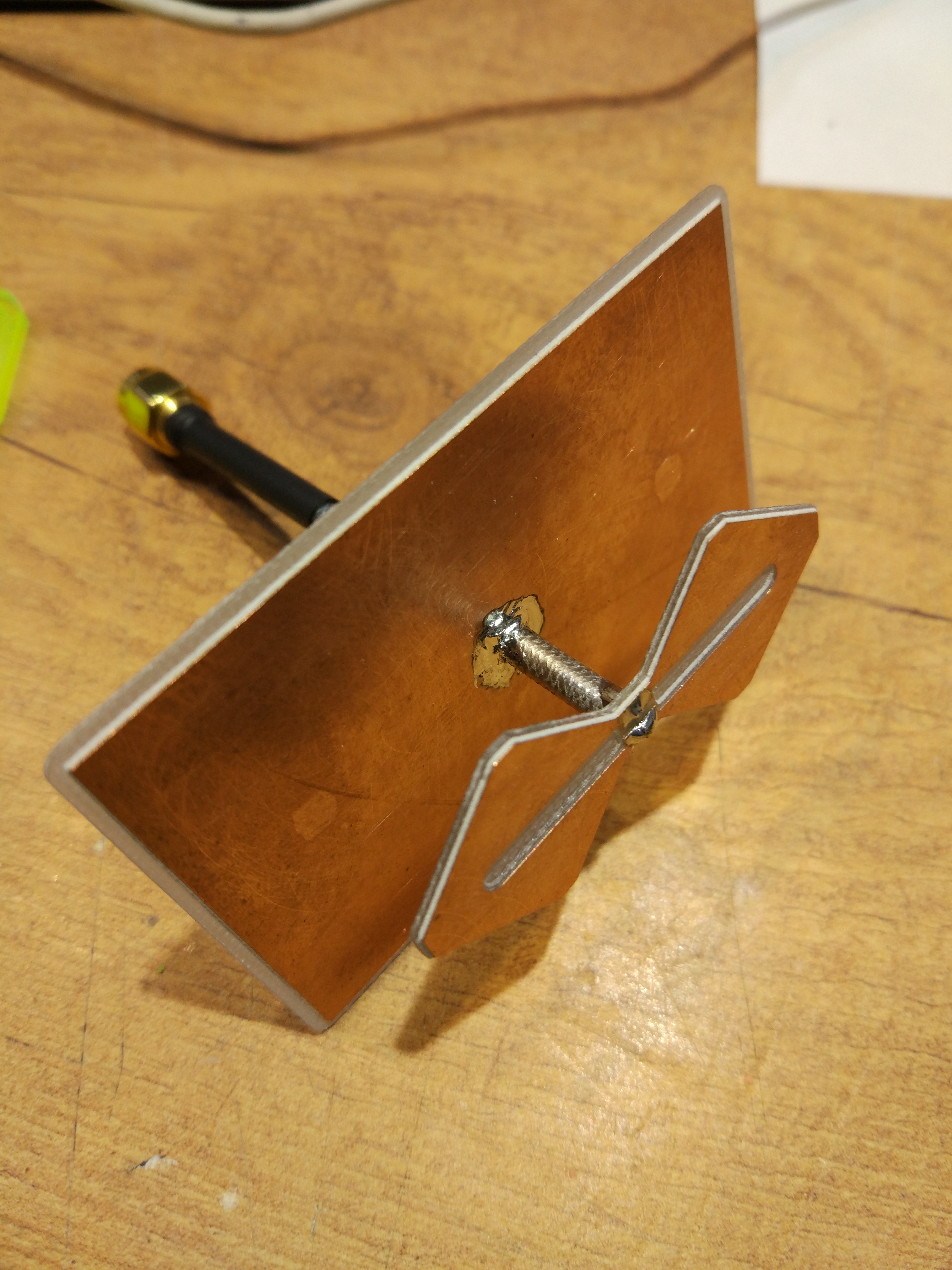

Here's my try. Used 1mm fr4 (tu be true it was 1.1) for both PCB's.
Cable that i've used is RG402.

Measured, and that design resonates over 6gh. I think it happens cos you simulated design with nylon spacers.
Here it's my try...



2 people like this

Share this post


Link to post
Share on other sites
3 hours ago, antenna_kid said:

Can I ask you for same design but for 1200Mhz ? Please :)

,,, for 1200MHz,don"t you think that the antenna is too big, about 4,8 times...???

Share this post


Link to post
Share on other sites
4 hours ago, antenna_kid said:

Hi.
As you can see. Found this forum very useful.
Here's my try. Used 1mm fr4 (tu be true it was 1.1) for both PCB's.
Cable that i've used is RG402.

Measured, and that design resonates over 6gh. I think it happens cos you simulated design with nylon spacers.
Here it's my try...





What dimensions did you use for FR4 thick 1mm ,,, ???

I have not posted such dimensions....!!!

Share this post


Link to post
Share on other sites

No you not :) you posted biquad2.igs file :)
As you see i've cut that biquad on CNC. I have small one so it was easy.

Share this post


Link to post
Share on other sites
36 minutes ago, antenna_kid said:

No you not :) you posted biquad2.igs file :)
As you see i've cut that biquad on CNC. I have small one so it was easy.

But biquad2.igs file is for 1.5mm FR4 thickness,,,,!!!!!

Share this post


Link to post
Share on other sites

oh, it was under dimensions that you posted for 1mm (under picture). If so, my bad :)
But no problem with that, I've try make some case so it will shift antenna down :)



Share this post


Link to post
Share on other sites
7 minutes ago, antenna_kid said:

oh, it was under dimensions that you posted for 1mm (under picture). If so, my bad :)
But no problem with that, I've try make some case so it will shift antenna down :)

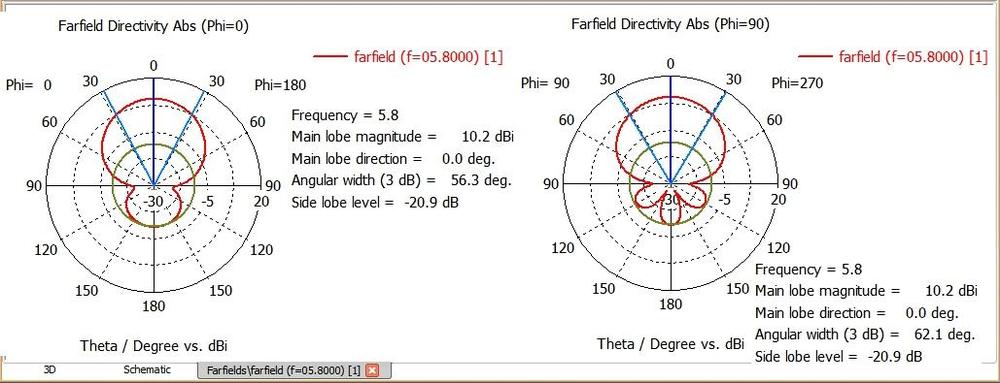

then multiplies the dimensions of the image with k = 1,0345 for the frequency of 5,8ghz

Share this post


Link to post
Share on other sites
On 1/16/2017 at 10:36 PM, Admin said:

,,,a biquad antenna on PCB(10,5dBi) and panel antenna with 4biquad(16.5dBi)...







The Best ....!!!







send .cdr file please

Share this post


Link to post
Share on other sites

Hello.. Im newbie in cst, i wanna make a biquad antenna for my final project. Can anyone tell me the detail about how to make port for biquad wire antenna in cst? Or give some tutorial? Ive made the antenna with coaxial probe but there is radiated wave from the coaxial probe.. i dont understad, am i wrong or not.  Thank you very much. :)

Edited by Luthfi Gibrani

Share this post


Link to post
Share on other sites
