Biquad Antenna

307 posts in this topic

Okay, then give me your sizes at biquad...!!!

Share this post


Link to post
Share on other sites
2 minutes ago, Admin said:

Ne tür PCB var?

Can not you design your pcb design for 2.4 GHz at 5.8 GHz?

PCB FR4

Thickness = 1mm
Copper surface thickness = 35 μm

Share this post


Link to post
Share on other sites

Okay

But you have to wait a bit

1 person likes this

Share this post


Link to post
Share on other sites

Reflective reflector panel size 51x51mm
Bi-quad height = 17mm
Bi-quad Width = 33mm

Share this post


Link to post
Share on other sites
1 minute ago, Admin said:

Okay

But you have to wait a bit

It's not a problem, dear friend.
But will it take too long?

Share this post


Link to post
Share on other sites

But why do you want 5,8ghz, that's the upper limit of the band, I think you need 5.65ghz

Share this post


Link to post
Share on other sites

No. It should be 5800 MHz center frequency.
It will operate between 5700 MHz and 5900 MHz.
But the center frequency will be 5.8 GHz

Share this post


Link to post
Share on other sites

I'll share some pictures with you.

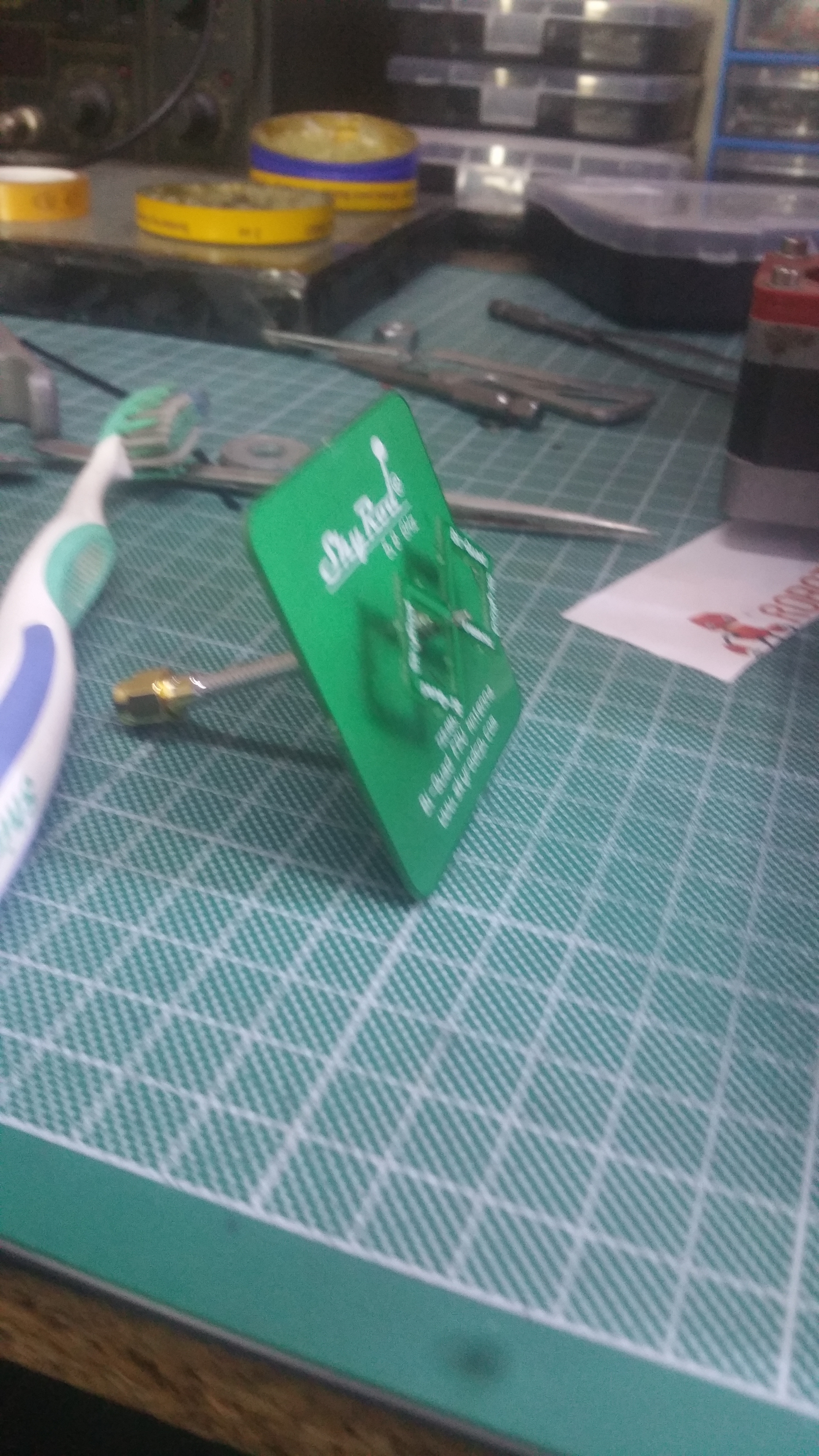

Pictures of pcb antennas I have built.
But the results are pretty bad.

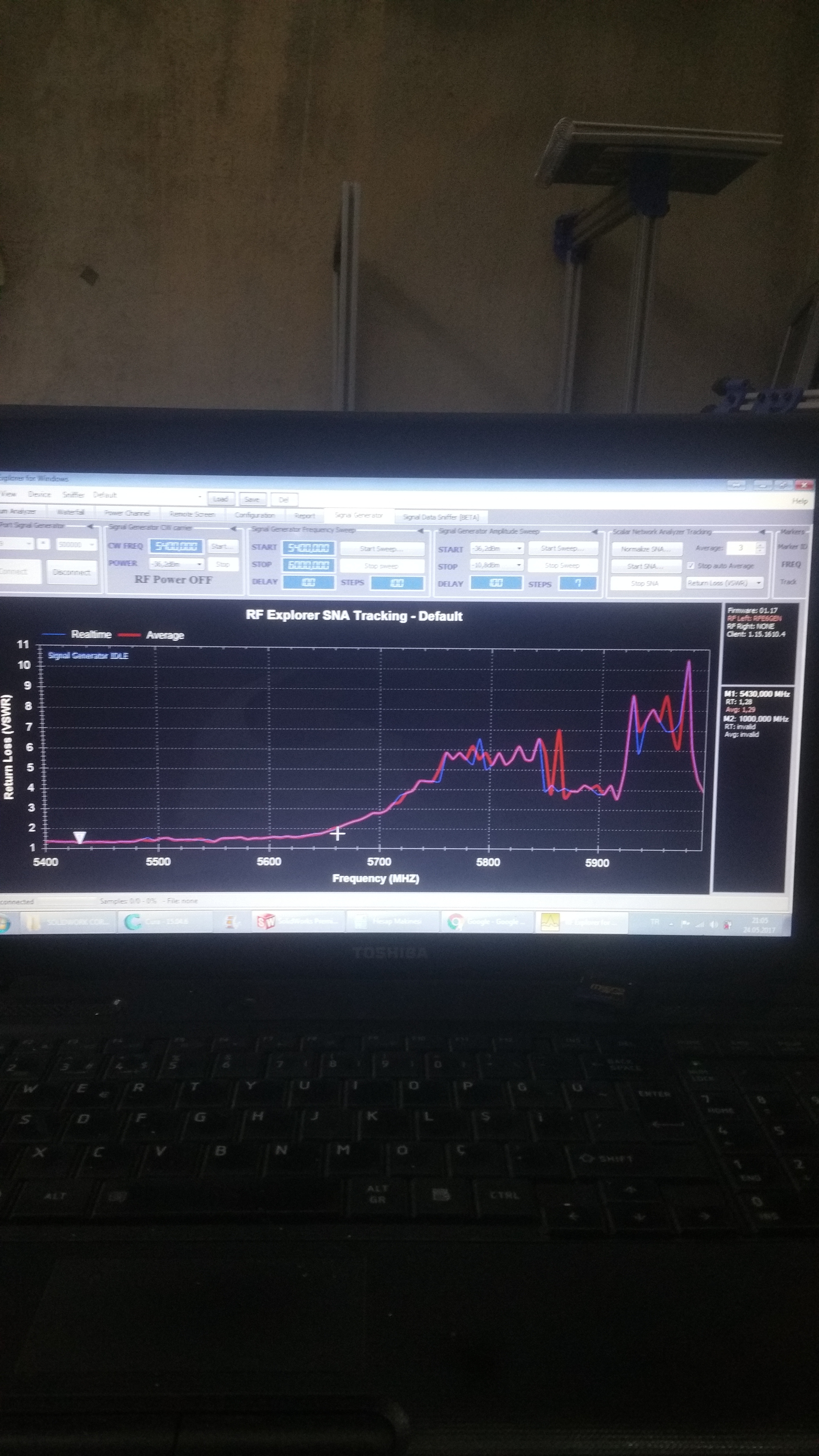

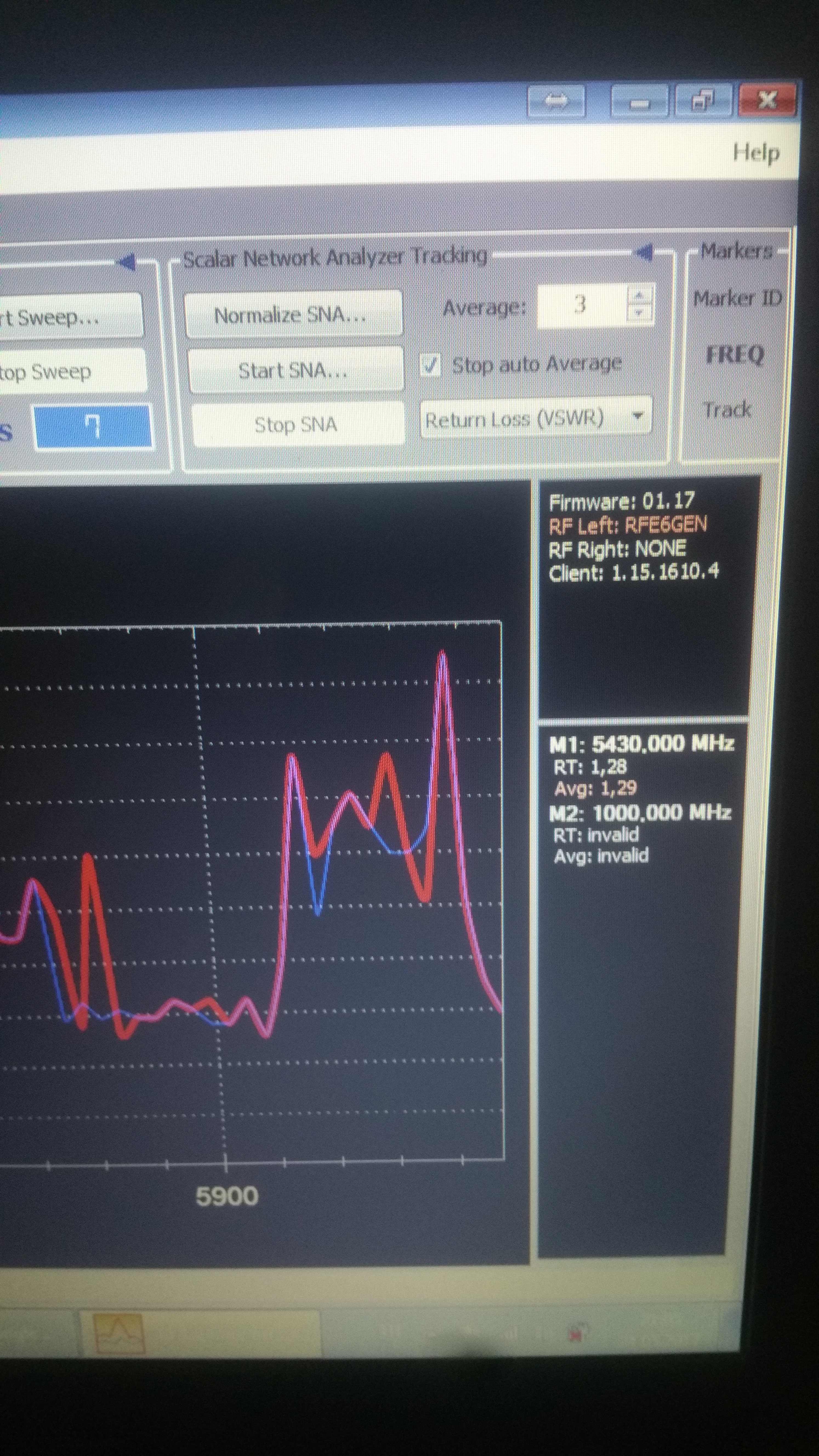

As you can see from the analysis in the picture, the center frequency of the antenna is 5430 MHz.
Actually, I did my calculations at 5800 MHz :)
It was a pretty unsuccessful job



1 person likes this

Share this post


Link to post
Share on other sites

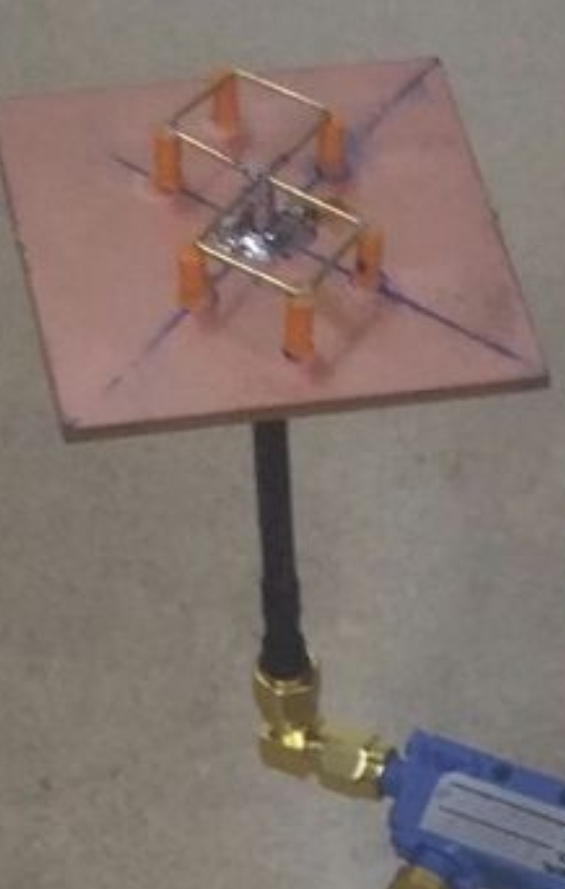

But here you made the copper wire antenna


Share this post


Link to post
Share on other sites

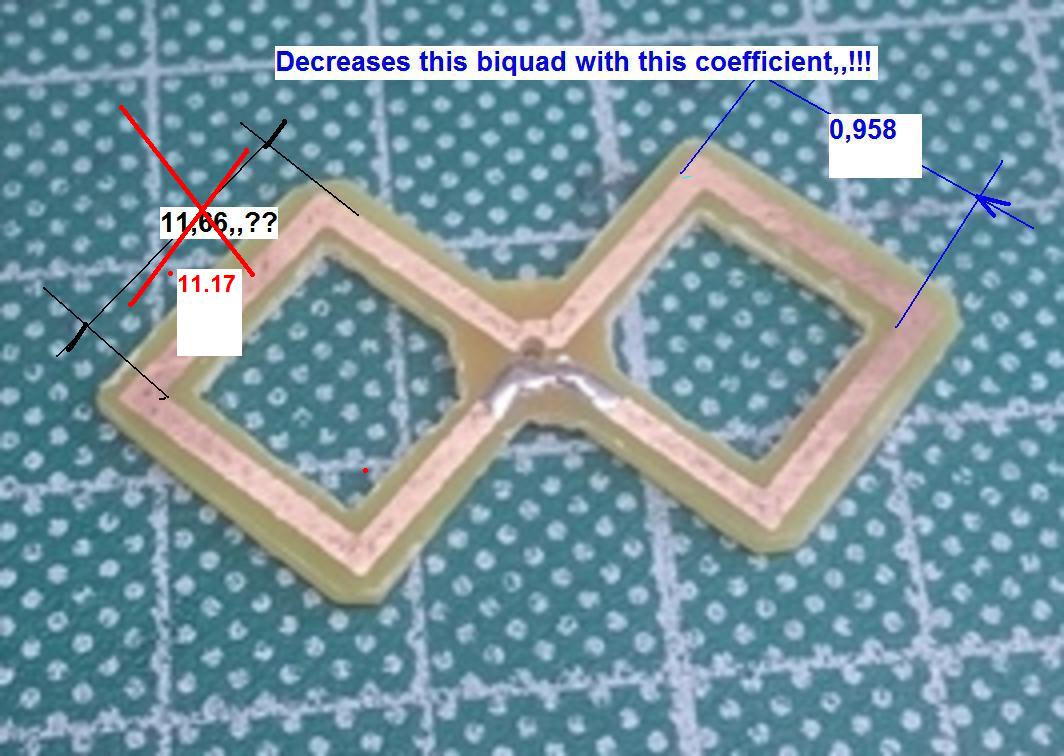

Measure from outer path to inner path 11,64mm
Do you think it should be 11.17mm?

Yeah, I made a copper wire antenna. But it's a tough job. And it takes a lot of time. I can not always adjust the copper wire length to the correct size.

Share this post


Link to post
Share on other sites

OK.
I will make a Quick Draw and share it with you

Share this post


Link to post
Share on other sites

Mate.

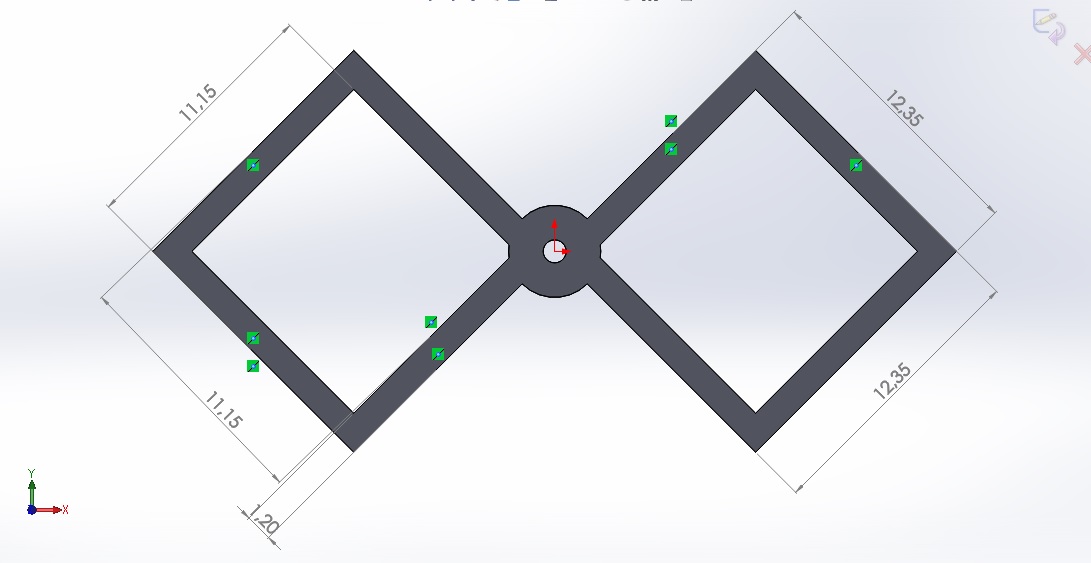

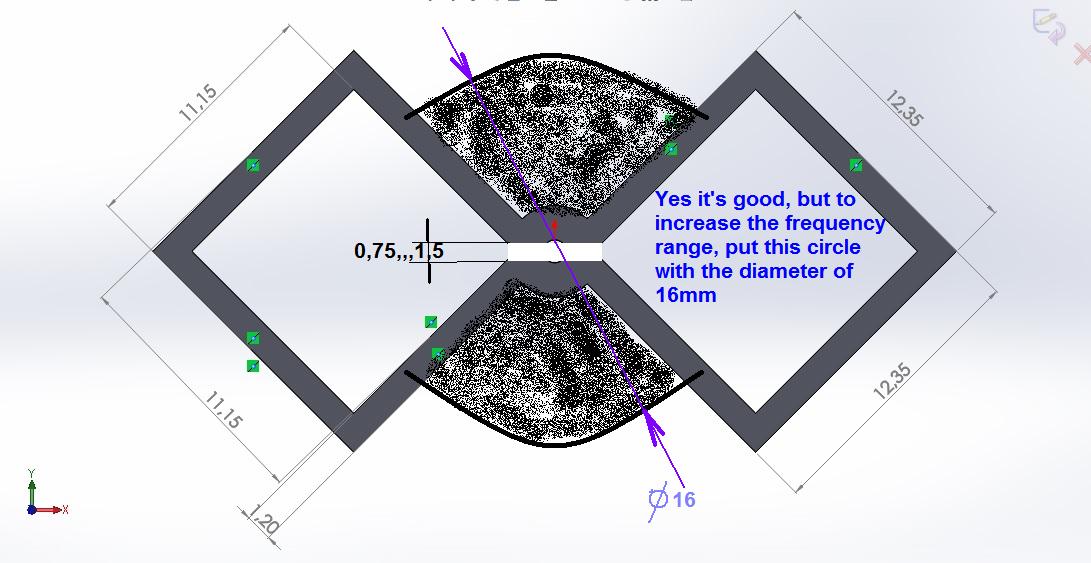

I made a drawing according to the measurements she gave with Solidwork.
Would you please examine it?

Bi-quad Size.jpg

Share this post


Link to post
Share on other sites

16mm circle diameter can not adversely affect VSWR?

Share this post


Link to post
Share on other sites

Yes, I will do a simulation with this configuration ...with 0,75 not 1.5mm
Please send me the igs (iges) file from solidworks for faster simulation

1 person likes this

Share this post


Link to post
Share on other sites

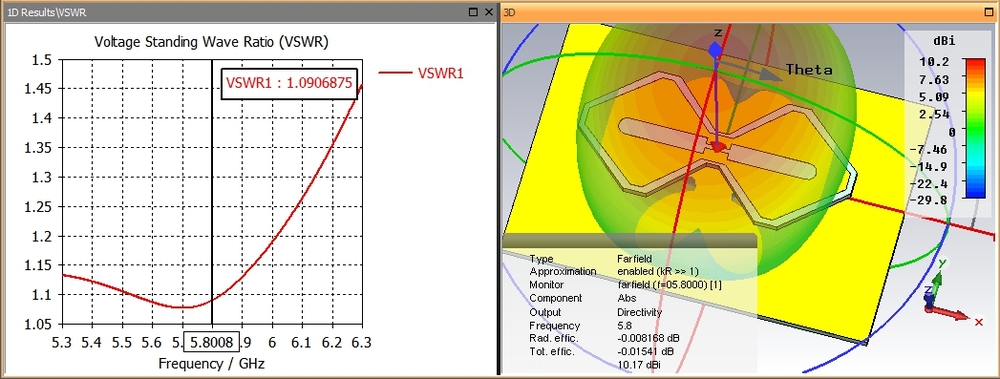

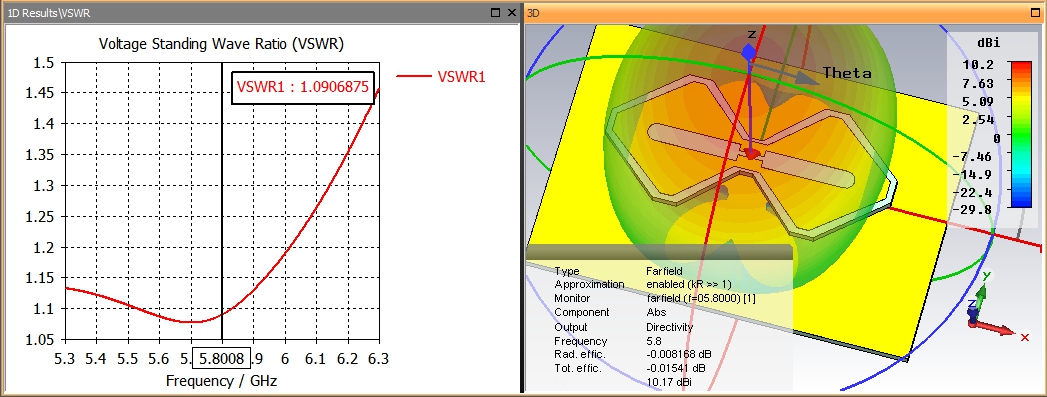

Do you want better than that ???


1 person likes this

Share this post


Link to post
Share on other sites

WOOOOOWWWWWWW.

It is so perfect
Do you say the size of the pcb
Please

Edited by efeksk
this

Share this post


Link to post
Share on other sites

I look forward to the figures you have for building your pcb.
I want to build it and test it tonight.
Please
Please
Please

Share this post


Link to post
Share on other sites

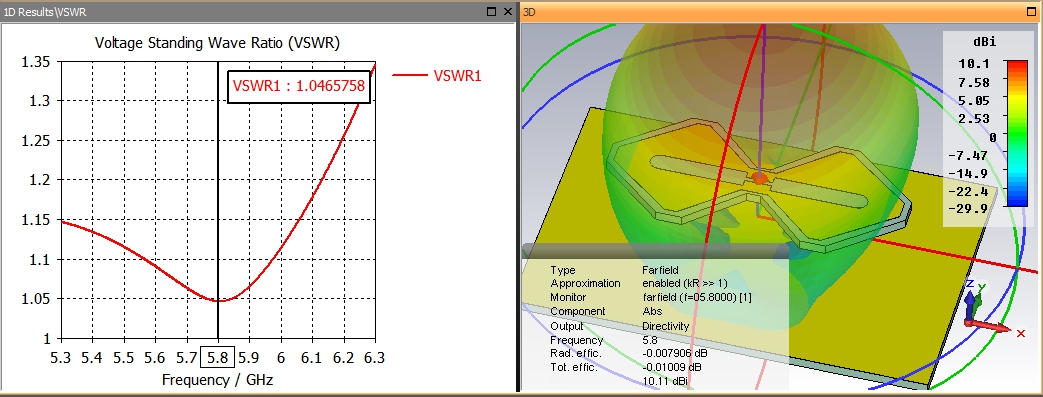

even better...



1 person likes this

Share this post


Link to post
Share on other sites
9 minutes ago, efeksk said:

I look forward to the figures you have for building your pcb.
I want to build it and test it tonight.
Please
Please
Please

Okay
