Biquad Antenna

307 posts in this topic

If you want to start this hobby, you should microquadrocopteral. Can be flown both indoor and outdoor
Also, the risk of breakage is small if you are small and crash.
I will write you the materials you need, my friend.

1 person likes this

Share this post


Link to post
Share on other sites

Derleme yapacağım ve size en uygun ekipmanları satın almak için bağlantılarla birlikte excel listesini gönderirim.

I will never forget this goodness.
One question....

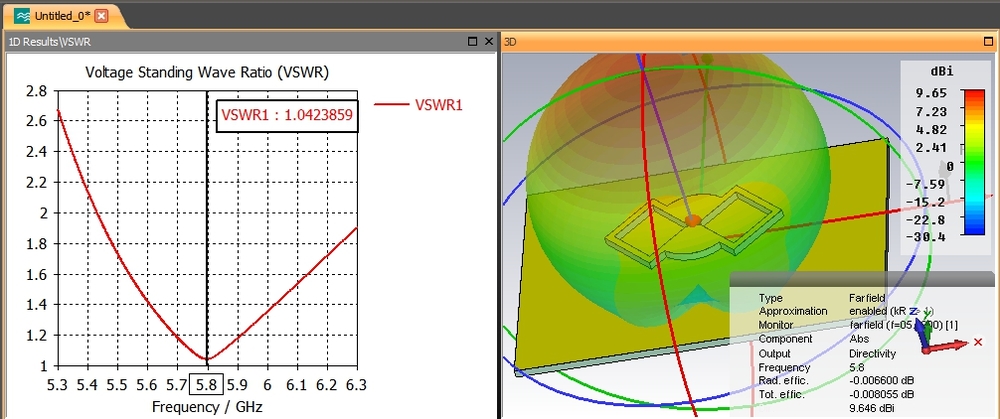

Do you use the CST Studio program for antenna design
It's really a great program. I would like to learn a lot

Edited by efeksk
fes

Share this post


Link to post
Share on other sites

If you know SolidWorks, it's very easy to learn CST Studio

Share this post


Link to post
Share on other sites

I know solidwork well. I will download cst and dig it. I think cst lessons are useful for forum

Share this post


Link to post
Share on other sites

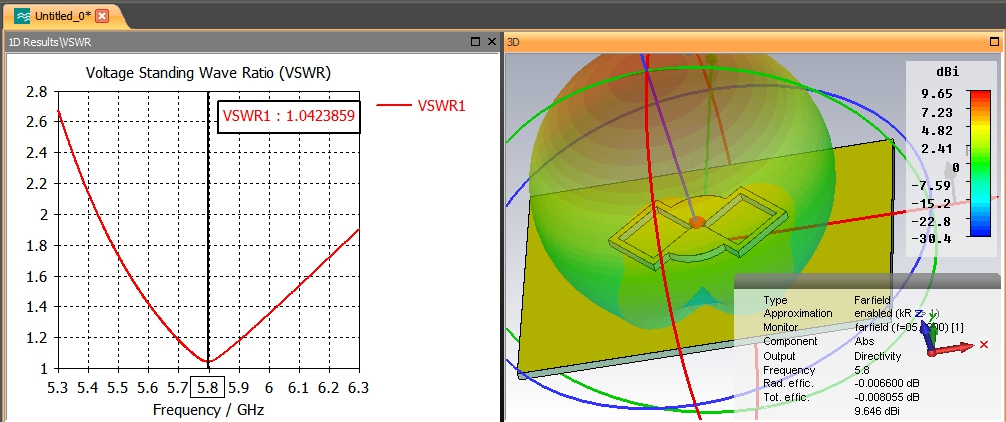

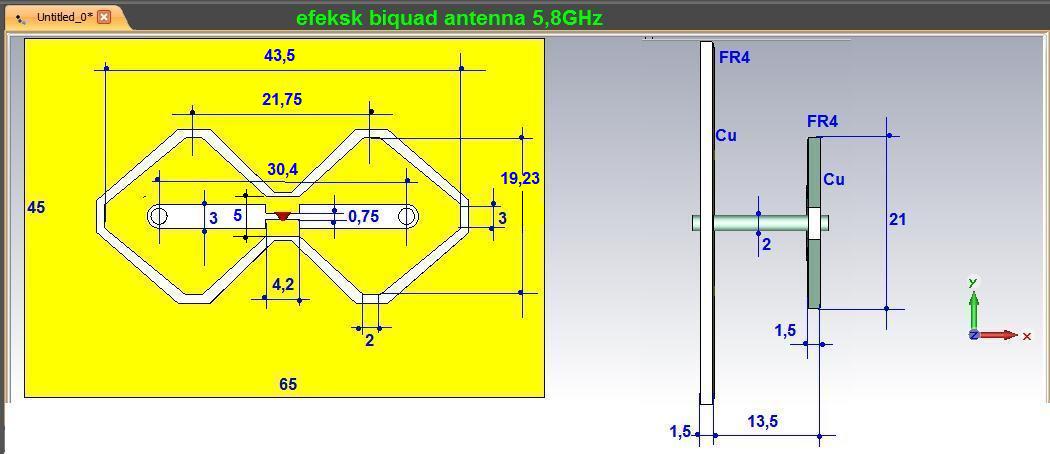

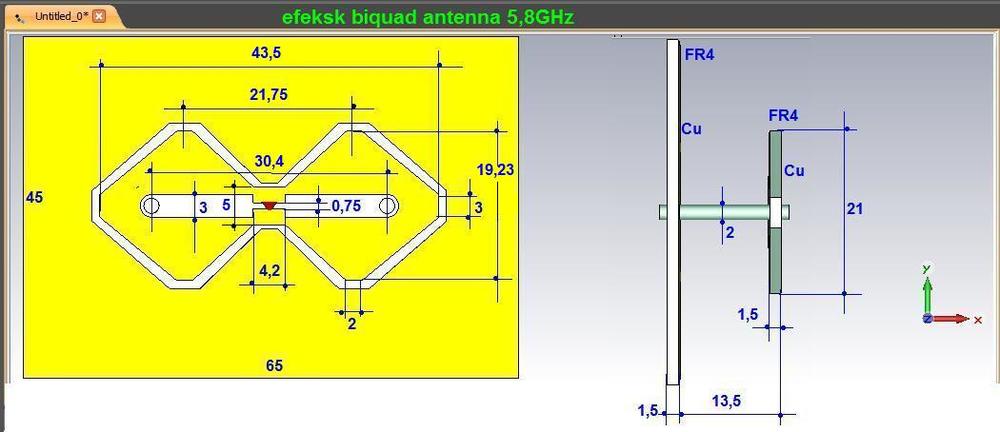

And the other variant,,,



1 person likes this

Share this post


Link to post
Share on other sites

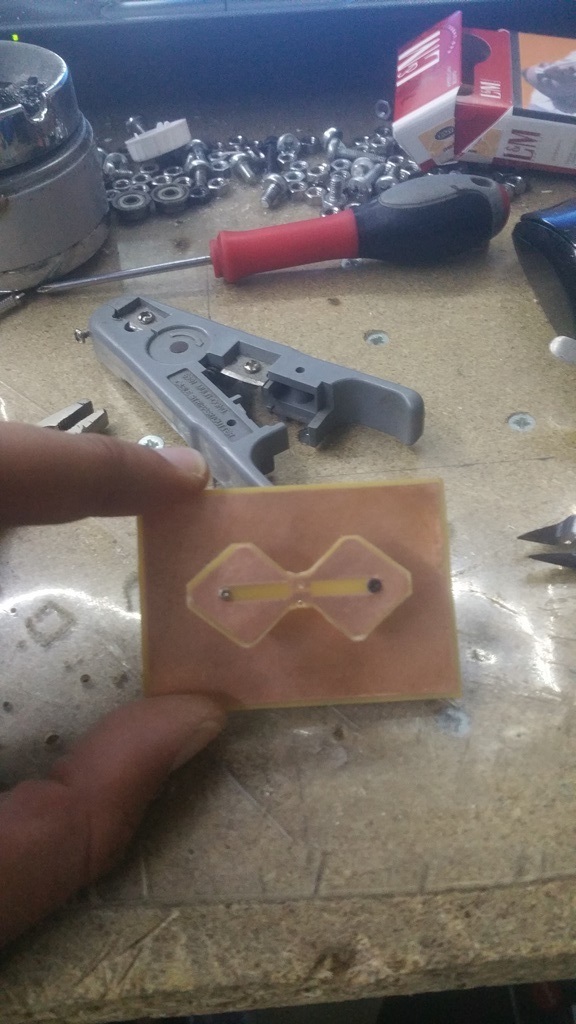

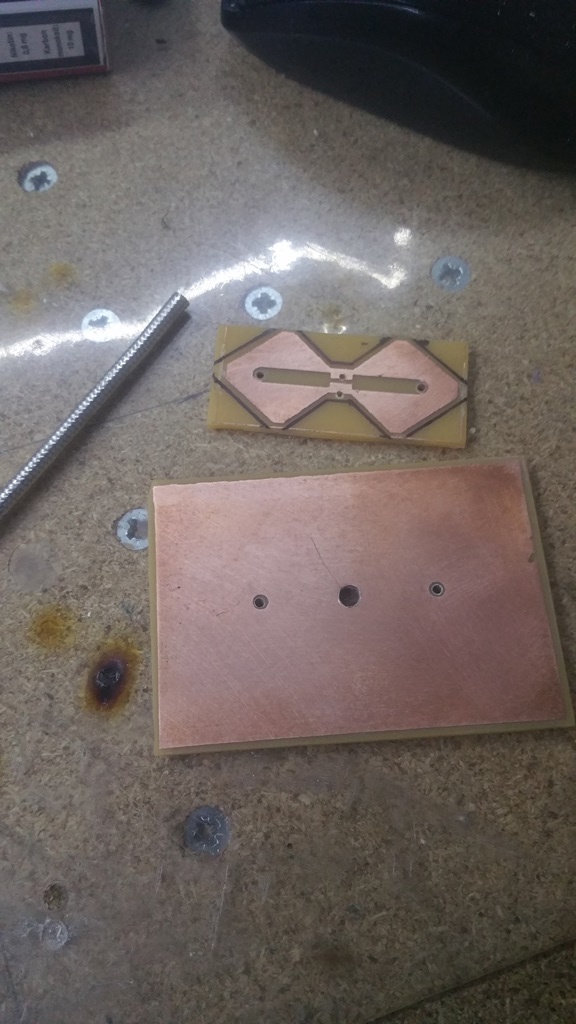

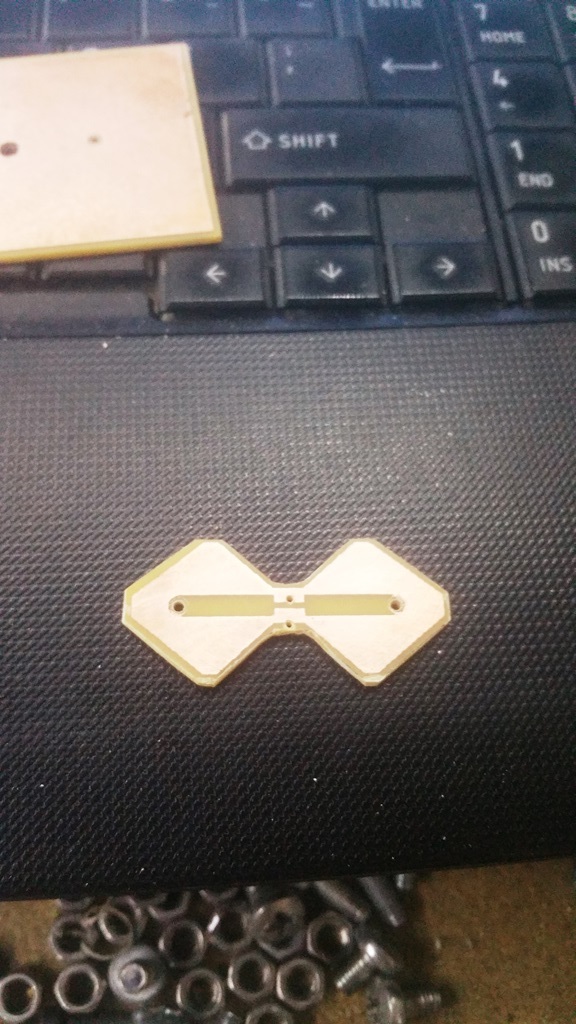

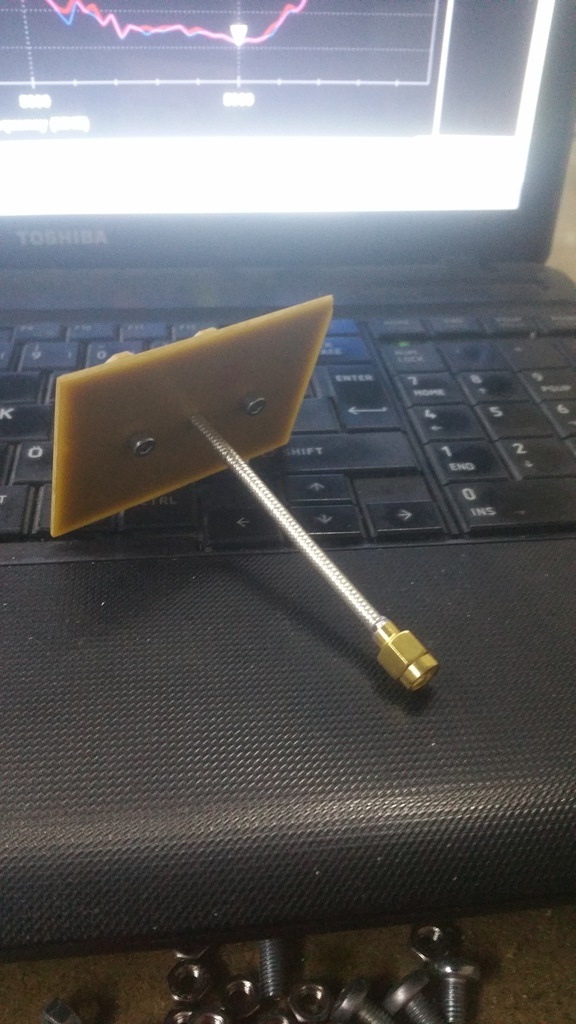

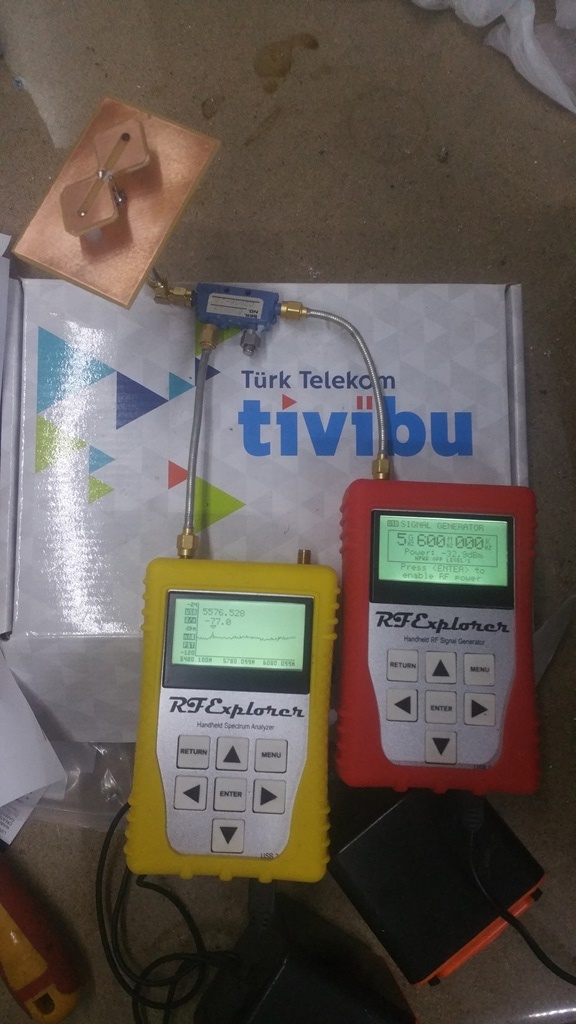

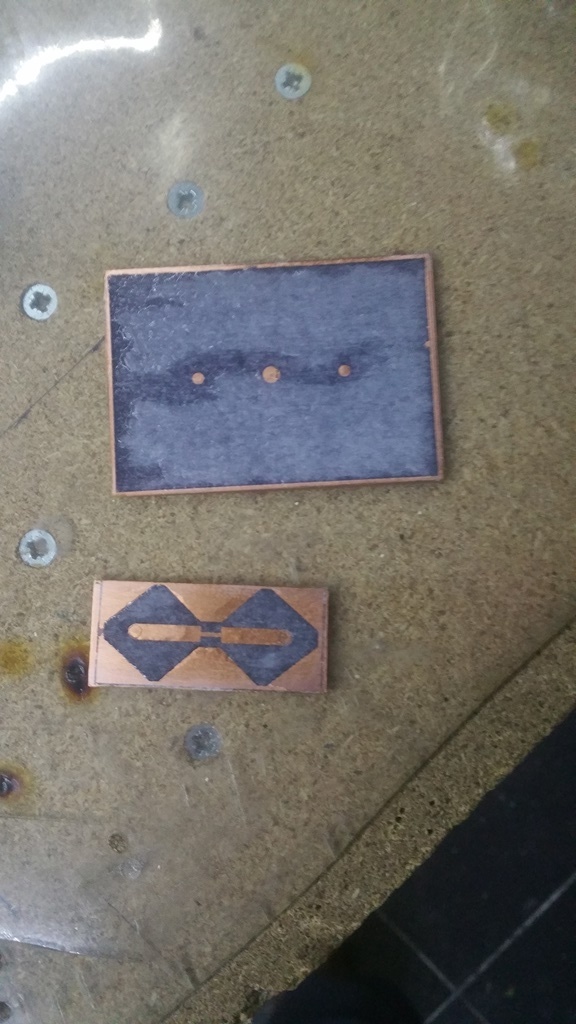

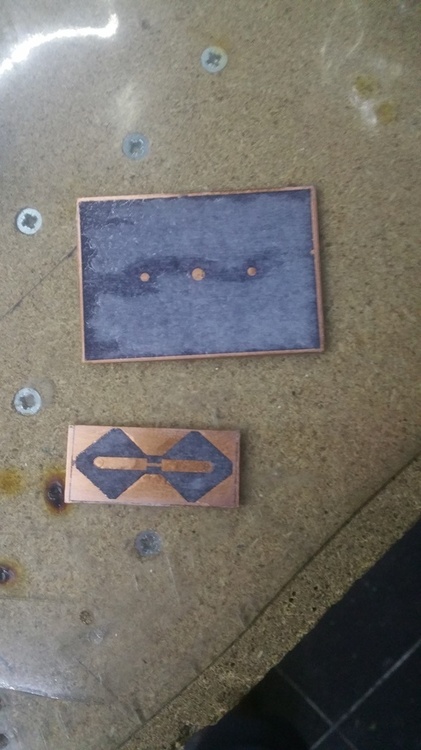

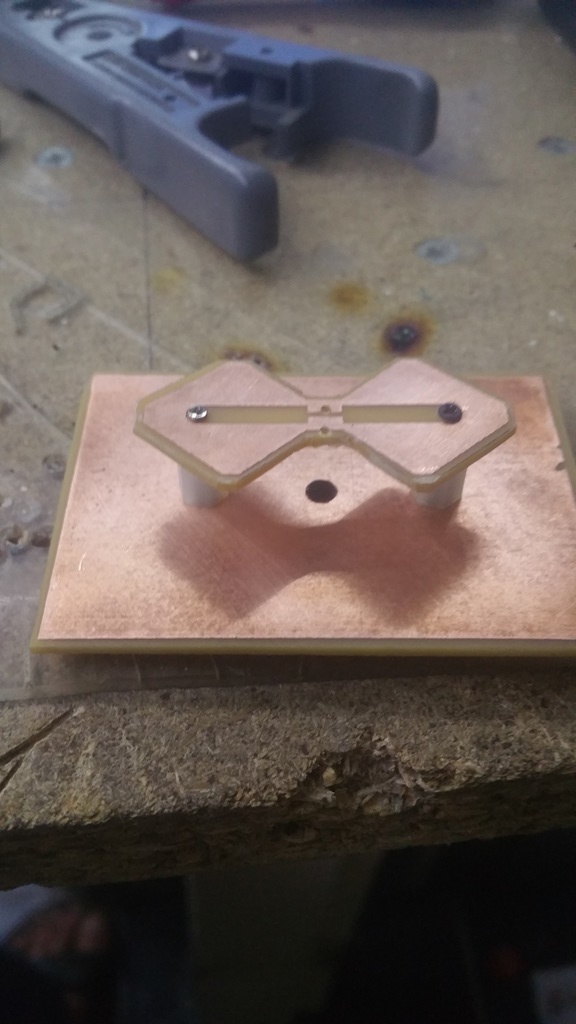

Dude, you are absolutely perfect. I built the first Antenna and tested it. The results are great.

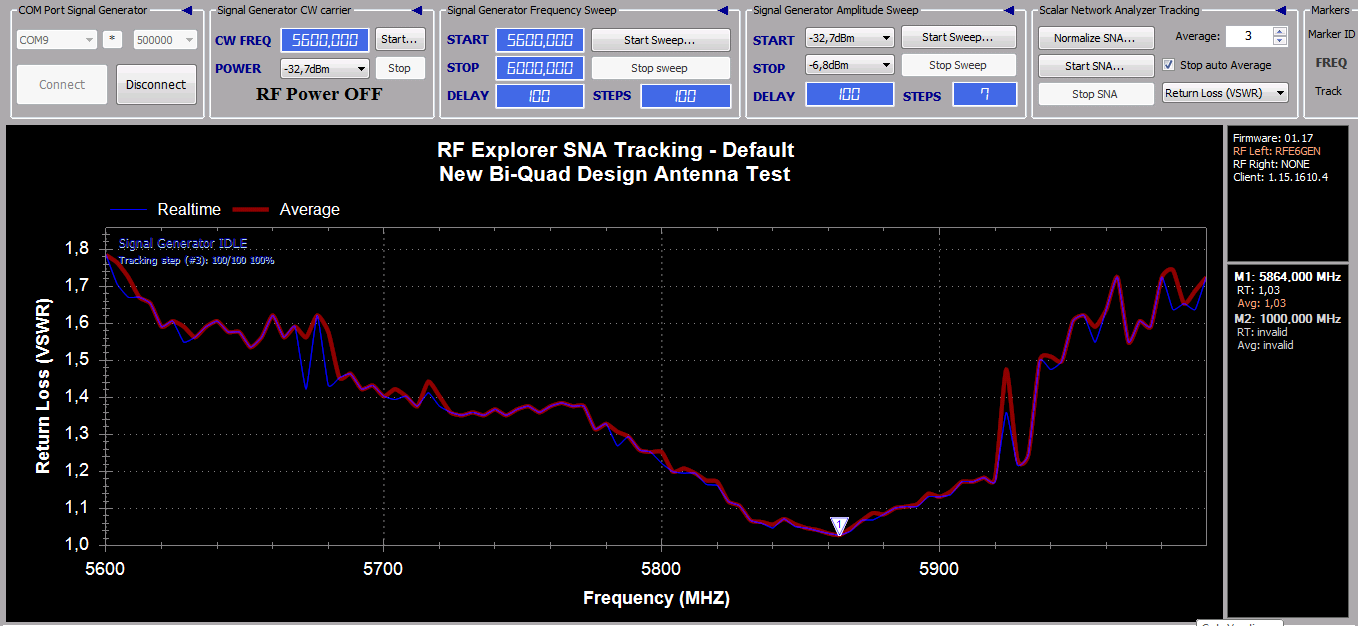

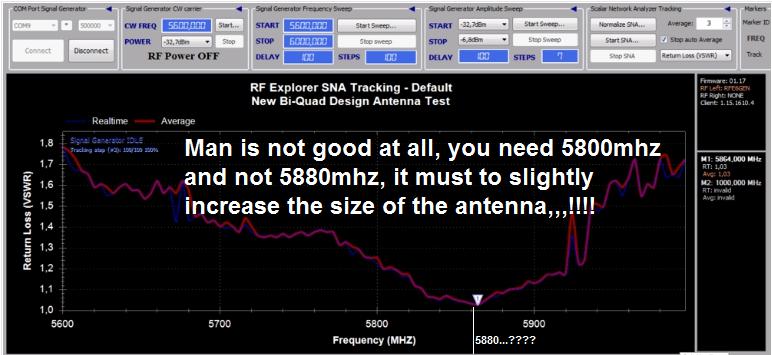

New Bi-Quad Antenna Testing-No Screw.png

2 people like this

Share this post


Link to post
Share on other sites

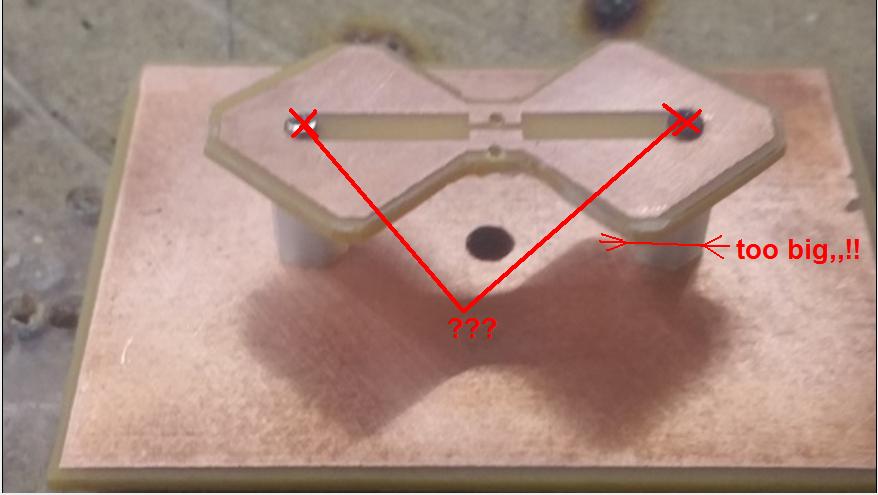

Another solution you can not find ,,, ??

No metal screws,,,!!

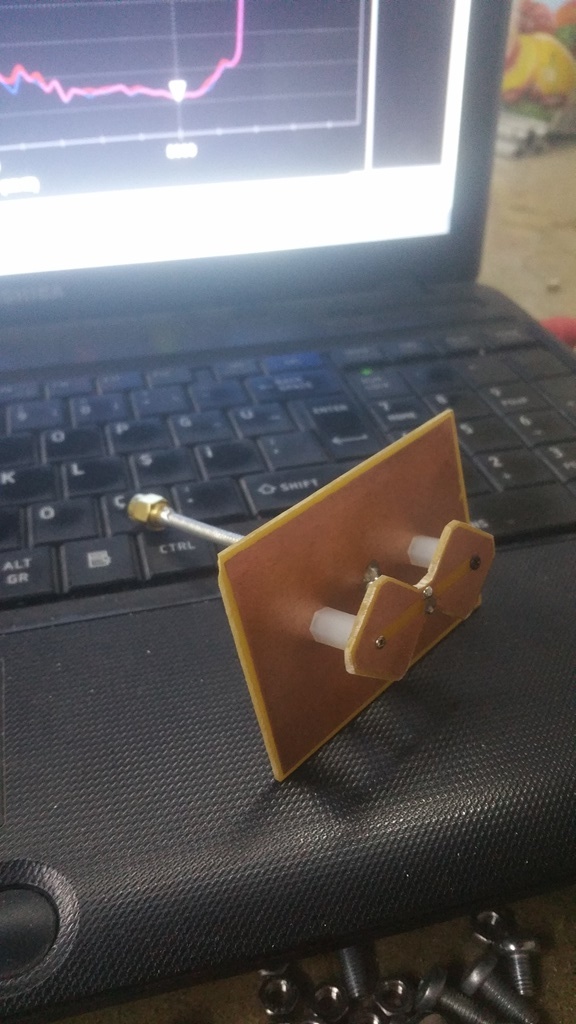

Put insulating spacers ... !!!


Share this post


Link to post
Share on other sites

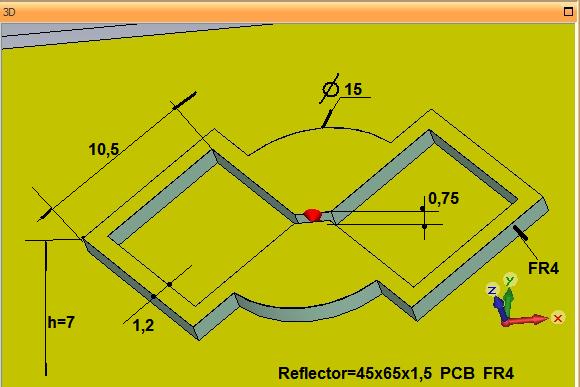

new form on *igs file

new form.igs

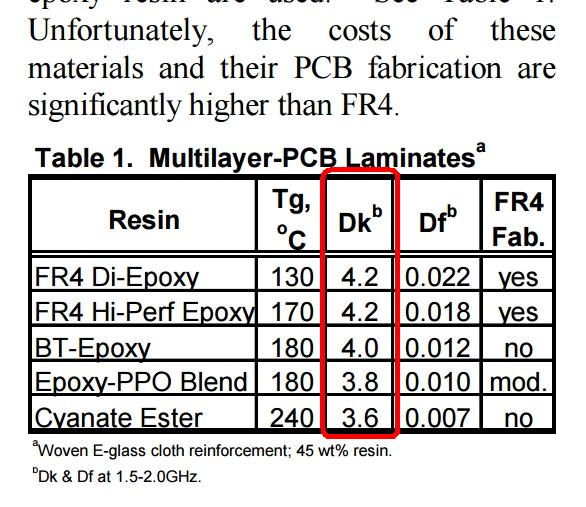

Efeksk, can you tell me the dielectric constant to FR4 you have?

Share this post


Link to post
Share on other sites

I have taken dielectric constant= 4,43 ,,,, maybe this is the difference...!!! but I do not think too,,,!!

Share this post


Link to post
Share on other sites

No. Already on average between 4.25 and 4.60. Such a small dielectric constant does not affect the frequency.

Share this post


Link to post
Share on other sites

"Then metal screws are to blame," !!!

Share this post


Link to post
Share on other sites

I would like to manufacture this design with fr4 of 1mm thickness. What about you?

Share this post


Link to post
Share on other sites

,,,no,try without metal screws ... !!!

Share this post


Link to post
Share on other sites

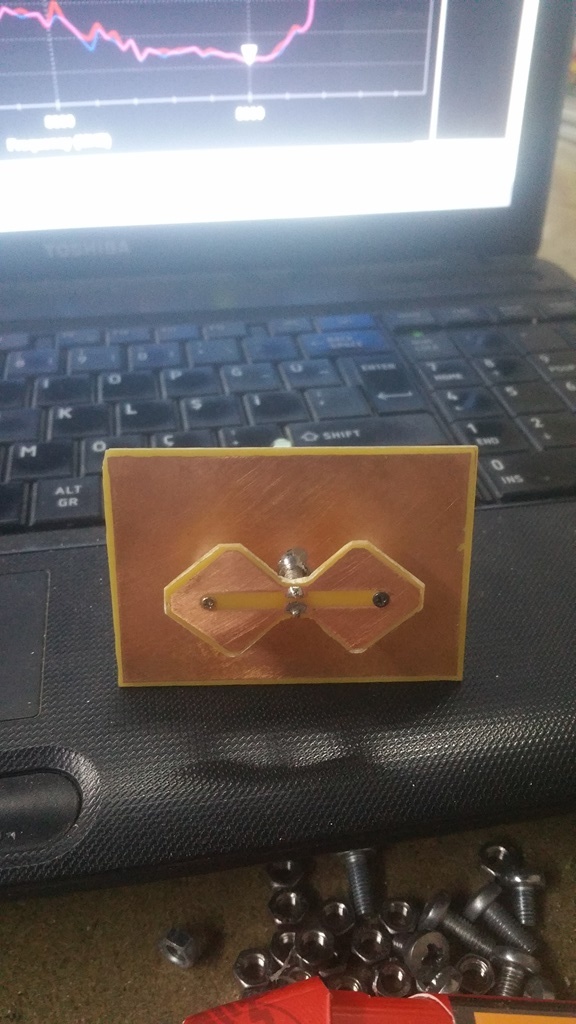

These measurements were made without bolts.
I will send you measurements made when you have bolts



Share this post


Link to post
Share on other sites

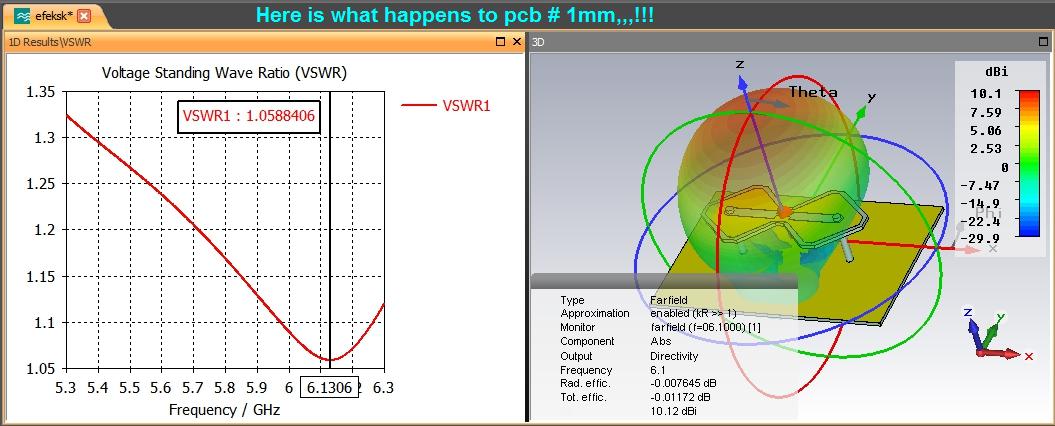

35 minutes ago, efeksk said:

I would like to manufacture this design with fr4 of 1mm thickness. What about you?

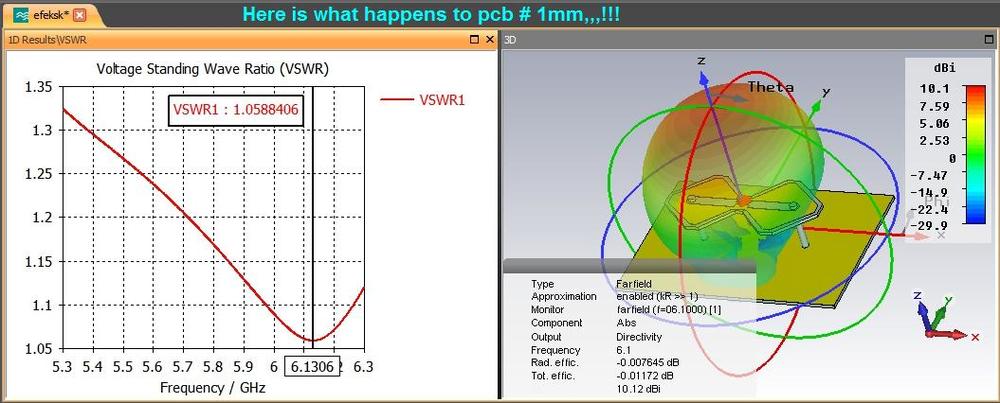

Then everything changes...!!!

I will try this option too, !!!

Share this post


Link to post
Share on other sites

Component specified as abs.
FR4 Epoxy material. It's very different from plastic material. No choice between epoxi options

Share this post


Link to post
Share on other sites

Which antenna is more effective at 5800 MHz frequency over long distances
