Biquad Antenna

307 posts in this topic

Please describe to me how to construct the antenna you have built.
I look forward to testing this design


Share this post


Link to post
Share on other sites

My Friend, please ,show me your quadrocopter....!!!!

Share this post


Link to post
Share on other sites

OK
I added pictures.

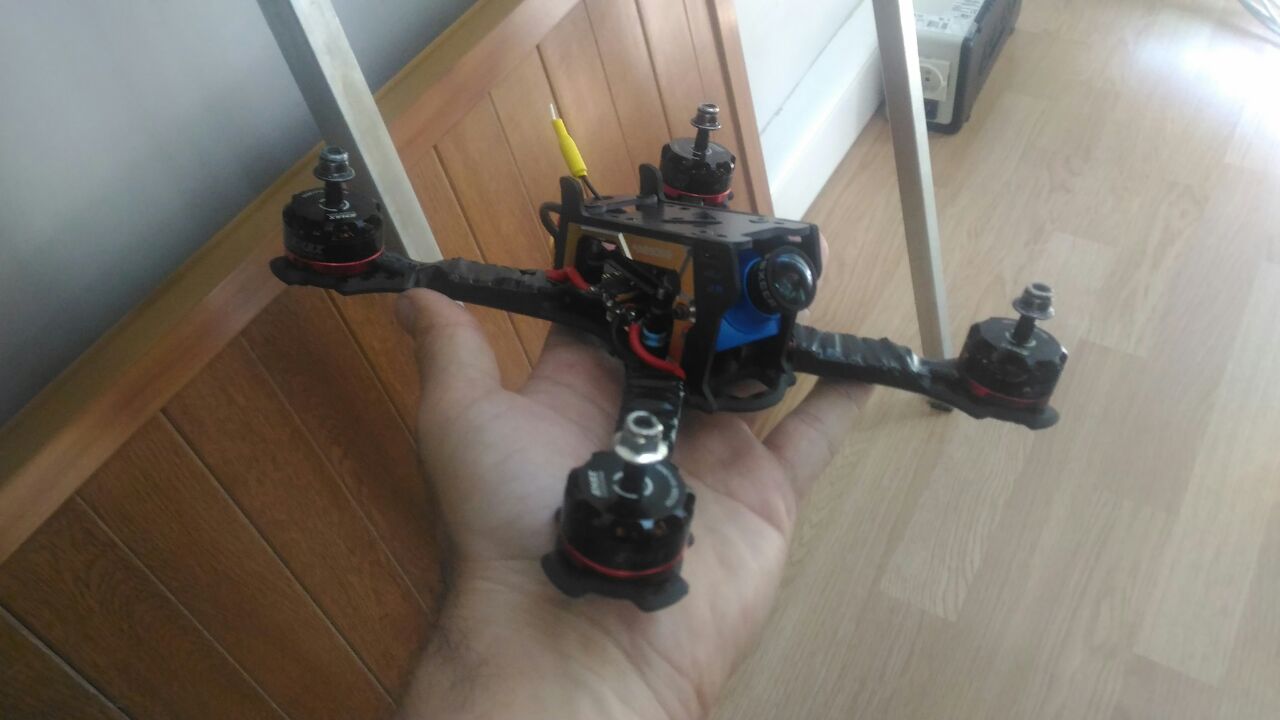

I use two separate quadrocopters.

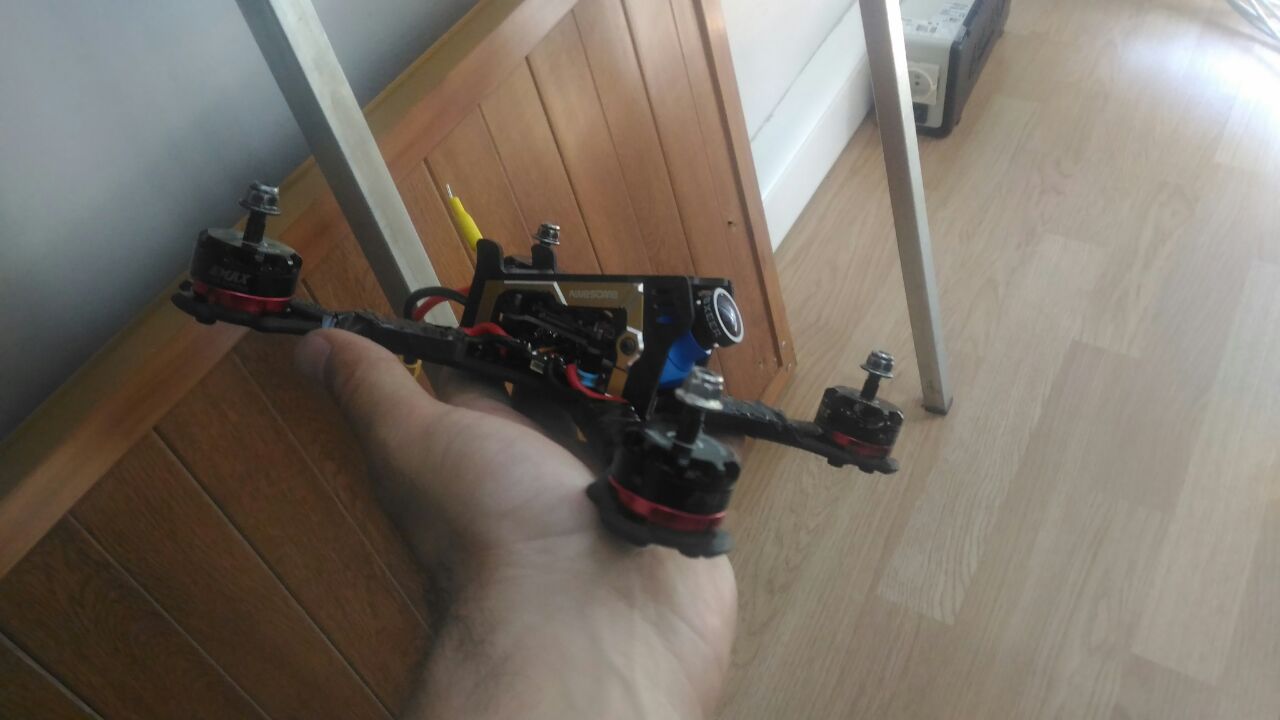

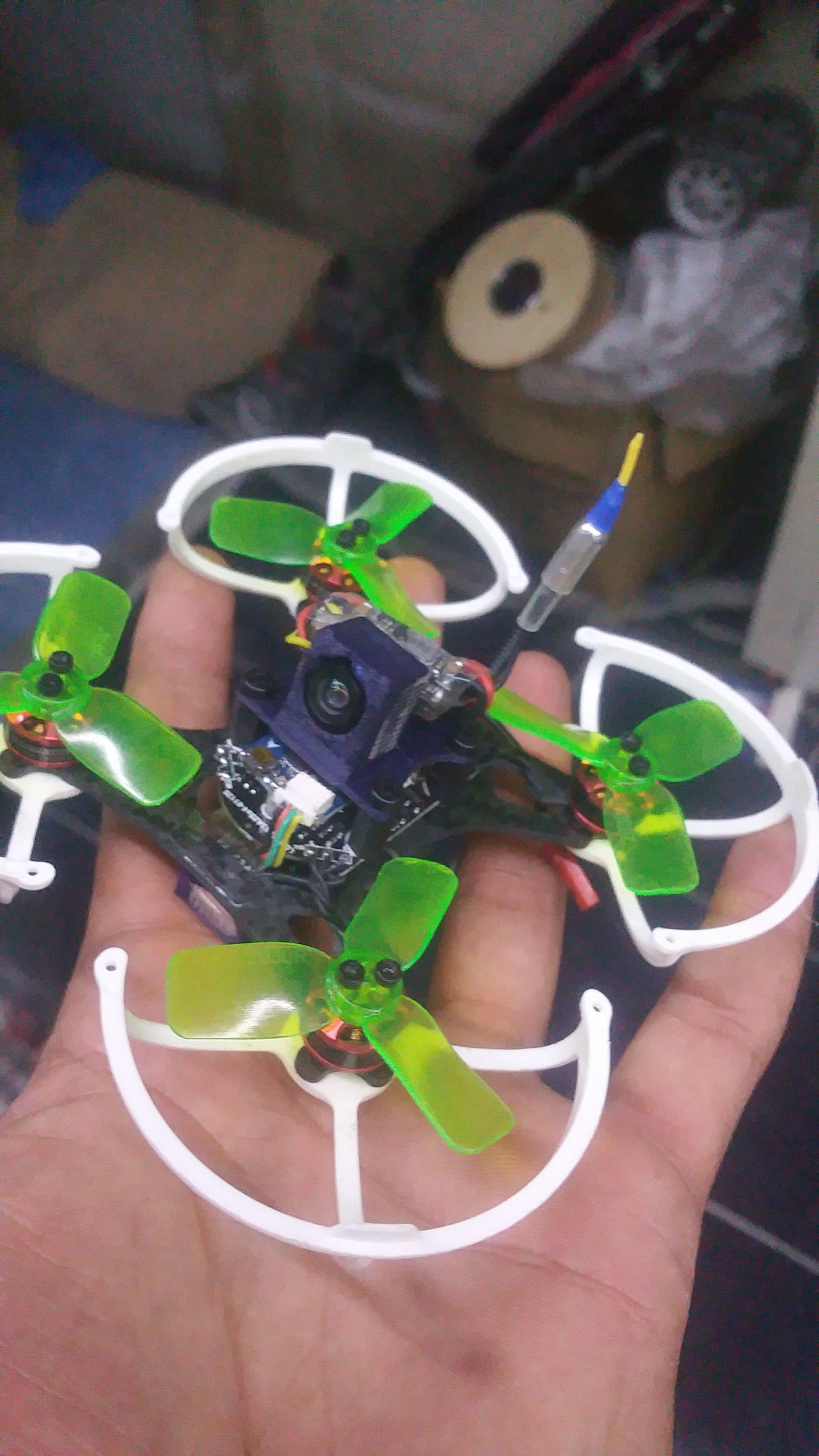

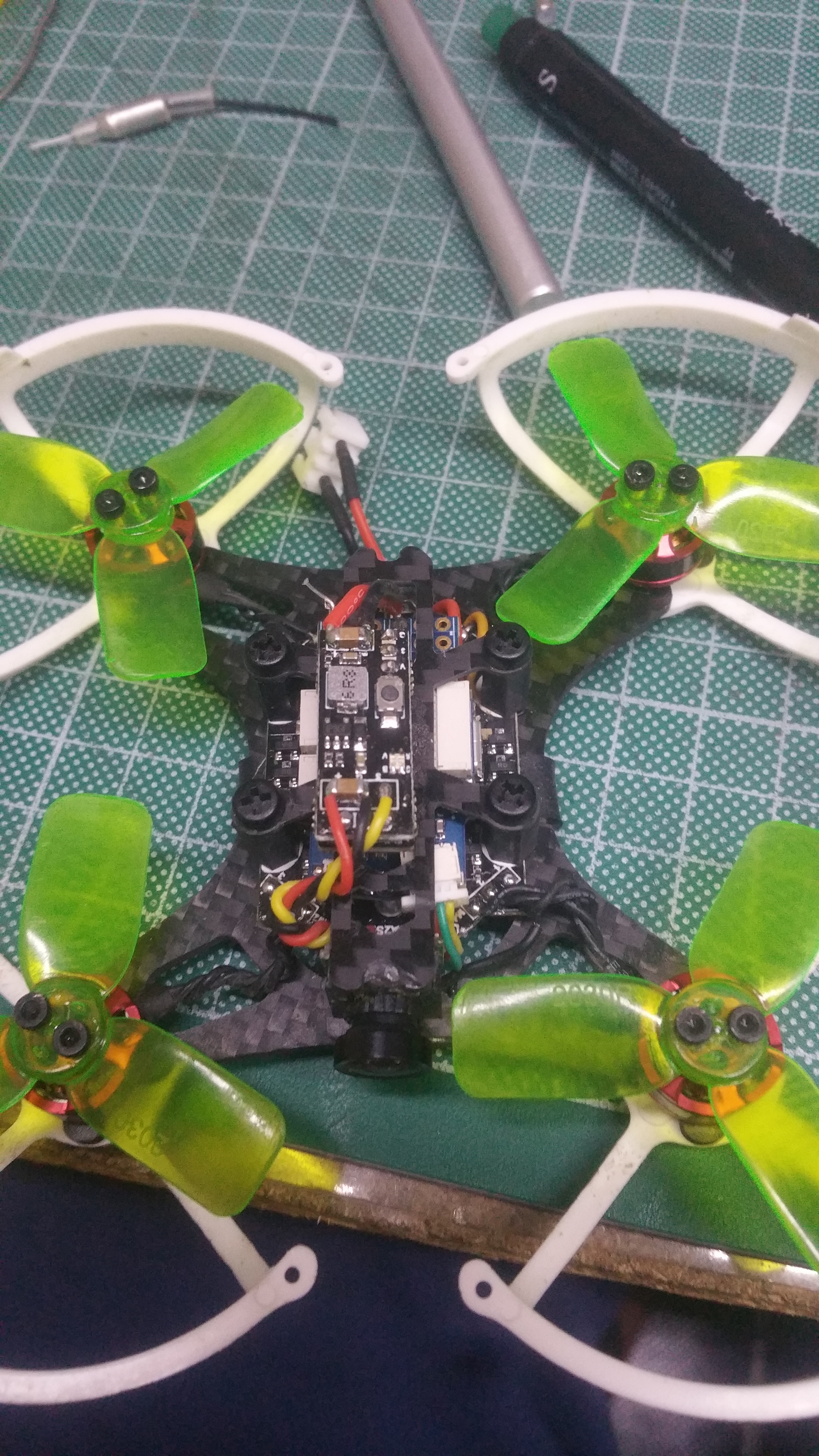

One is Microquadrocopter (Size 90mm)
The other is Miniquadrocopter (Dimension 210mm)

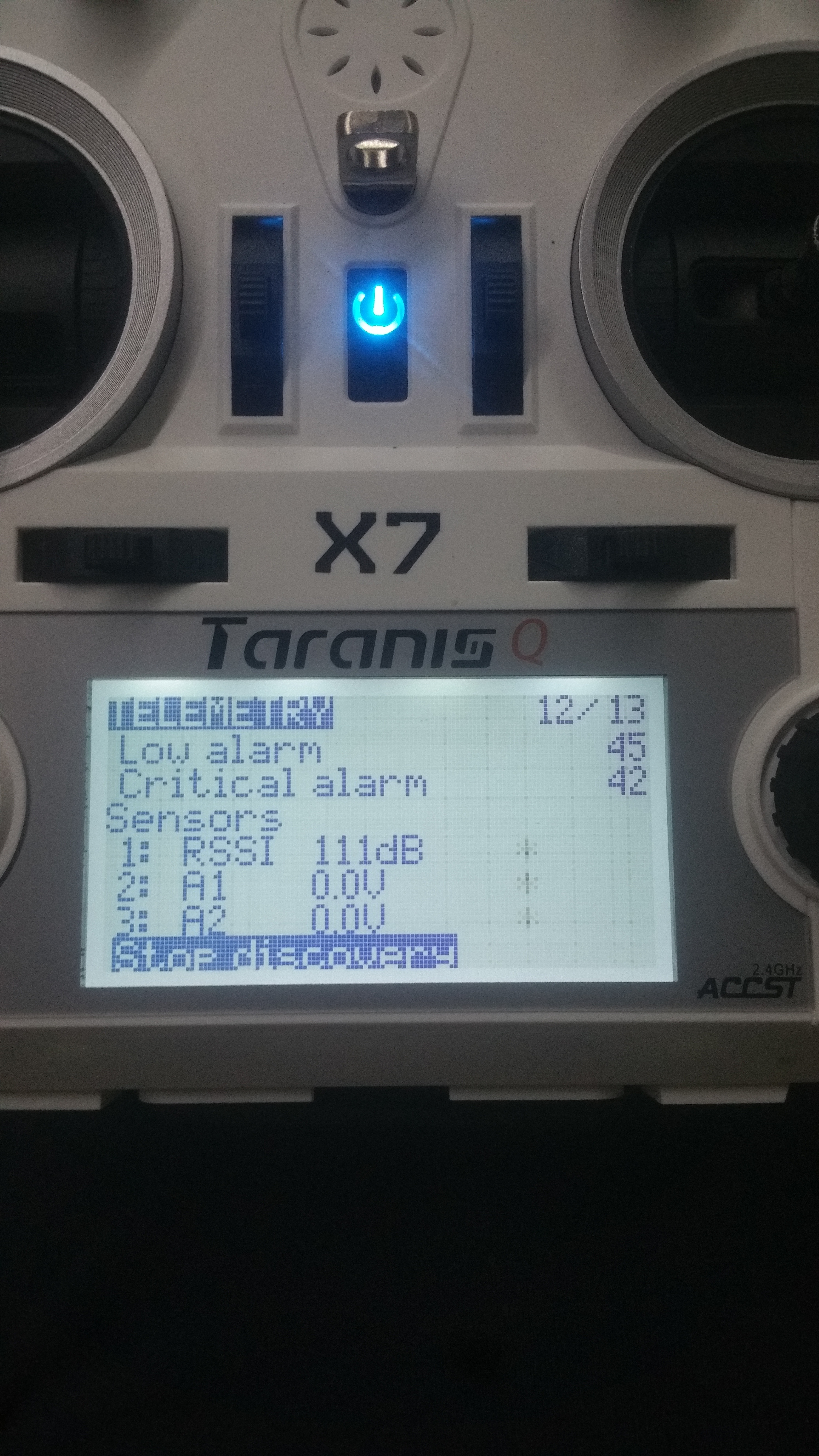

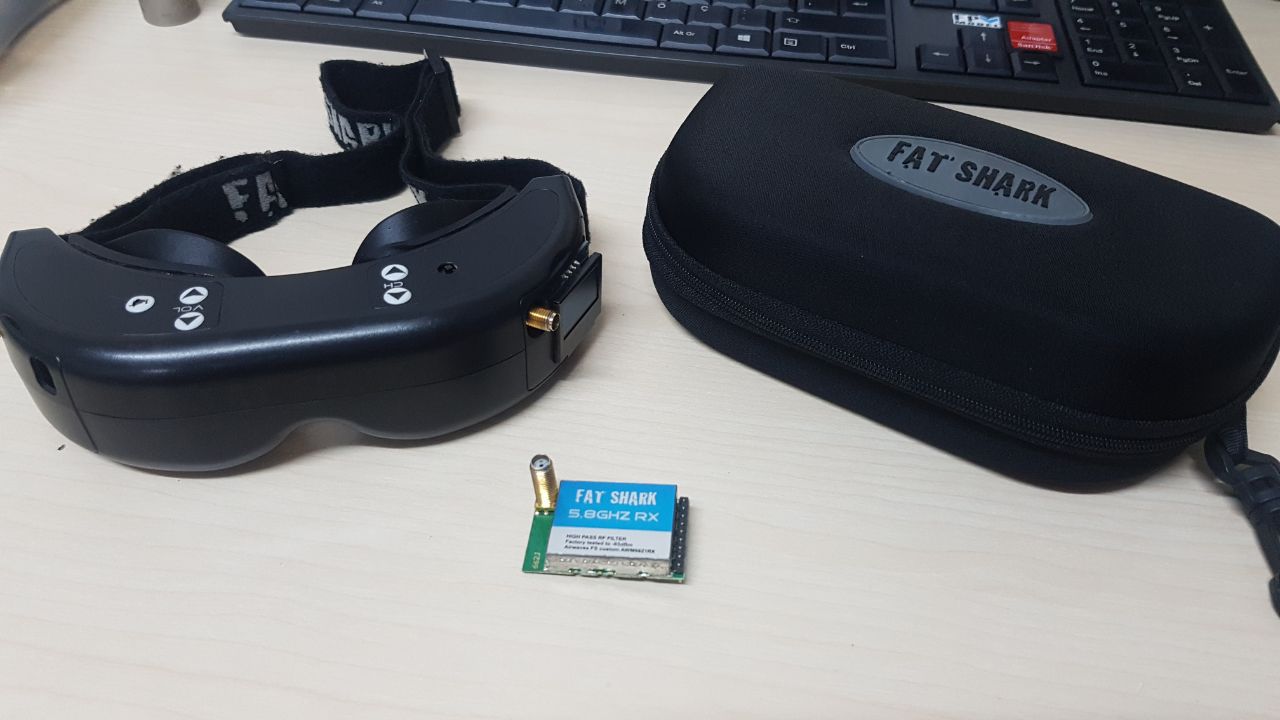

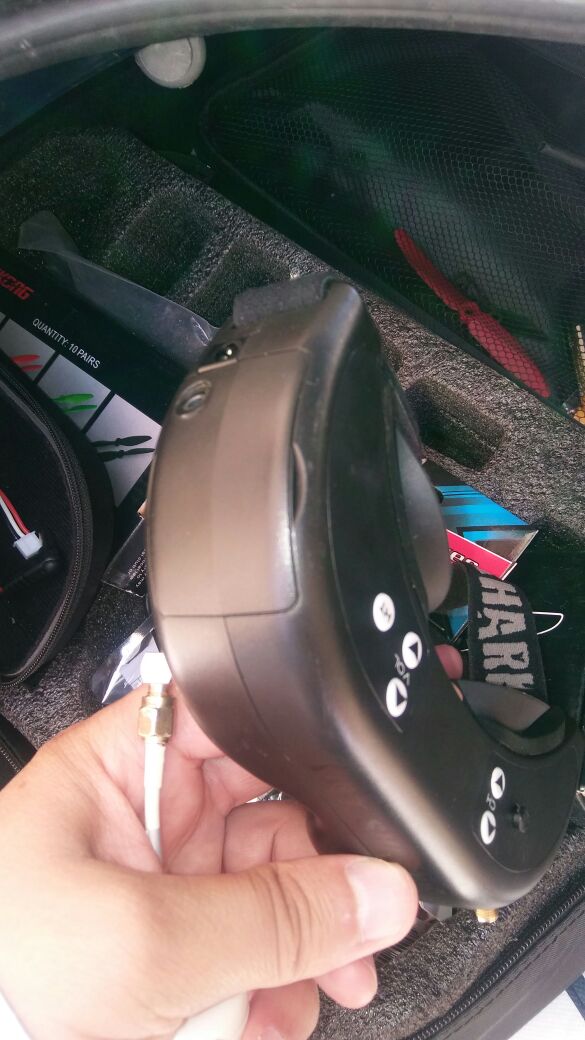

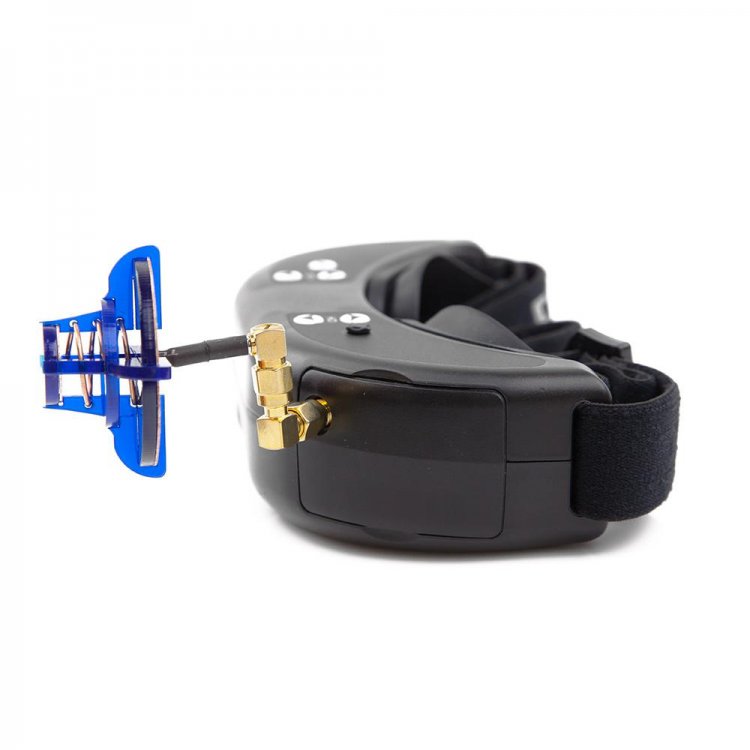

And I also added pictures of the video glasses and the controls I used while flying.







1 person likes this

Share this post


Link to post
Share on other sites

, Oooo, i like it, you're right, on such miniatures you need a miniature antenna...!!!

Share this post


Link to post
Share on other sites

This does not interest you ... ??

,,,see here,,,,






Share this post


Link to post
Share on other sites

Definitely my friend.
The dimensions are quite small and the flight device needs to be quite light.
So we need to use the best, most efficient and smallest antenna.

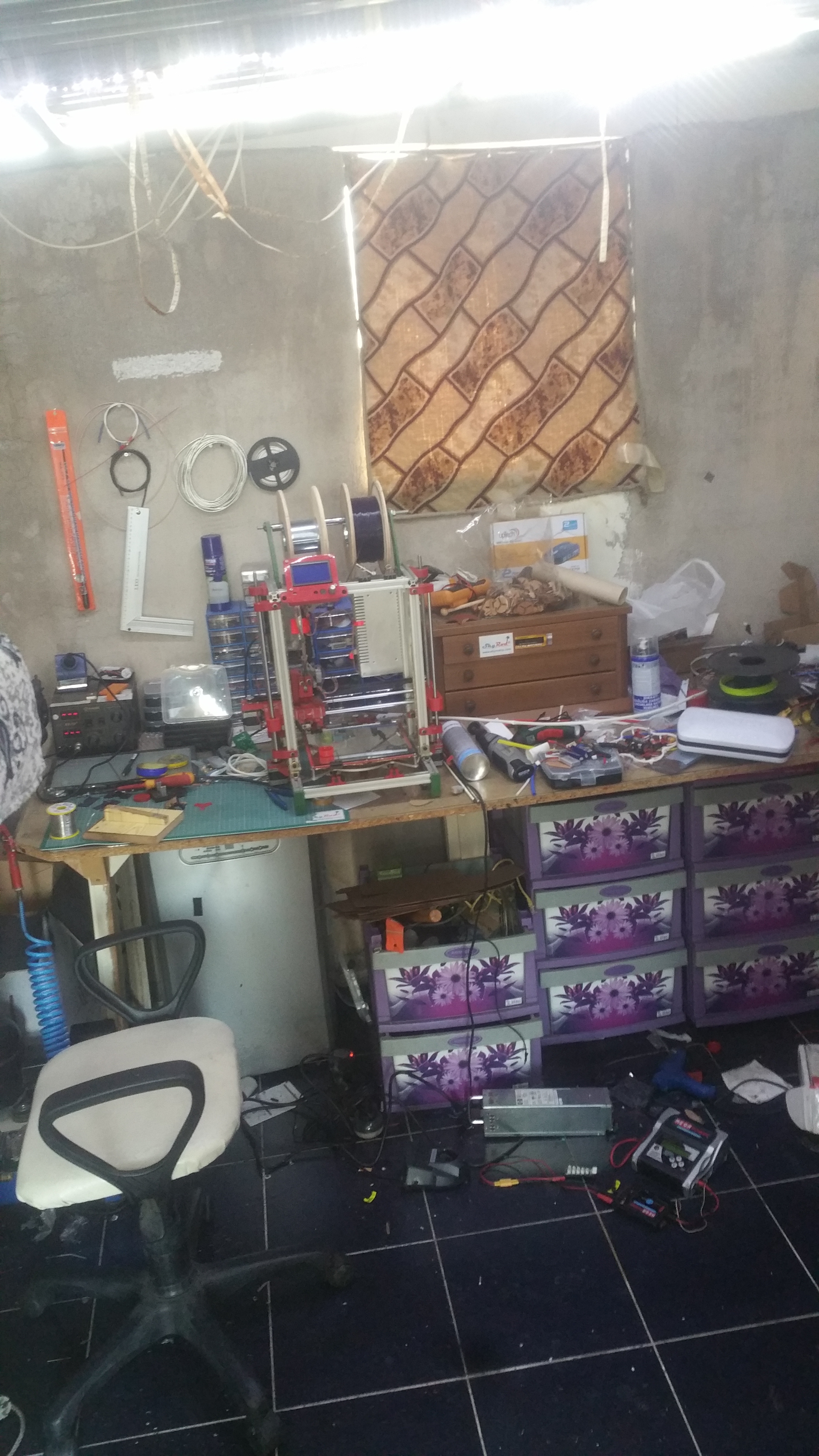

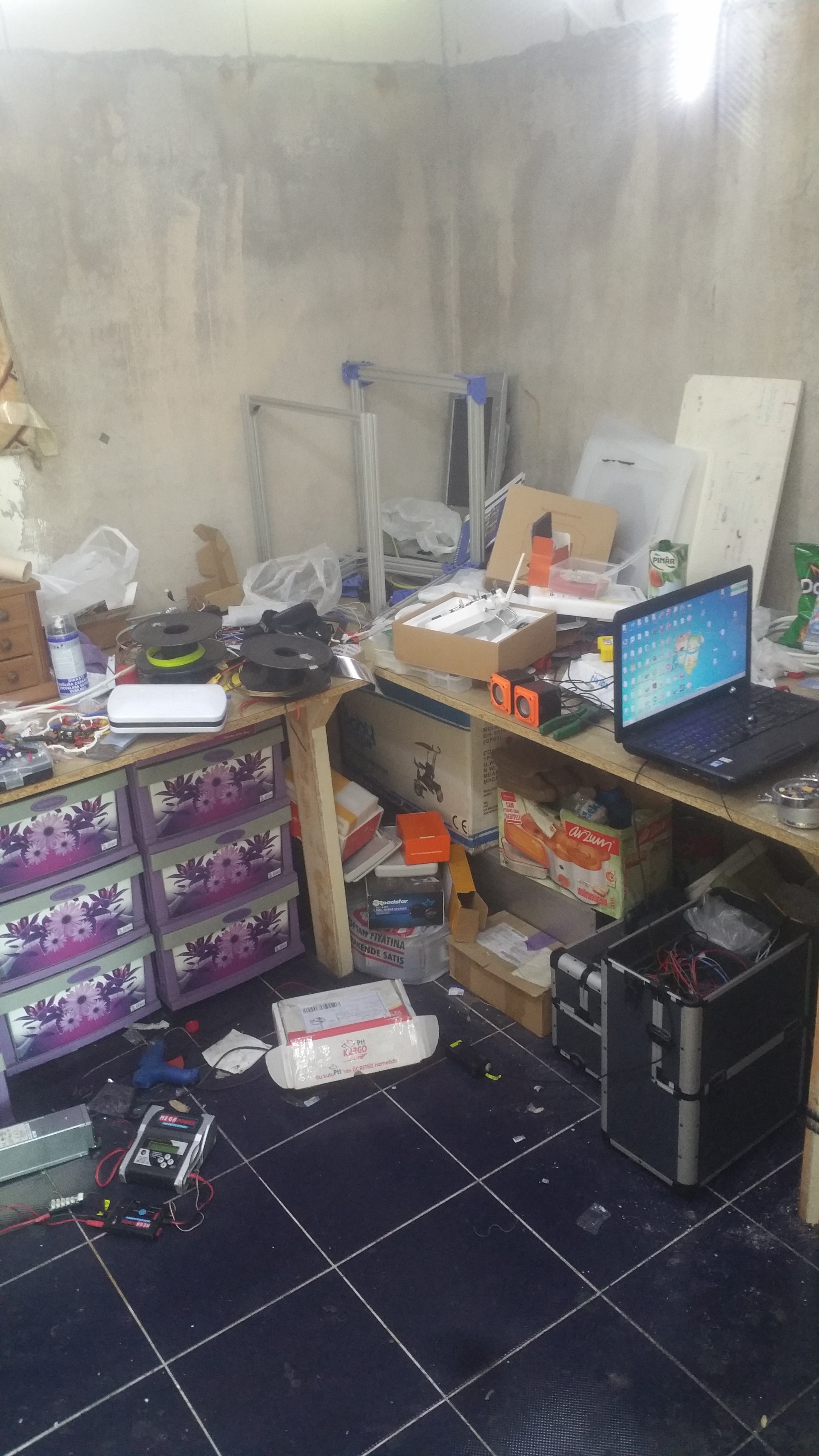

This is my work area
Hobby work area for individual needs
I apologize for the mess :)

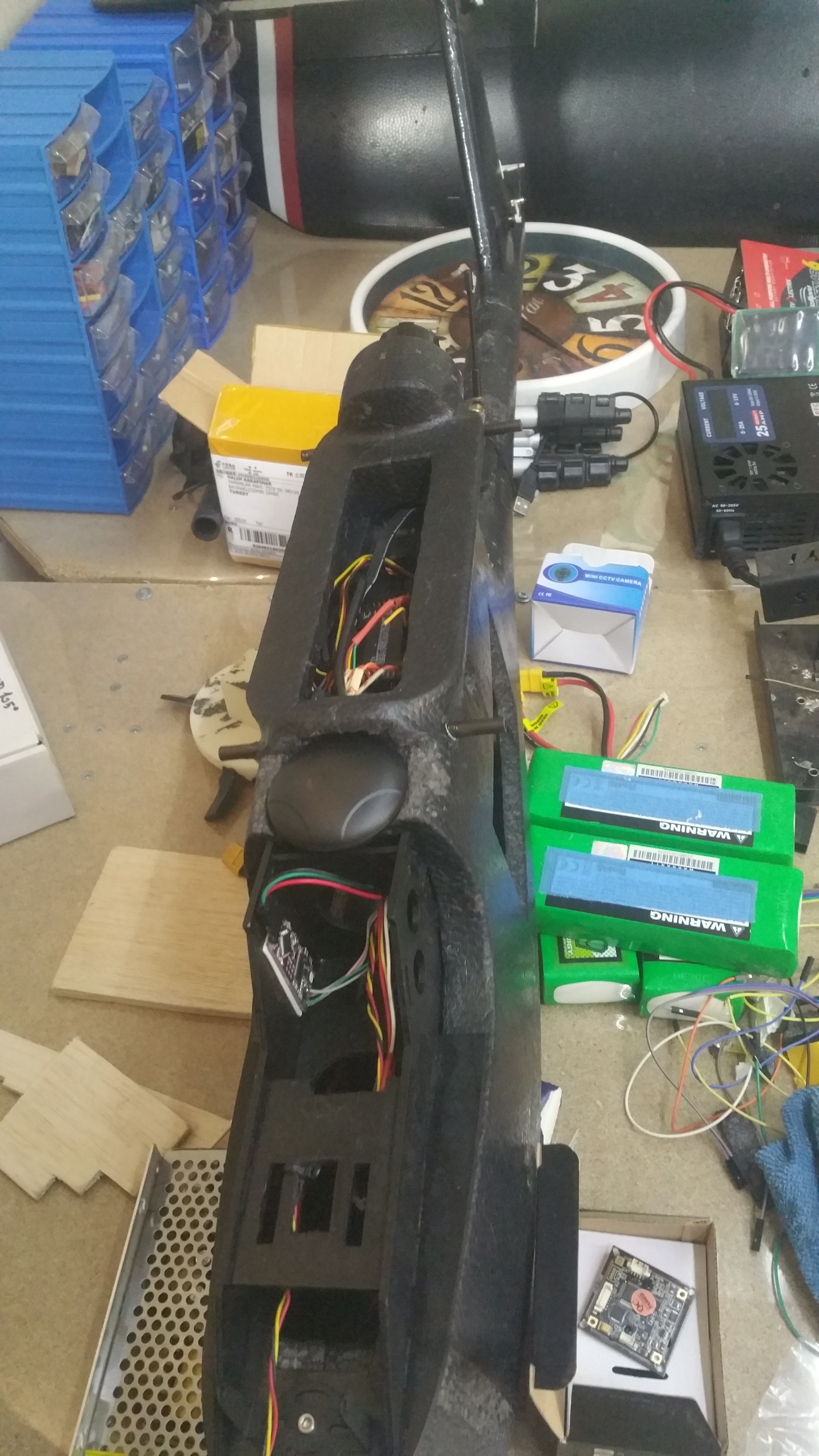

I also fly long distance (individual record 46 Km) Fpv airplane.

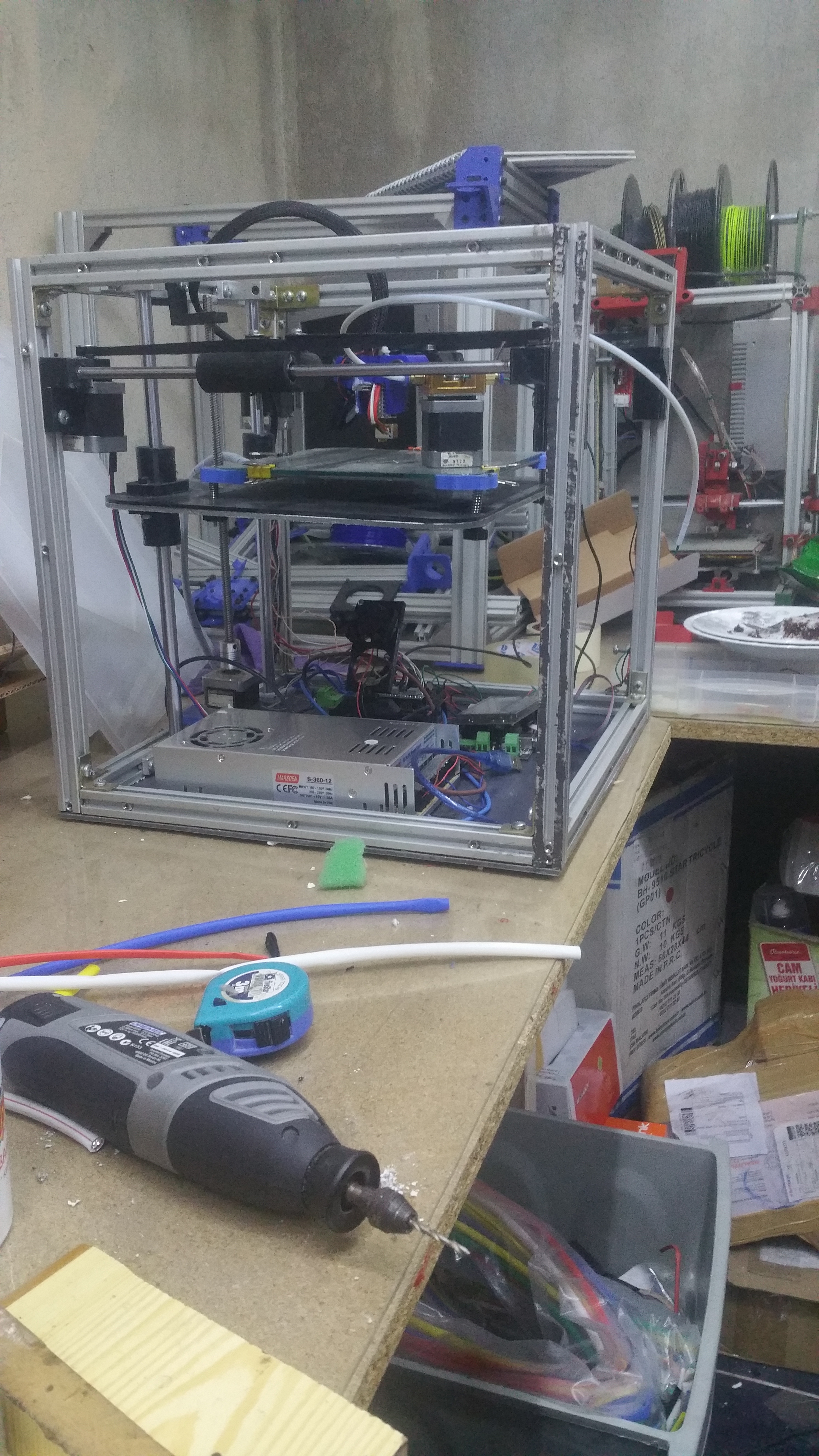

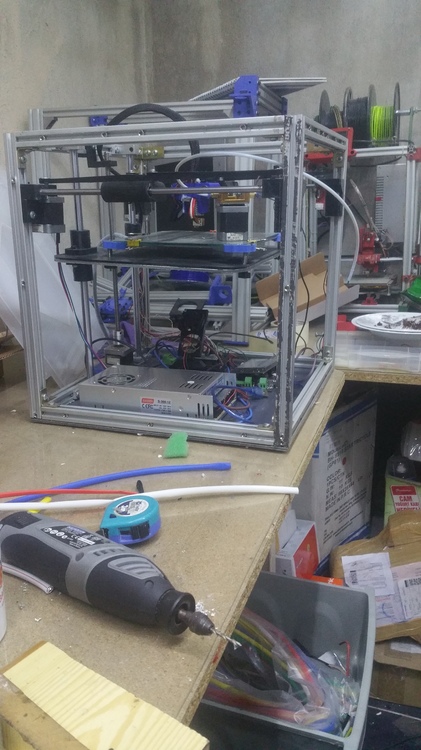

And there's another hobby. I'm building a 3D printer





2 people like this

Share this post


Link to post
Share on other sites
5 minutes ago, Admin said:

This does not interest you ... ??

,,,see here,,,,






Yes, I used this antenna. But the Bi-Quad has a very narrow area compared to the antenna. This is a negative situation for me during the flight. The antenna has to be steadily directed to the quadrocoptere. This is a very difficult situation for the pilot

Share this post


Link to post
Share on other sites

My dear friend.

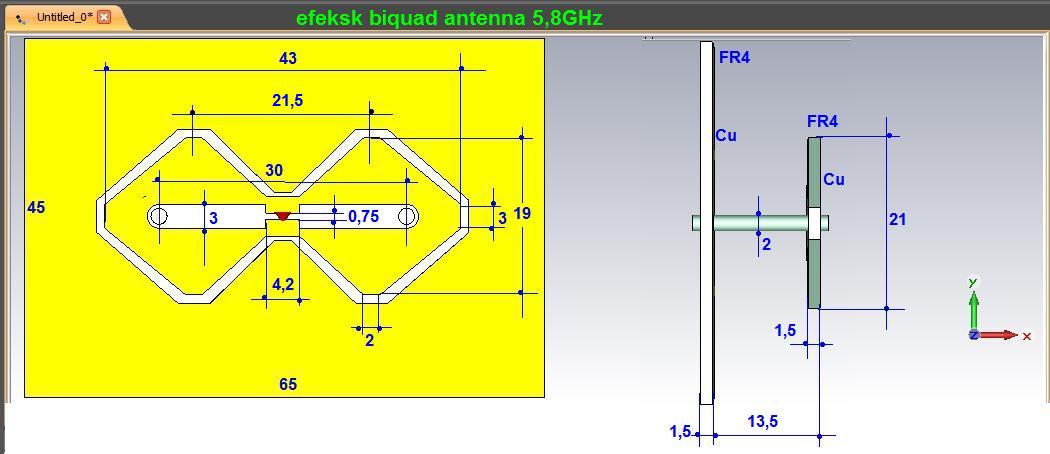

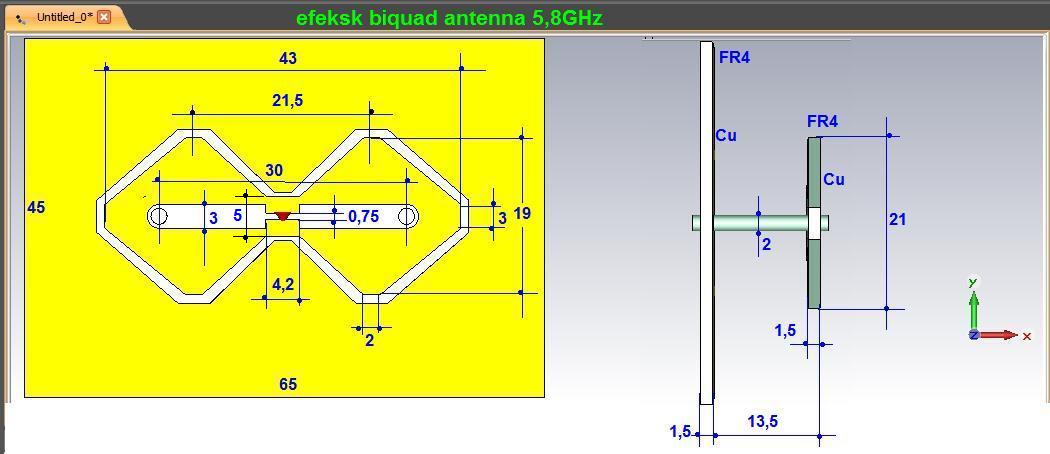

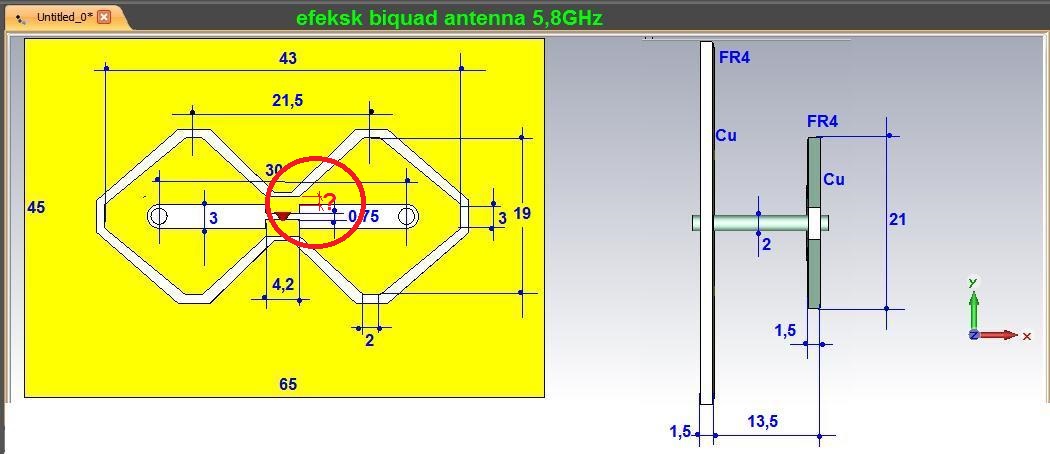

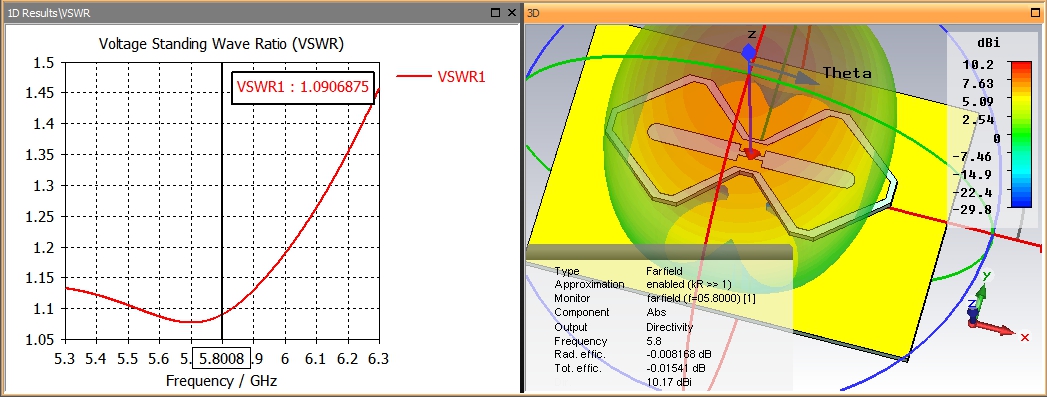

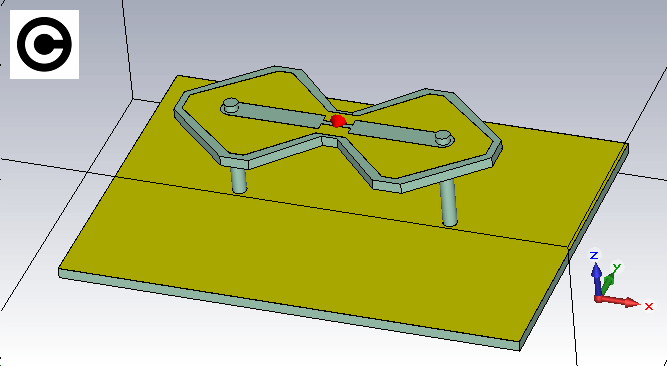

Will you share the details for the PCB antenna?

I can't wait to practice

Edited by efeksk
ress

Share this post


Link to post
Share on other sites

Man, you are formidable......!!!!!!!!!!!!!!!!!111

1 person likes this

Share this post


Link to post
Share on other sites

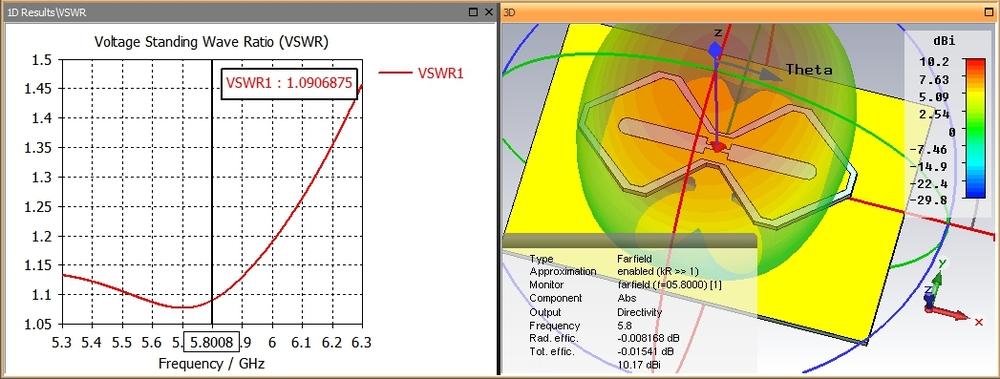

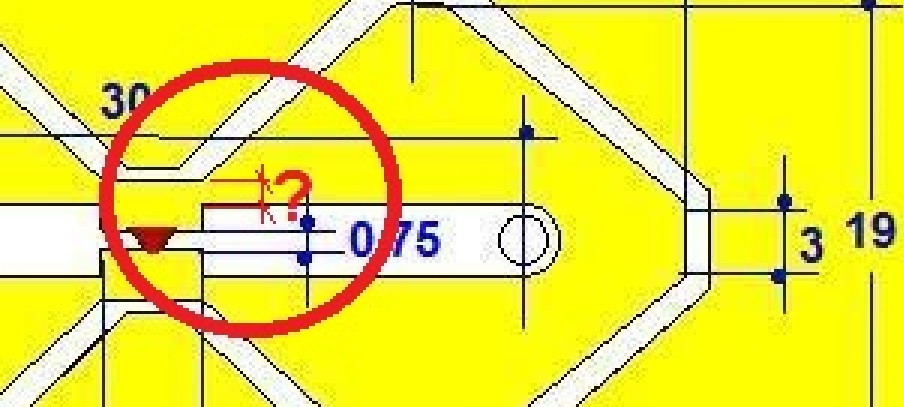

:) I am very curious about the results. come on dude Will you share the measurements?

Share this post


Link to post
Share on other sites

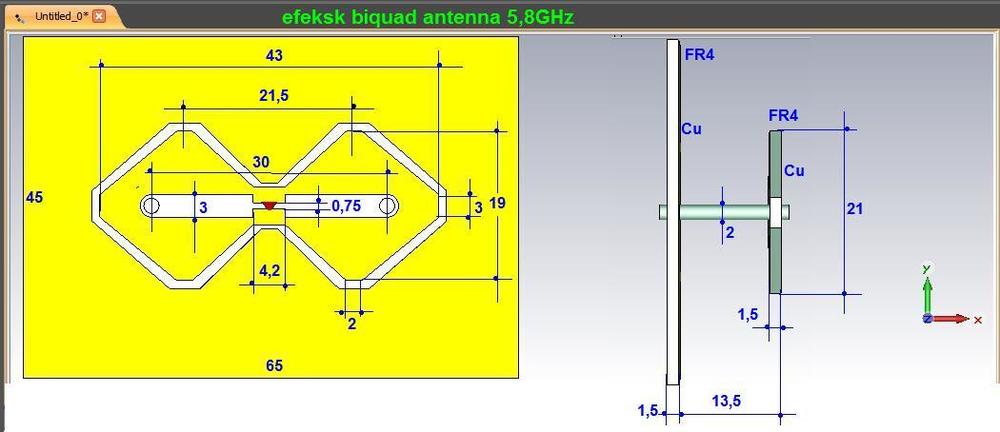

,,,this it"s yours ,,,




1 person likes this

Share this post


Link to post
Share on other sites

Oh my God
That's incredible.
I'm starting to rush in solidwork immediately
Excellent.
Thank you so much my friend.

1 person likes this

Share this post


Link to post
Share on other sites

To teach me how to build a quadrocopter ... !!!

1 person likes this

Share this post


Link to post
Share on other sites
