Antennas for Drones

201 posts in this topic

,,,hi buddy...!!

,,, can you give constructive details ... ??

Share this post


Link to post
Share on other sites

,,,yes,it"s okay...!!!

,,,this is you...??


Share this post


Link to post
Share on other sites

,,,it is a very good antenna but it should have a wider bandwidth for the 50 Ohm impedance...!!!!


1 person likes this

Share this post


Link to post
Share on other sites
25 minutes ago, Admin said:

it is a very good antenna but it should have a wider bandwidth for the 50 Ohm impedance...

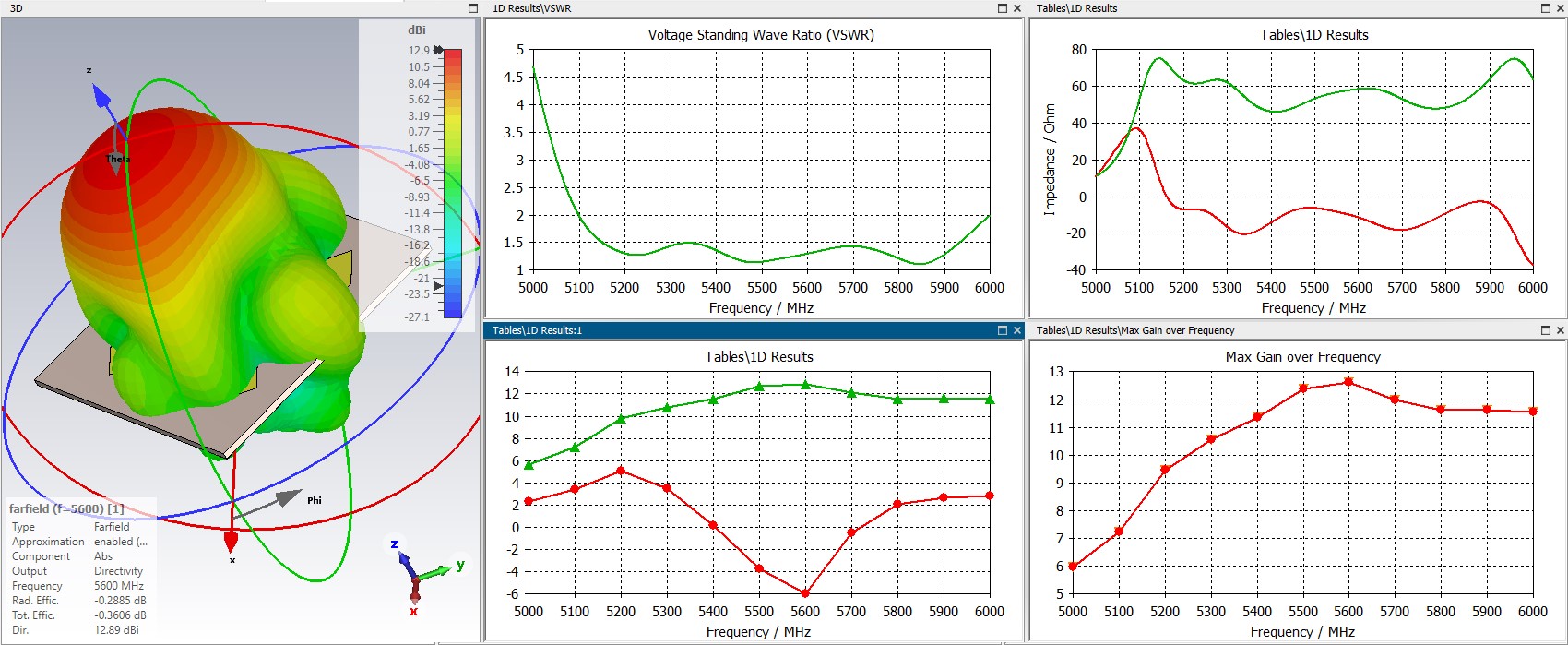

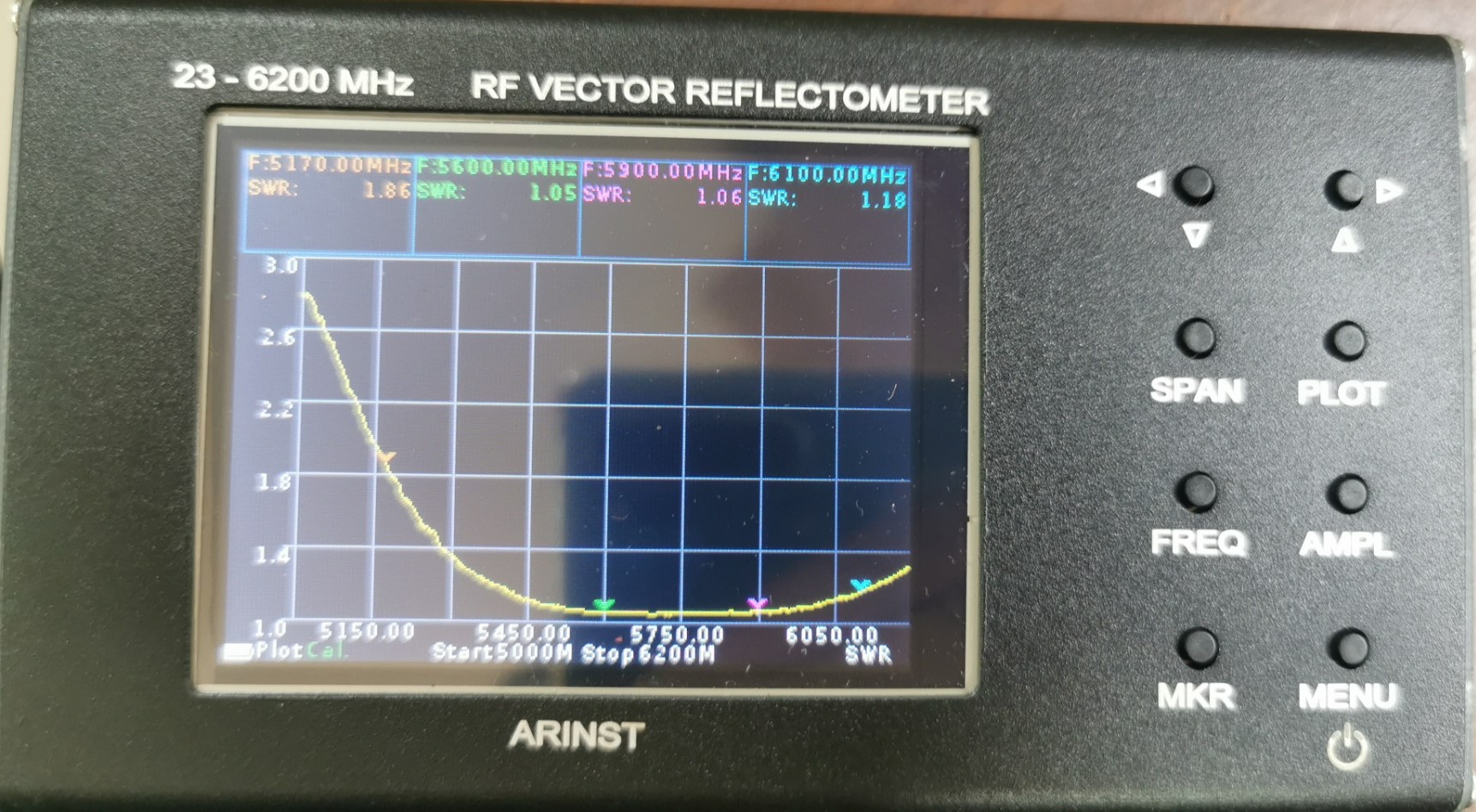

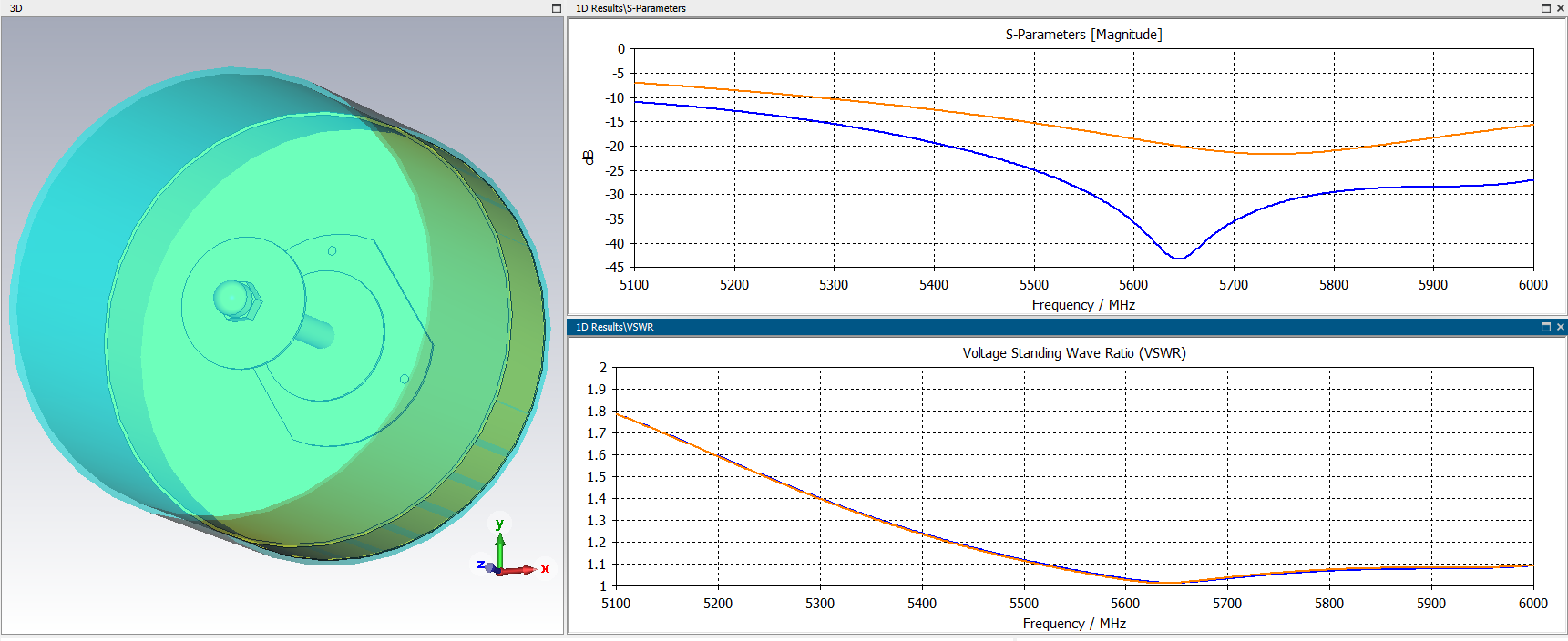

This antenna has been modeled for maximum gain, and low VSWR  in the 5.6-6 GHz band. real bandwidth by WSWR <2 4000-6200 MHz (5G + WiFi 5 or 6 GHz). You can change the bandwidth in the Simulation -> Frequency section, and also add the rendering frequencies to the History List in the first paragraph by editing it.

Edited by Harry36
1 person likes this

Share this post


Link to post
Share on other sites
4 hours ago, Harry36 said:

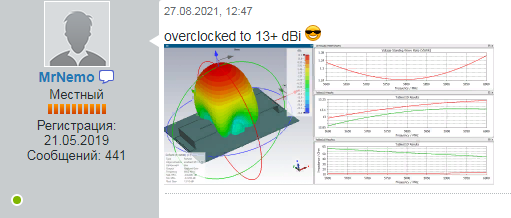

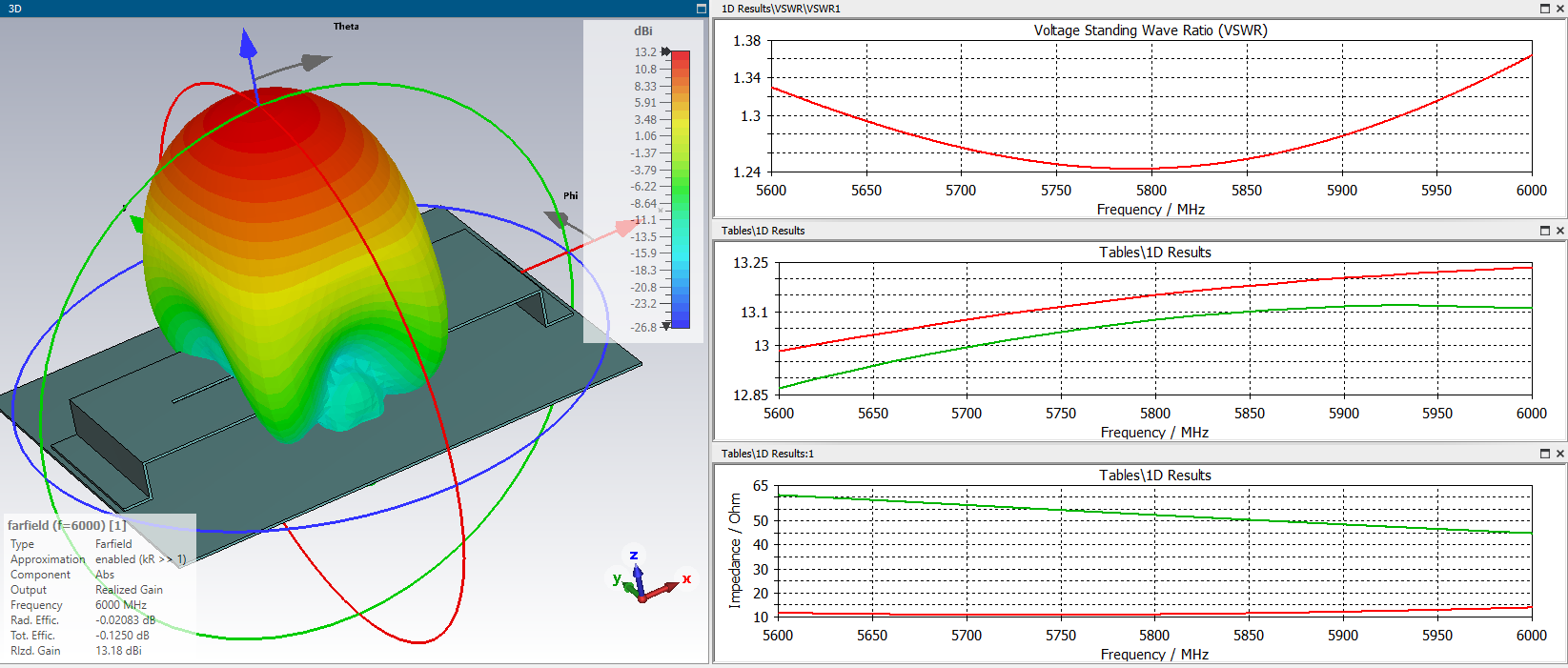

Sputnik Lite  13+ dBi

:ph34r:



SLOT half wavelength radiator...?

It would be nice to put 4 or more and feed it with a PROBE...

Edited by clanon

Share this post


Link to post
Share on other sites
1 hour ago, clanon said:

SLOT half wavelength radiator...?

Yes, Boss :)

1 hour ago, clanon said:

It would be nice to put 4 or more

thinking of making a grid of 4 butwing? I am confused by the size of this design for such a range: (the size of 4 elements will turn out to be 200 * 200 or more (you need to look at the side lobes), and the gain will be 19 dBi at best.This antenna is already on the verge of rationality (more than a pack of cigarettes). At the beginning of the topic there is a patch in a metal plate, it has a gain of more than 15 dBi

2 hours ago, clanon said:

and feed it with a PROBE...

With these dimensions, I have only one idea - SMA on the back of the reflector + balun from a 3-layer PCB (FR4).

What do you say, friend? :)

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Harry36 said:

With these dimensions, I have only one idea - SMA on the back of the reflector + balun from a 3-layer PCB (FR4).

What do you say, friend? :)

LOSSES...and 5.8ghz is a BITCH on CHEAP PCBs...

PS: i was thinking on a box , thin edged , with 4 slots in phase and a probe quarter wave feeding the whole thing...ALL METAL...

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

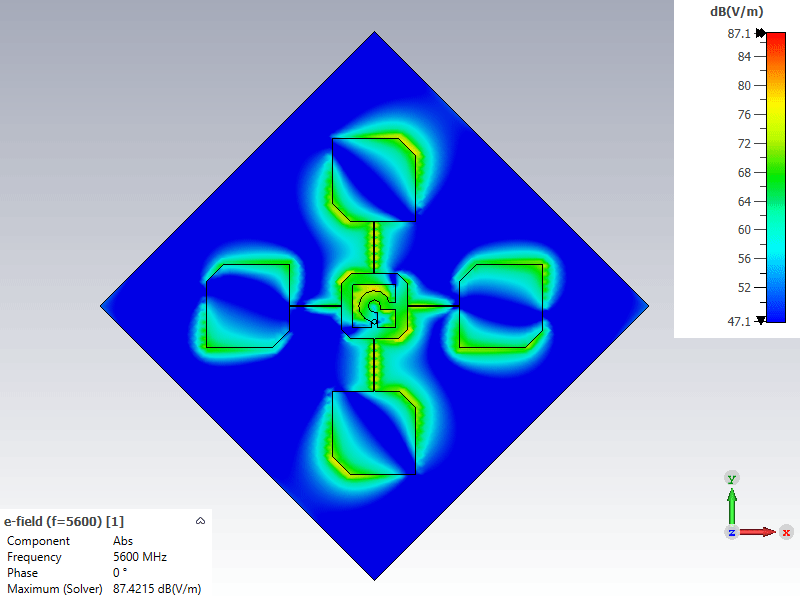

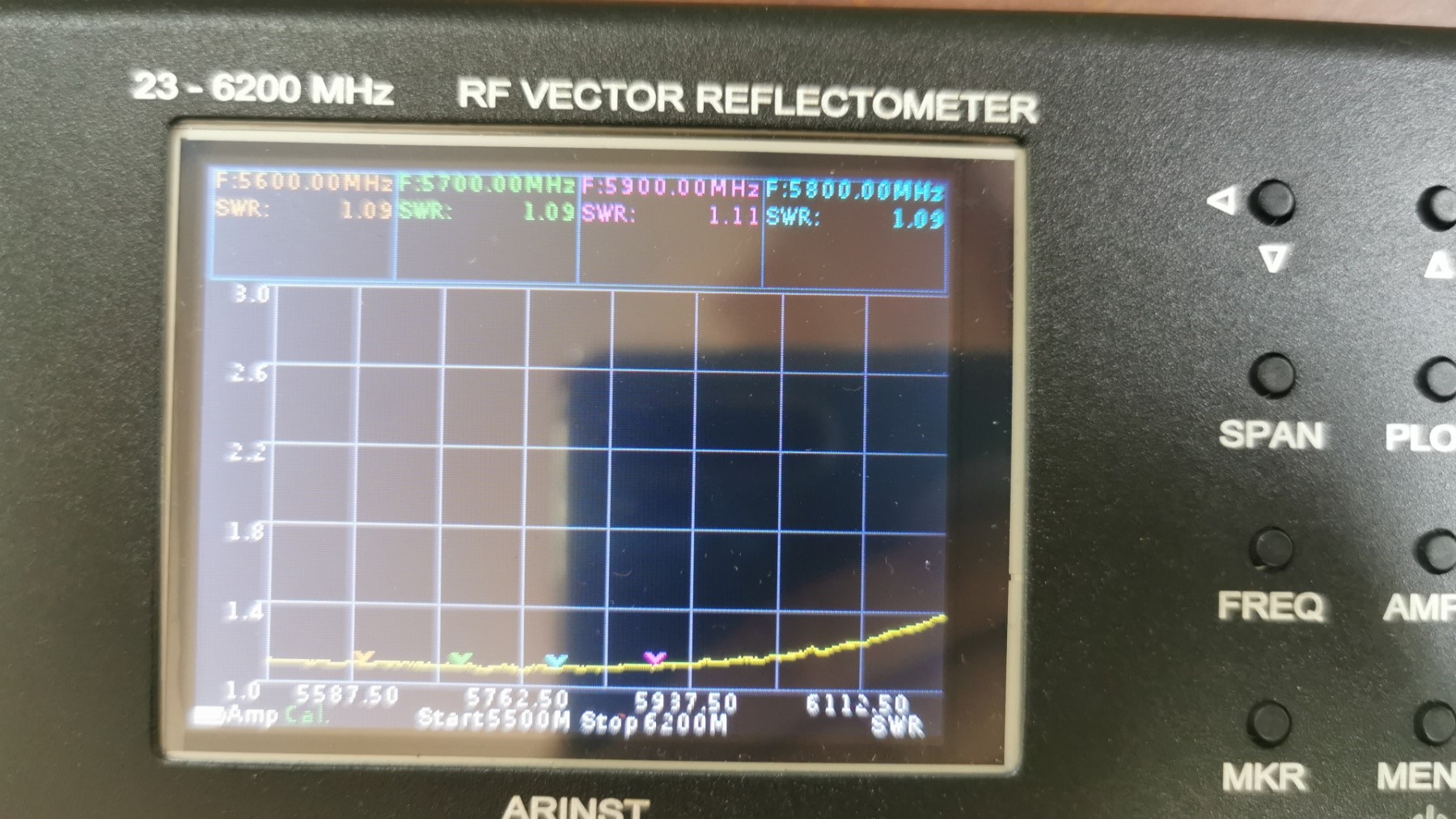

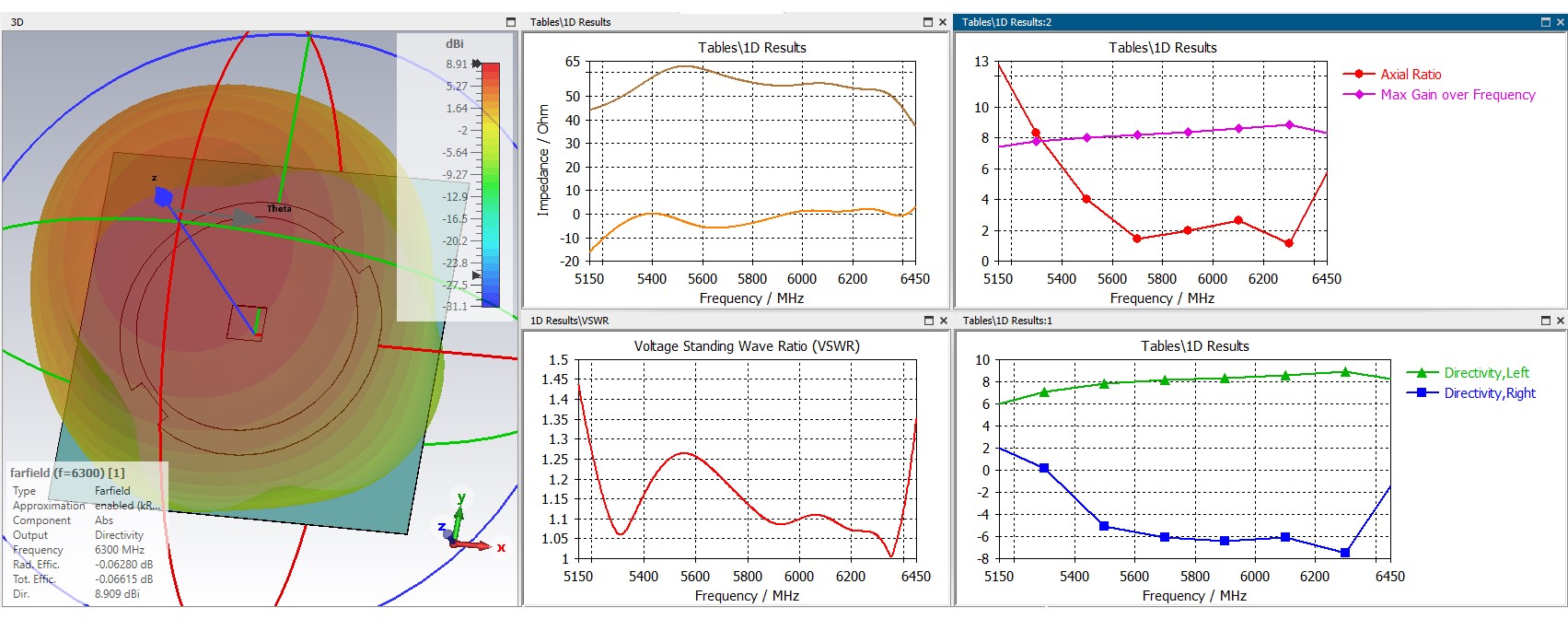

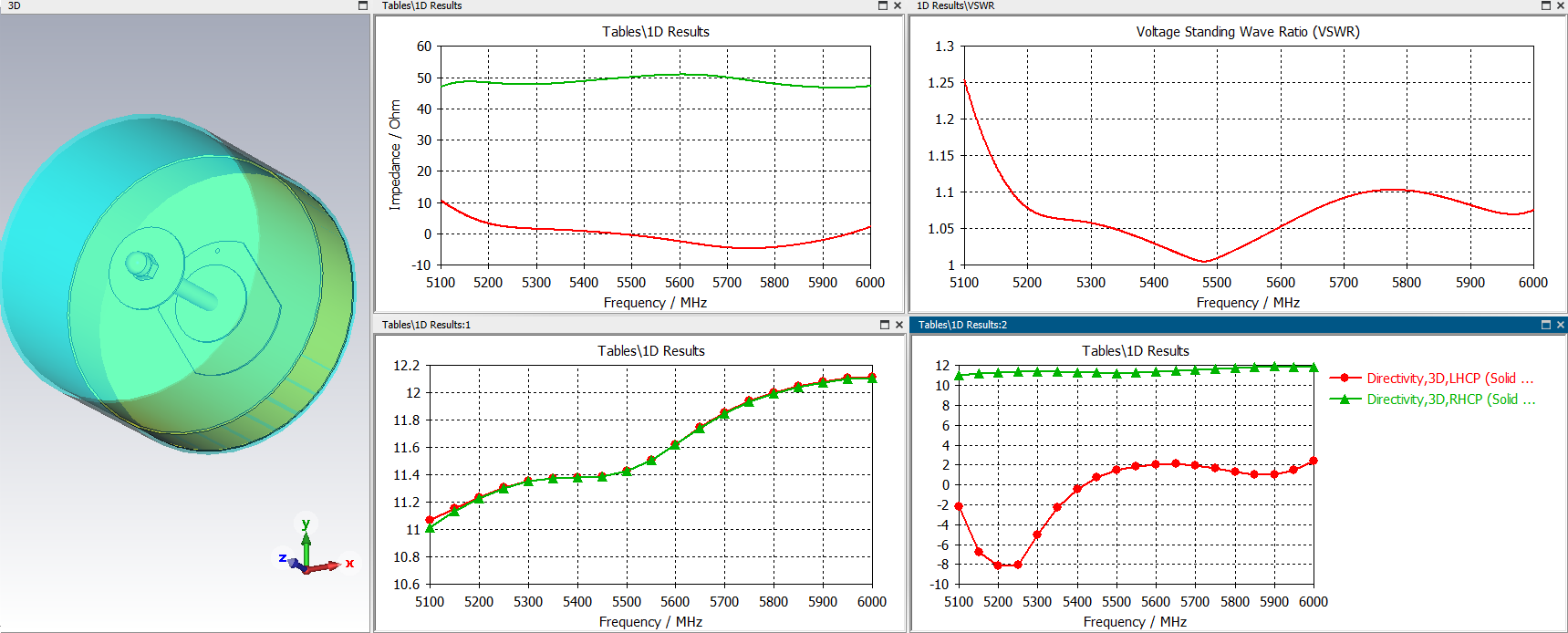

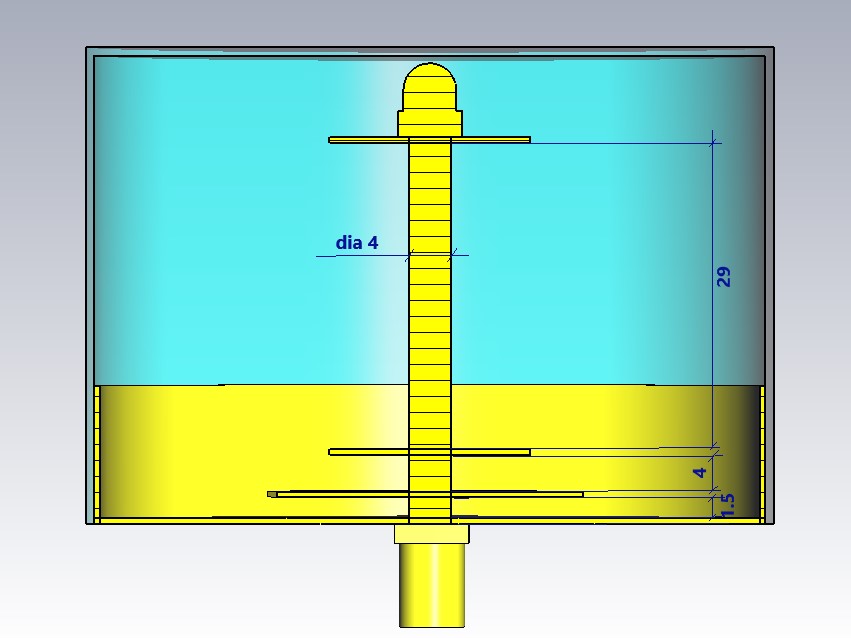

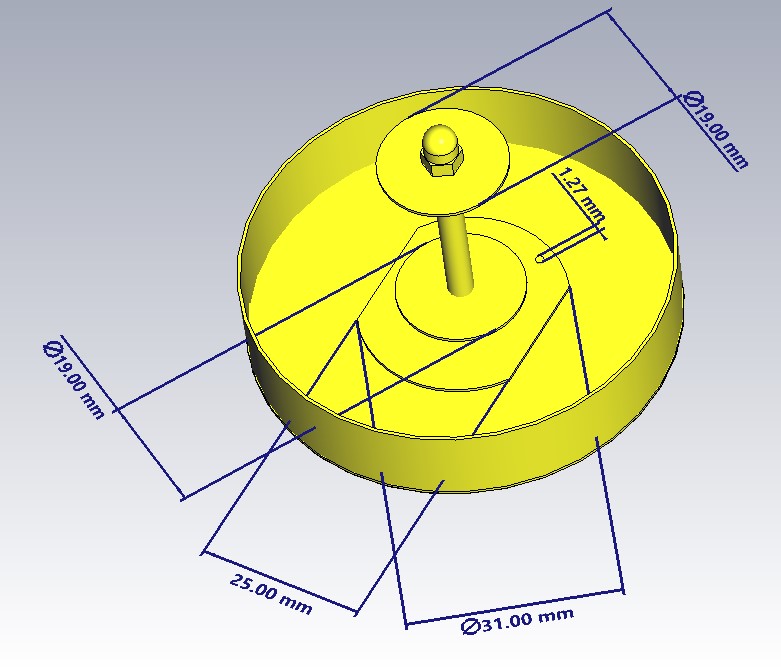

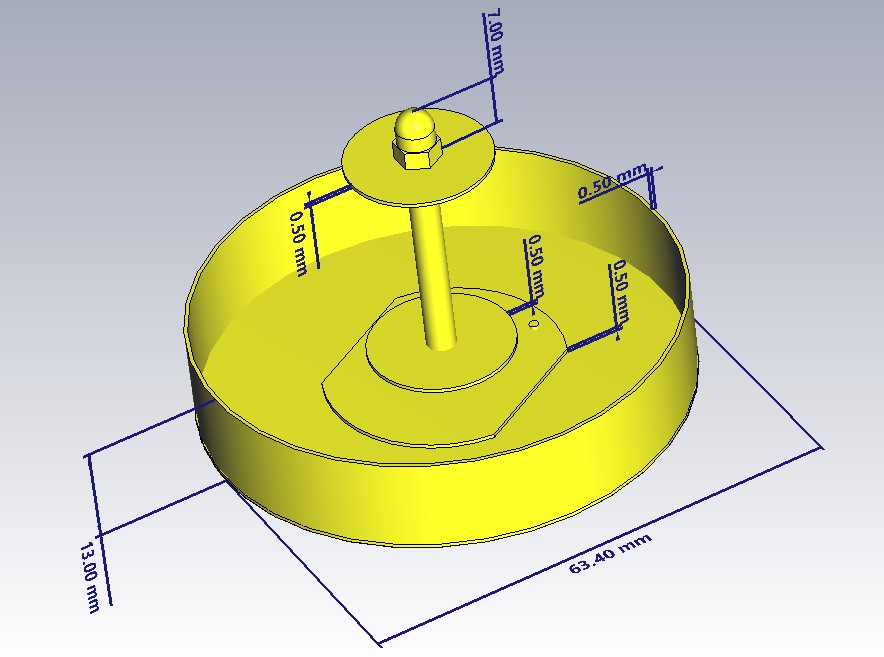

Simple antenna with small dimensions and 12dBi gain for FPV (5600-6000 MHz). Circular Wave Polarization Antenna (RHCP).

bonus: wi-fi 5150 - 5825.

siso:


and mimo:

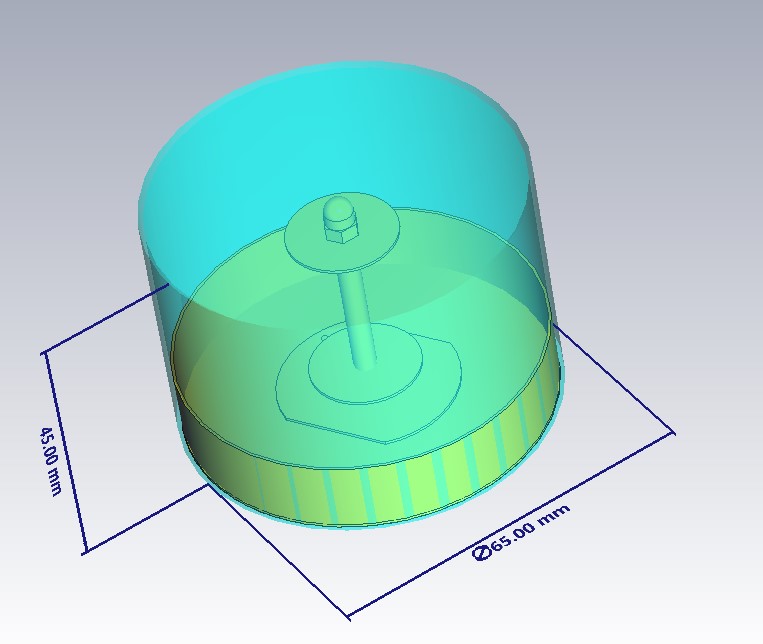

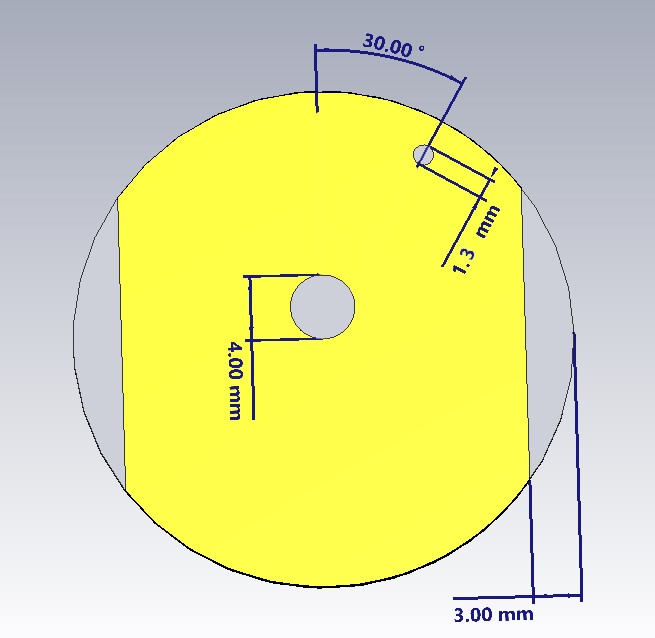

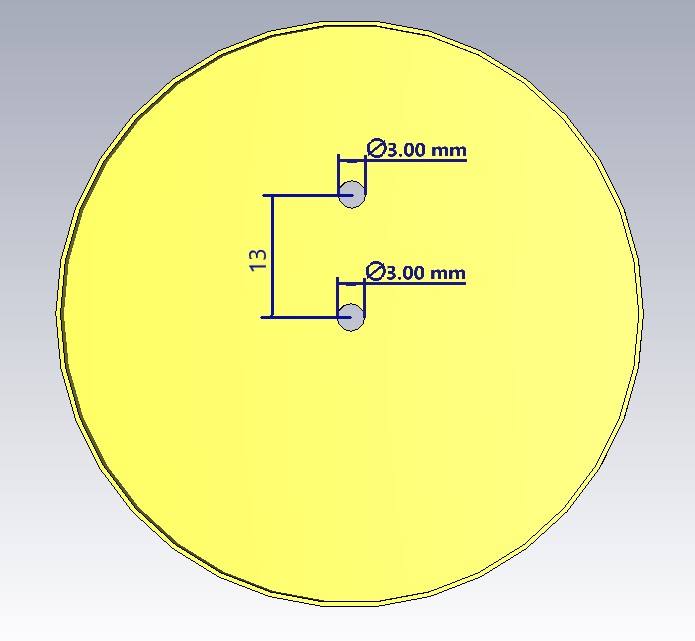

sizes:

размеры 1.jpgразмеры 2.jpgактивный диск.jpgразмеры 3.jpgразмеры 4.jpgразмеры 5.jpg



DIY

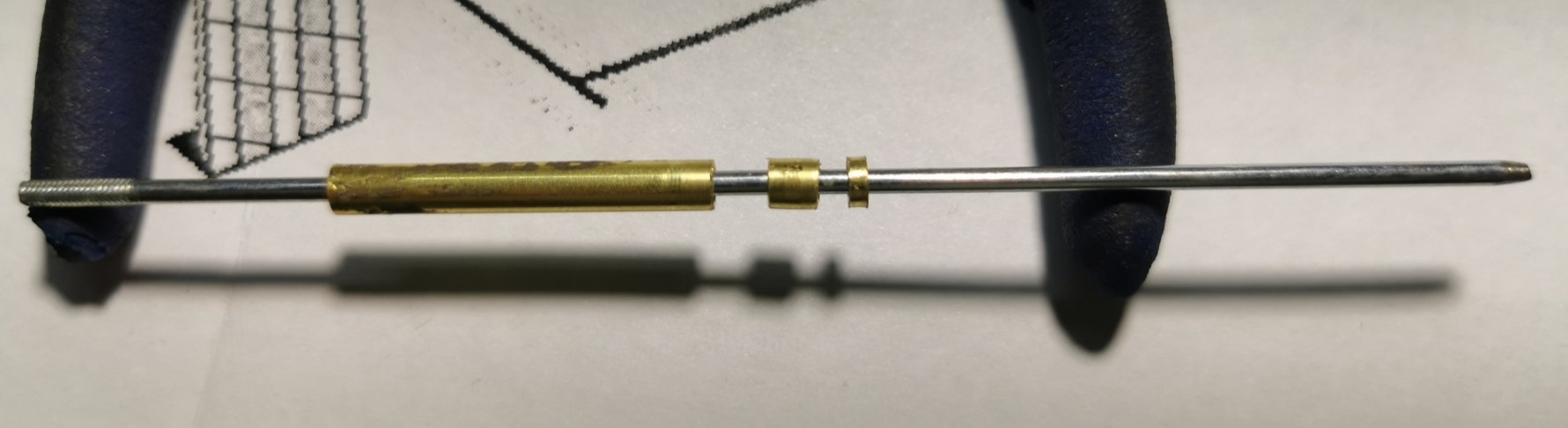

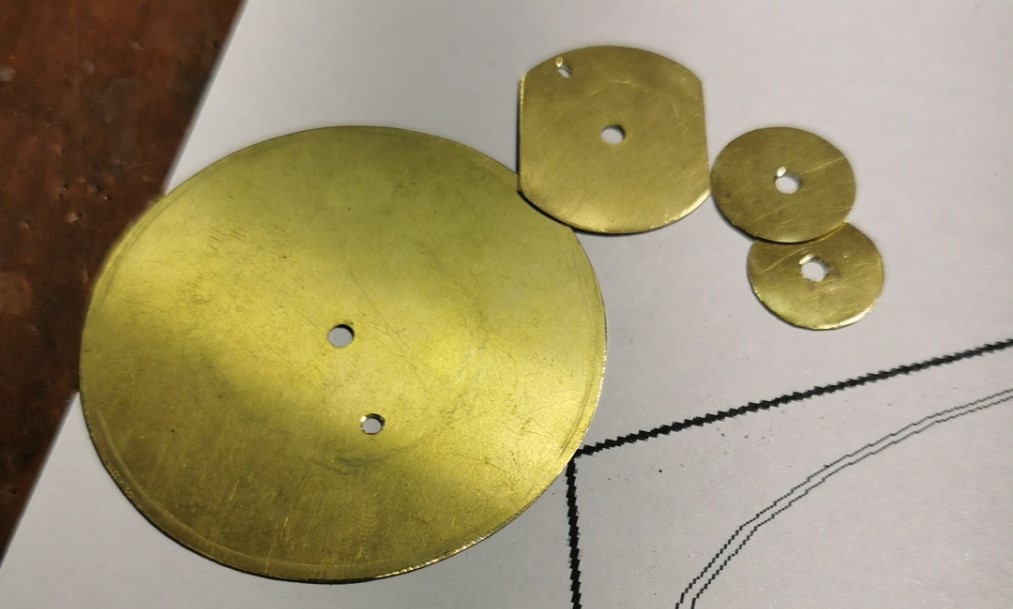

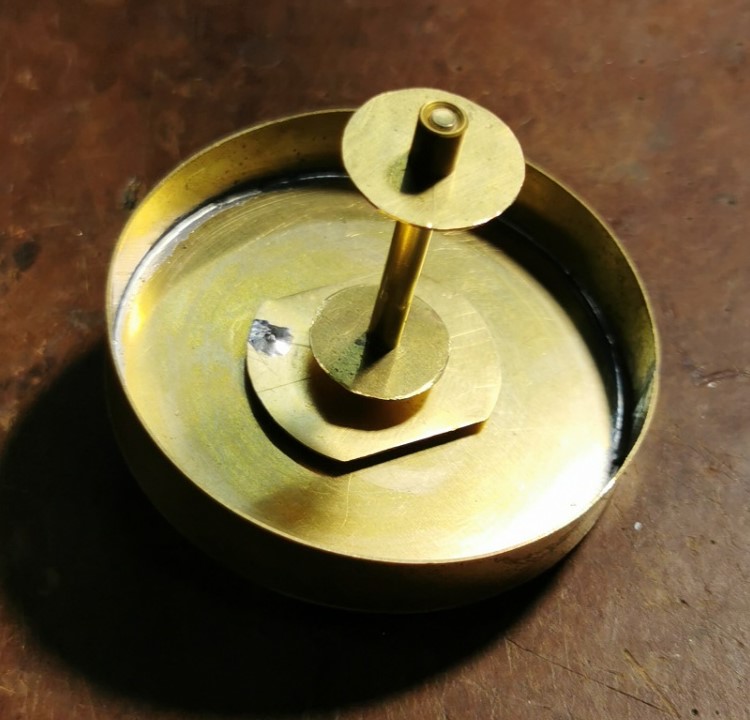

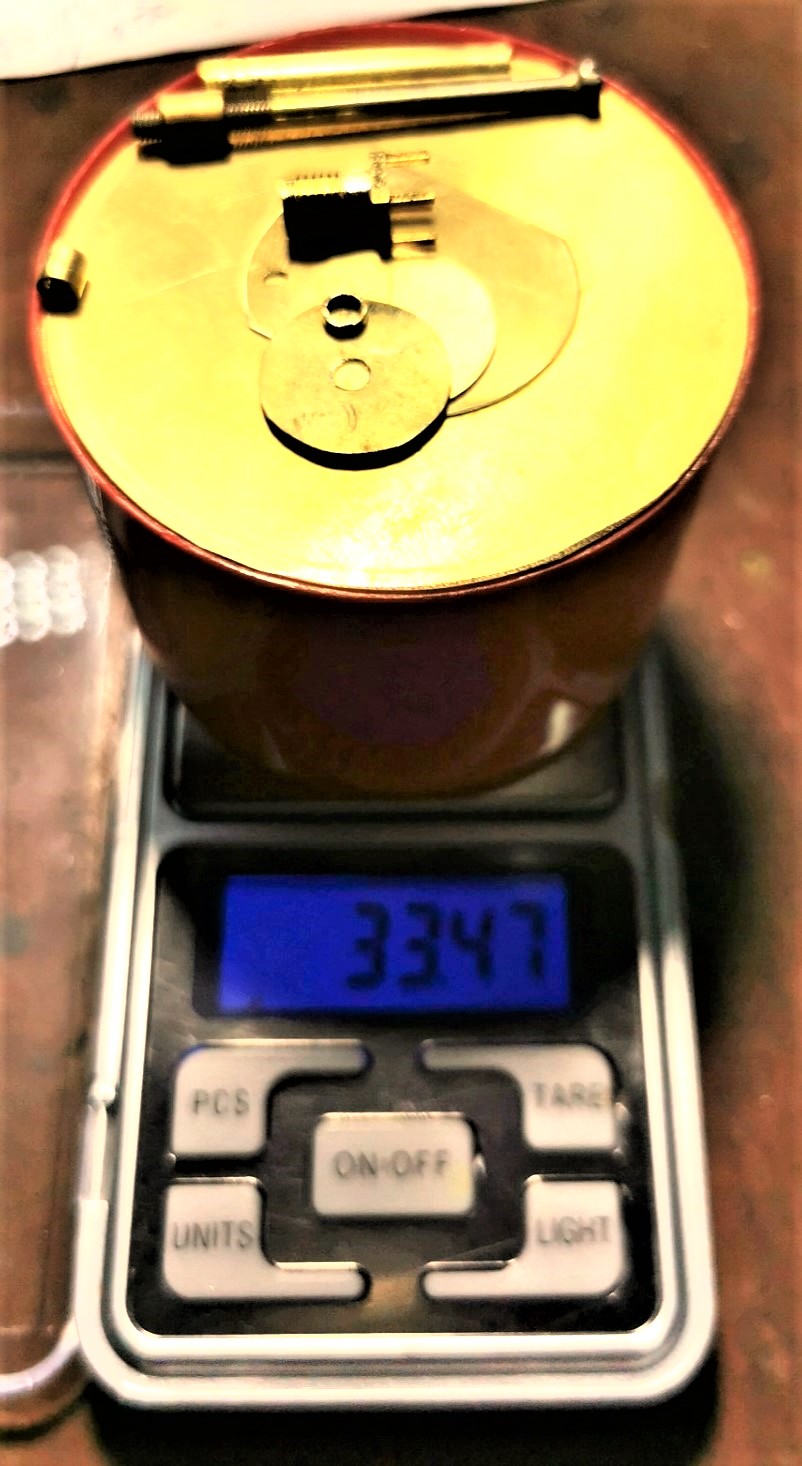

заготовки бума.jpgзаготовки.jpg

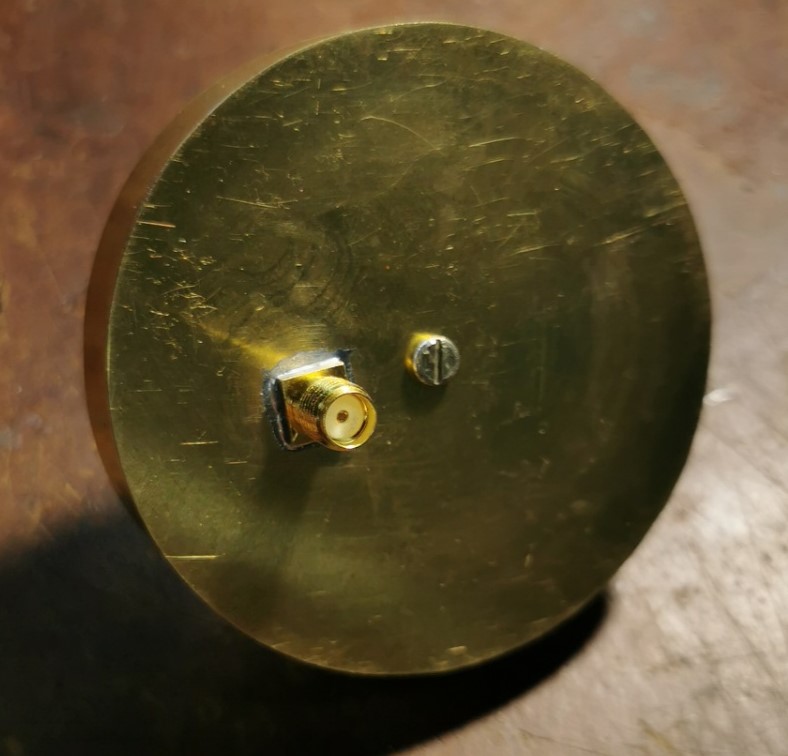

сборка 2.jpgсборка 1.jpg

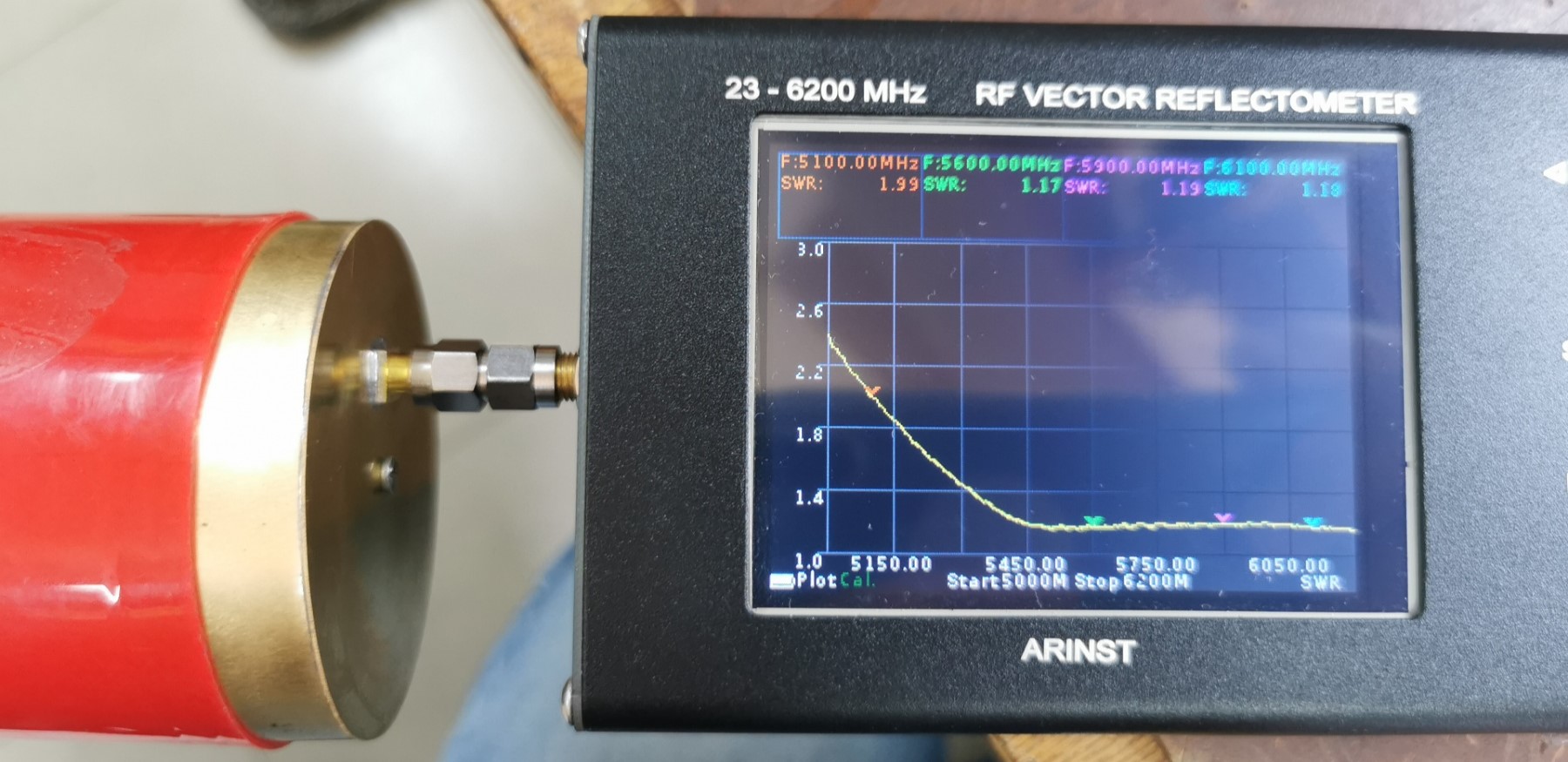

measuring

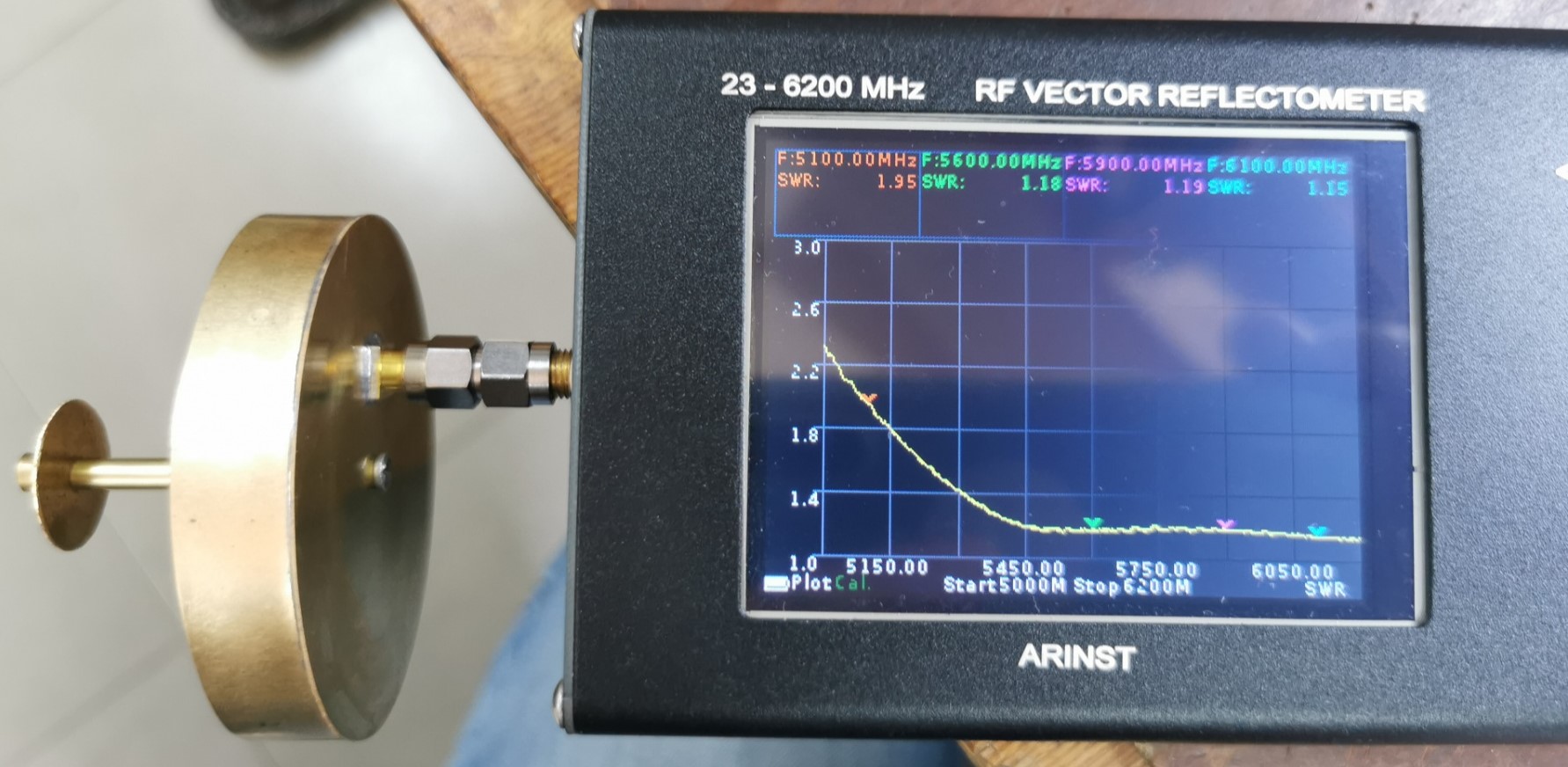

измерение 1.jpgизмерение 2.jpgизмерение 3.jpgизмерение 4.jpg



Radom ;)


Edited by Harry36
4 people like this

Share this post


Link to post
Share on other sites

Bu programı kullanmayı öğrenmem gerekiyor.

Nereden başlamalıyım?

I need to learn to use this program.

Where should I start?



Share this post


Link to post
Share on other sites

,,, what program, for simulation or for measurement of antennas ... ??

Share this post


Link to post
Share on other sites

,,, it seems that the impedance is not very good ,, okay, okay, it also shows the dimensions .... !!!!

1 person likes this

Share this post


Link to post
Share on other sites

,,, what is ... 38 * 38 * 6mm steel...???

Share this post


Link to post
Share on other sites

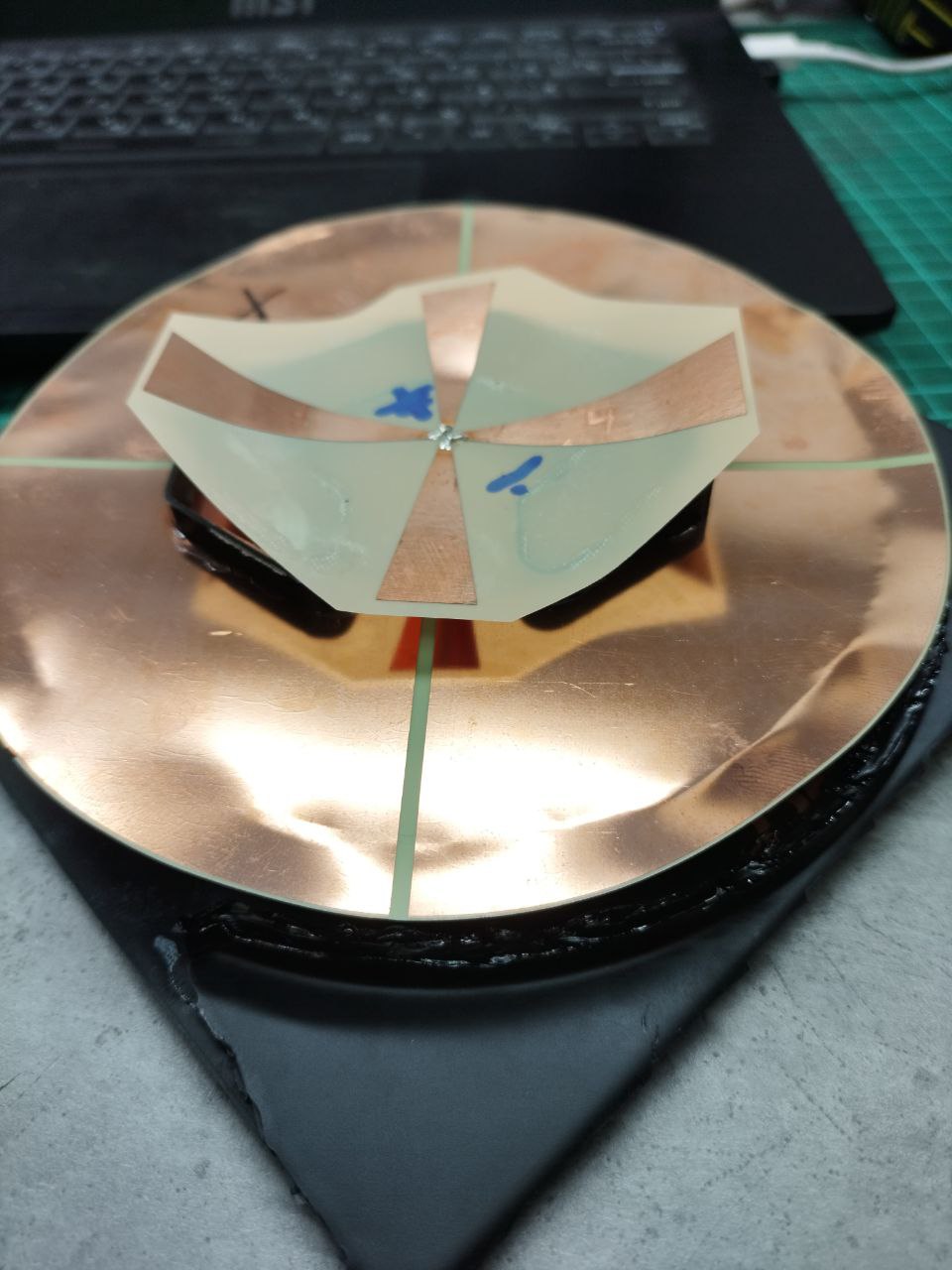

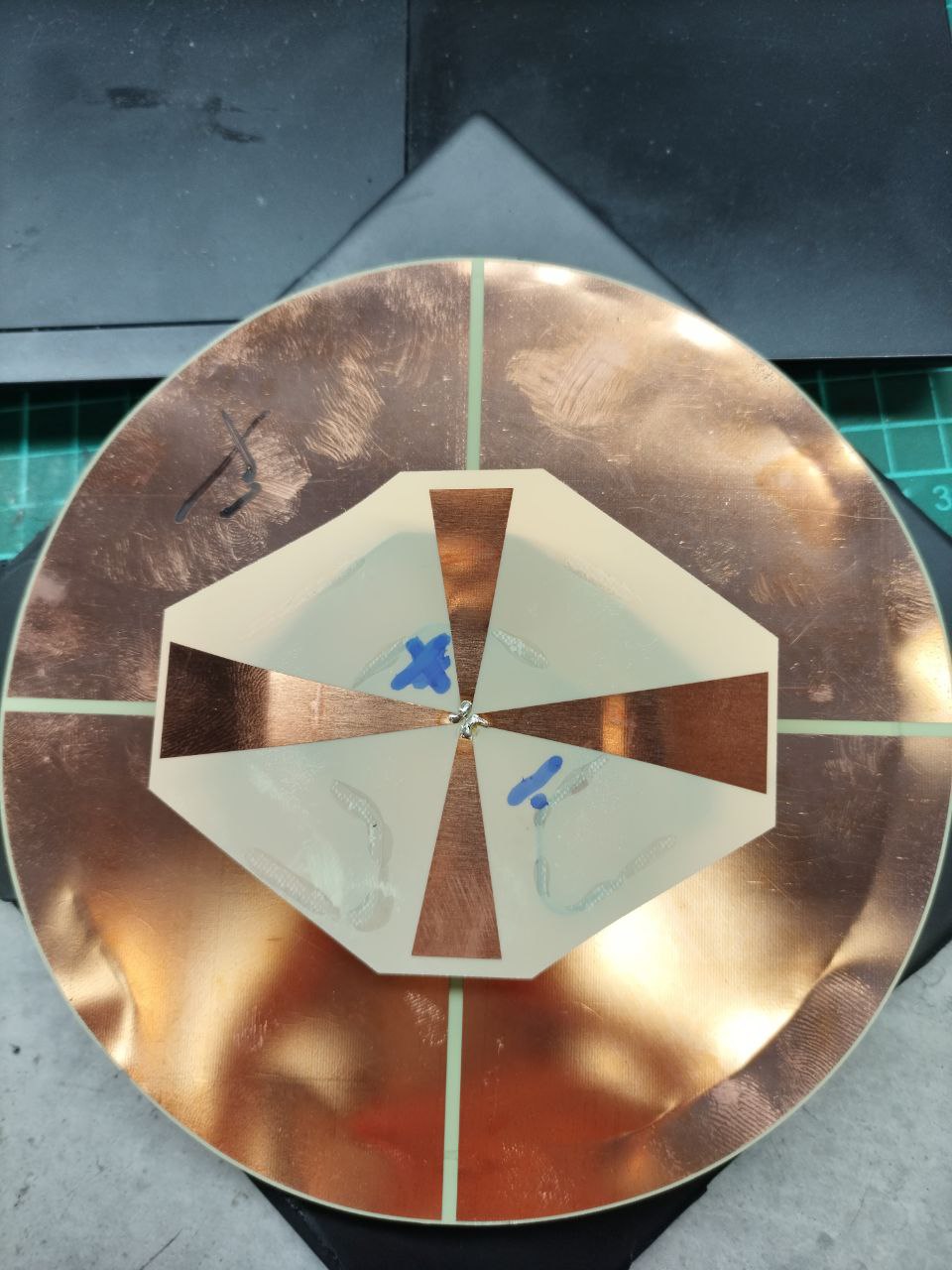

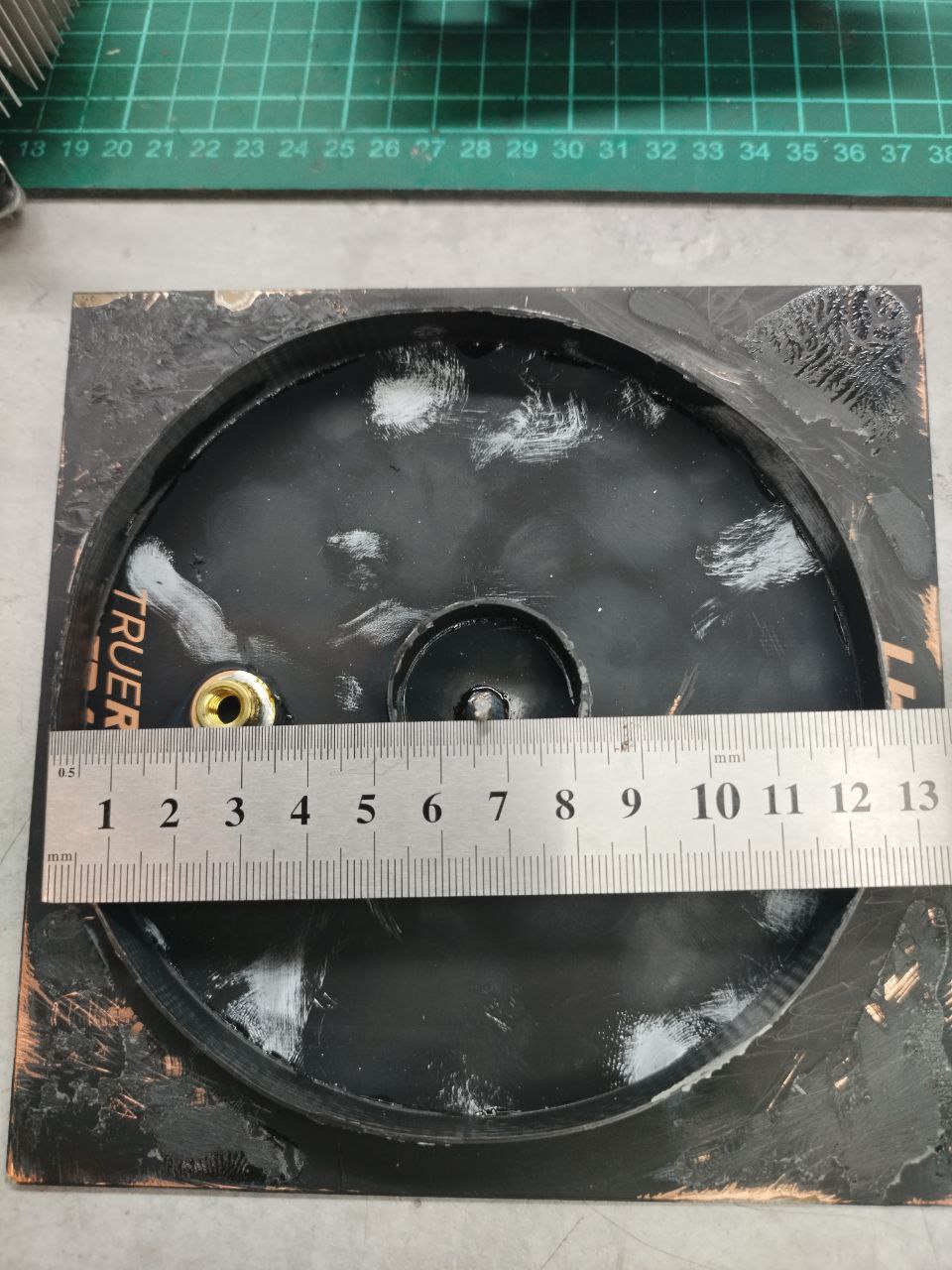

I bought an Antenna from TrueRC 1.2G for video. fly the plane. Broke during use. I ask for help. Is it possible to repeat the manufacture of the antenna at home? Thank you







Share this post


Link to post
Share on other sites

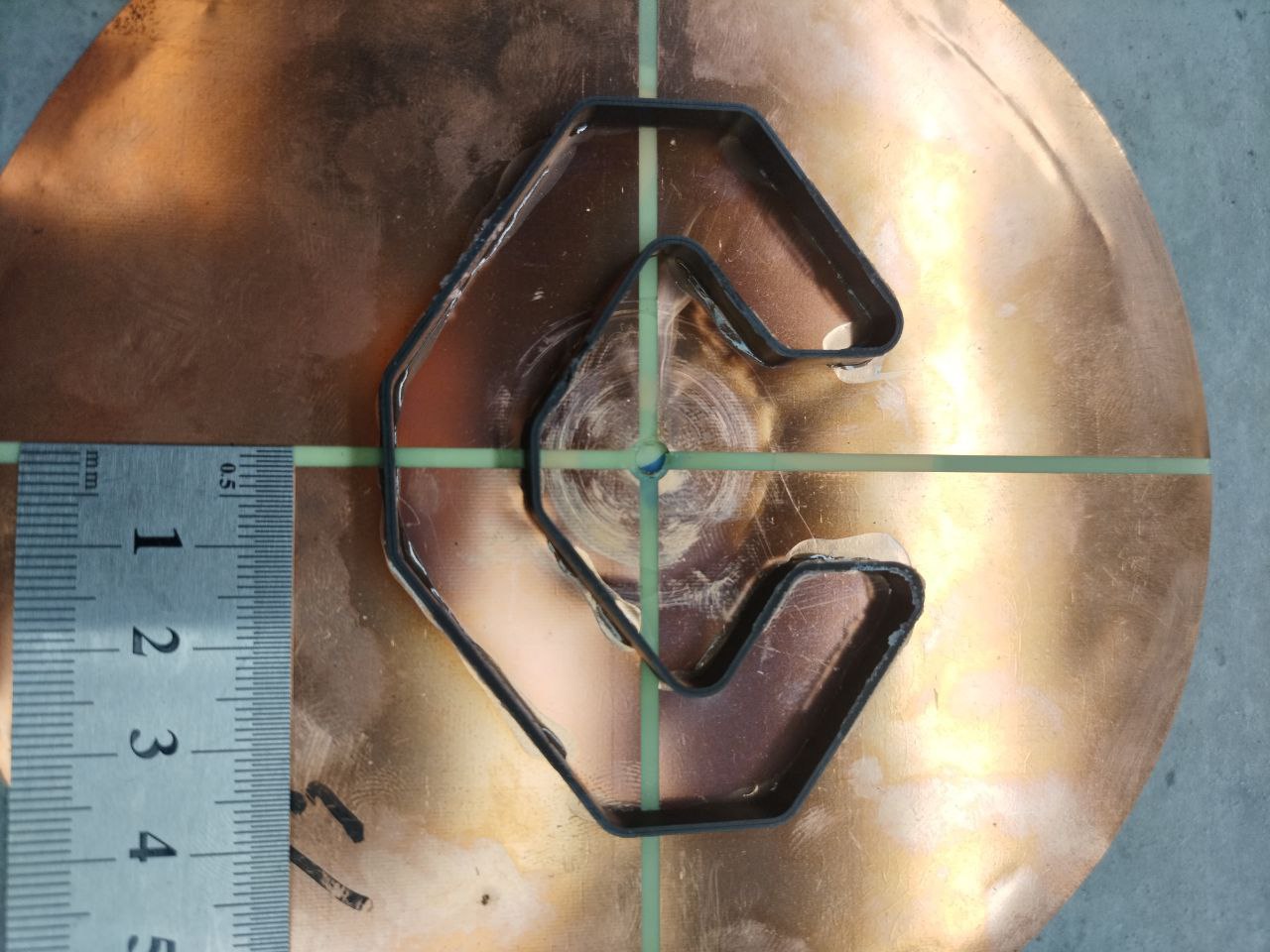

Please tell me if there is a calculator or model. I bought for video such an antenna at a frequency of 1320 MHz. Is the structure assembled correctly? During transportation, I bent the matching line a little, what distance should be from the reflector? An image of such an antenna slipped on the forum but lost:)))


Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,,can you give some dimensions to these antennas...??/

Share this post


Link to post
Share on other sites
On 05.05.2024 at 4:53 PM, Admin said:

,,,hi buddy...!!!

,,,can you give some dimensions to these antennas...??/





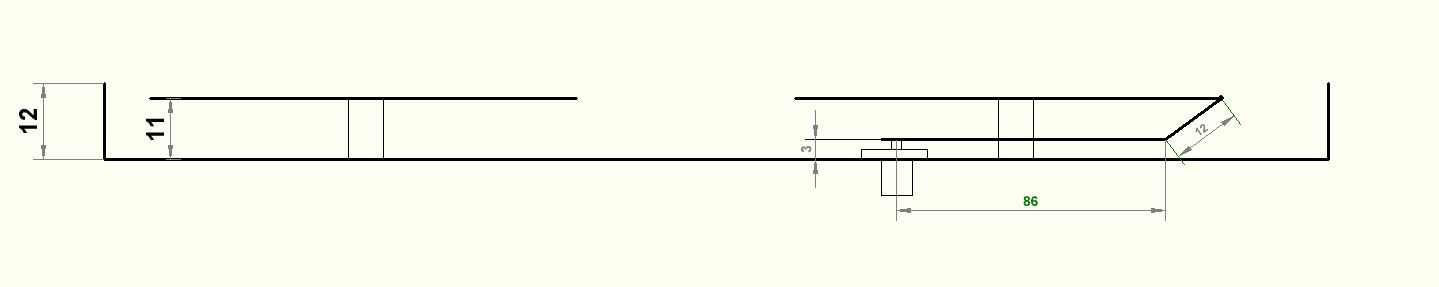

1 person likes this

Share this post


Link to post
Share on other sites

,,,you forgot the diameter of the patches and the wire...!!!

Share this post


Link to post
Share on other sites

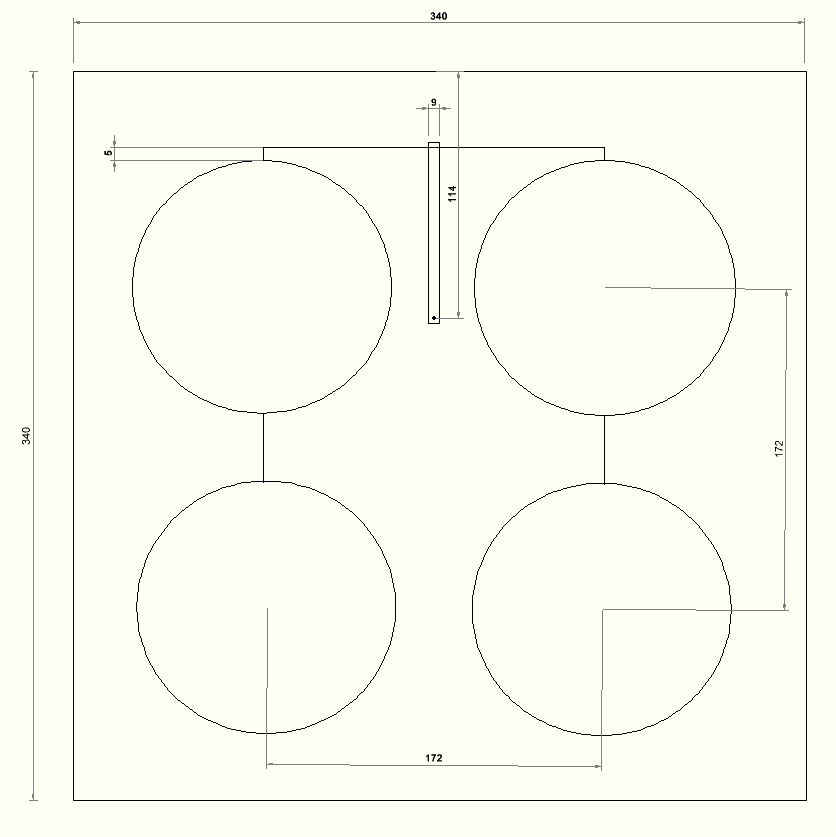

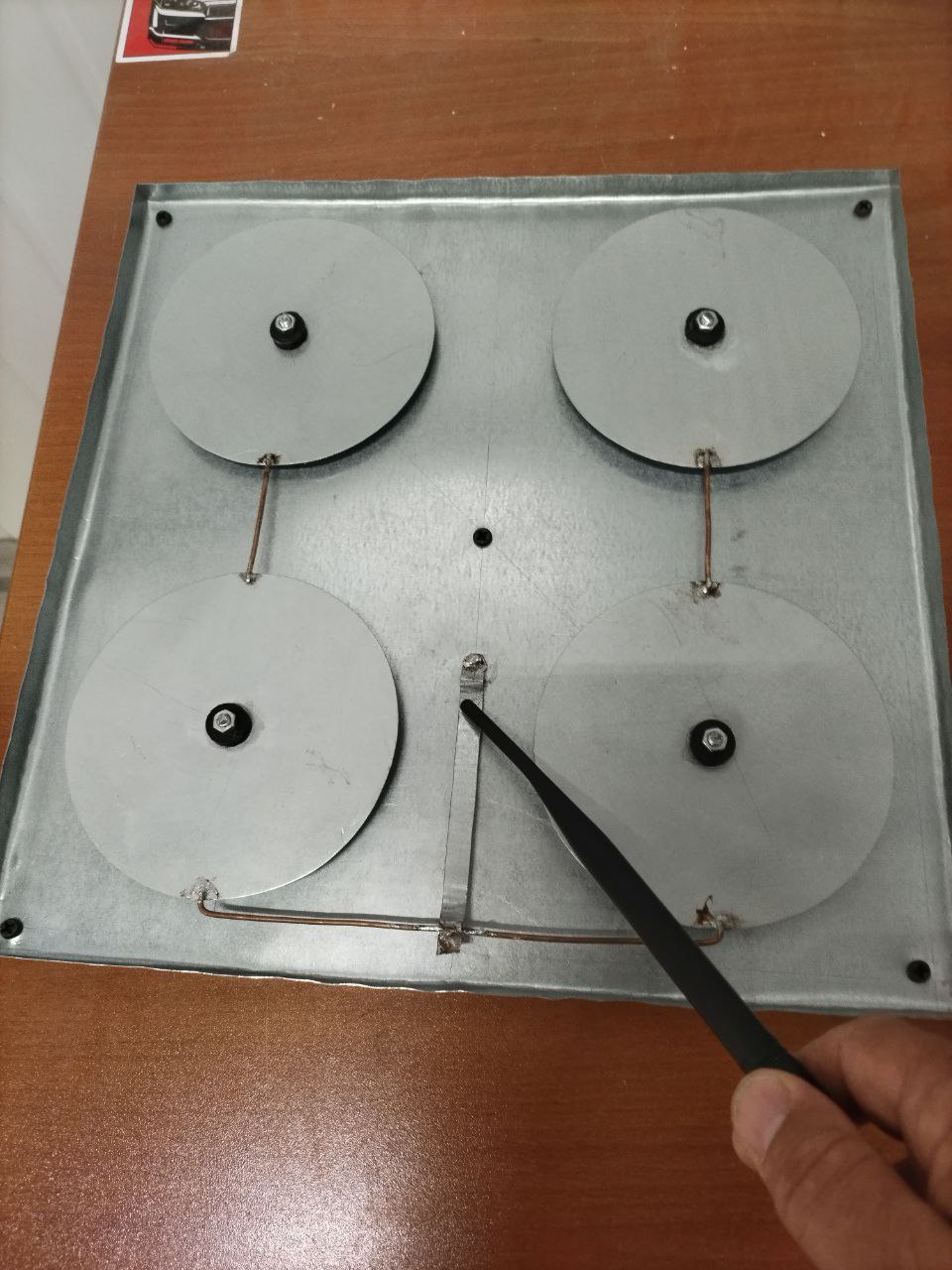

10 hours ago, Admin said:

,,,вы забыли диаметр заплаток и провода...!!!

sorry!!! diameter of the patch 125 mm, diameter of the wire 1.5mm

1 person likes this

Share this post


Link to post
Share on other sites

,,,okay, I will try to do a simulation of this antenna...!!!

...the input impedance is 50 Ohm...???

Share this post


Link to post
Share on other sites
