Antennas for Drones

217 posts in this topic

,,,it is easier to solder a coaxial cable to the feed point...!!!

1 person likes this

Share this post


Link to post
Share on other sites

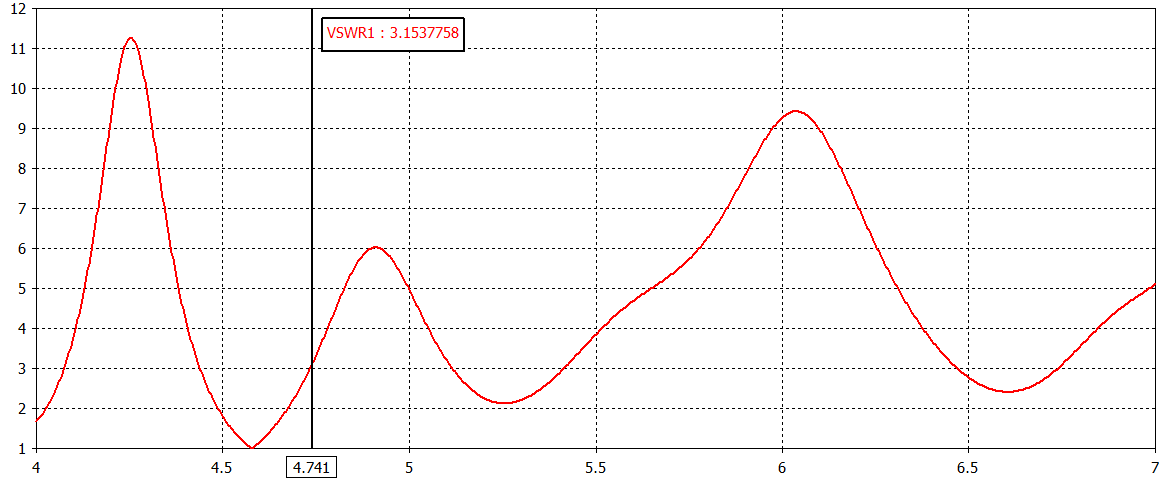

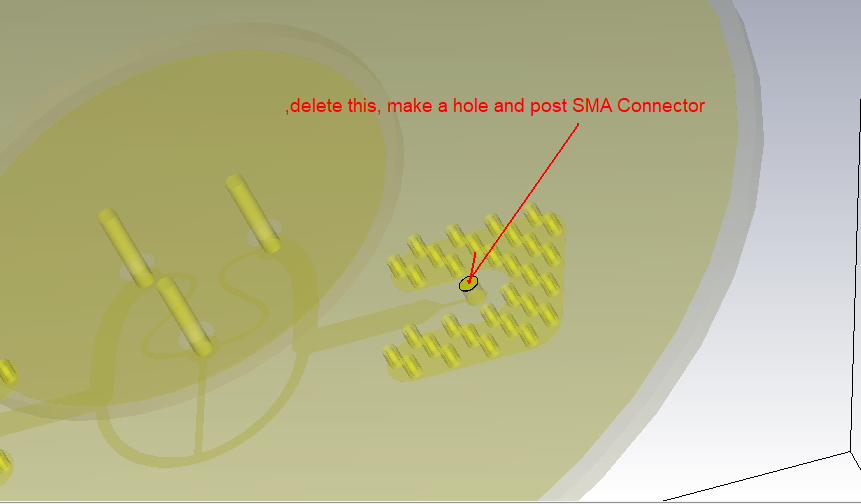

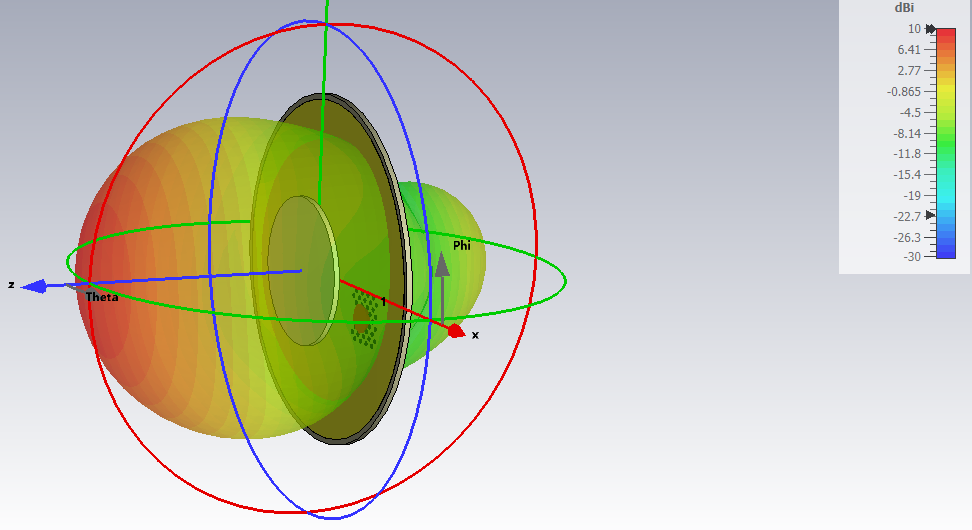

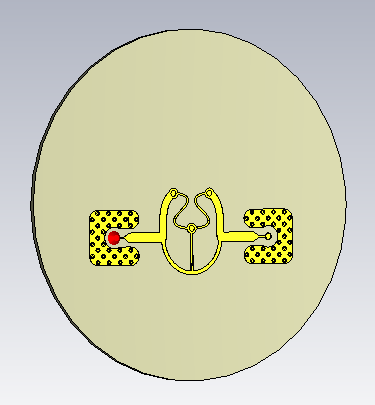

I think you should put an SMA connector instead of the discrete port - that might be the mistake....!!!

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

I think you should put an SMA connector instead of the discrete port - that might be the mistake....!!!

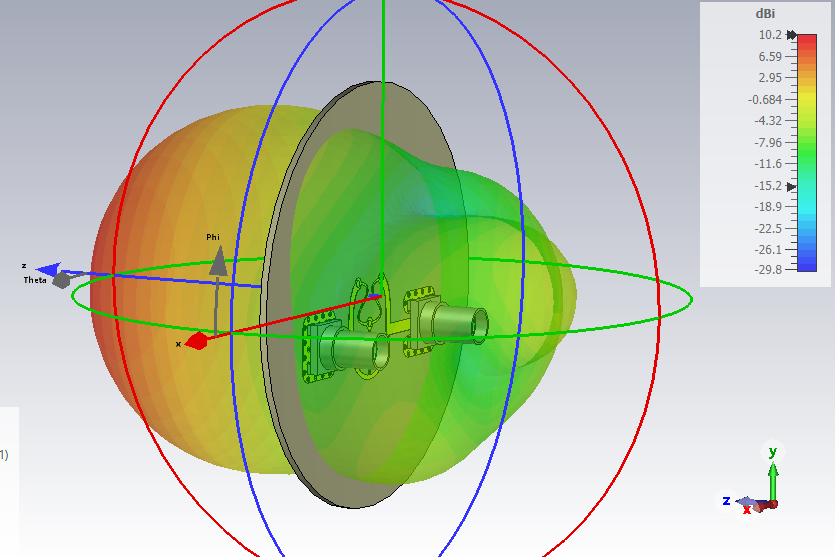

Can you help install them correctly?

Share this post


Link to post
Share on other sites
1 hour ago, dumser2 said:

I fixed it, it's much better.



Hello! Good work! Can you share you final cst design?

Share this post


Link to post
Share on other sites

Hello Guys!

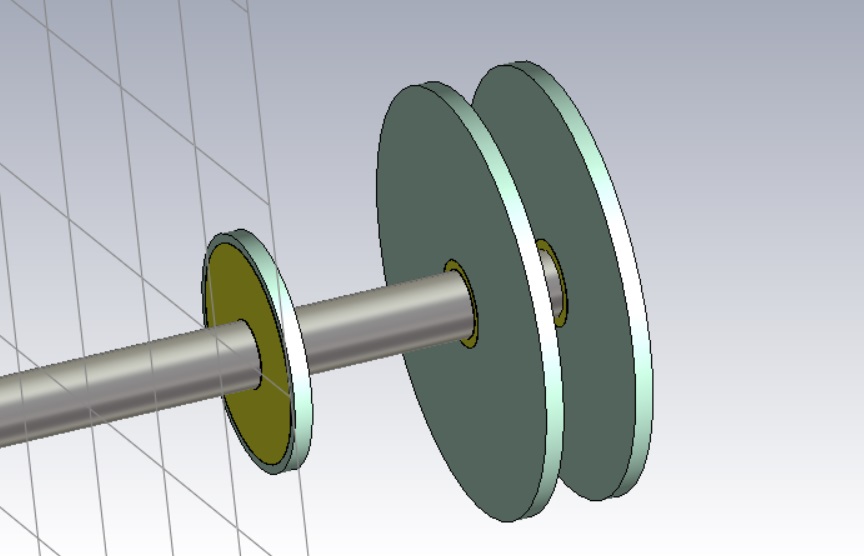

I have a problem with Pagoda3b antenna for 5.5GHz.

As you know Pagoda antenna is an open source project of Maarten Baert. He has got a page with dxf and gerber files of it.

https://www.maartenbaert.be/quadcopters/antennas/pagoda-antenna/

I've tried to design this antenna for 5.5GHz using dxf files, but central frequency is 5.7GHz

What i'm doing wrong? Help please!!!

CST file of my design:




pagoda_5500_right_9cm.cst

1 person likes this

Share this post


Link to post
Share on other sites

different solver and different settings would give different F resonance . BUT dielectrics play the BIGGEST ROLE...try higher dielectric constant  WHAT THICKNESSES ? METAL moves fr UP

ussually is 0.035 mm copper 1.53mm FR4

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites
8 minutes ago, clanon said:

different solver and different settings would give different F resonance . BUT dielectrics play the BIGGEST ROLE...try higher dielectric constant  WHAT THICKNESSES ? METAL moves fr UP

ussually is 0.035 mm copper 1.53mm FR4

My design is based on Maarten Baert's recommendations. fr4 1.mm (loss free) and 0.035mm copper (loss free)...

1 person likes this

Share this post


Link to post
Share on other sites
7 minutes ago, naumoves said:

My design is based on Maarten Baert's recommendations. fr4 1.mm (loss free) and 0.035mm copper (loss free)...

coax specs might be off

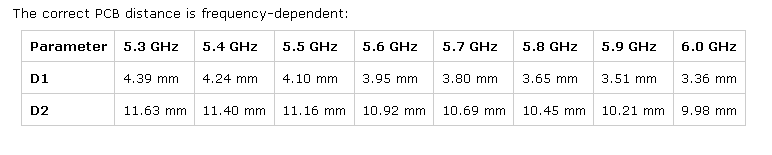

Sin título.png

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites
1 minute ago, clanon said:

coax specs might be off

May be! :/ I will try to contact Maarten...

1 person likes this

Share this post


Link to post
Share on other sites

FR4 EATS 5ghz energy

PES and copper tape would be MORE EFFICIENT .

ALL METAL even better

Sin título.png

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites
