Admin

Antennas for Drones

150 posts in this topic

,,, it is enough for us, details ...!1!

Share this post


Link to post
Share on other sites

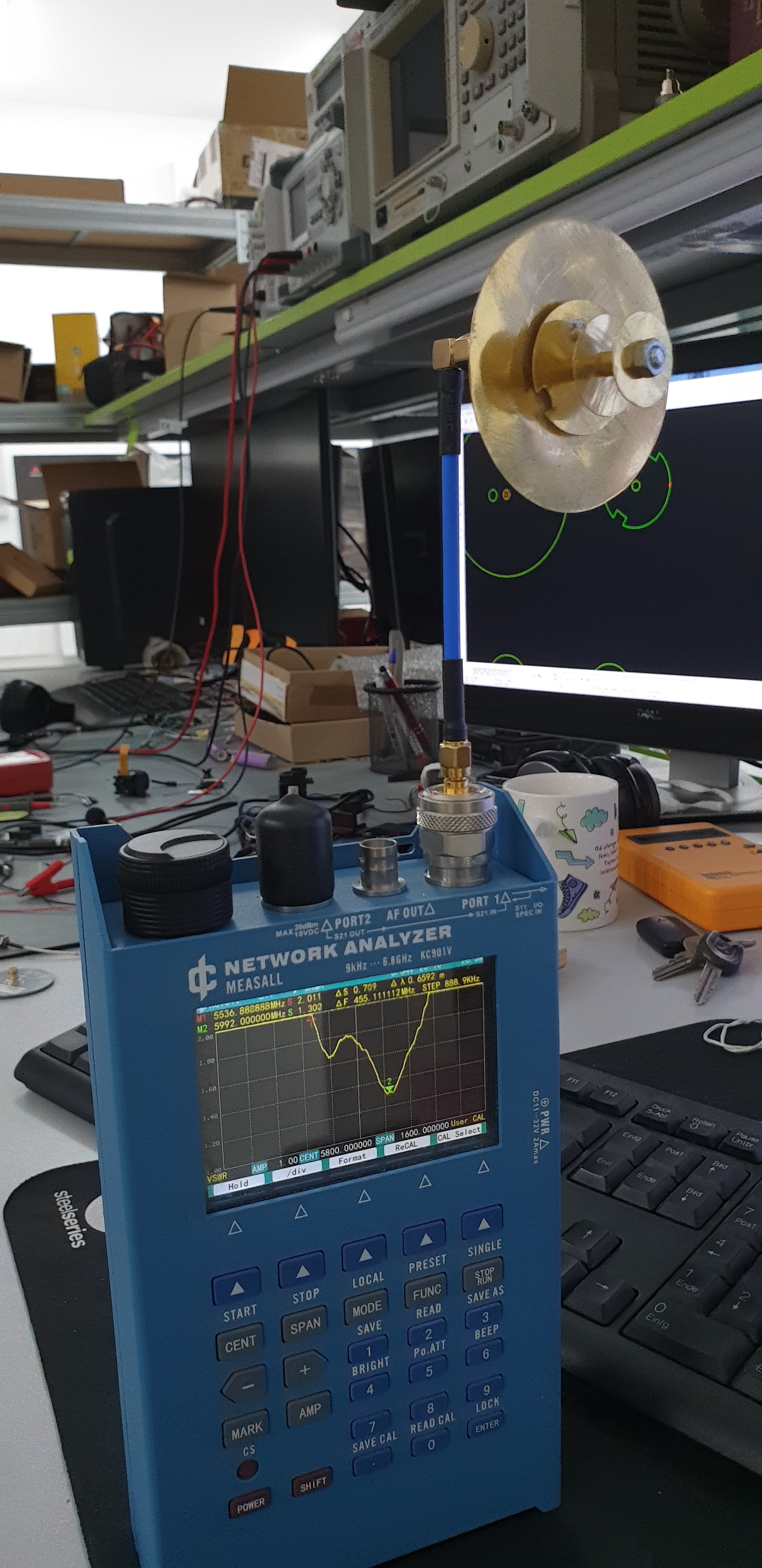

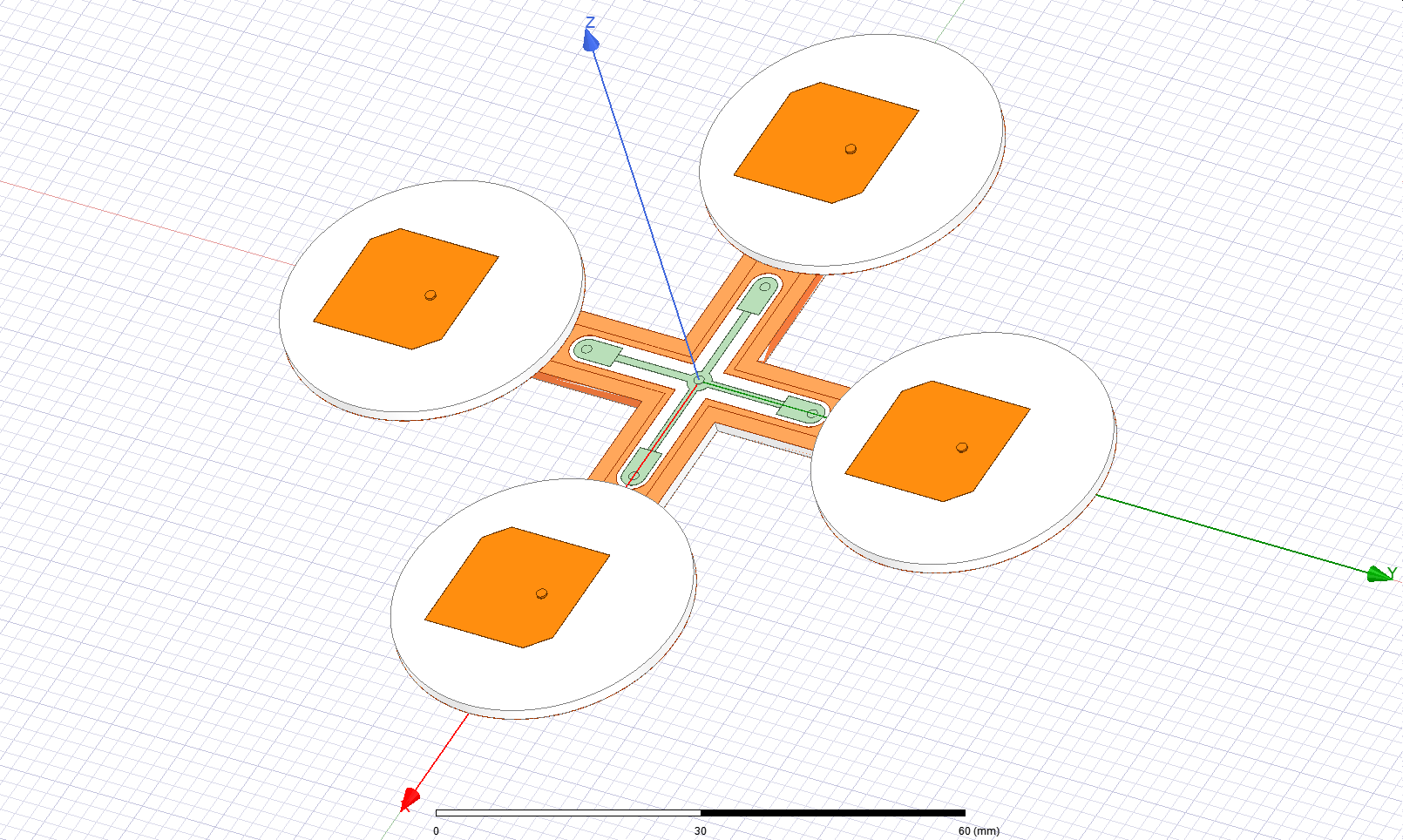

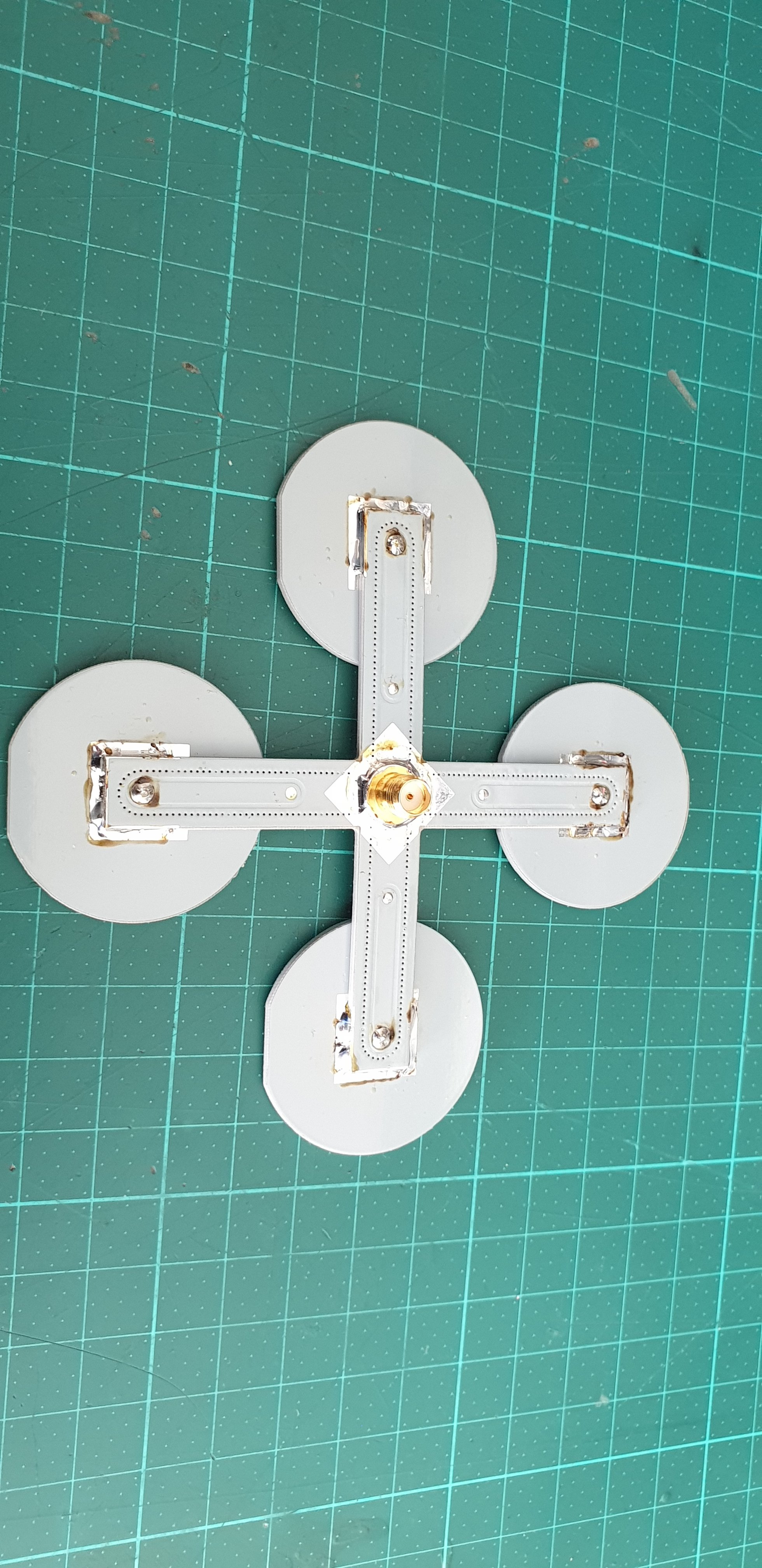

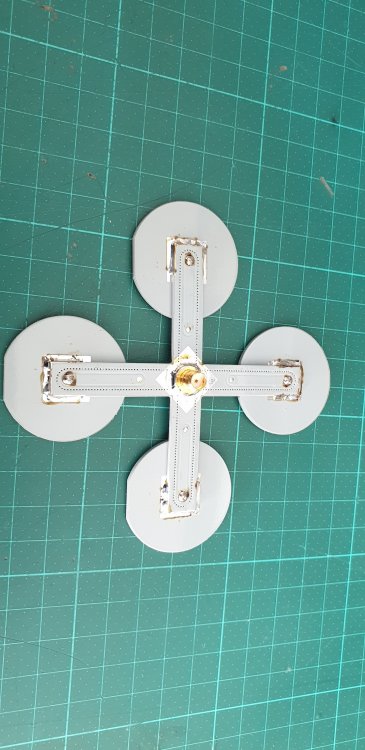

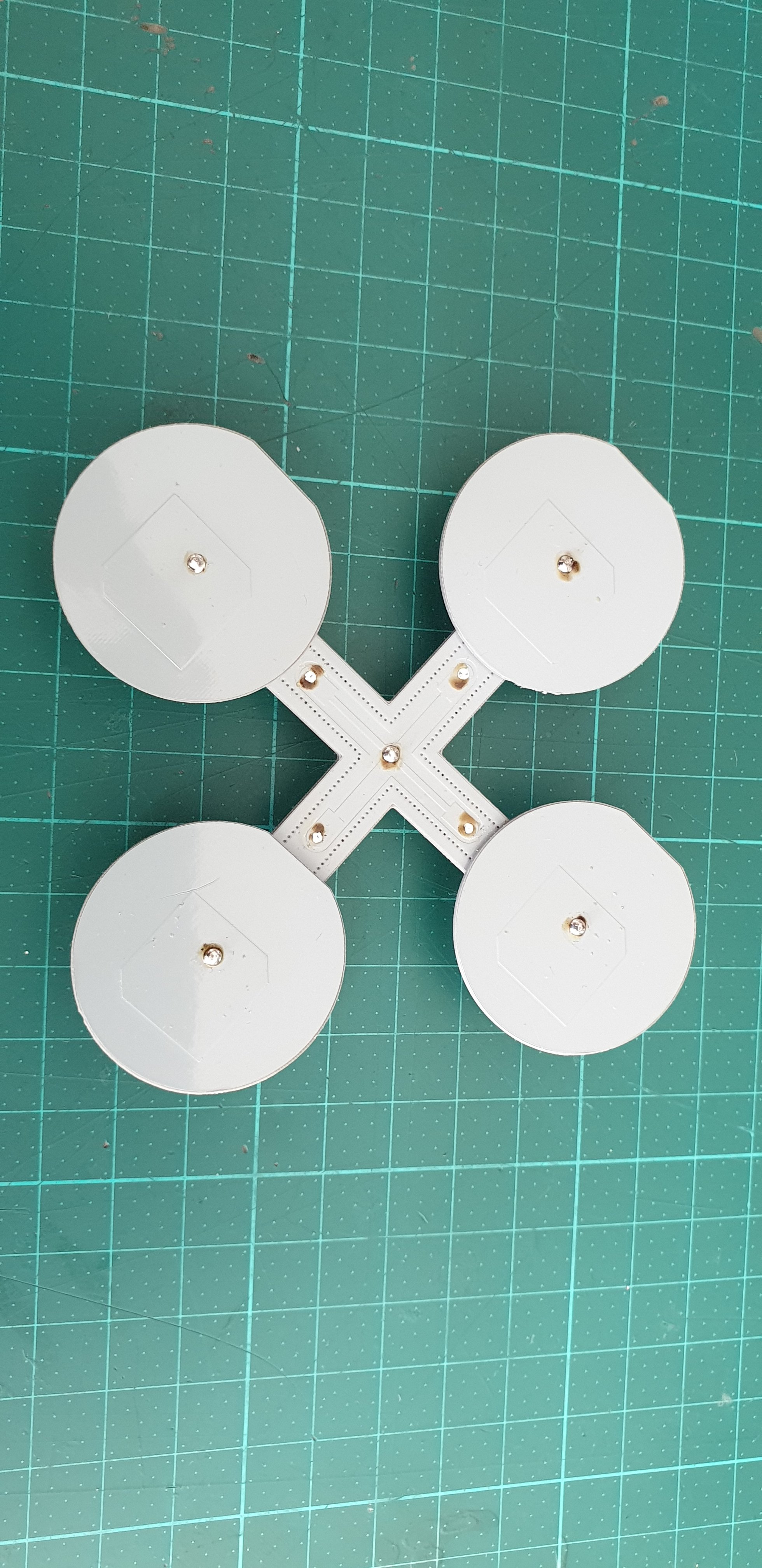

8 dBi patch with matching to 50 Ohm

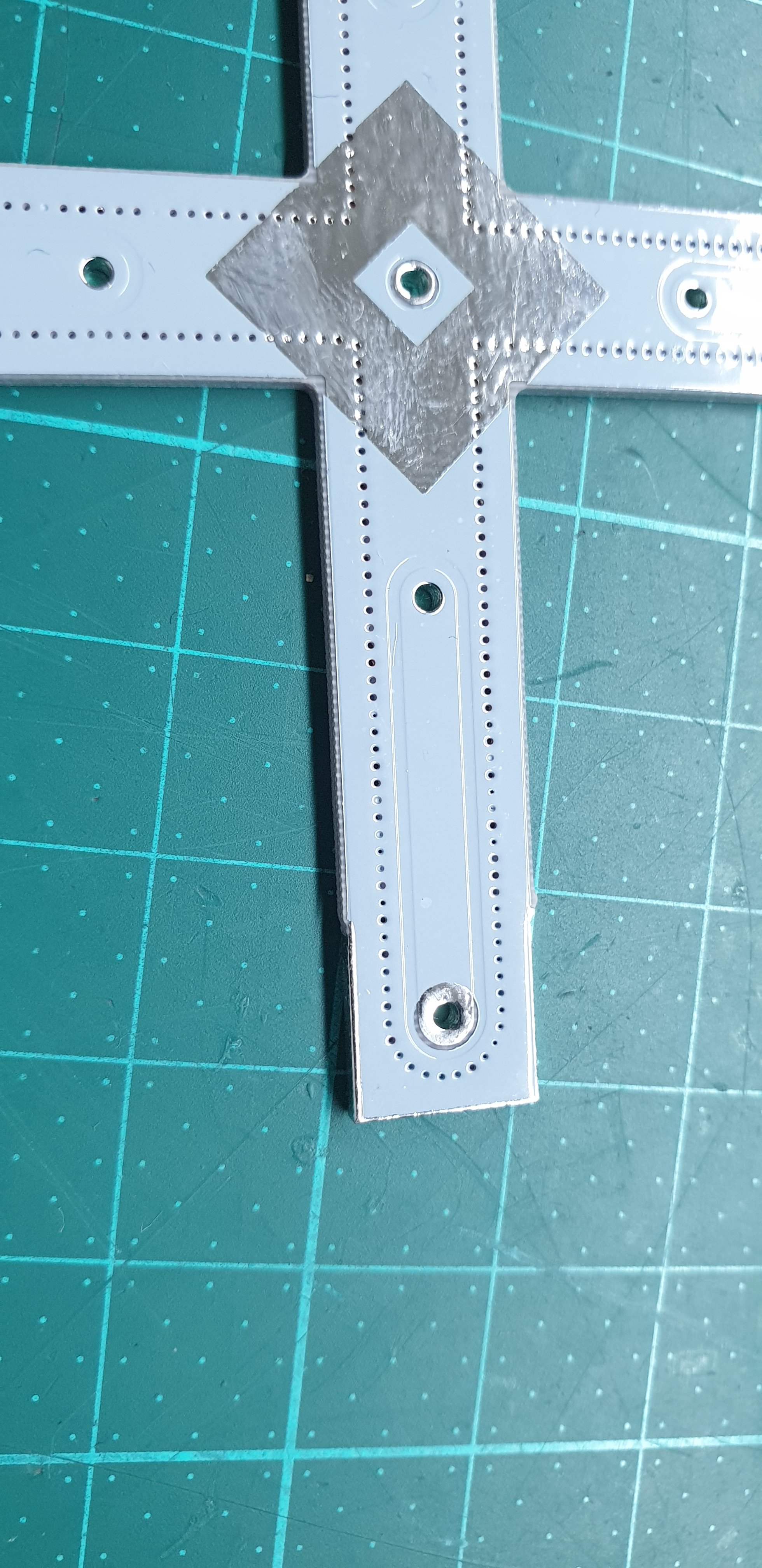

on the upper side of the cross transformed (100 Ohm lambda/4) to 200 Ohm to get back to 50 Ohm matching

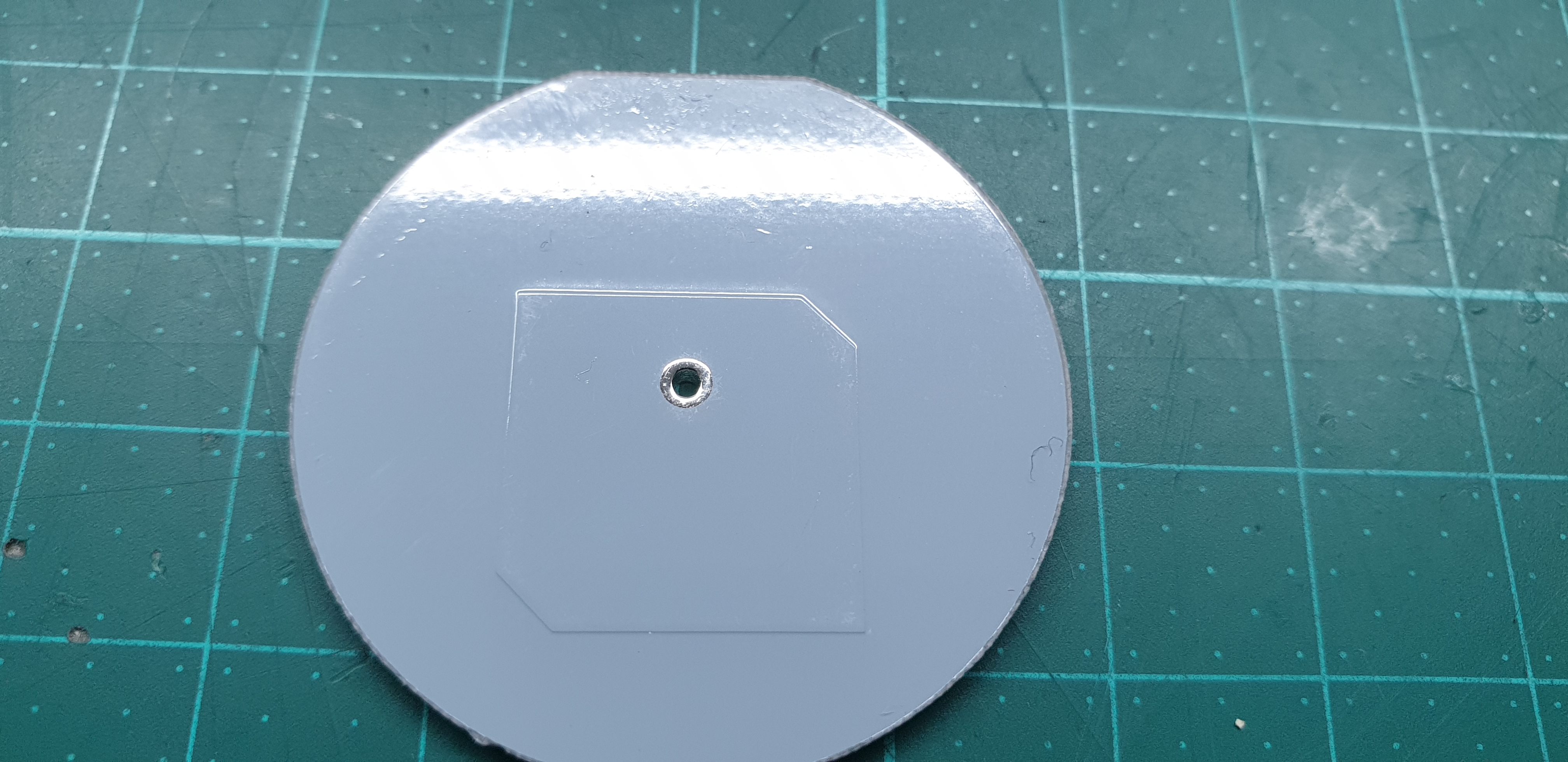

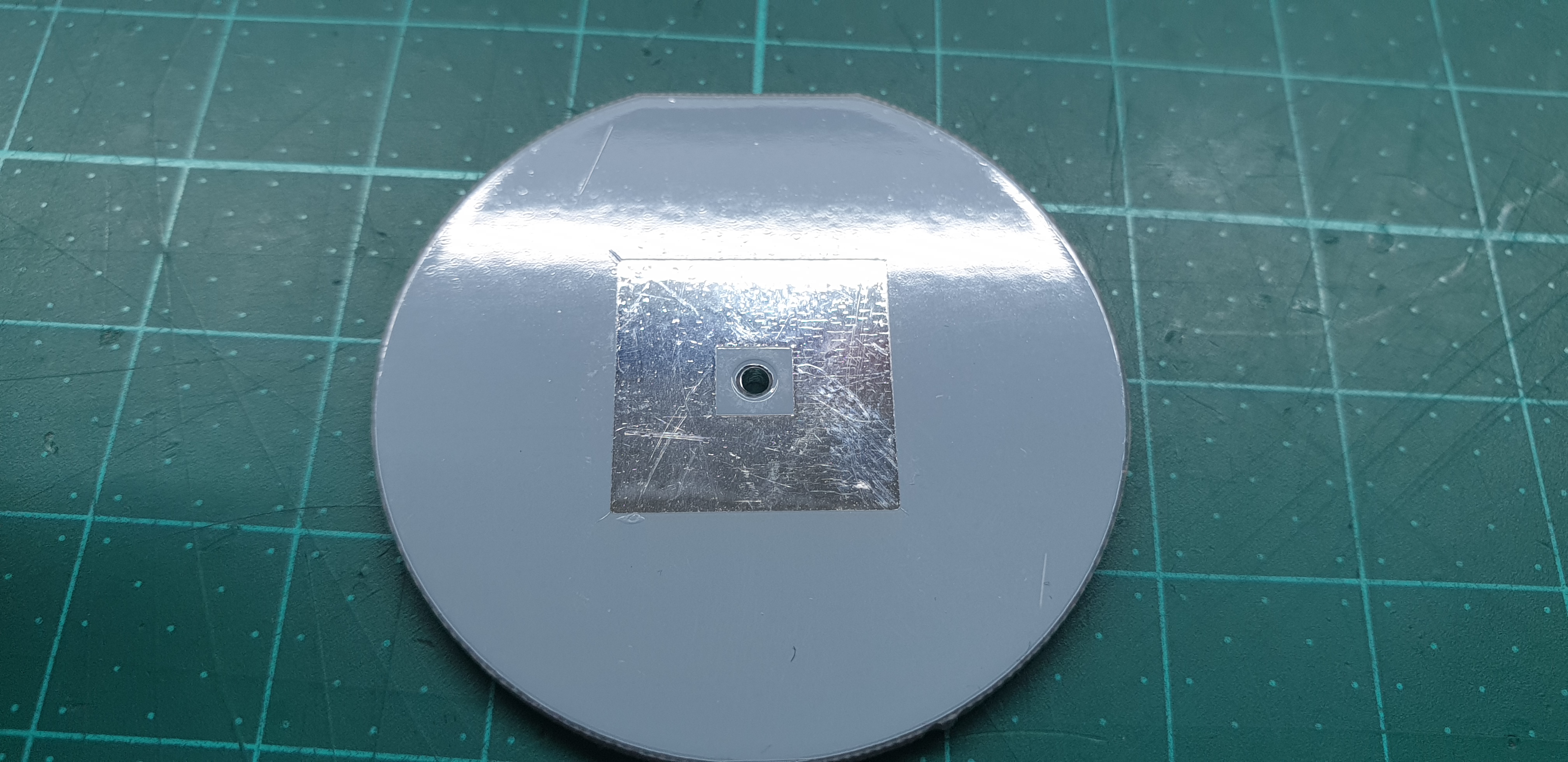

The cut in the patch element is for correct placement (avoid wrong rotation)



Share this post


Link to post
Share on other sites

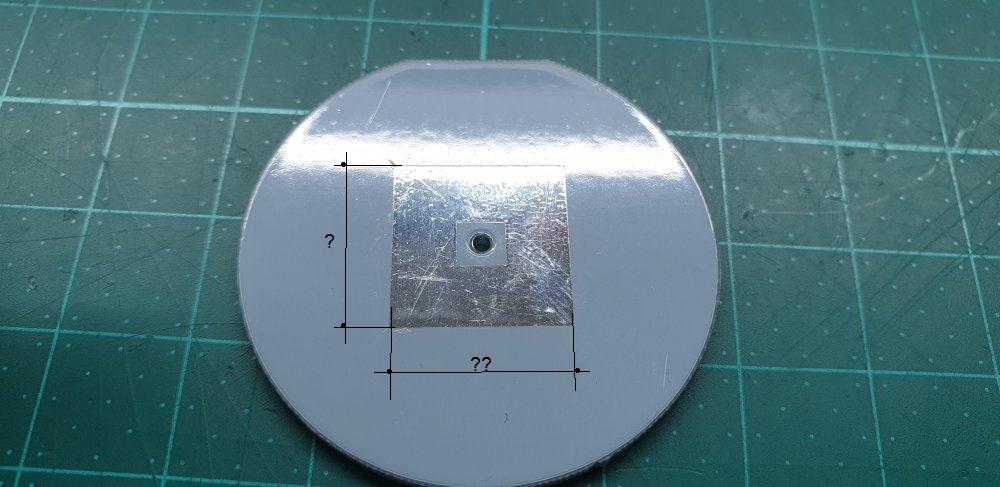

,,, when I say details, I mean dimensions.....!!!!

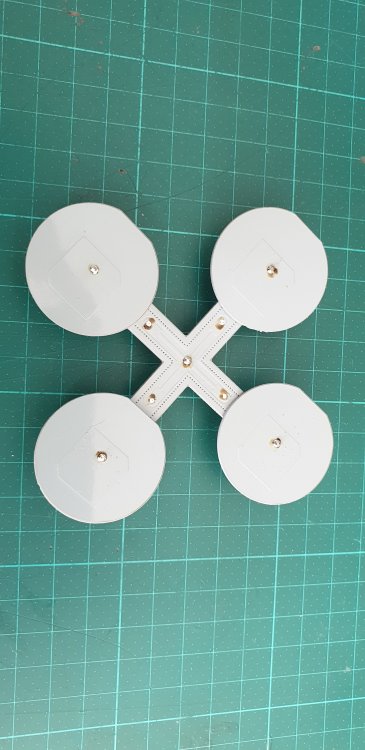

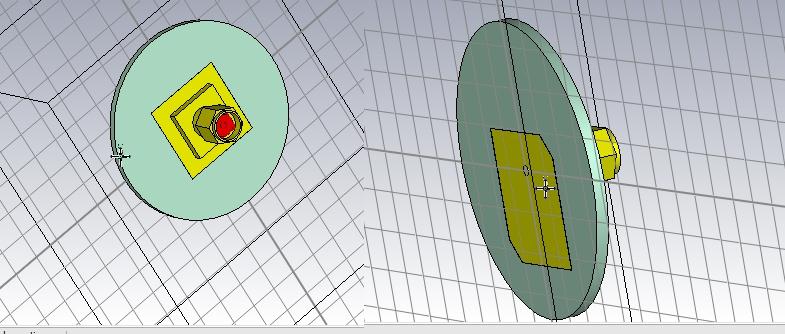

,,,this is patch-antenna....


 I would be interested in the connection between the 4 patches...!!!

Share this post


Link to post
Share on other sites

how much is this? ,, 10x10mm ...?


,,, and patch has no reflector...???

Share this post


Link to post
Share on other sites

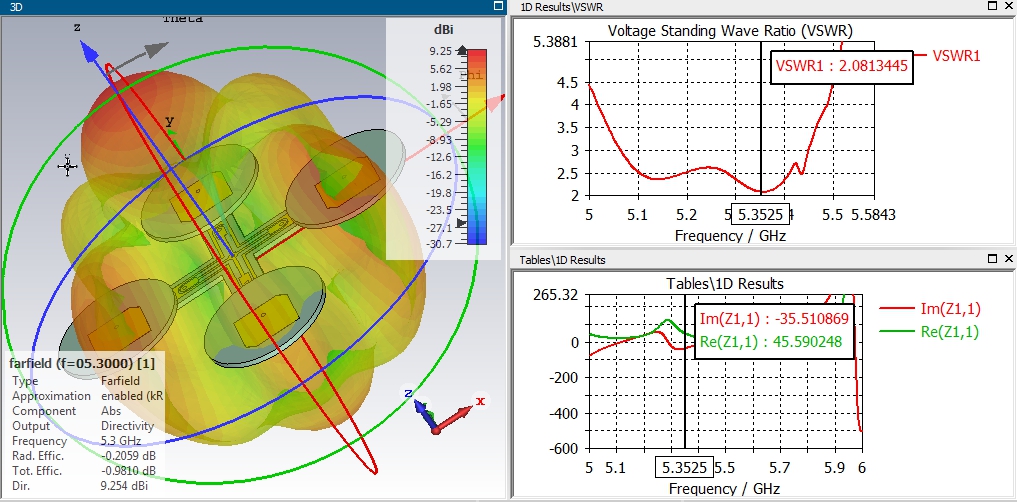

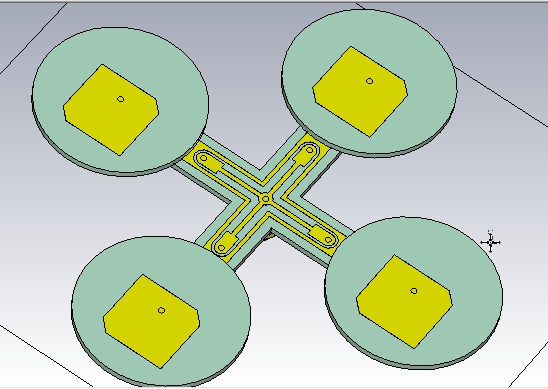

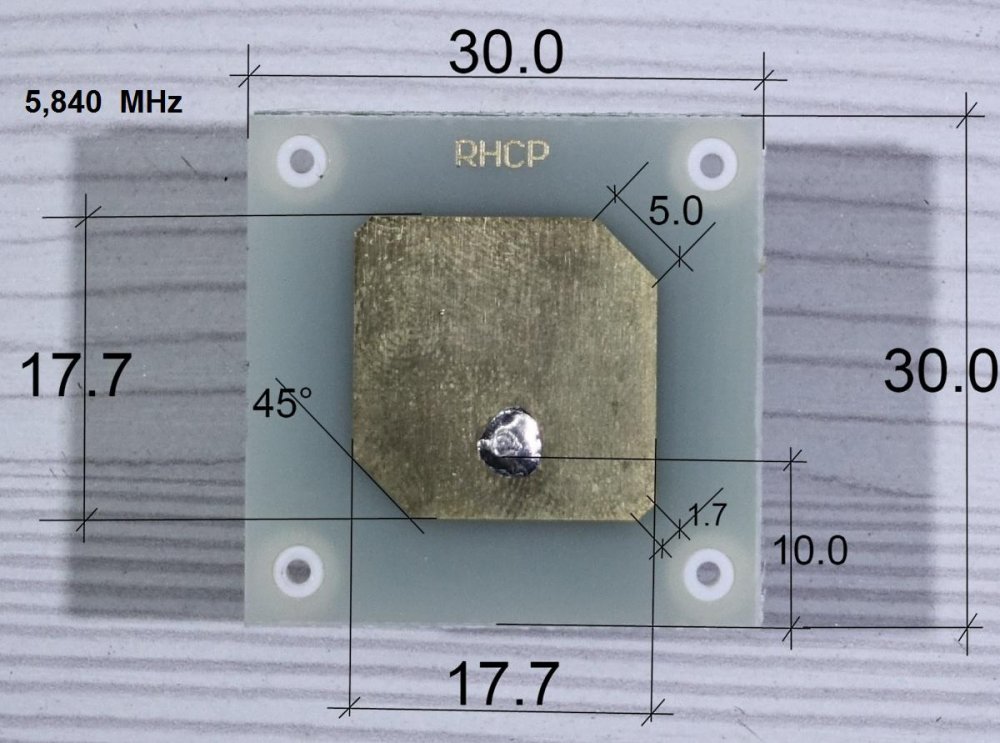

,,, there may be other dimensions for the 5.8GHz antenna...!!!






1 person likes this

Share this post


Link to post
Share on other sites

Is the bottom of the patch only GND in the smal part like in the figure ?

Extend the GND to the edges of the PCB

Share this post


Link to post
Share on other sites

Yes, you are right..!!

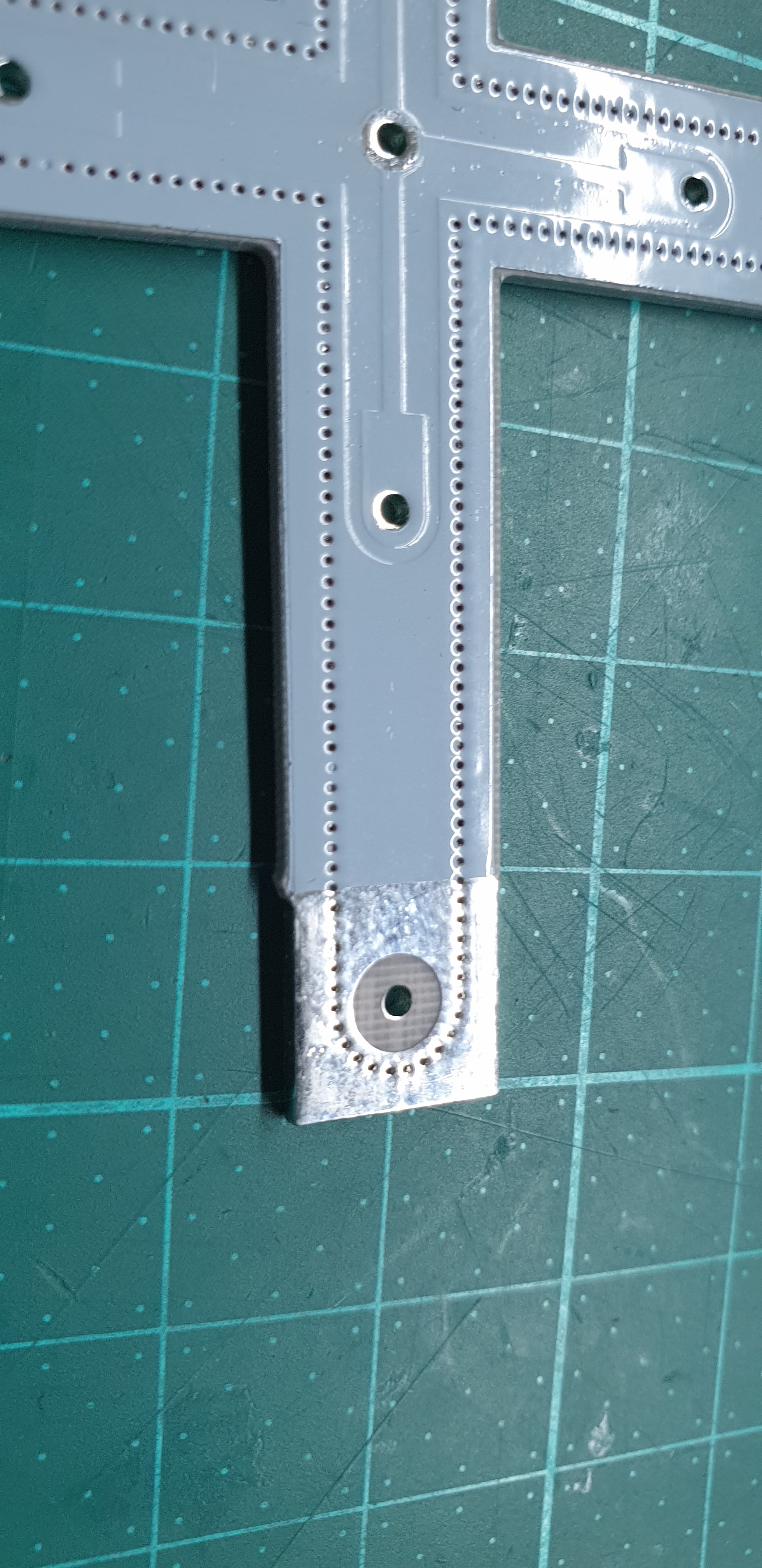

,,,it need pins between the two GNDs of the PCB"s with transmission lines  ...!!!

Share this post


Link to post
Share on other sites

Hello!

Friends, are there any good patch antenna options for DJI systems? I watched the Lumenier AXII HD antenna tests. But the price of this option is very high here in Russia. Any good homemade options? I would be grateful if there is an option immediately ready-made gerber. Thanks!

Share this post


Link to post
Share on other sites

Hi im italian fpv pilot ... i m search a design for a little patch antenna to build for my goggle.... haye you got a design for build it? Thanks ... this forum is great!

Share this post


Link to post
Share on other sites

Or this for a cinematic video ...  my freq it s 5.8ghz ... with my helix and pagoda antennara i m arrived to 1.5km ...



Share this post


Link to post
Share on other sites
4 hours ago, swisusto said:

Hi im italian fpv pilot ... i m search a design for a little patch antenna to build for my goggle.... haye you got a design for build it? Thanks ... this forum is great!

,,, for what frequency do you want the patch antenna to be...???

Share this post


Link to post
Share on other sites

i fly in a range from 5675 to 5880 ... i would like to make a PCB from this design

Edited by swisusto

Share this post


Link to post
Share on other sites
16 hours ago, swisusto said:

i fly in a range from 5675 to 5880 ... i would like to make a PCB from this design

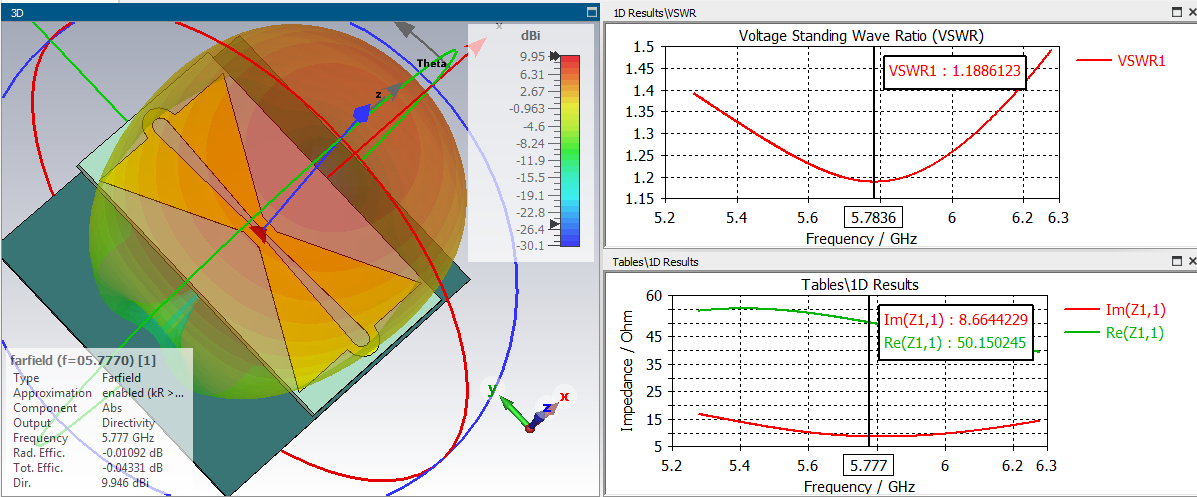

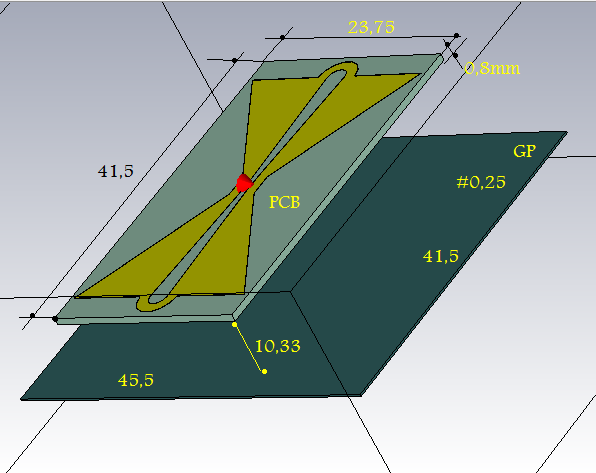

,,, YOU want a Batwing antenna...???




1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, swisusto said:

can you save it for 2018 CST ? ... is it possible ?

,,, I think I can't, I have cst 2021..!!!

Share this post


Link to post
Share on other sites
