Antennas for Drones

137 posts in this topic
9 minutes ago, efeksk said:

This is a great man

How great you want it,,,???

Share this post


Link to post
Share on other sites

It must be pretty good. And the size should be max 12x12 cm

Share this post


Link to post
Share on other sites

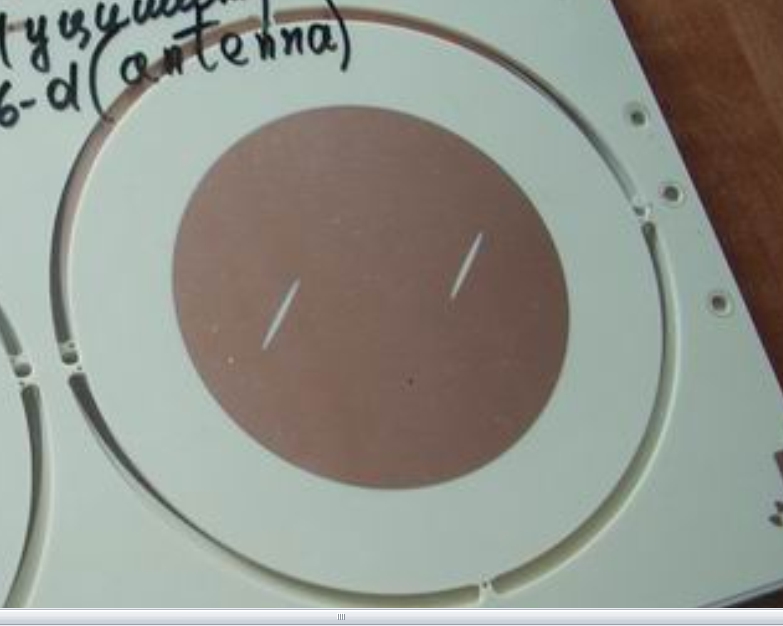

Yes, but it must be done in this form on PCB




,,on PCB plate....




Share this post


Link to post
Share on other sites

if we have, in Uzbekistan, will be a lot of drones, I'll do the same.

Jomy, I wish you, that your drone a lot and a lot, a long long time and flew in the sky. Then you will upload video footage from your drone.

Edited by chilanzar2
1 person likes this

Share this post


Link to post
Share on other sites
13 hours ago, chilanzar2 said:

if we have, in Uzbekistan, will be a lot of drones, I'll do the same.

Jomy, I wish you, that your drone a lot and a lot, a long long time and flew in the sky. Then you will upload video footage from your drone.

Thank you, but you know ,this will be and because  of you...!!!

1 person likes this

Share this post


Link to post
Share on other sites

It looks great.
2420 MHz and 5775 MHz.

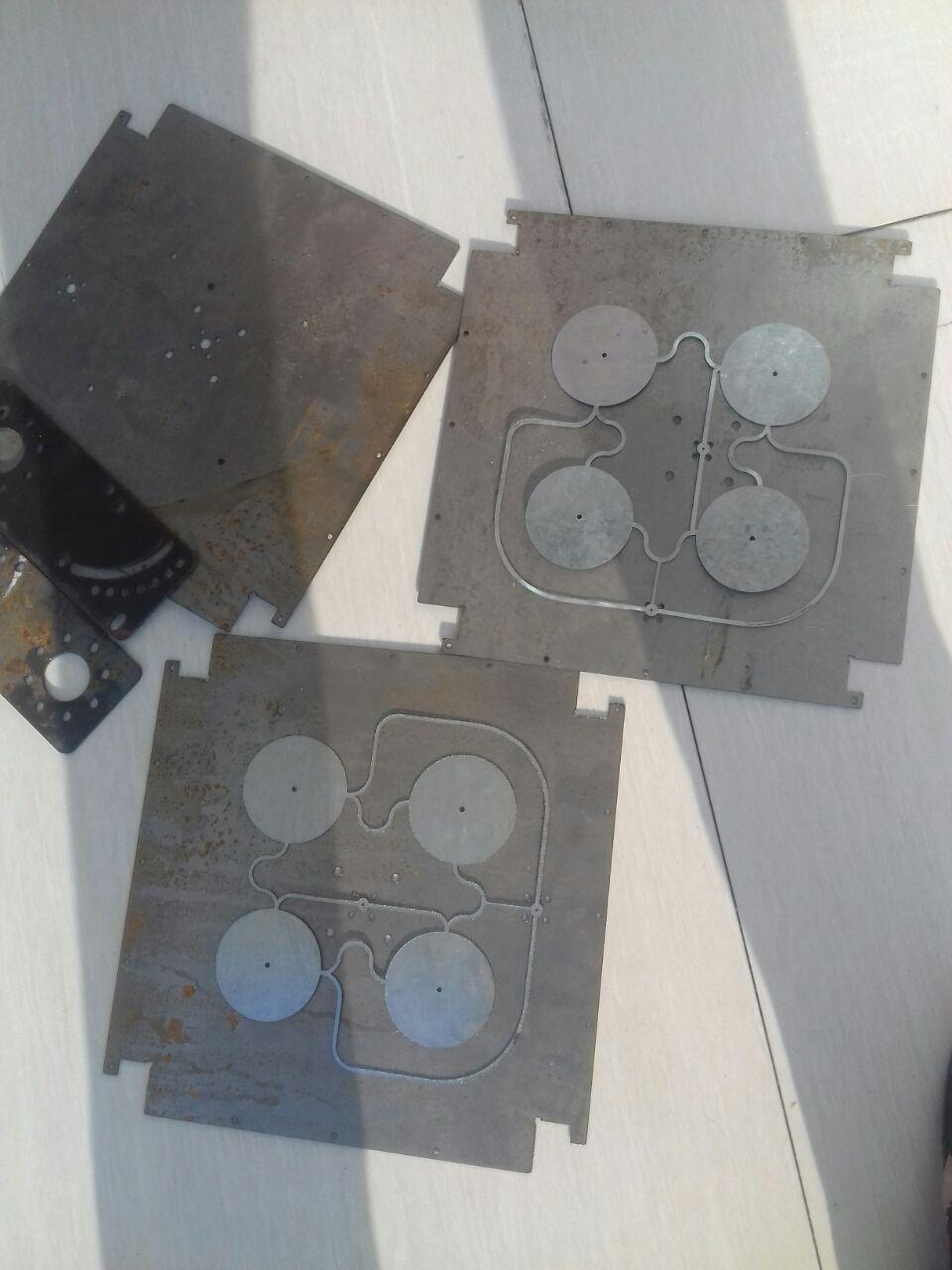

I can think of it as a metal with a laser.
If you can give me the relevant files I can cut with metal laser cutting.

Please tell me what materials I need to use

Share this post


Link to post
Share on other sites

I think that better is galvanized or brown sheet

But why do not you want to try with PCB..??

Share this post


Link to post
Share on other sites

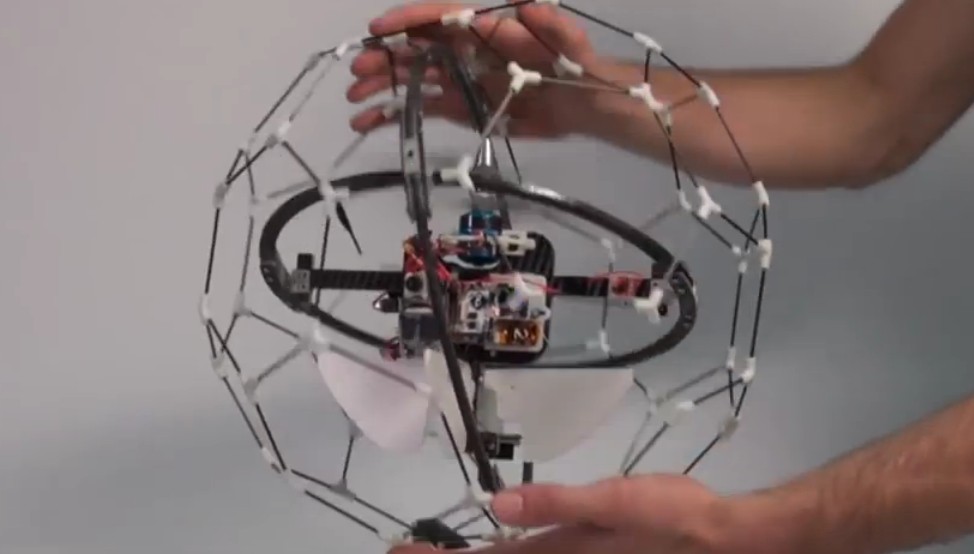

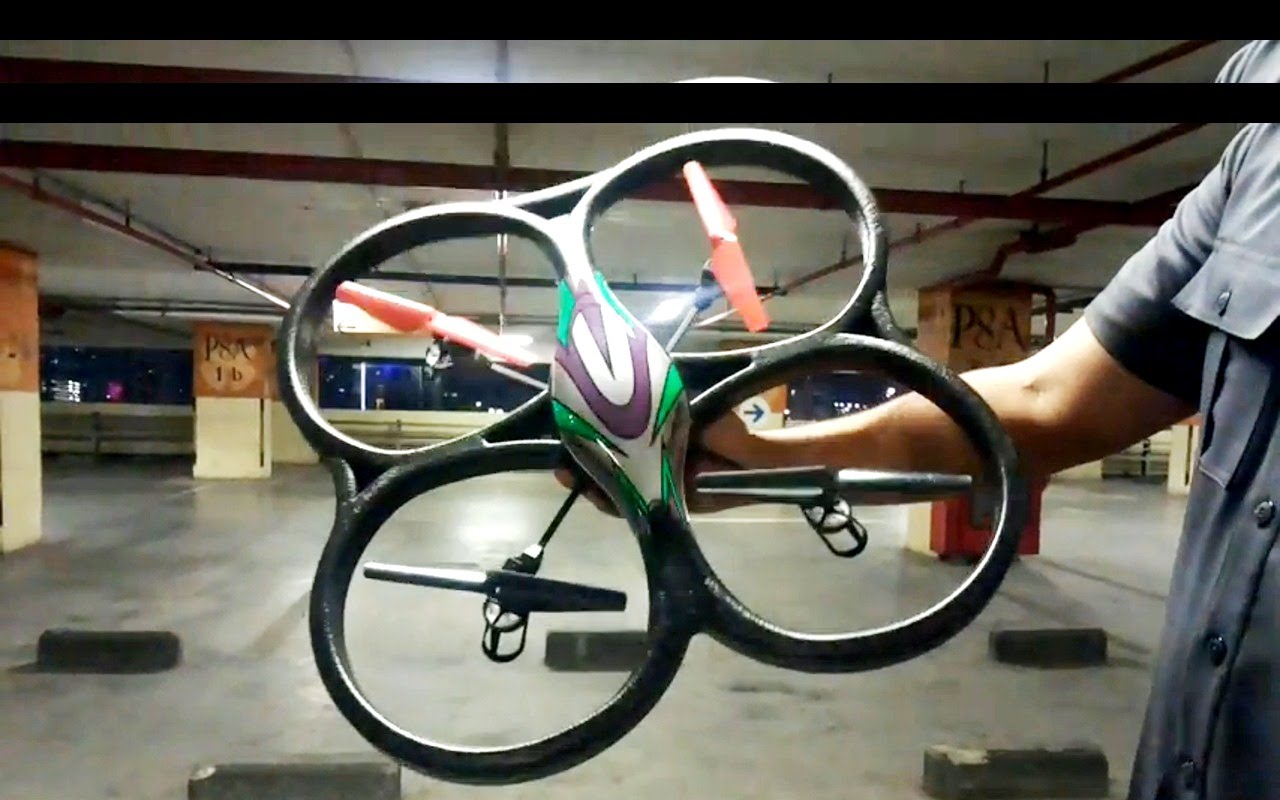

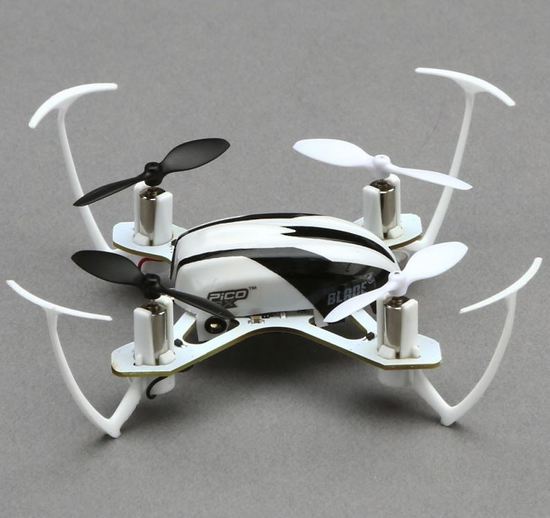

Efendi, the antennas can be placed around the helices ... ??

BLH8200 3.JPG



Share this post


Link to post
Share on other sites

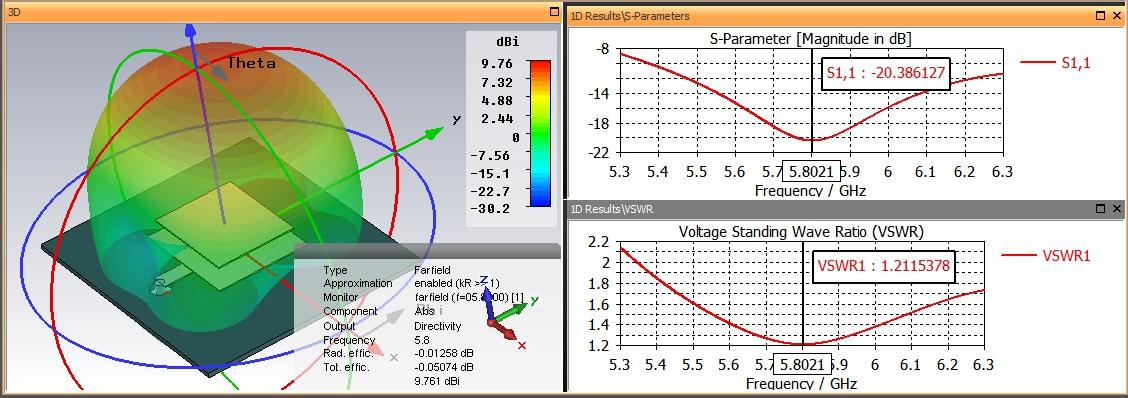

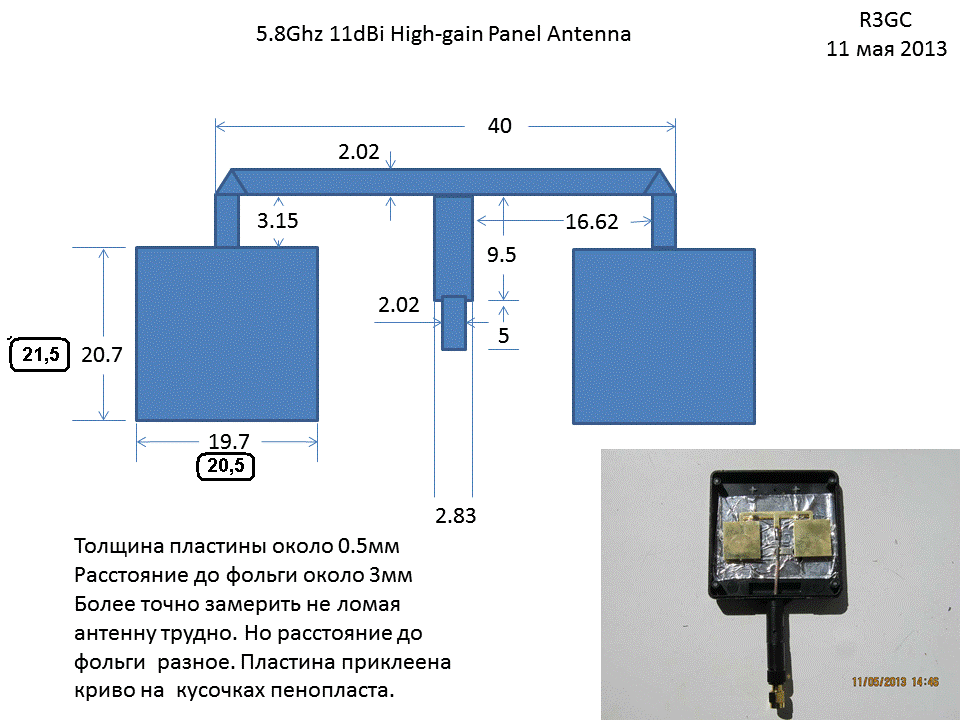

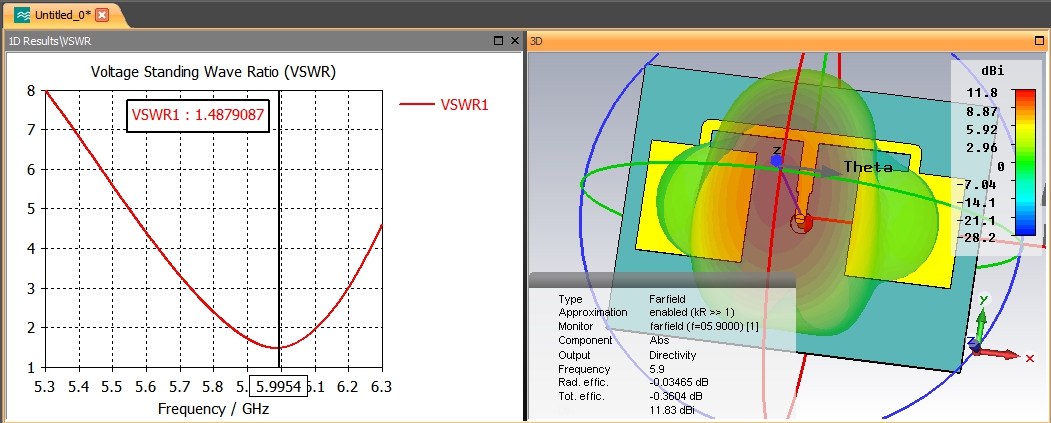

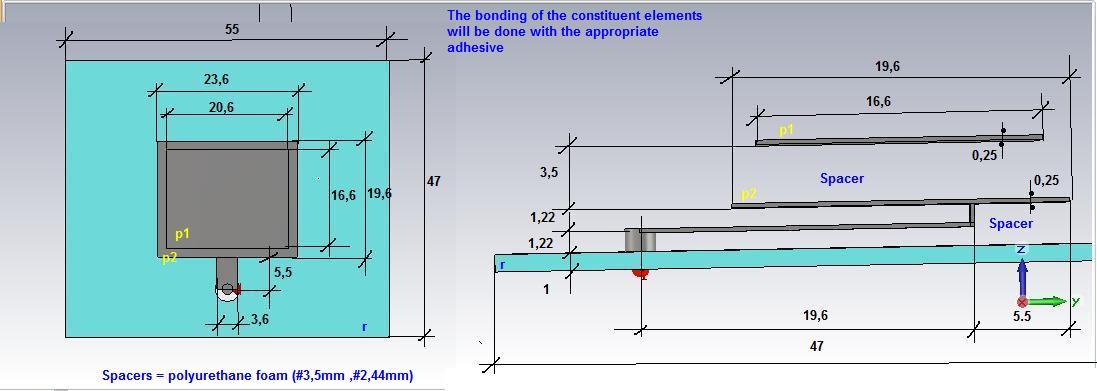

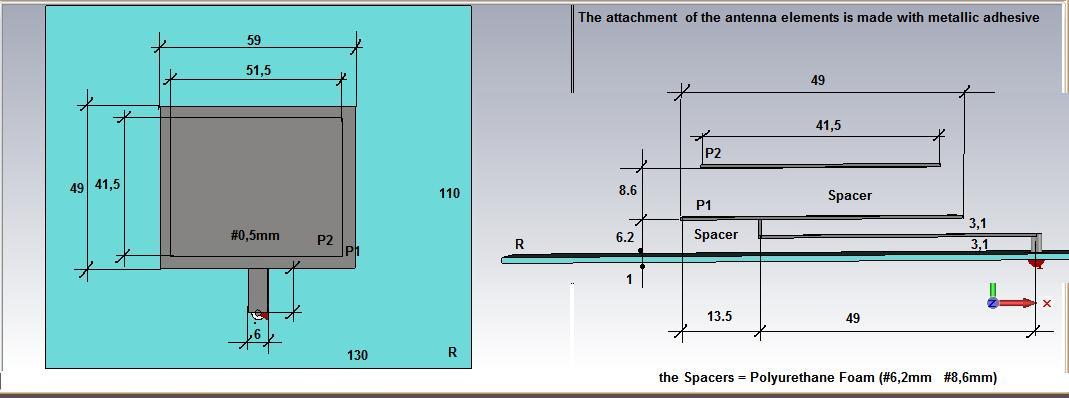

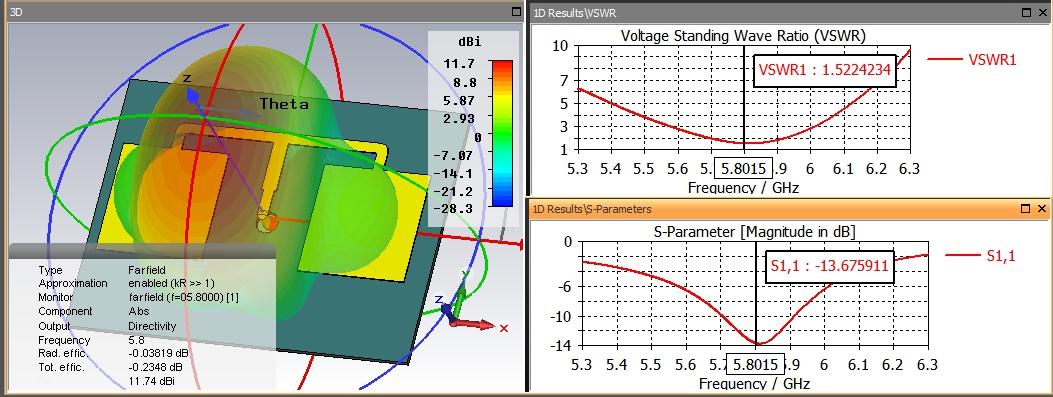

A new 5,8ghz simple antenna model with patches (r + p1 + p2)







1 person likes this

Share this post


Link to post
Share on other sites

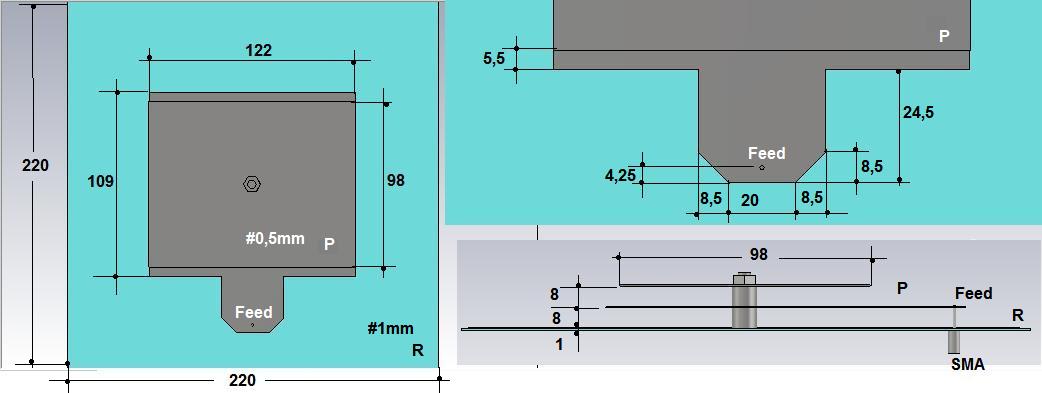

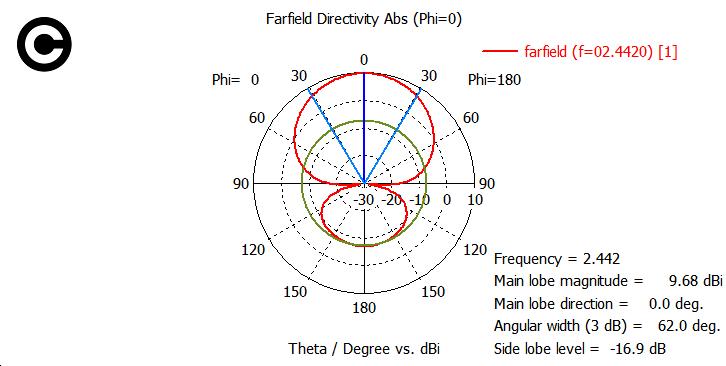

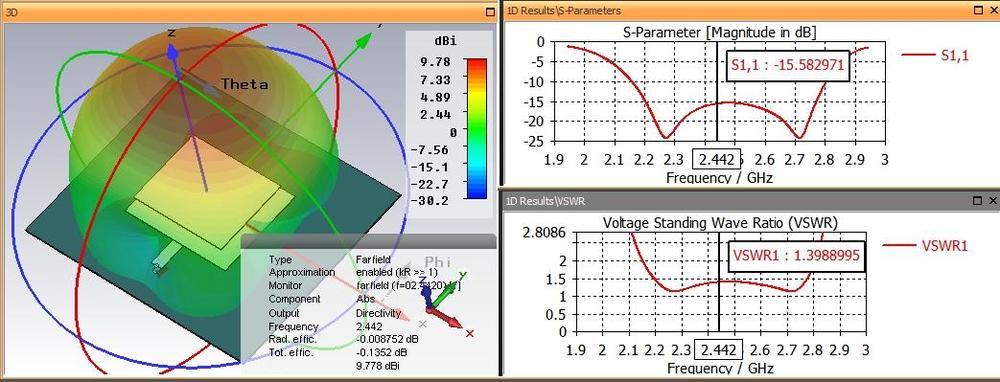

And a simple variant for the 2,442GHz antenna





1 person likes this

Share this post


Link to post
Share on other sites

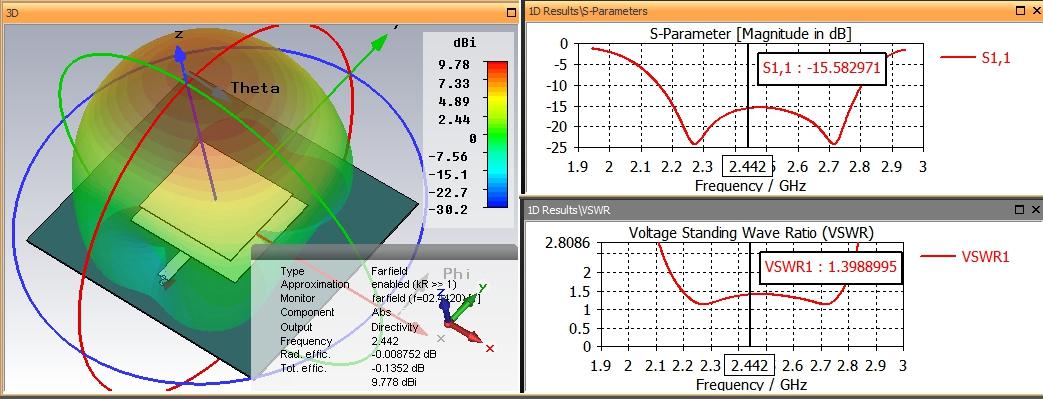

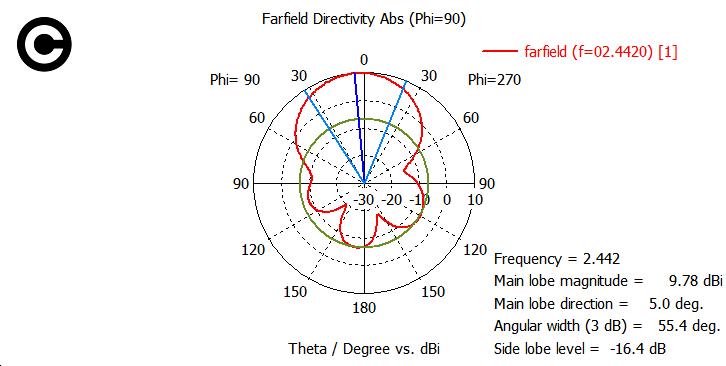

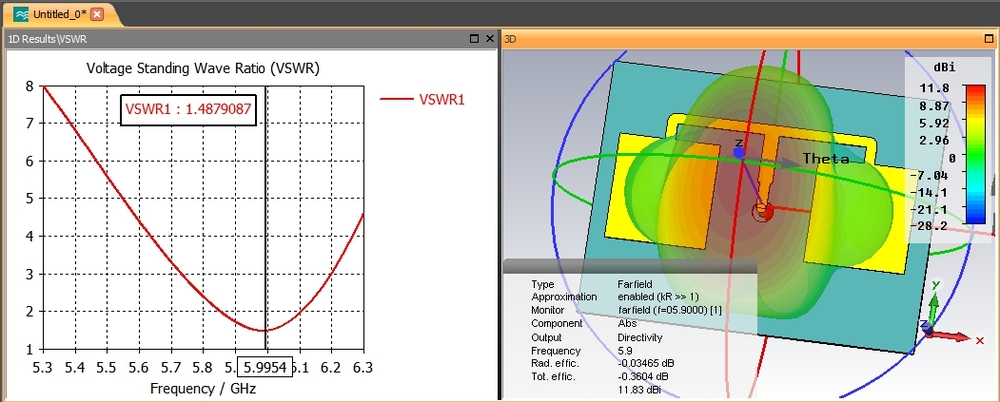

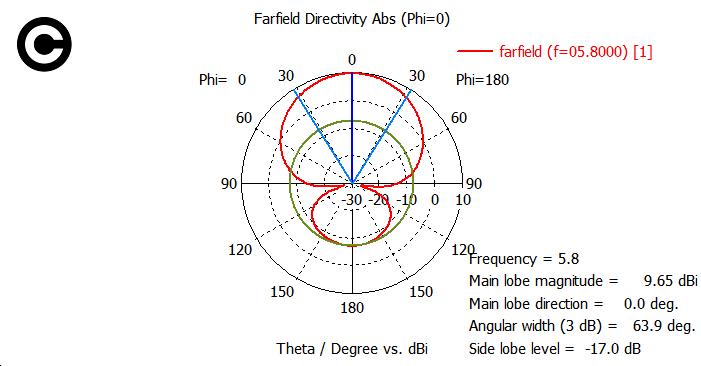

I tried to check this antenna and here are the results

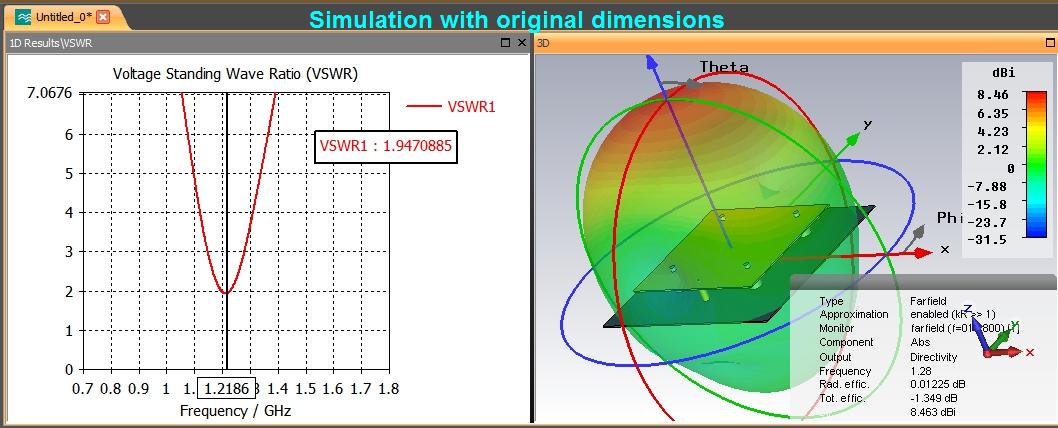

These are the results for the original dimensions.


And these are the results after changing the size of the patch


The enclosed dimensions are valid


Share this post


Link to post
Share on other sites

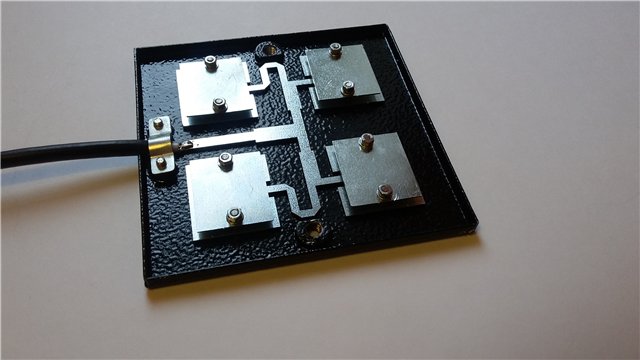

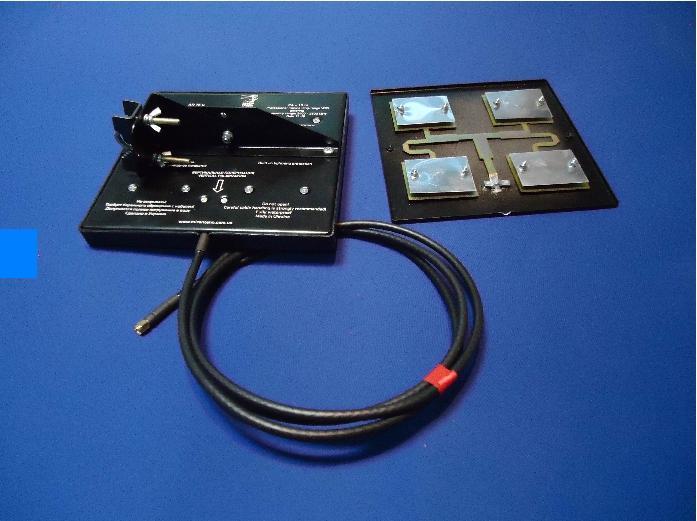

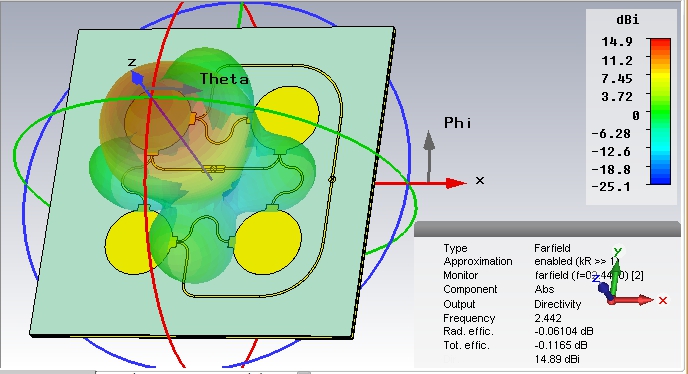

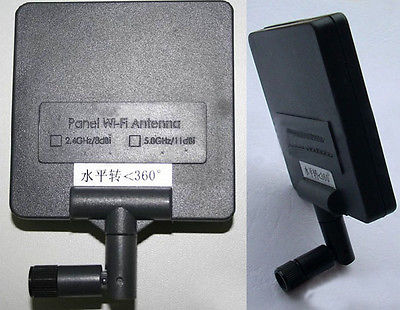

But I think that this antenna is more efficient...



Share this post


Link to post
Share on other sites

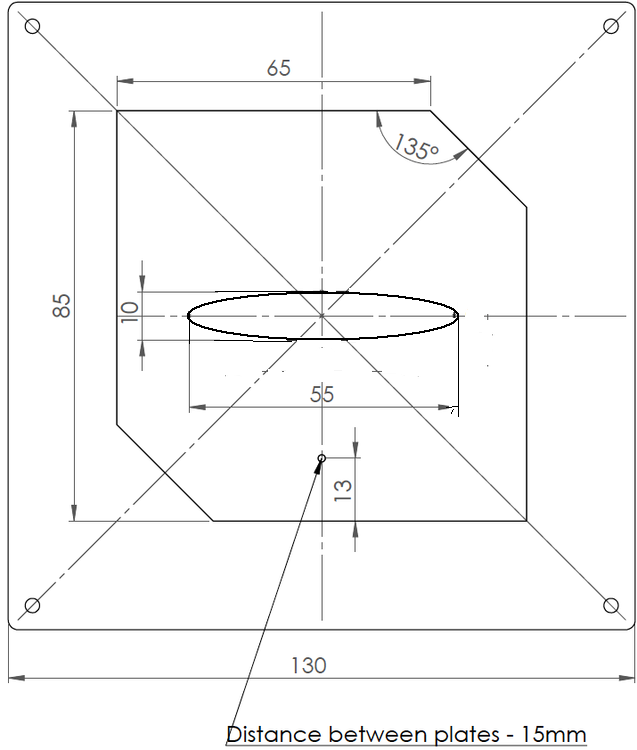

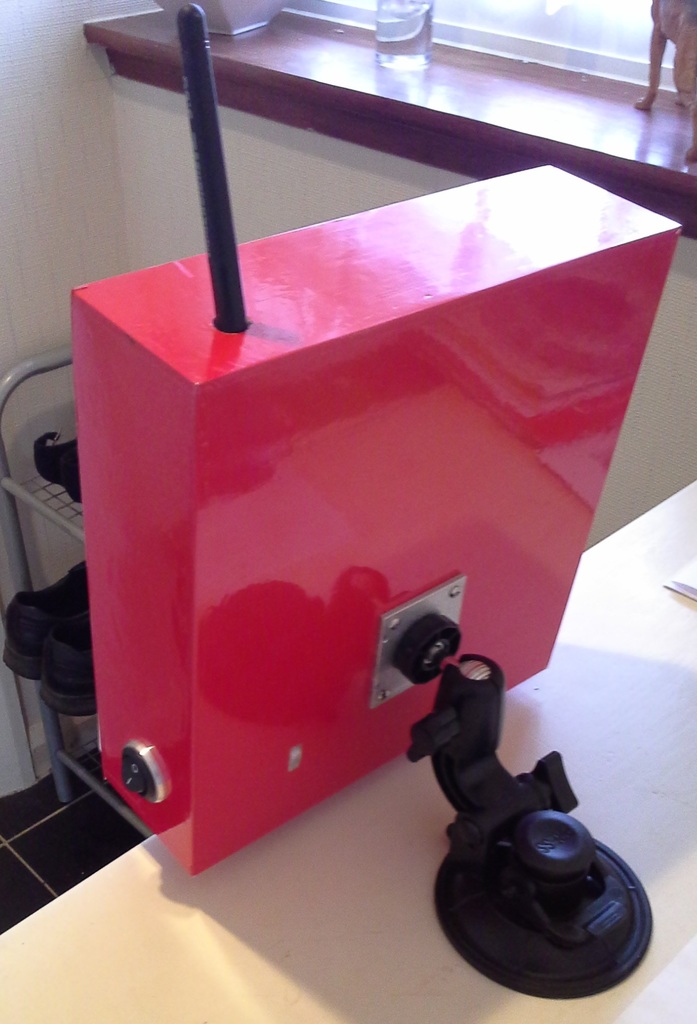

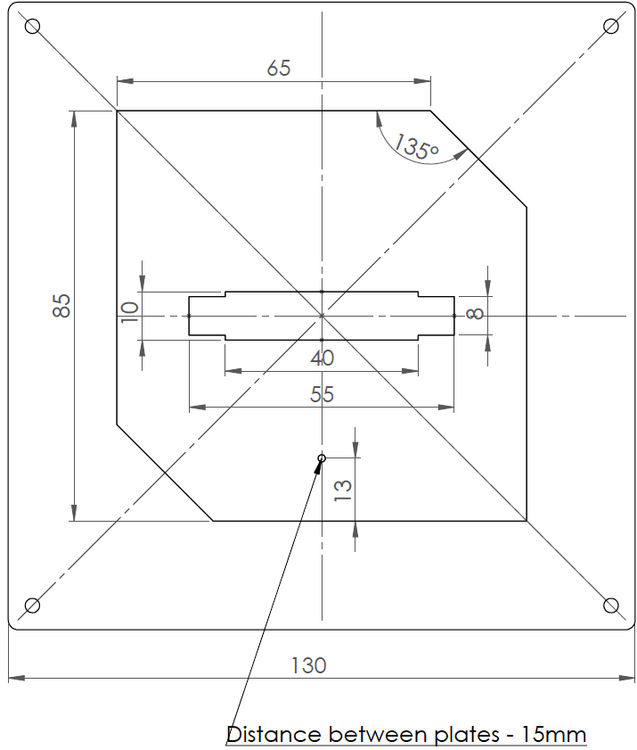

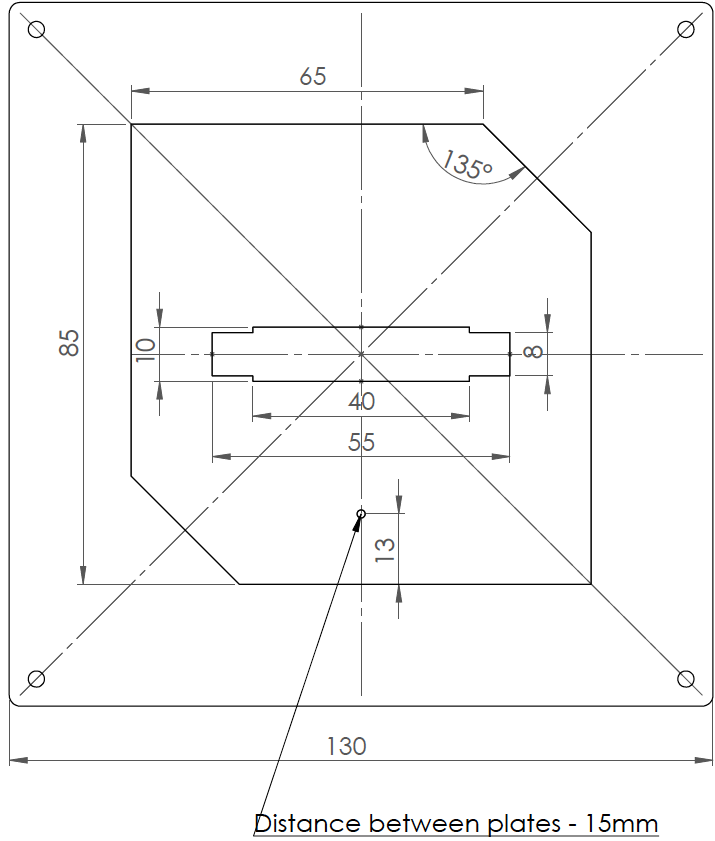

I am wanting to make a CP patch antenna for 1.3GHz, but am struggling to find a design with dimensions online.

Captura de tela 2016-01-12 14.18.50.png

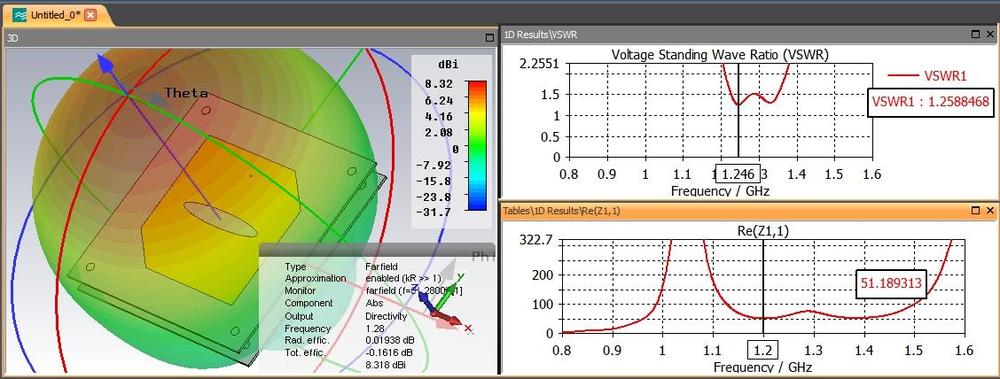

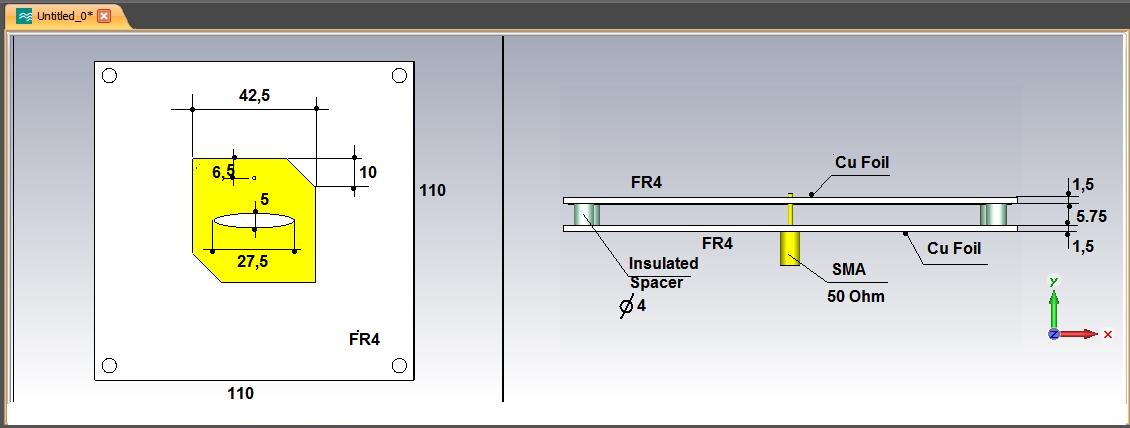

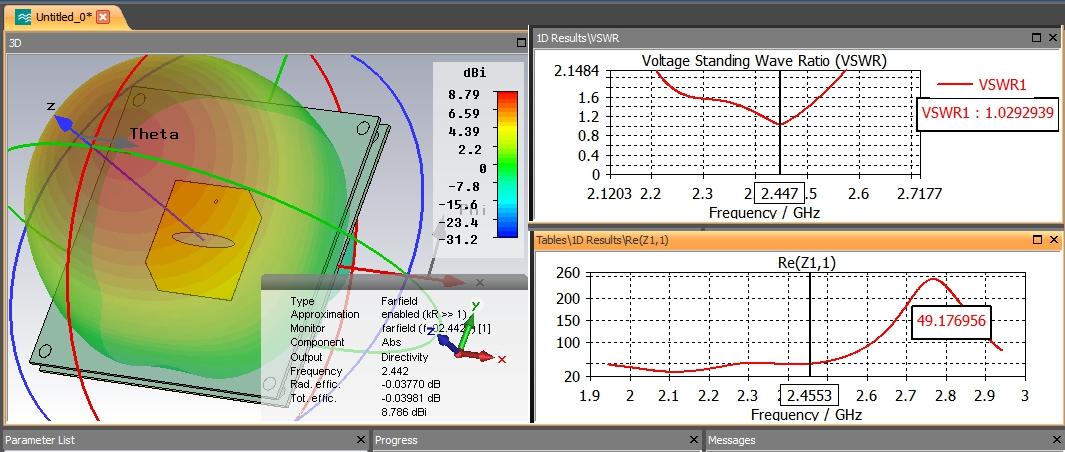

I did a simulation of this antenna but with an elliptical cut in the patch, which provides a wider bandwidth




and for the 2.4GHz frequency







Share this post


Link to post
Share on other sites

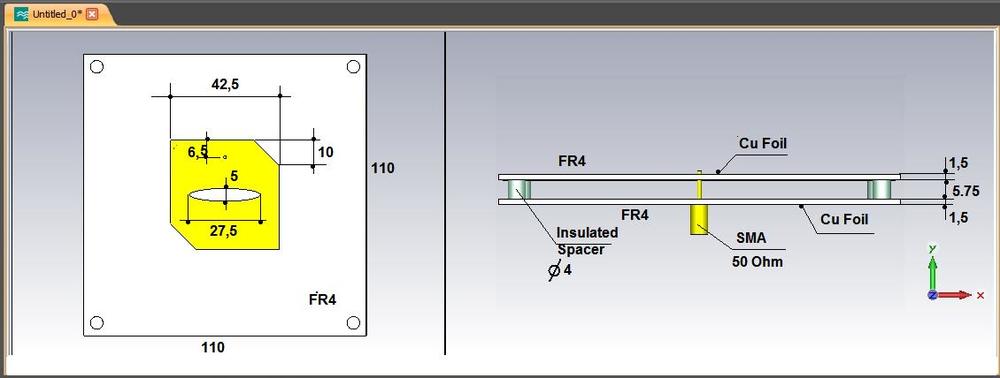

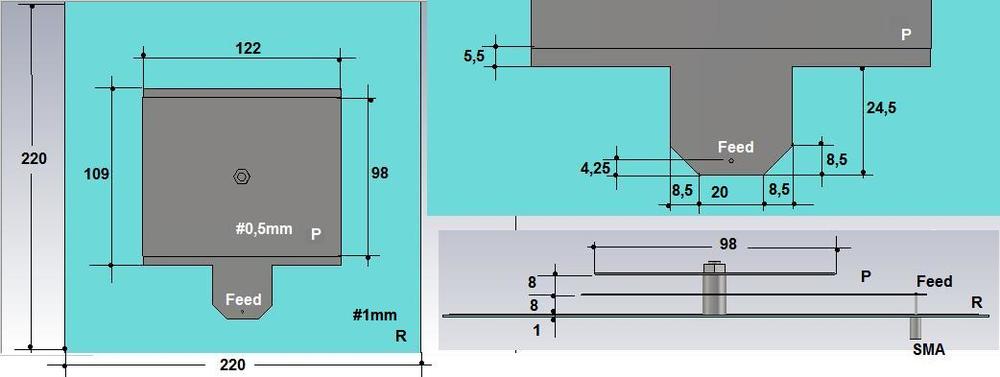

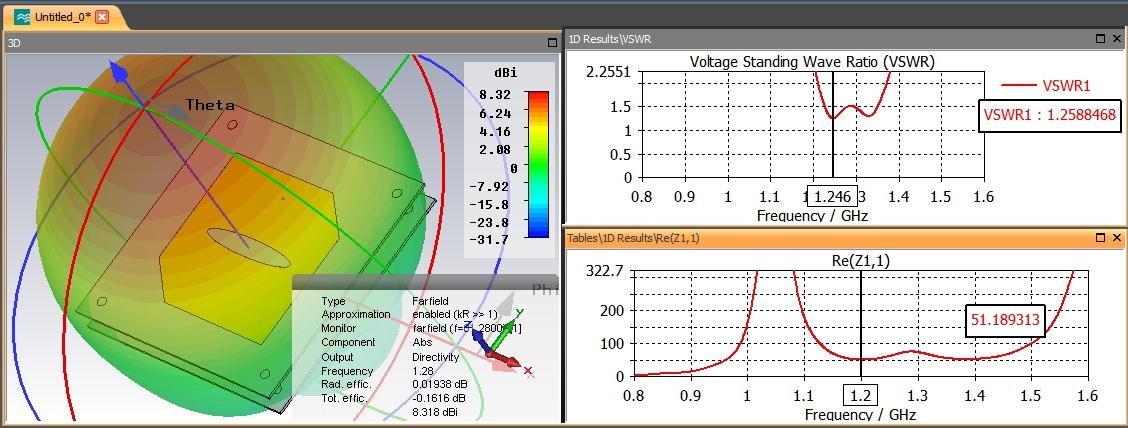

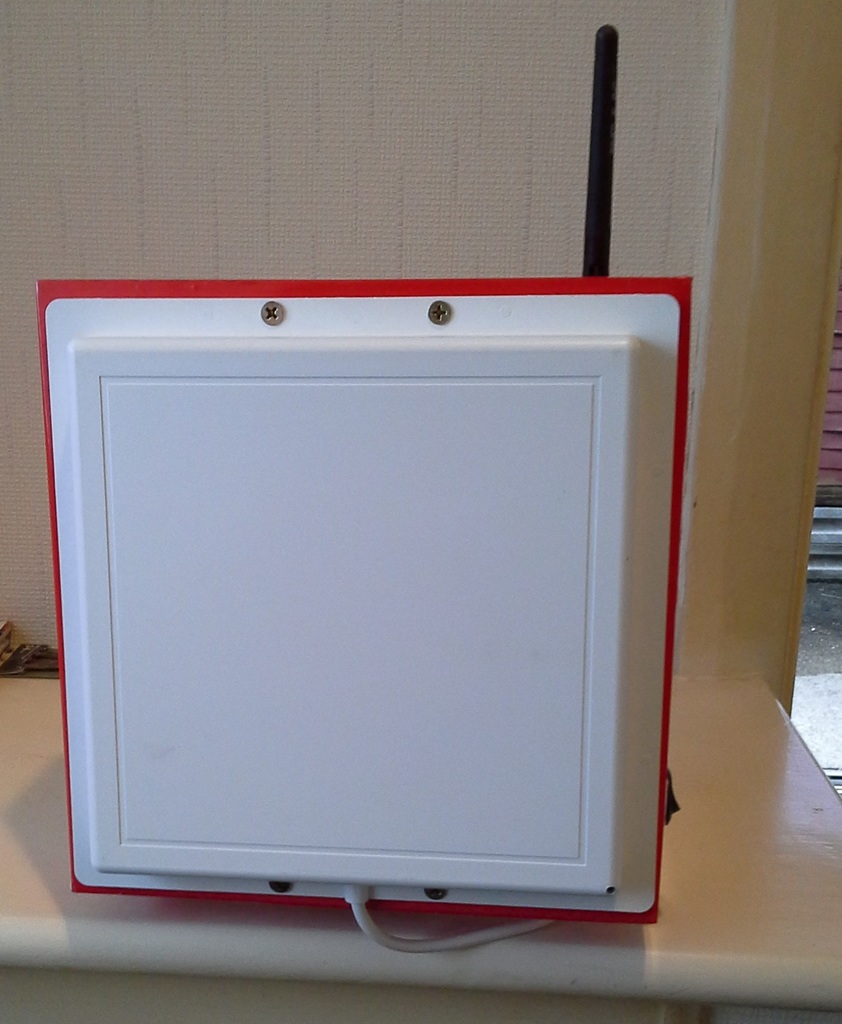

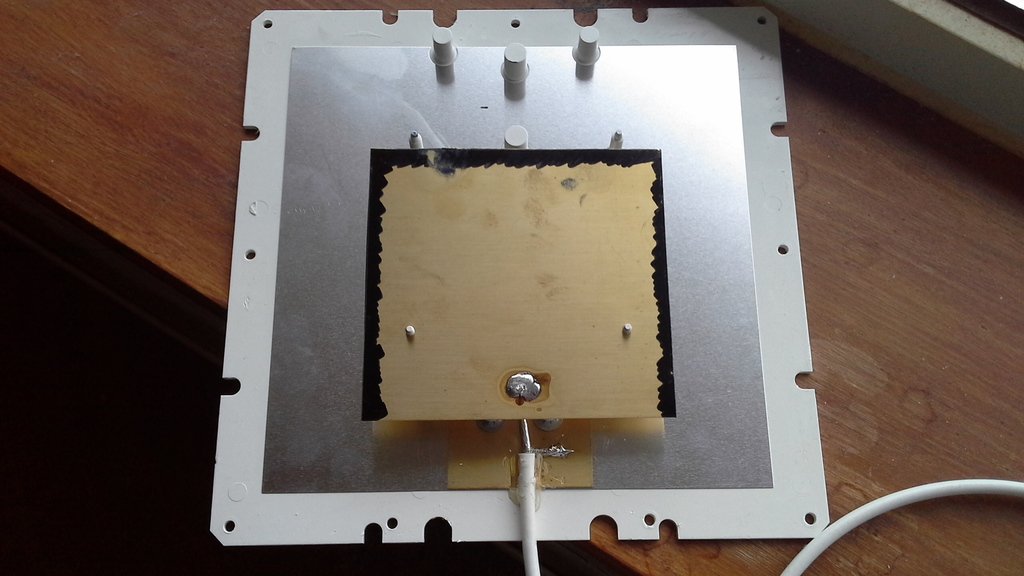

Another type of 1280MHz patch antenna

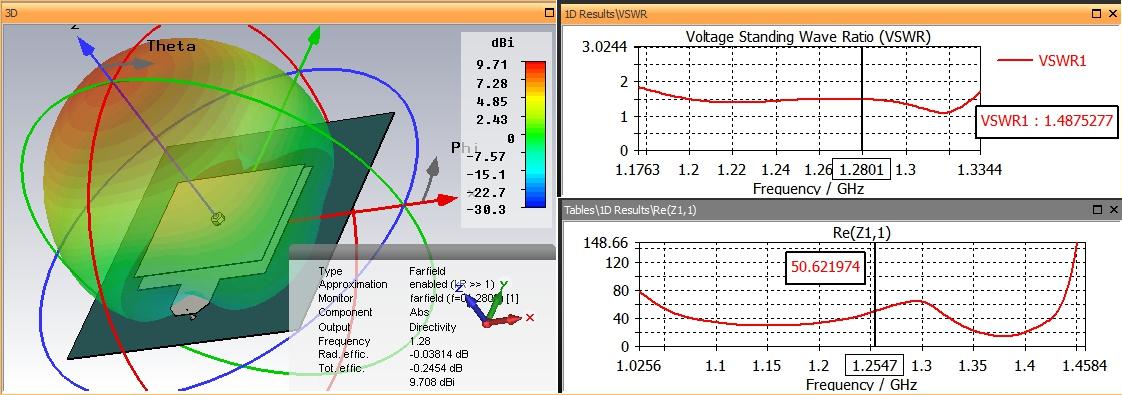

And this represents an improvement of the antenna

This antenna has a wider bandwidth







1 person likes this

Share this post


Link to post
Share on other sites
On 3.09.2017 at 4:13 PM, Admin said:

I am wanting to make a CP patch antenna for 1.3GHz, but am struggling to find a design with dimensions online.

Captura de tela 2016-01-12 14.18.50.png







I did a simulation of this antenna but with an elliptical cut in the patch, which provides a wider bandwidth




and for the 2.4GHz frequency







Hmm, that design looks easy and simple to make.
Already ordered 4 Hole SMA jack with long center pin (17mm).
when i get it will try this design.
But try to make it on 1mm FR4 - i got it few square meters :)
I suppose that it will resonate little bit higher.



Share this post


Link to post
Share on other sites

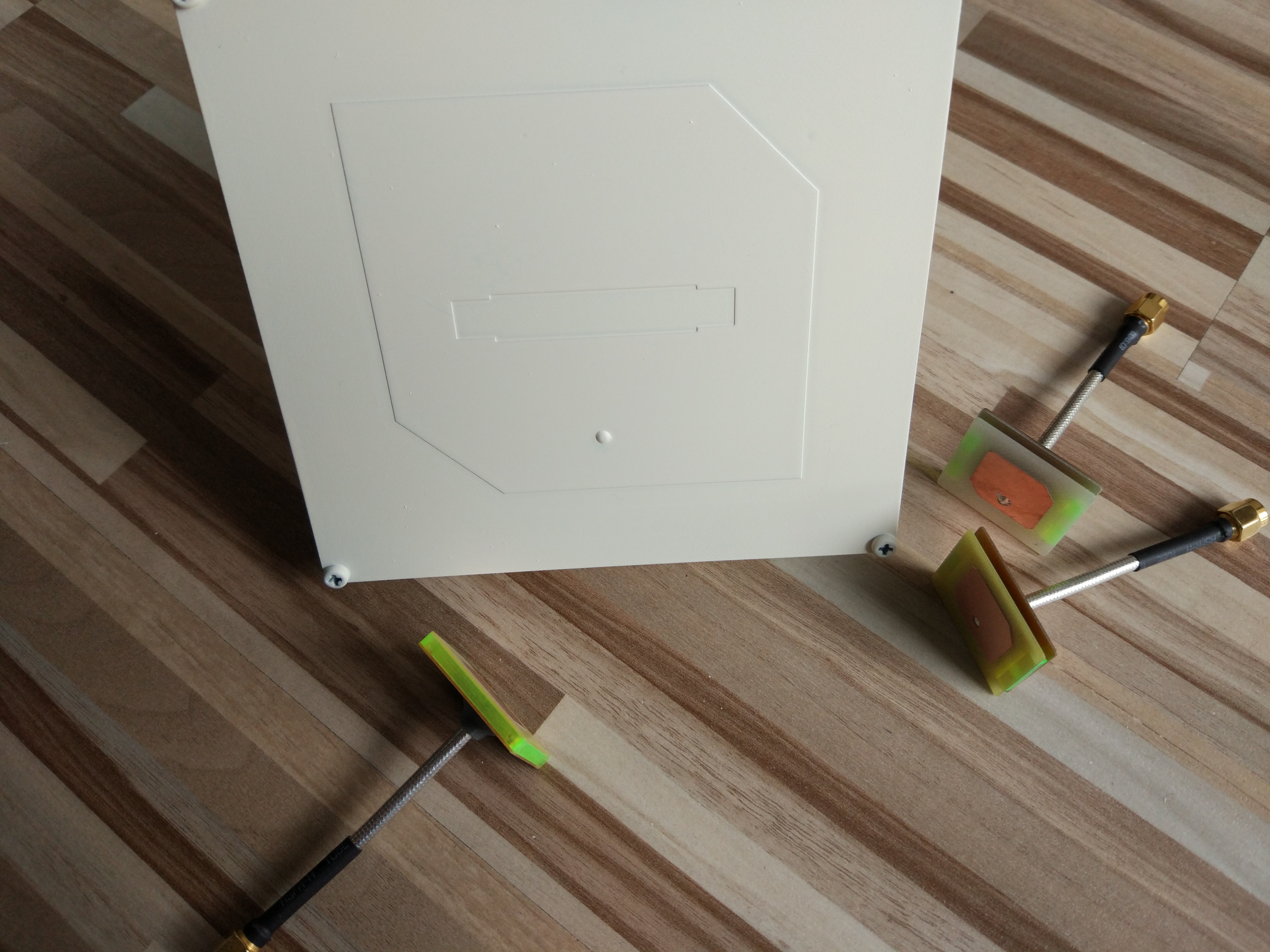

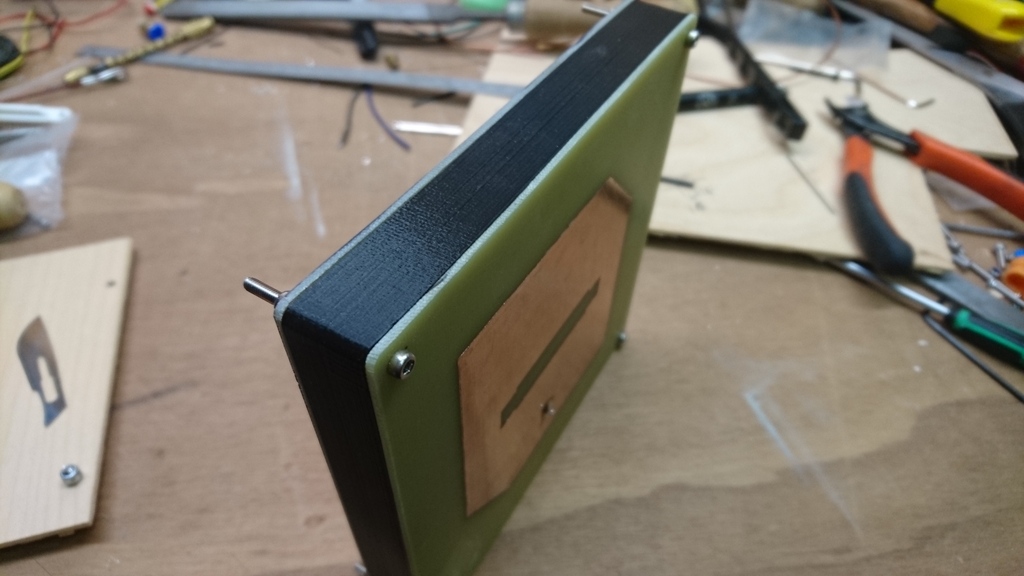

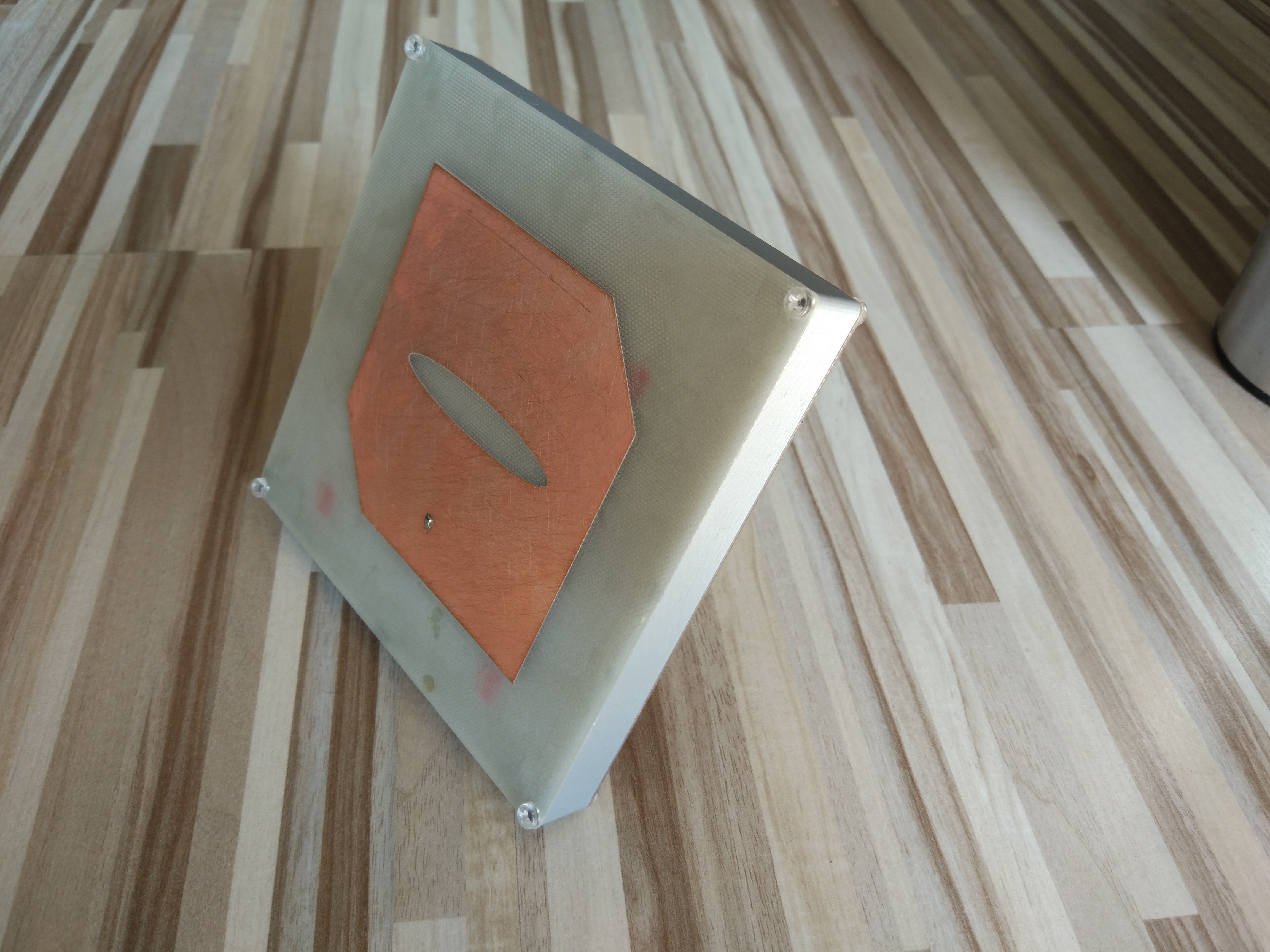

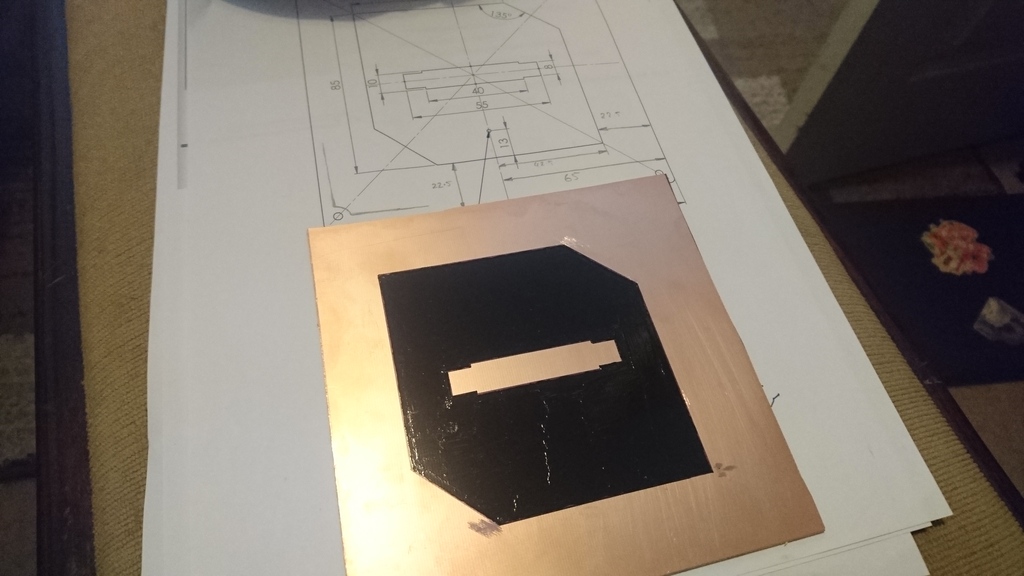

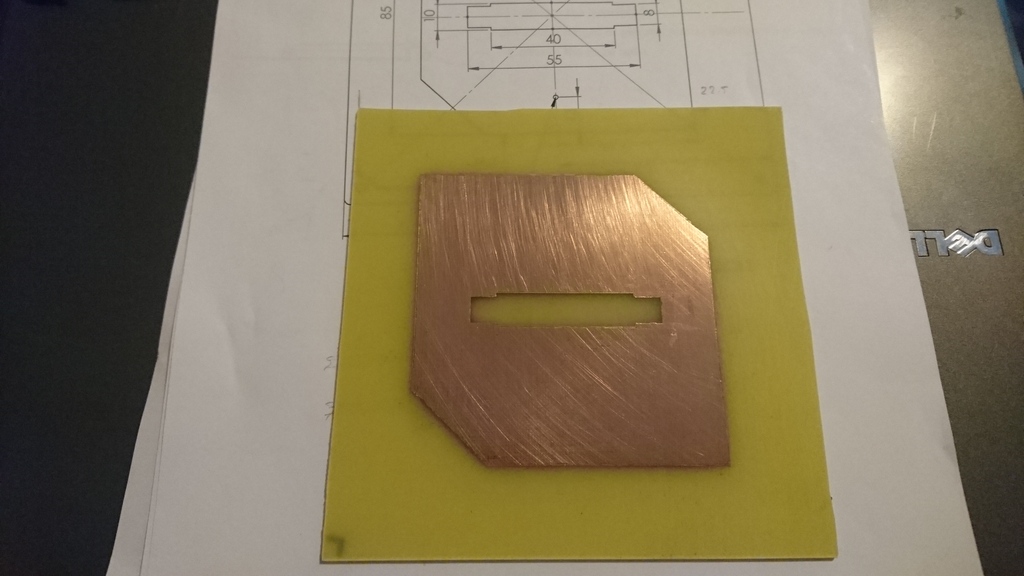

ok, made it with eliptical cut. 1mm FR4

But first one (white) performs better.
First one has best vswr 1.23, second one best 1.7.
On second i've printed thin enclosure (about 2mm). Is that possible that PLA has such big impact on antenna performance.




Share this post


Link to post
Share on other sites

I am going to try to do a simulation, it might be that the ellipse has other dimensions for this antenna

What thickness of PCB did you choose?

Share this post


Link to post
Share on other sites

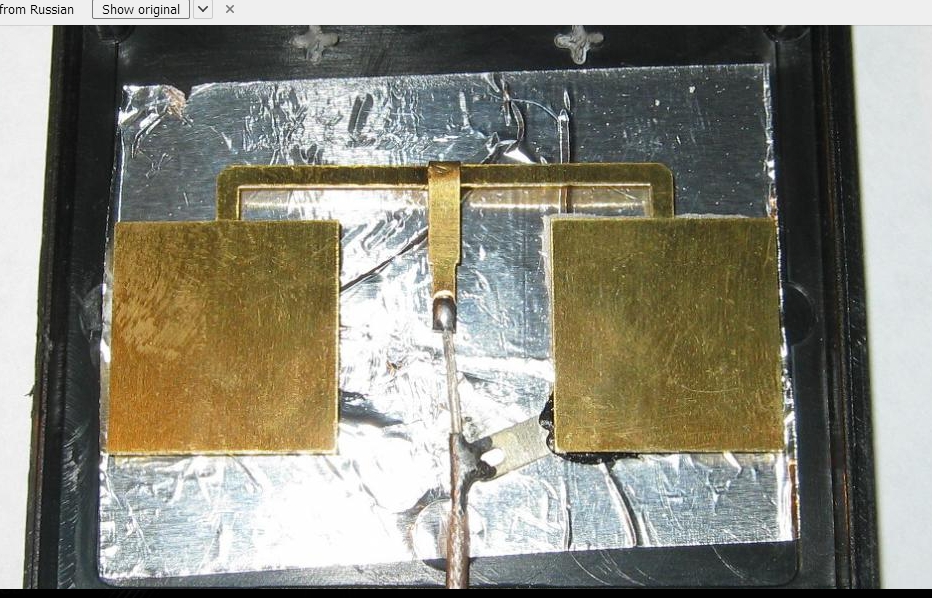

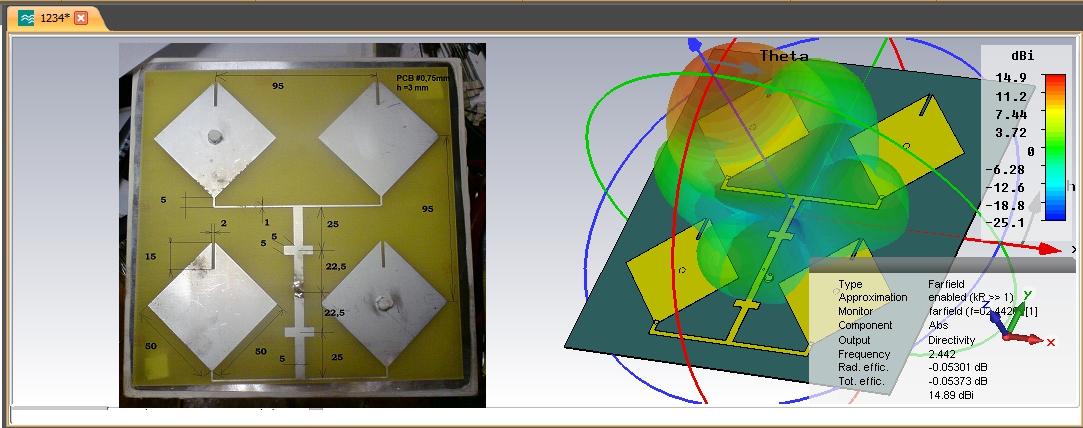

I think this type of antenna is better

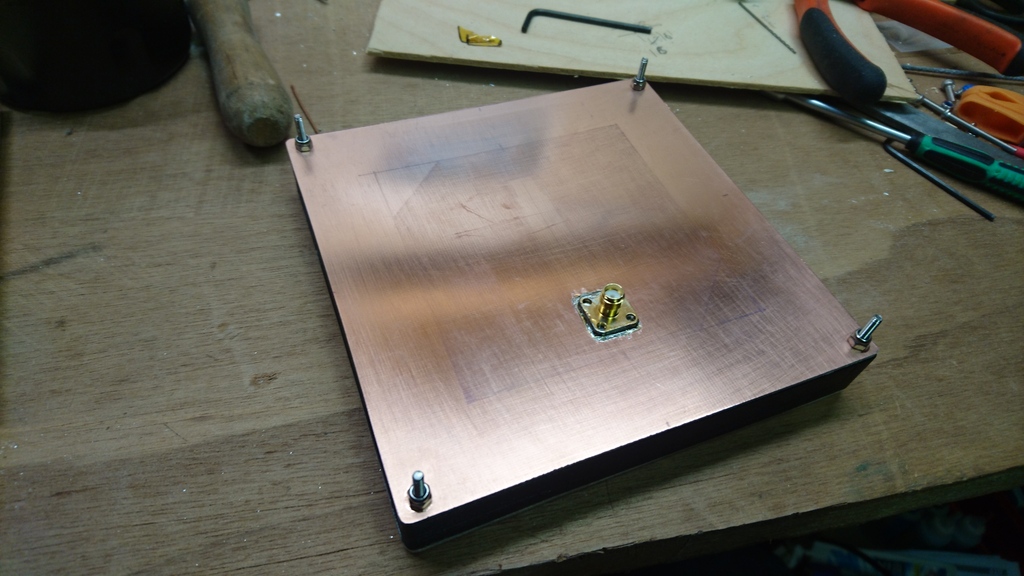

Double plated PCB


Share this post


Link to post
Share on other sites
3 minutes ago, Admin said:

I am going to try to do a simulation, it might be that the ellipse has other dimensions for this antenna

What thickness of PCB did you choose?

1mm fr4



Share this post


Link to post
Share on other sites

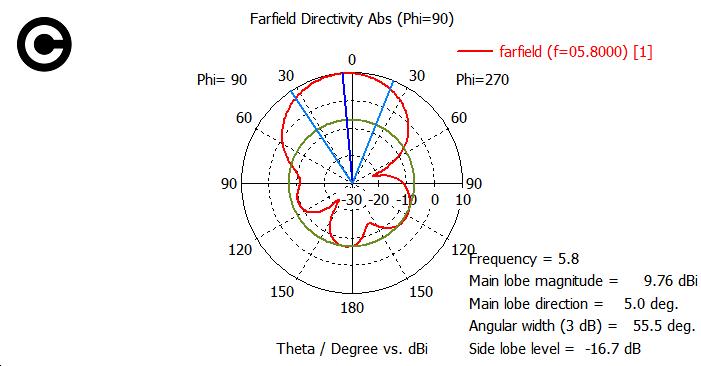

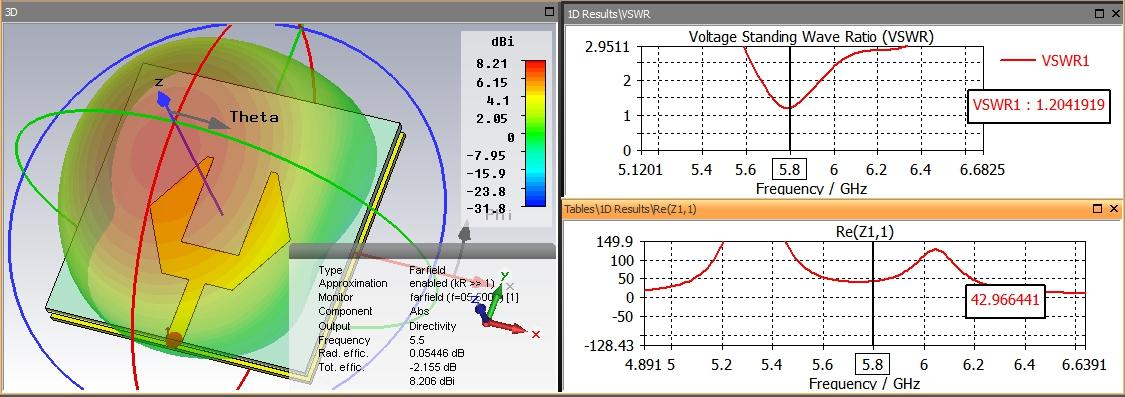

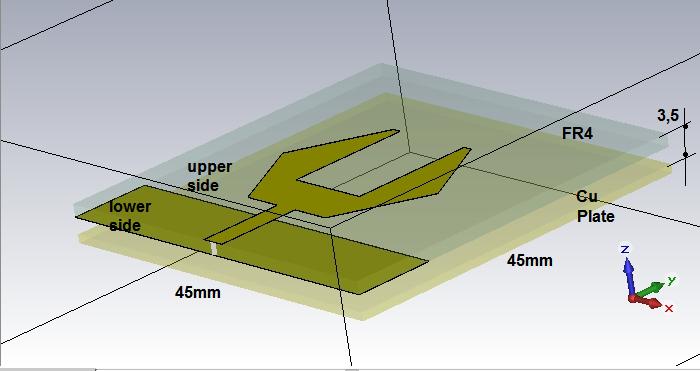

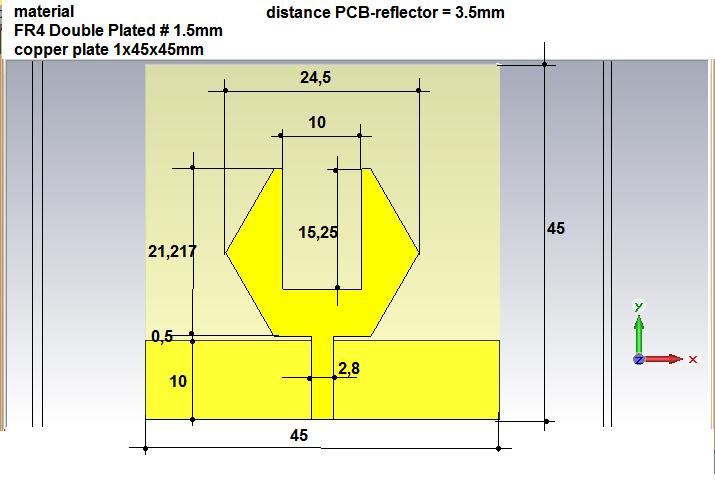

,,,a simple sloted patch antenna for 5,8MHz

dimensions = 4,5x45x45mm

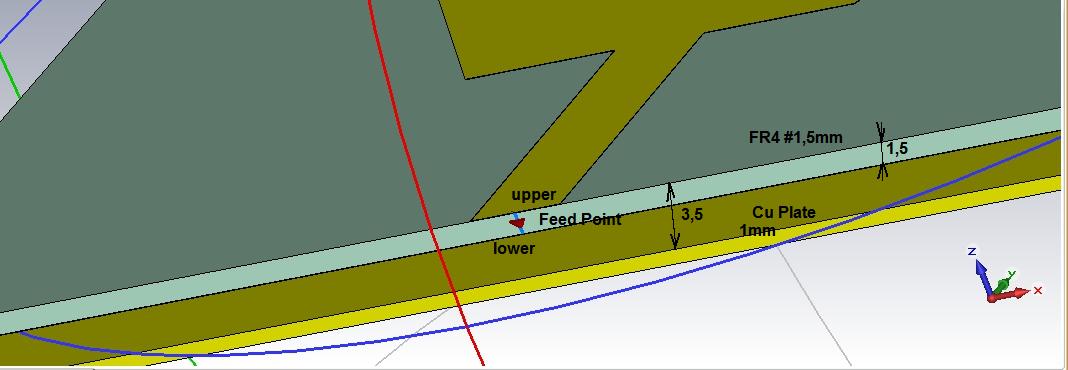

constructive details

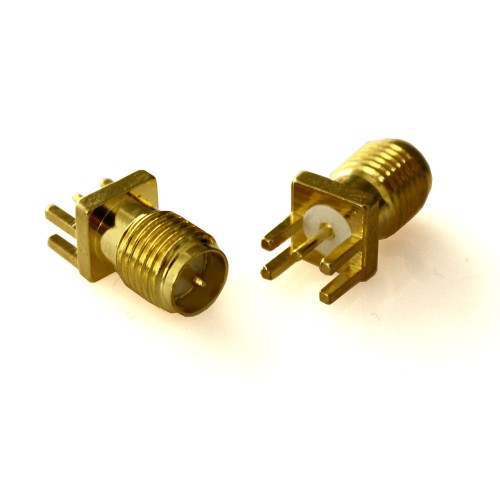

on feed point,use this type of connector


1 person likes this

Share this post
