BatWing antenna 2.4 ghz

258 posts in this topic

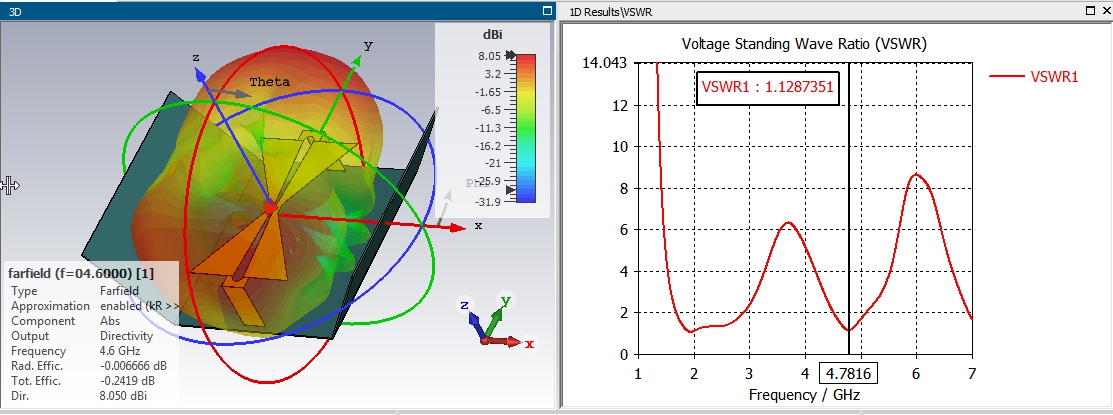

dude used your Batwing to get 5.8  GHz...can you show simulation for your Btwing on 5.2-6GHz?



Share this post


Link to post
Share on other sites

,,, yes, it is possible ,,,

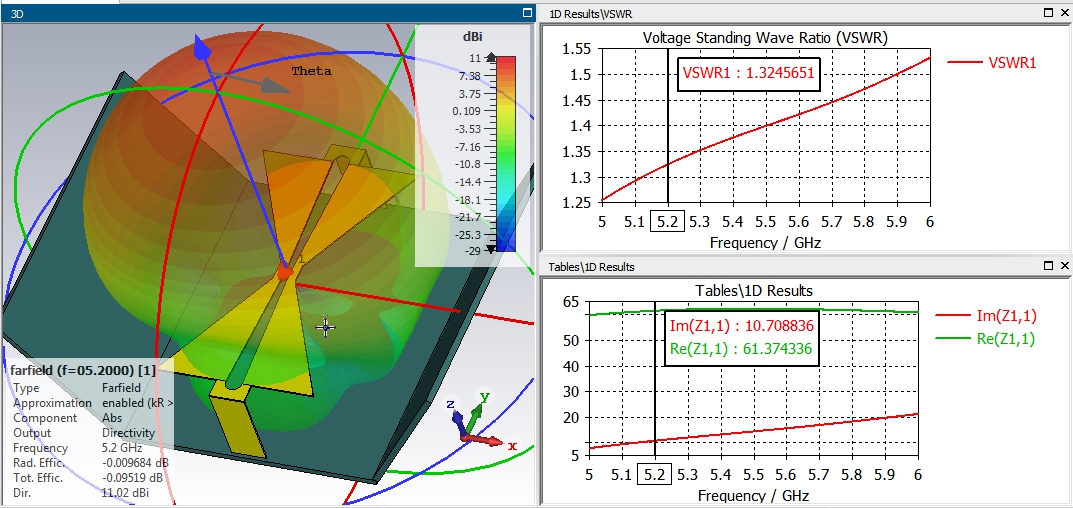

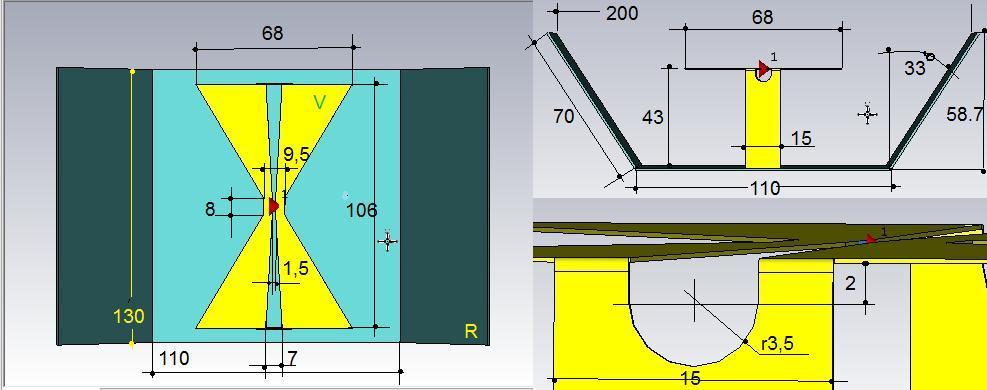

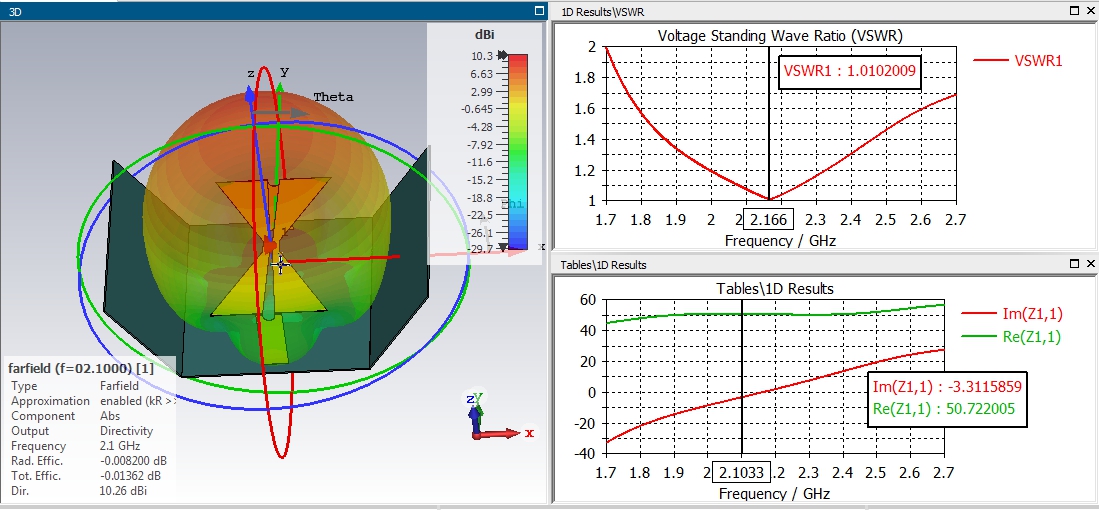

with the dimensions below (in red)...


1 person likes this

Share this post


Link to post
Share on other sites

no

he used big 2.4ghz version in video

Edited by devton

Share this post


Link to post
Share on other sites

,,, no, such a thing is not possible ... !!!


Share this post


Link to post
Share on other sites

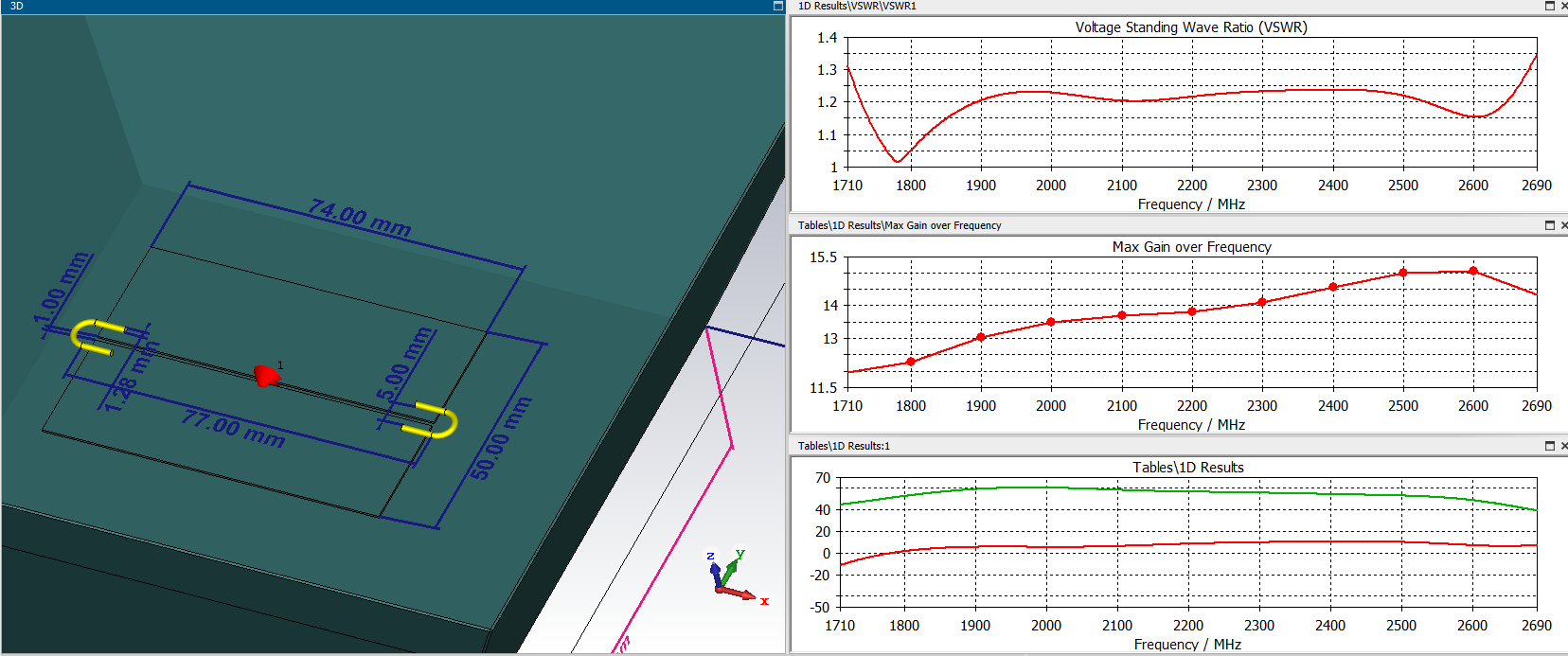

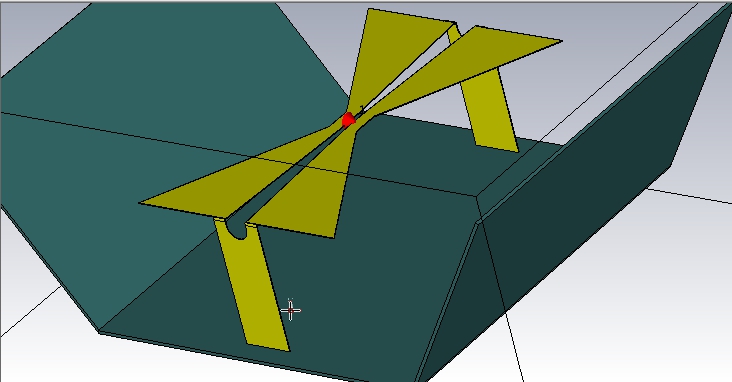

,,,a new form of batwing...

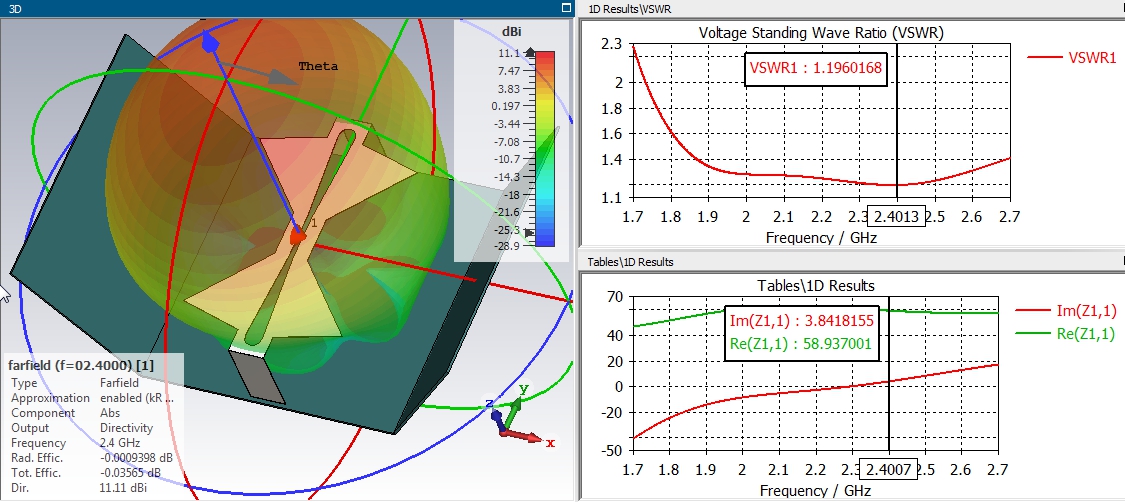

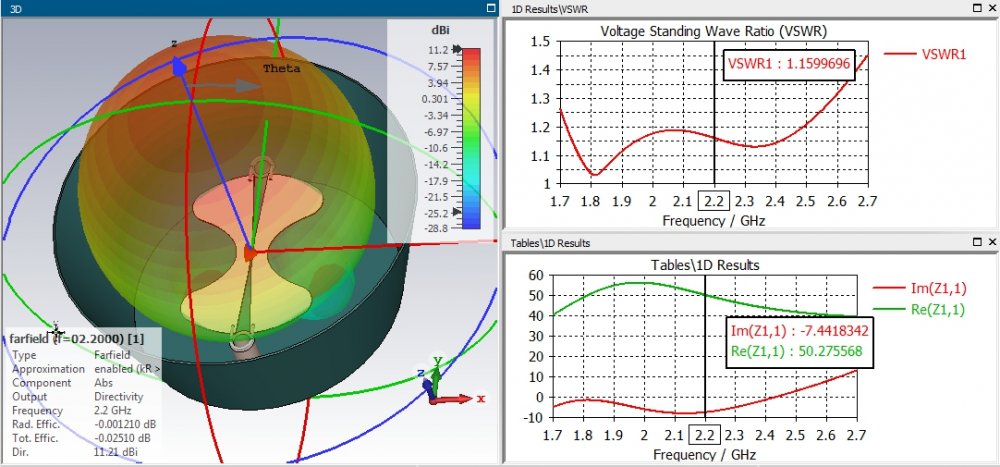

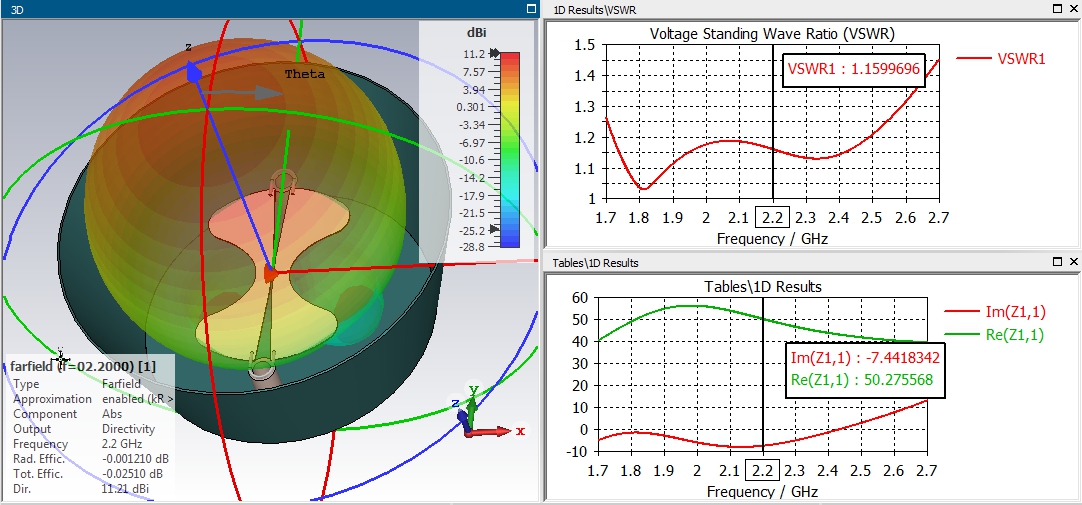

,,, simulation and dimensions ...

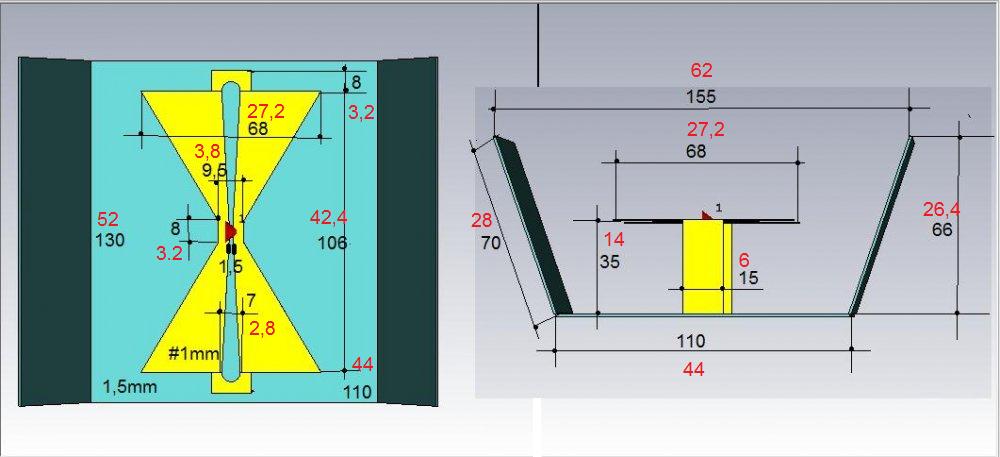

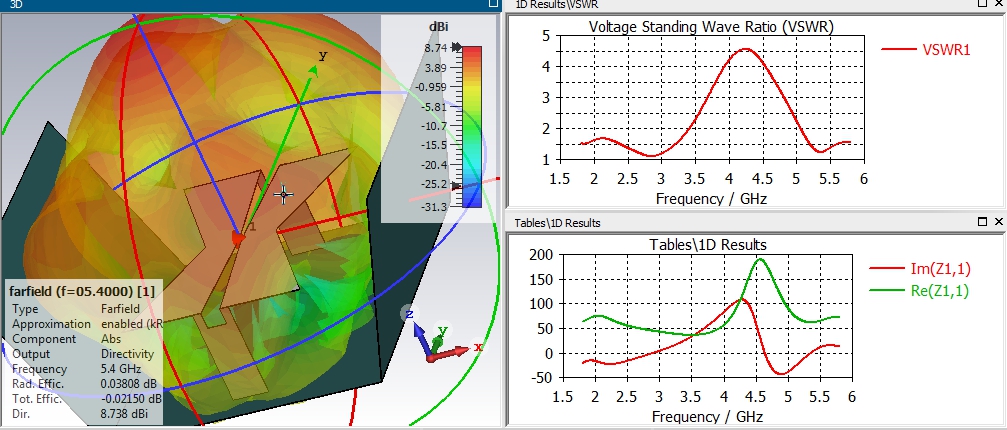

,,, but a variant of this type of Batwing antenna, with dimensional changes, can lead to an antenna with double operating frequency band(2,4GHz-5,5GHz),,,


1 person likes this

Share this post


Link to post
Share on other sites

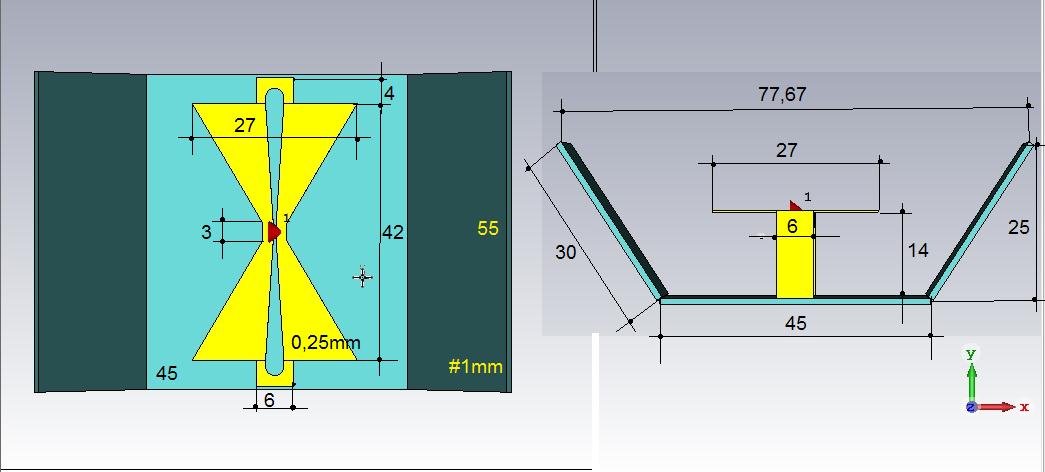

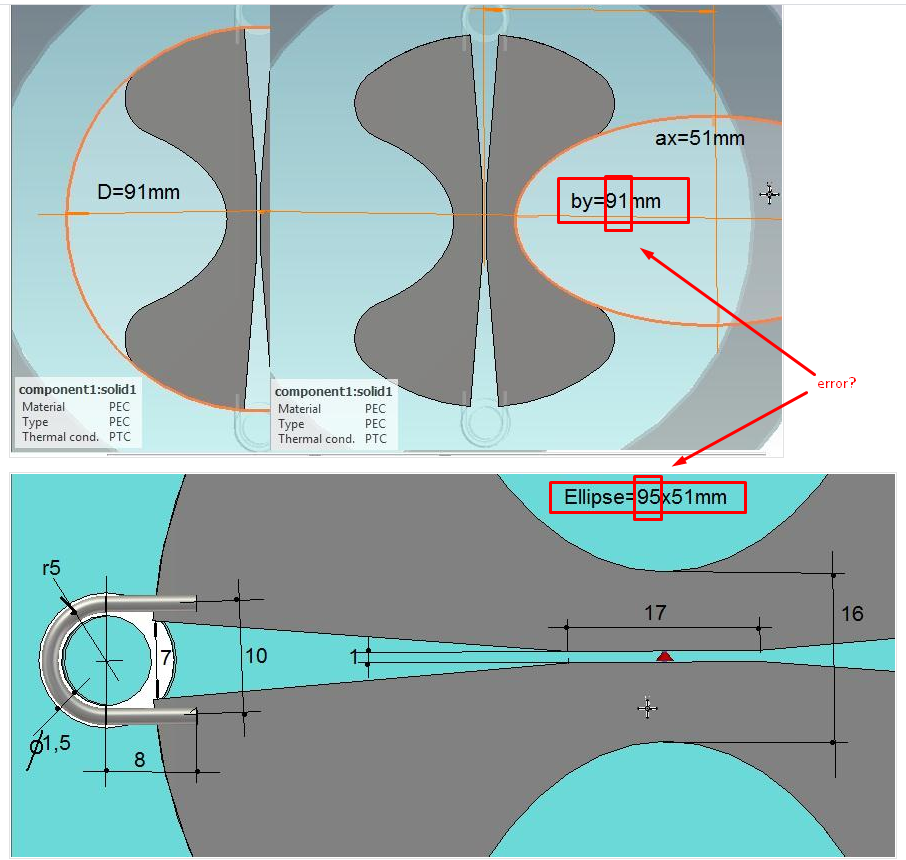

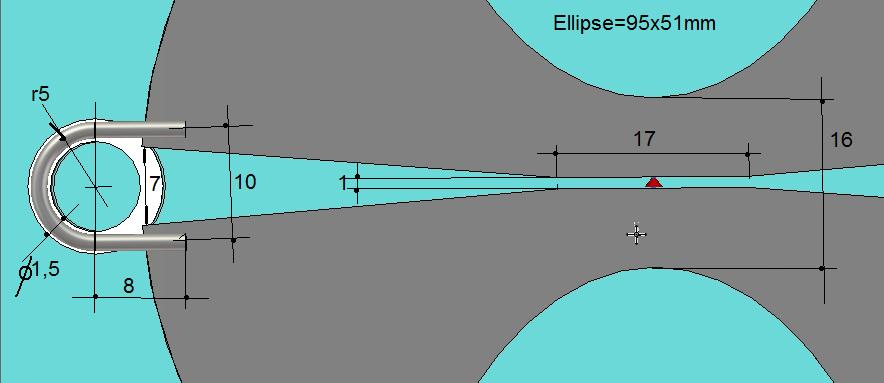

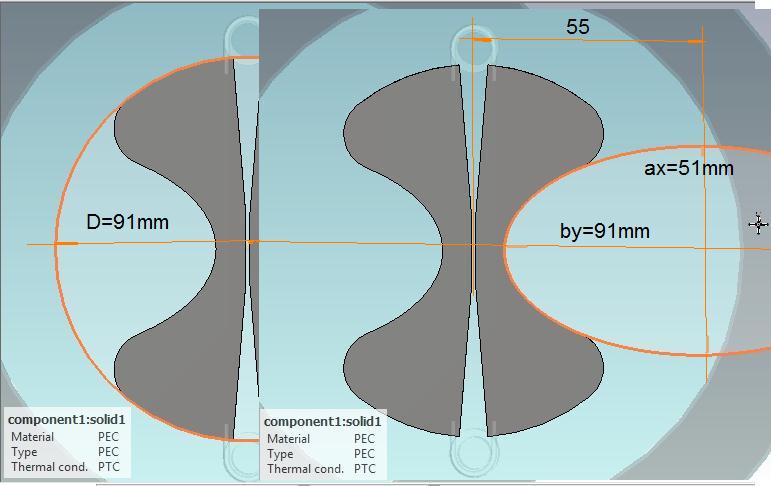

,, yes you are right; by = 95mm, ax = 51mm..!!!

Share this post


Link to post
Share on other sites
1 minute ago, Sl4va said:

I just do not understand, where is the antenna web itself?

,,,at #35 post on the forum...!!!

Share this post


Link to post
Share on other sites
5 hours ago, Admin said:

,,,at #35 post on the forum...!!!

and what is its gain?

Share this post


Link to post
Share on other sites

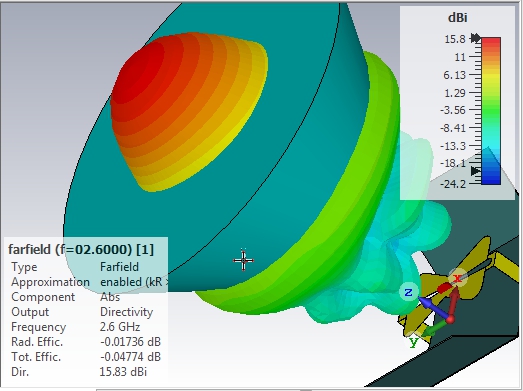

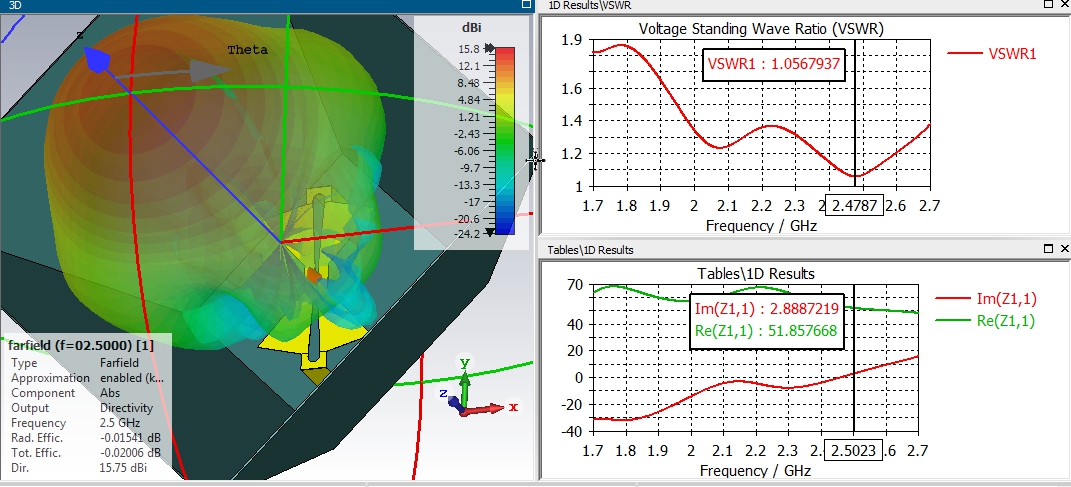

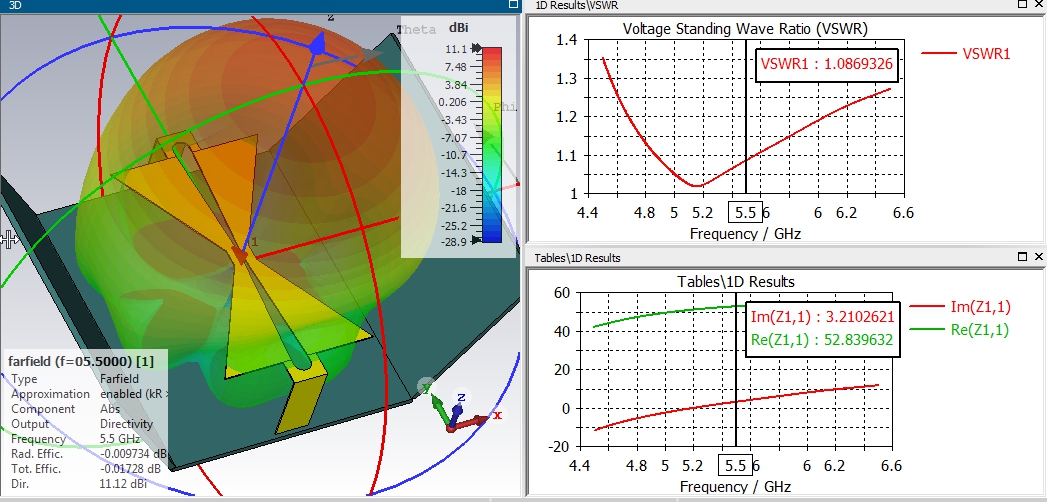

,,,11,5 - 15,5 dBi,,, can be seen in the images above..!!!

Share this post


Link to post
Share on other sites

Jomi, the gain is not 15.5, but 15.

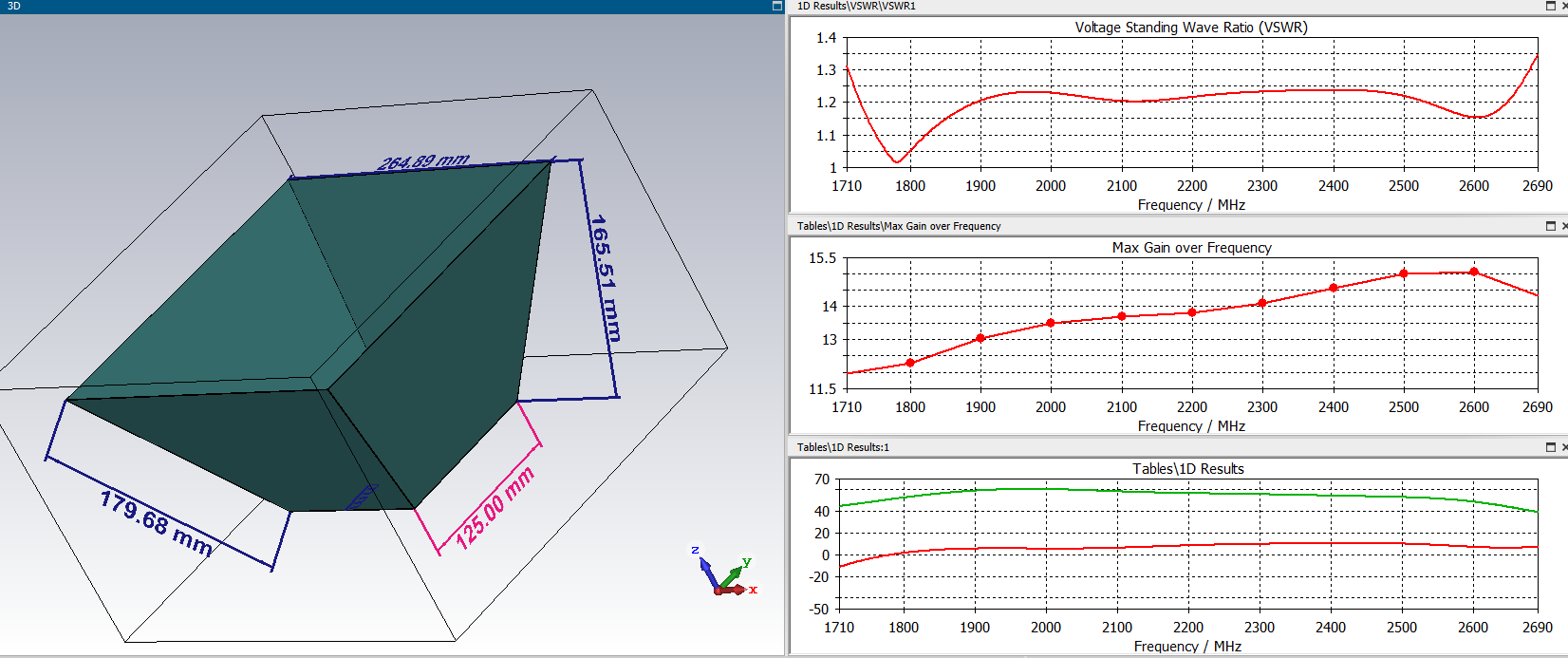

horn height 150mm.

Edited by Harry36

Share this post


Link to post
Share on other sites

I do not understand what you are talking about.
on Lan23 I'm Mr. Nemo. :)

1 person likes this

Share this post


Link to post
Share on other sites

I am pleased,
but I don't know what you mean by that: "I have 17, 19 and 2020. modeled in 2020"....???!!!

Share this post


Link to post
Share on other sites

Admin, but what if you do batwing  Covid-20, in such a square bucket from Harry36?

Share this post


Link to post
Share on other sites

,,,Sl4va, round is round, square is square...!!!

,,, maybe so ...





Share this post


Link to post
Share on other sites

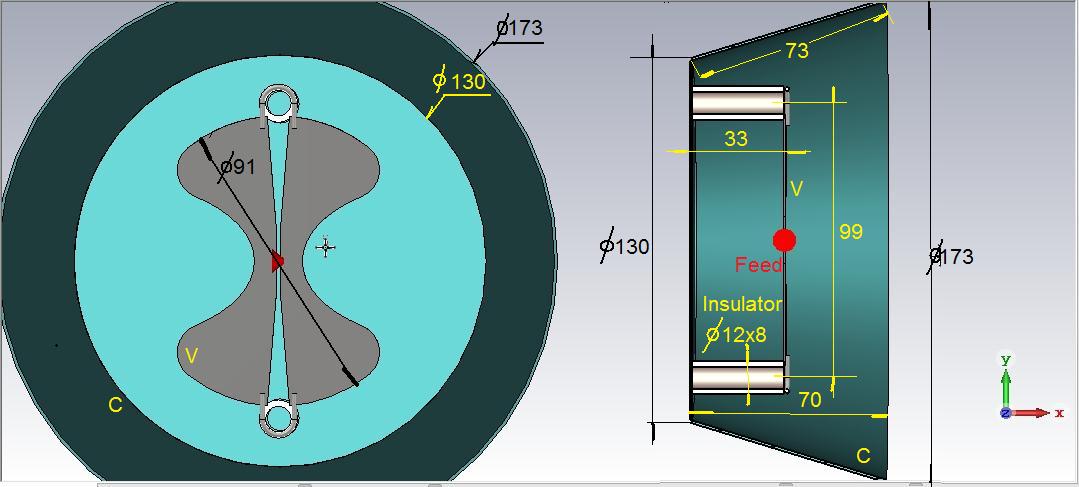

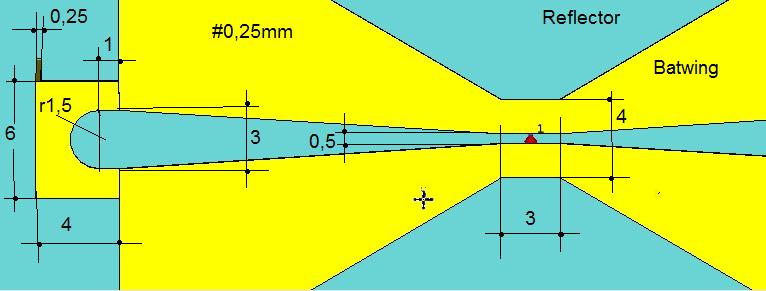

,,, it was appropriate to make the rectification required by optimizing the Batwing antenna for 5GHz  band frequency....








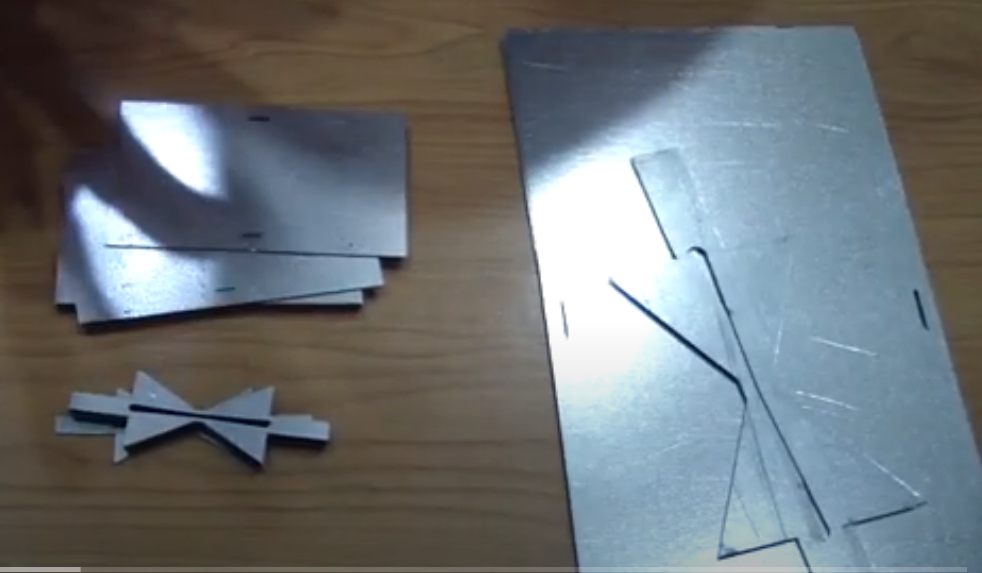

,,, and the practical realization of antennas ...


Share this post


Link to post
Share on other sites

,,, if you add a dielectric lens (polystyrene foam), you can increase the gain in directivity ...


1 person likes this

Share this post


Link to post
Share on other sites
On 12.09.2020 at 6:20 PM, Admin said:

,,,11,5 - 15,5 dBi,,, can be seen in the images above..!!!

wow! someone in russia makes it for 5.8!

Share this post


Link to post
Share on other sites

Admin help my

My first login, Sl4va, but I can't log in, nothing comes in the mail. How do I recover my password?

P.S.please delete this post after

Edited by Sl4va2

Share this post


Link to post
Share on other sites
