WiFi/LTE antenna BDM-2

57 posts in this topic
2 hours ago, Admin said:

,,,no, it's not really necessary...!!!

Thank you for the clarification :):)

Share this post


Link to post
Share on other sites
On 24/12/2020 at 3:48 PM, Hamza said:

But  what you are willing to use for ? WiFi or 4G LTE ?



4G LTE

Share this post


Link to post
Share on other sites

Please read well about antennas it's not just design and construction! It's  for 2600 MHz  so you are out ( not for 1800 ) .

2- that design it's for siso  not Mimo ( don't use 2 ports with that cutting driven element ?).

3 the impedance matching 50 or 75 ( f connector or sma)

Share this post


Link to post
Share on other sites
8 hours ago, Hamza said:

Please read well about antennas it's not just design and construction! It's  for 2600 MHz  so you are out ( not for 1800 ) .

2- that design it's for siso  not Mimo ( don't use 2 ports with that cutting driven element ?).

3 the impedance matching 50 or 75 ( f connector or sma)

can we use single antenna on Mimo system ? i mean mimo have two port,can we just input 1 antenna ?

1 person likes this

Share this post


Link to post
Share on other sites

That' need another simulation so the the dimensions will change!

Share this post


Link to post
Share on other sites

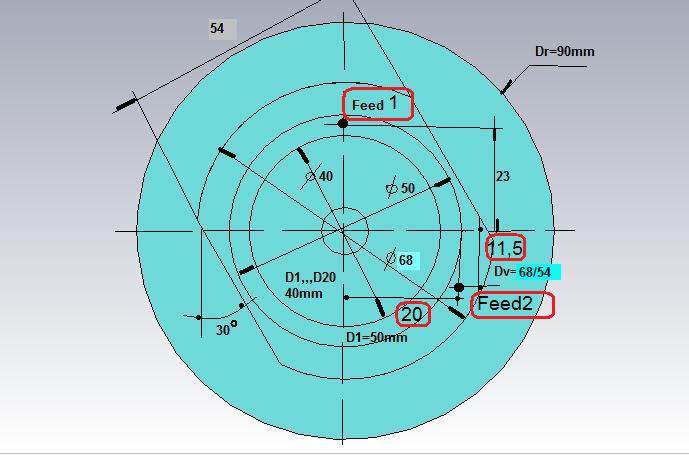

,, no, no new simulation is required, the second feed will be posted as in the image below...


1 person likes this

Share this post


Link to post
Share on other sites

Jomy How about the isolation and the coupling of 2 ports   you can show the S- parameters

Share this post


Link to post
Share on other sites

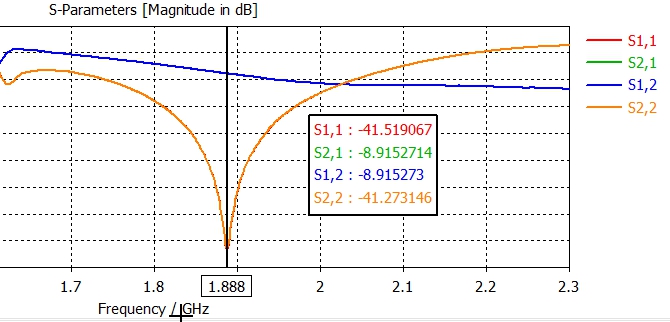

 S- parameters, they are not so good...!!!!


1 person likes this

Share this post


Link to post
Share on other sites
15 minutes ago, Hamza said:

It needs some improvement !

The only improvement is the use of two antennas...!!!

2 people like this

Share this post


Link to post
Share on other sites

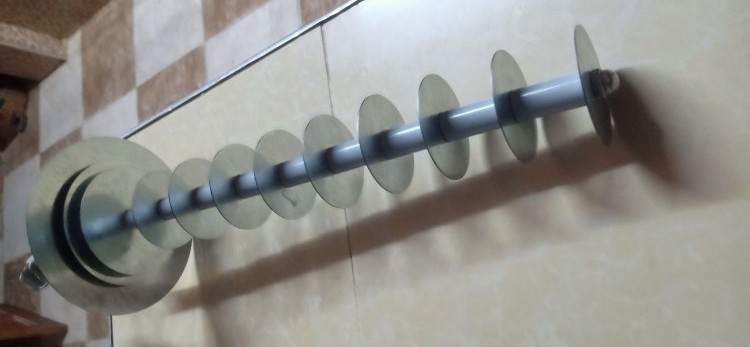

LTE 1800 MiMO (BDM2) 15 mm boom  almost finished



1 person likes this

Share this post


Link to post
Share on other sites
On 12/22/2020 at 2:24 PM, Admin said:

,,, yes, I think this it is the reality....


,,,and  here are the dimensions ...!!!


thank you ADMIN

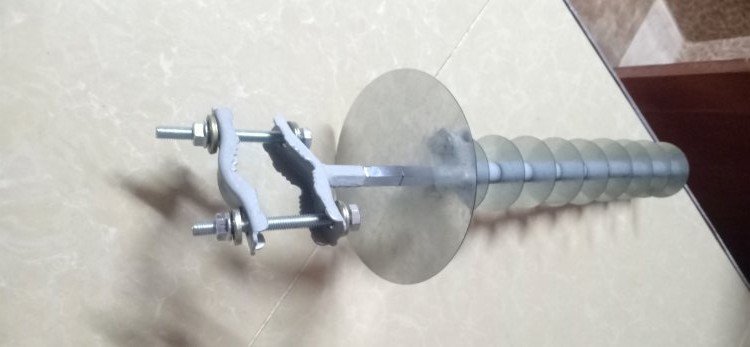

I made an antenna according to this design and the result was very positive even though I used a 75 ohm cable

Tested on 3G and 4G network

The result in the photo is attached


3 people like this

Share this post


Link to post
Share on other sites

,,, otherwise Bester antenna...


1 person likes this

Share this post


Link to post
Share on other sites
On 12/21/2020 at 9:05 AM, Admin said:






hello i need an antenna active 1800 band most effectively thanks.

Share this post


Link to post
Share on other sites

,,, more than 15 dBi gain,can not...!!!

Share this post


Link to post
Share on other sites
On 22/12/2020 at 5:09 AM, Hamza said:

7,8,39,37,37,37,37,37,37....with 10 directors ...it's already shared by you in this forum. I had made it and I got excellent results


does it work well at 75ohm conductors

1 person likes this

Share this post


Link to post
Share on other sites

,,,most of the antennas on this forum are for 50 Ohm impedance coaxial cable...!!!!

Share this post


Link to post
Share on other sites
On 5/5/2021 at 7:35 PM, Antenna gun said:

hello i need an antenna active 1800 band most effectively thanks.

Is the disc thickness less than 0.5mm possible

Share this post


Link to post
Share on other sites

0,25-1 mm

1 person likes this

Share this post


Link to post
Share on other sites
On 22/12/2020 at 2:24 PM, Admin said:

,,, yes, I think this it is the reality....


,,,and  here are the dimensions ...!!!


Hi Admin,

I would like to realize this antenna because as far as I understood should be the best design for 4G LTE (1800 Mhz). I guess this design is also the best solution for long distance.

Could you please show me where I shoud place the second feed?

Thank you very much for you support

Share this post


Link to post
Share on other sites

Доброго здравия уважаемые админы и форумчане.

Помогите пожалуйста с параметрами антенны.

Вводные данные: 4G частота вещания 1937-2137.

Пожалуйста смоделируйте если есть такая возможность на данный диапазон, буду привелико благодарен.



Good health, dear administrators and members of the forum.

Please help with the antenna parameters.

Input data: 4G broadcast frequency 1937-2137.

Please simulate if there is such a possibility for this range, I will be greatly grateful.

Share this post


Link to post
Share on other sites

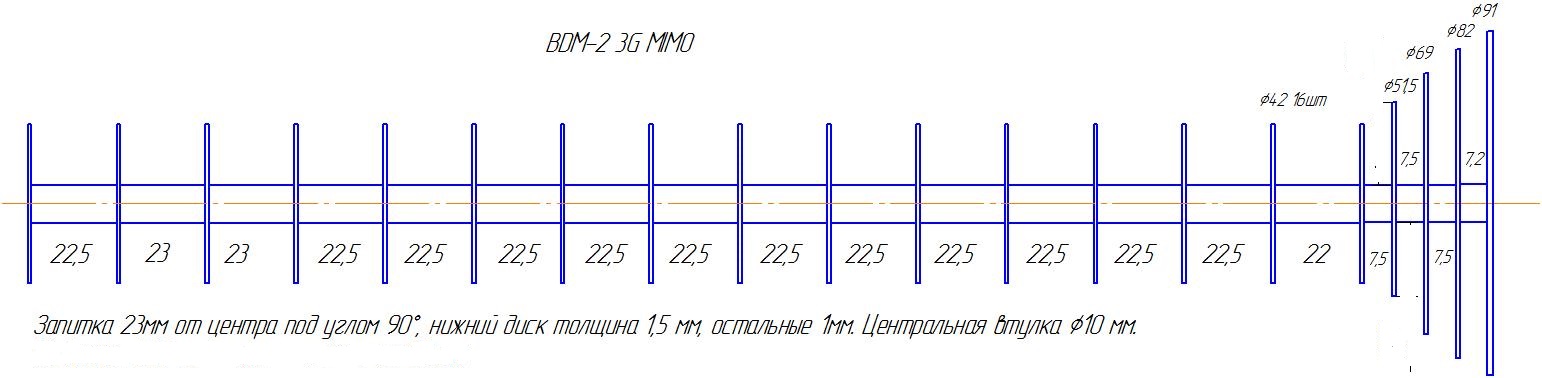

Юрий 26,,, the dimensions in red are for you...


Share this post


Link to post
Share on other sites
