WiFi/LTE antenna BDM-2

88 posts in this topic

,,,yes,1800MHz(1750-1950)...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Спасибо огромное Вам, буду делать и ту и ту, опробую и выложу результаты сдесь.

Thank you very much, I will do both, I will try and post the results here.

1 person likes this

Share this post


Link to post
Share on other sites

Юрий 26,,,, say in English please ... !!!

Share this post


Link to post
Share on other sites

,,, feed2 at 120 degrees...




1 person likes this

Share this post


Link to post
Share on other sites
3 hours ago, Admin said:

,,, feed2 at 120 degrees...




thank you so much admin, there’s nothing i can do to repay your kindness.

Share this post


Link to post
Share on other sites

Typically the antennas are designed to be like in the pictures. When you change something, even a small detail, it can be that the antenna is not working properly anymore.  The resonant frequency will shift or the antenna will be not resonant at all.

Share this post


Link to post
Share on other sites

Hi Admin

Does BDM-2 antenna will work for all wifi modem which has 2.4GHZ or only work as Mobile data internet network booster


Share this post


Link to post
Share on other sites

Frequency Range...2300-2400 MHZ ; 2400-2483 MHz ; 2500-2700 MHz ....with different sizes

1 person likes this

Share this post


Link to post
Share on other sites

Hi Admin

Accept my regards, Thank you for your help

i have fiber optic internet connection modem has 2.4ghz WIFI enabled ,which antenna design will work for extending my internet to long range and high gain .

could you please suggest DIY antenna design and measurement for extending my fiber optic internet connection please

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,,what type of modem do you have?

1 person likes this

Share this post


Link to post
Share on other sites

Hi Admin

I have attached screenshot of my router details ,Archer C20 AC750 Wireless dual band router,

i have enabled 2.4GZ wirelessband ,please suggest best long range wifi antenna DIY for better speed and better gain



Share this post


Link to post
Share on other sites

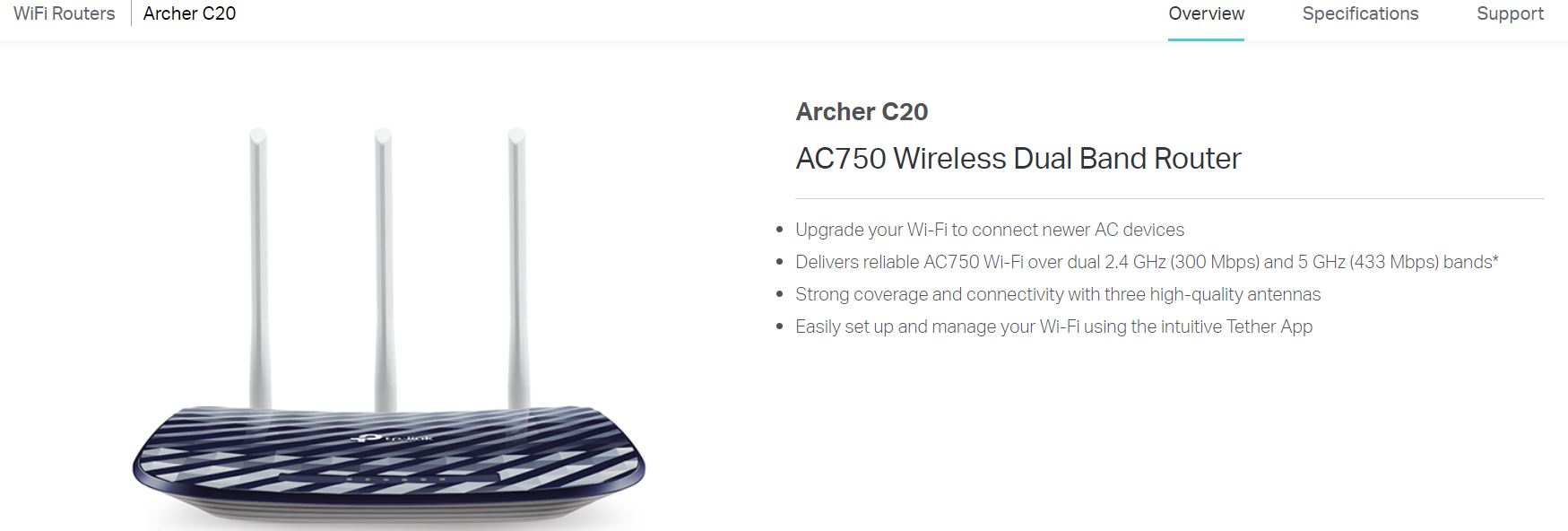

Archer C20 – AC 750 Wireless dual band router supports 5GHz 433 Mbps and 2.4GHz 300Mbps connections for 733 Mbps of total bandwidth

Share this post


Link to post
Share on other sites

Hi Admin

Thanks i need to extend my wifi range to another opposite building so i need your suggestion which antenna i can build for extending 2.4GHZ,I Purchased metal sheet and thread and bolt need exact measurement to build 2.5GHZ antenna which extends broadband internet connection

Share this post


Link to post
Share on other sites

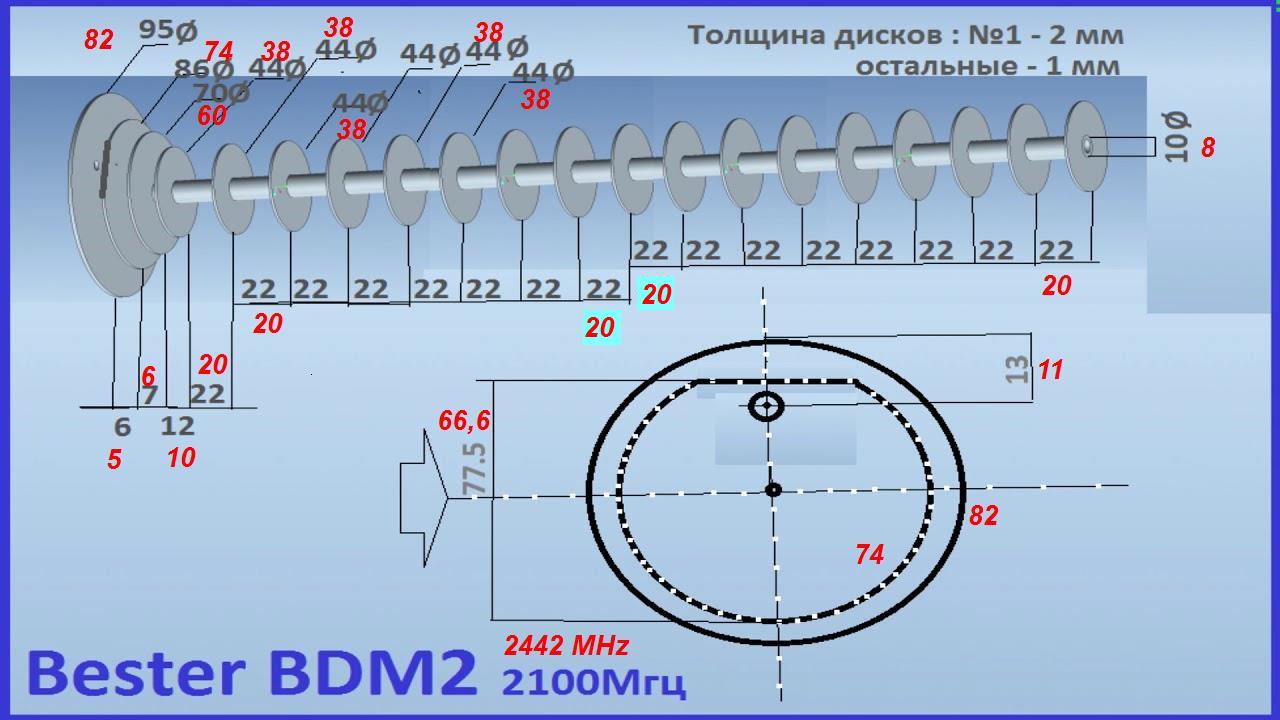

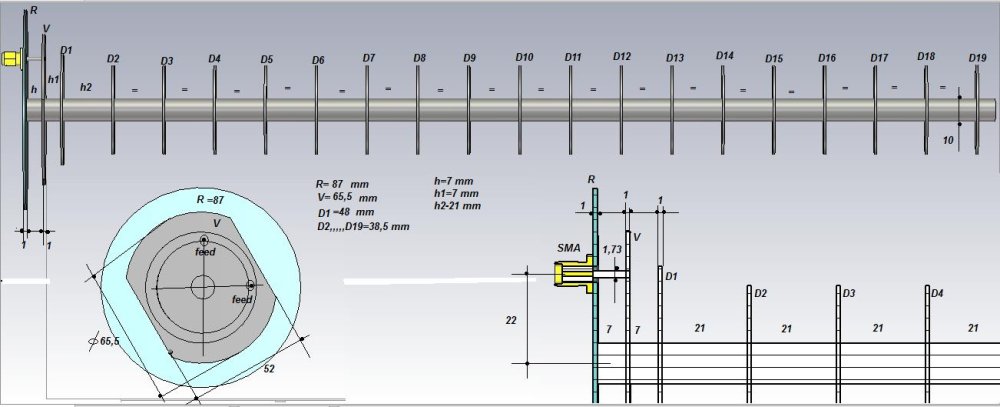

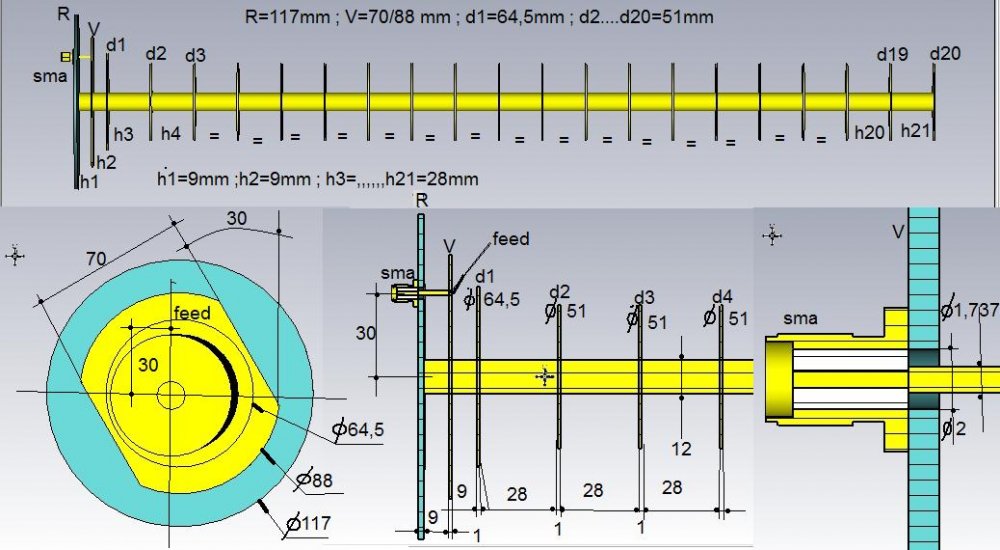

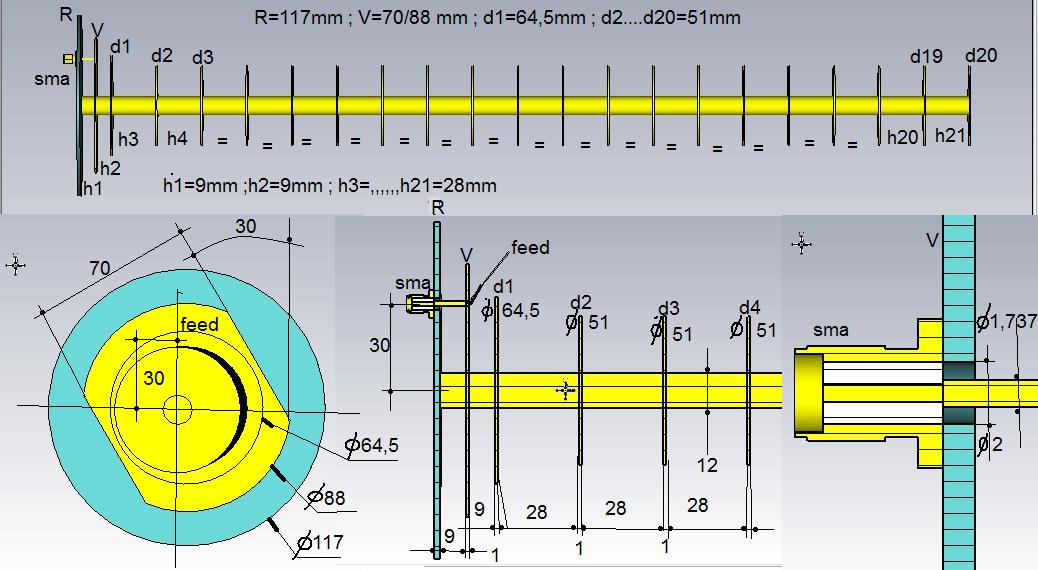

,,,you can try the Bester antenna with the dimensions below (in red)...


1 person likes this

Share this post


Link to post
Share on other sites

Hi Admin

Thanks for the dimensions does the below dimension also work for 2.4 GHZ broadband internet extender?

i saw this dimensions in first post so i have doubt whether to use above dimension or mentioned one

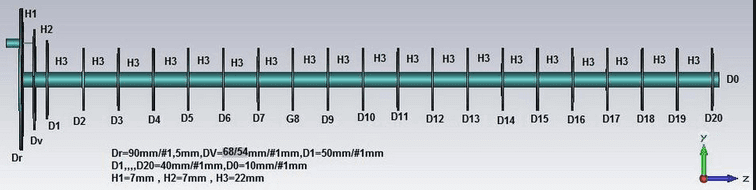

2018-08-25 11_13_55-Window.png

Share this post


Link to post
Share on other sites

,,, as seen in the first post, it works best in the 2.6 GHz band...!!!

Share this post


Link to post
Share on other sites

Hi Admin

Thanks

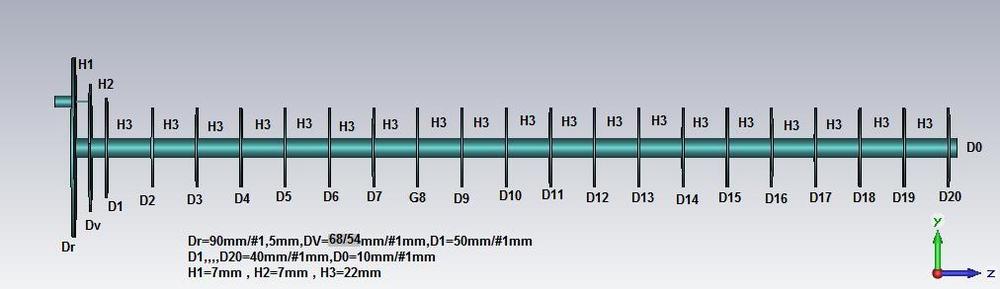

i will try the designing like given image the Gap between all 38 diameter disk is 20 mm or 22 mm?????



82 diameter disk- gap(5mm) ,74 diameter disk-gap (6mm),60 diameter disk -gap(10mm)

17 -elements 38 diameter disk gap is 20 mm right




Share this post


Link to post
Share on other sites

Sorry, it's my mistake....!!!

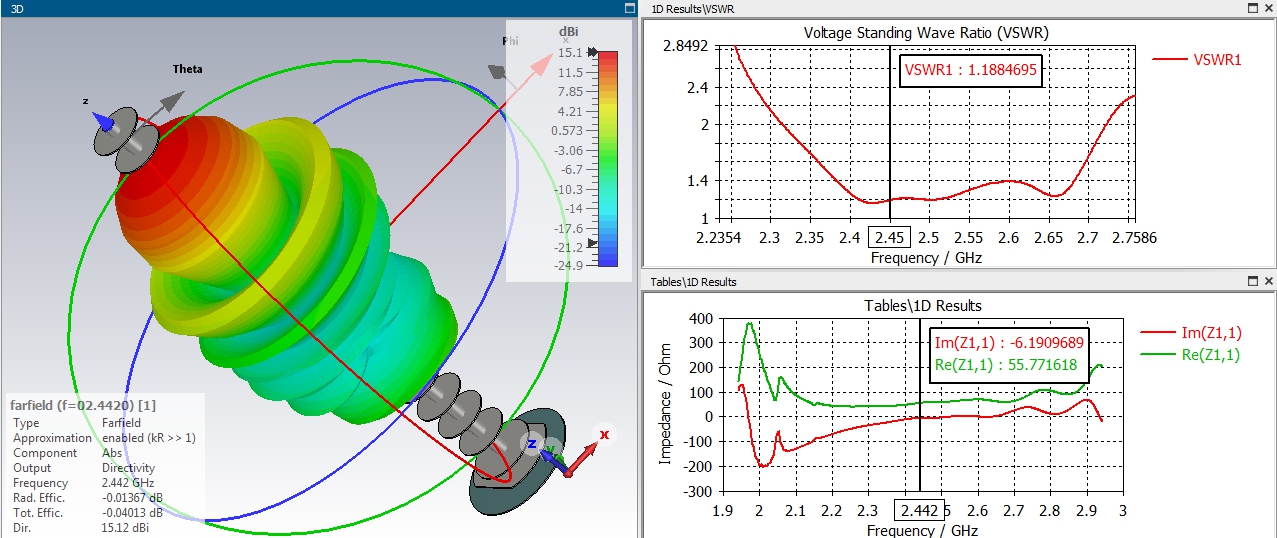

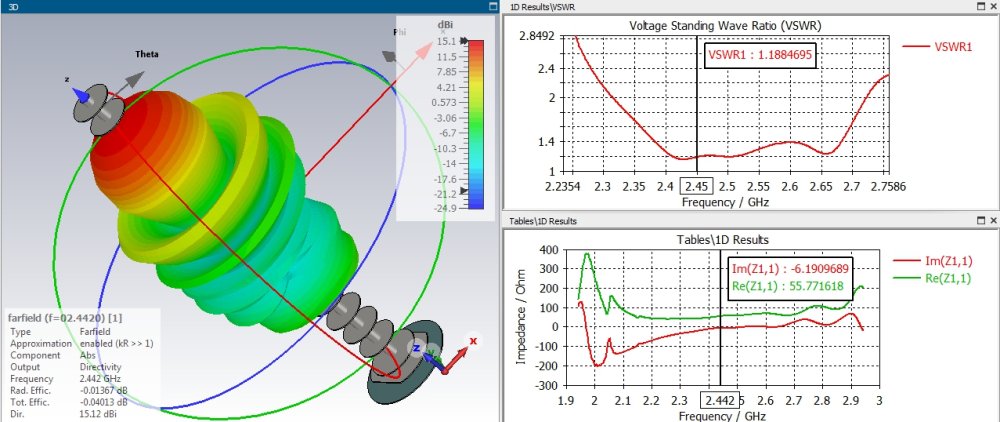

I will make a simulation with these dimensions(in red).


1 person likes this

Share this post


Link to post
Share on other sites

Hi Admin

Thanks please share the simulation results for 2442MHZ so it will be helpful to create antenna disk to extend my Wifi from broadband router to another building

1 person likes this

Share this post


Link to post
Share on other sites

Hi Admin

Can you please share the simulation result for 2.4 GHZ And exact dimention thanks

Share this post


Link to post
Share on other sites
16 hours ago, sridhar said:

Hi Admin

Can you please share the simulation result for 2.4 GHZ And exact dimention thanks

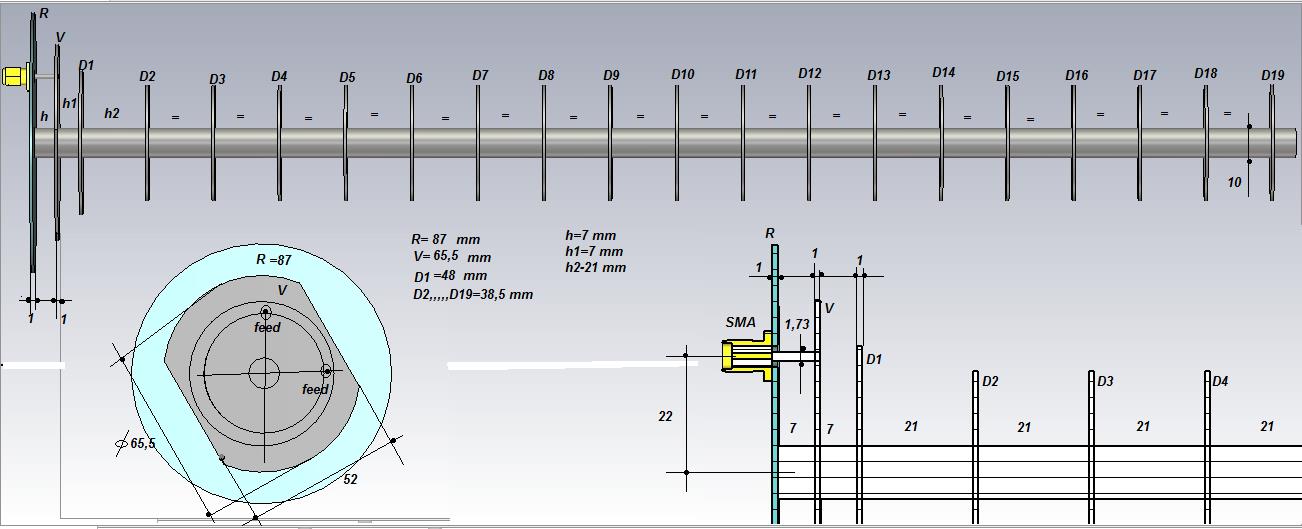

,,,directories D2,,,D19 can be 39 mm in diameter...!!!

2 people like this

Share this post


Link to post
Share on other sites
On 09.10.2022 at 8:35 AM, Admin said:





,,,directories D2,,,D19 can be 39 mm in diameter...!!!

Hello!
 V  is isolated from the rest or does it not matter?

Share this post


Link to post
Share on other sites
