Collinear antenna array

44 posts in this topic

hello brother how are you, long time to see

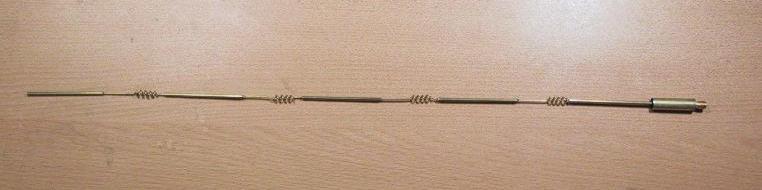

i would try to make like this, what do you thinking


Share this post


Link to post
Share on other sites

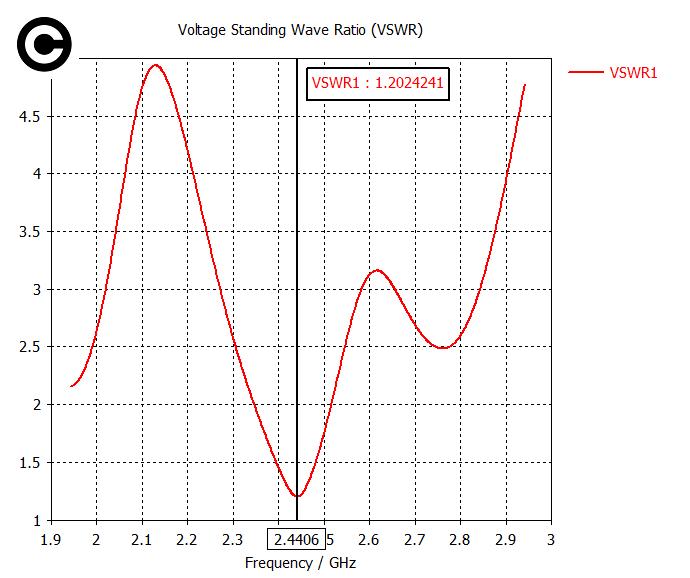

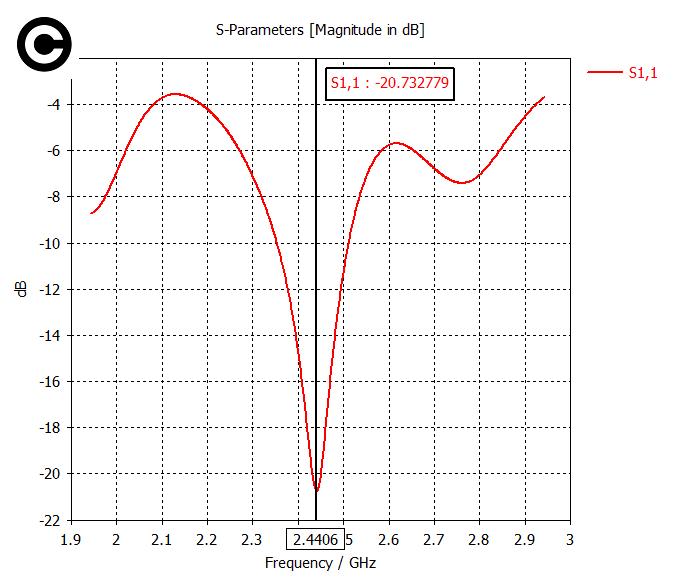

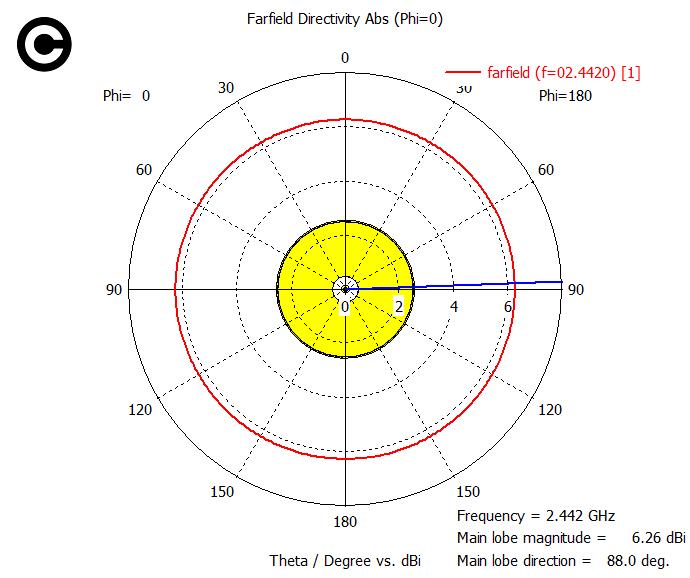

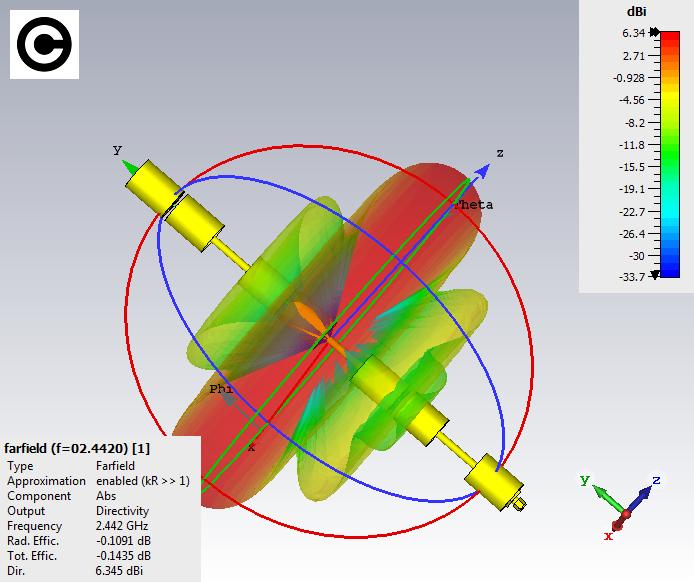

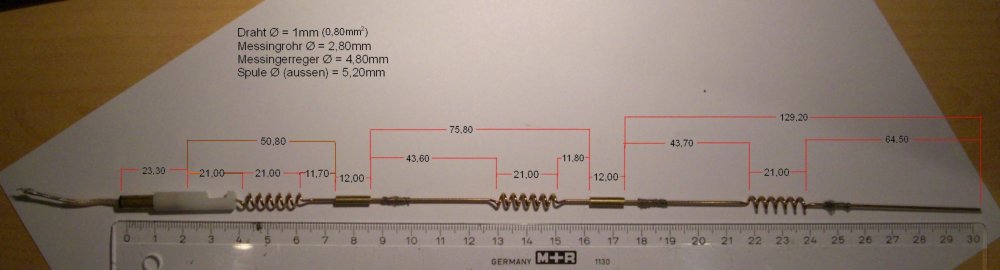

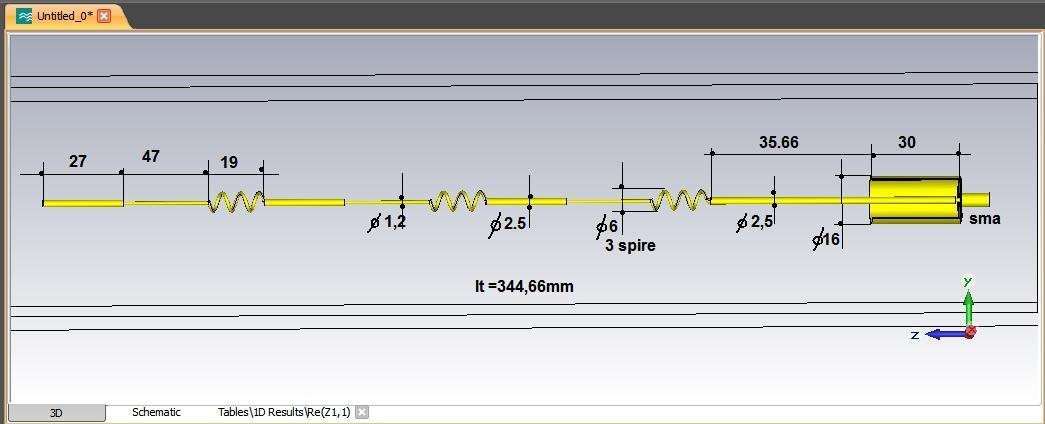

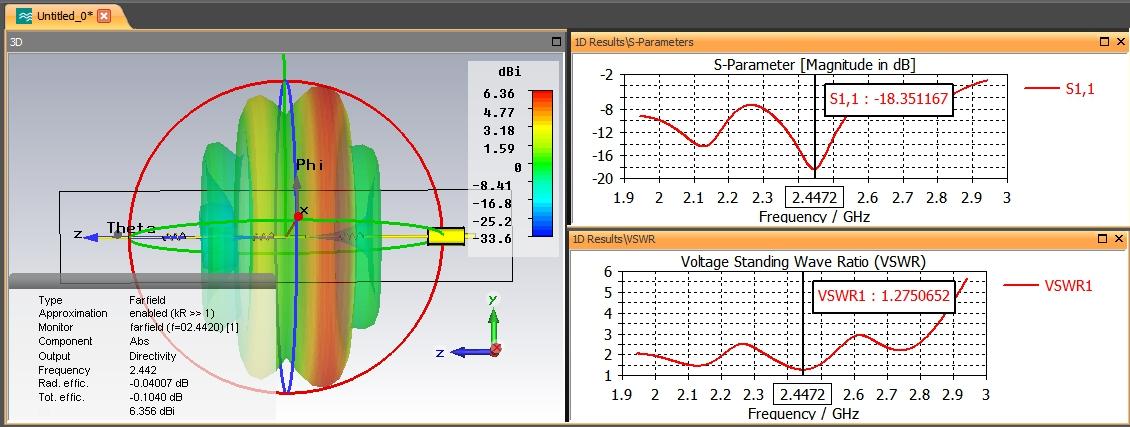

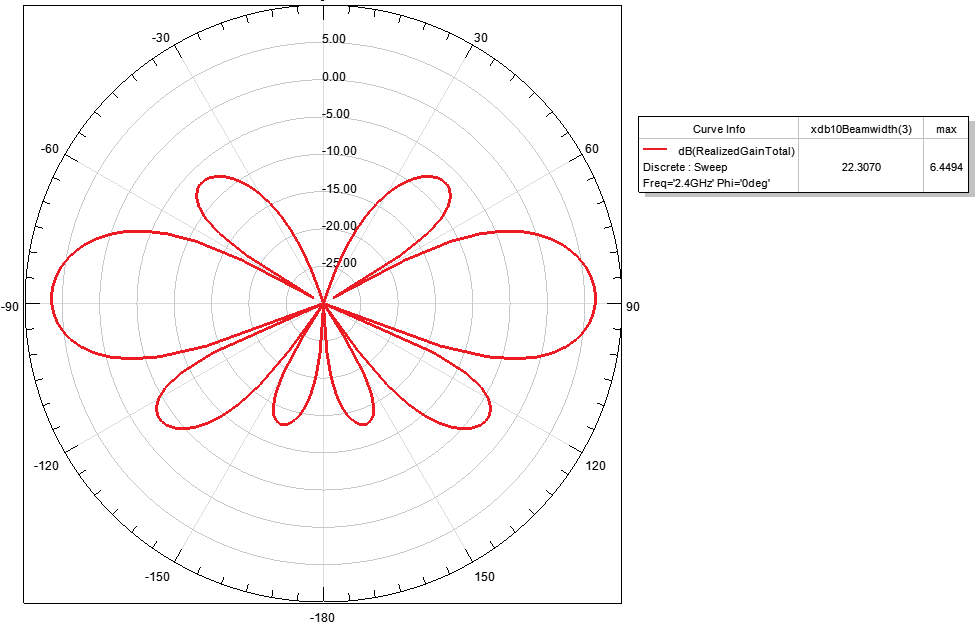

Another good collinear antenna with a 9 dBi directivity gain...



3 people like this

Share this post


Link to post
Share on other sites

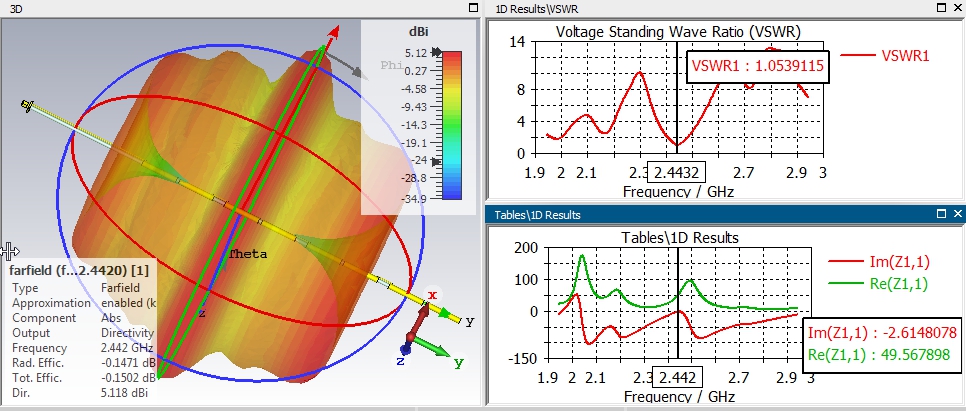

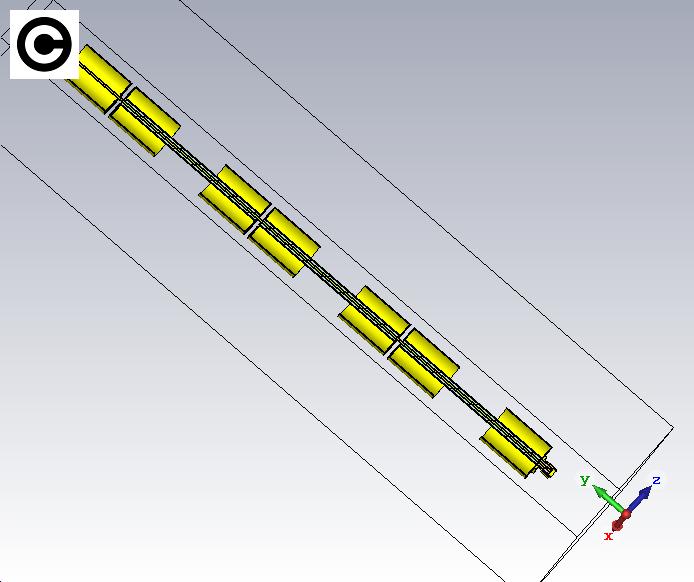

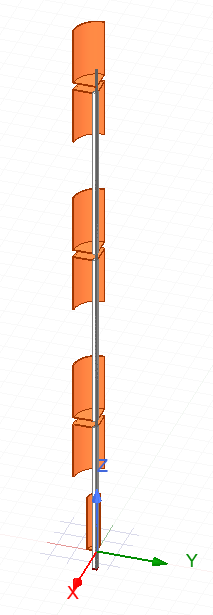

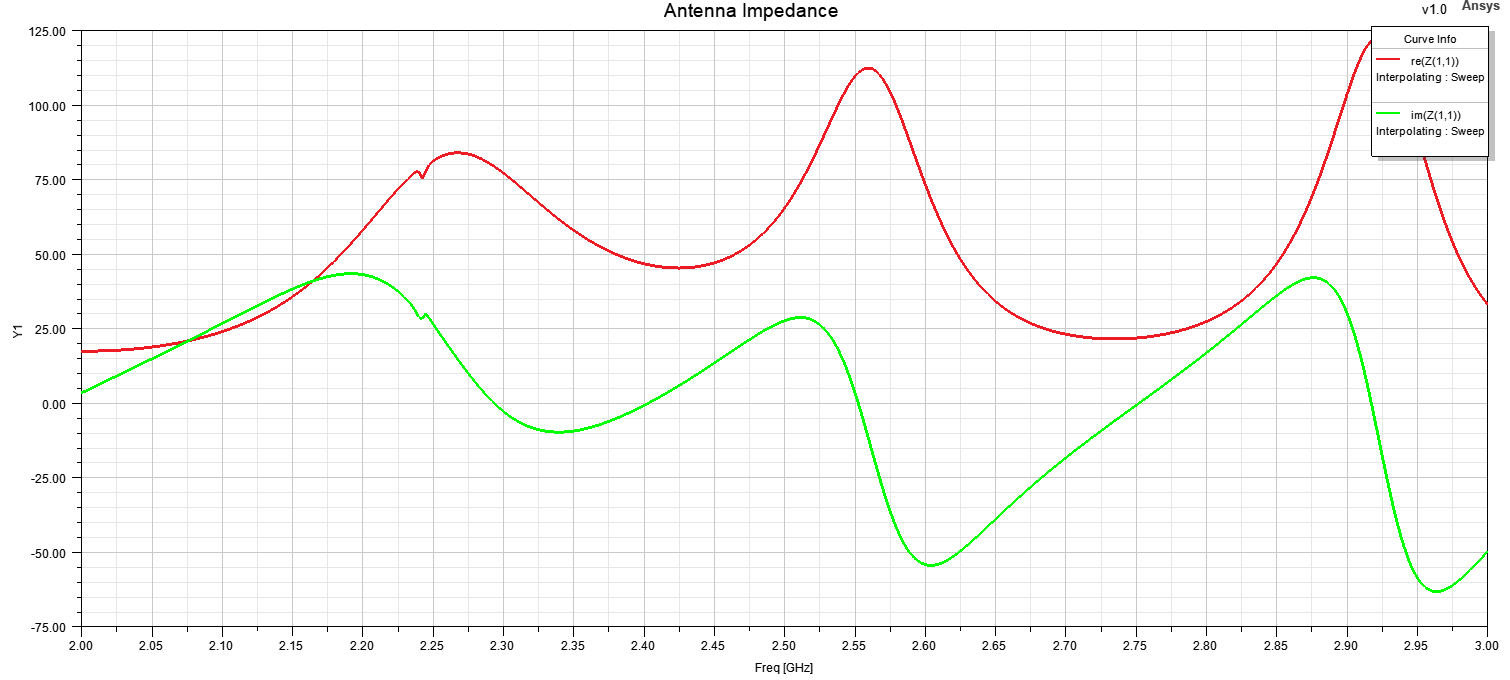

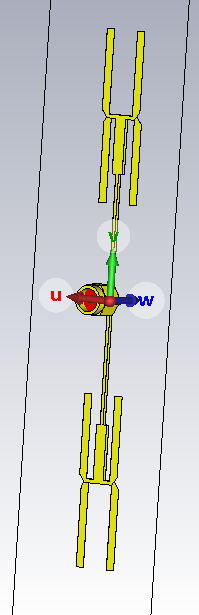

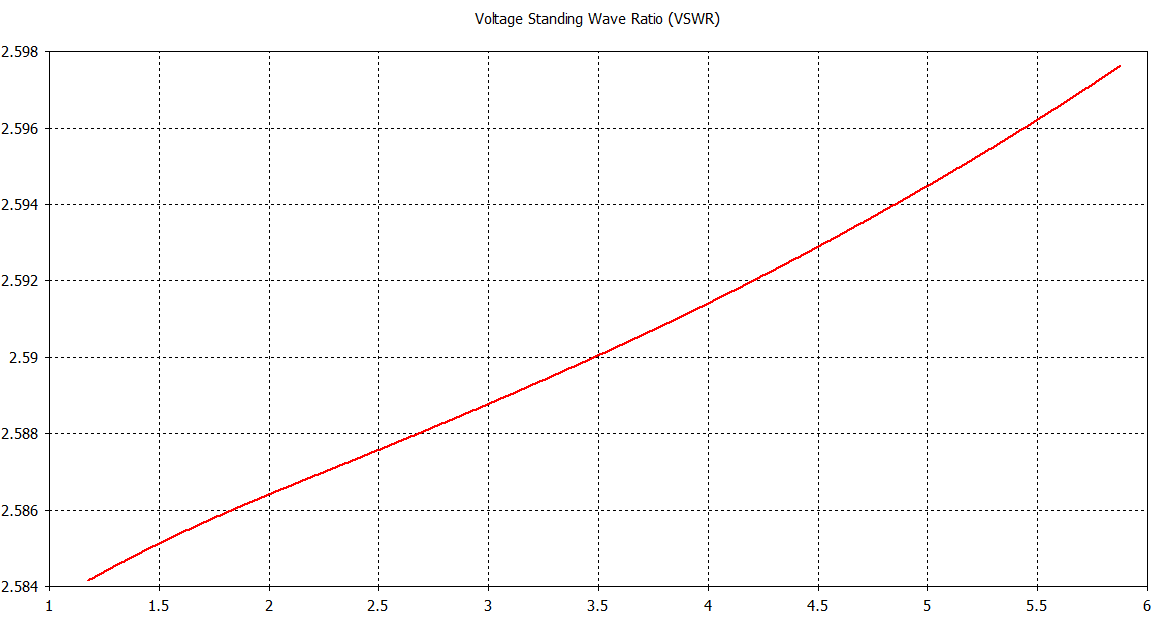

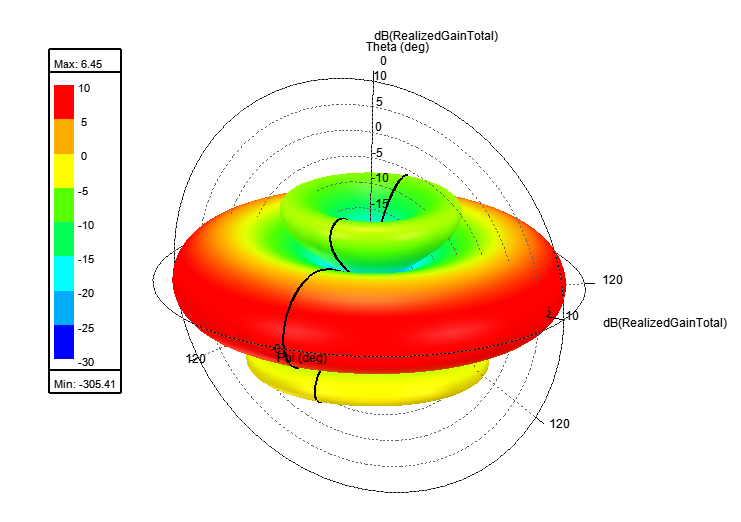

Proposed dipole array antenna which makes omnidirectional  radiation possible and is made of coaxial cable with metal cylinders...










1 person likes this

Share this post


Link to post
Share on other sites

what is the formula for calculating rubber duck antenna

1 person likes this

Share this post


Link to post
Share on other sites

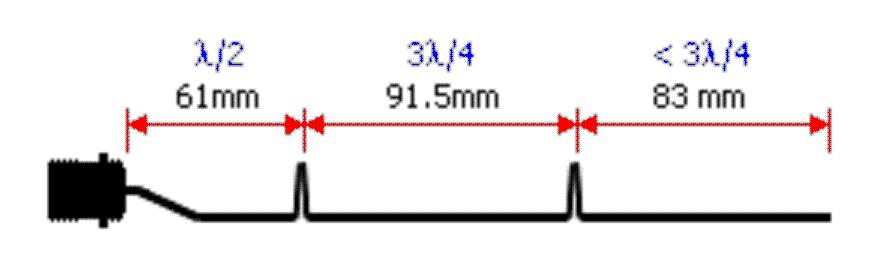

HALF Wavelength with stub balun 1:1 (reduced in length due to dielectric effect )

so it will end up being two sections of about 30 mm IMHO

Share this post


Link to post
Share on other sites

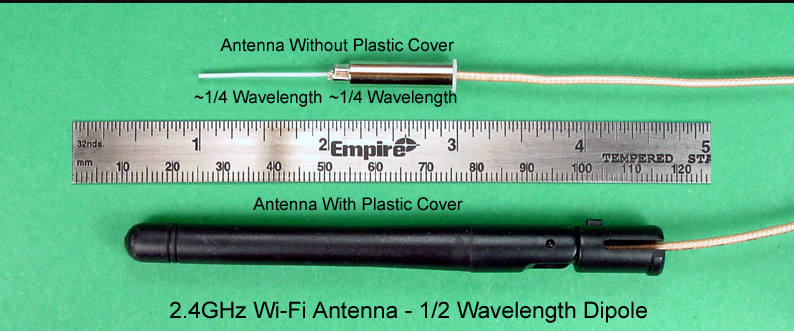

https://www.allaboutcircuits.com/uploads/articles/2.4GHz_Wi-Fi_Antenna_.5_Wavelength_Dipole.png

In the sleeve dipole the top element is normally  simple the coax center conductor extended. This is also normally left with its insulation intact, which means its length must be compensated for by the insulation's permittivity. (the antenna is SHORTER than an a free dipole ; wich is (speed of light/frecuency ) / 2 )


Share this post


Link to post
Share on other sites

Maksud saya apakah ada formula untuk membuat antena ini ,

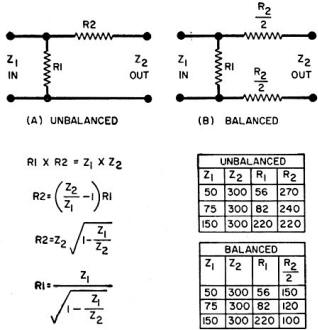

formula for impedance adjustment to 50 ohms or 75 ohms

Edited by Ingsun

Share this post


Link to post
Share on other sites

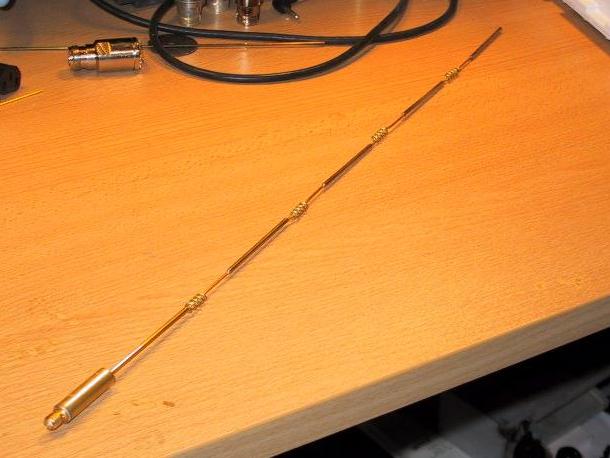

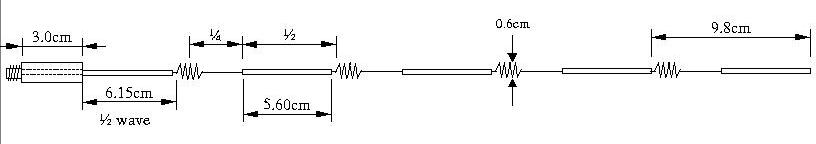

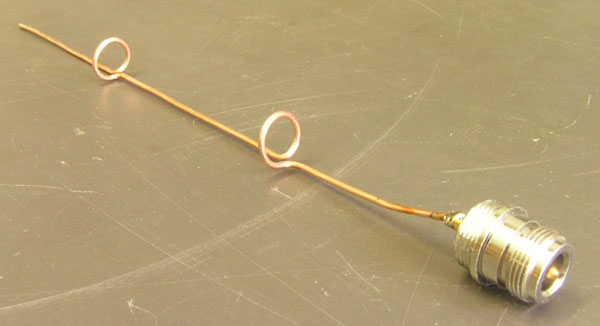

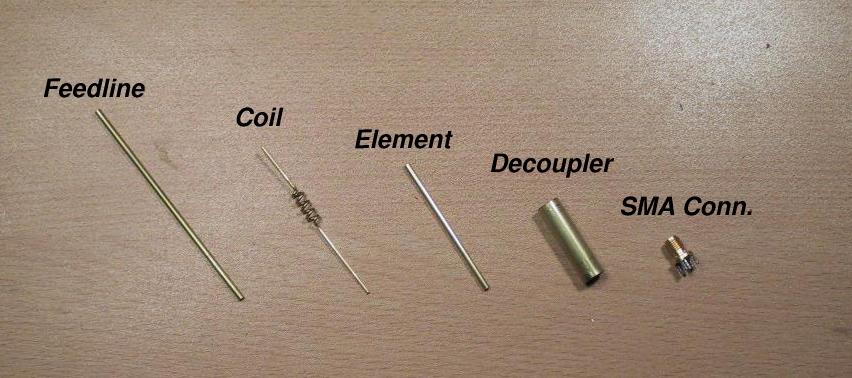

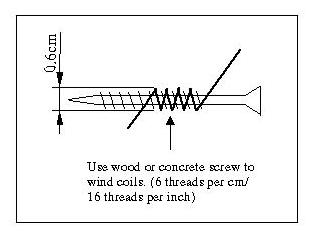

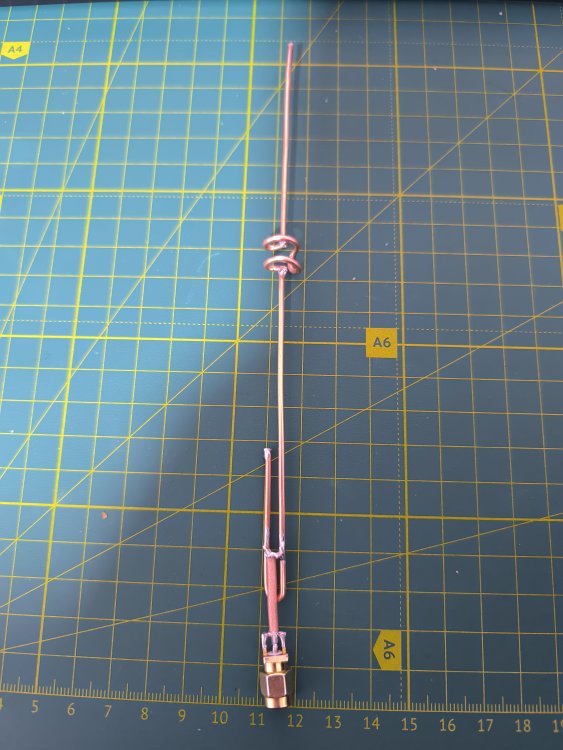

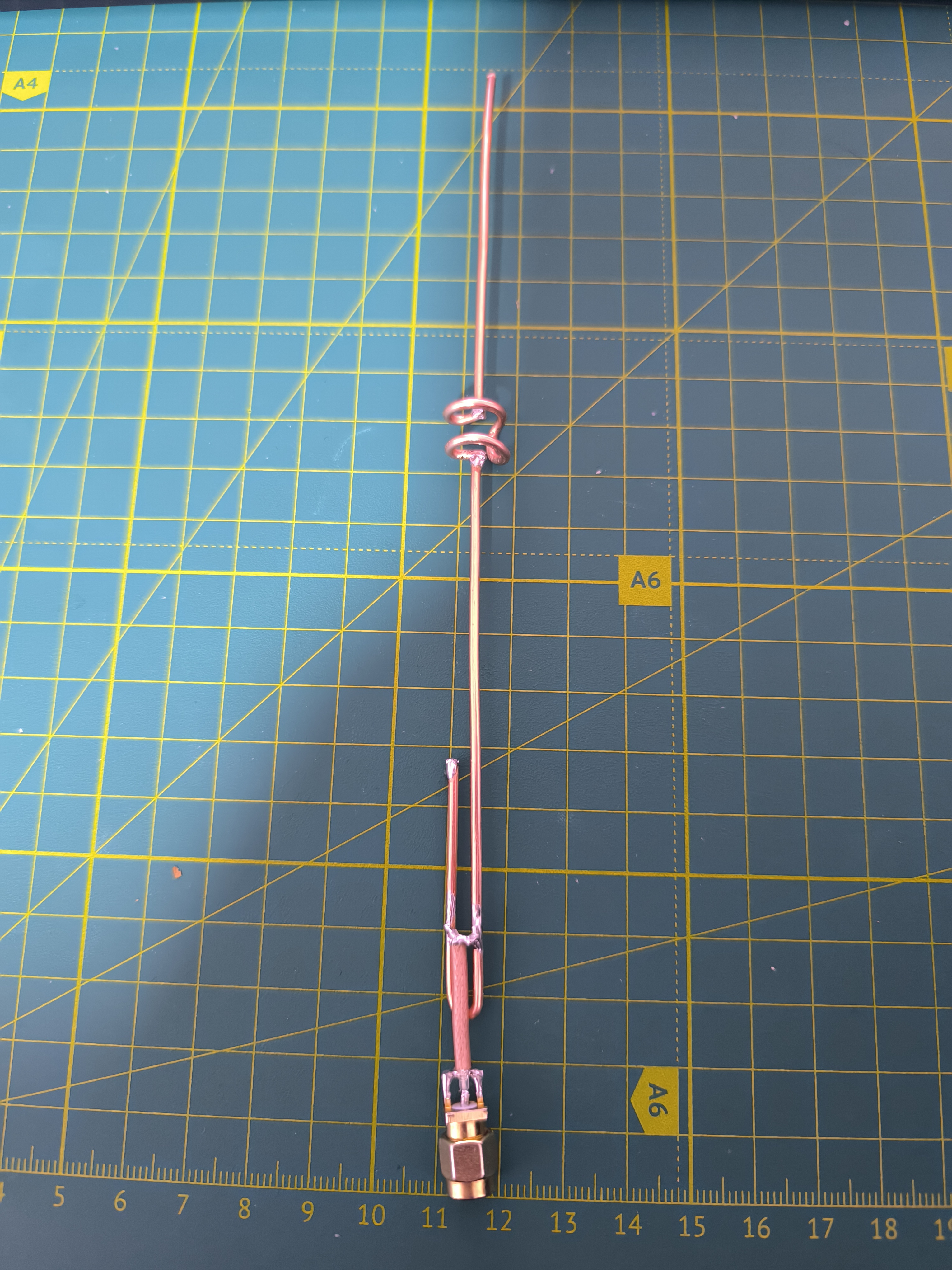

,,, construction of a simple collinear antenna...



Share this post


Link to post
Share on other sites

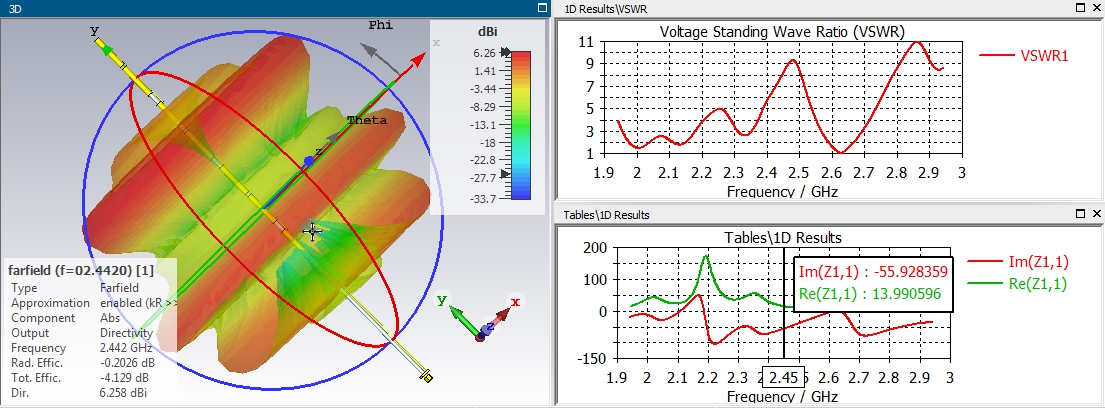

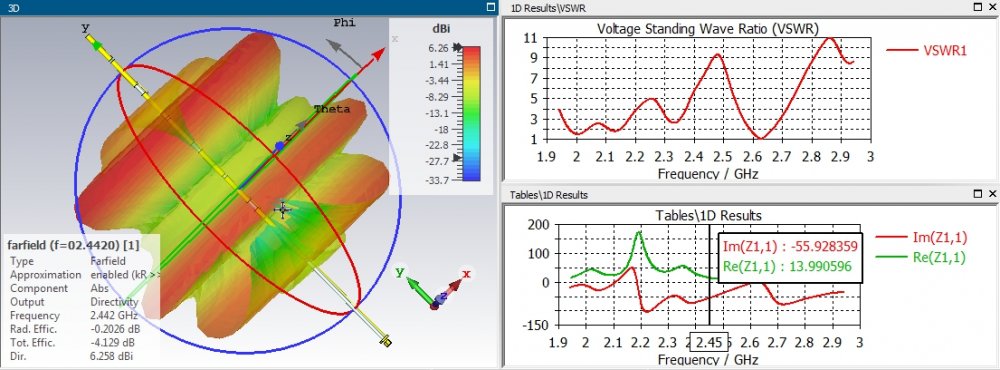

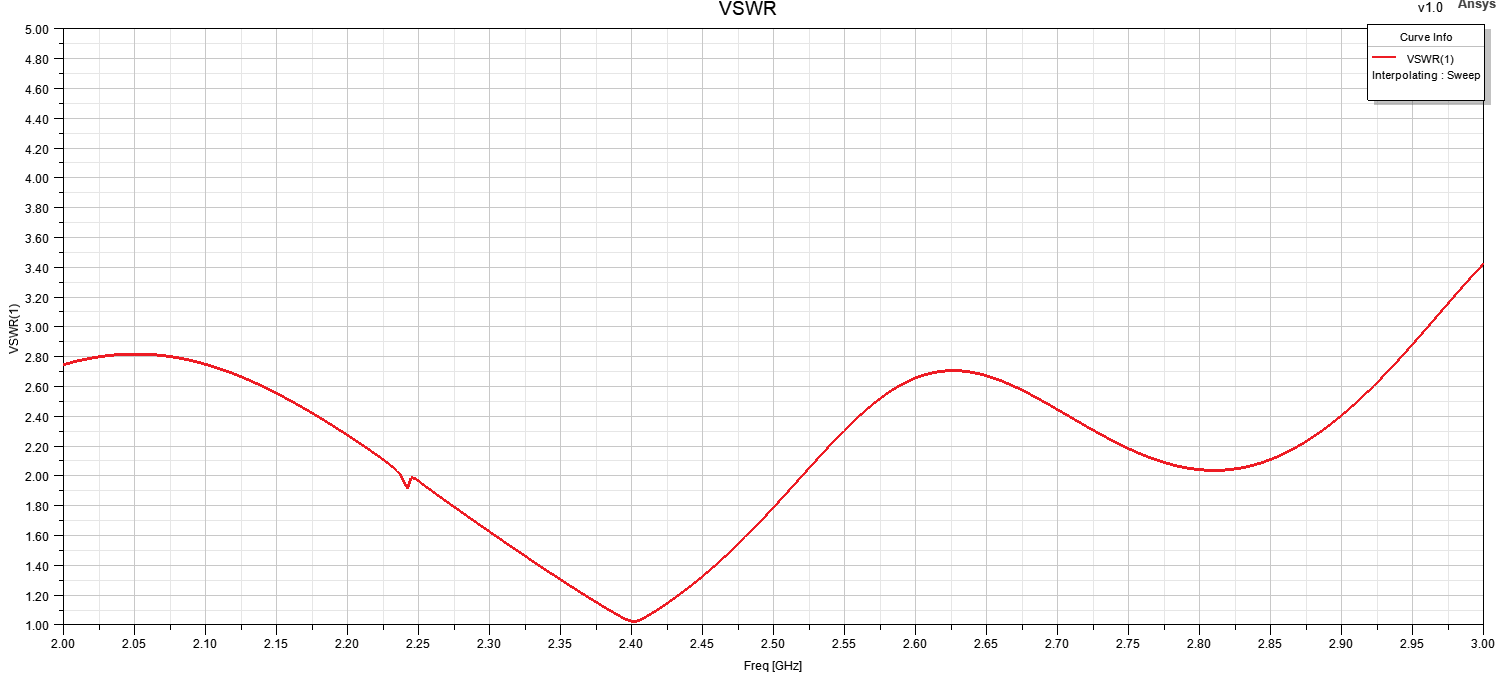

,,, and yet no, this omni antenna is not well sized...


,,, it is for 2.63 Ghz

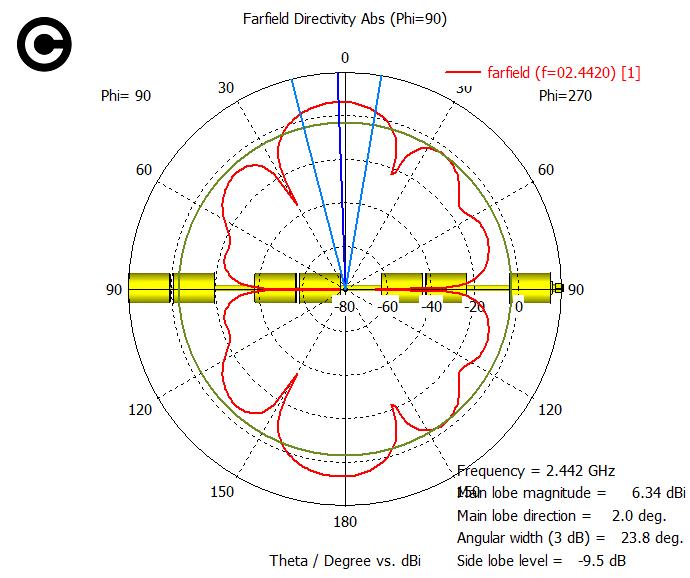

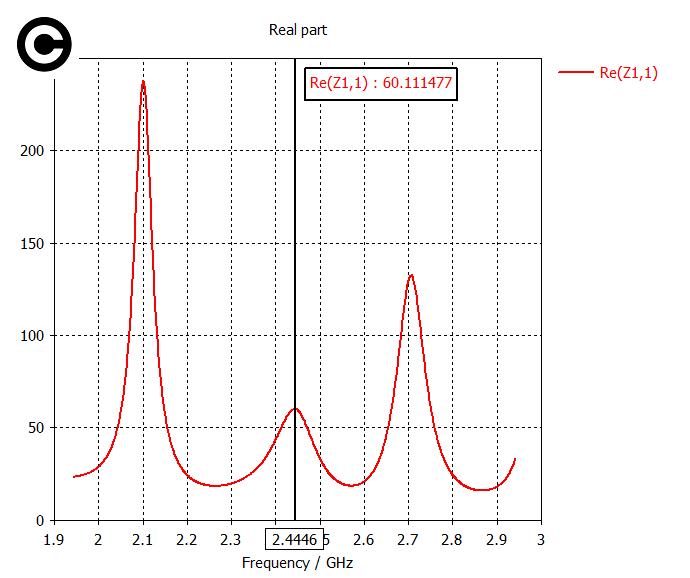

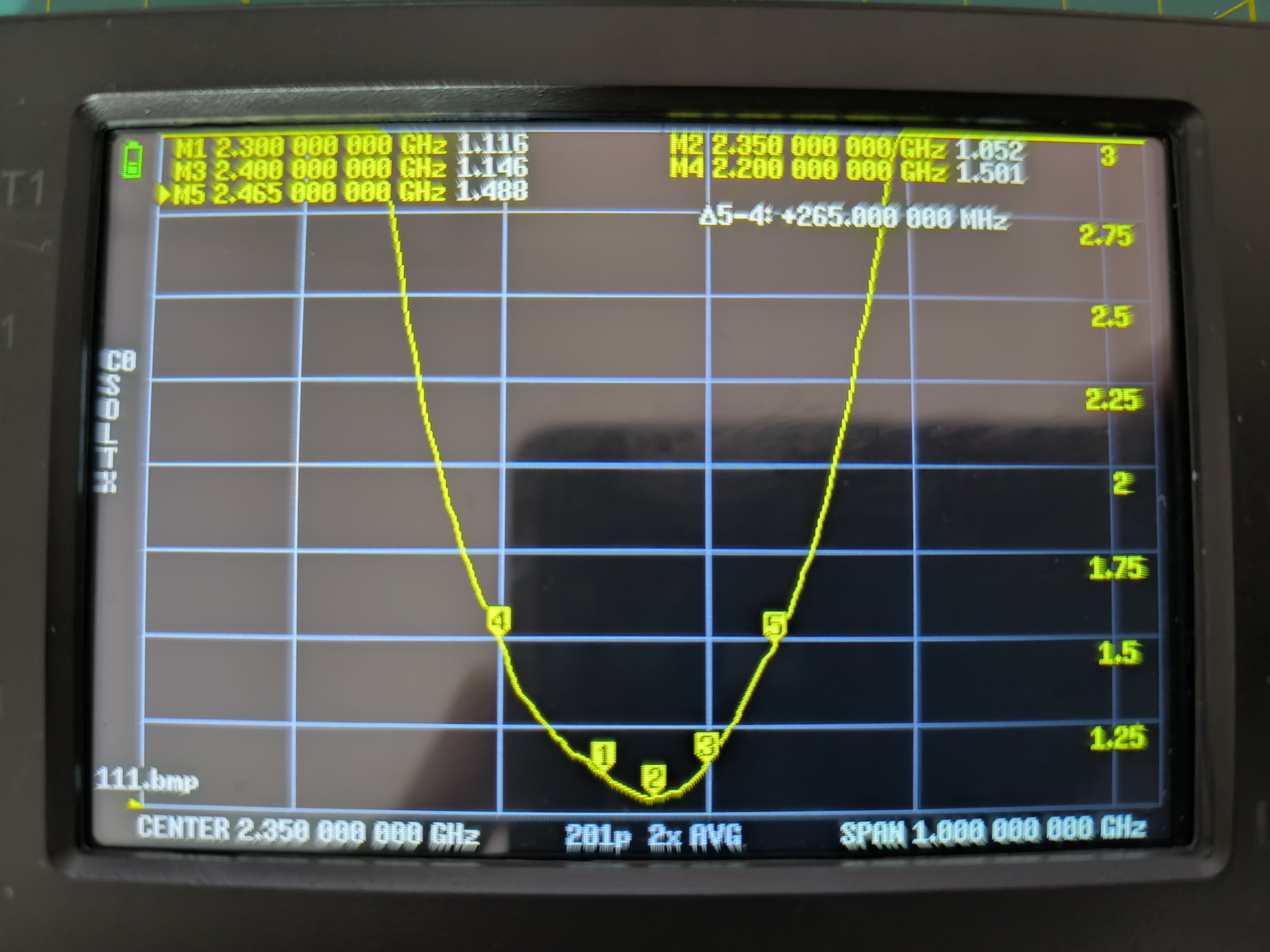

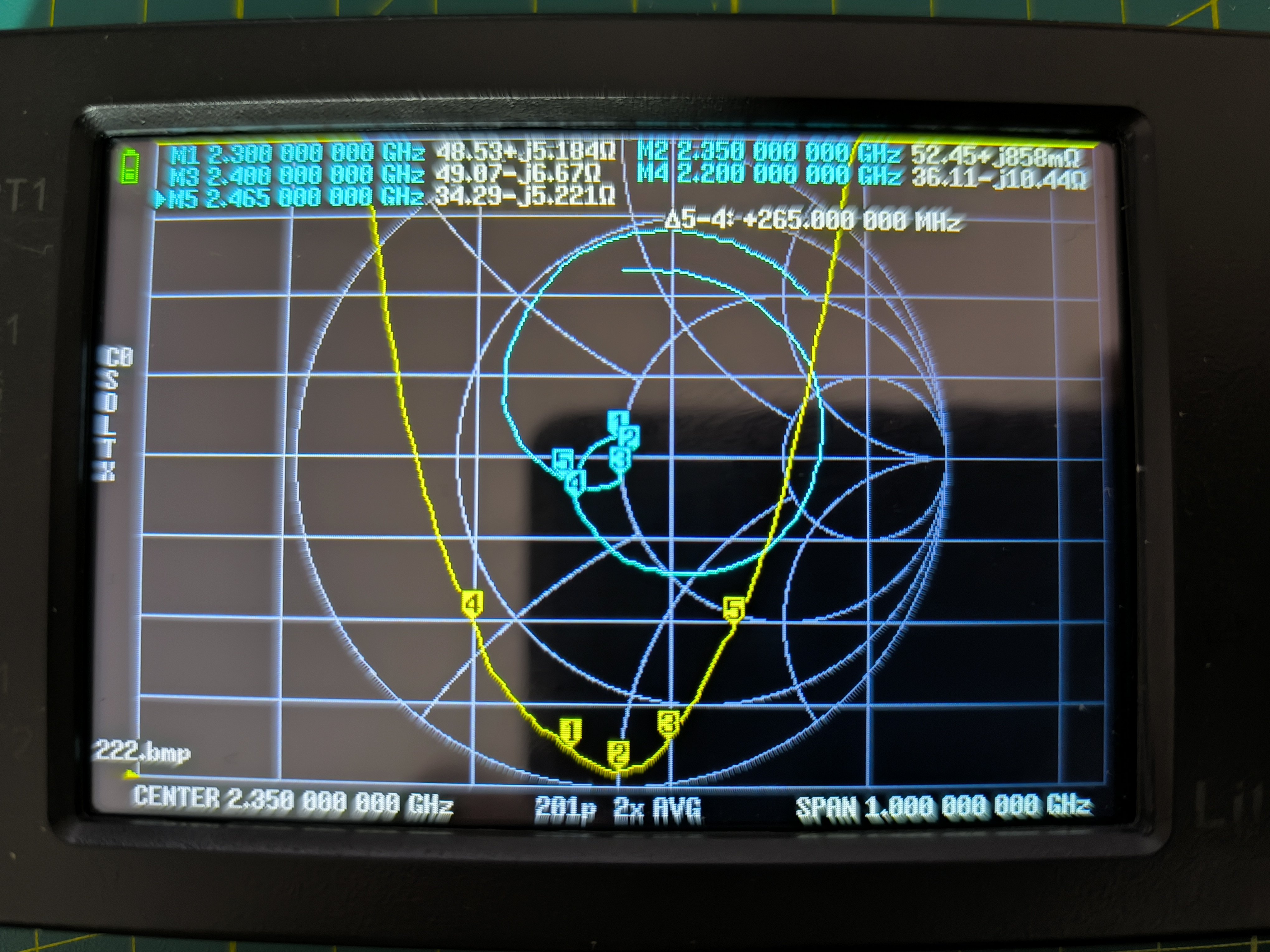

and this is the reality after resizing...


1 person likes this

Share this post


Link to post
Share on other sites
On 1/2/2017 at 2:23 PM, Admin said:















What should the dimensions be for 868mhz?



Share this post


Link to post
Share on other sites
On 10/22/2017 at 4:04 PM, Admin said:

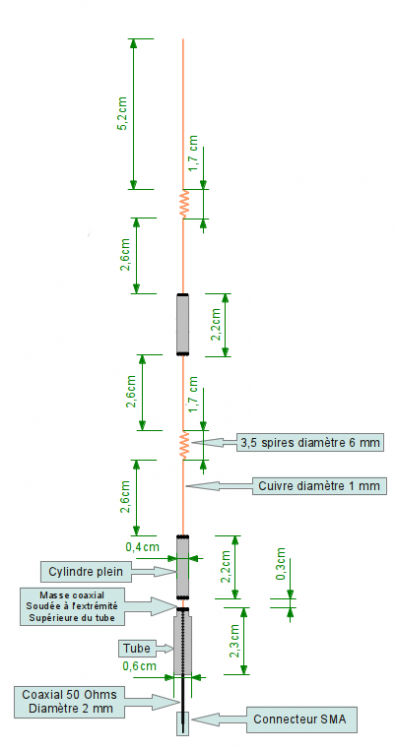

", you can try a simpler construction





What should the dimensions be for 868mhz?

Share this post


Link to post
Share on other sites

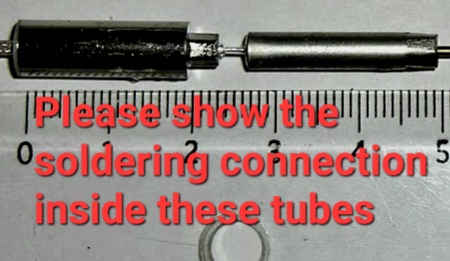

Please show us the connection or soldering inside those tubes.

Which wire solder to where and how to solder it.

Thank you.


Share this post


Link to post
Share on other sites

,,,where did you get this picture from?

,,,but I think this is it...!!!


Share this post


Link to post
Share on other sites
