MIMO antenna 4G LTE 1800 Mhz

68 posts in this topic

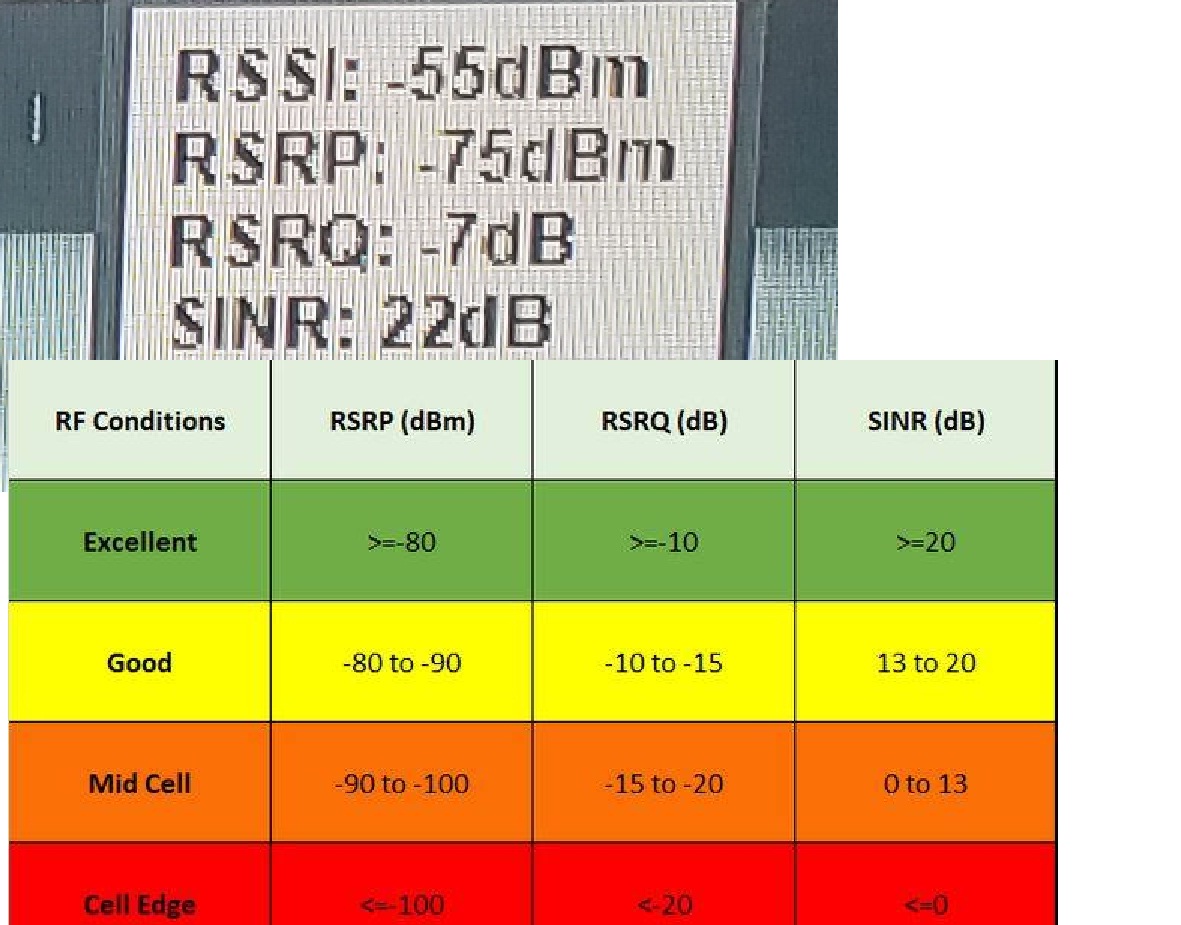

Sin título.jpg



IF these are ok...is poor ISP service...also try http://Fast.com with all settings on...to compare...

Edited by clanon

Share this post


Link to post
Share on other sites
On 11/9/2019 at 9:43 PM, Admin said:

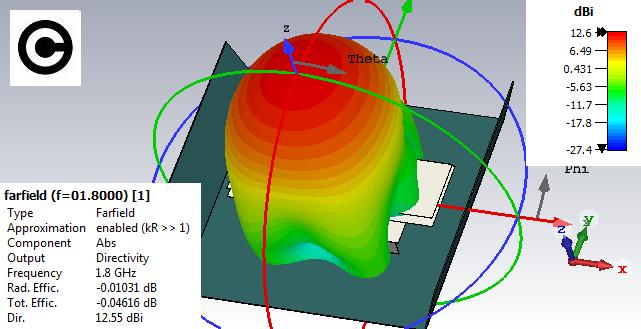

,,, a variant with more exact dimensions ... !!!

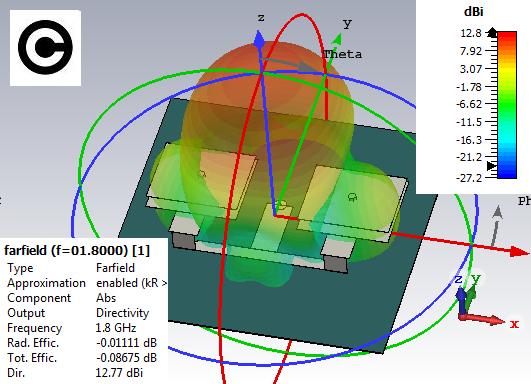

", and if you want a cross-polarization  you can use this solution...


Добрый день!

А если чуть уменьшить размеры и сдвинуть резонанс вверх и перекрыть диапазон 1800-2100?



,,,Good day!

And if you slightly reduce the size and shift the resonance up and cover the range of 1800-2100?

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,, yes, you can, but I think there is such an antenna on this site...!!!

,,, and please, speak english...!!!

Share this post


Link to post
Share on other sites

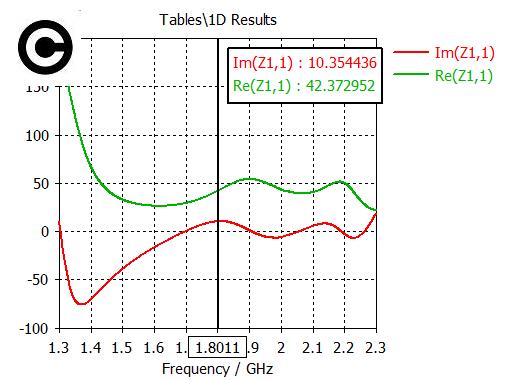

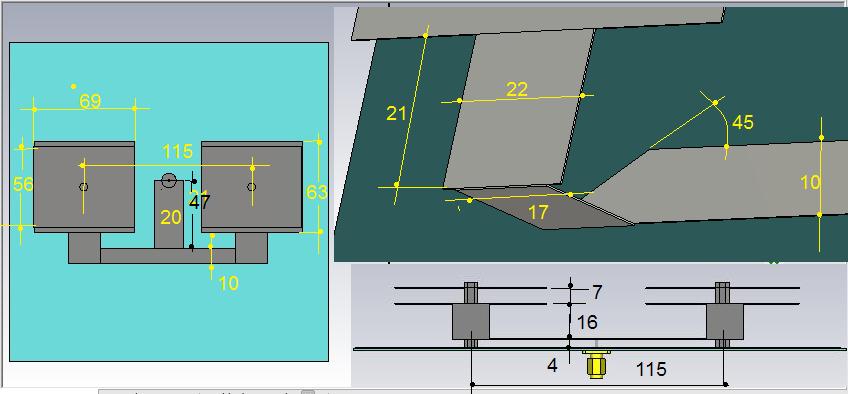

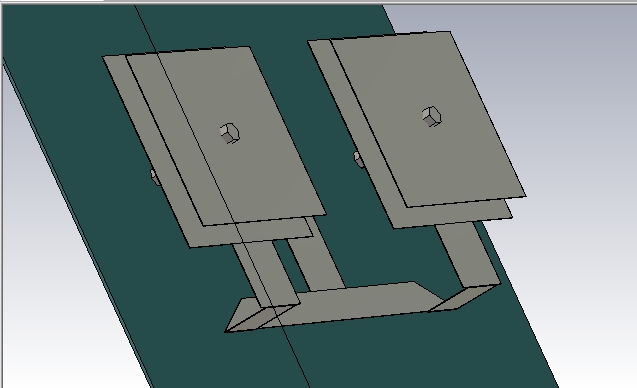

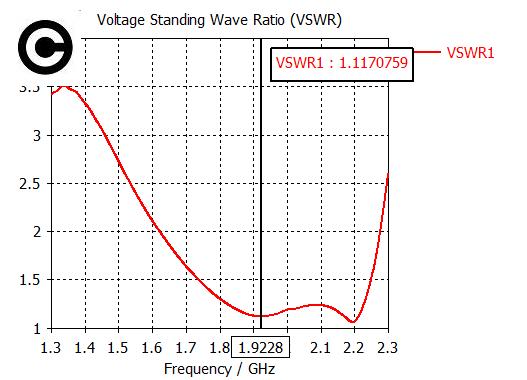

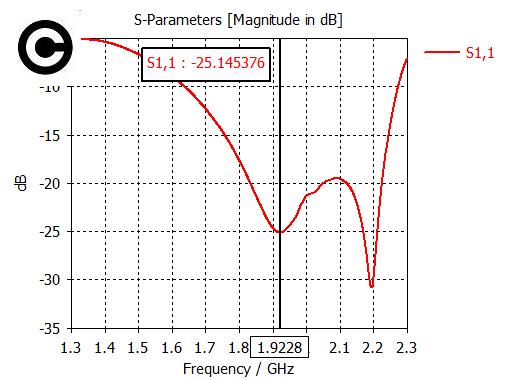

,,,,for Christmas,a UWB variant for a user friend sa3500...







1 person likes this

Share this post


Link to post
Share on other sites

Thanks for the antenna.
How to take the size of the reflector? And are side walls needed?

Share this post


Link to post
Share on other sites

,,,, oh, sorry, the dimensions of the reflector 1x220x220mm...!!!

,,,if you want you can put side walls inclined at 17-19 degrees and width of 50mm ...!!!

1 person likes this

Share this post


Link to post
Share on other sites

"I like it, the construction looks very nice...!!!

,,, okay, but I see that you have also put wings, let's see how it behaves ..!!!

,,,,what is the width of the wings ... ??

Share this post


Link to post
Share on other sites

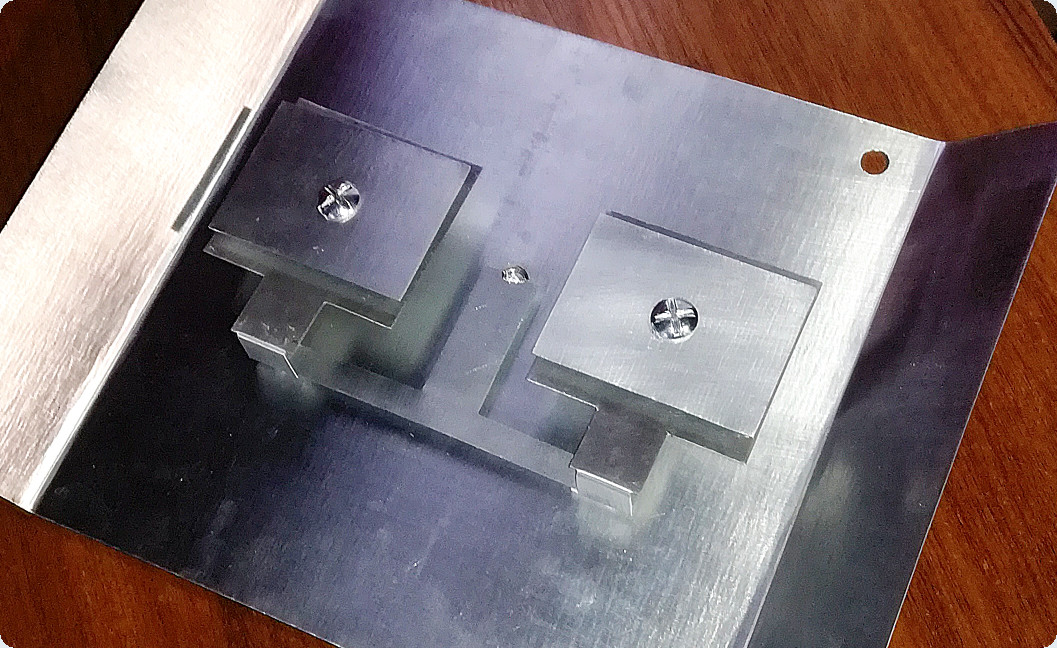

wing width - 50 mm

----------------------------------------------------------

This one turned out to be better for 1800

foto 1.jpg



Edited by sa3500
1 person likes this

Share this post


Link to post
Share on other sites

,,,the wings are inclined by 17-19 degrees ... ???

,,,,it has to work...!!!




1 person likes this

Share this post


Link to post
Share on other sites

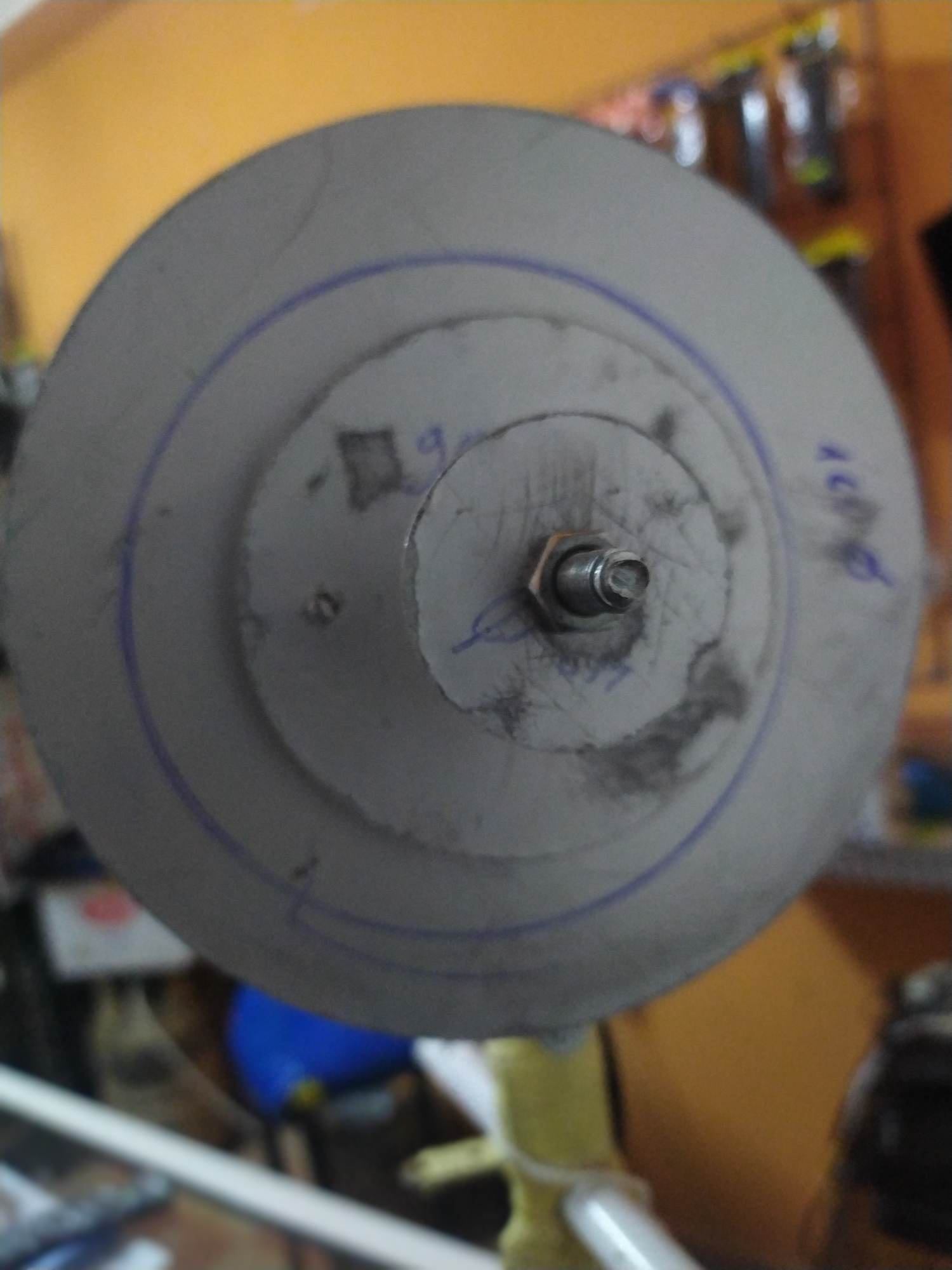

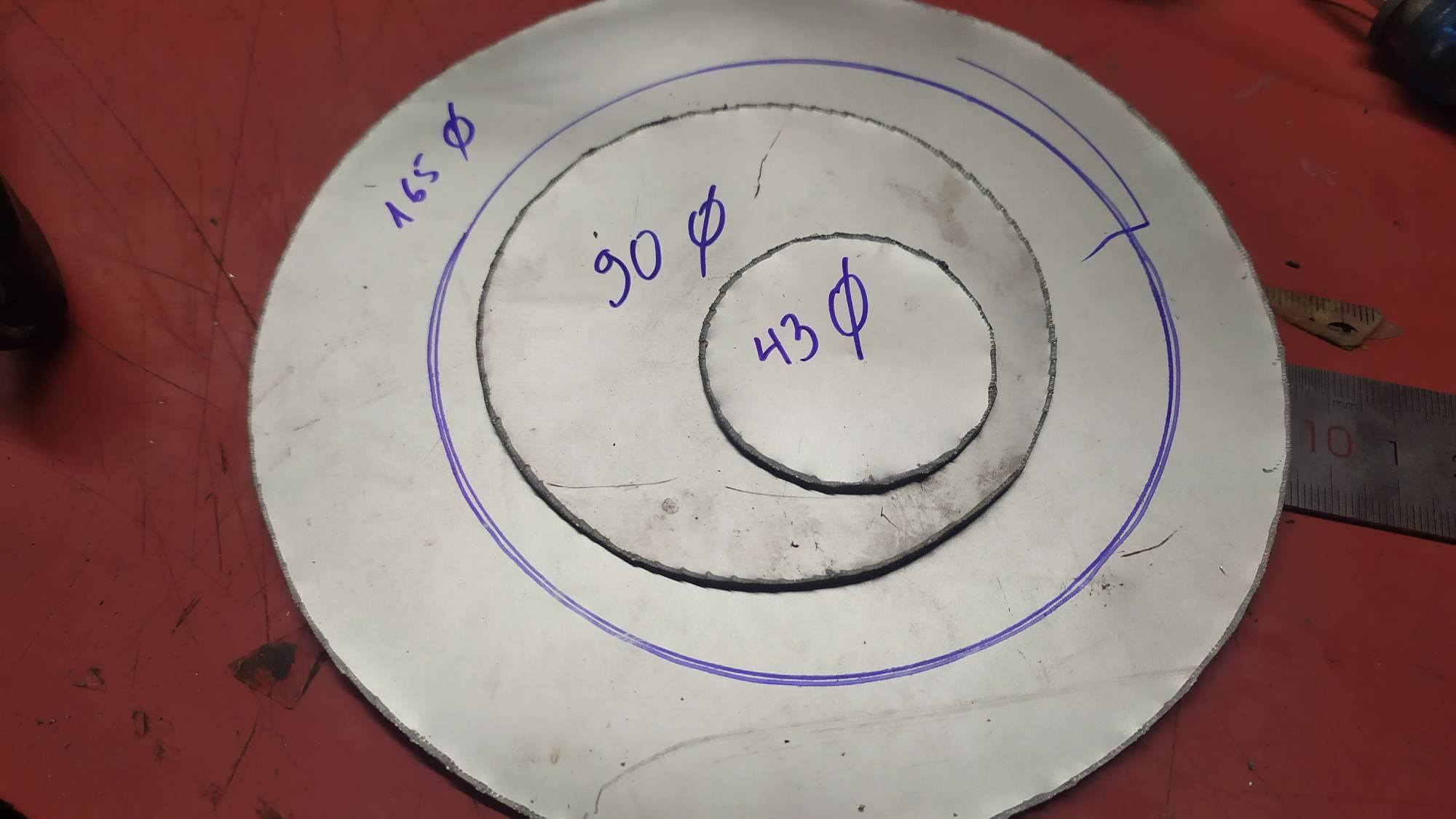

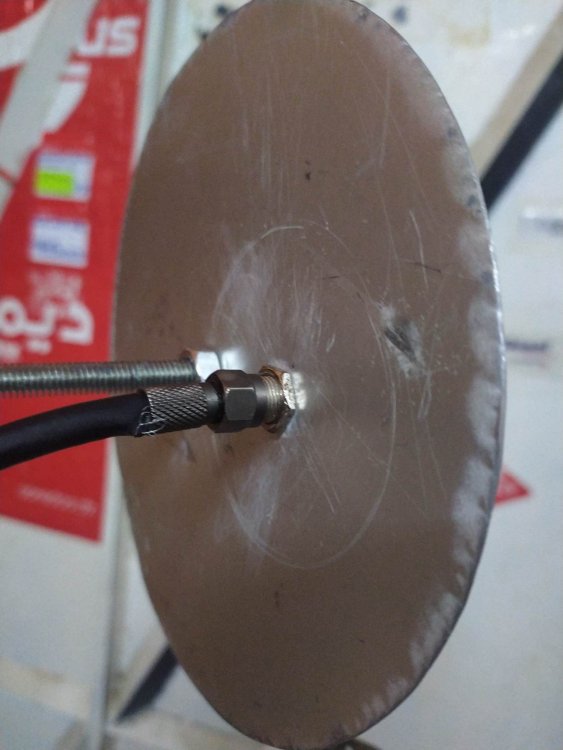

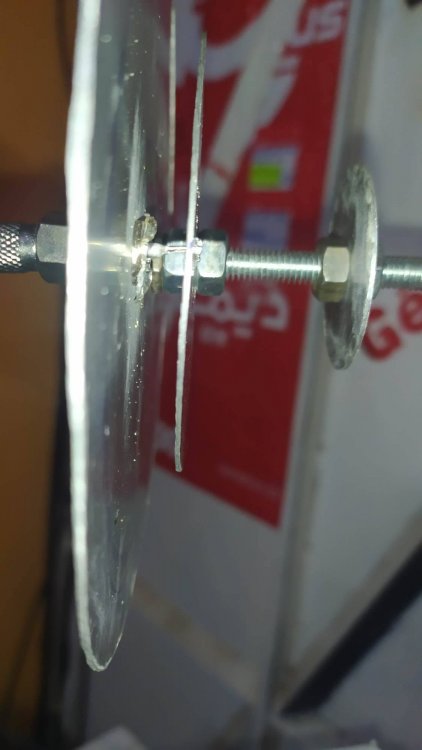

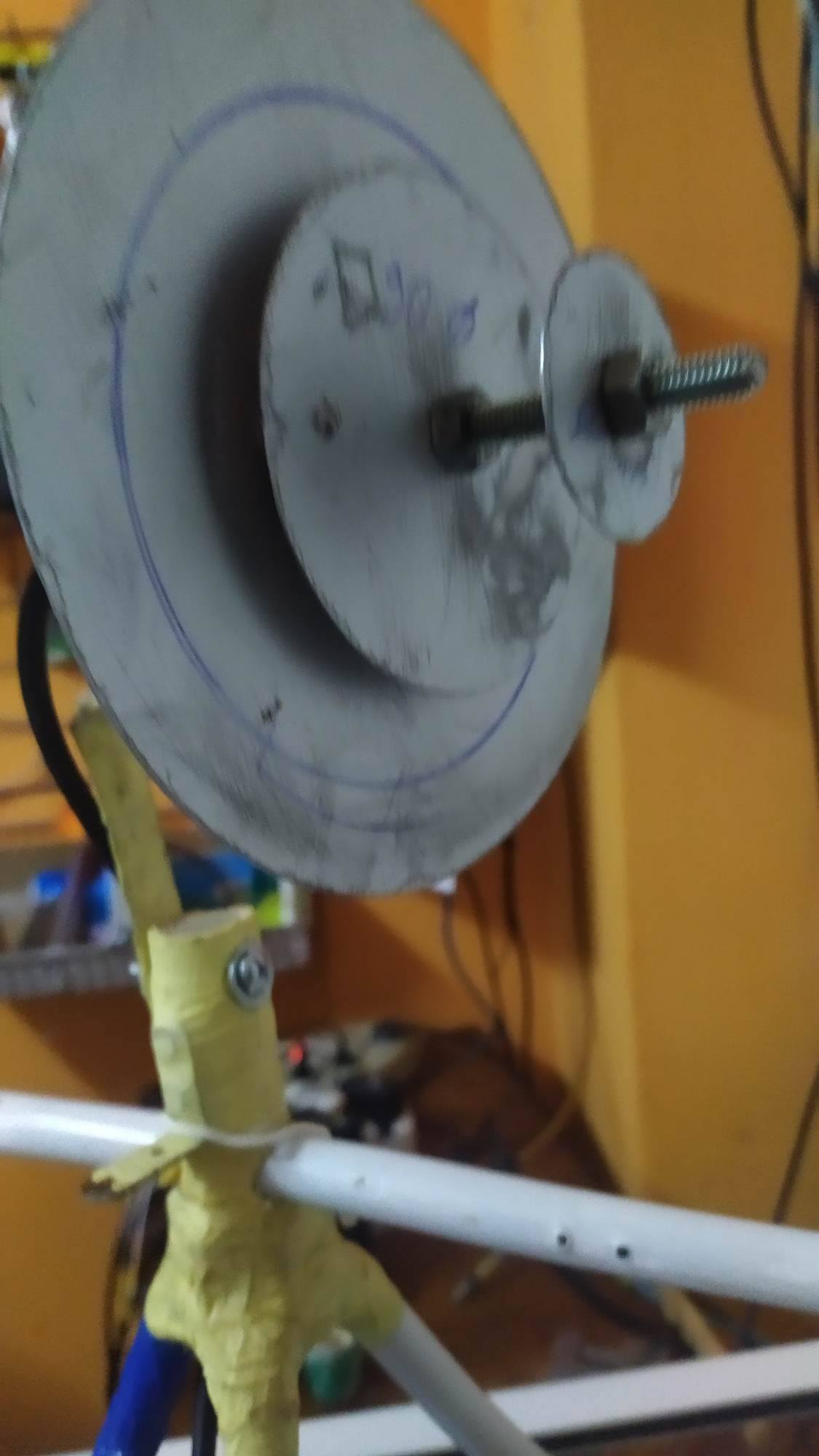

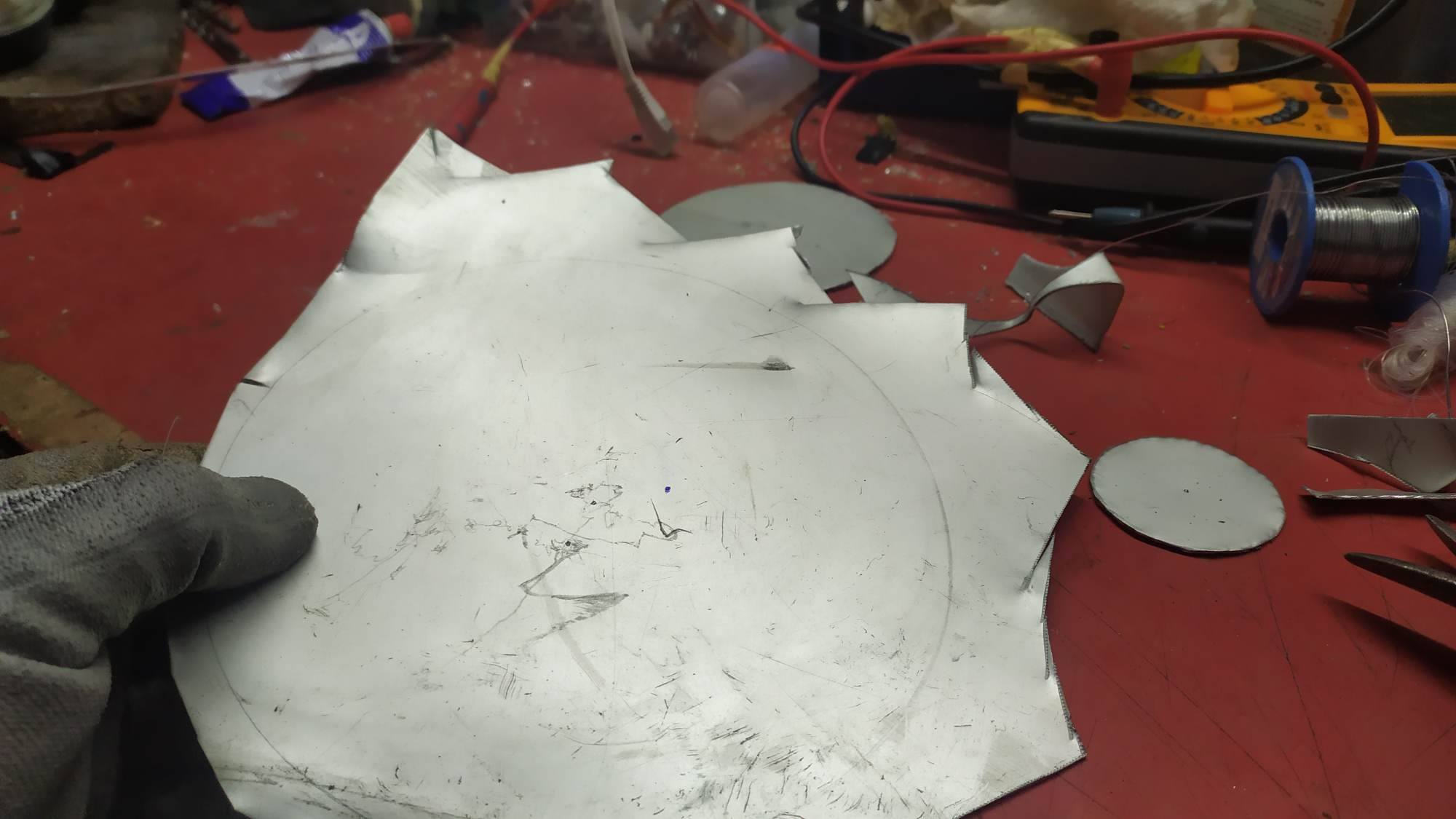

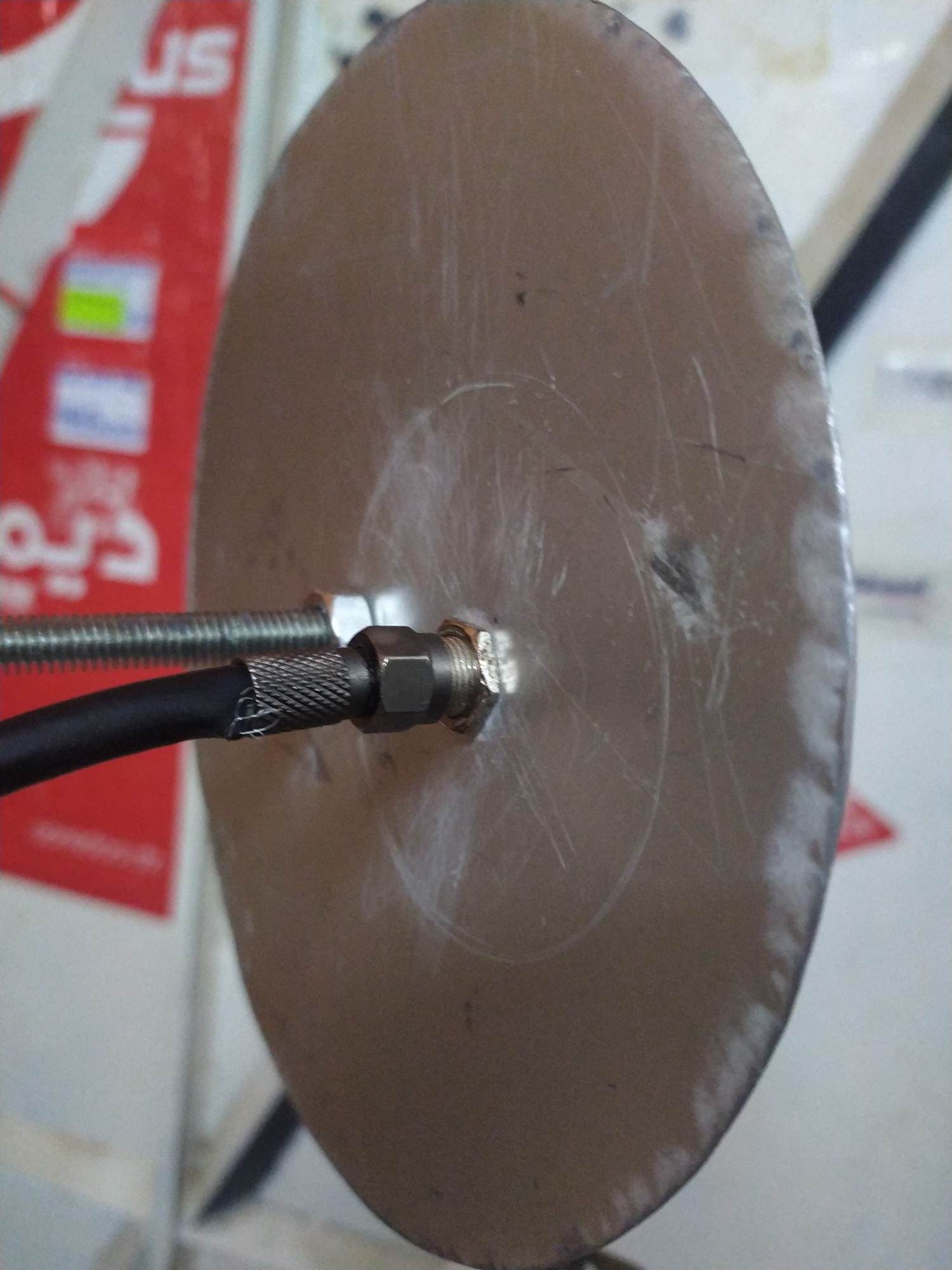

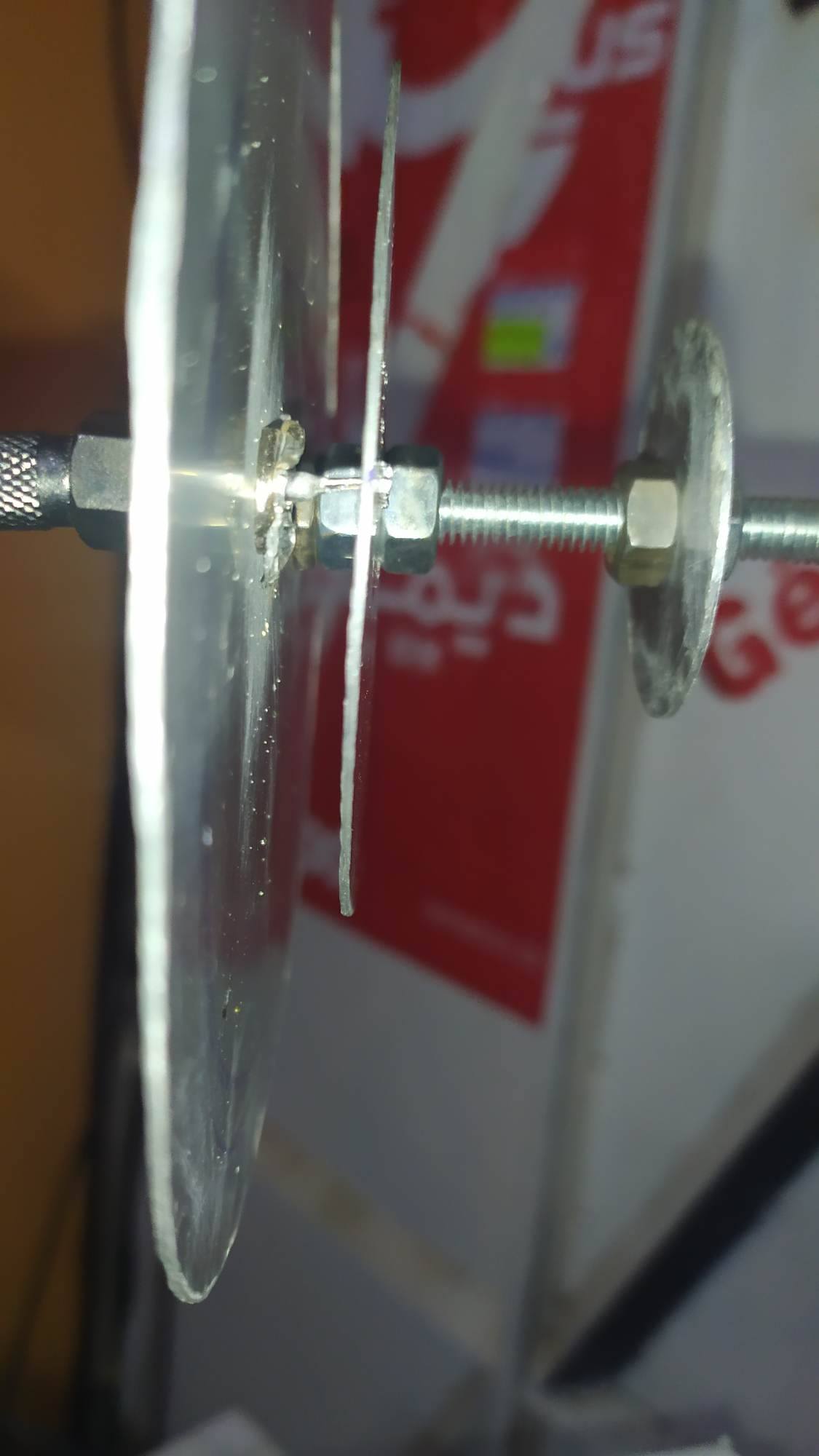

Good afternoon; thank you ADMIN Thank you for  scheme &  measurements of MIMO antenna 4G LTE 1800 Mhz

I realized and give me a nice result :D









1 person likes this

Share this post


Link to post
Share on other sites

Newbie question:

Would mesh work for the ground/reflector here?

I'm looking to make a pair of these for testing (and practice) but am a little short on sheet metal at the moment.

EDIT - 77.jpg.81f177a11f3ee5c11dd7a6330f2ad6b9.jpg

Edited by BurgHammer

Share this post


Link to post
Share on other sites

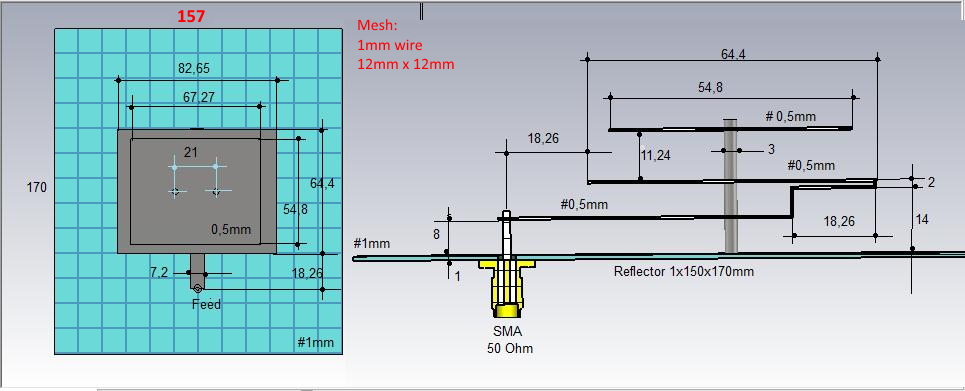

,,, yes, you can use the mesh instead of the reflector,but with the square of 10x10 mm...!!

Share this post


Link to post
Share on other sites

Darn.

Oh well, guess I'll have to make a trip to the hardware store after all...

How critical is the reflector thickness? 0.5mm zinc-plated steel is easy to get where I live, thicker is pretty much mail order only.

Share this post


Link to post
Share on other sites

,,, the thickness of the reflector does not matter...!!!

Share this post


Link to post
Share on other sites

Hi Admin,

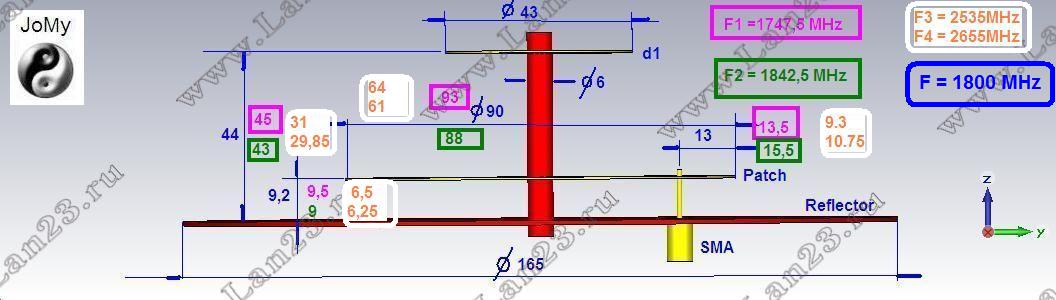

i was looking for a 2500mhz antenna and i came across with this antenna and just want to verify if my understanding of the measurement is correct

R = 165mm

Patch = 64mm

d1 = 43mm

fp = 9.3mm

space from reflector to patch = 6.5mm

distance from reflector to d1 = 31mm



thanks admin.




Share this post


Link to post
Share on other sites

Yes it's OK...!!!

1 person likes this

Share this post


Link to post
Share on other sites
