Posts posted by Admin
-
-
-

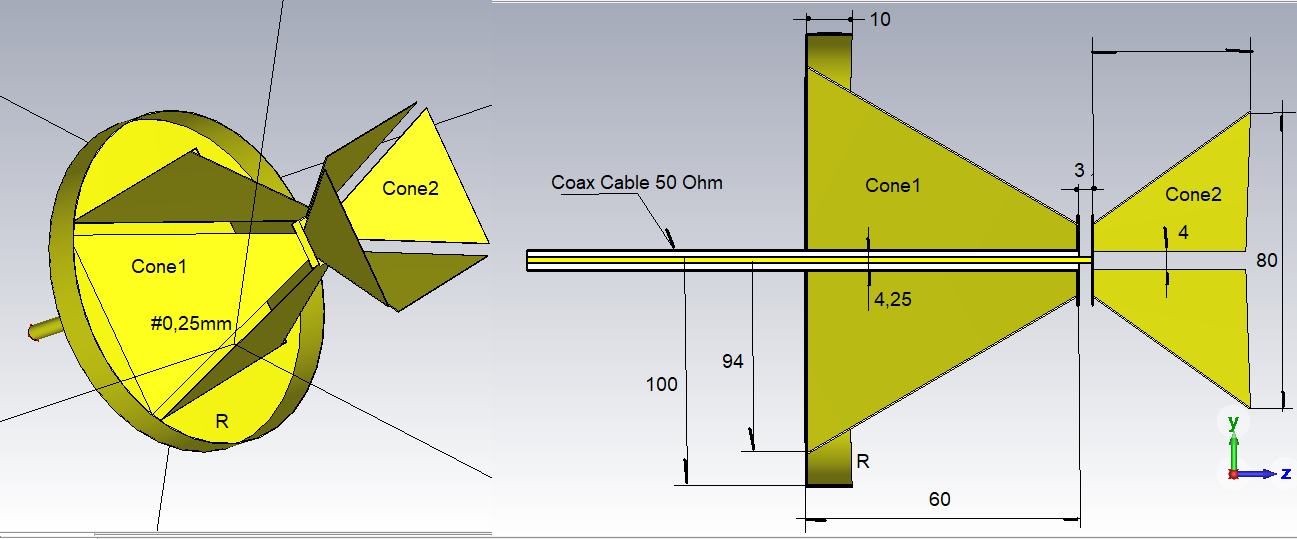

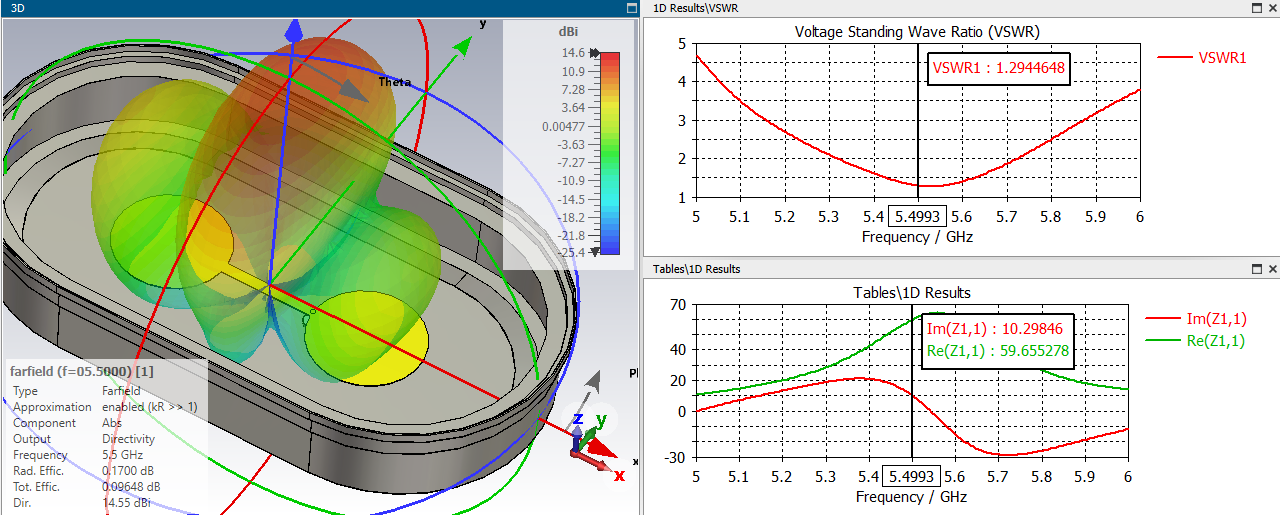

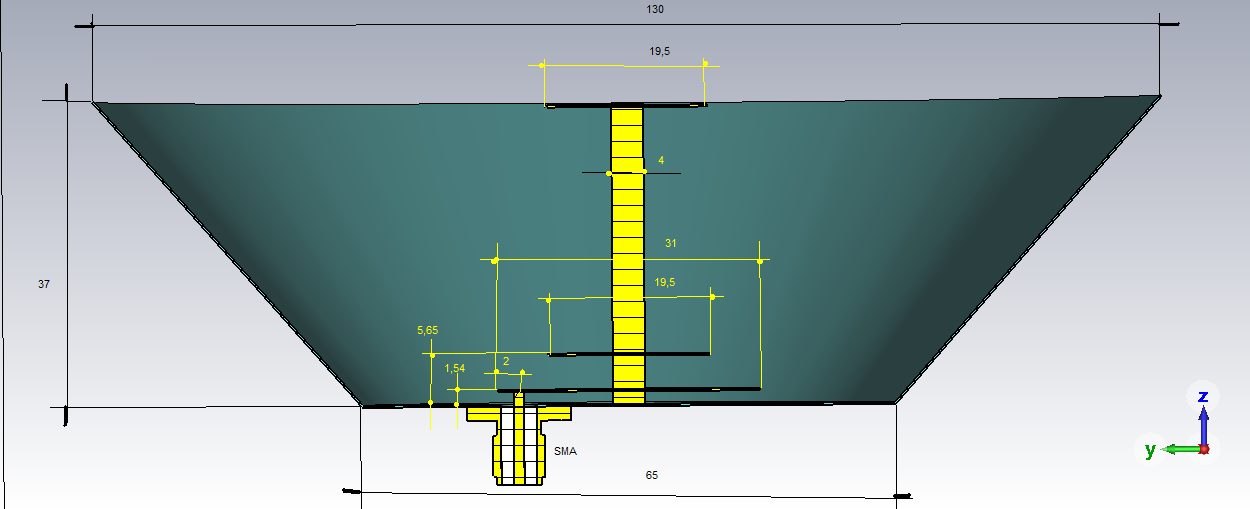

,,,an older of My BatWing antenna simulation and geometry...
-

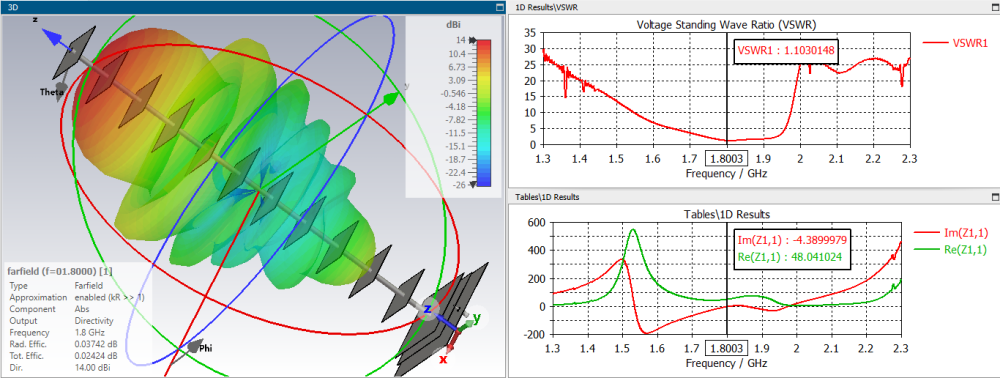

,,,another recovery after my website disappeared with Batwing antennas...
1 person likes this -
,,,an older idea of mine that was materialized but I can't find the images of this antenna anymore...
-

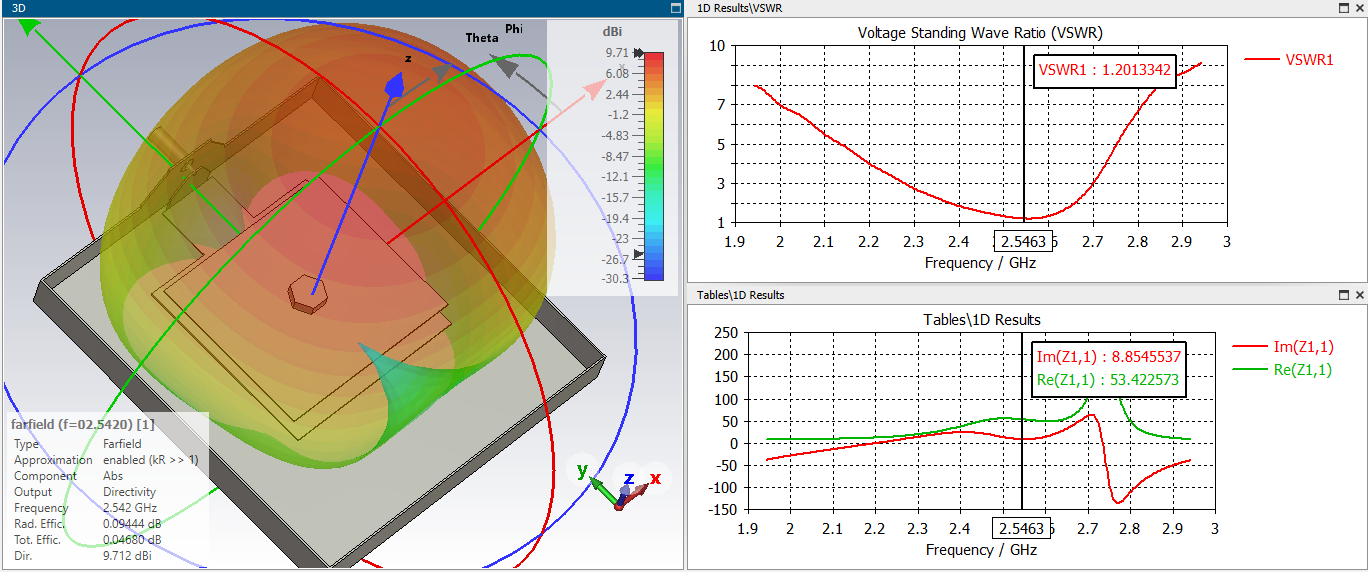

CST Studio Suite 2026 Electromagnetic Simulation Software Sharing
https://www.mr-wu.cn/cst-studio-suite-2026-free-download/#google_vignette
-

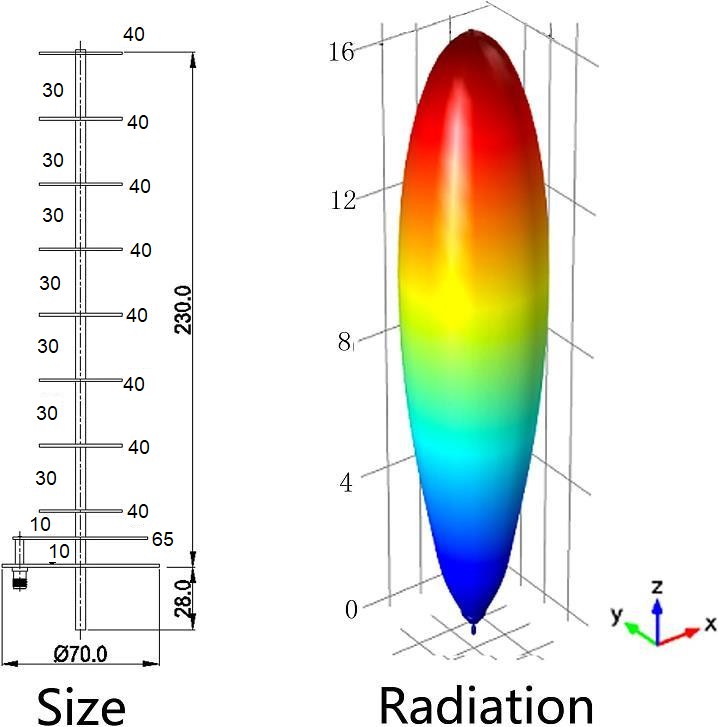

Does this suit you...??
-
-

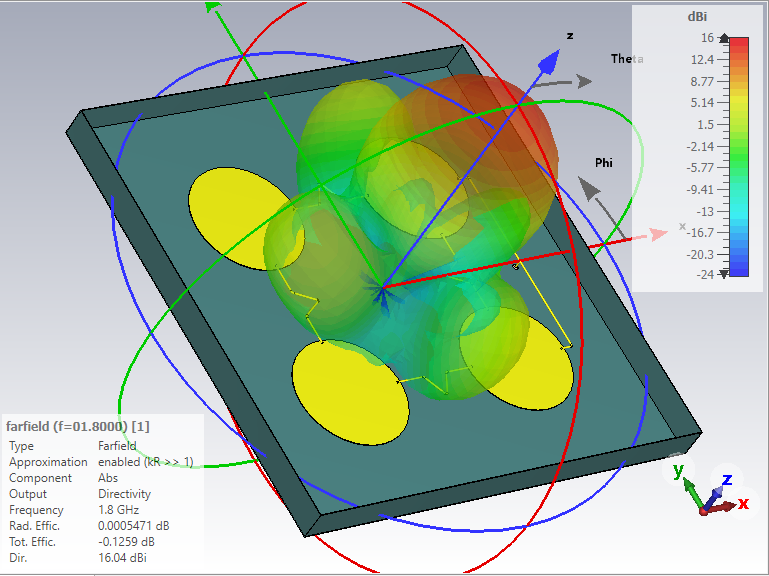

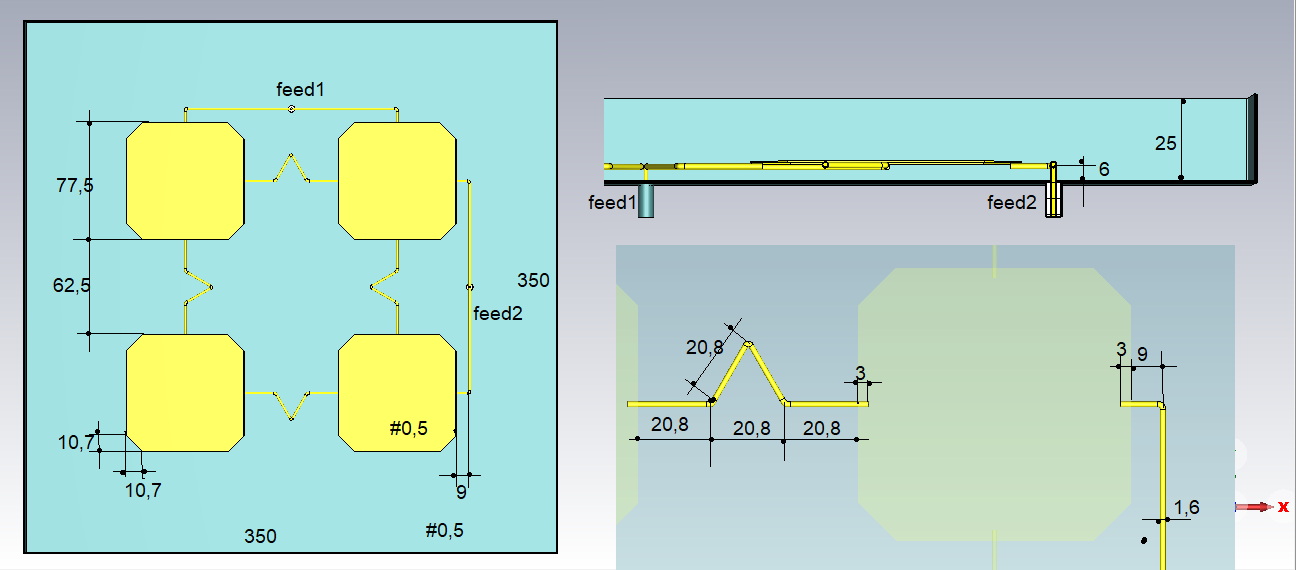

,,,and another version of mine with the Batwing antenna...
-

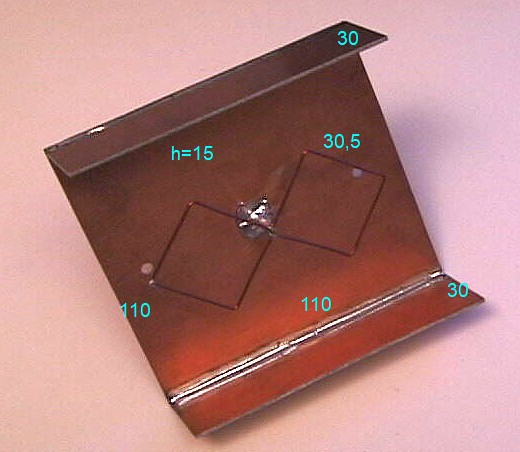

,,,an older round-batwing antenna that is quite profitable....
1 person likes this -
17 minutes ago, mitiche said:will it be better if so please give me the dimensions for band 40
i want to try it
1 person likes this -

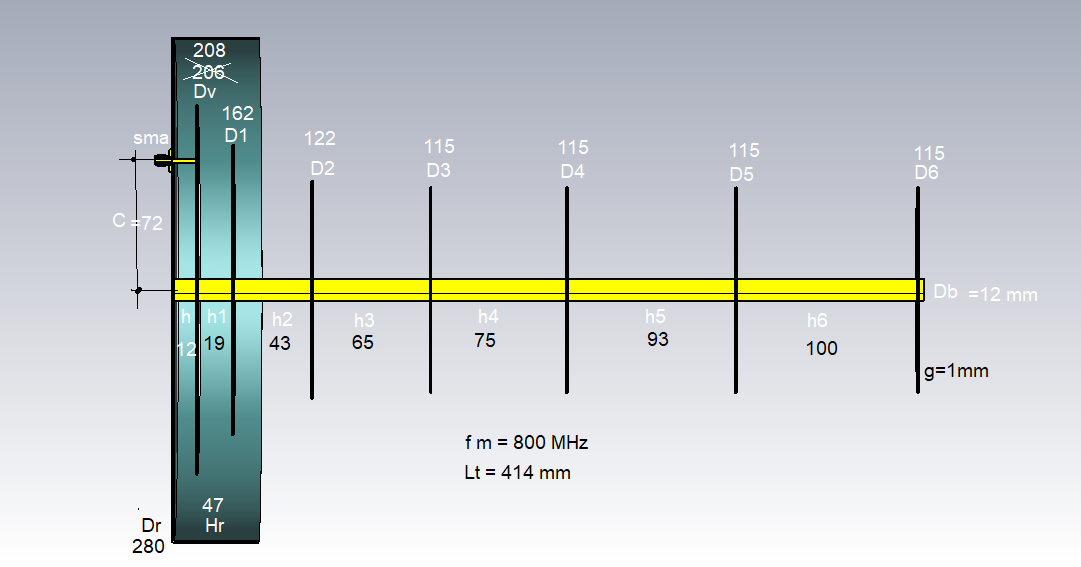

,,,yes,you can only do it with a single antenna with 3-7 elements...!!!
1 person likes this -
PS, MITICHE, I WOULD LIKE TO ASK YOU HOW DO YOU POST THE IMAGE ON THIS FORUM...???
1 person likes this -
It seems that this coaxial cable feeding position is optimal....
,,,you just have to try and be careful the coaxial cable does not make contact with the ground...!!!
-
,,,this is how the two antennas should be connected at 90 degrees polarization...
-
,,,non-conductive glue...!!!
1 person likes this -

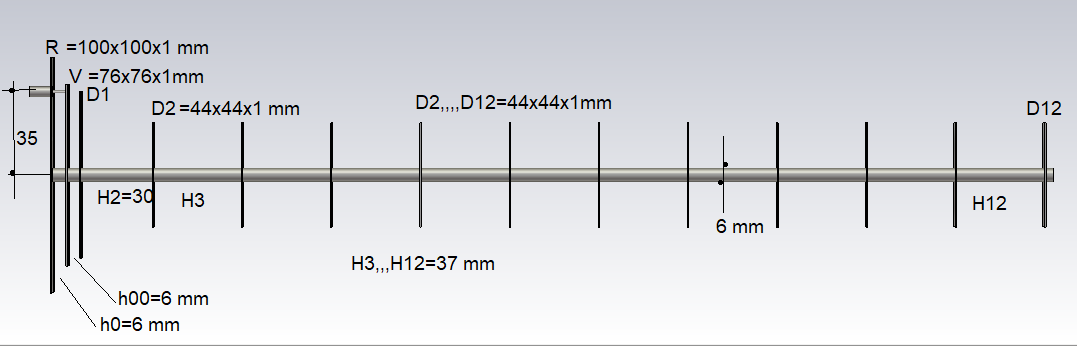

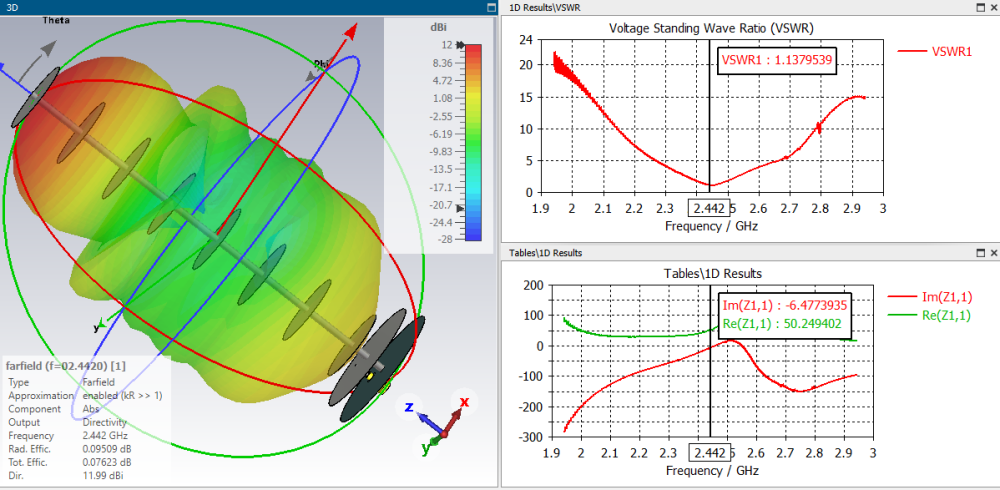

,,,and this is one of my older versions...
I managed to save this image...
1 person likes this -

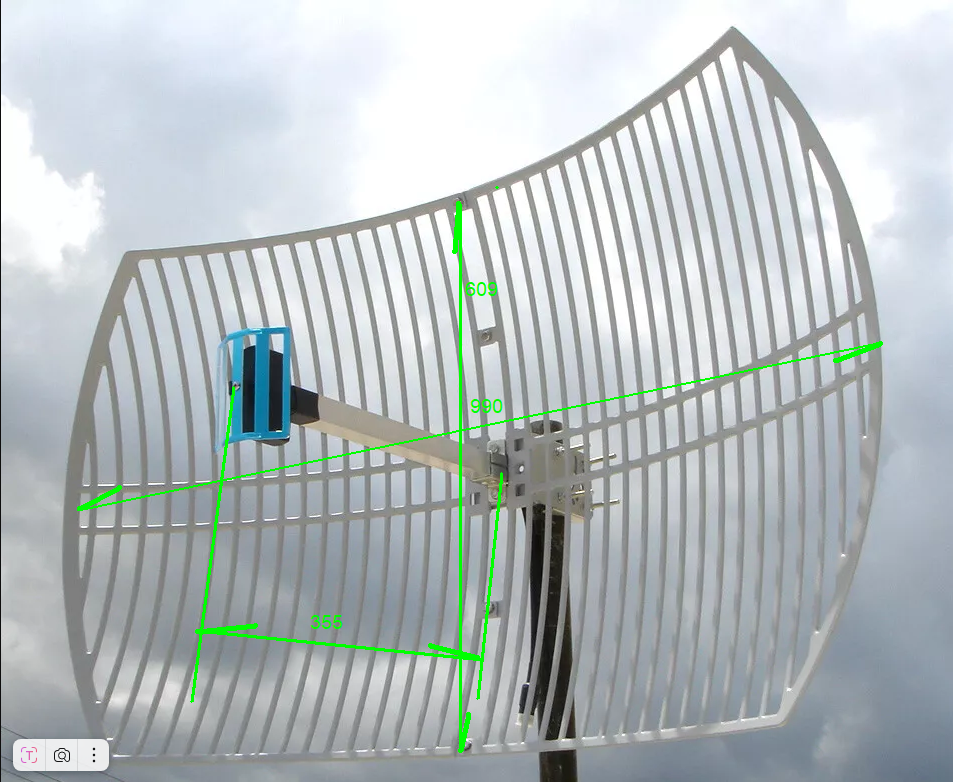

This antenna is an indispensable tool for the military, special services and organizations operating in extreme conditions where maximum reliability and efficiency of wireless communication is required.
-
,,,and yet it would seem like it's called Petra9 Anteks...
1 person likes this -

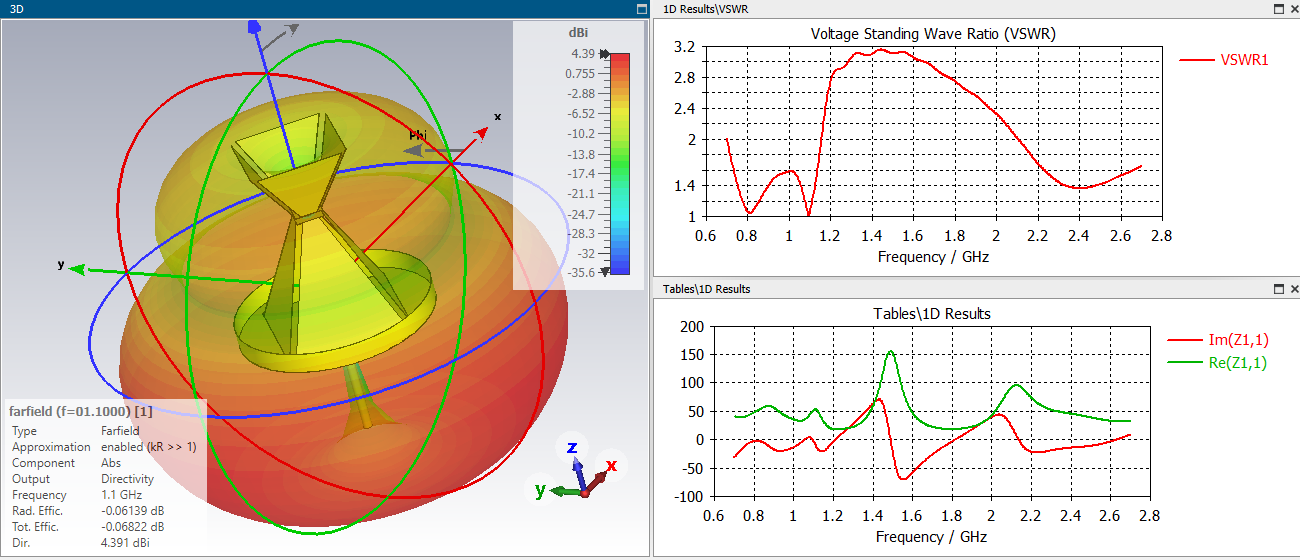

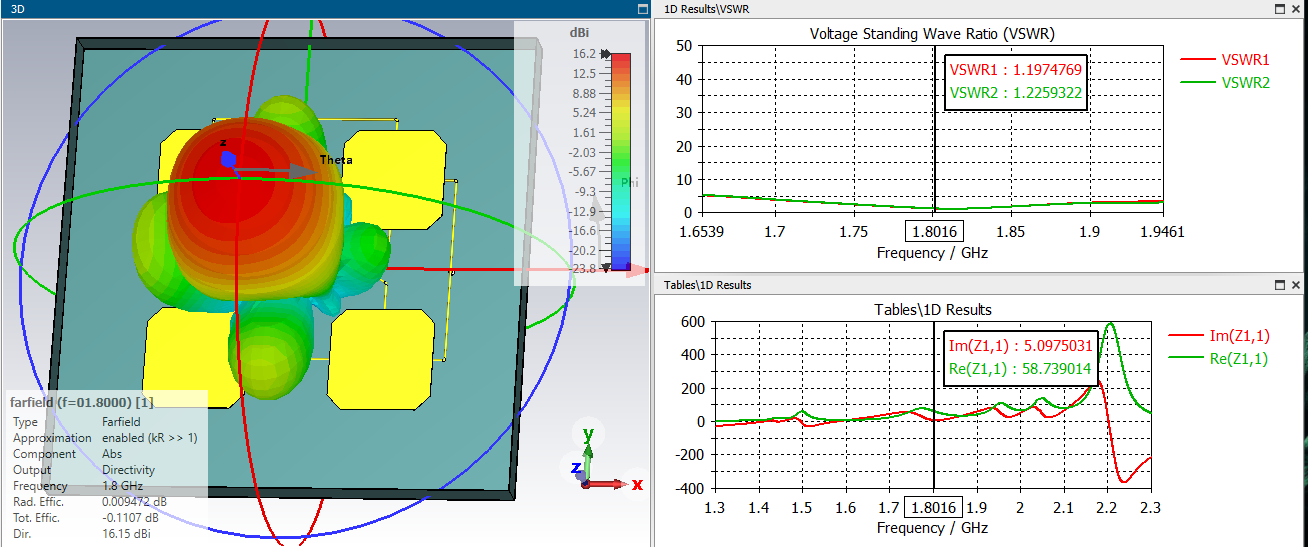

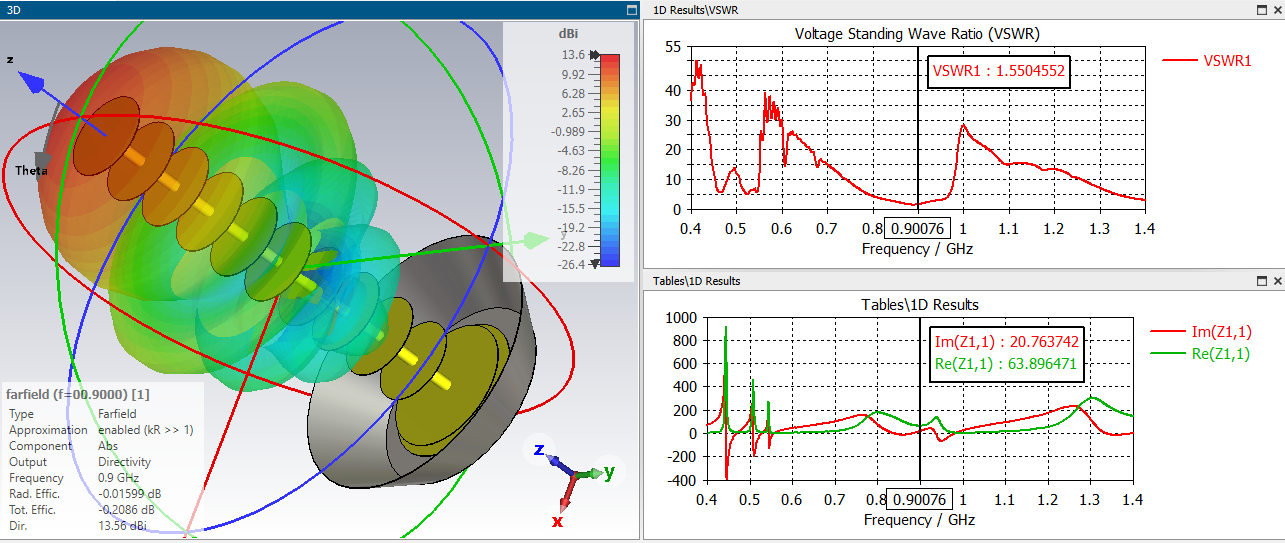

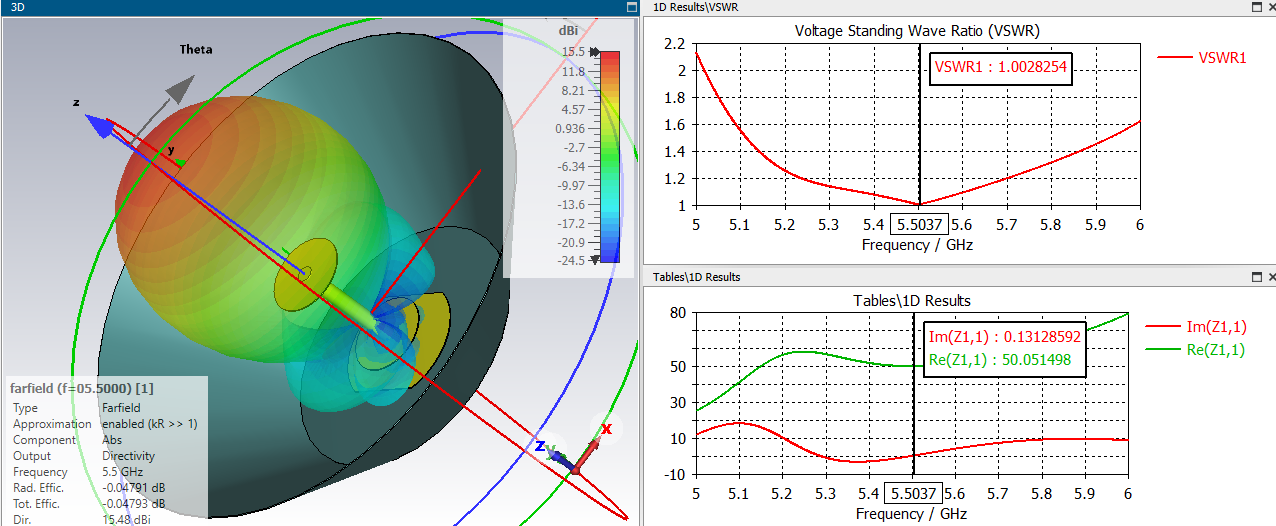

,,,and one of my latest achievements..

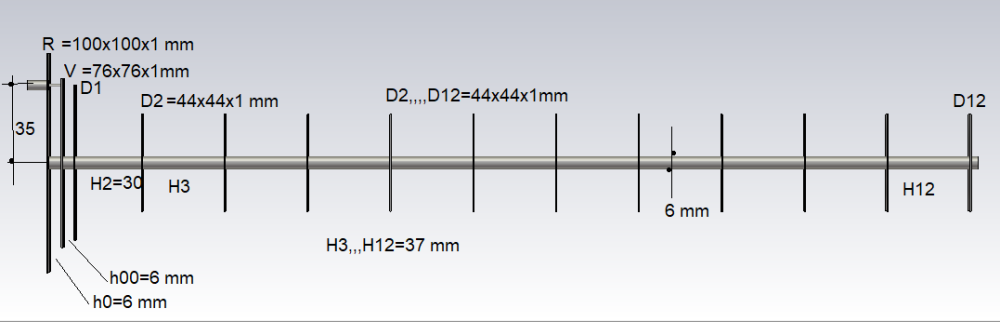

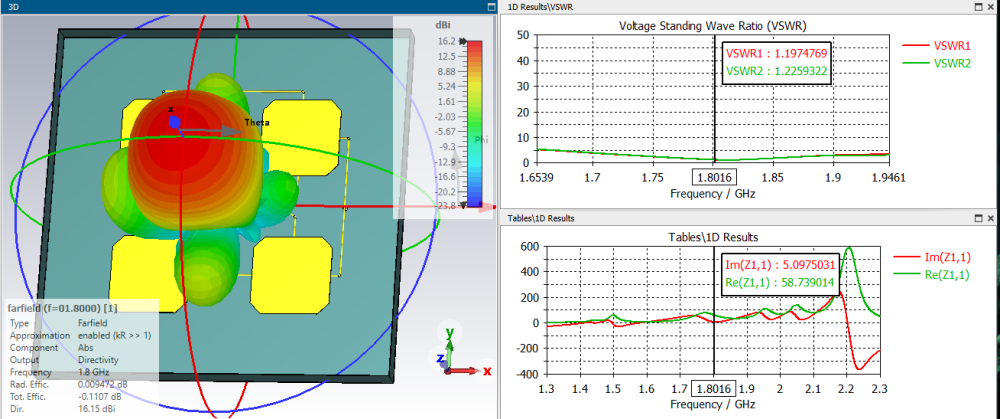

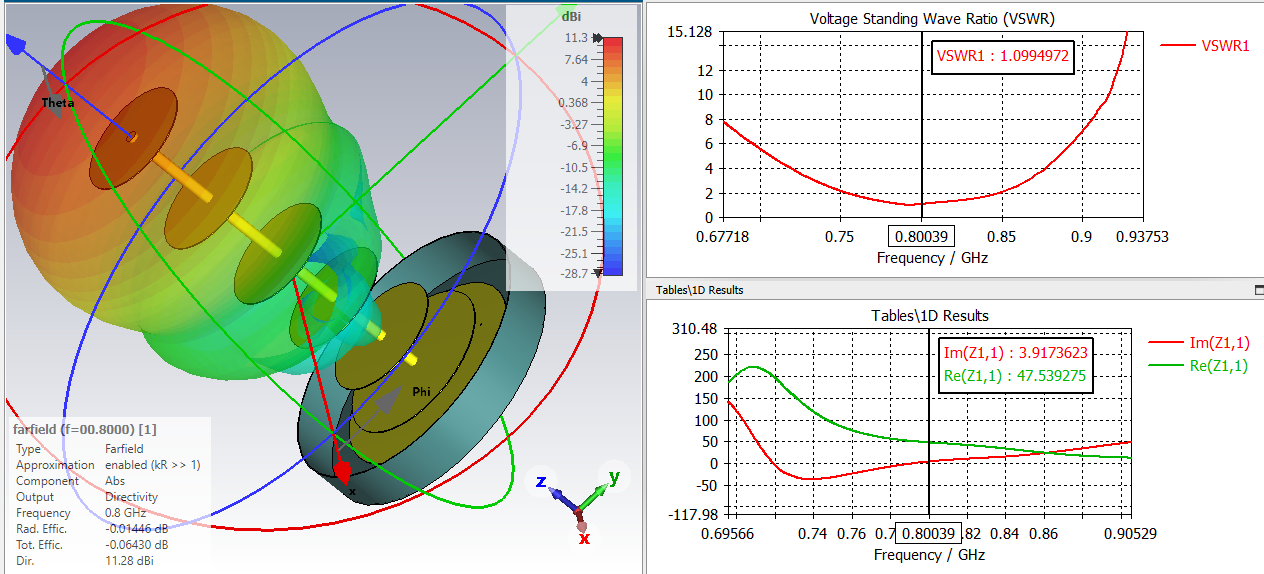

,,,another one...
1 person likes this -

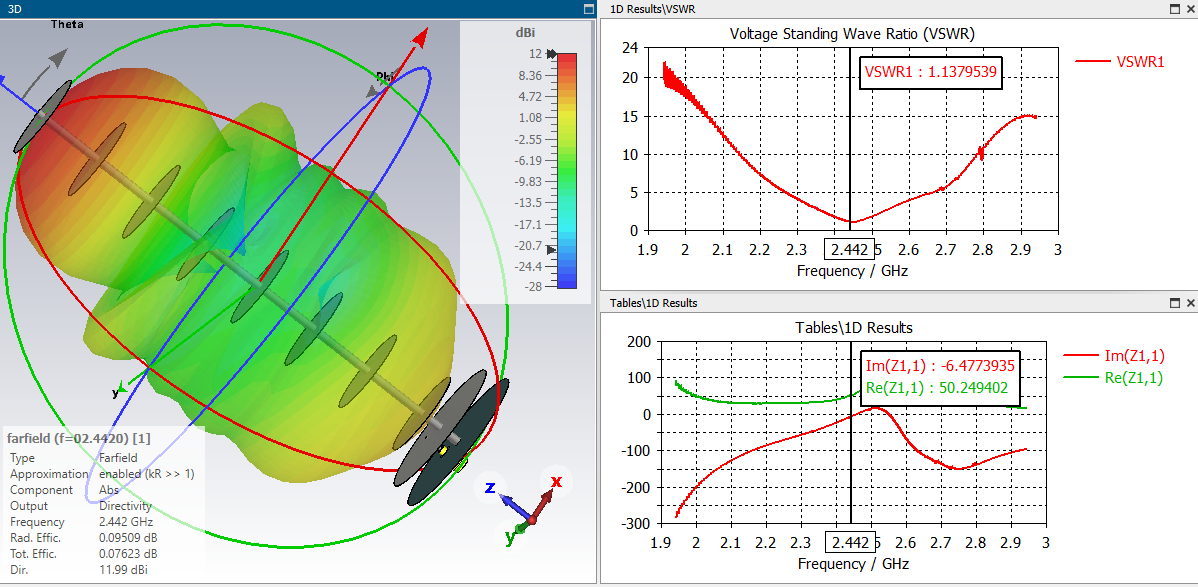

,,,and I'll start with a Batwing antenna perfected by me...
-
,,,another topic with batwing antenna on this forum...
-
-
,,,I don't know why (maybe some bad-people) but my TOPIC with the Batwing antennas from about a month ago disappeared...!!!
This means that either the link contains an error or the TOPIC has been deleted.
I found a site that contains almost all my work with THIS antennas on my site....
https://mungfali.com/post/457F60B0FEC7269D6E56E536F7231BF8BABC8490
,,,and I think I'll resume my simulations with all the Batwing antennas here...!!!!
,I also ask all users of this forum to contribute to the re-establishment of the post with Batwing antennas...!!!
With thanks...!!!!
-

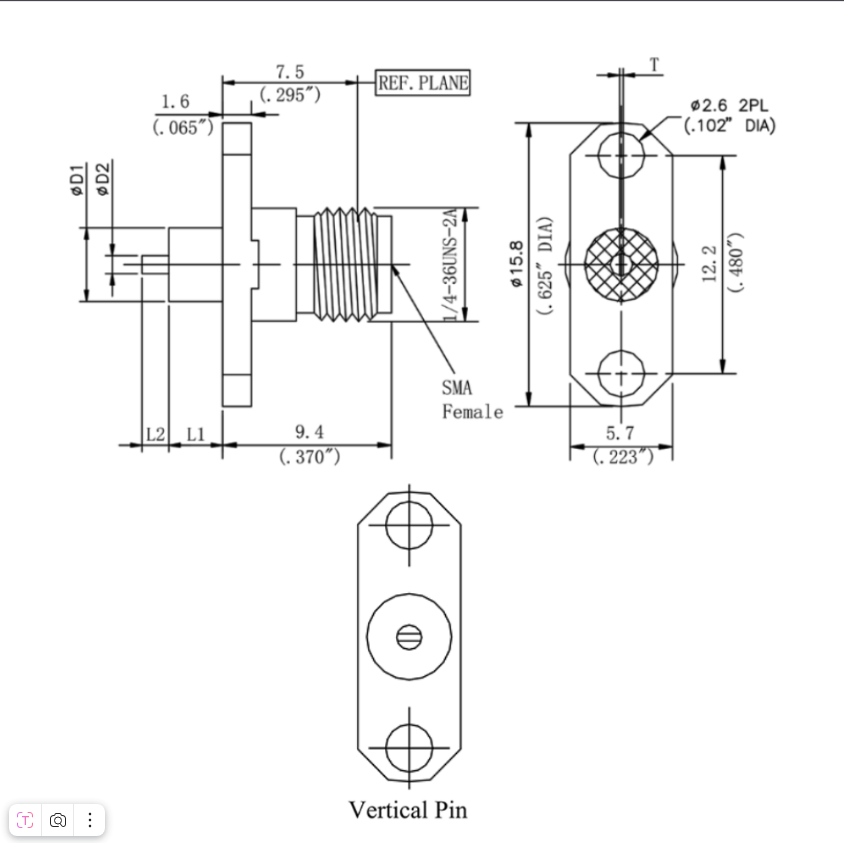

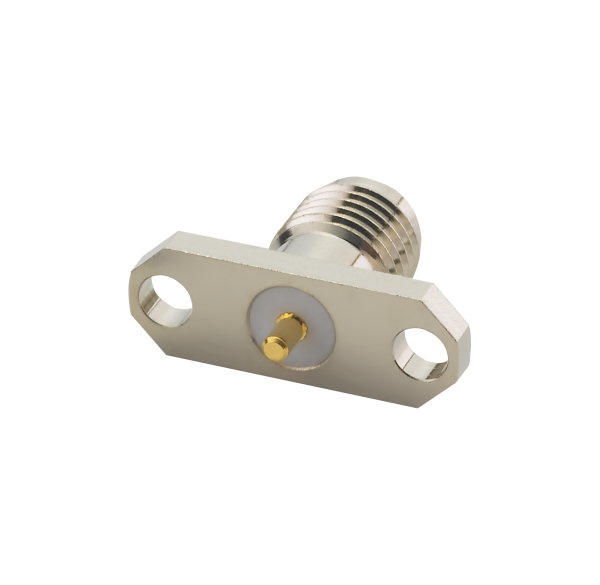

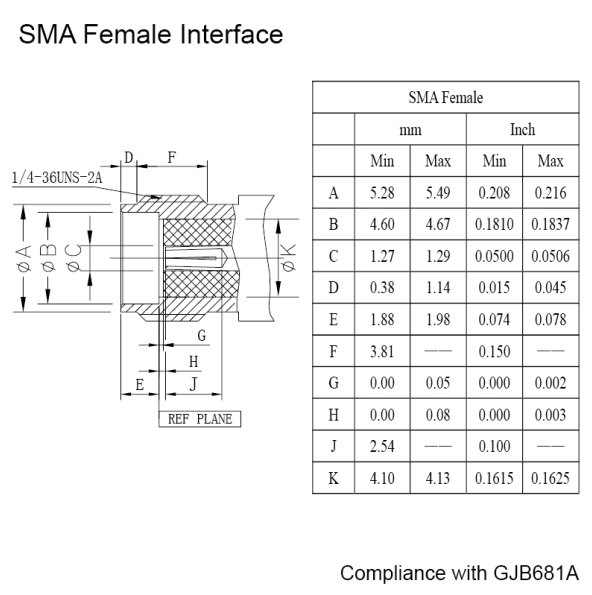

Your problem is with these two connections....
All LTE BS have X-pol polarization, according to open sources.
Explain why the receiving MIMO antennas are still all set to X- polarization.So I think you should have two connectors on the antenna.
in Antennas for 2.4 GHz band
Posted
Try to bring them onto the same axis of symmetry...
