In need of a 3G 900mhz Dish Feed antenna

Hi. I'm here once again in need of your help. Need a small and simple 900mhz (890-960mhz) 3G Dish feed to test signal from the last Mobile broadband provider in My área. @Admin if You see this post i'm the guy You designed that 1900mhz Feed for. It worked great (managed to get -47dbm from -75dbm) but the internet connection at the cell tower seems to not be the Best so i need to try with the last provider in My área and see if it Suits My needs. Again thanks for the help.

Share this post


Link to post
Share on other sites

,,,for which the antenna is in three variants ... ???

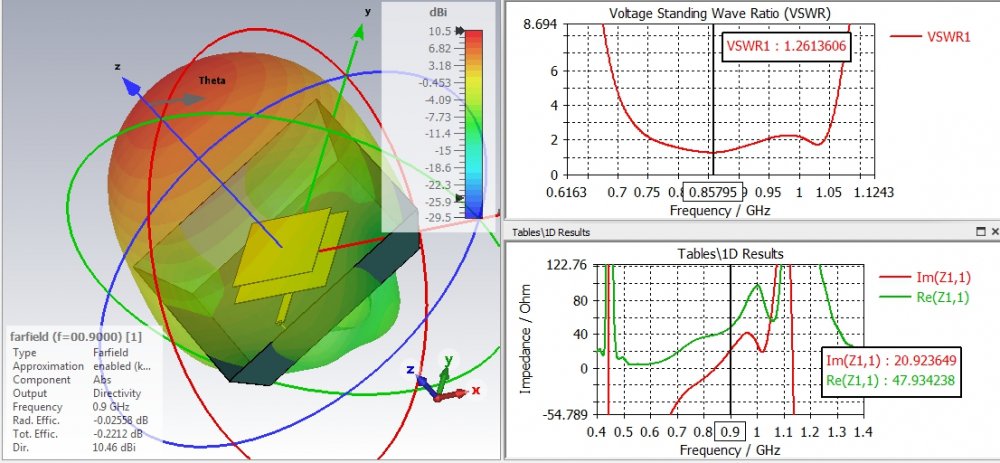

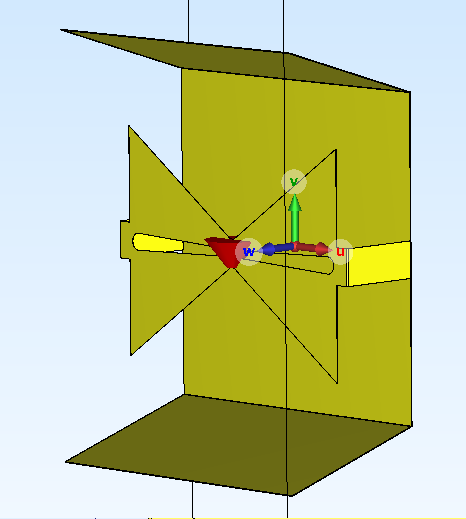

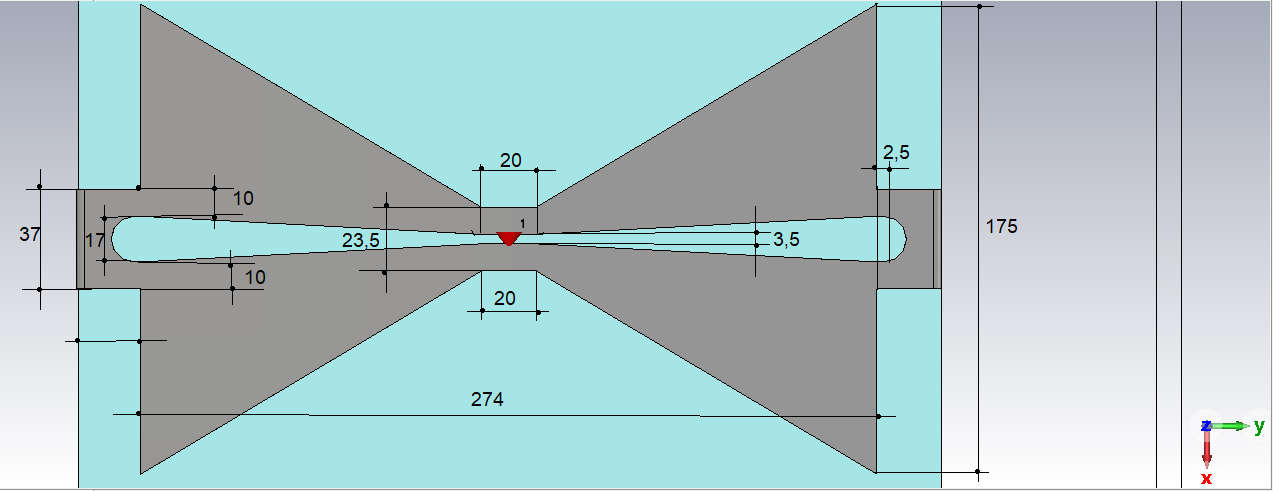

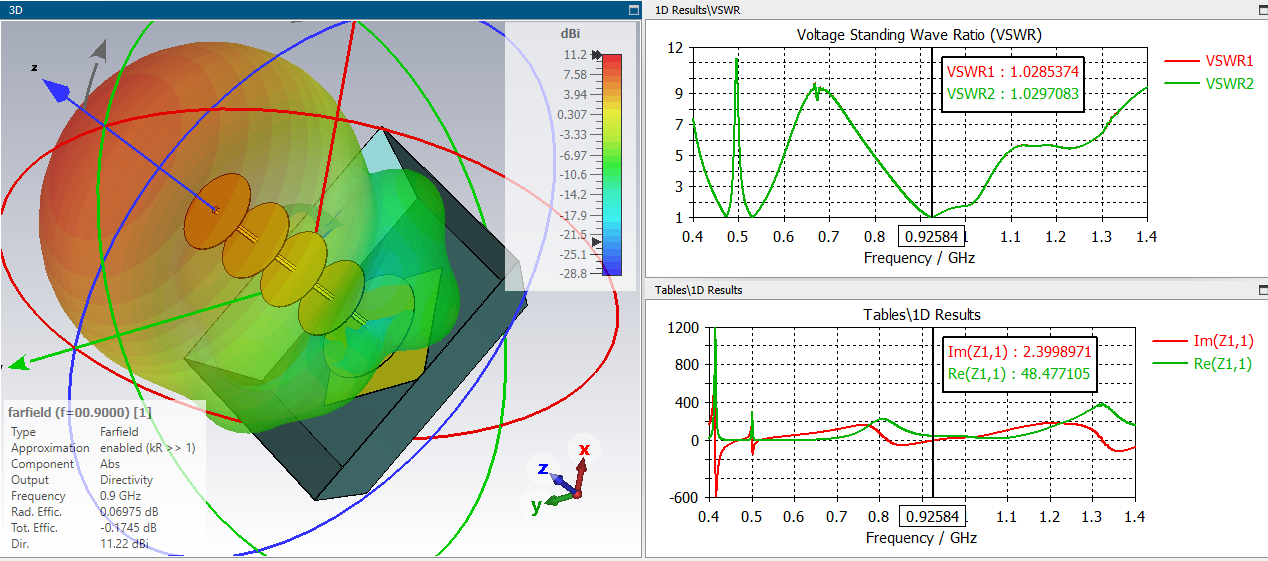

,,,first variant...





900 MHz.cst

3 people like this

Share this post


Link to post
Share on other sites

,,, it is still possible ... !!!!


4 people like this

Share this post


Link to post
Share on other sites
On 24.01.2022 at 09:04, Admin said:

,,,для чего антенна в трех вариантах...???

,,,первый вариант...





900 МГц.cst

Does this antenna work with a 75 ohm cable?

Share this post


Link to post
Share on other sites
On 1/26/2022 at 1:06 PM, Admin said:

,,, it is still possible ... !!!!


Hello!

I'm sorry, and the size of this antenna can I know?

Share this post


Link to post
Share on other sites

I don't have this file anymore...I have to restart the simulation from the beginning...!!!

Share this post


Link to post
Share on other sites
29 minutes ago, Admin said:

I don't have this file anymore...I have to restart the simulation from the beginning...!!!

:(

Share this post


Link to post
Share on other sites

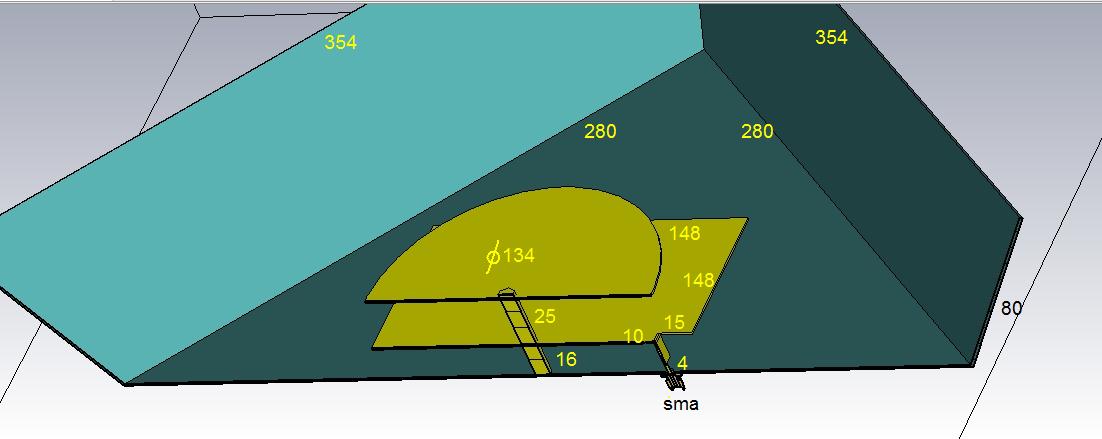

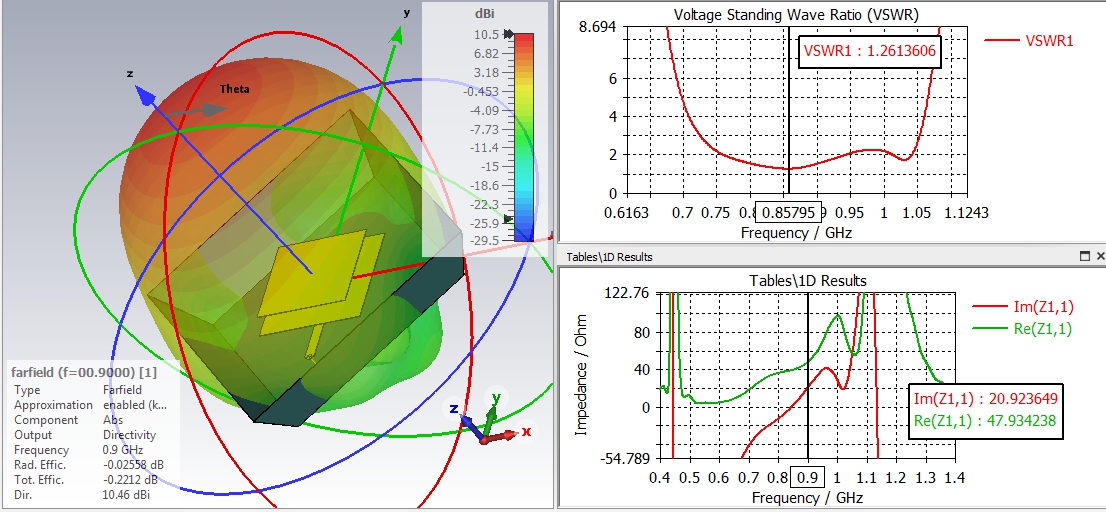

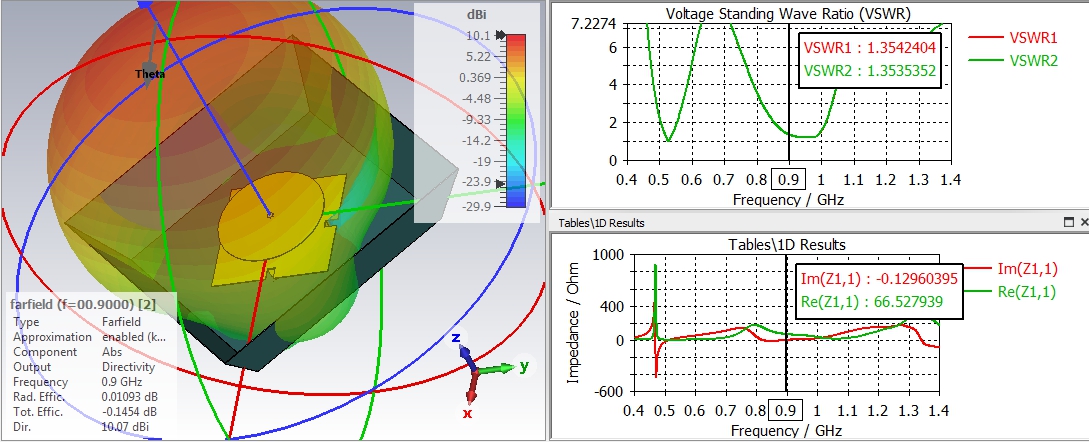

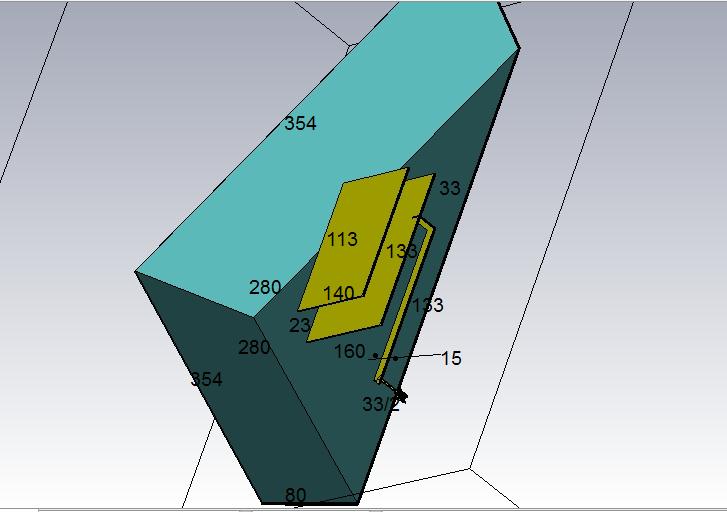

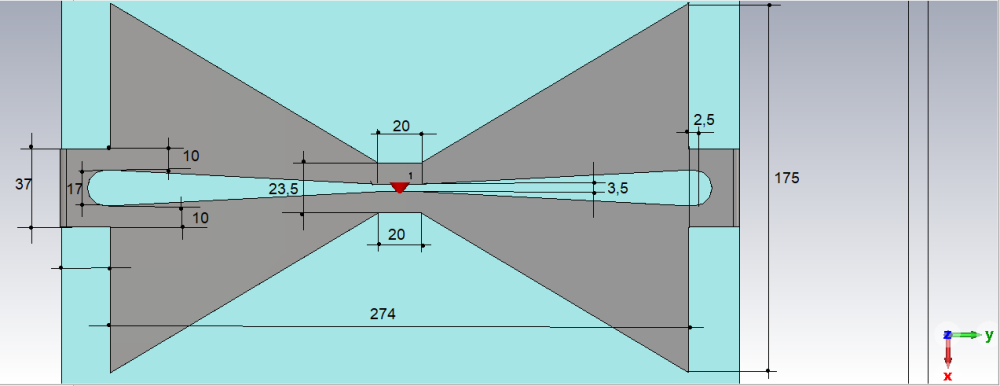

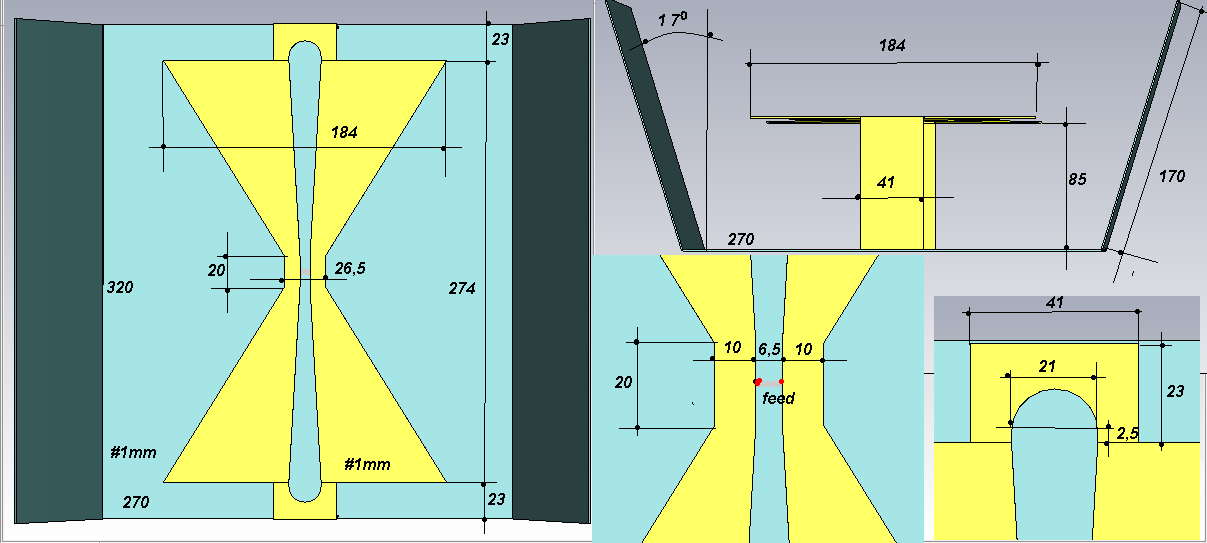

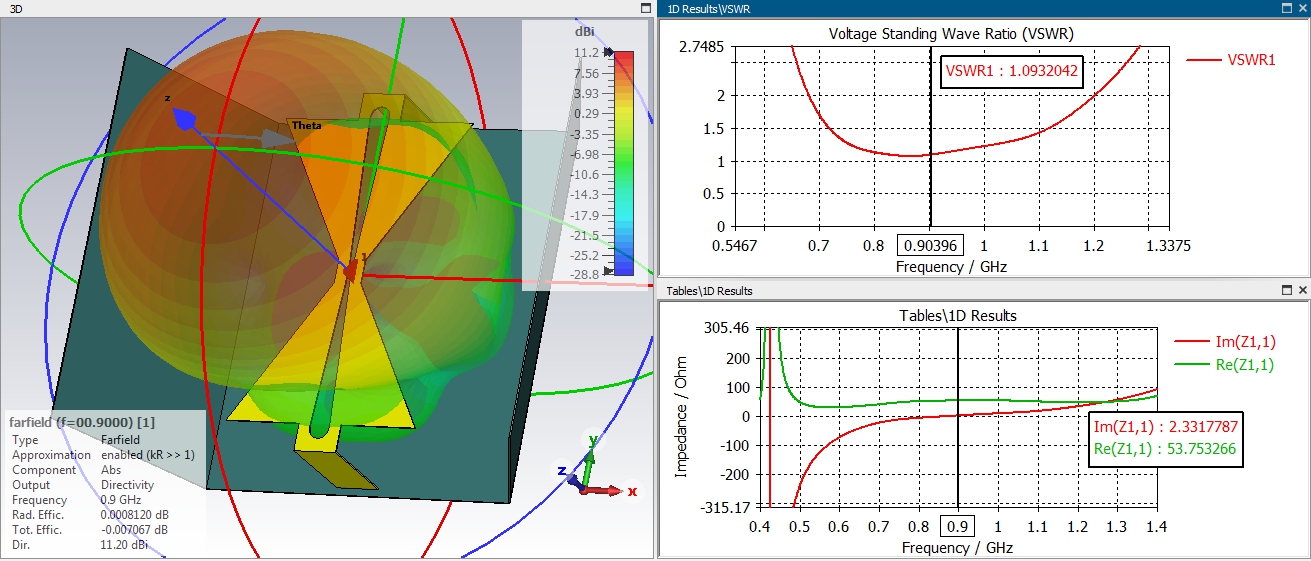

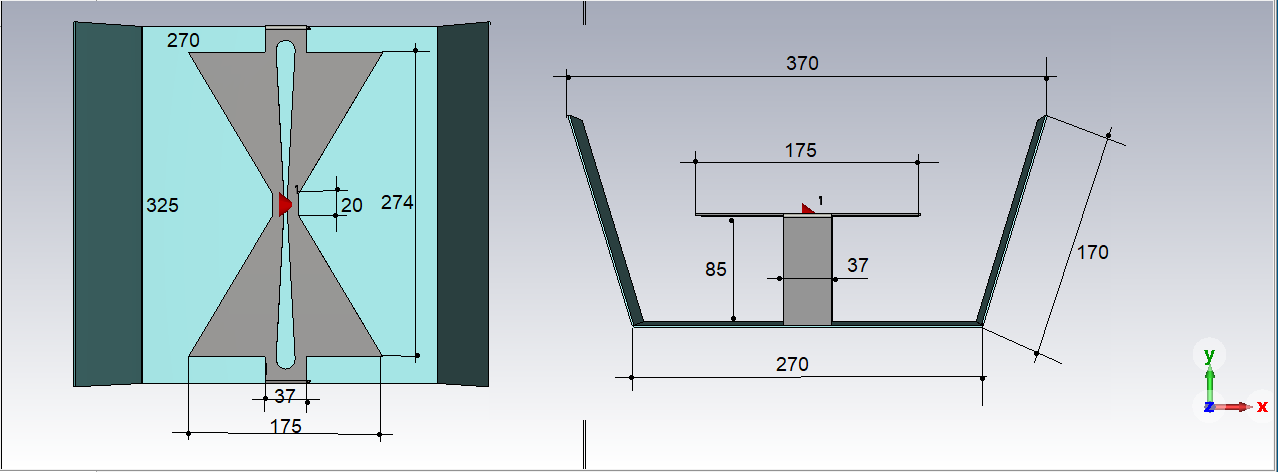

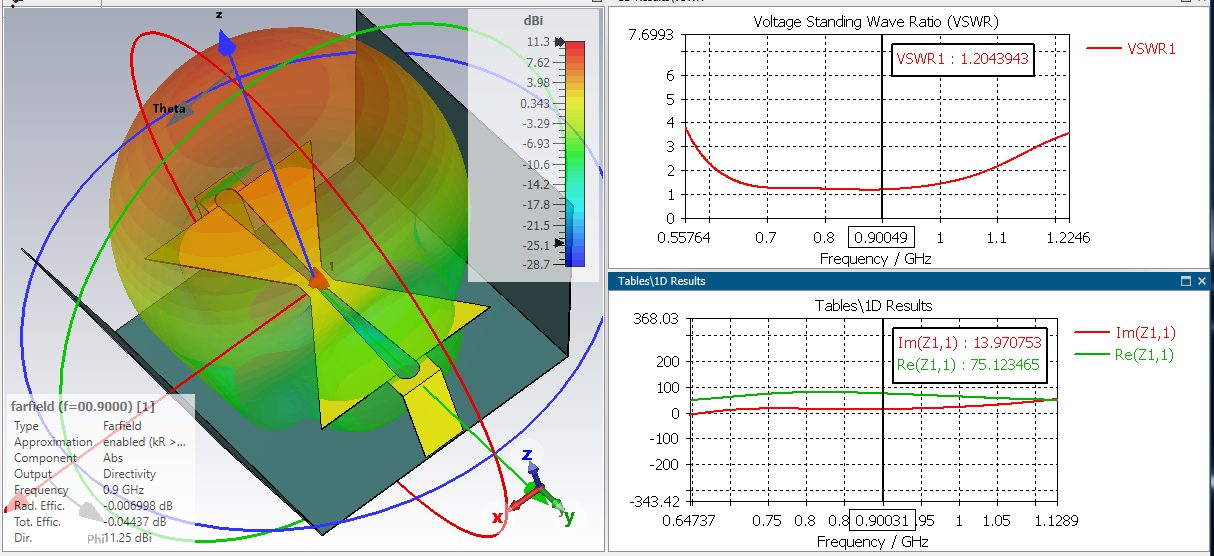

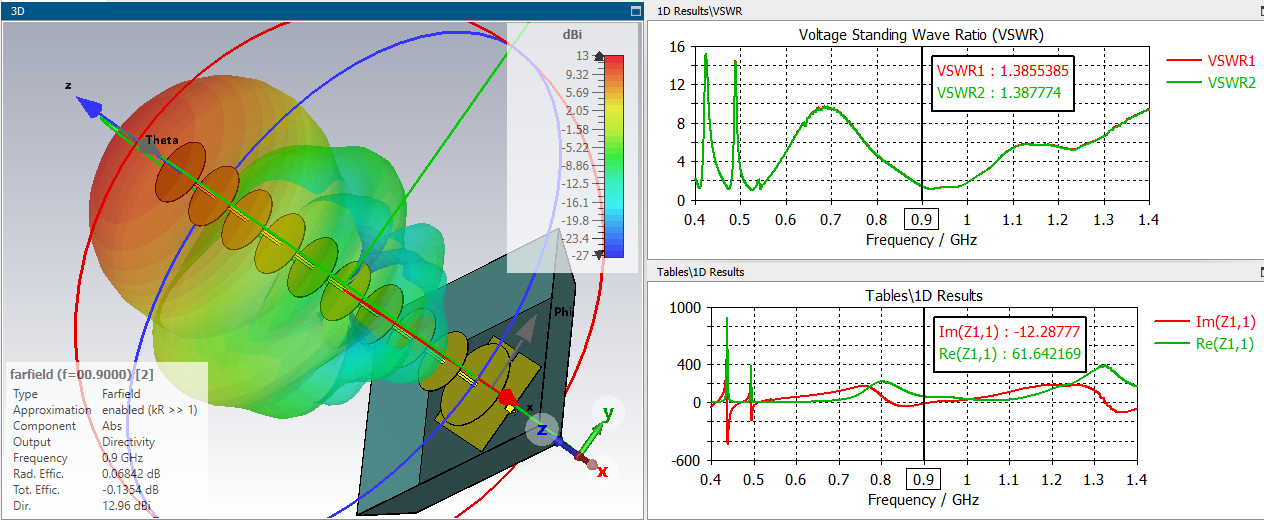

,,, this would be the simulation and dimensions...




2 people like this

Share this post


Link to post
Share on other sites
On 17.07.2023 at 9:21 PM, Admin said:

,,, это была бы симуляция и размеры...




good morning! which dimensions should i change to connect 75 om cable?

Share this post


Link to post
Share on other sites

you are faster than me))

to connect 75omh cable feed gap must be wider!

also change some dimensions))




Share this post


Link to post
Share on other sites

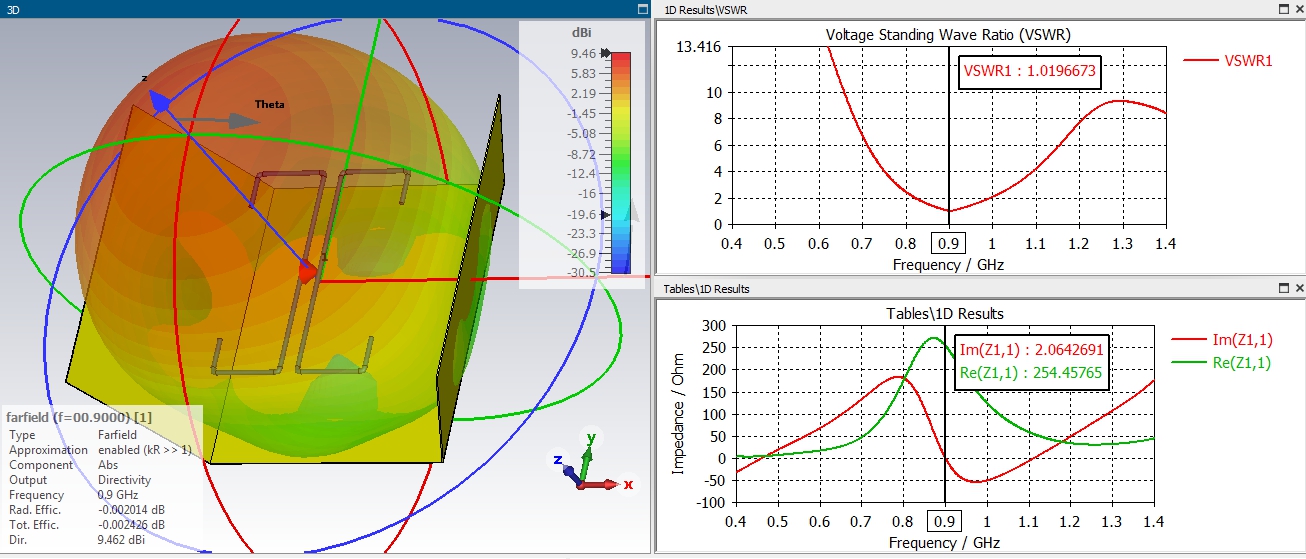

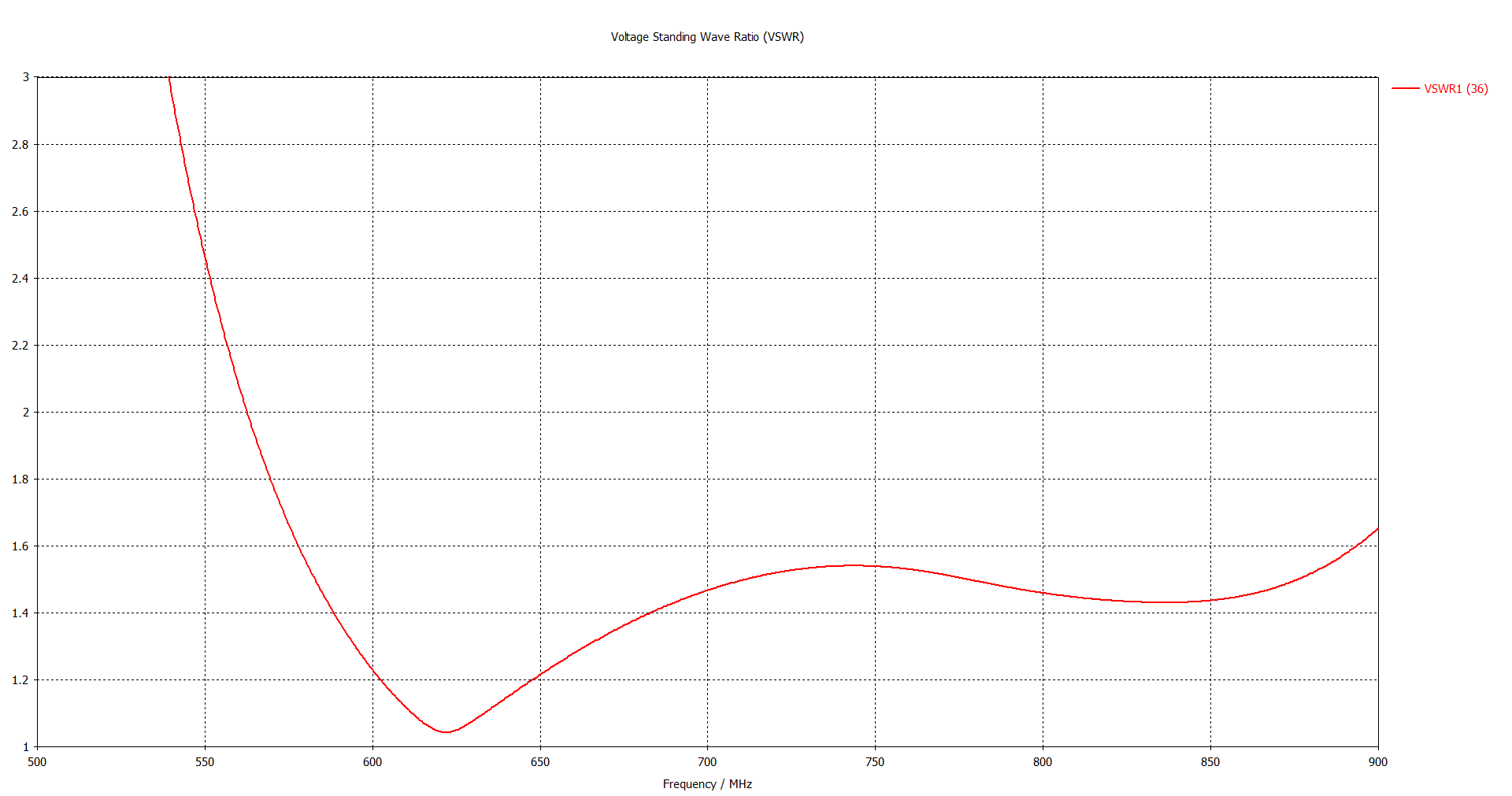

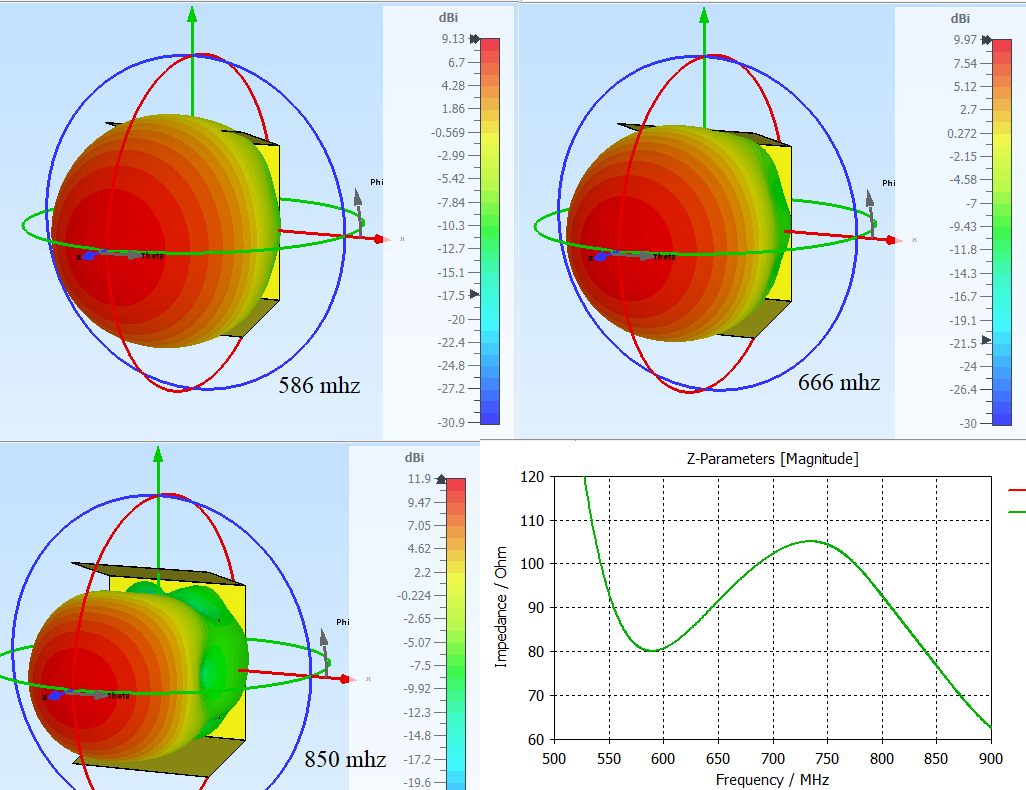

,,,but for you, the resonance frequency is 625 MHz and the impedance is crazy...!!!!

Share this post


Link to post
Share on other sites

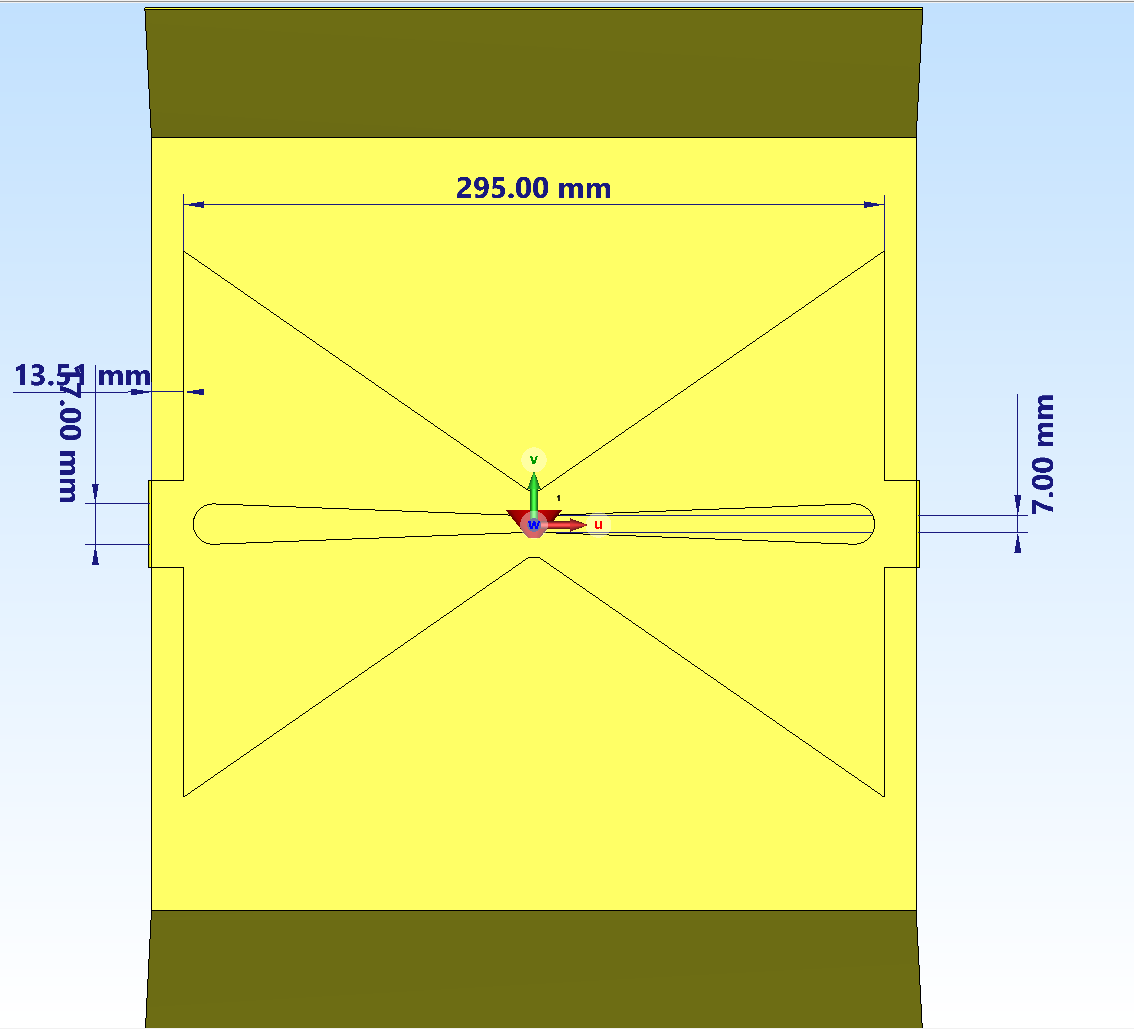

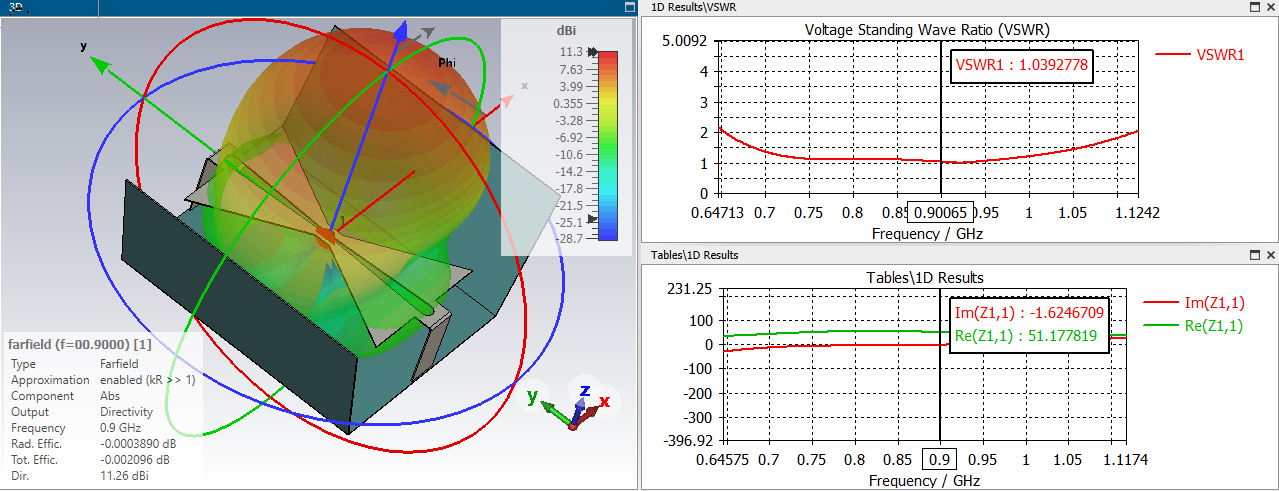

I think it can be recalculated for 900MHz. Then also the size will be a little smaller.

1 person likes this

Share this post


Link to post
Share on other sites
