Simple Patch Antenna

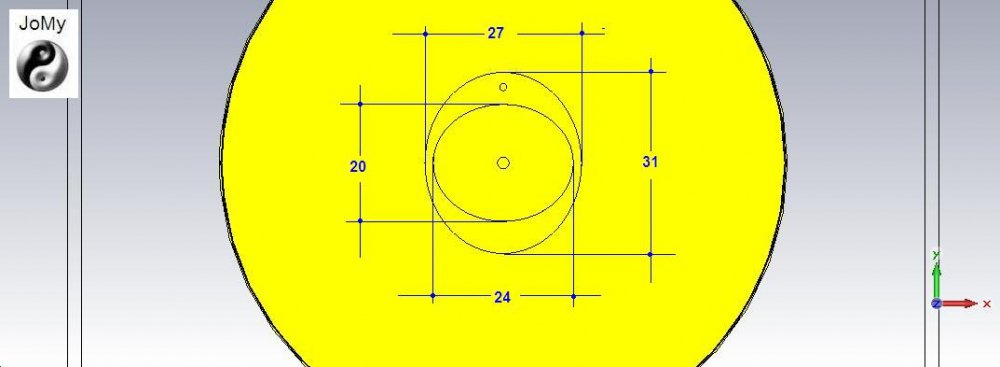

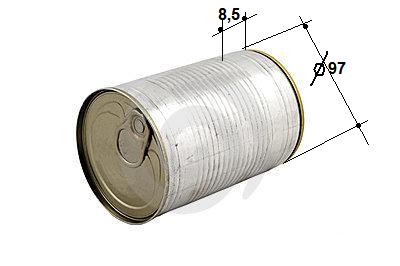

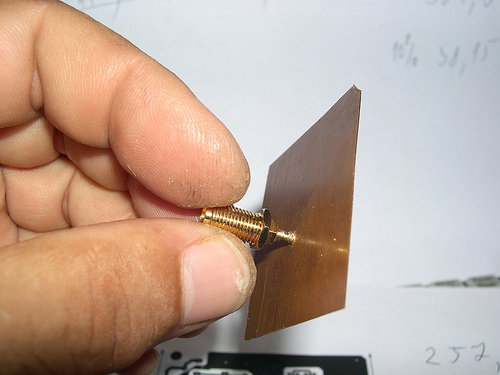

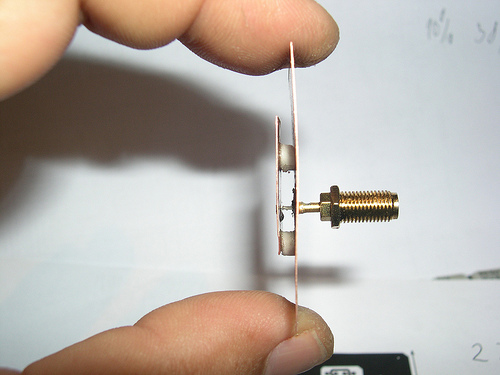

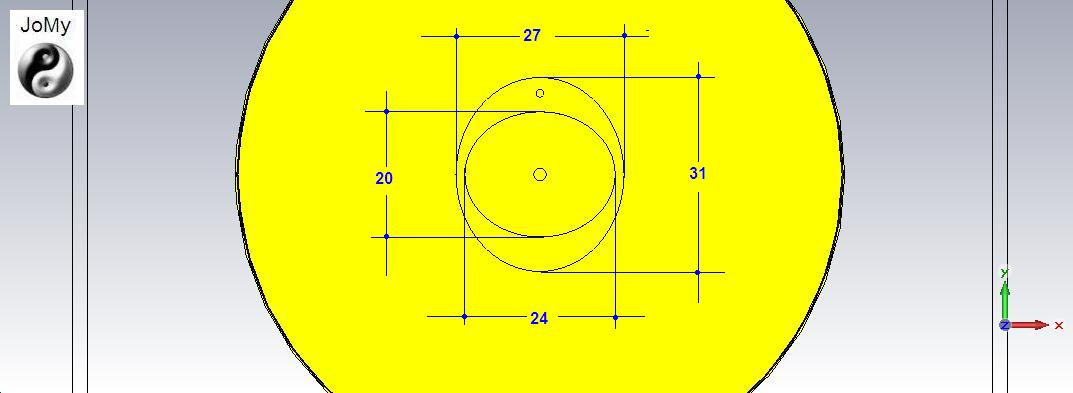

Bottom of a circular metal box can build a simple antenna with an elliptical radiator...









Share this post


Link to post
Share on other sites

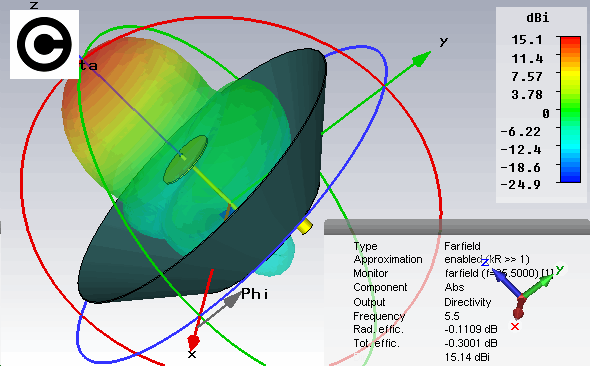

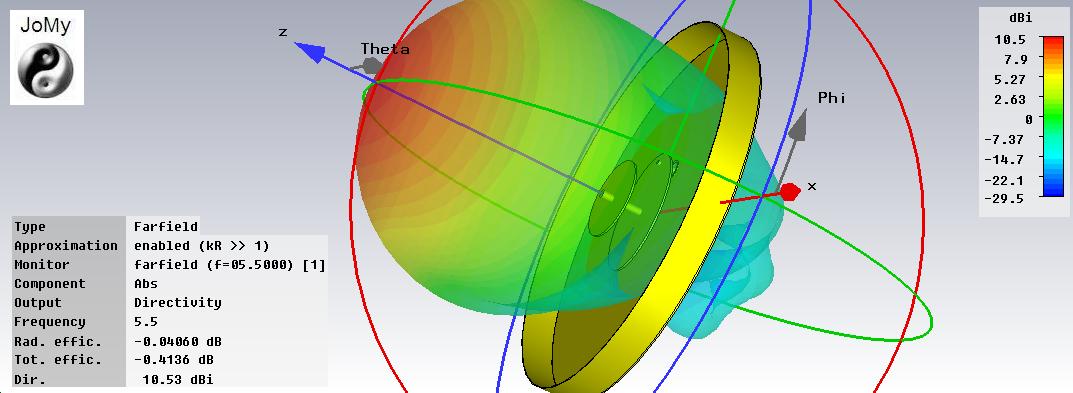

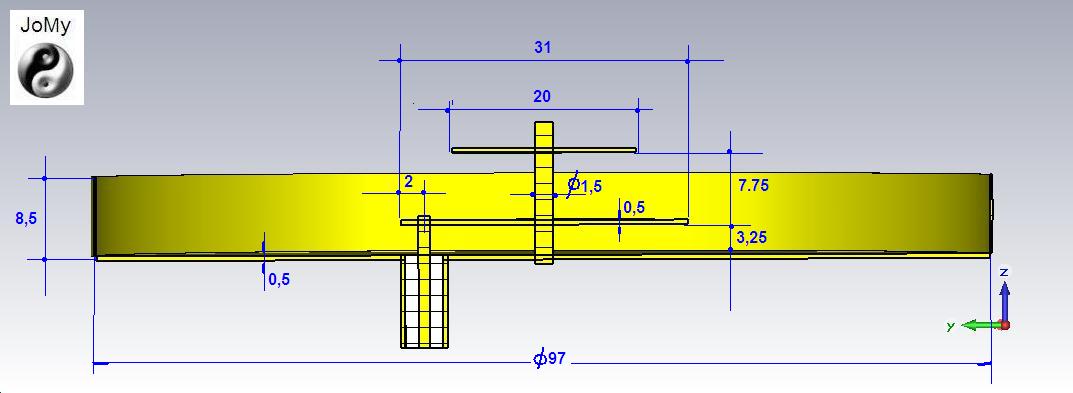

 And this patch antenna with  a parasitic director placed in a conical reflector...





2 people like this

Share this post


Link to post
Share on other sites

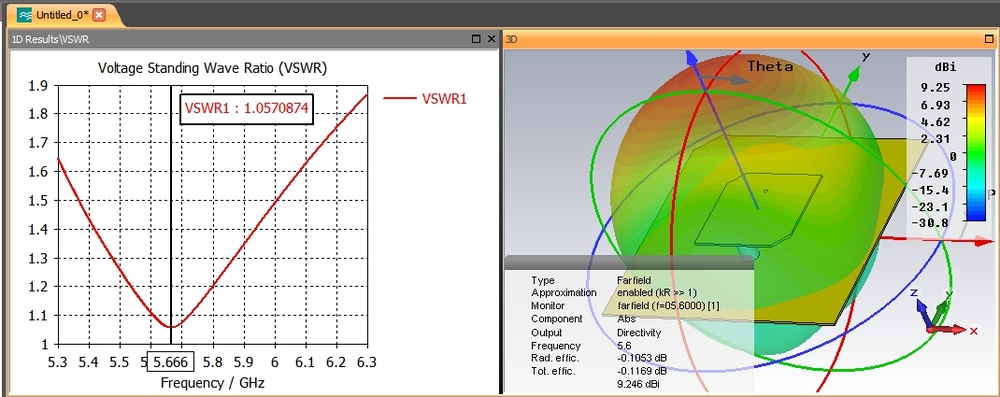

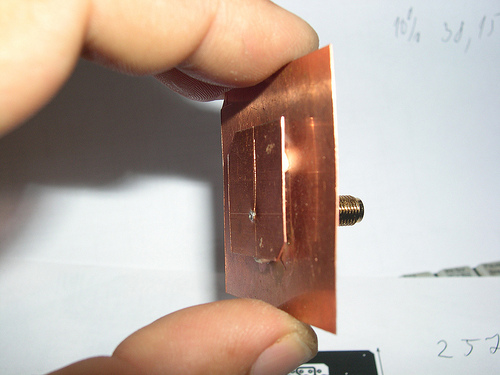

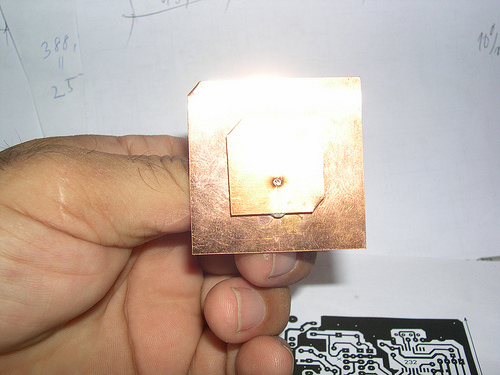

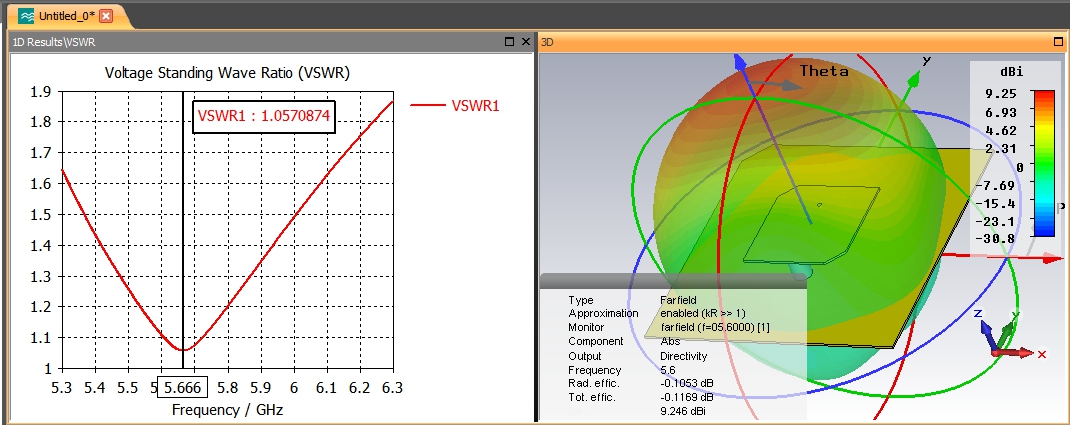

Even the best omnidirectional receiver antenna can't match a good directional for range and bounced signal rejection. This right-hand circularly polarized (RHCP) directional 5.66GHz antenna has a forward gain of ~9dBi, a beamwidth of 60 degrees and superb front to back reception ratio . It is easy to point in the general direction of the transmitter and reduces multipathing reflected signals from the rear and sides.








2 people like this

Share this post


Link to post
Share on other sites

hi teacher jomy   please give me  the mesurement of  patch ellip   antenna  with conical reflector  it looks  interessting .

Share this post


Link to post
Share on other sites

,,,,dimensions of the truncated-cone reflector :D=136mm , d=40mm, H=27mm

1 person likes this

Share this post


Link to post
Share on other sites
On 10/8/2016 at 10:08 AM, Admin said:

 And this patch antenna with  a parasitic director placed in a conical reflector...





This is very nice for me I have too many parts now not enough antenna. Could I please have the dimensions for this one? Will adding more elements increase dbi?

Share this post


Link to post
Share on other sites
2 hours ago, Samsterino2.4 said:

This is very nice for me I have too many parts now not enough antenna. Could I please have the dimensions for this one? Will adding more elements increase dbi?

The distance between reflector and vibrator, and between vibrator and director? I just want to stick a bester on it and do a test.

Share this post


Link to post
Share on other sites

wait ,,,!!!

I'll do a simulation with the Bester antenna...!!

2 people like this

Share this post


Link to post
Share on other sites
On 12/11/2020 at 2:57 AM, Admin said:

wait ,,,!!!

I'll do a simulation with the Bester antenna...!!



On 12/11/2020 at 2:57 AM, Admin said:

wait ,,,!!!

I'll do a simulation with the Bester antenna...!!

Did you ever finish the simulation for this boss?

Share this post


Link to post
Share on other sites

,,,okay,I will try it today...!!!

Share this post


Link to post
Share on other sites
