Simulation of antenna in CST Microwave

143 posts in this topic

,,, send to me, the file * cst...!!!

Share this post


Link to post
Share on other sites

I think it's possible....


Share this post


Link to post
Share on other sites
On 2/21/2021 at 1:27 PM, erossutrisno said:

What changes should I make to the antenna? (mechanically) when my simulation results are slightly higher off from the center of frequency. thanks.

antenna should have X , Y size incremented (width and length) Frecuency of results divide by Wanted frecuency...that ratio is Increment of x y size

Share this post


Link to post
Share on other sites

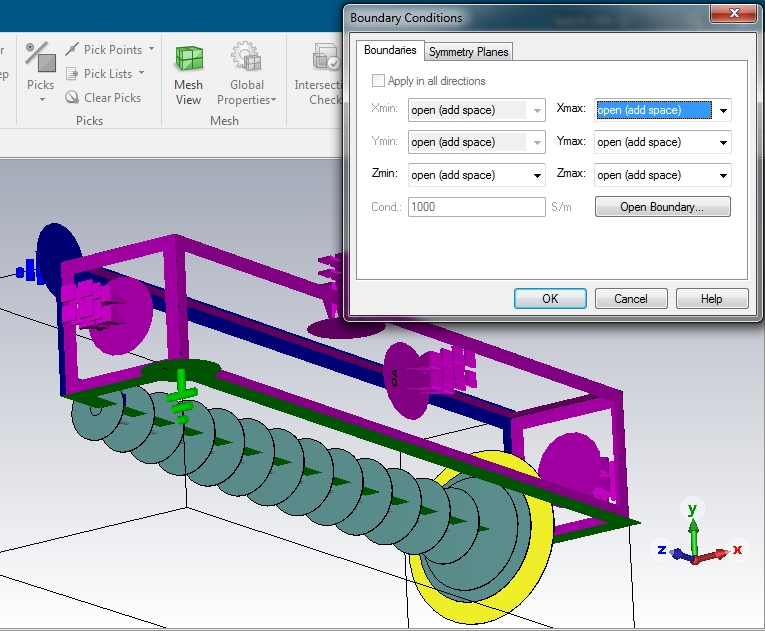

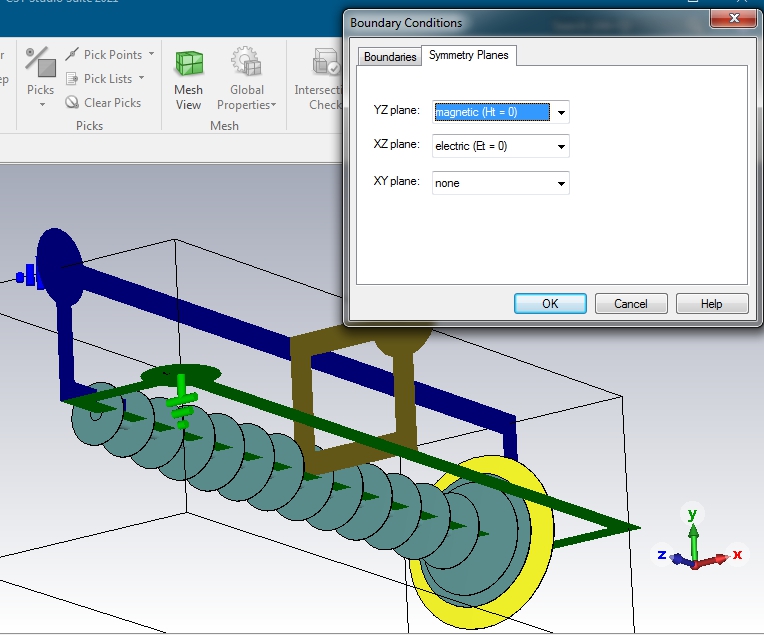

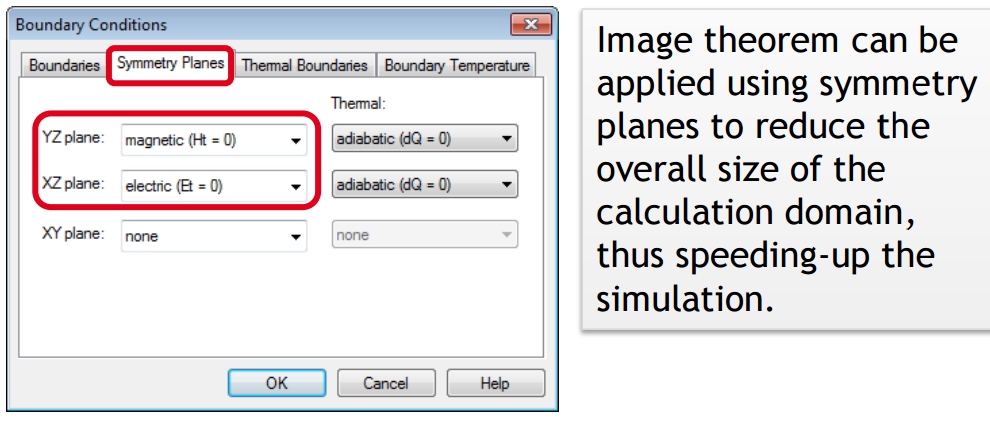

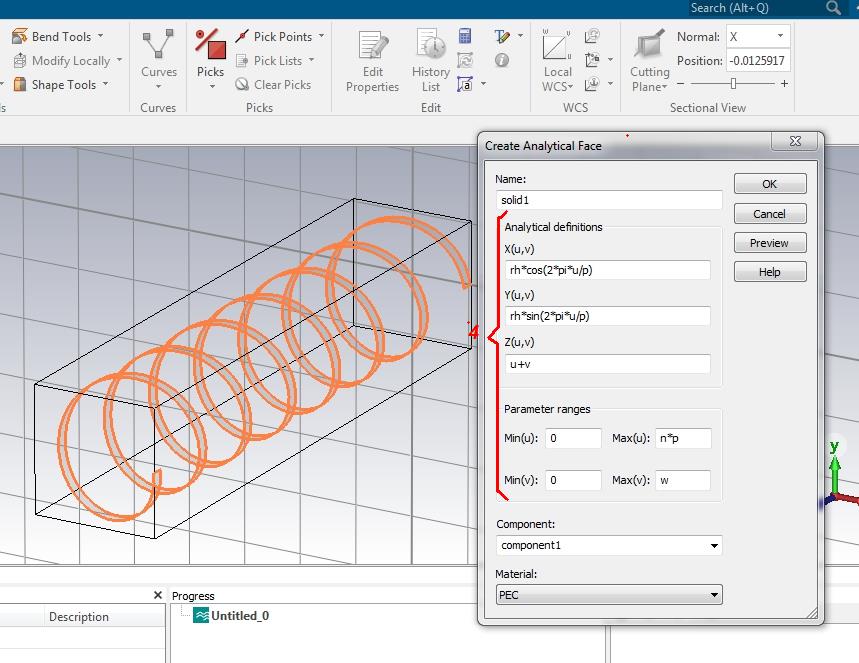

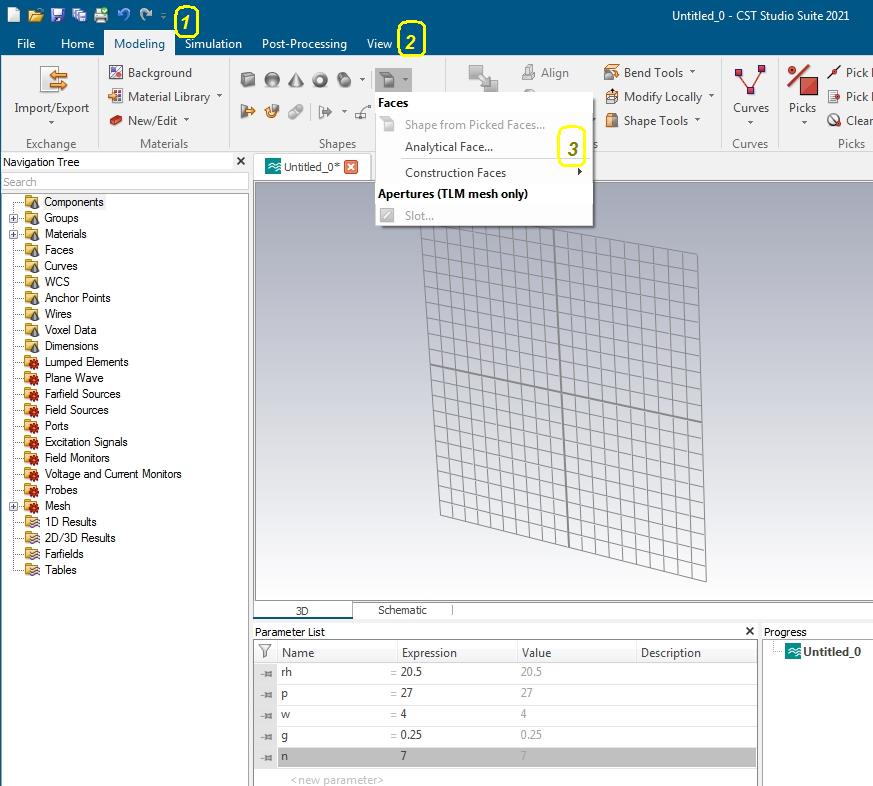

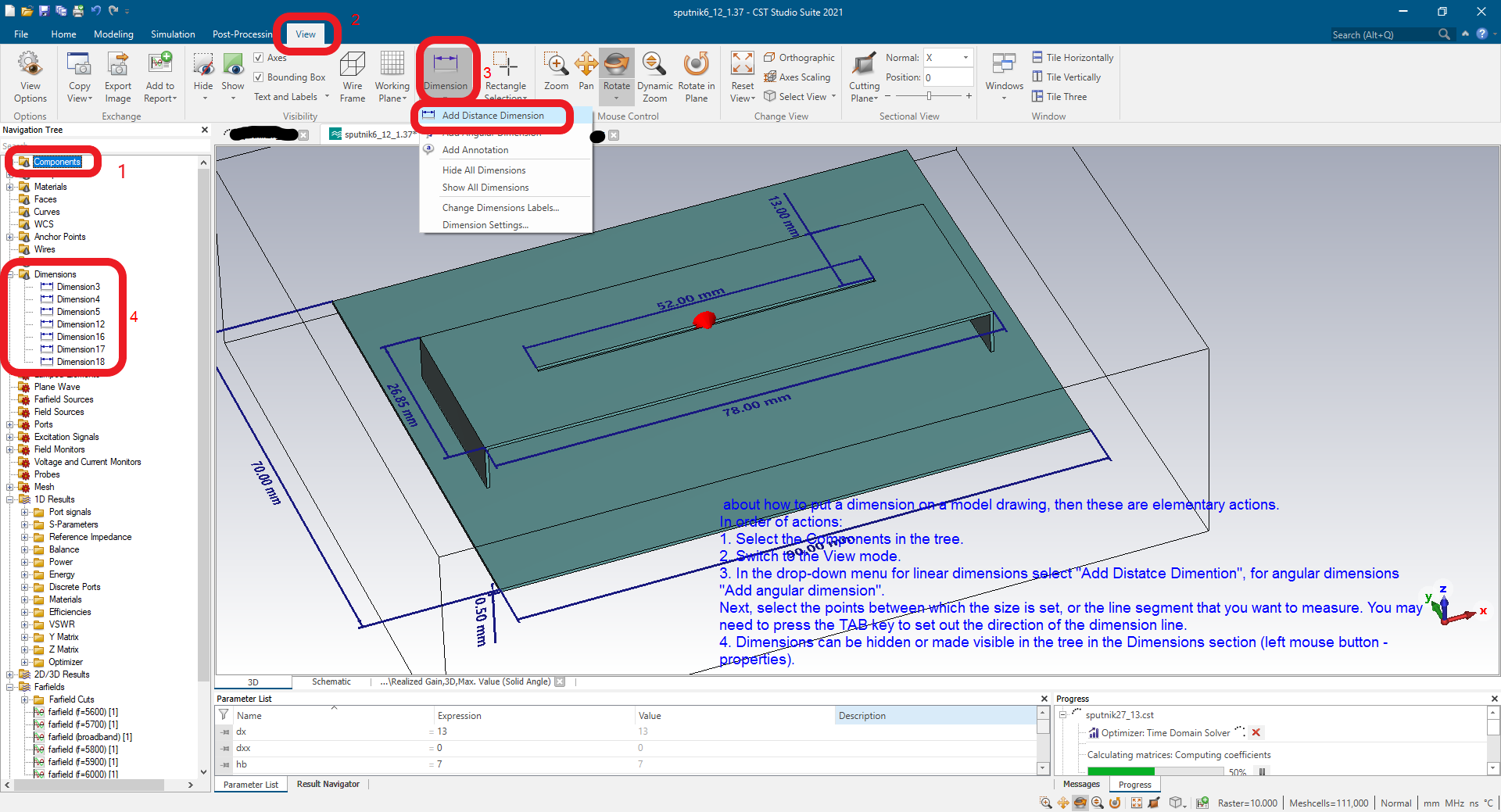

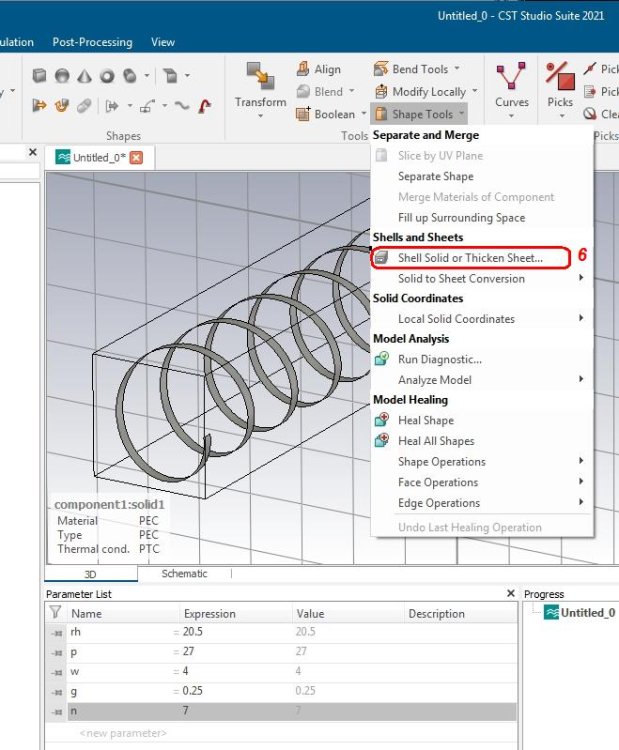

,,,how to put a dimension on the drawing...


Share this post


Link to post
Share on other sites

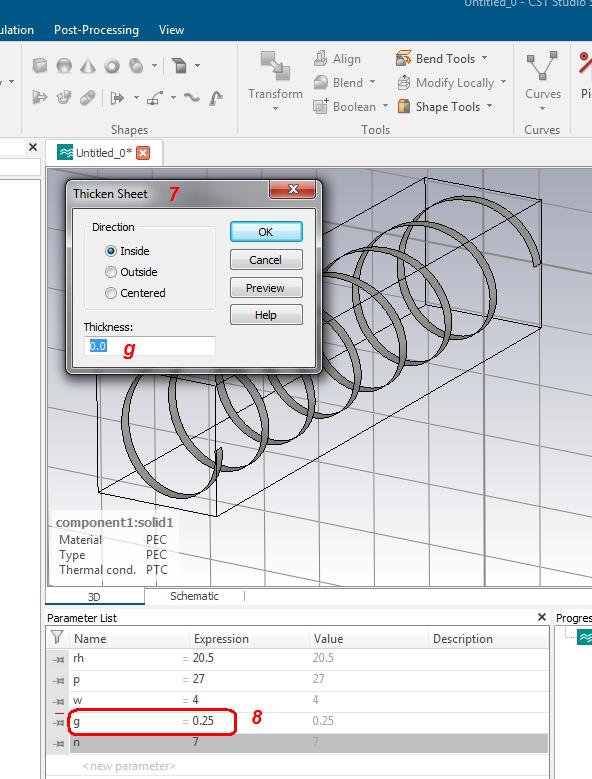

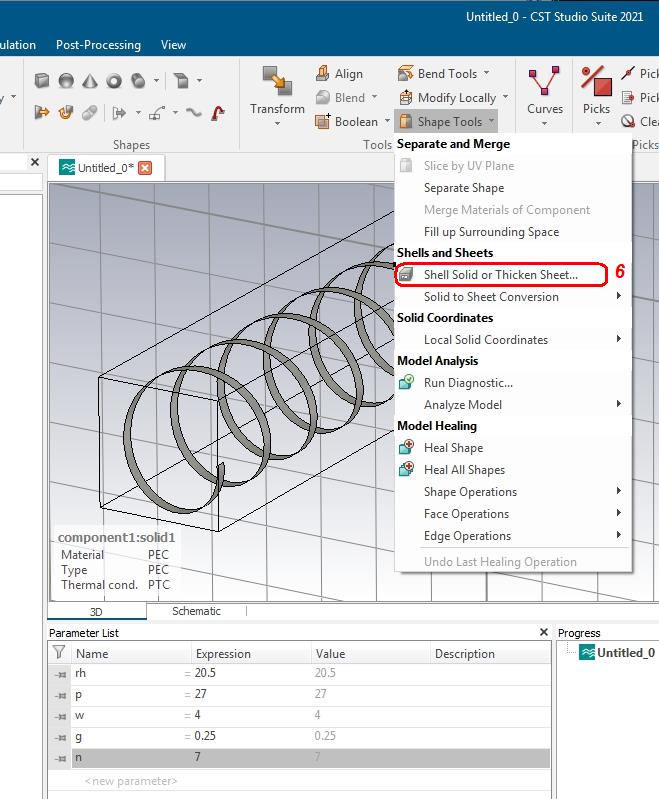

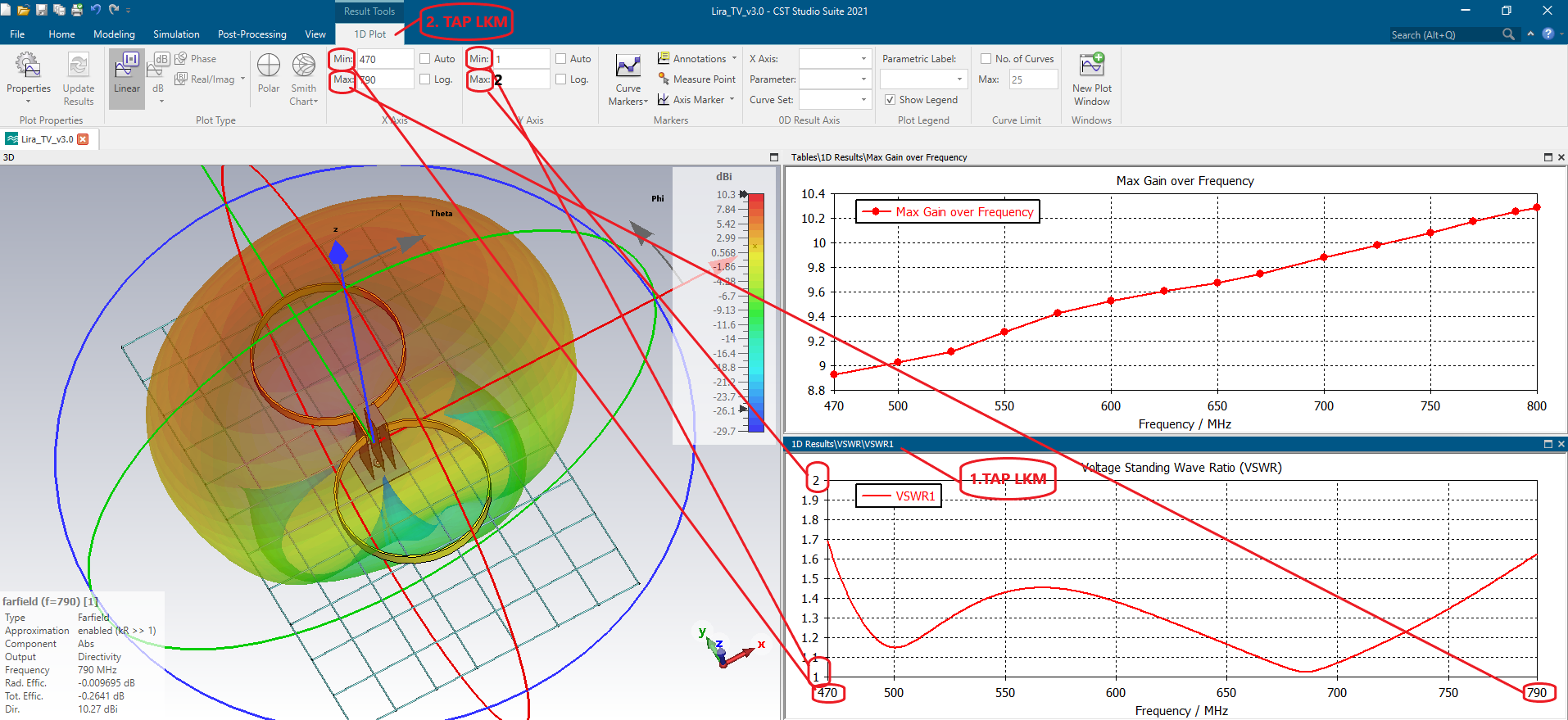

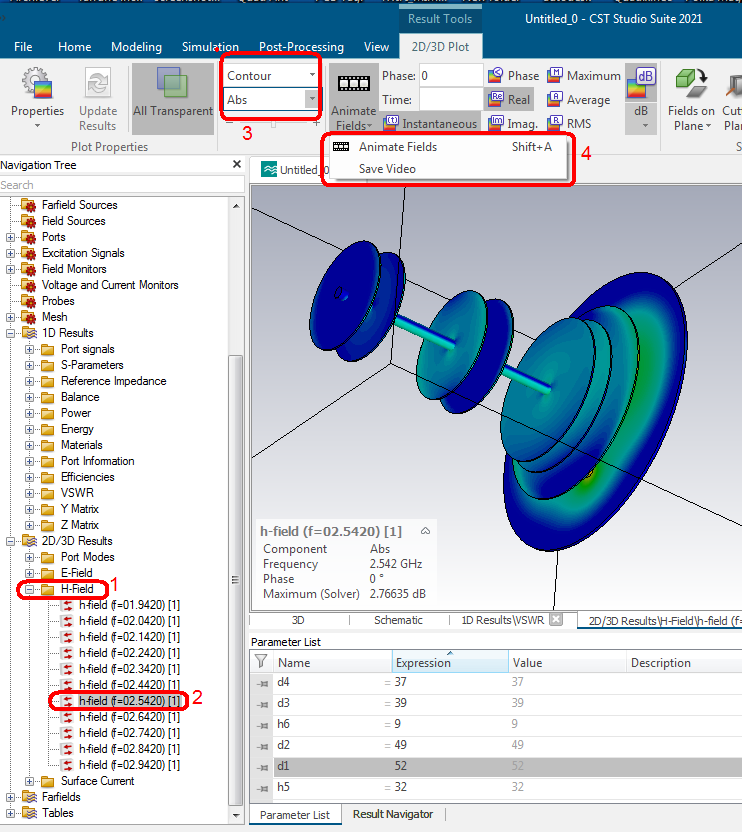

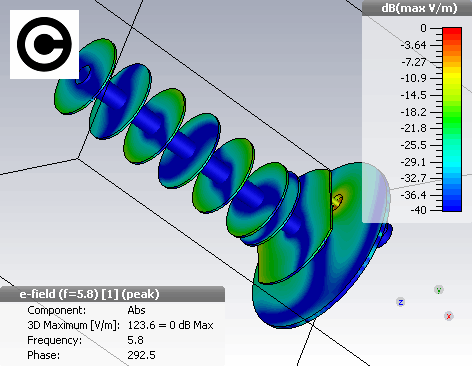

Hi everybody! How to get a picture of the field distribution depending on time or phase? Please respond with screenshots with steps. Thank you in advance.




Share this post


Link to post
Share on other sites

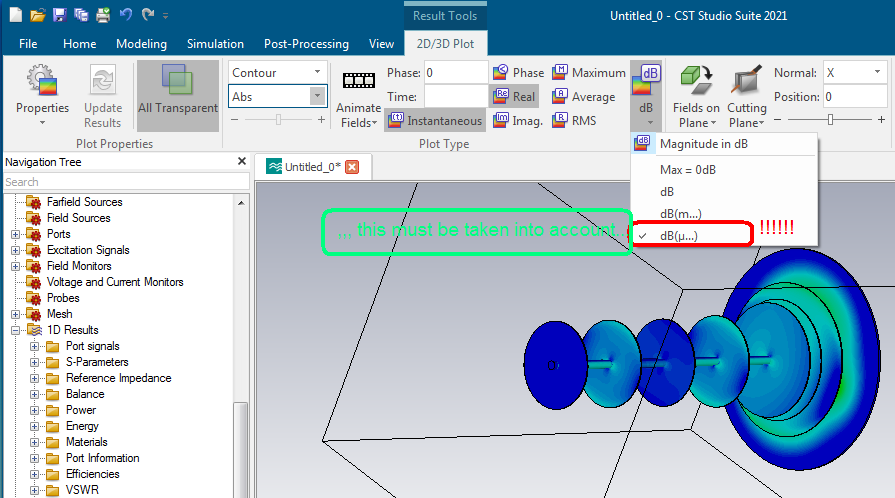

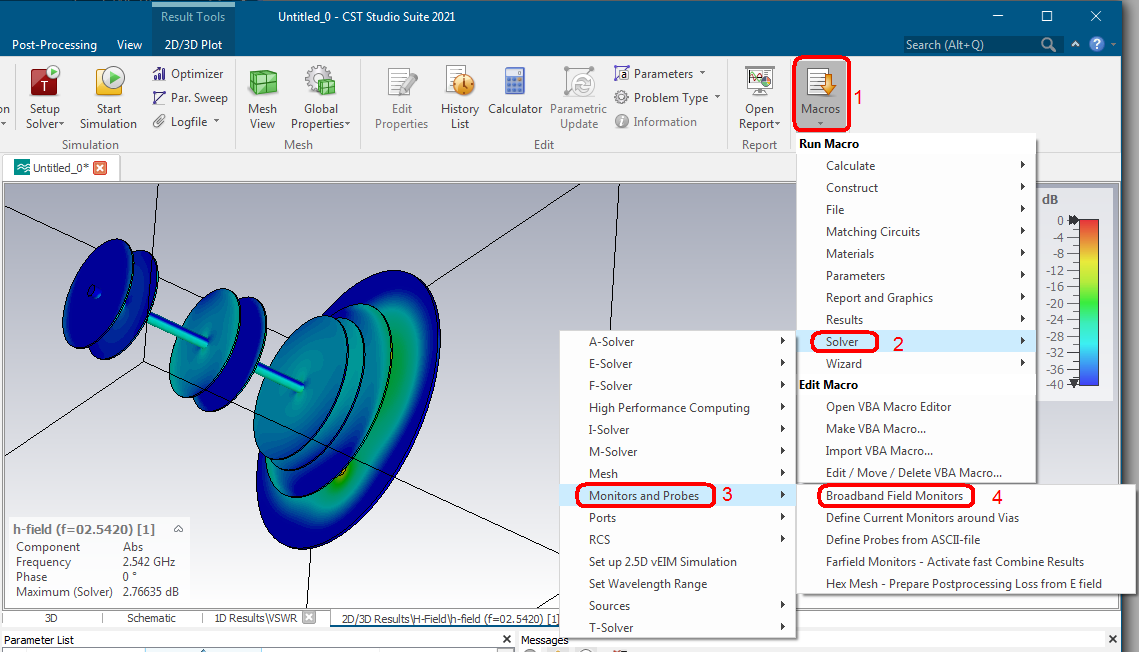

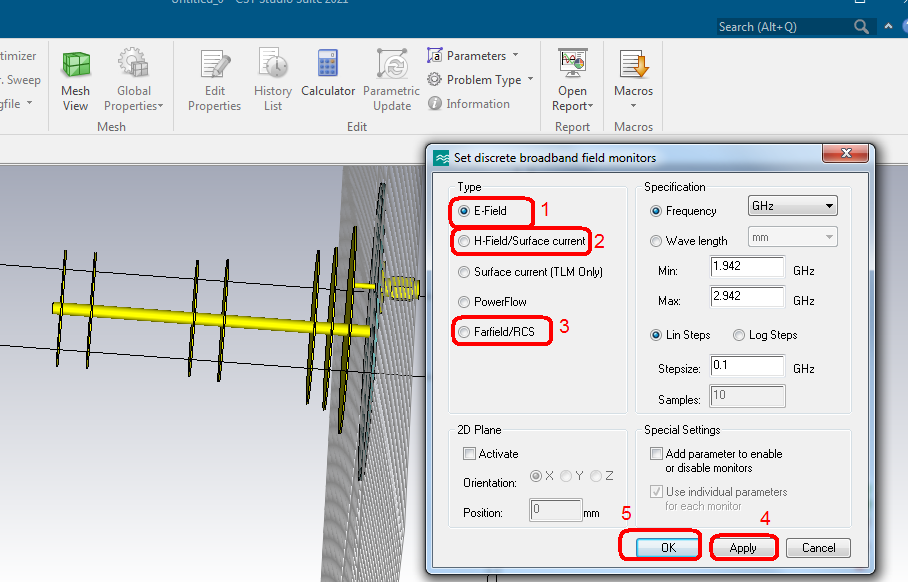

 I hope it is understood...!!!




1 person likes this

Share this post


Link to post
Share on other sites

Posted (edited)

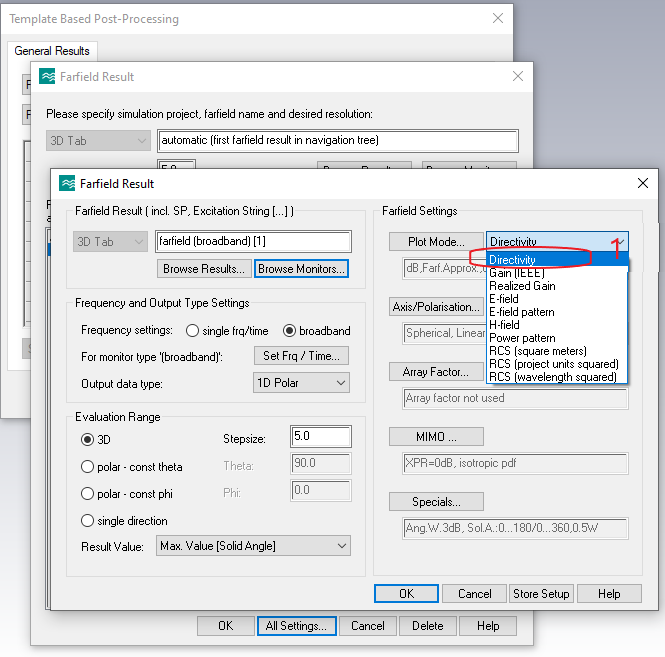

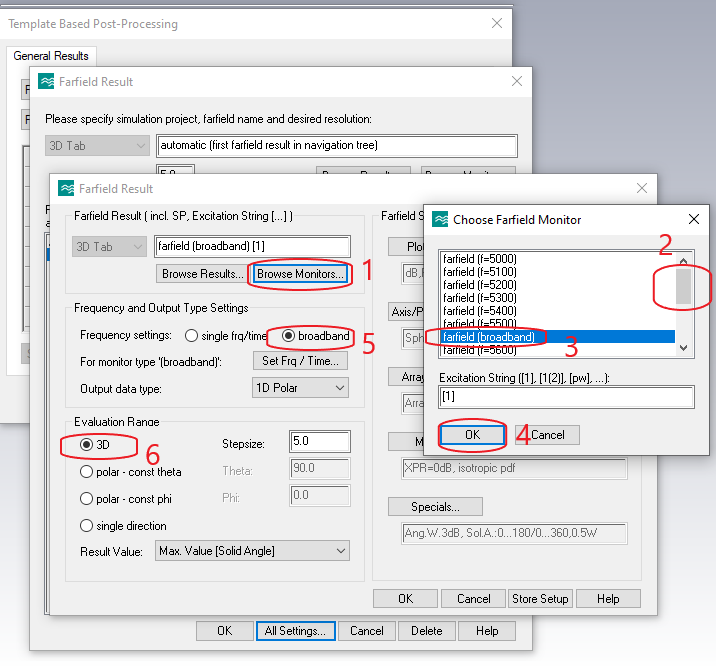

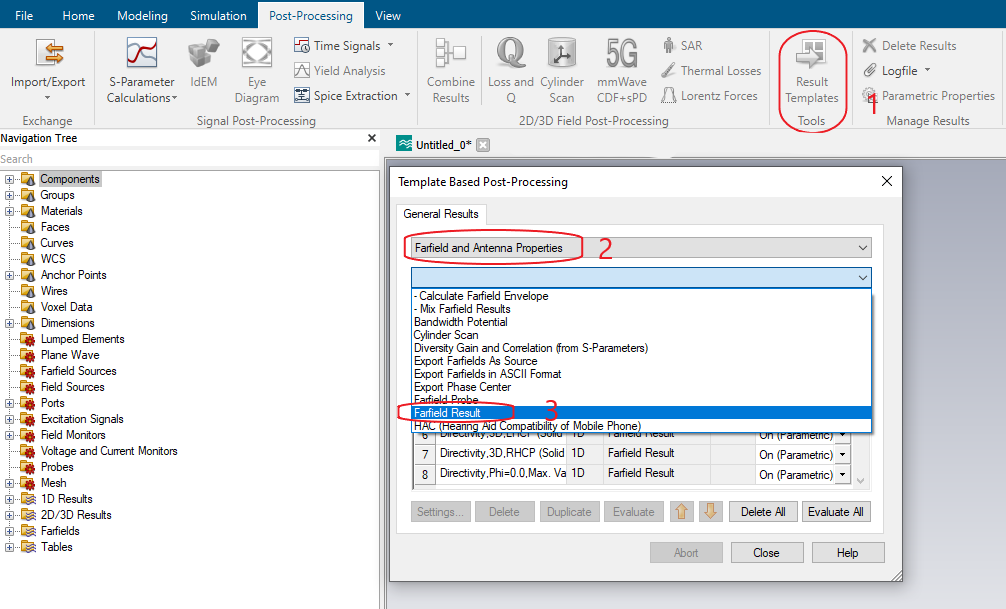

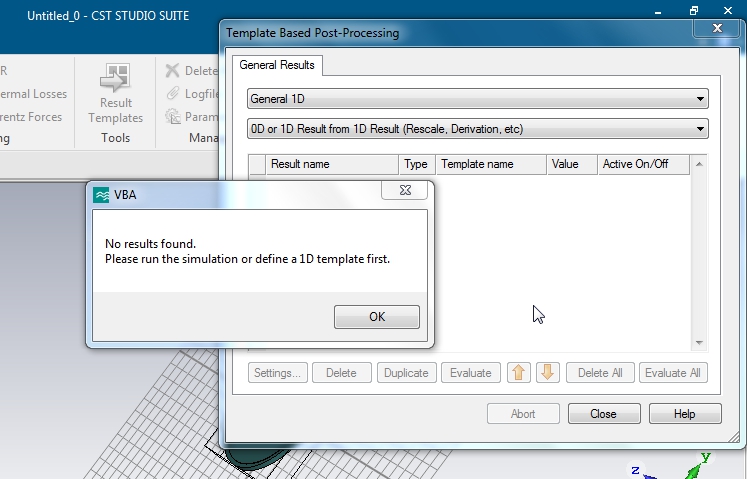

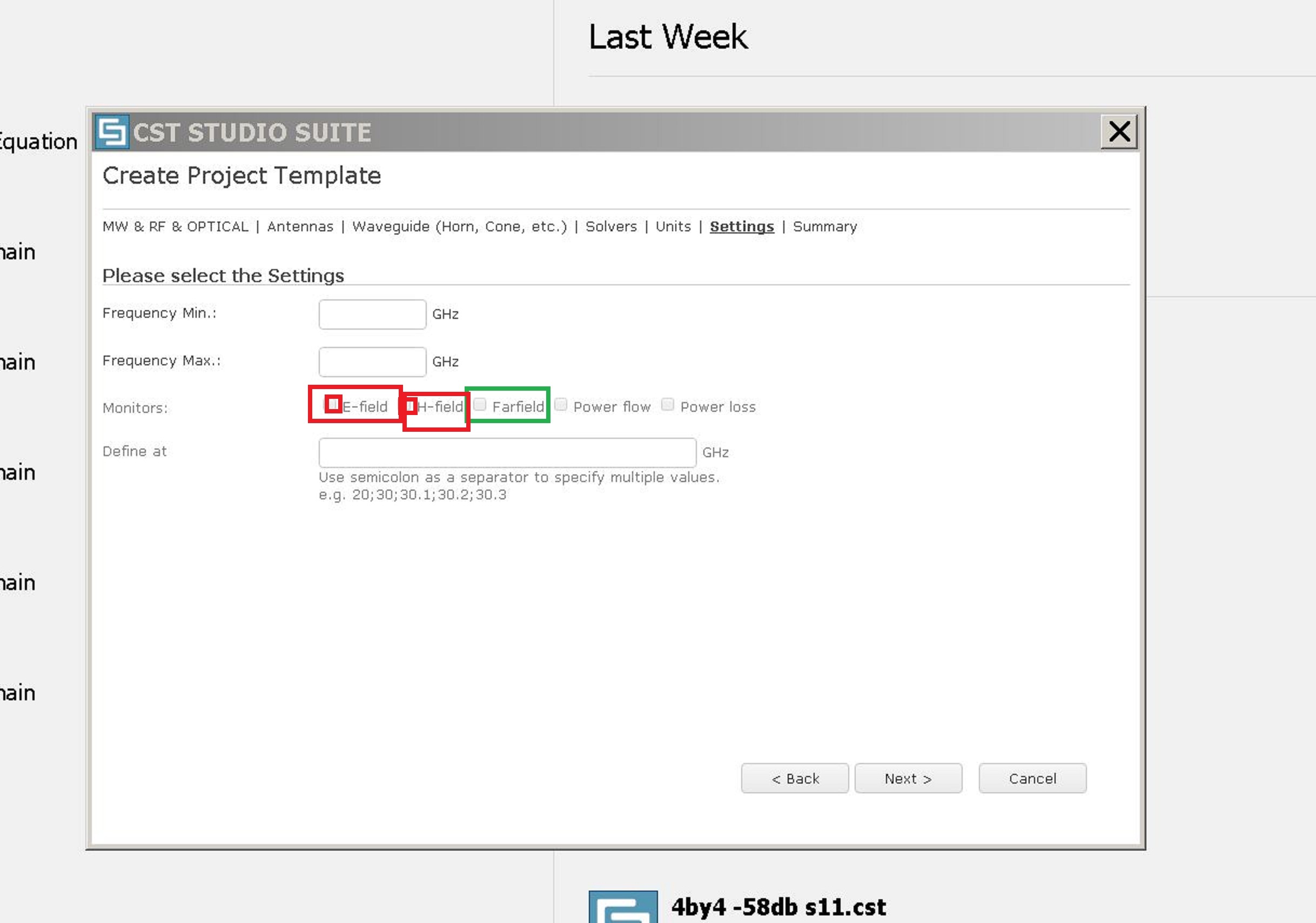

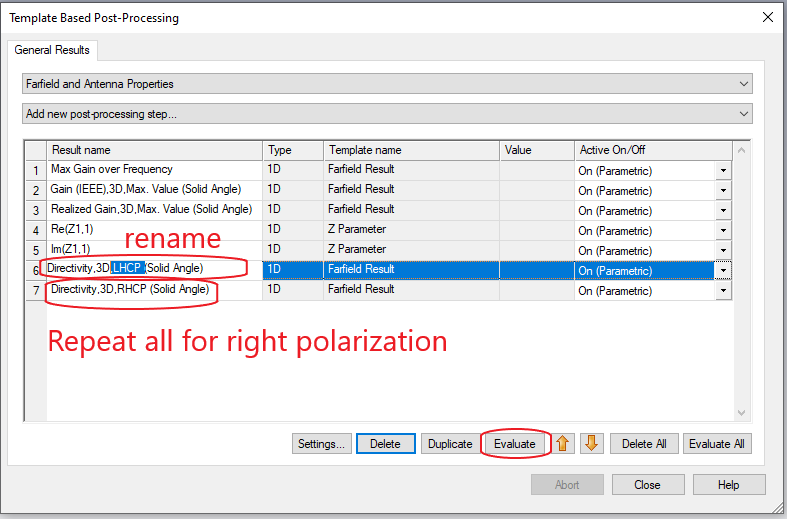

and also when you create the template  it would calculate for every antenna




Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

Hello friends! Thanks a lot for the previous answers. As I learn the CST program and start modeling circular / eleptically polarized antennas, I have a few more questions for you:

1. I was intuitively able to display the graphs of the left and right polarization components to estimate the eleptics / circle of polarization. I may have been wrong, correct me if I am wrong.





2. The HFSS software package can display graphs in X and Y planes. Is there such a possibility in our wonderful program?




3. if not difficult, show in the screenshots, please.

4. To estimate the isolation between ports in a two-port CPW antenna, it is necessary to estimate, in addition to the parameters S 12 (21), estimates of cross-polarization and co-polarization are likely to be required. Unfortunately, I also haven't found where it can be appreciated.



4. What other parameters need to be controlled when designing circular polarized antennas? Thanks in advance for the detailed answers!

1 person likes this

Share this post


Link to post
Share on other sites

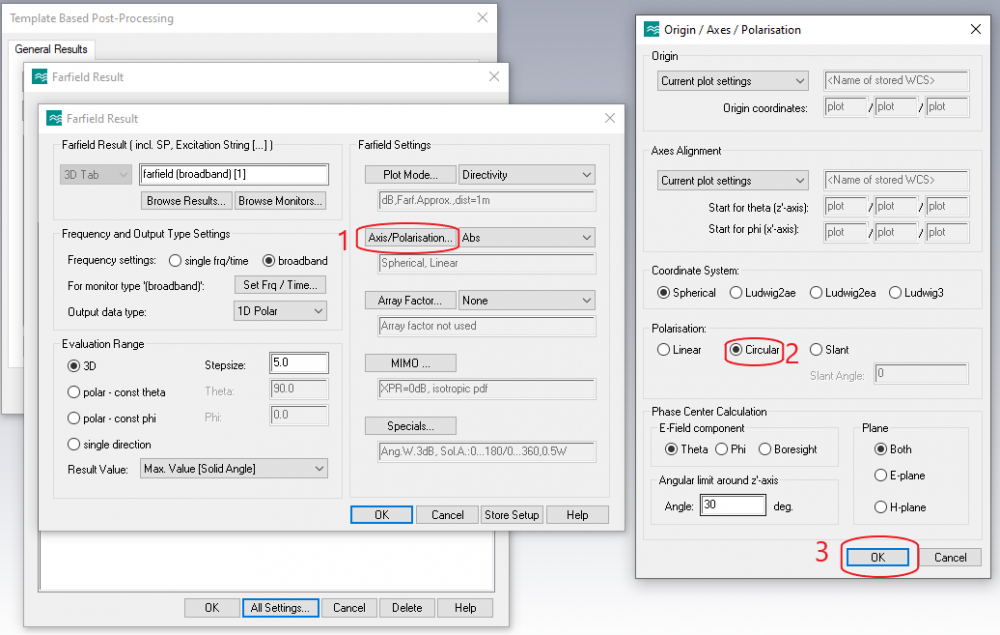

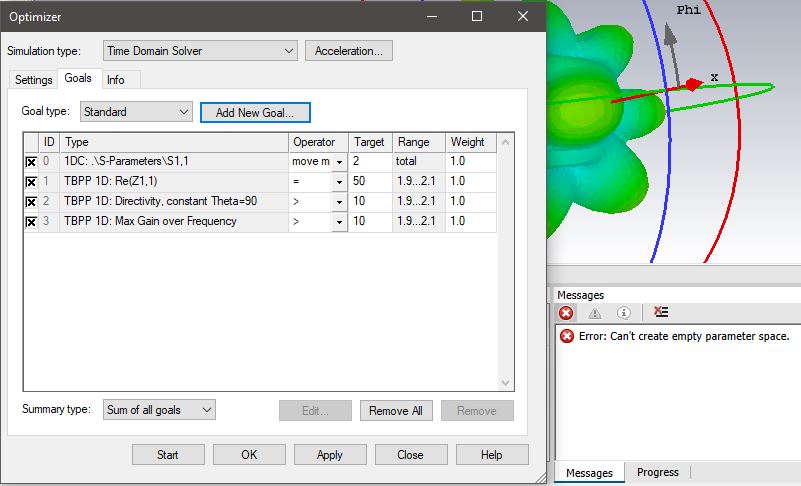

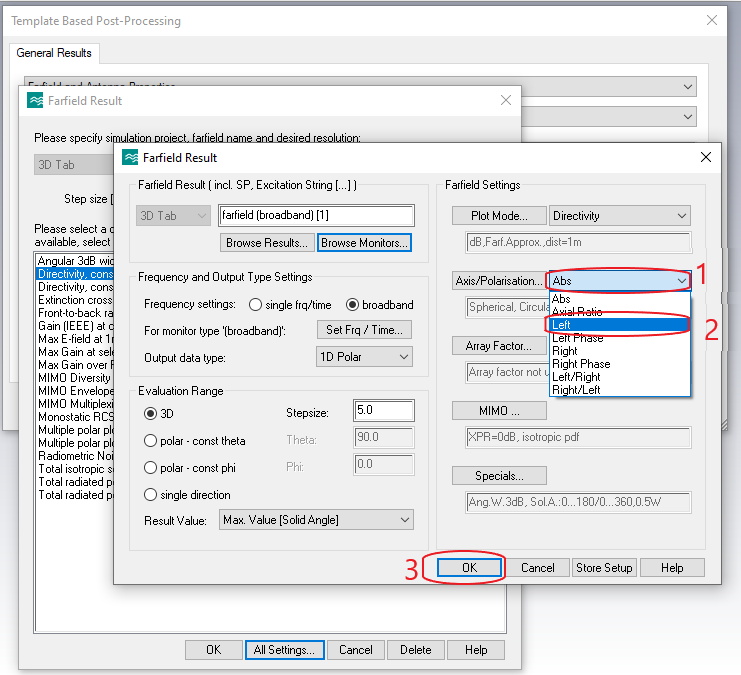

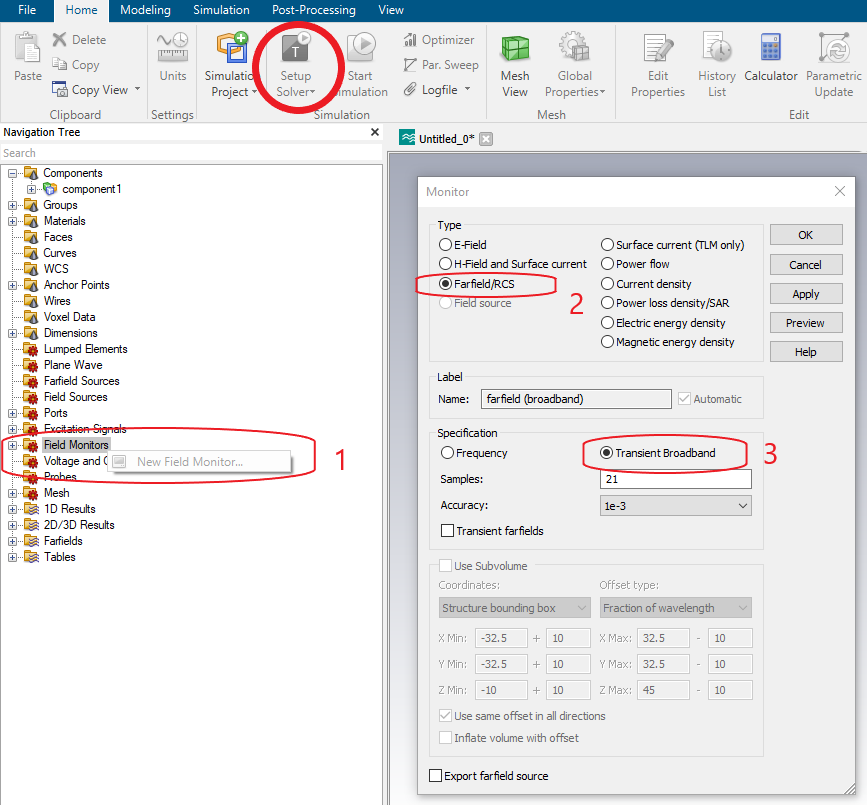

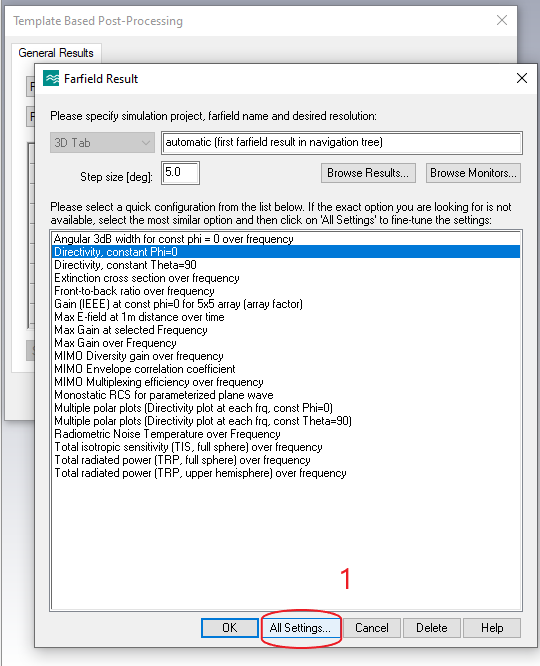

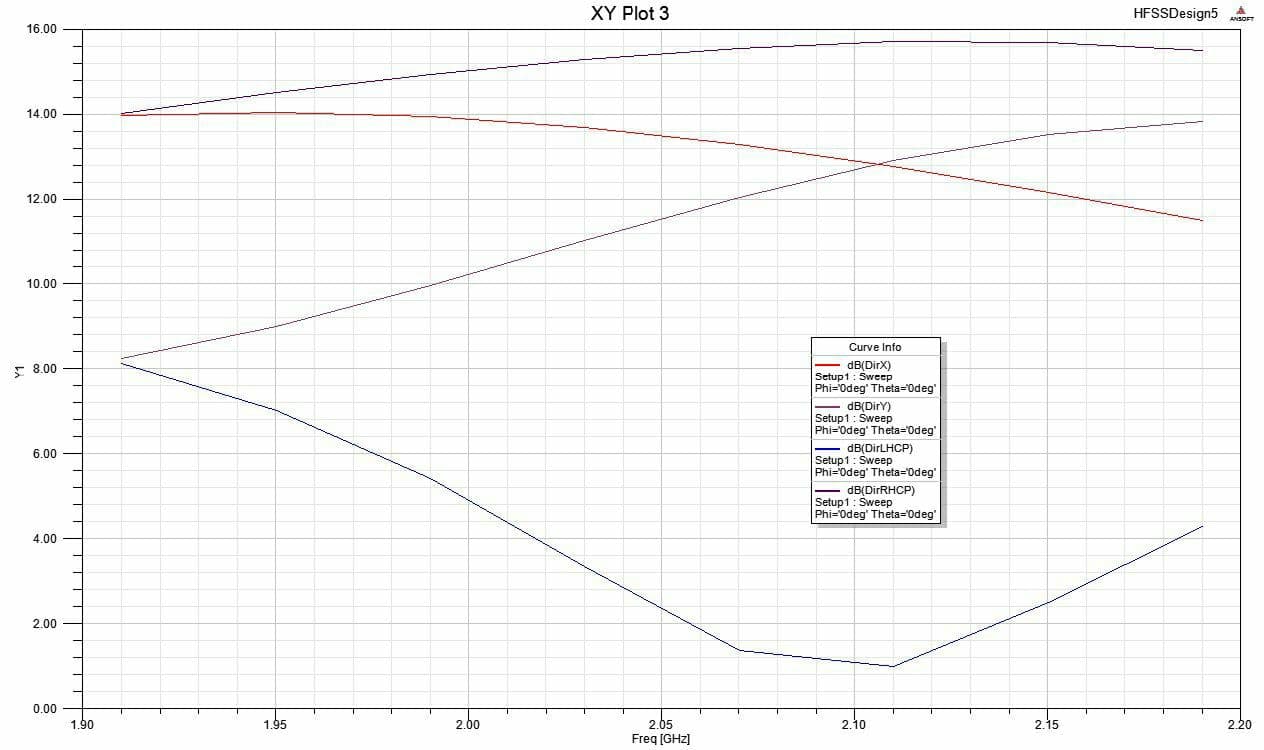

,,,, it is observed that in the HFSS Software , Phi=0deg ; Theta=0deg...!!!

Share this post


Link to post
Share on other sites

What's the difference between directivity (any polarization) and circular...?

MEMO are you still trying with the 3 layer PCB...?

Share this post


Link to post
Share on other sites
42 minutes ago, clanon said:

NEMO i mean

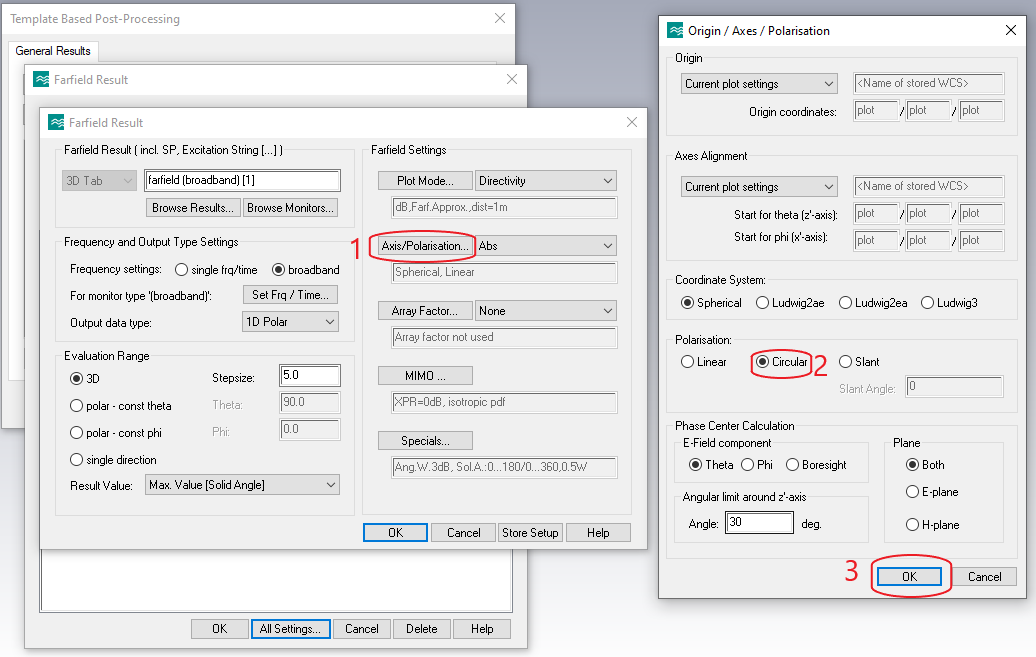

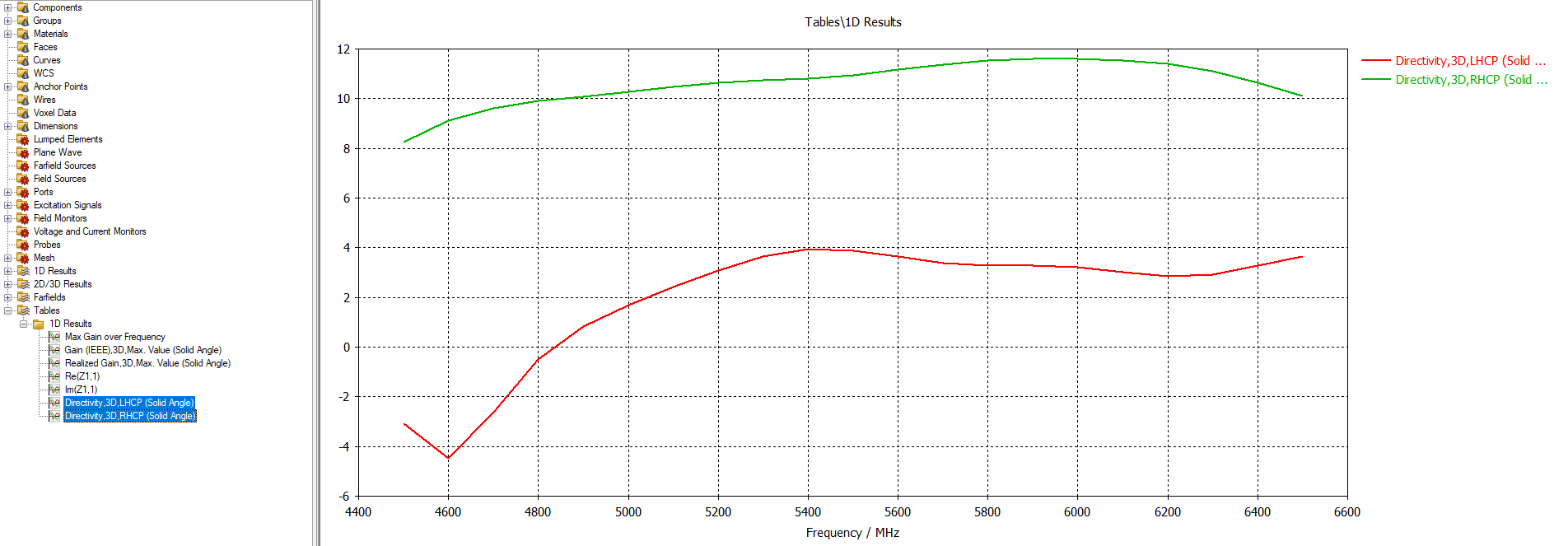

As I understood from dim people, any antenna contains parasitic polarizations. If we are developing RHCP, then we need to get rid of LHCP, if the difference in the LHCP drop (as a parasitic component) differs from RHCP by 10 or more dB, then the antenna has a polarization very close to circular, if about 5-6, then it is close to eleptical , if the values differ by very small values, it is almost linear. I understand from the explanations. For MIMO with circular polarization, this is very important, I think, as well as the parameters of co-polarization and cross-polarization isolation. 2. Antenna slot is a game. This is a different design. Later I will publish the results on Lan and on this forum. The antenna is assembled and tuned.

1 person likes this

Share this post


Link to post
Share on other sites

,,, what does NEMO mean ... ??

,,,maybe MiMo(Multiple Input Multiple Output - multiple wireless connections technology)....!!!

Share this post


Link to post
Share on other sites
4 hours ago, Harry36 said:

As I understood from dim people, any antenna contains parasitic polarizations. If we are developing RHCP, then we need to get rid of LHCP, if the difference in the LHCP drop (as a parasitic component) differs from RHCP by 10 or more dB, then the antenna has a polarization very close to circular, if about 5-6, then it is close to eleptical , if the values differ by very small values, it is almost linear. I understand from the explanations. For MIMO with circular polarization, this is very important, I think, as well as the parameters of co-polarization and cross-polarization isolation. 2. Antenna slot is a game. This is a different design. Later I will publish the results on Lan and on this forum. The antenna is assembled and tuned.

GOOD INFO...i read somewhere that elliptical was very good for tree penetration...(most of the time two dipoles angled and 90 degrees delay)

Share this post


Link to post
Share on other sites
