Simulation of antenna in CST Microwave

107 posts in this topic

,,,OKAY,THANKS A LOT...!!

Share this post


Link to post
Share on other sites

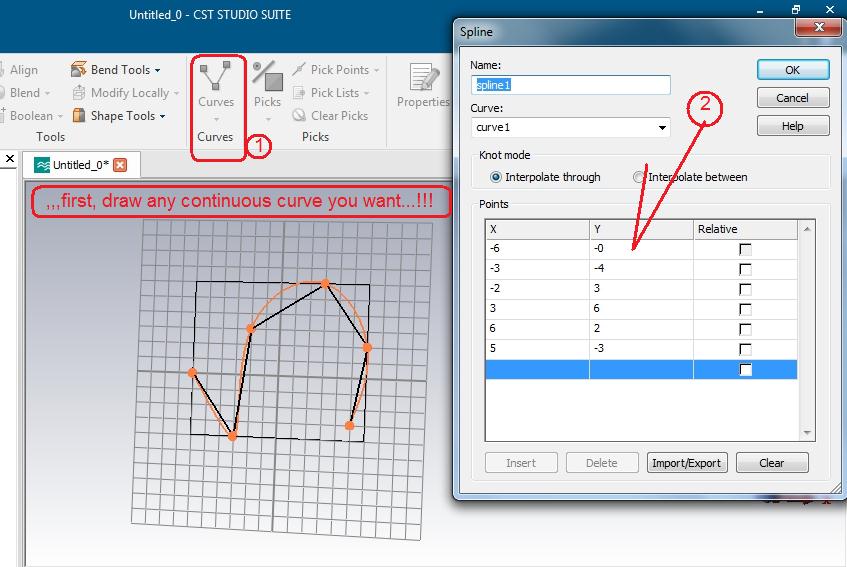

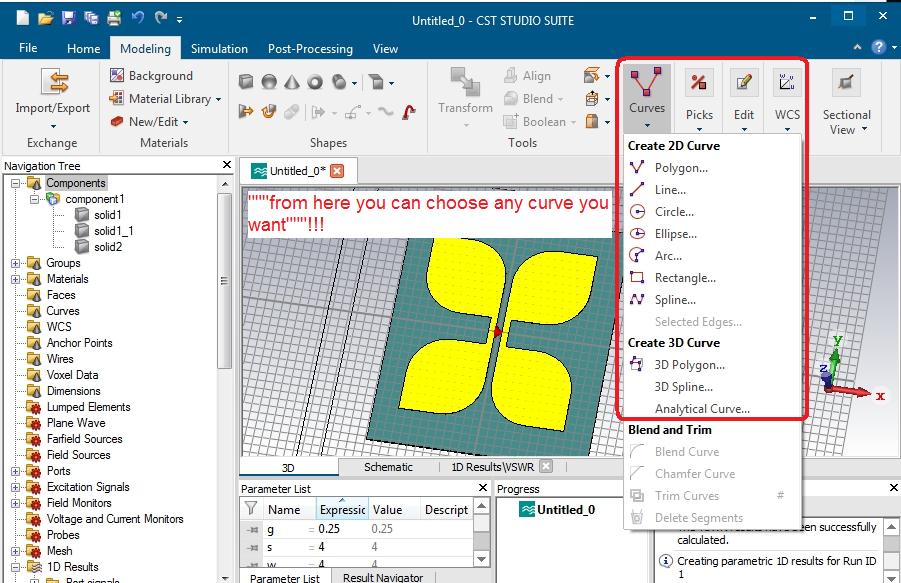

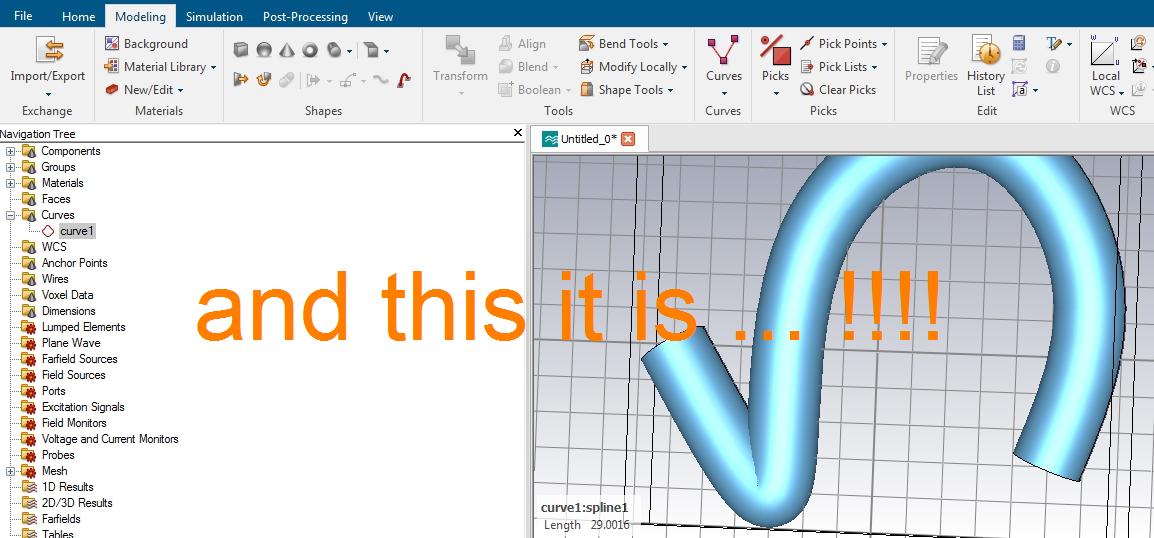

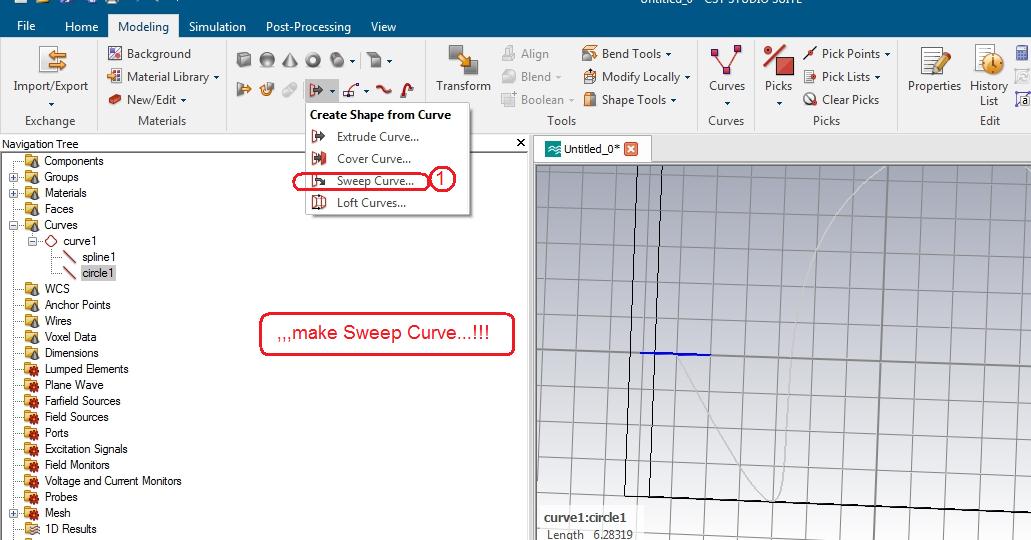

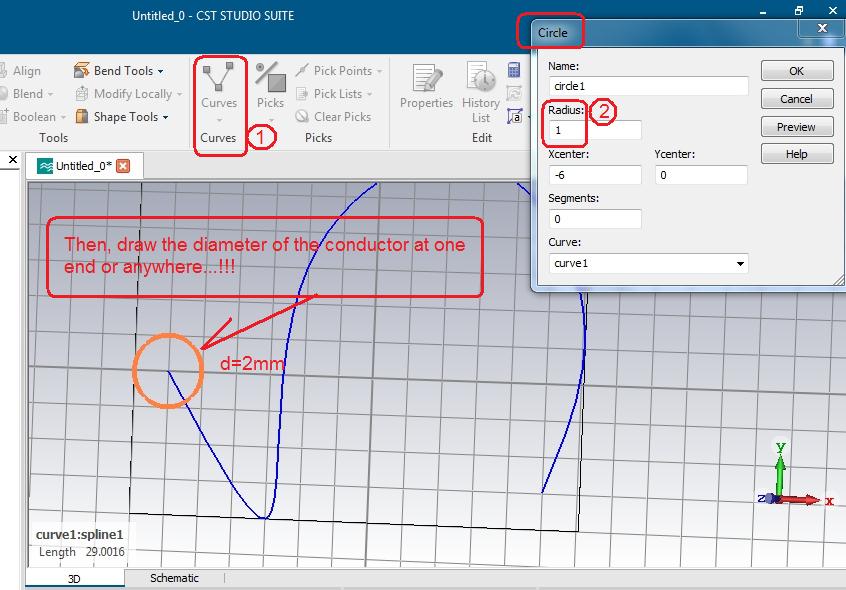

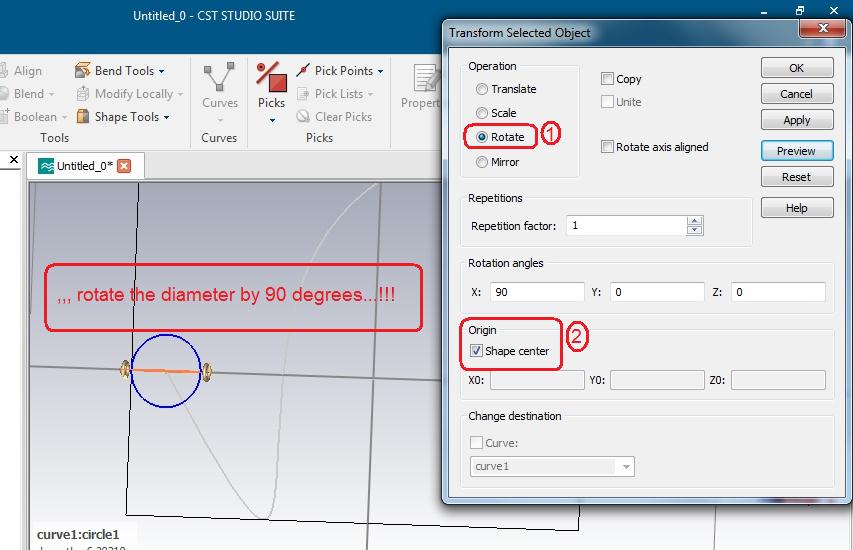

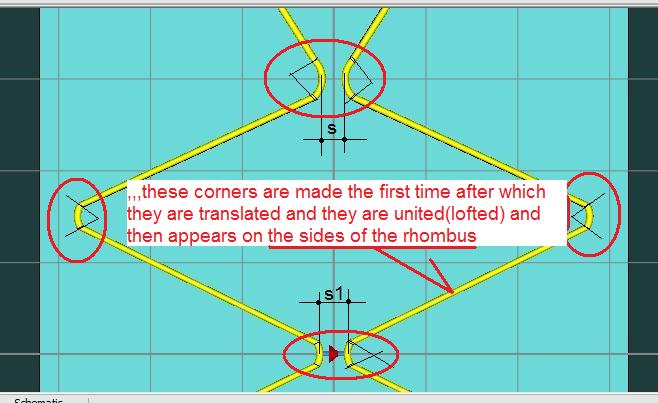

How...?? a curved wire is made....












Share this post


Link to post
Share on other sites

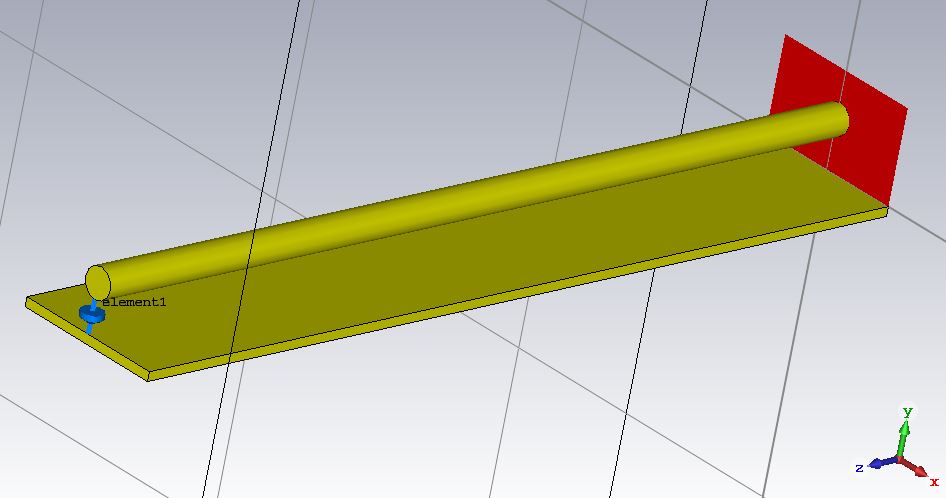

Admin, got a question to you: recently I installed cst2019 and met a problem, it can not calculate 1/4 lambda transformator “wire above ground”.

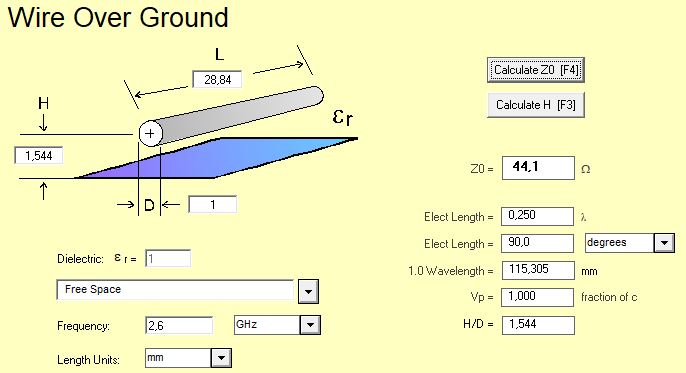

AppCad gives preliminary results, but when I make a model in simulator it shows a weather.

Share this post


Link to post
Share on other sites

 I would like to see your results in the * cst file...!!

Share this post


Link to post
Share on other sites

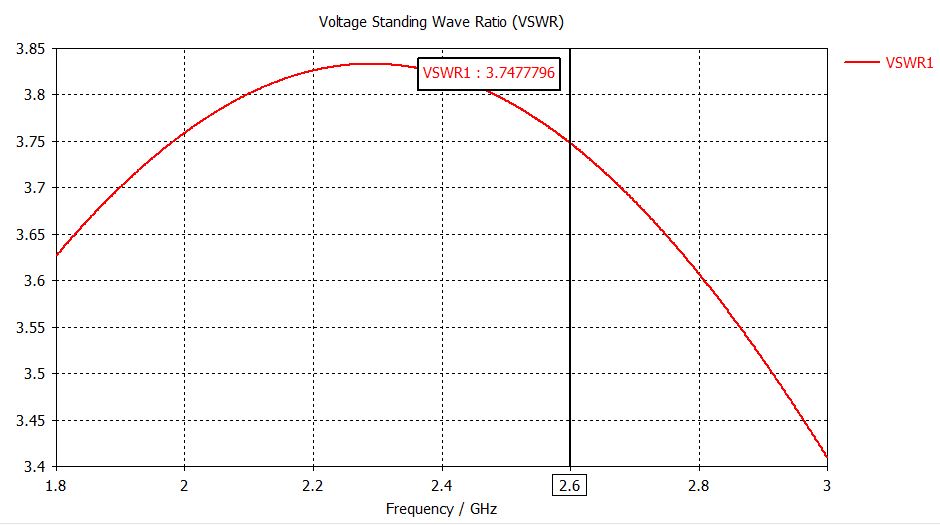

Sorry. wrong results





Edited by vodkaman

Share this post


Link to post
Share on other sites

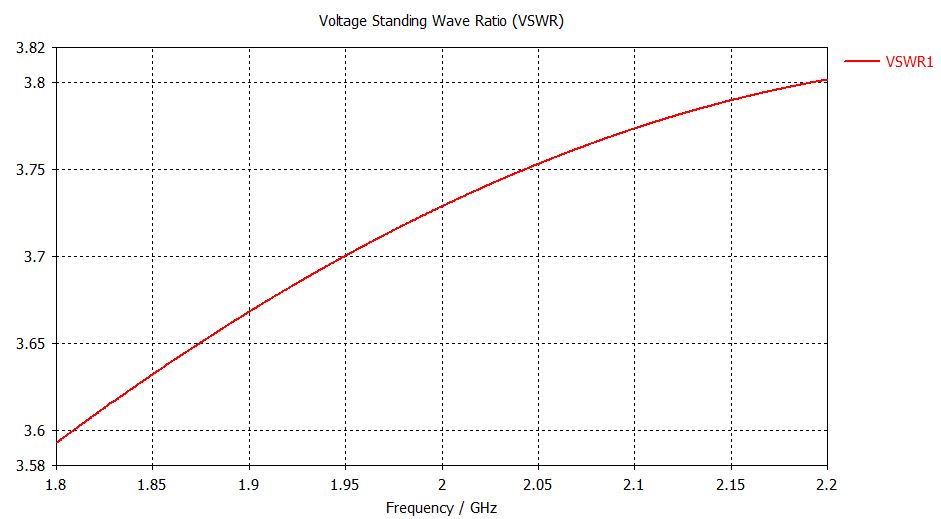

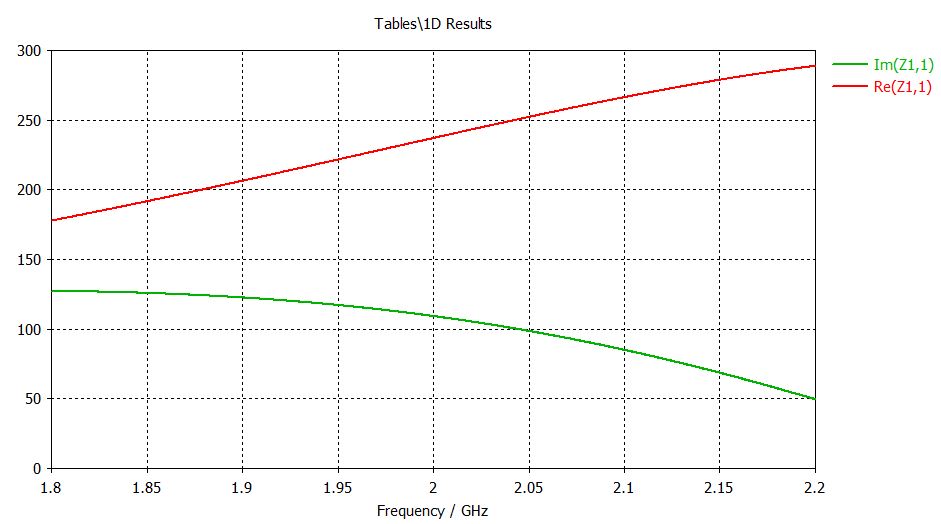

Admin, can you kill last 2 plots in previous post?



T2.6.cst

Edited by vodkaman

Share this post


Link to post
Share on other sites

I hope this helps you...!!!








Share this post


Link to post
Share on other sites
32 minutes ago, Admin said:

I hope this helps you...!!!

No, it doesn't. What do you mean?

Share this post


Link to post
Share on other sites

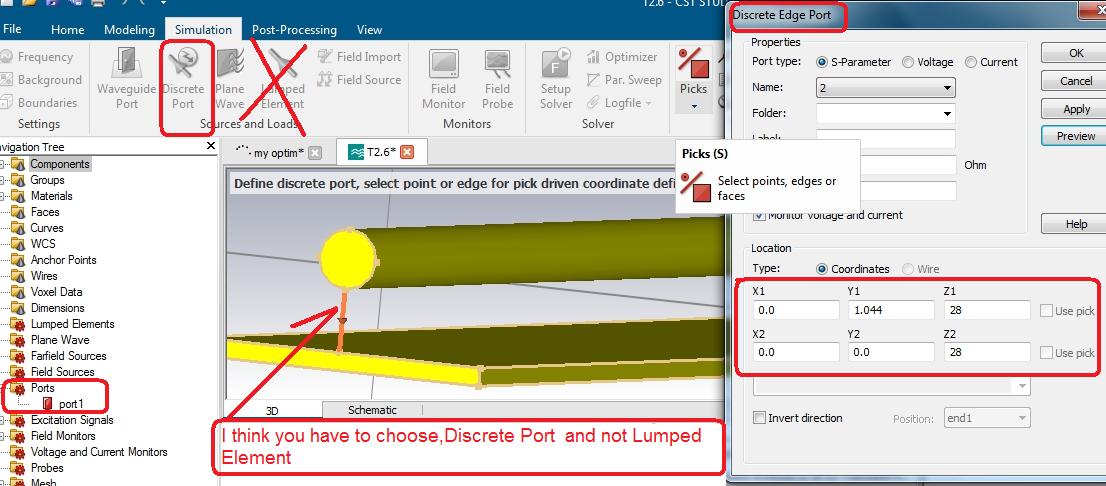

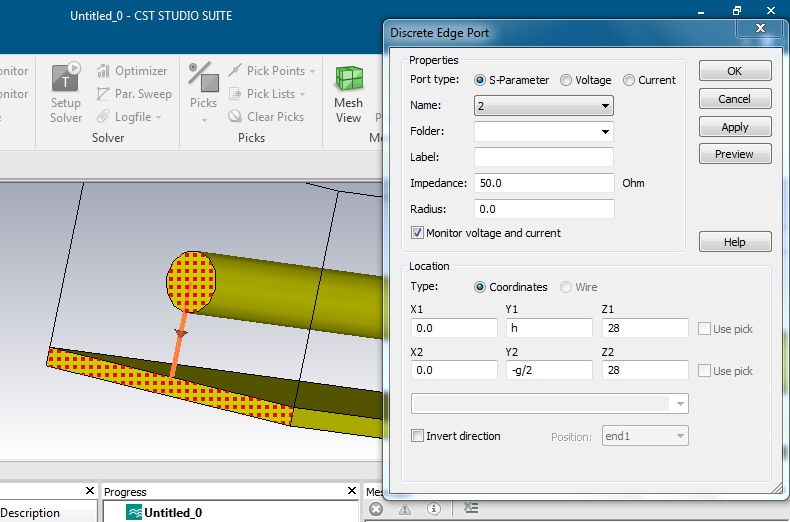

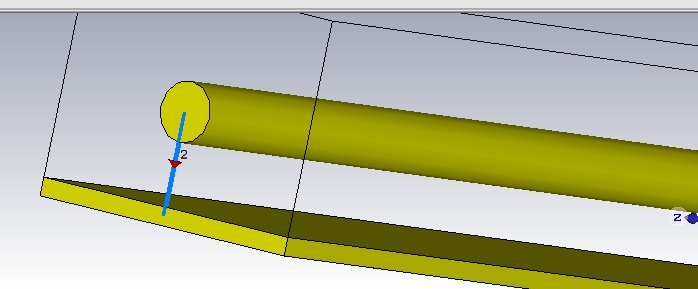

""" with the method shown above, you can delete the two ports...!!!

Share this post


Link to post
Share on other sites

what for? I asked you to delete 2 PLOTS in THE PREVIOUS to Previous POST!

And the question was not about deliting ports.



Edited by vodkaman

Share this post


Link to post
Share on other sites

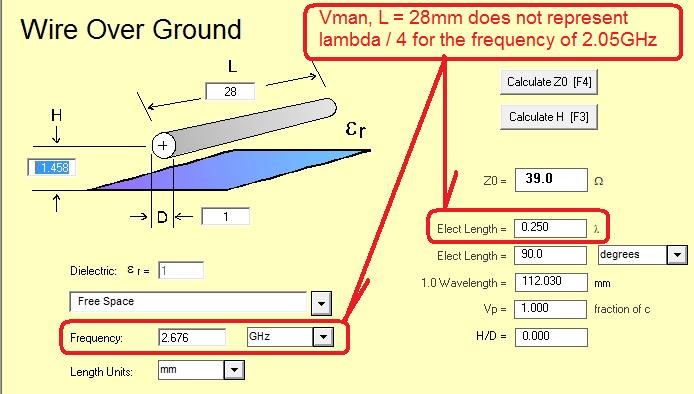

1 hour ago, vodkaman said:

Admin, got a question to you: recently I installed cst2019 and met a problem, it can not calculate 1/4 lambda transformator “wire above ground”.

AppCad gives preliminary results, but when I make a model in simulator it shows a weather.

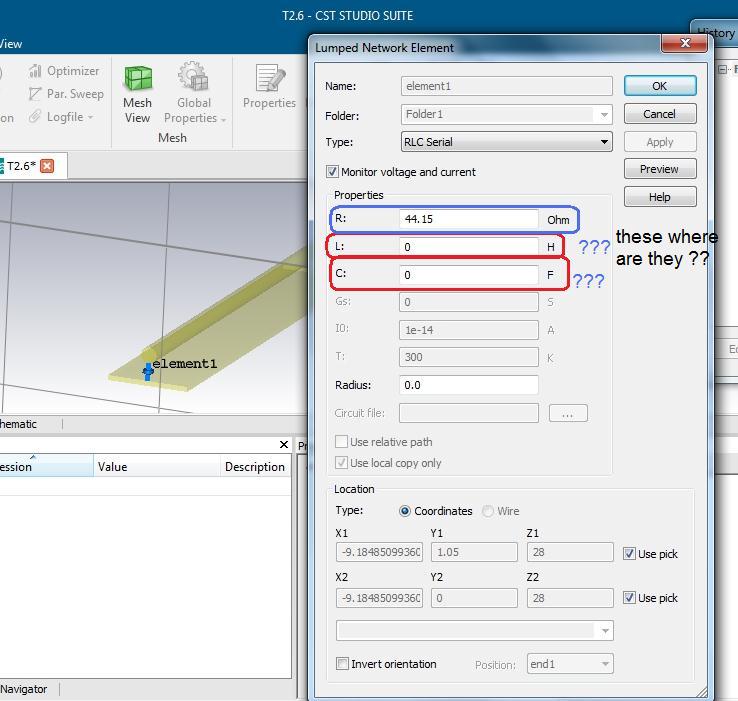

this one

Share this post


Link to post
Share on other sites

So, what you’ve got? I have the same - nonsense!

Share this post


Link to post
Share on other sites

Admin, do you have a version? How to calculate quarter wave transformer in CST?

Share this post


Link to post
Share on other sites

,,, my friend, explain to me, what you want to do with this quarter wave transformer in CST...???!!!

Share this post


Link to post
Share on other sites

I need to conform antenna impedance (39 Ohm) and feeder (cable) impedance (50 Ohm). I need to do it with wire above ground.

Share this post


Link to post
Share on other sites

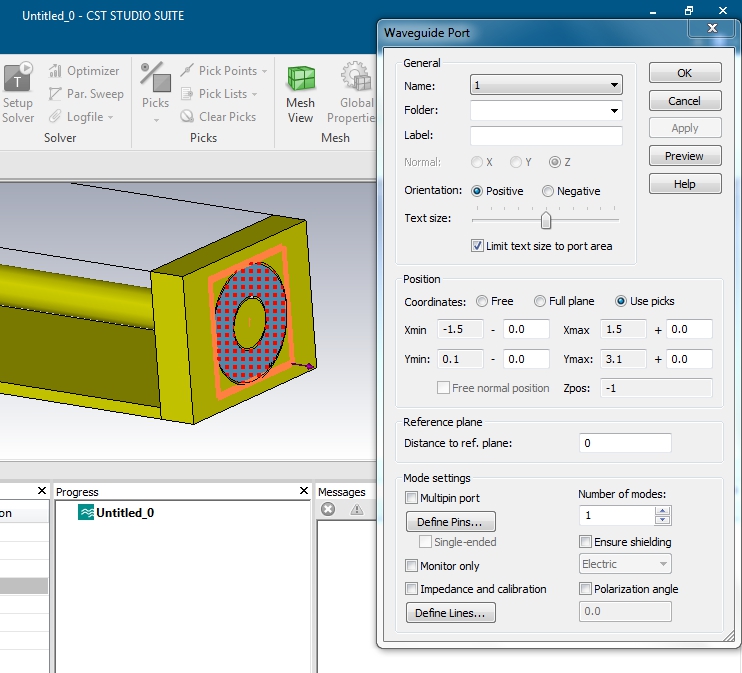

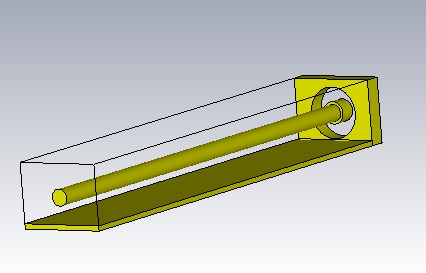

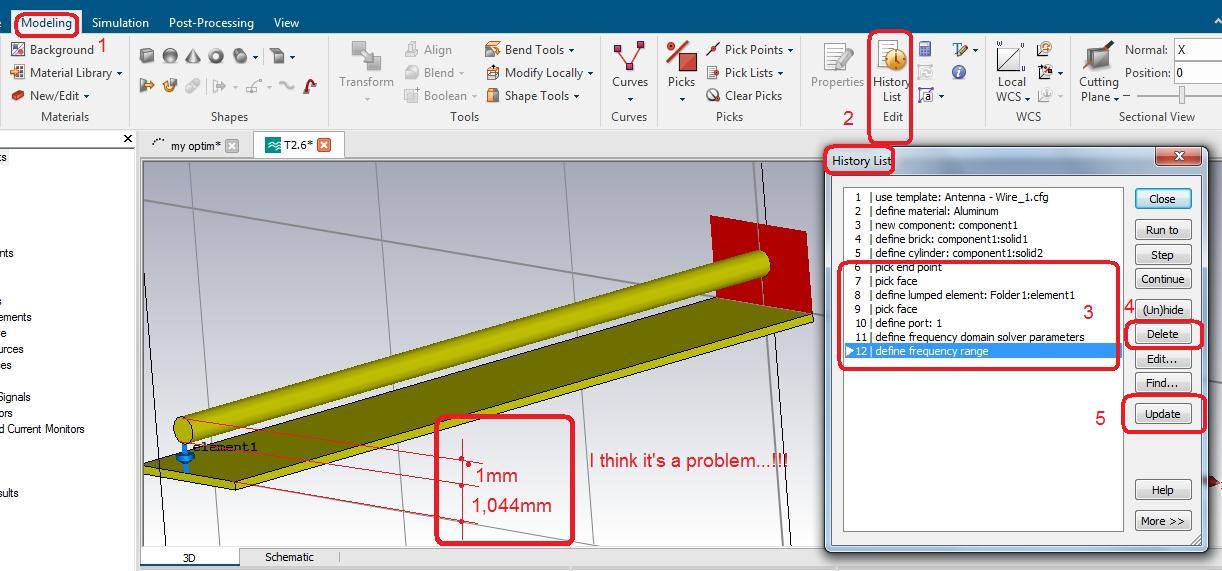

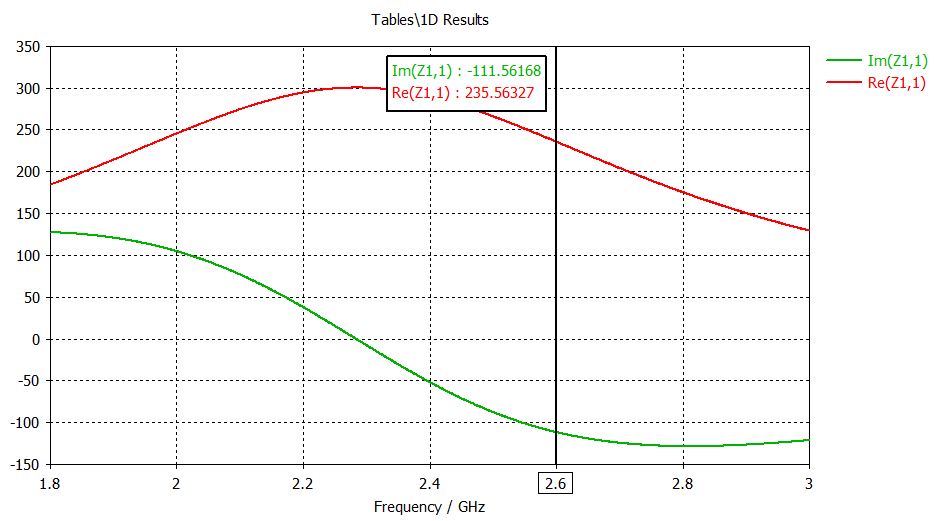

Then do something like that....





Share this post


Link to post
Share on other sites
