Patch Sectoral Antenna MiMo 14dbi

72 posts in this topic
On 3/11/2018 at 1:07 AM, Admin said:

A simplified form with 2 patches...






I have absolutely no idea what I am doing, but I will still make one and try it in the real world


Share this post


Link to post
Share on other sites

,,,okay erossutrisno,I will try to do a simulation for you...

1 person likes this

Share this post


Link to post
Share on other sites
19 minutes ago, Admin said:

,,,okay erossutrisno,I will try to do a simulation for you...

I made this *.cdr file with no knowledge about antenna at all

Let's Just Make it.cdr

Share this post


Link to post
Share on other sites

I can"t open *cdr.file ,can you send to me *sat.file,*ipt.file,*igs.file or *step.file...!!!???

Share this post


Link to post
Share on other sites
12 minutes ago, Admin said:

I can"t open *cdr.file ,can you send to me *sat.file,*ipt.file,*igs.file or *step.file...!!!???

Let me make it first, best regards

Share this post


Link to post
Share on other sites
8 hours ago, erossutrisno said:

Let me make it first, best regards

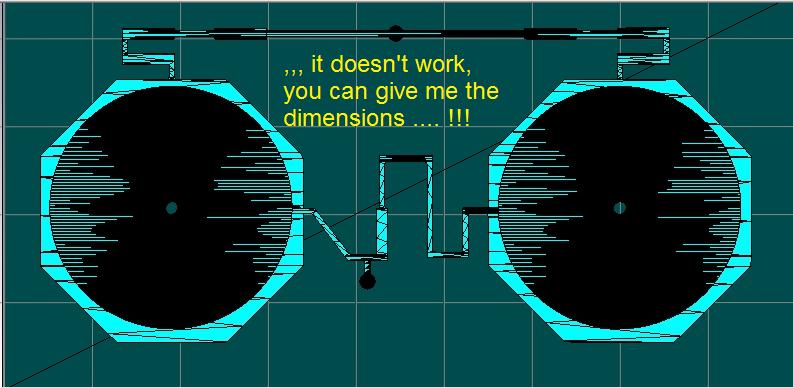

unfortunately I couldn't make it

Share this post


Link to post
Share on other sites

,,, okay, but what other files can you give me ... ??

Share this post


Link to post
Share on other sites
2 minutes ago, Admin said:

,,,thanks buddy...!!!

1 hour ago, Admin said:


not you, but I should say thank you

Share this post


Link to post
Share on other sites

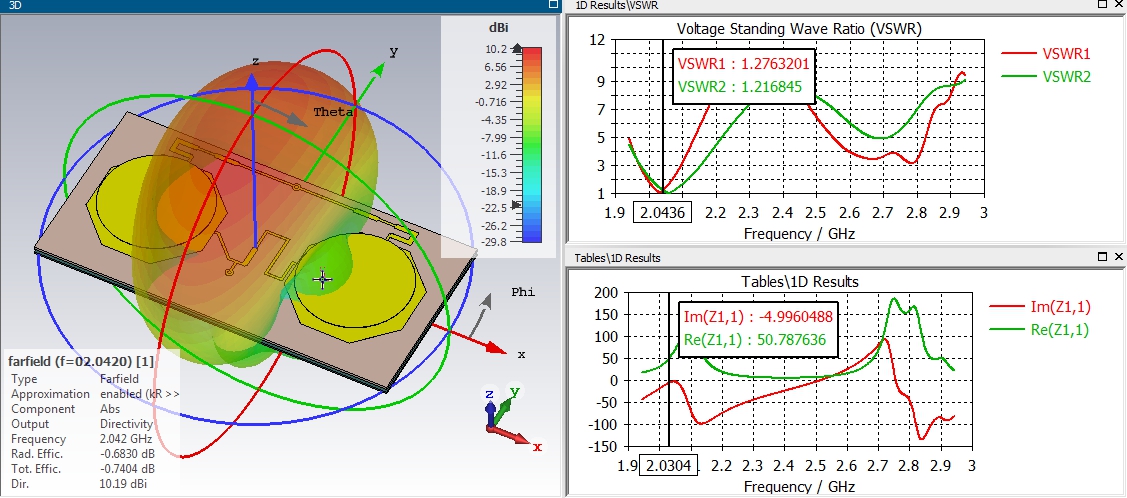

,,, this antenna is not exactly good for 2,4 GHz antenna(on PCB-FR4#1,5mm)...!!!!


,,, if you use PCB-Rogers5880 with # 0.35mm, then the results are just right...!!!

2 people like this

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,, this antenna is not exactly good for 2,4 GHz antenna(on PCB-FR4)...!!!!


,,, if you use PCB-Rogers5880 with # 0.35mm, then the results are just right...!!!



Thank you Admin, even so I will still create one, just to practice making it

Share this post


Link to post
Share on other sites

That one NC LINK being ALL METAL should OUTPERFORM the one on PCB...Less losses...higher efficiency...more gain

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, clanon said:

That one NC LINK being ALL METAL should OUTPERFORM the one on PCB...Less losses...higher efficiency...more gain

The problem is that file is not the exact dimension as the original, so I need help to somulate it.

Share this post


Link to post
Share on other sites
17 hours ago, erossutrisno said:

Hi again Mr. Admin, can I get some help with this file?. Thanks.

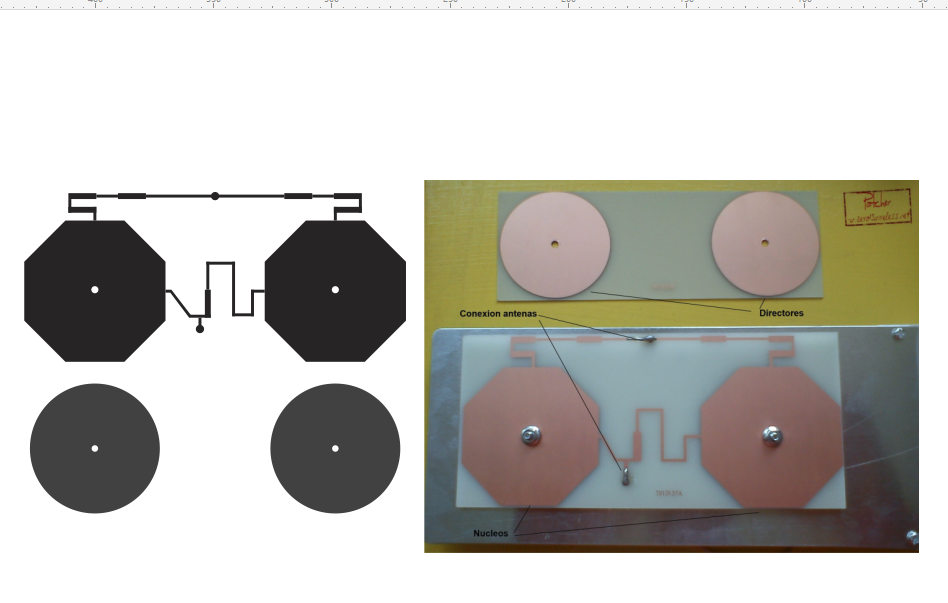

NC Link.pdf

So this one is not working?



1 person likes this

Share this post


Link to post
Share on other sites

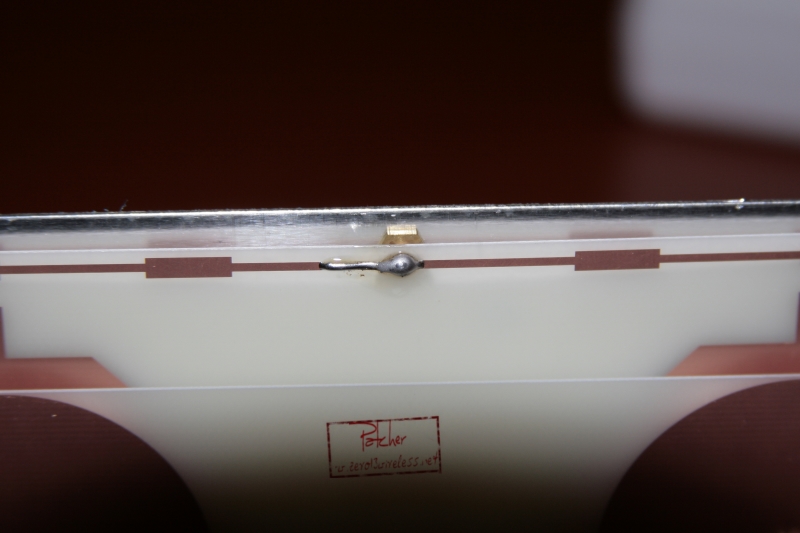

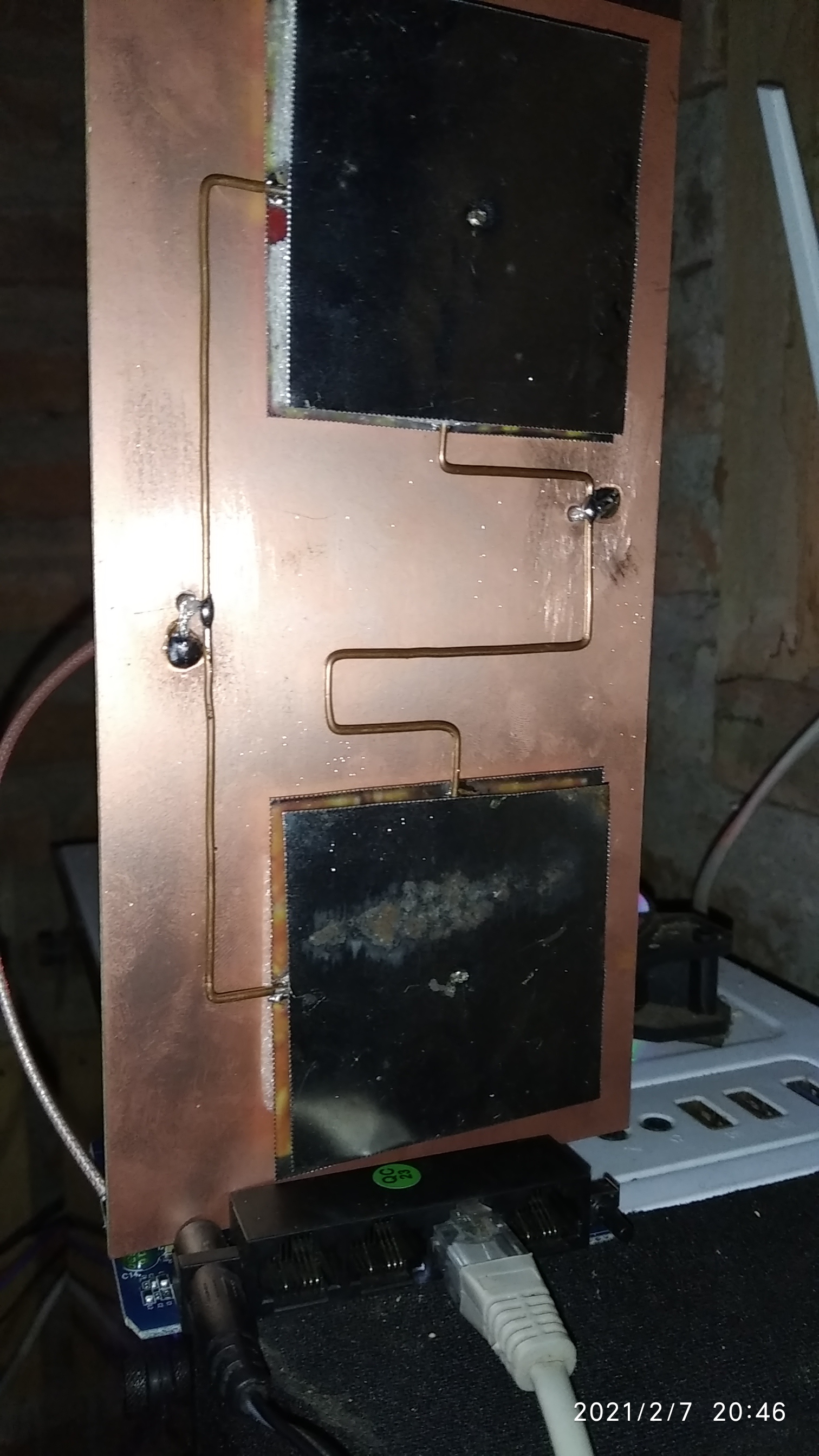

I made this contraption, it works fine. 150m away from access point. Maybe just being lucky.


3 people like this

Share this post


Link to post
Share on other sites

,,,sujoy, it is not necessary to put so many pictures...!!!

Share this post


Link to post
Share on other sites
