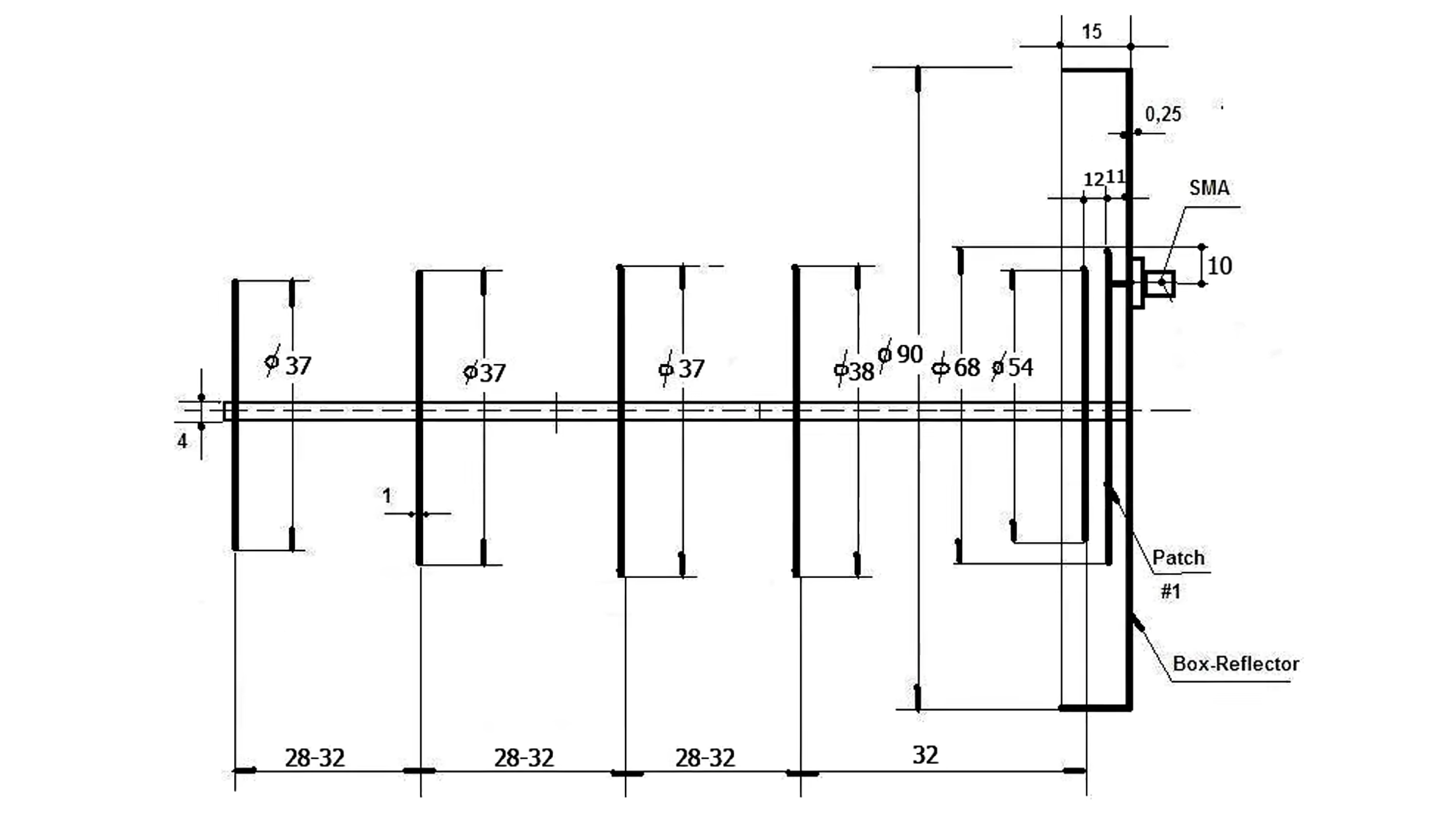

WiFi/LTE antenna BDM-2

100 posts in this topic
7 hours ago, Argos said:

Hello!
 V  is isolated from the rest or does it not matter?

,,,not...!!!

Share this post


Link to post
Share on other sites
On 8/19/2021 at 10:47 PM, Admin said:

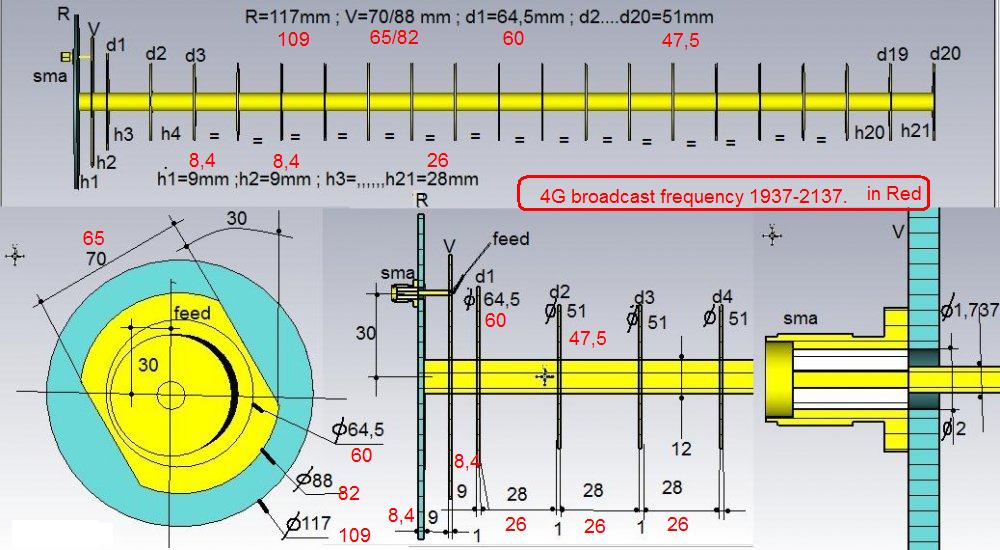

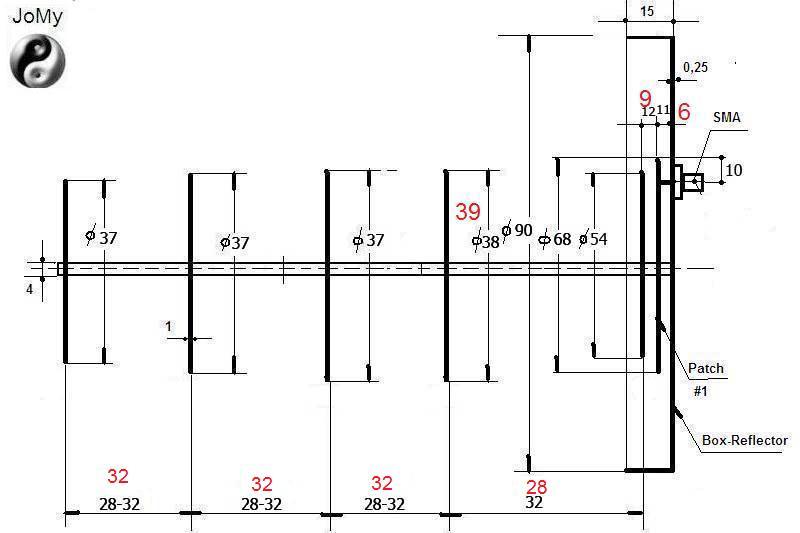

Юрий 26,,, the dimensions in red are for you...


Hi Admin,

How much the gain has the antenna in red? is it 1800-2100 MHz? Thank you.

Share this post


Link to post
Share on other sites
On 1/10/2021 at 0:51 PM, miloudsatdz said:

thank you ADMIN

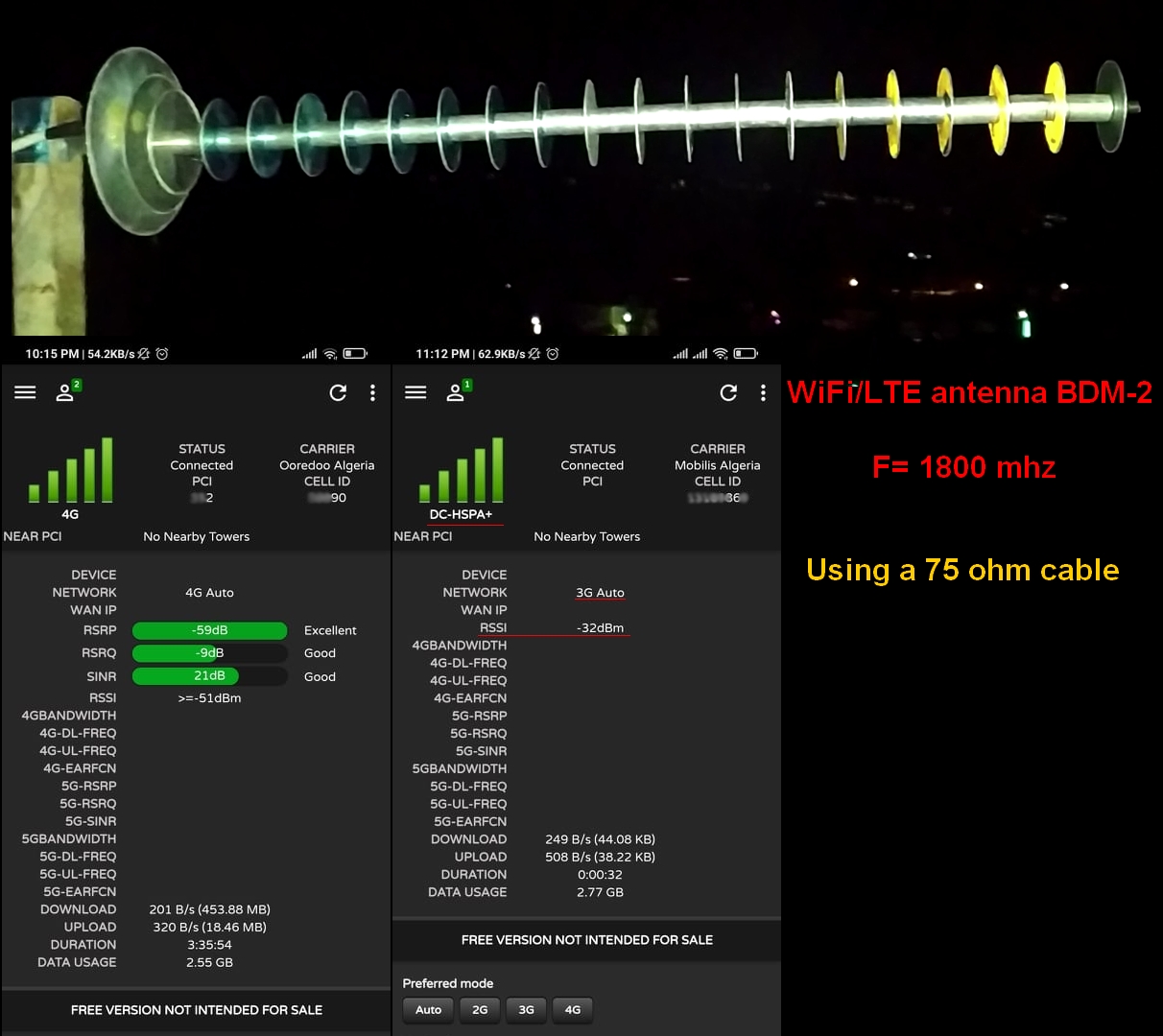

I made an antenna according to this design and the result was very positive even though I used a 75 ohm cable

Tested on 3G and 4G network

The result in the photo is attached


Hi, does this work on 1800-2100 MHz (B3 & B1) frequency? Thank you!

Edited by alsamman80
3 people like this

Share this post


Link to post
Share on other sites

alsamman80

--------------------

It is designed for 1800 frequency only

1 person likes this

Share this post


Link to post
Share on other sites
On 12/21/2020 at 10:05 AM, Admin said:

,,, for the 1.8 GHz band, other dimensions are needed...!!!




Hi Admin,

Could you recalculate this antenna for 75 ohm cable? Thank you!

Share this post


Link to post
Share on other sites
On 1/10/2021 at 0:51 PM, miloudsatdz said:

thank you ADMIN

I made an antenna according to this design and the result was very positive even though I used a 75 ohm cable

Tested on 3G and 4G network

The result in the photo is attached


Hi, does this recalculated or design specially for 75 ohm cable? how much is the gain? Thank you.

Share this post


Link to post
Share on other sites

,,,the gain it"s aprox 15dBi...you can try whith 75 Ohm cable impedance...!!!

Share this post


Link to post
Share on other sites

alsamman80

----------------------------------------------

sorry, I don't have antenna simulator software

Share this post


Link to post
Share on other sites

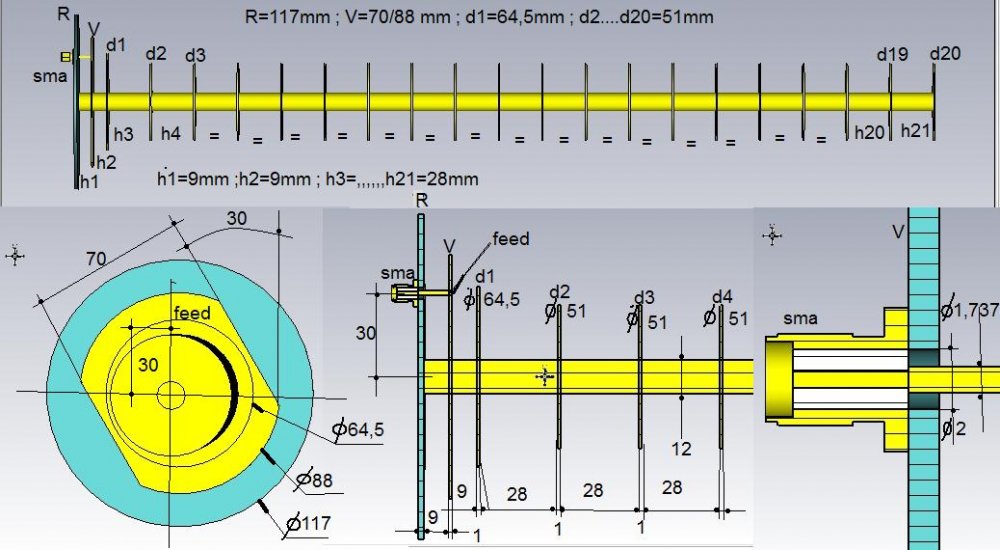

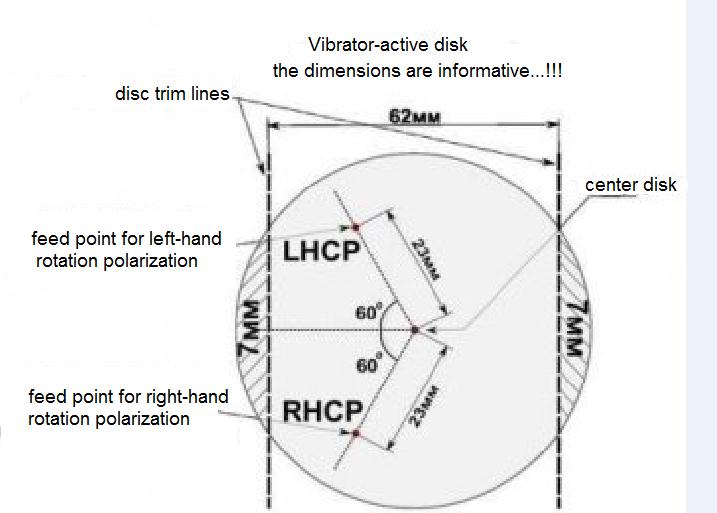

,,,yes, respecting the positioning of the ports as in the image below...


Share this post


Link to post
Share on other sites
20 hours ago, DavidER said:



Will it work on 2 ports with a 75 ohm cable?


yes it work  on 2 ports with a 75 ohm cable

3 people like this

Share this post


Link to post
Share on other sites

hi admin i want to make an antena for 1800 MHz. what is the best option? which antena can best signal speed 1800 vs 900 ?. thank you

Share this post


Link to post
Share on other sites

I think you can try a Bester antenna from this post.

Share this post


Link to post
Share on other sites
On 1/10/2021 at 3:21 PM, miloudsatdz said:

thank you ADMIN

I made an antenna according to this design and the result was very positive even though I used a 75 ohm cable

Tested on 3G and 4G network

The result in the photo is attached


On 3/5/2023 at 6:40 PM, alsamman80 said:

Hi, does this recalculated or design specially for 75 ohm cable? how much is the gain? Thank you.

is this use one cable?? or two cables??

Share this post


Link to post
Share on other sites

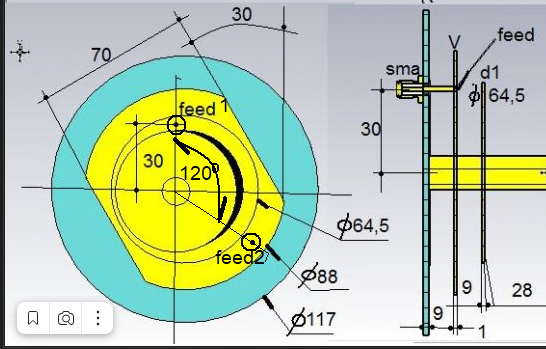

,,, two cables at 120 degrees can also be used...!!!


Share this post


Link to post
Share on other sites
24 minutes ago, GiangVN777 said:

Does it work on 6ghz frequency?

,,, yes, it is possible, but with other dimensions...!!!

1 person likes this

Share this post


Link to post
Share on other sites

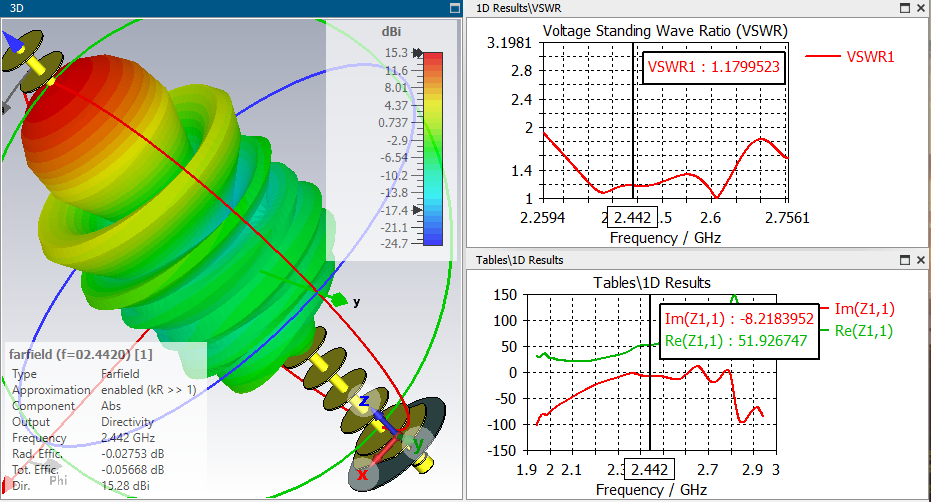

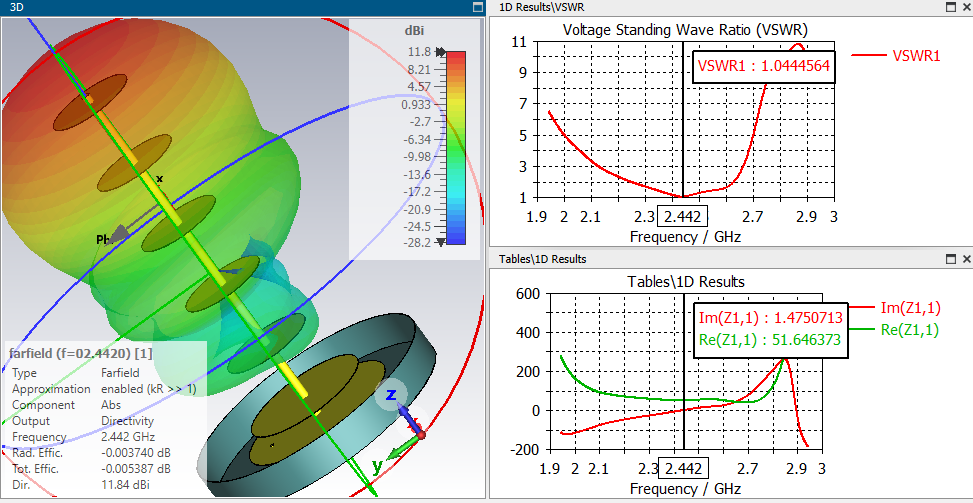

,,okay, I will try...!!!
I use cst.

1 person likes this

Share this post


Link to post
Share on other sites

,,,this is real...


1 person likes this

Share this post
