A Simple Patch Antenna

93 posts in this topic

,,,a simple patch MiMo antenna...



2 people like this

Share this post


Link to post
Share on other sites

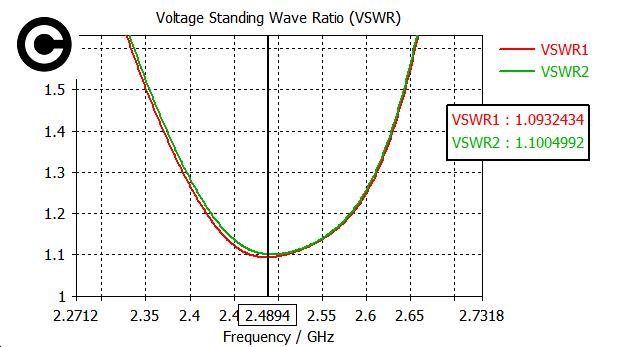

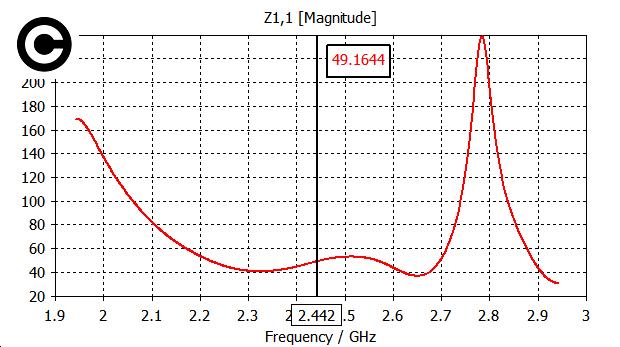

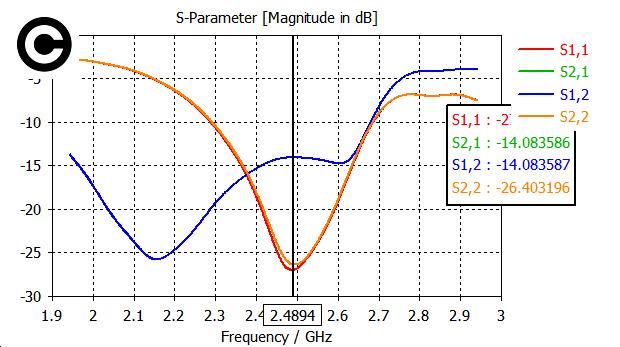

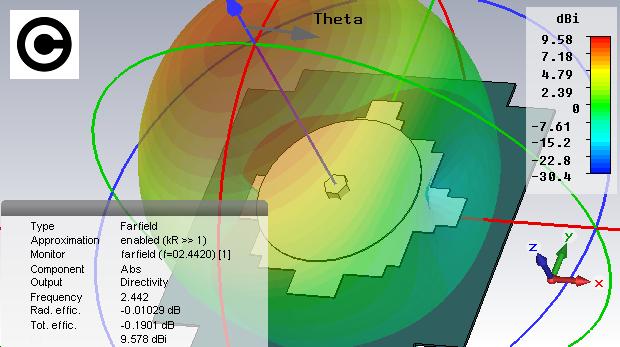

,,,this type of  MiMO simple patch antenna has the advantage of a wide range of frequencies(2,35-2,65 GHz)




simple patch_01.jpg

simple patch_02.jpg

simple patch_03.jpg

simple patch_04.jpg

3 people like this

Share this post


Link to post
Share on other sites

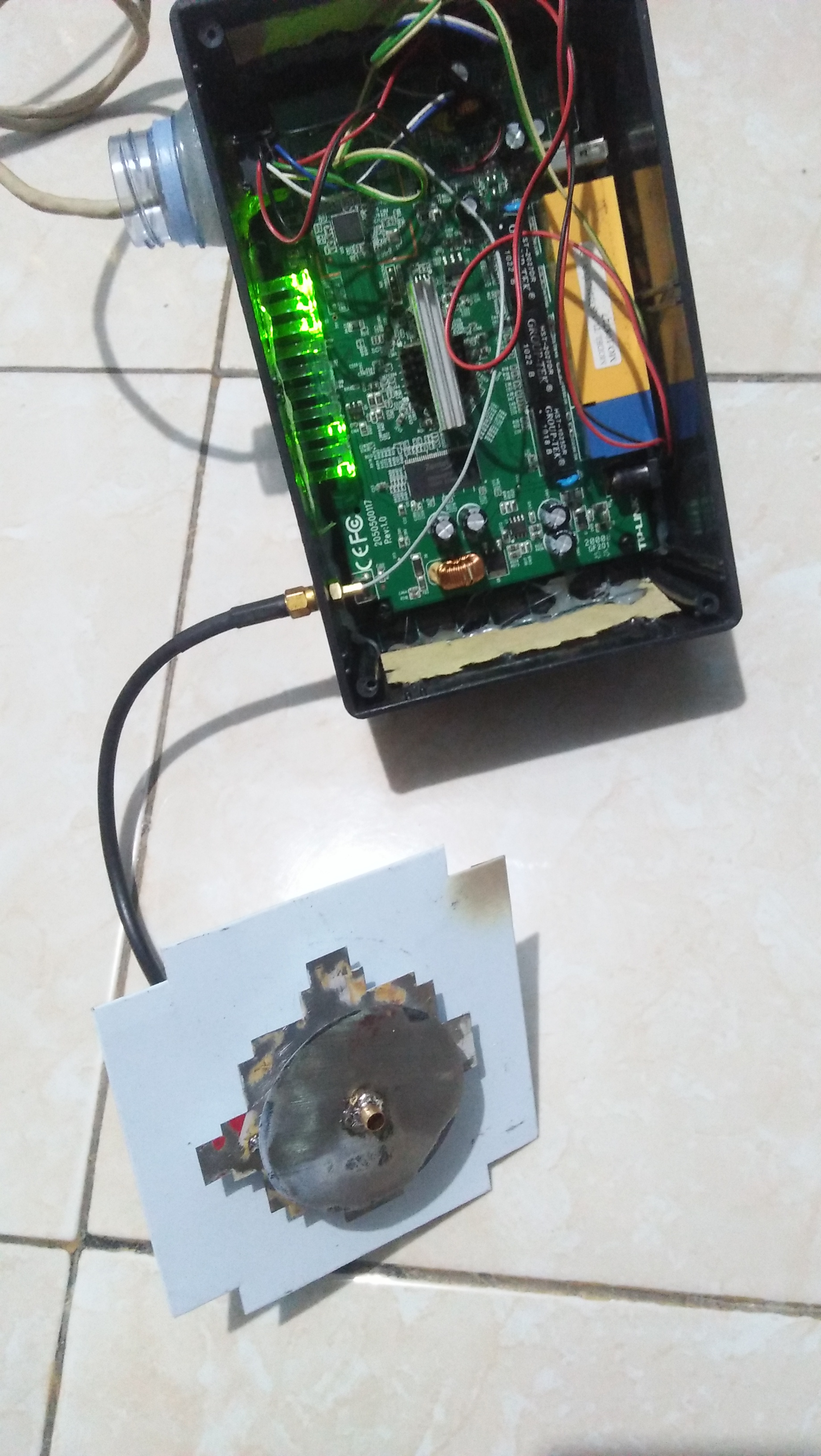

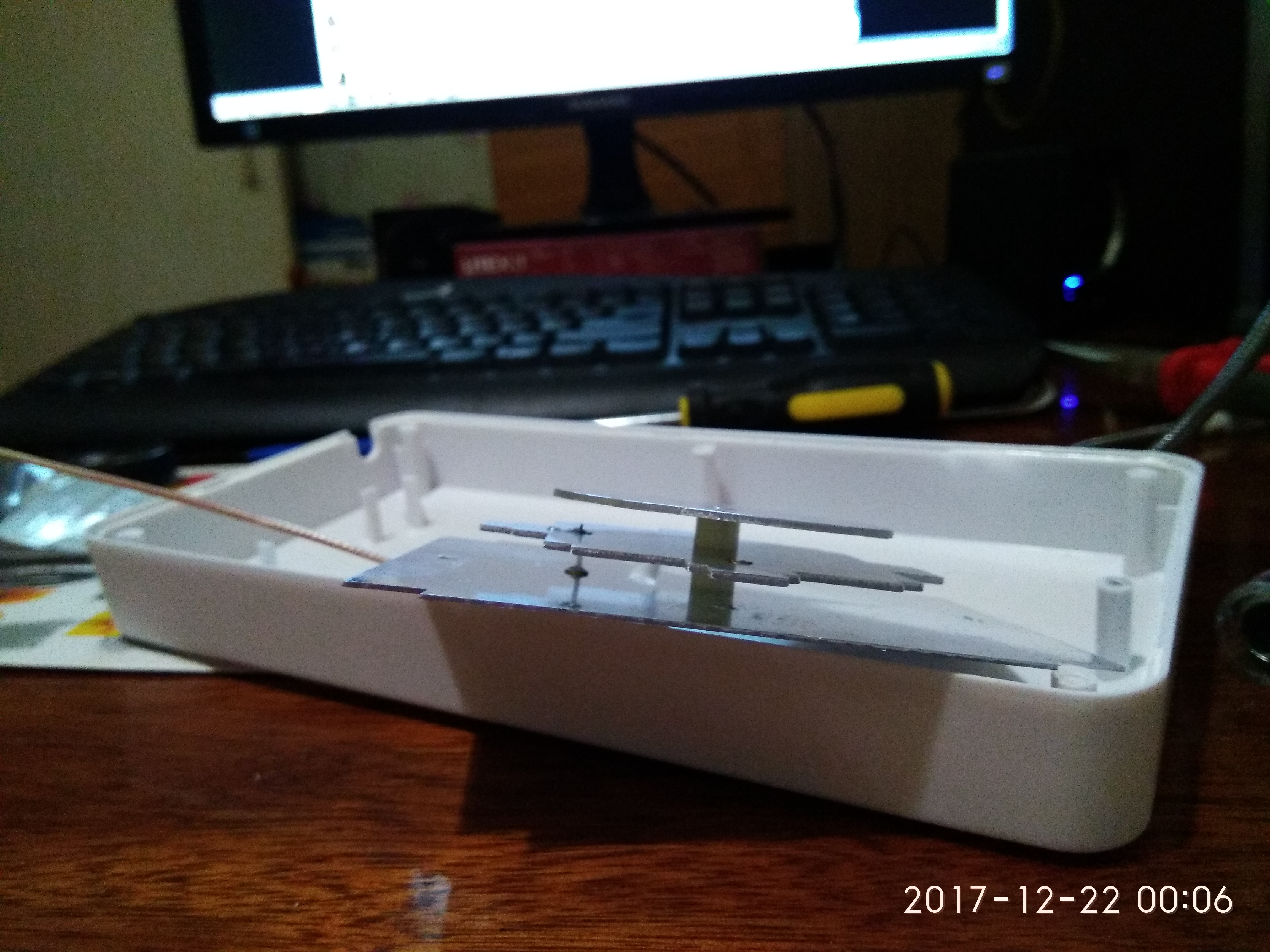

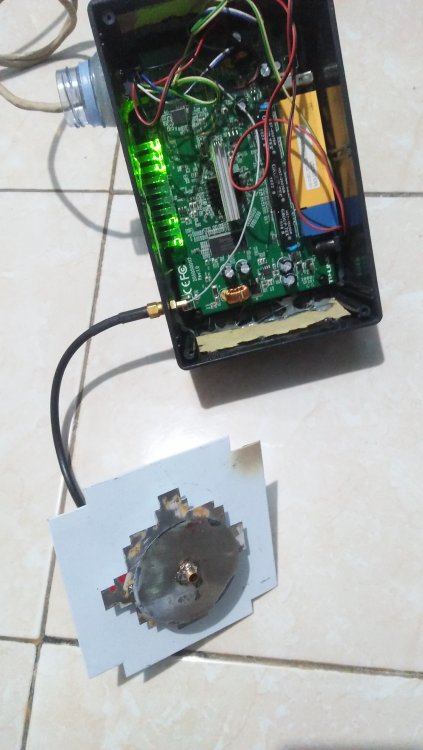

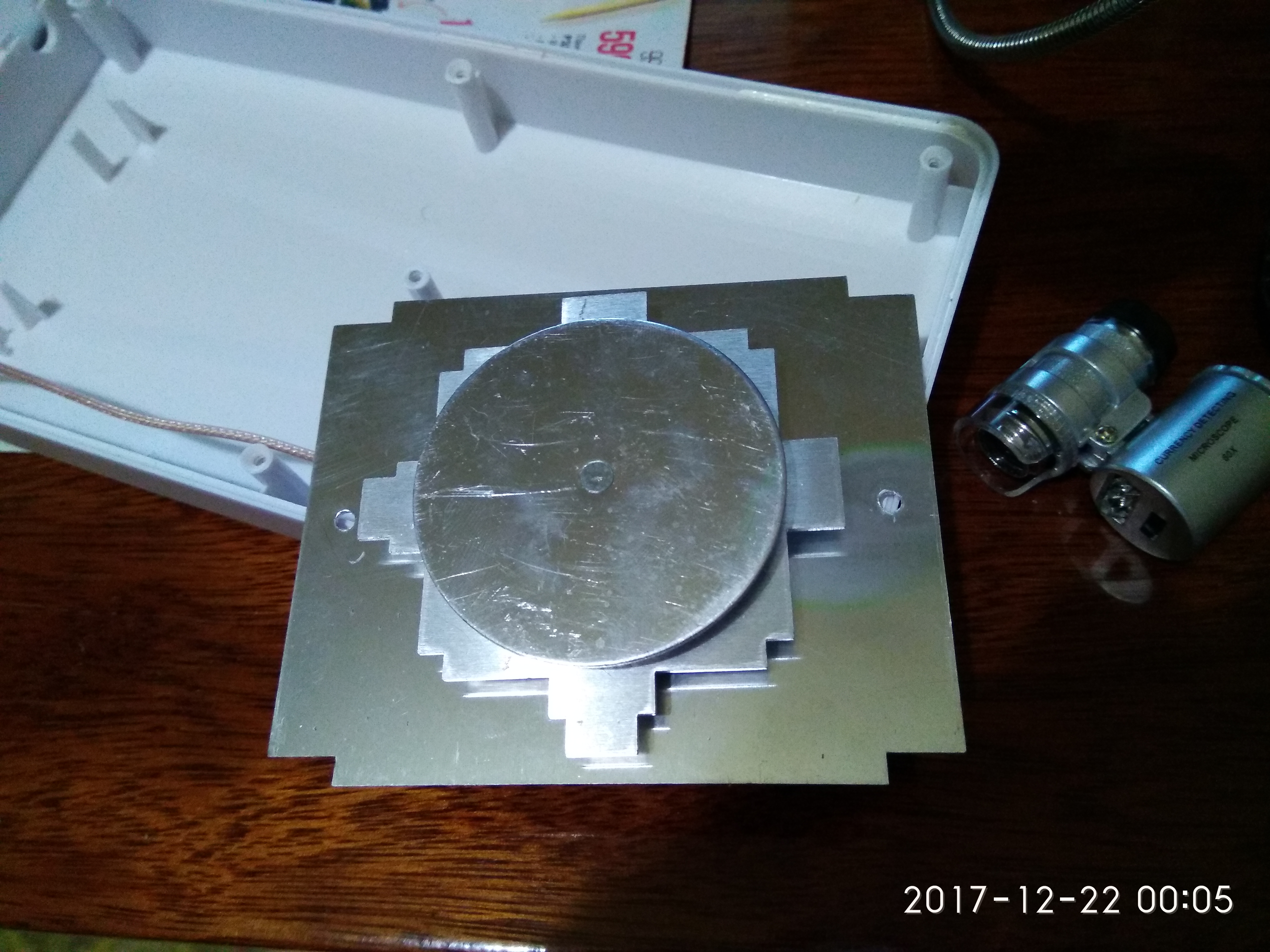

working with broken tplink TL-ANT2415D make me crazy,

still better this antenna


1 person likes this

Share this post


Link to post
Share on other sites

Posted (edited)

if i changes the thick of material, 3-4mm for reflector and 1mm for other, will it affect the results??

i solder spacer with all patch and reflector,



and what degree beamwidth for this type antenna

Edited by bejonet

Share this post


Link to post
Share on other sites

,,,changing the thickness of the material, does not have much influence on the antenna characteristics...!!!

I do not have this file anymore, I should resume this type of antenna...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Oh, okay, Andrew is a good guy but if he could do both program simulations and optimizations would be even better,not only checking with the spectrometer is enough...!!!!

The dimensions of my antennas above are given by me and are not copied according to the original model...!!1

Share this post


Link to post
Share on other sites

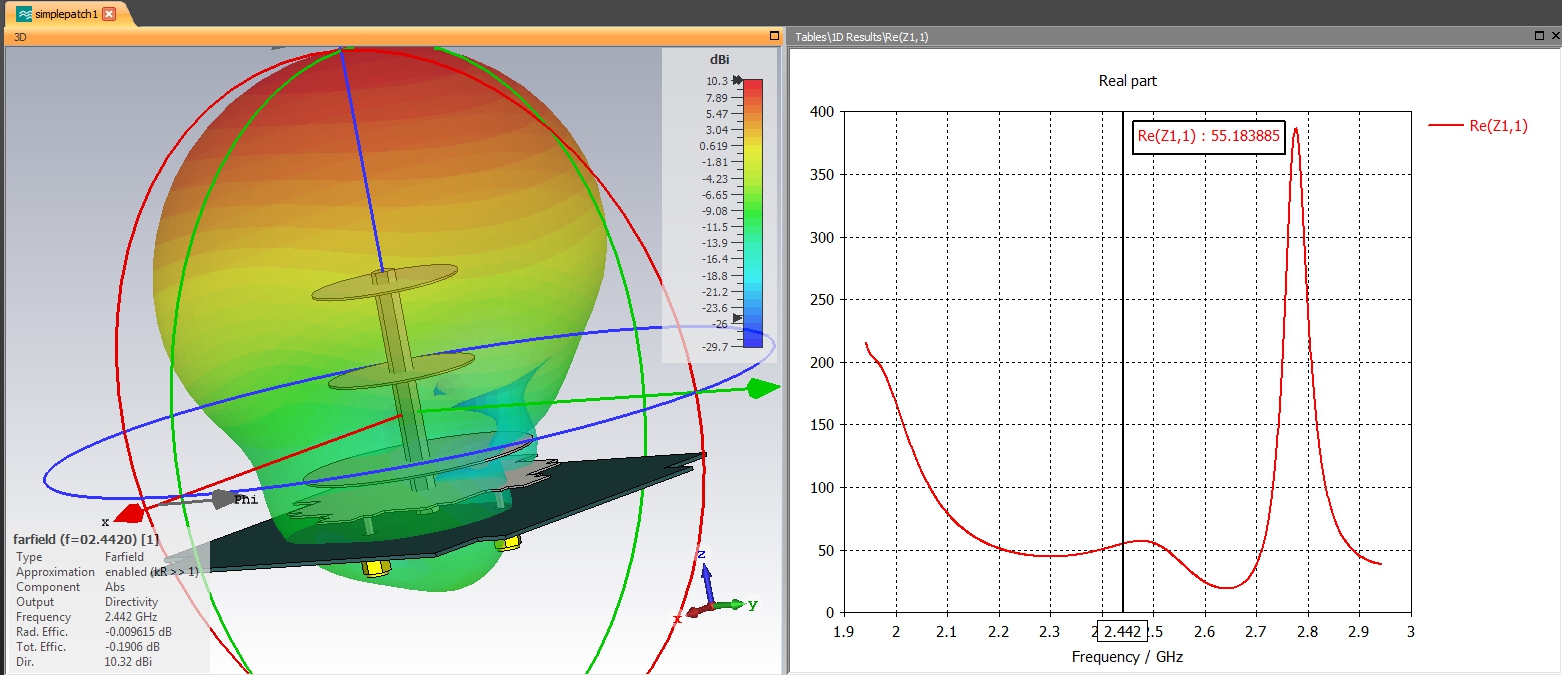

",,,, so it should look like a real optimization....!!!!

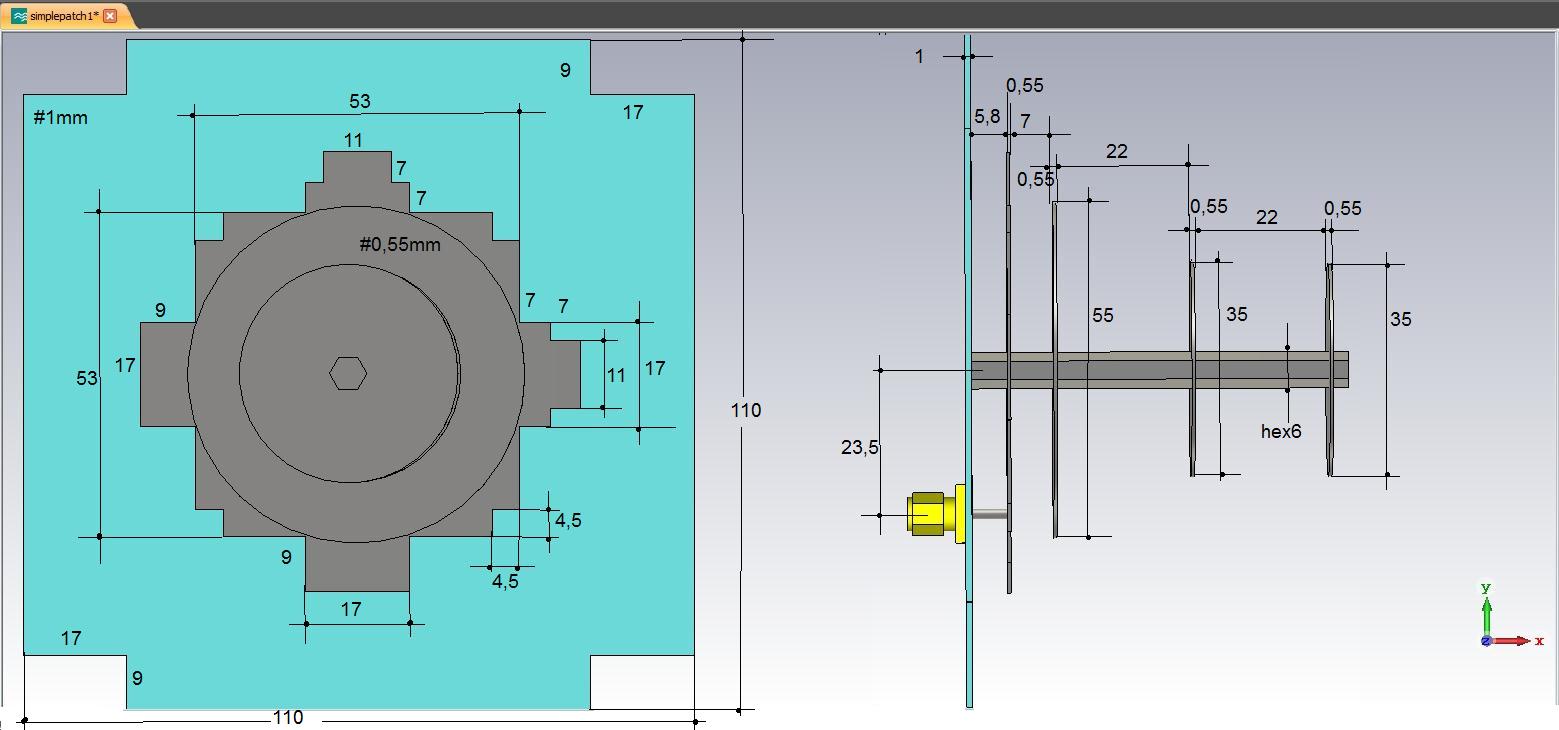

,,,and these are the dimensions...!!!


1 person likes this

Share this post


Link to post
Share on other sites

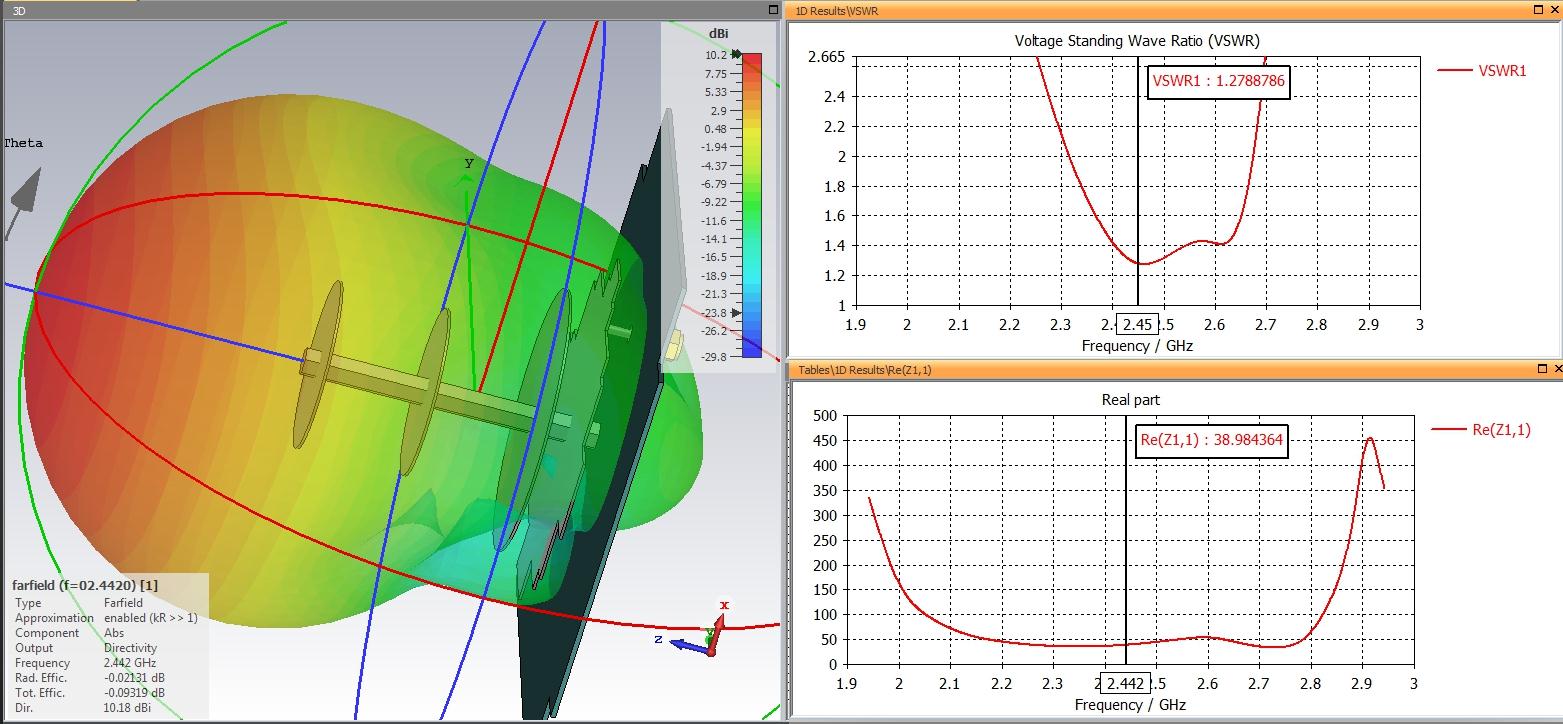

what mean Re(Z1,1) = 38.9??? it is not 50 ohm???

Share this post


Link to post
Share on other sites

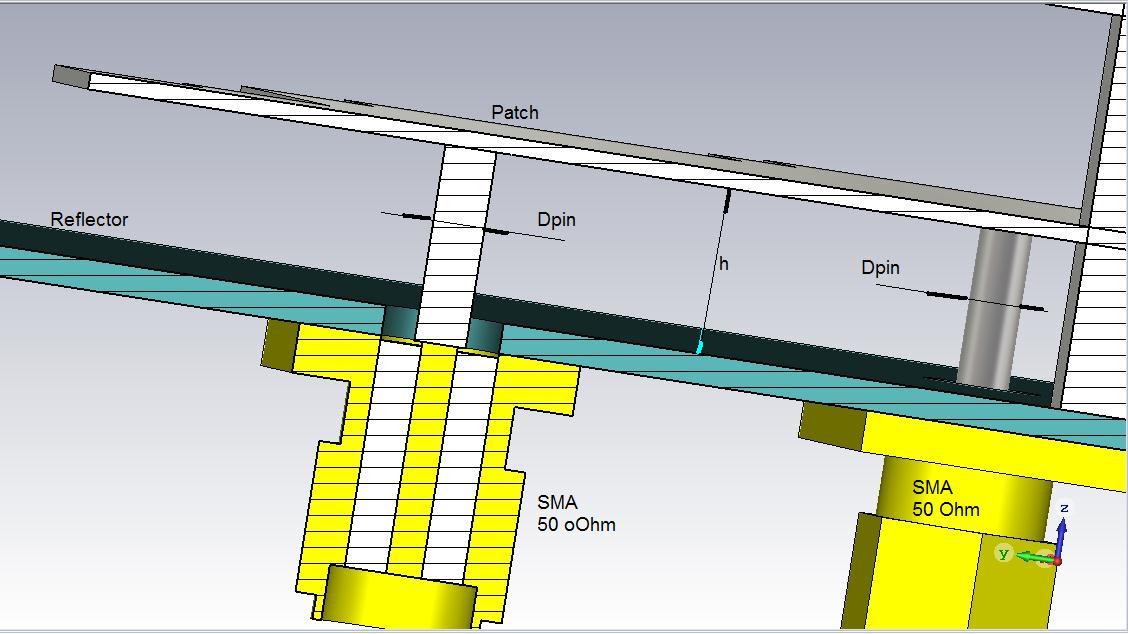

Yes, you are right, but this can be adjusted via the feed pin diameter and the distance "h"...!!!

,,,but anyway the antenna is in the study to be MiMo ....!!!






Share this post


Link to post
Share on other sites

stupid question,,,,... what effect, if the antenna does not have an impedance of 50 ohms

Share this post


Link to post
Share on other sites

,,,then install cst2019...!!!

"but I do not think you can not open with cst2016 ,,,, !!! is 64 or 32 bit ... ??? must be on 64bit...!!!

Share this post


Link to post
Share on other sites

try install cst2018 64bit, my computer is not support, looking for cst2019 32bit but nothing found, is student edition support for your cst file??

Share this post


Link to post
Share on other sites

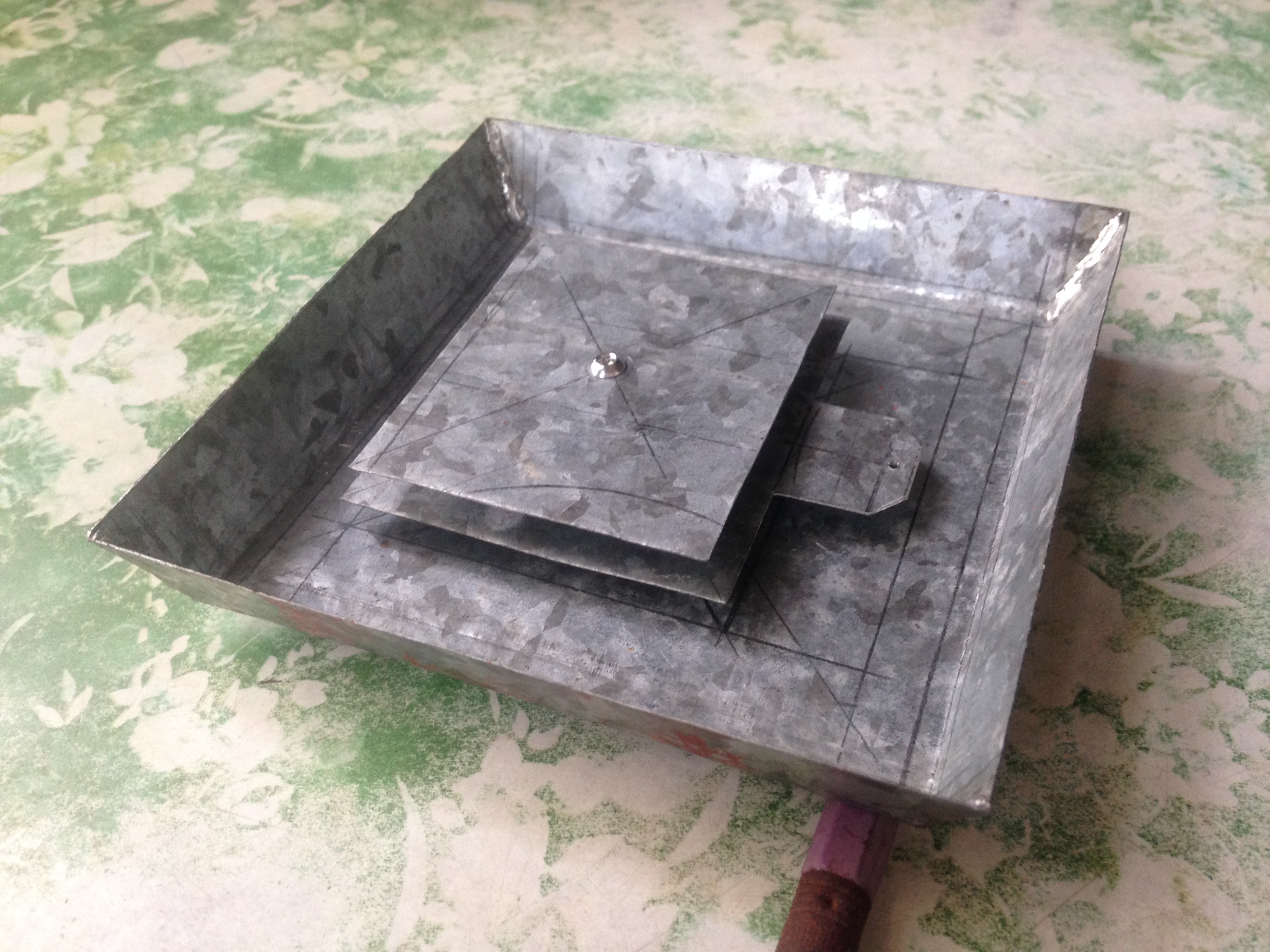

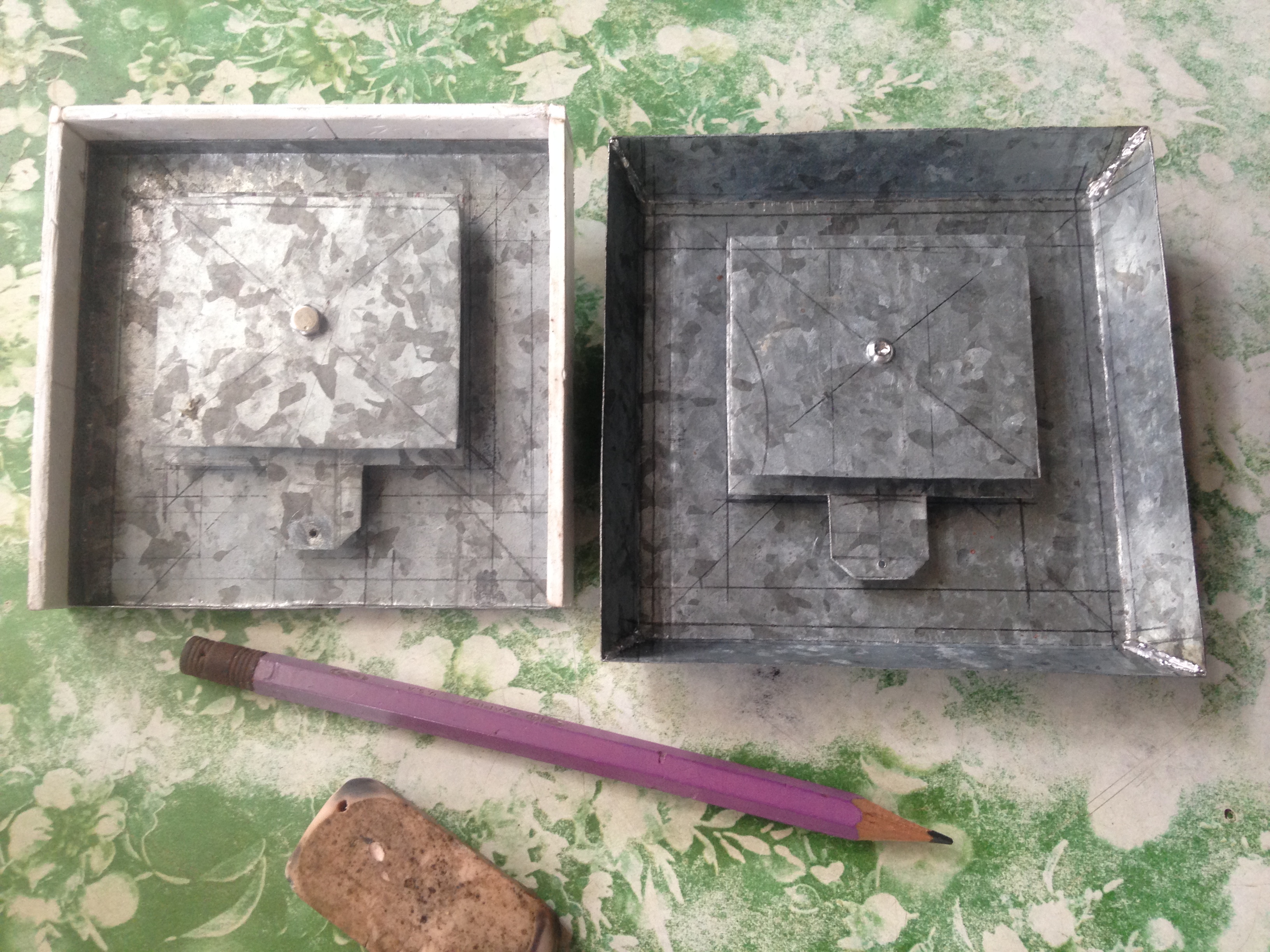

I made this antenna but I don't know the gain... ahahaha

The design is derived from WAI102PA..



Share this post


Link to post
Share on other sites

reflector - 90mm (bottom) , 104mm (top)

Lid height - 17mm (70deg)



Share this post


Link to post
Share on other sites

hi admin, do i need a sleeve for this one? if so, how long is the sleeve..thank you..

Share this post


Link to post
Share on other sites

Eric, let me do a simulation and then see...!!!

,,,,but you see that the patch antenna is not in the center of the pyramid trunk (reflector)...!!!

Share this post


Link to post
Share on other sites
