Biquad Antenna

278 posts in this topic

,,, that would be ... !!!!





1 person likes this

Share this post


Link to post
Share on other sites
On 5/4/2022 at 0:07 AM, Admin said:

,,, that would be ... !!!!



Thanks, my friend
I want this antenna for fpv

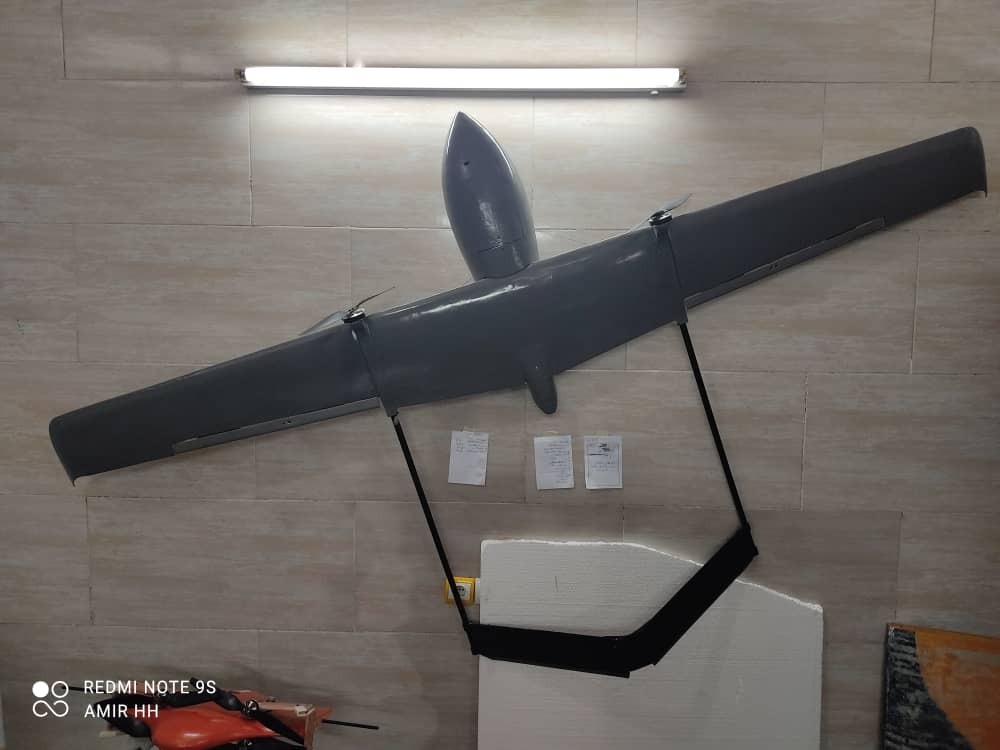

I will definitely make your design and test it on the UAV

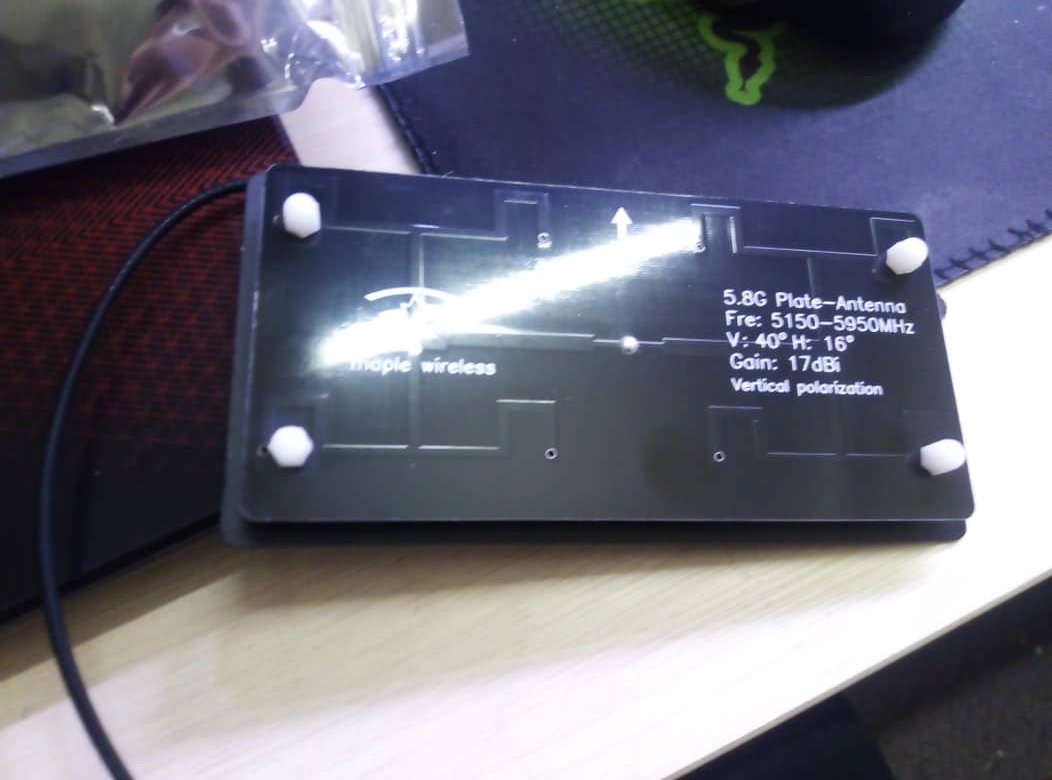

I bought the antenna you see in the picture
I haven't tested it myself yet, but apparently it works great
My friends tested and reached a range of 30 km with a power of 1 watt
I do not need this amount
Coverage is more important to me
For example, with two diversion receivers and 90 degree coverage and 10 dbi gain for 10 km distance
I have a few questions to make this antenna
1. If I use fr4 with a thickness greater than 0.8, like 1.6 and add to the height will the antenna have the same performance? Or do I want to use a steel plate instead of its FR4?
2- Is the thickness of copper 0.25? Is there a problem for me to use 0.35? (Finding a 0.25 board is really hard)
3- Is it possible to design based on multiples of lambda? Because the network may be busy, I have to switch to Frequency 5280
Thank you in the end

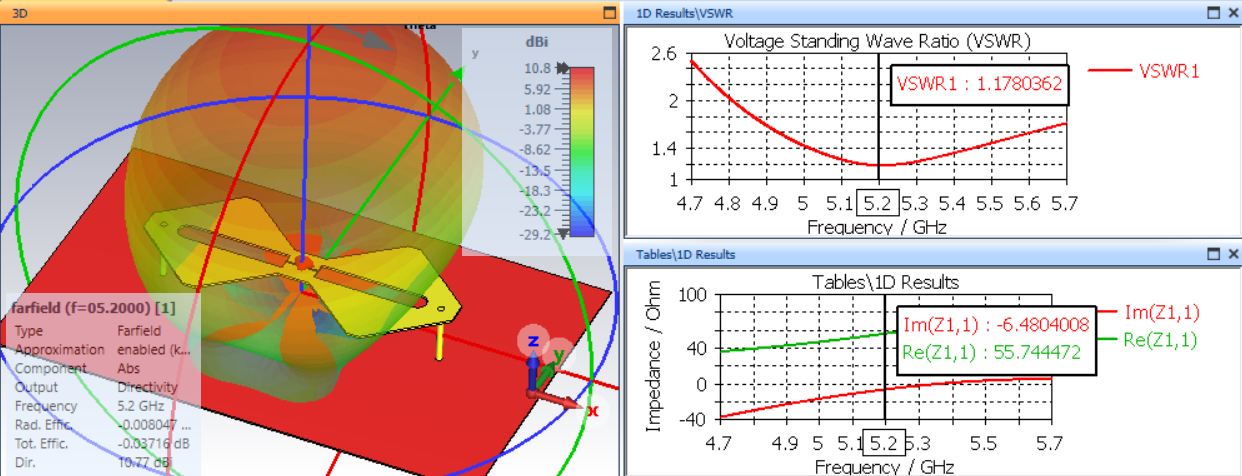

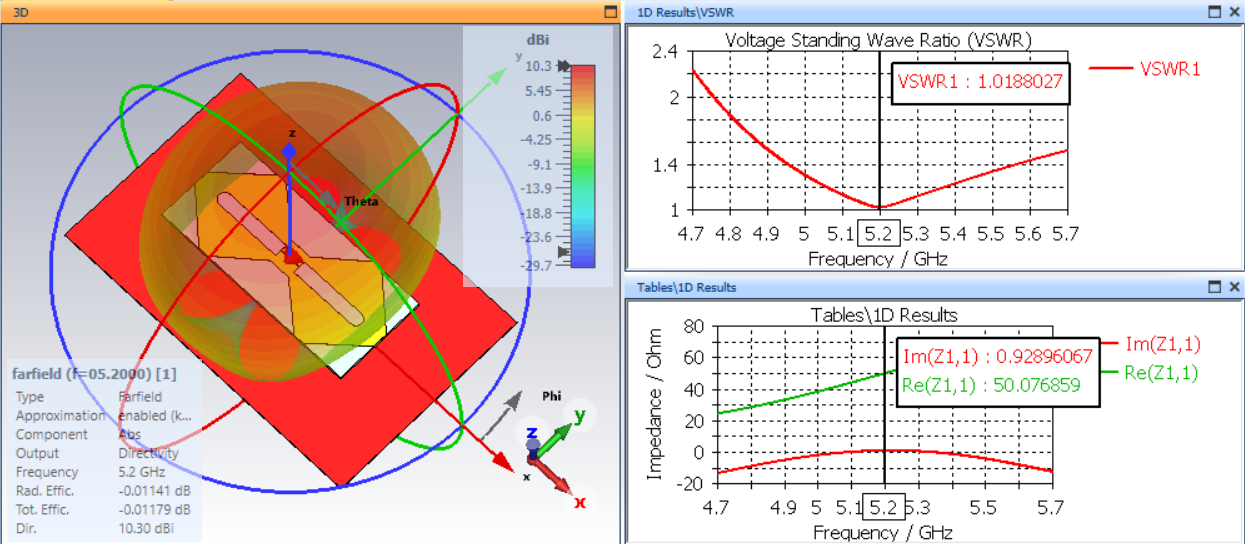

pcb antenna 5.2ghz.IGS

Share this post


Link to post
Share on other sites

1) No.

2) Other dimensions are required for 0.35mm copper sheet.

3)The antenna simulated by me , works just as well for the 5.0-5.5 GHz frequency range.

1 person likes this

Share this post


Link to post
Share on other sites
2 minutes ago, Admin said:

1) No.

2) Other dimensions are required for 0.35mm copper sheet.

3)The antenna simulated by me , works just as well for the 5.0-5.5 GHz frequency range.

thanks

In our area, only PCBs with a thickness of 1.6 and a thickness of 0.35 can be found
Is it possible to design for this type of material?

Share this post


Link to post
Share on other sites

,,, I will do a simulation for PCB 1.6mm thick as well as for antenna only 0.35mm thick sheet...!!!!

Share this post


Link to post
Share on other sites
1 minute ago, Admin said:

,,, I will do a simulation for PCB 1.6mm thick as well as for antenna only 0.35mm thick sheet...!!!!

oh realy thanks

Share this post


Link to post
Share on other sites

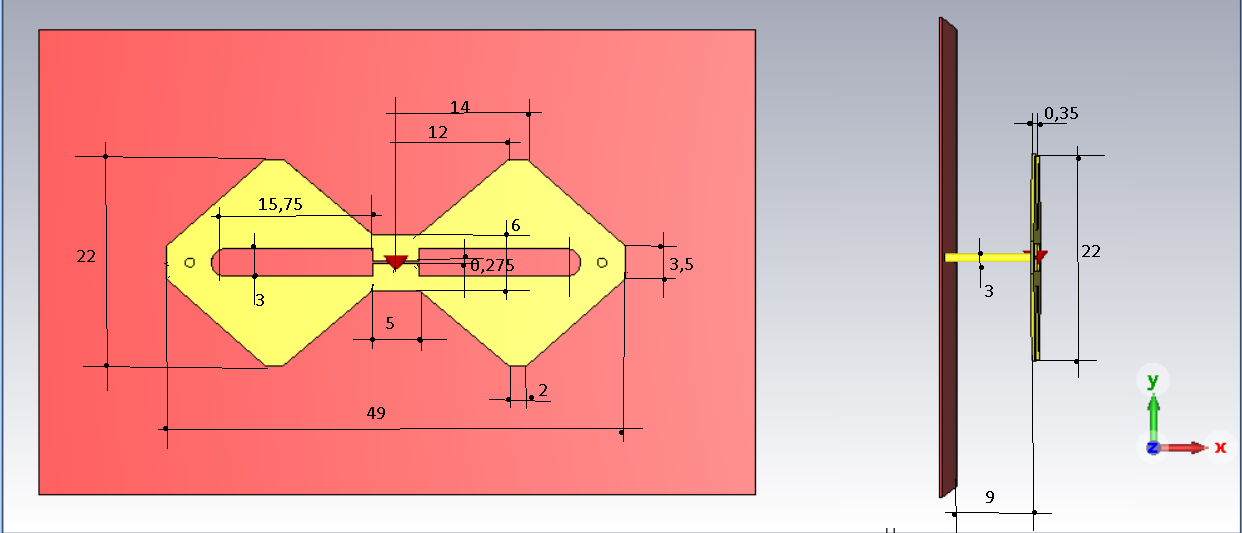

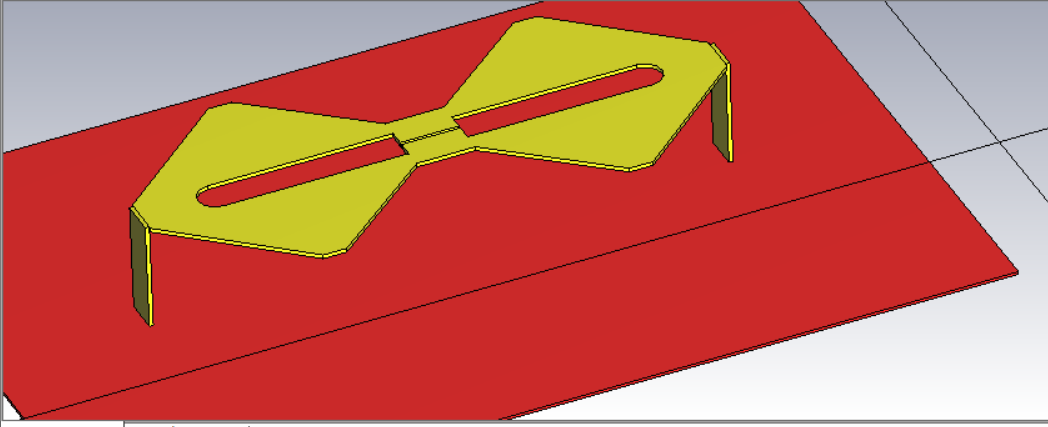

,,, this is what the 0.35mm thick sheet looks like...


2 people like this

Share this post


Link to post
Share on other sites

Posted (edited)

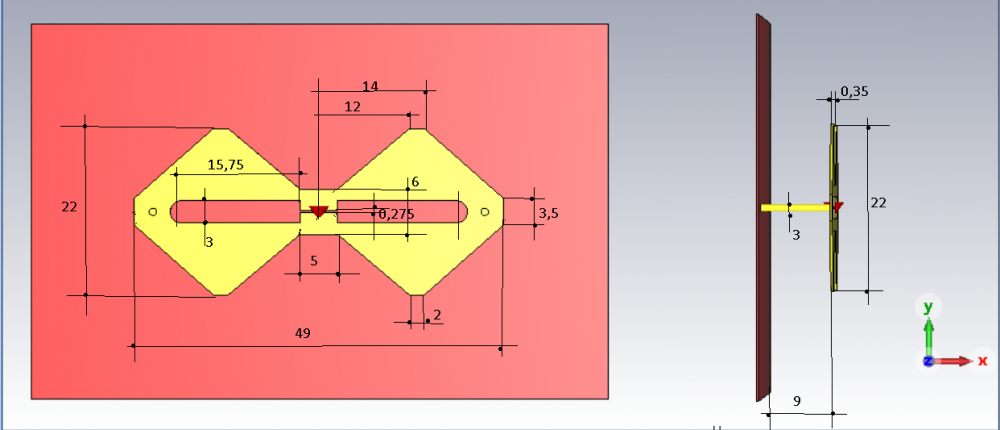

18 hours ago, Admin said:

,,, this is what the 0.35mm thick sheet looks like...


thanks admin

Please give me the sizes of this design as well

Or is it the same size as before?

Edited by mojtaba.hdpr

Share this post


Link to post
Share on other sites
On 5/5/2022 at 4:24 PM, Admin said:

,,, this is what the 0.35mm thick sheet looks like...


Hi admin

do you here ?

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!




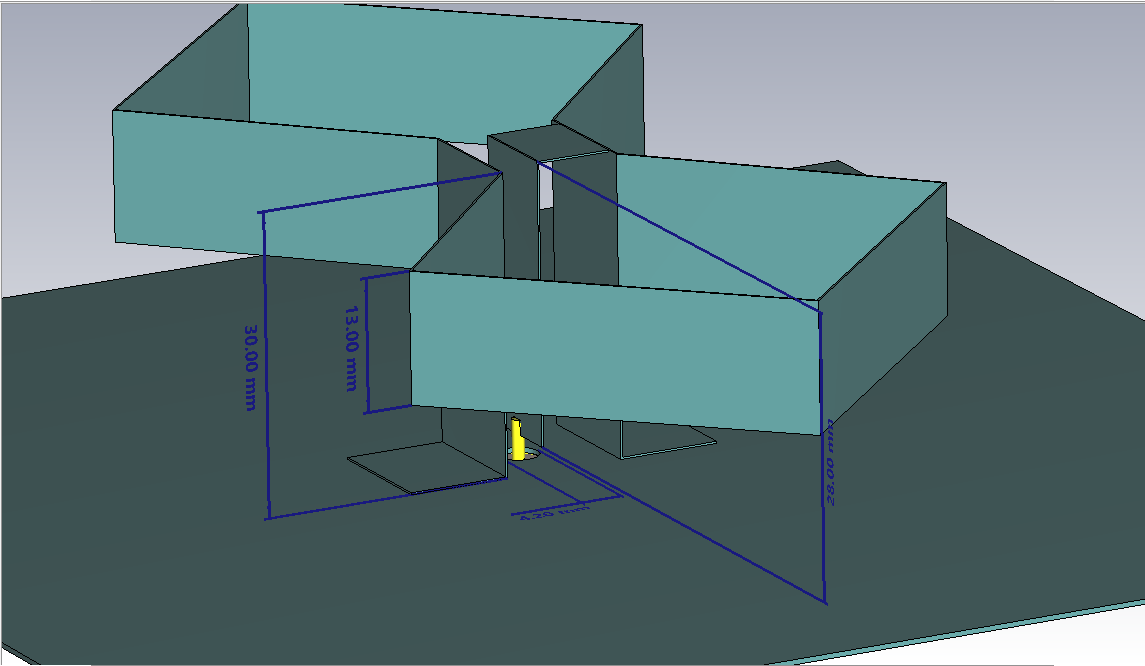

,,, but I think it's better that way ... !!!!




2 people like this

Share this post


Link to post
Share on other sites

Posted (edited)

Hi admin

what are these ? is copper ?

just support or ...


Edited by mojtaba.hdpr

Share this post


Link to post
Share on other sites

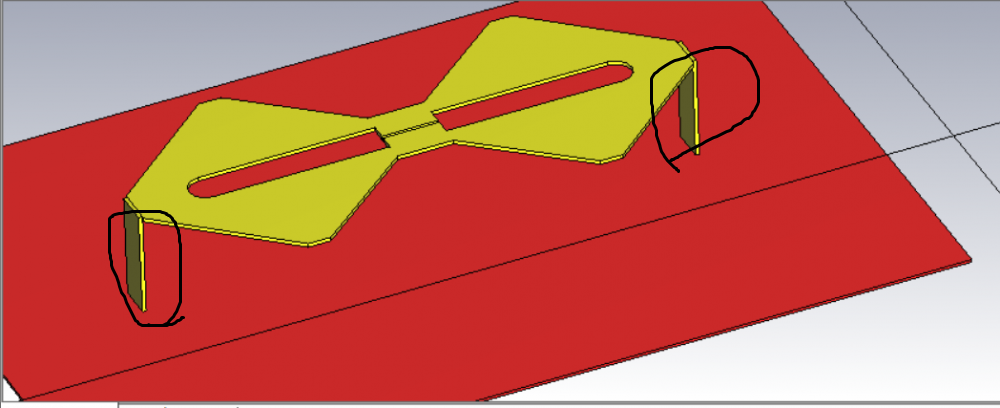

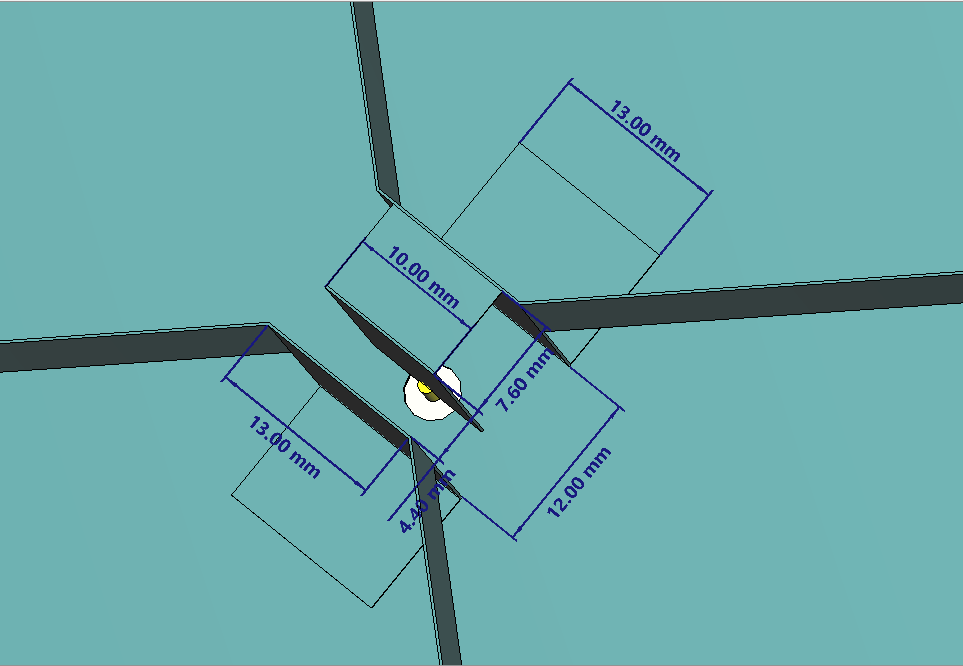

,, is one and the same with antenna ,,, copper sheet or galvanized sheet...!!!

Share this post


Link to post
Share on other sites

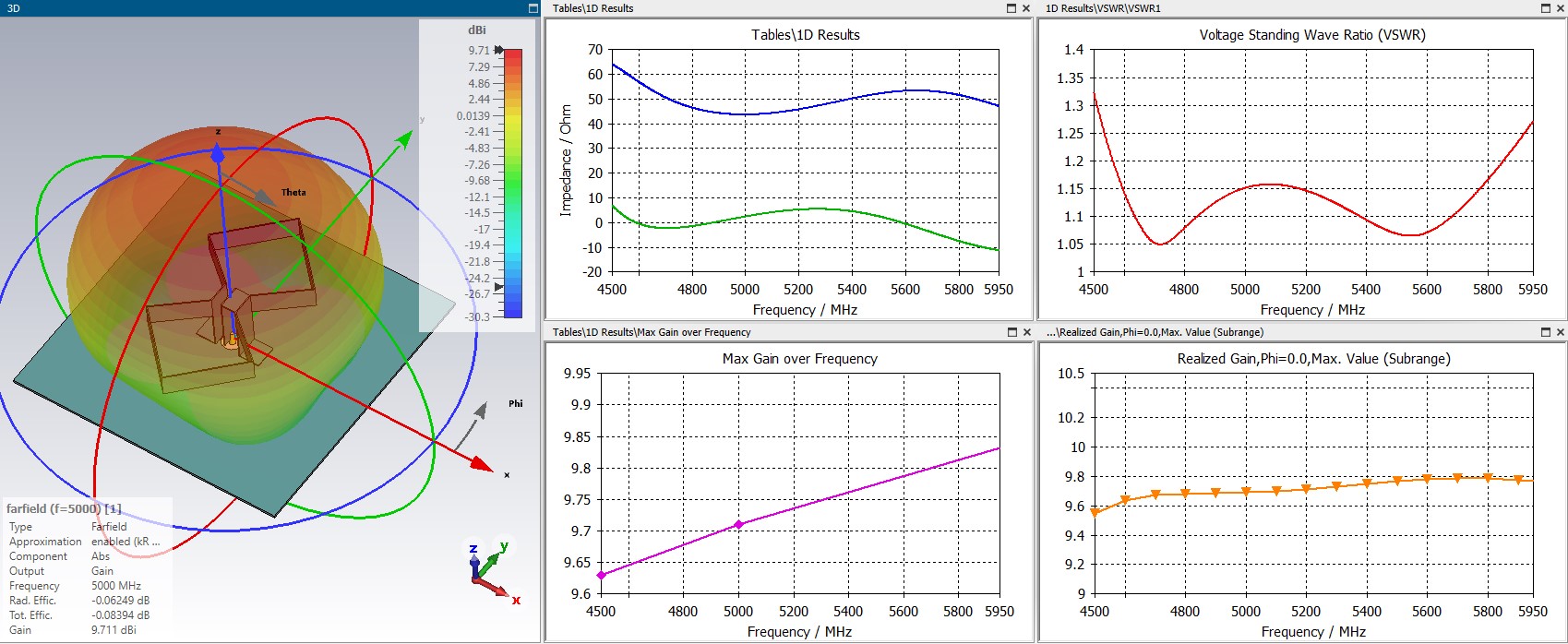

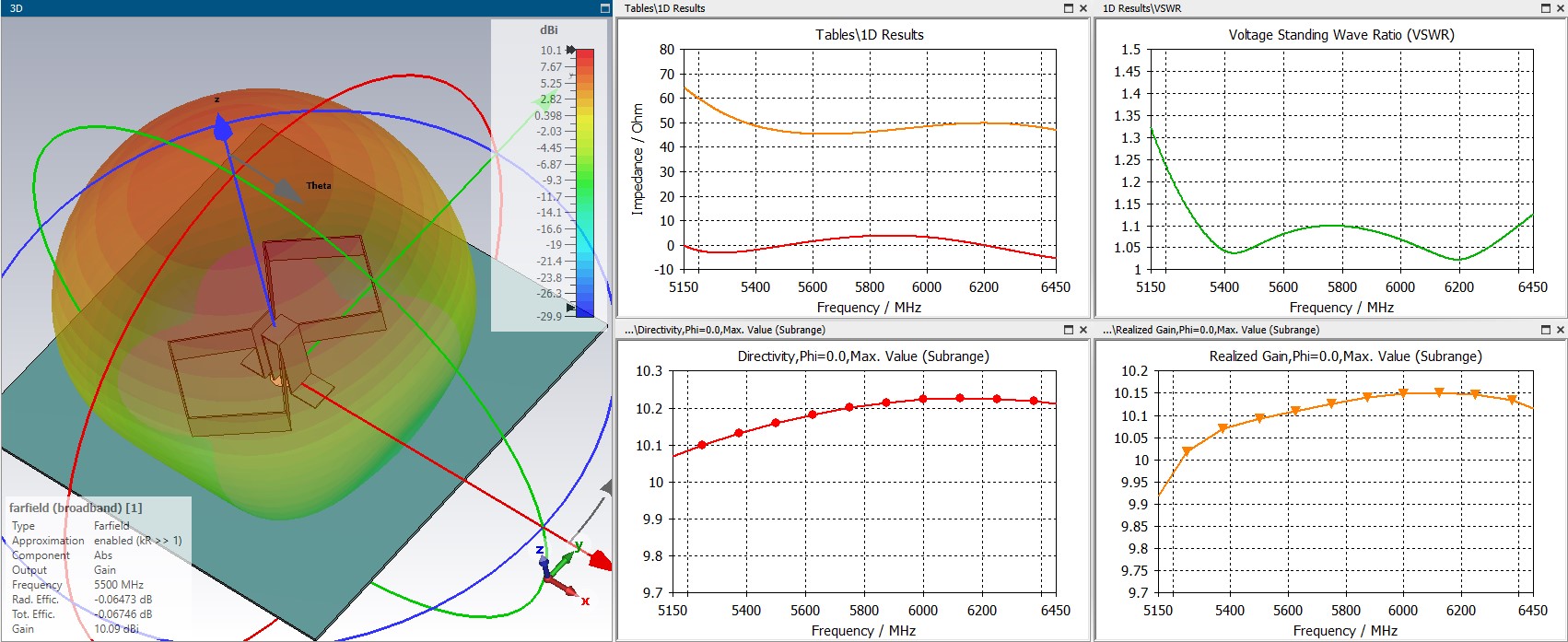

biquad 4500(Russian 5G)-6000

t=0.2mm

h=12.5

reflector = 56x56 mm

connector - SMA


1 person likes this

Share this post


Link to post
Share on other sites
7 hours ago, mojtaba.hdpr said:

thanks

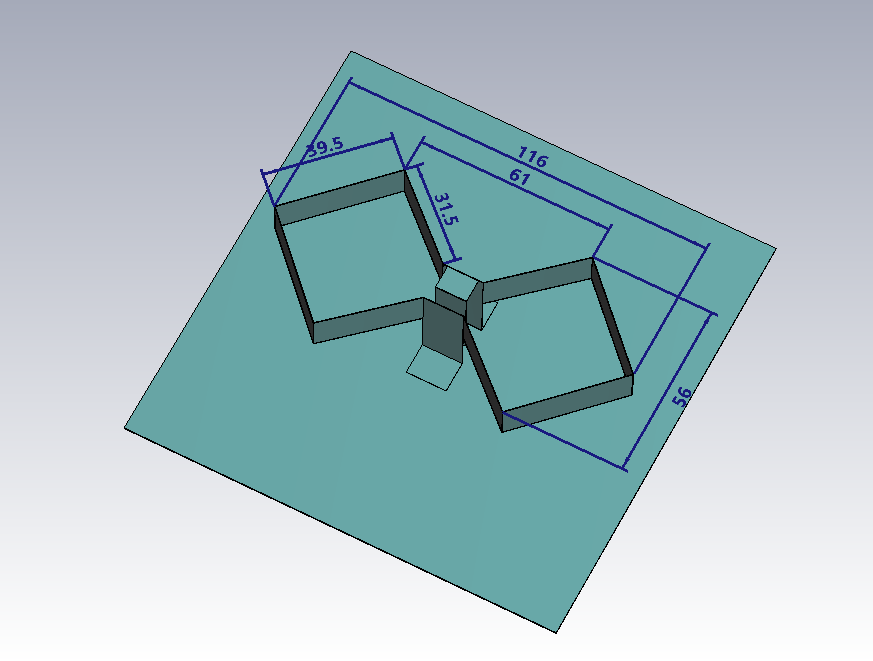

Can this design be used for biquad?

sorry for double biquad i mean

Share this post


Link to post
Share on other sites

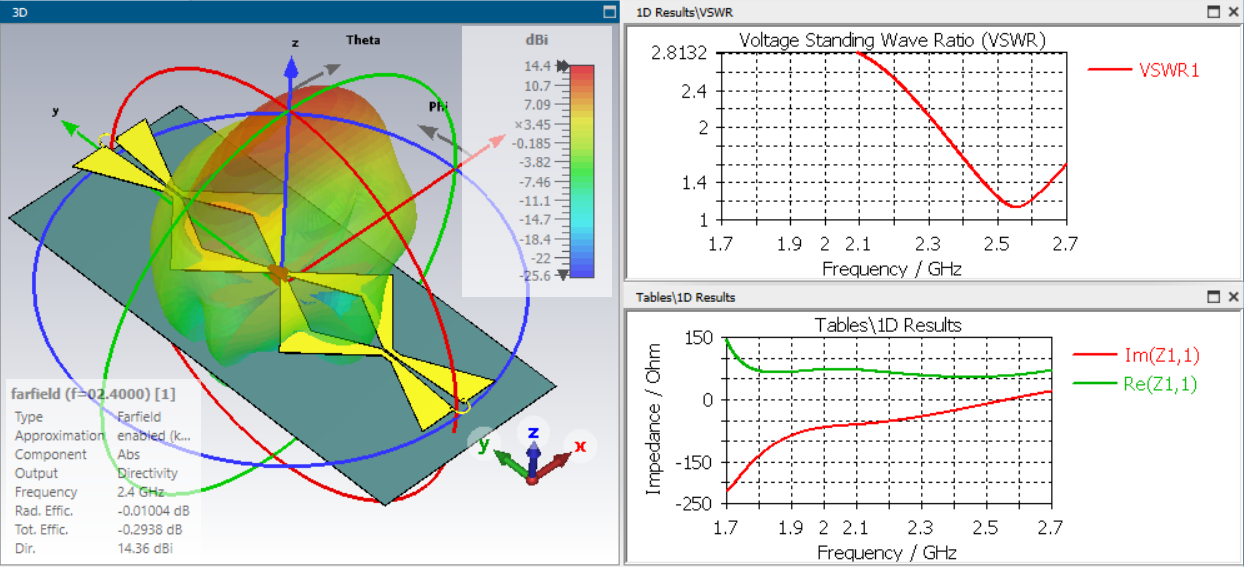

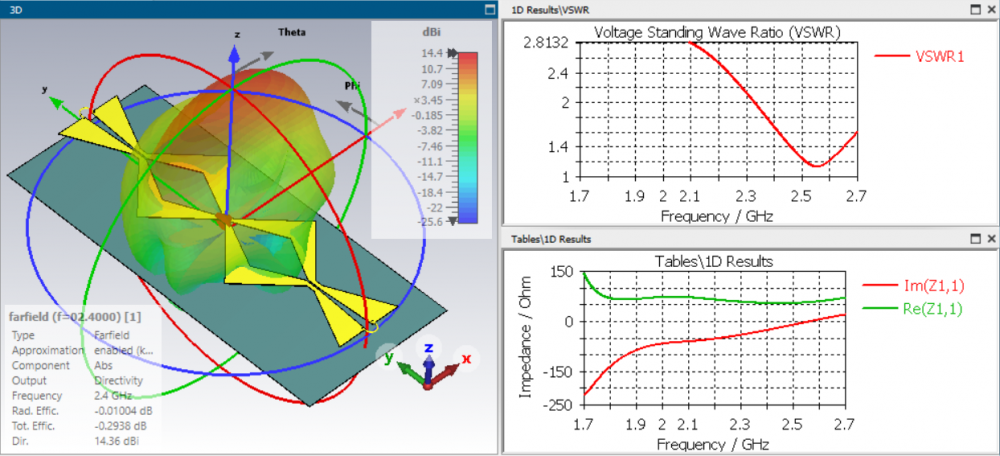

Biquat + Horn for 2.4 - 2.5 GHz & optimized for gain

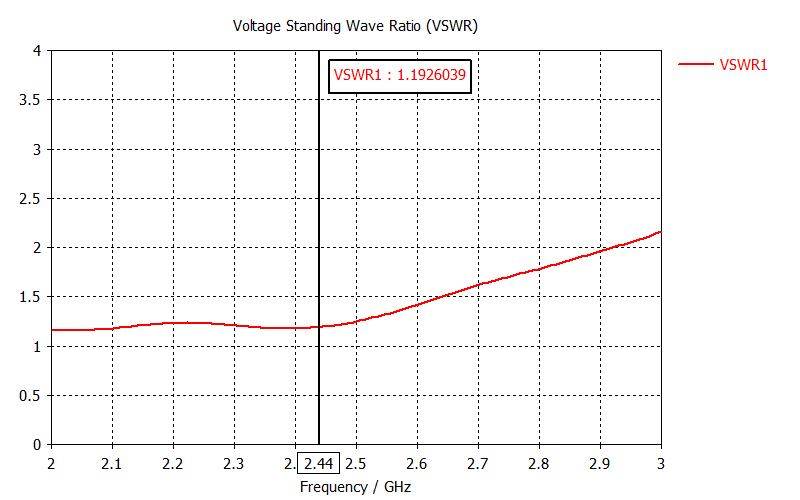

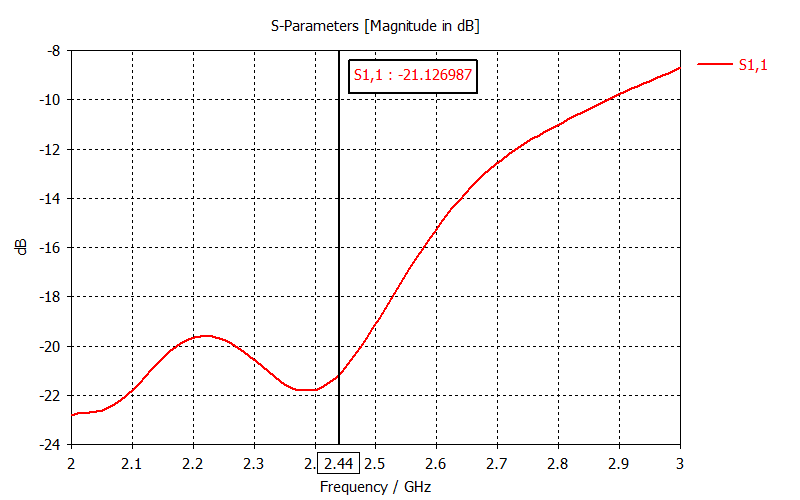

gain.png s11.png


Size

Spoiler

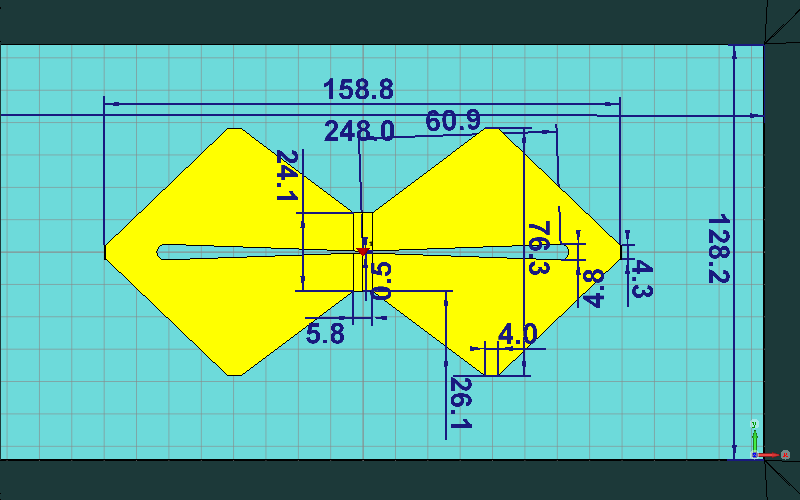

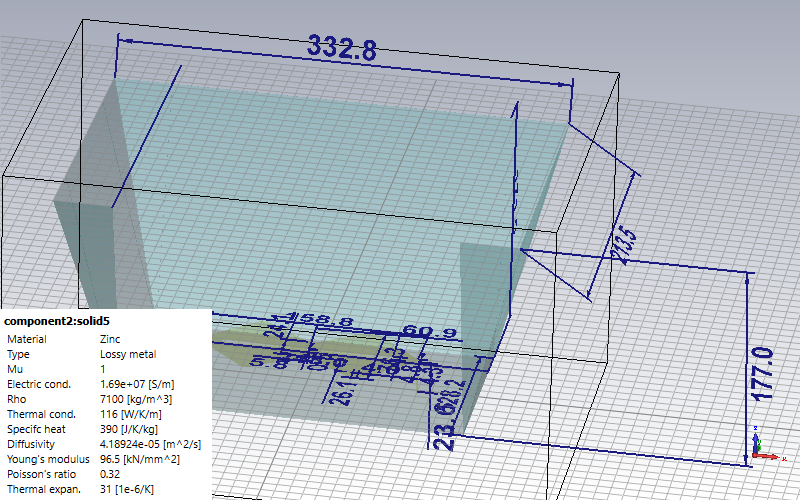

size.png size2.png

Impedance + Gain

Spoiler

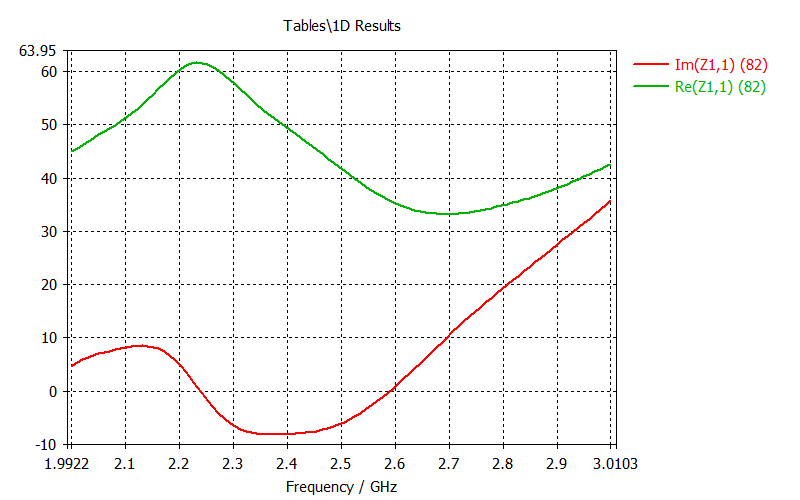

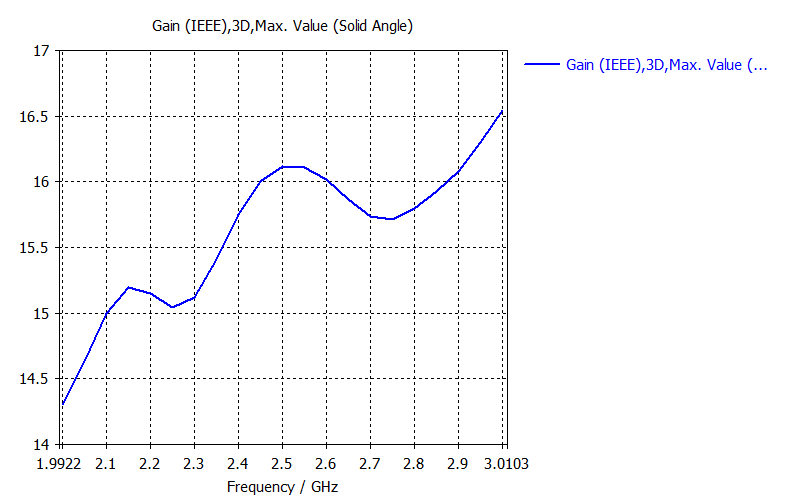

impedance.png gain plot.png



Parameters:

Spoiler

wsq="5.8" "with square"
lsq="24.1" "length square"
h="23.1" "height"
g="0.5" "thickness material"
w="(l-wsq)/2" "with biquad"
ded="l/4-we1/2" "distance edge"
ded2="l/4+we1/2" "distance edge 2"
l="158.3" "length biquad"
e="4.3" "edge 3 biquad"
s="4.8" "hole diameter"
s1="49.0" "length slot"
sl="0.5" "slot"
x="248.2" "reflector x"
y="128.7" "reflector y"
we1="4.0" "with edge 1"
hc="177.0" "height collector"
ang="13.9" "angle collector"

File:

Biquad 2-4ghz-double-reflector.cst

Edited by Dr. Pepper
2 people like this

Share this post


Link to post
Share on other sites

,,, congratulations doctor, but I think you need to work a little on the impedance, it should cover a wider band of frequencies...!!!

Share this post


Link to post
Share on other sites

You are right, its not perfect. But the first goal was reach 16 dBi. I will try to tune the design for a more stable range.

Share this post


Link to post
Share on other sites
12 hours ago, Dr. Pepper said:

Biquat + Horn for 2.4 - 2.5 GHz & optimized for gain






  Reveal hidden contents

size.png size2.png



  Reveal hidden contents

impedance.png gain plot.png



  Reveal hidden contents

wsq="5.8" "with square"
lsq="24.1" "length square"
h="23.1" "height"
g="0.5" "thickness material"
w="(l-wsq)/2" "with biquad"
ded="l/4-we1/2" "distance edge"
ded2="l/4+we1/2" "distance edge 2"
l="158.3" "length biquad"
e="4.3" "edge 3 biquad"
s="4.8" "hole diameter"
s1="49.0" "length slot"
sl="0.5" "slot"
x="248.2" "reflector x"
y="128.7" "reflector y"
we1="4.0" "with edge 1"
hc="177.0" "height collector"
ang="13.9" "angle collector"



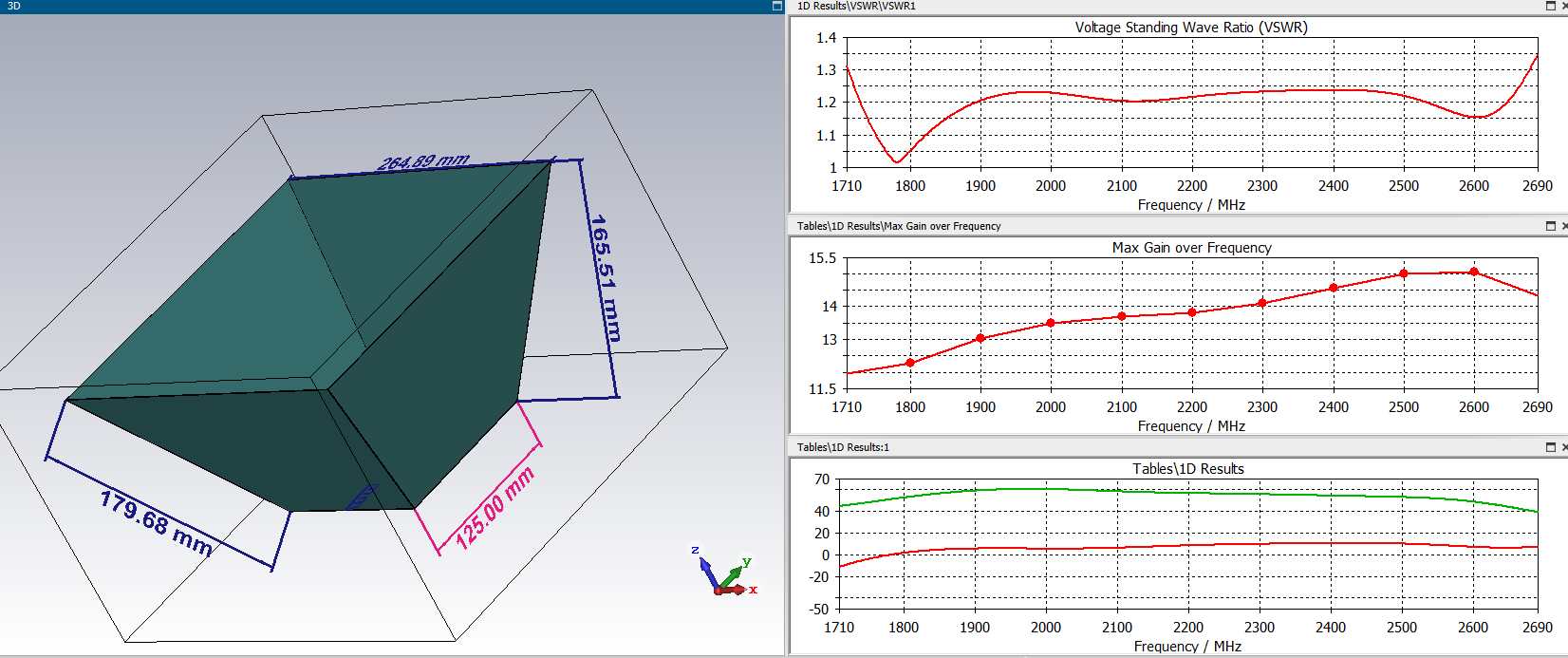

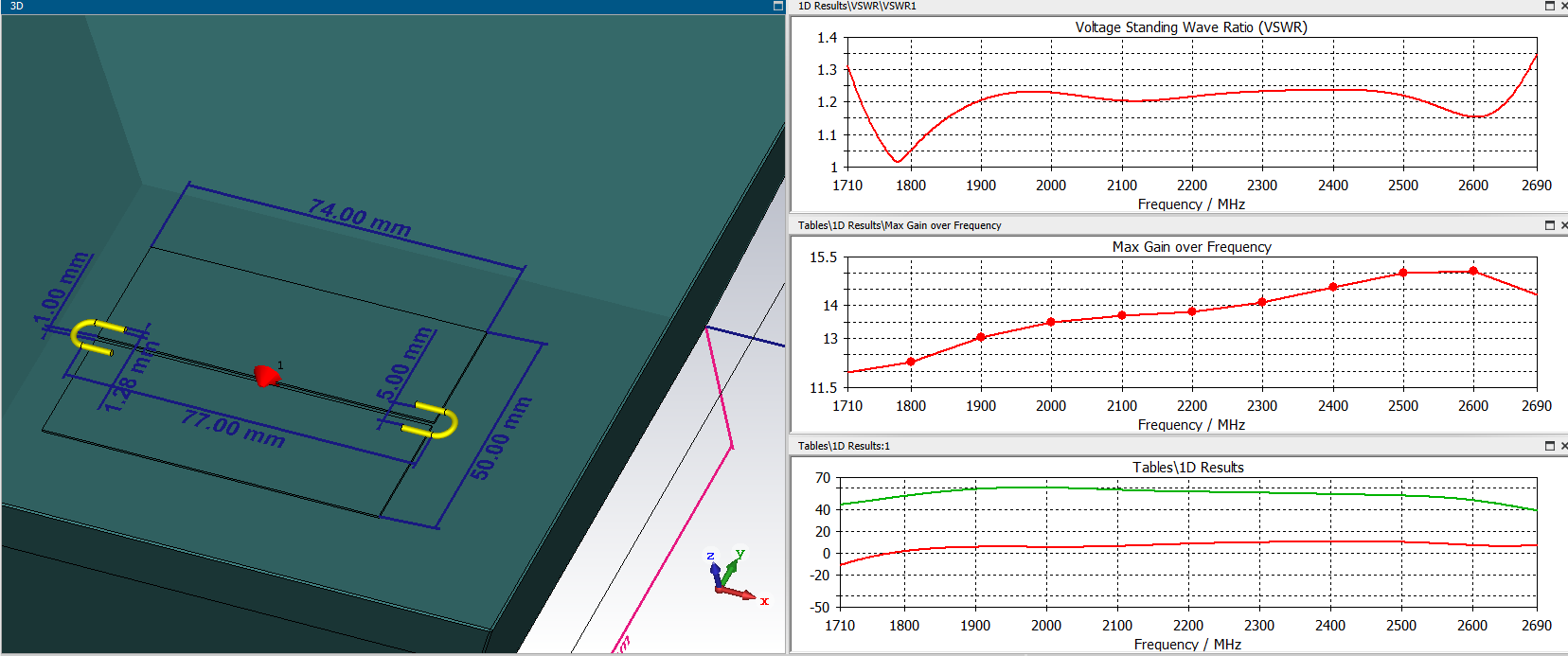

This antenna can be used in a wider range without visible loss.

It can be done much easier. please display the SWR graph from 1. It cannot be less than 1 (apparently CST does not know this), this complicates the reading of the graph.

To increase the gain, you can use the director system. Read the topic





2 people like this

Share this post


Link to post
Share on other sites
