lte 1800

89 posts in this topic

not! Please do not write in the picture in English, it is difficult to translate.

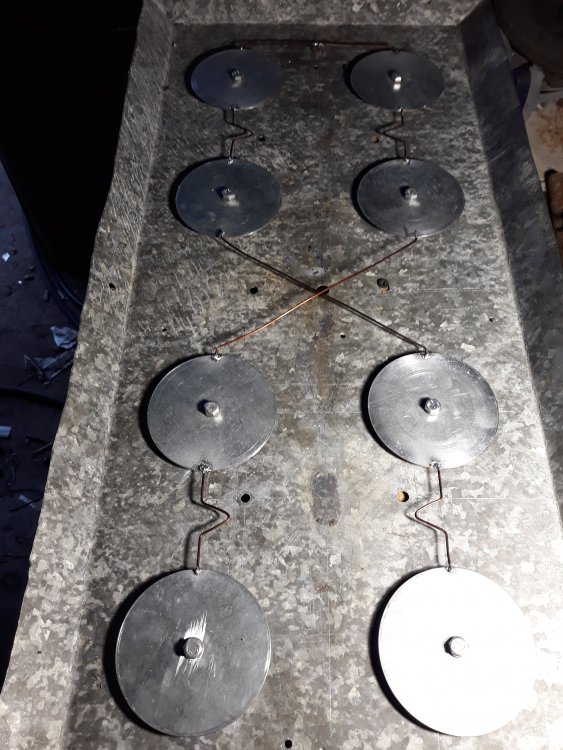

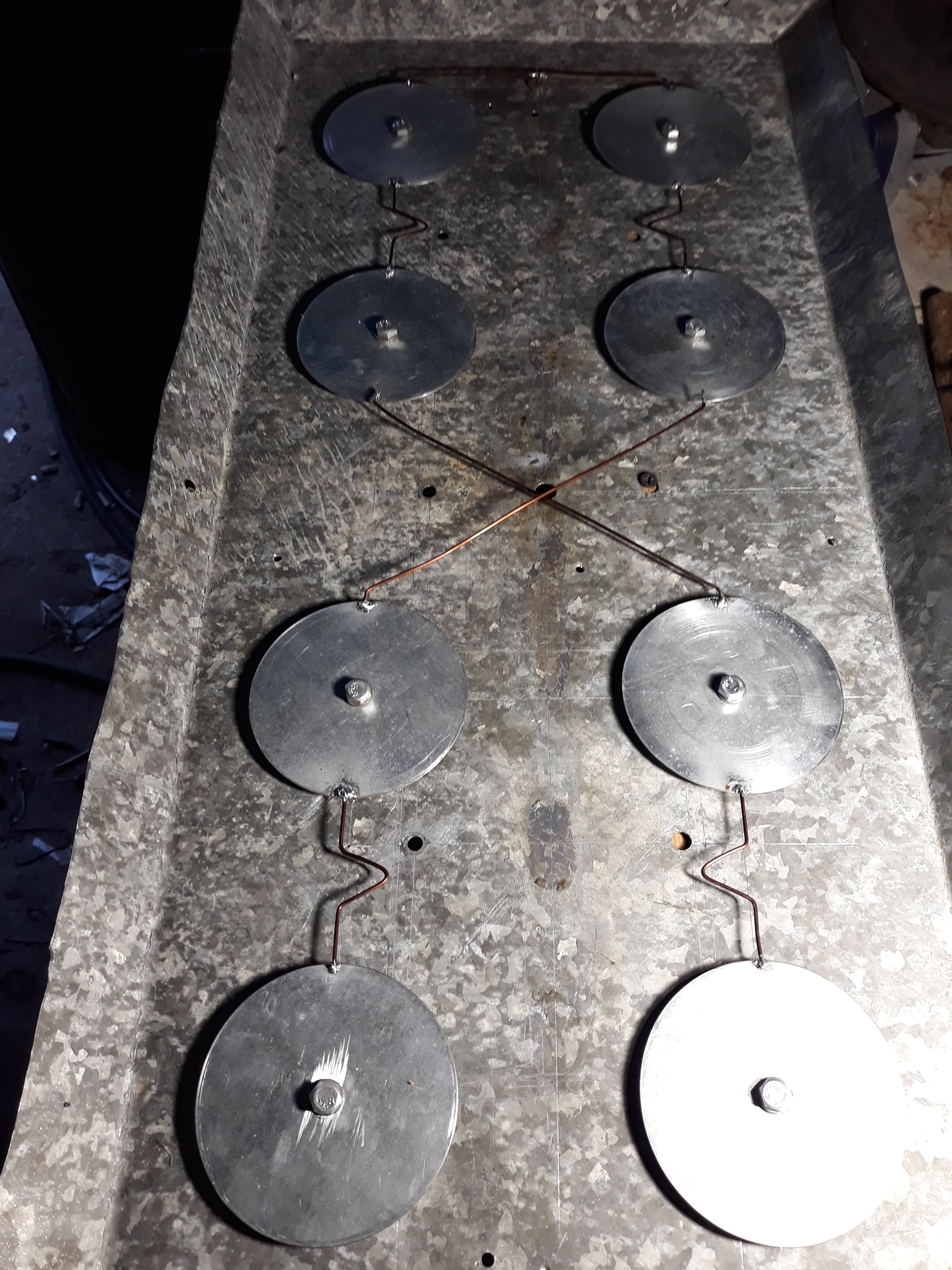

You can count in the model?

Edited by alansy

Share this post


Link to post
Share on other sites

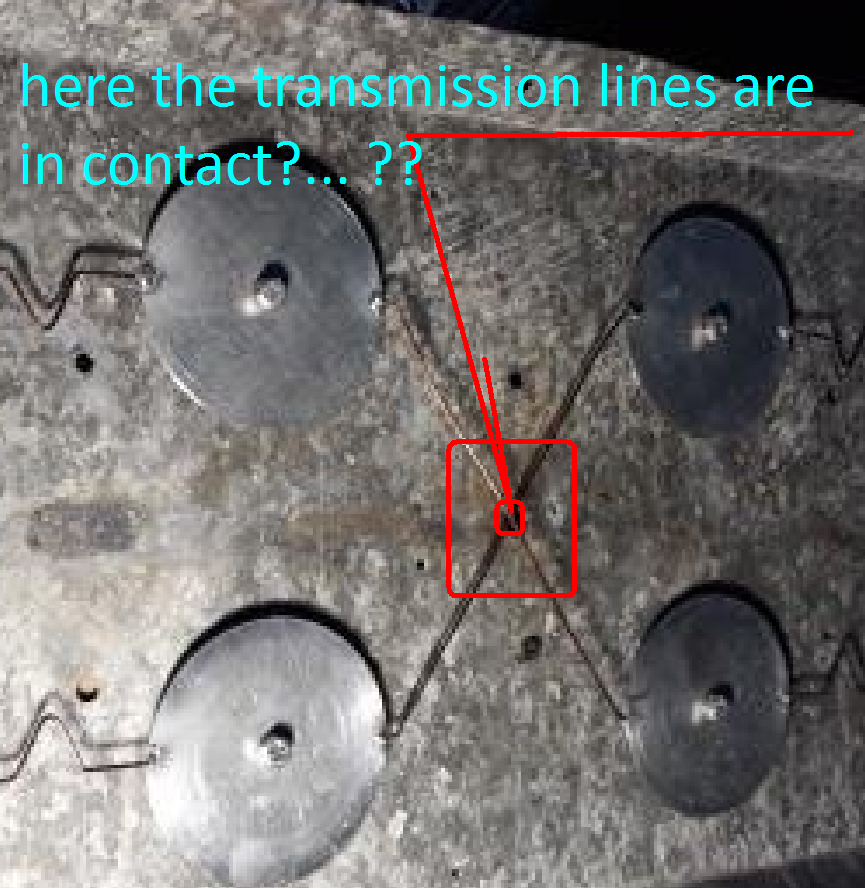

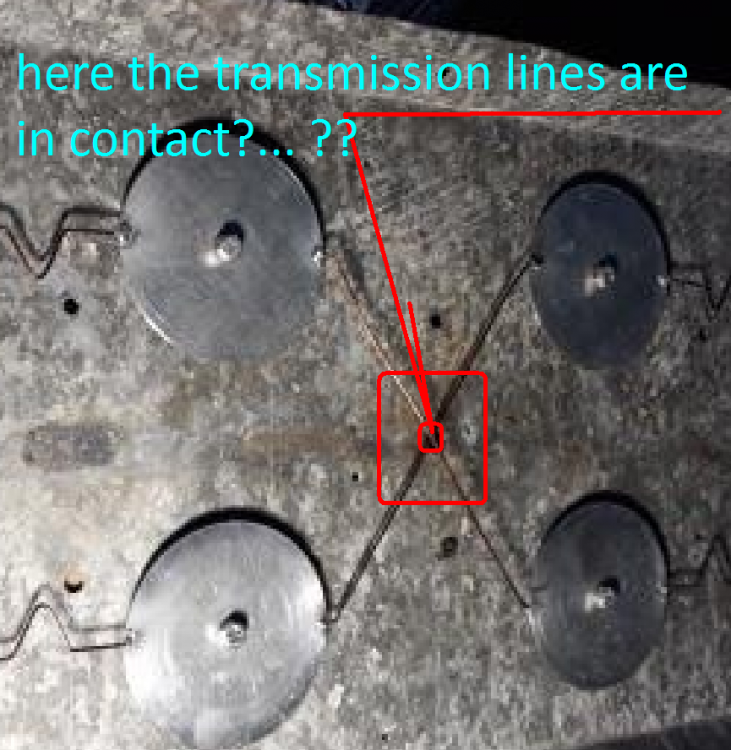

,,, okay,I will try to do this for you but give me the dimentions of this antenna...!!!

,,,for GSM / LTE 1800MHz antenna must cover these frequency domains;
UL = 1710-1785 MHz
DL = 1805-1880 MHz

,,, so the panel antenna must be broad band BW = 170 MHz min

Share this post


Link to post
Share on other sites

,,,,okay ,I will try to do this...!!!



,,,but you must to know that this antenna does not cover the frequency range 1710-1880 MHz for LTE1800....!!!

1 person likes this

Share this post


Link to post
Share on other sites

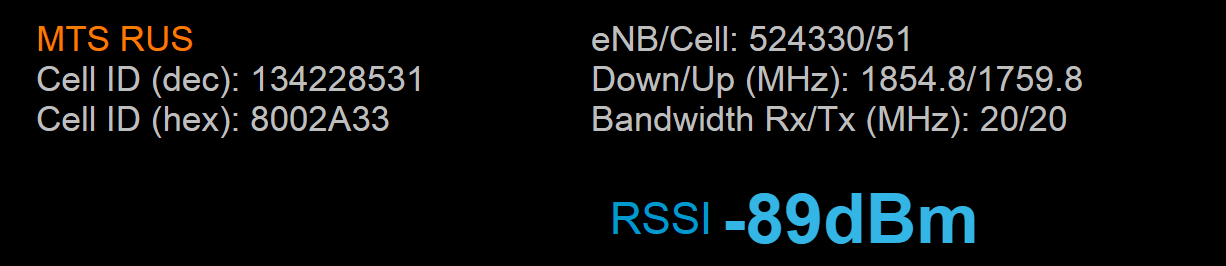

 ,,,so Down-Up = 95MHz about 100MHz

,,,if the antenna does not cover this frequency band then it does not work...!!!

Share this post


Link to post
Share on other sites

I think ALANSY needs two different antennas, one for 1855 MHz and one for 1760 MHz. These two antennas are connected to different connectors of the modem will increase the speed of communication.

Share this post


Link to post
Share on other sites

100 MHz is not a wide frequency band...!!!

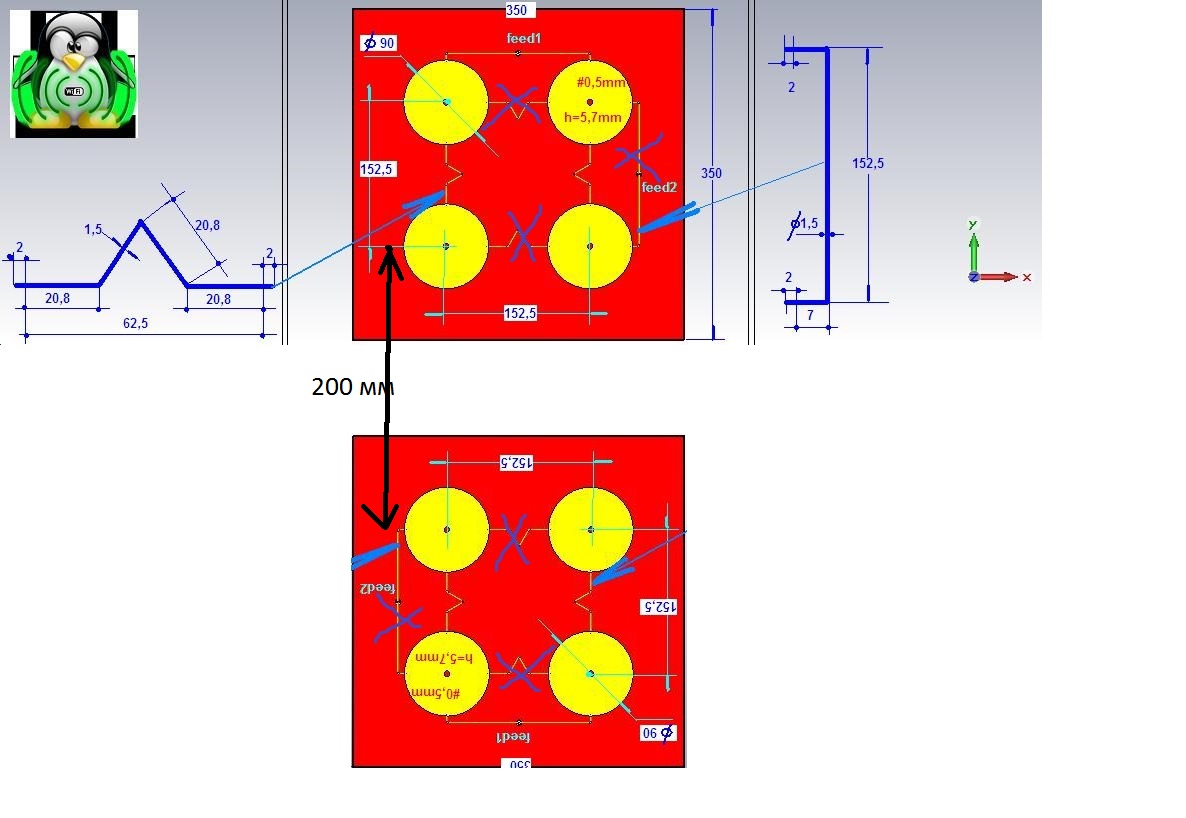

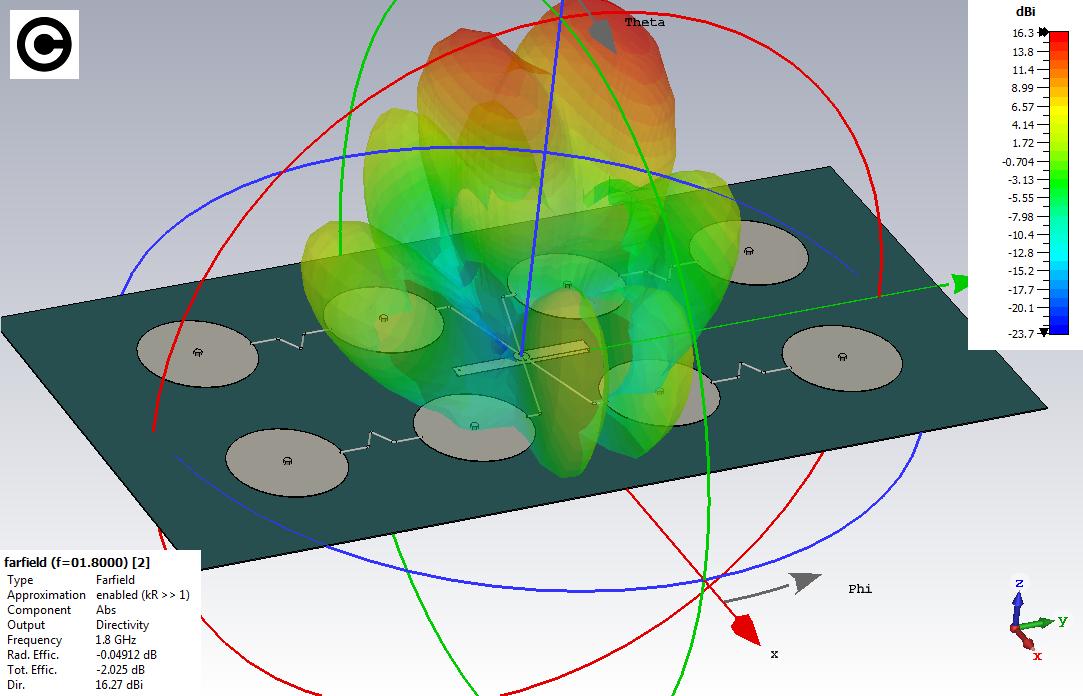

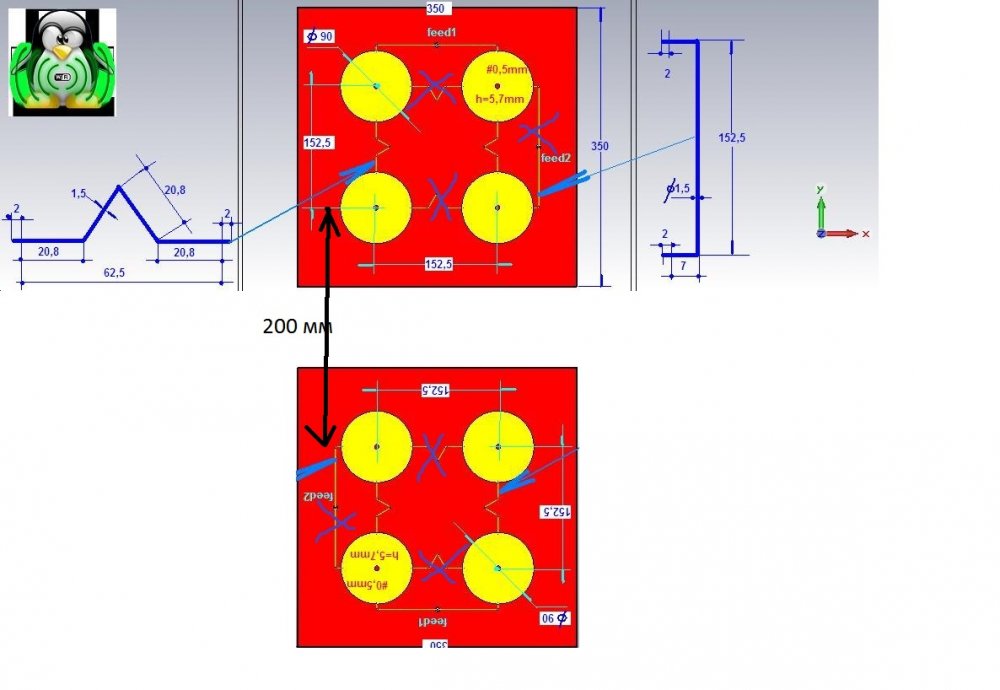

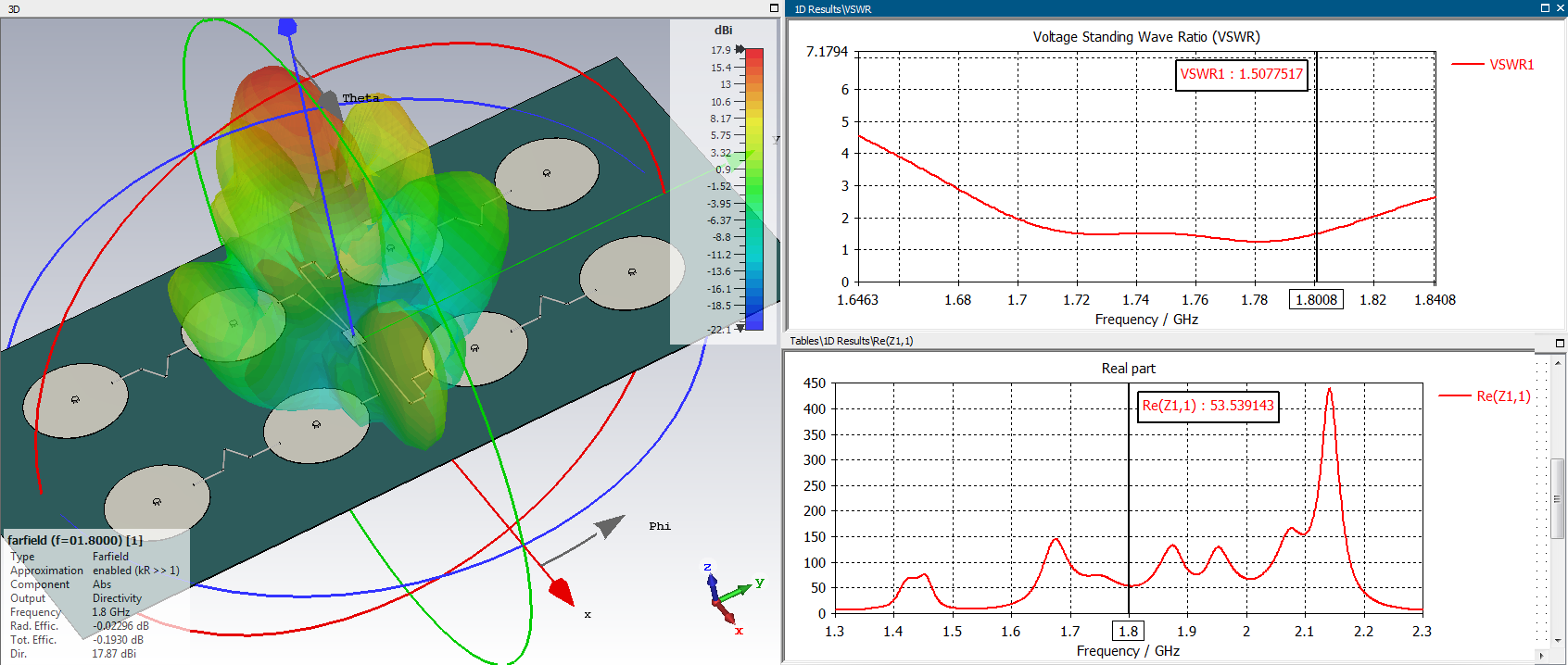

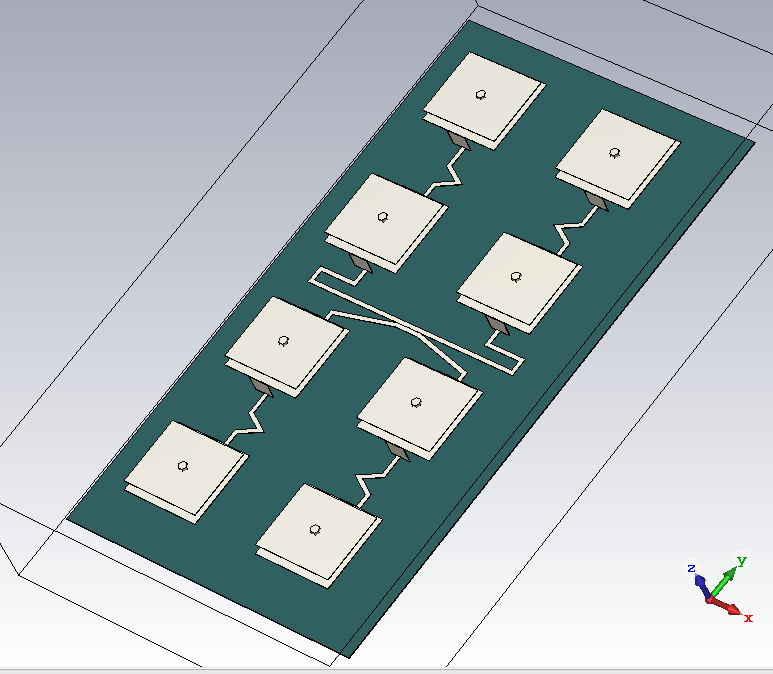

I think this could be a good configuration for such an antenna....


1 person likes this

Share this post


Link to post
Share on other sites

Yes, it will be a very interesting design. Does it contain MIMO ?

Share this post


Link to post
Share on other sites
44 minutes ago, garry said:

Я думаю, что ALANSY нужны две разные антенны, одна для 1855 МГц и одна для 1760 МГц. Эти две антенны, подключенные к разным разъемам модема, увеличат скорость связи.

I also thought about it, but I don't know much about antenna modeling. Really modem can recognize which antenna to download which upload?

Share this post


Link to post
Share on other sites

Yes, my friend modem knows how to work with different antennas.

Share this post


Link to post
Share on other sites
On 15.01.2019 at 18:42, Admin said:

,,, хорошо, я постараюсь сделать это для вас, но дайте мне размеры этой антенны ... !!!



Share this post


Link to post
Share on other sites
9 hours ago, Admin said:

,,, but still, for which antenna ... ???


Share this post


Link to post
Share on other sites

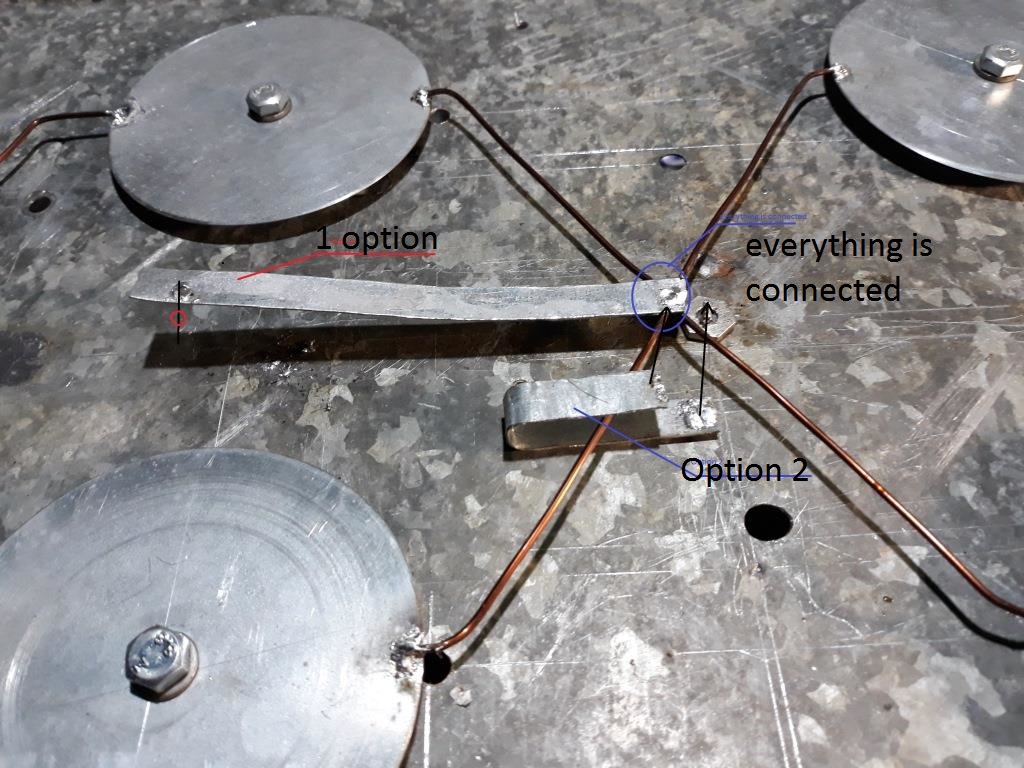

1 did not.
Option 2 showed a good result.

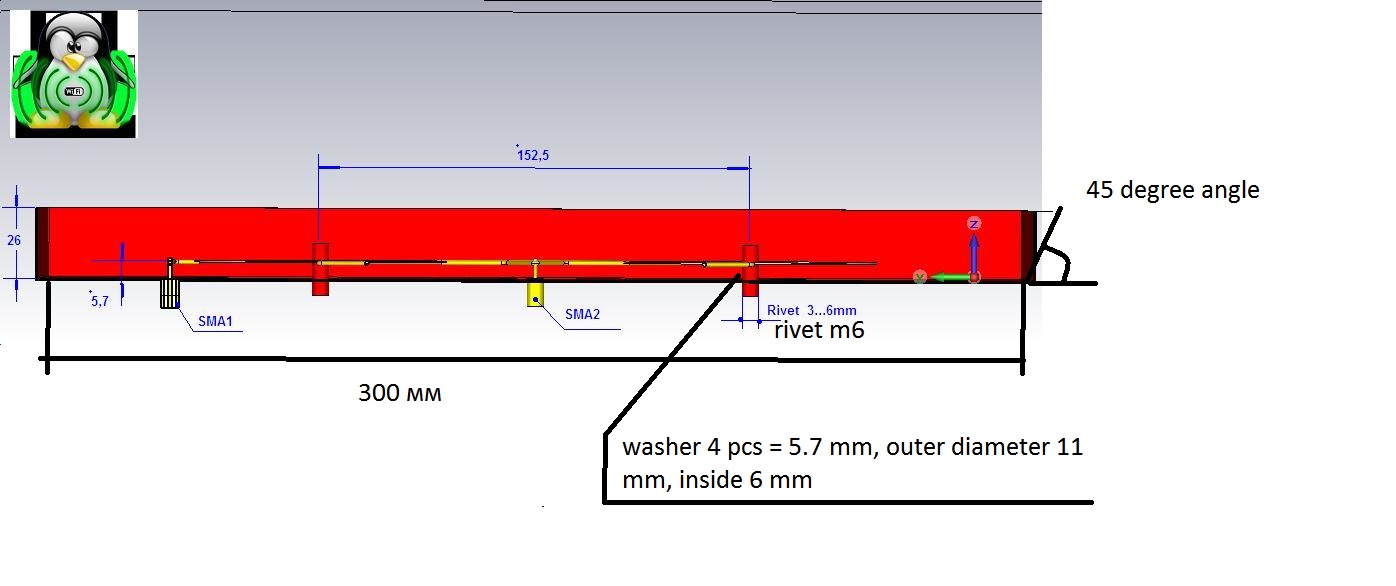

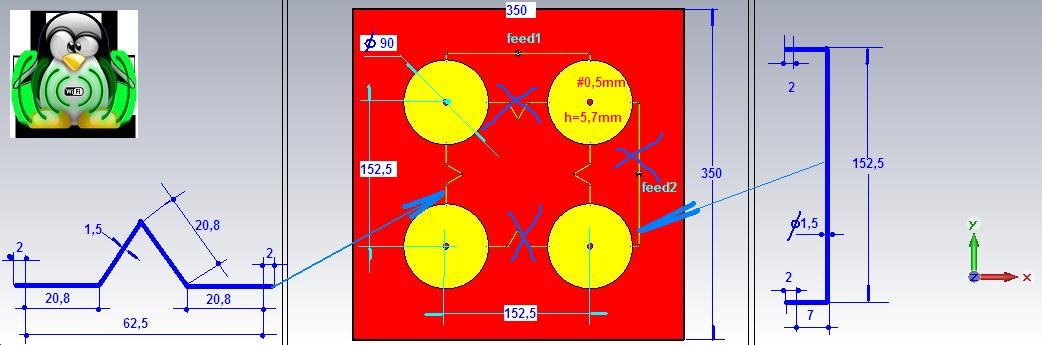

count the size of the strip




Share this post


Link to post
Share on other sites

,,,for your antenna I guess it does not work ... ???


Share this post


Link to post
Share on other sites

,,,for which, this is the best shape for this antenna and especially has a very wide band of frequencies ... !!!




Share this post


Link to post
Share on other sites
1 hour ago, Admin said:



1 hour ago, Admin said:

,,,for which, this is the best shape for this antenna ... ???

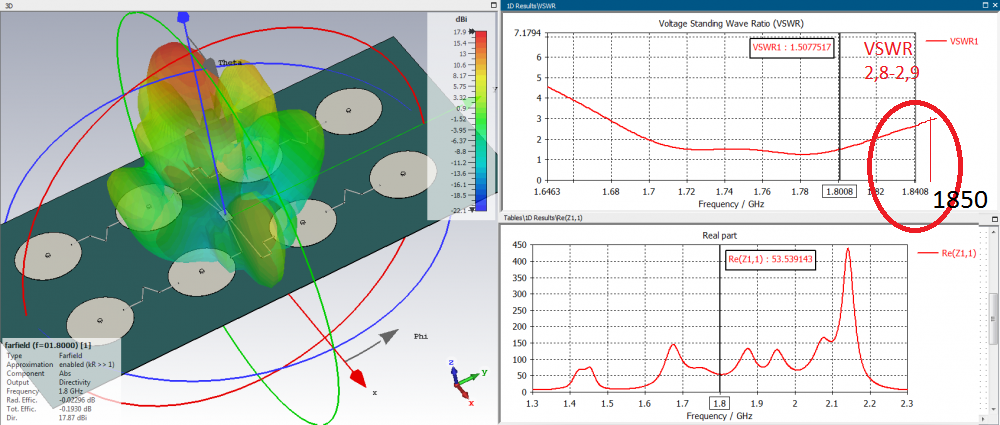

2.8-2.9 VSWR at 1850 MHz is probably a lot?

If there is no other option, give the dimensions, I will check what happened.








Share this post


Link to post
Share on other sites

I'm still working on this antenna for optimization...!!!!
