lte 1800

83 posts in this topic

,,,is not a good option, you can not focus the 4 + 4 patches...!!!

Share this post


Link to post
Share on other sites

,,,for which this antenna is even more ... !!!


Share this post


Link to post
Share on other sites

I can do this.

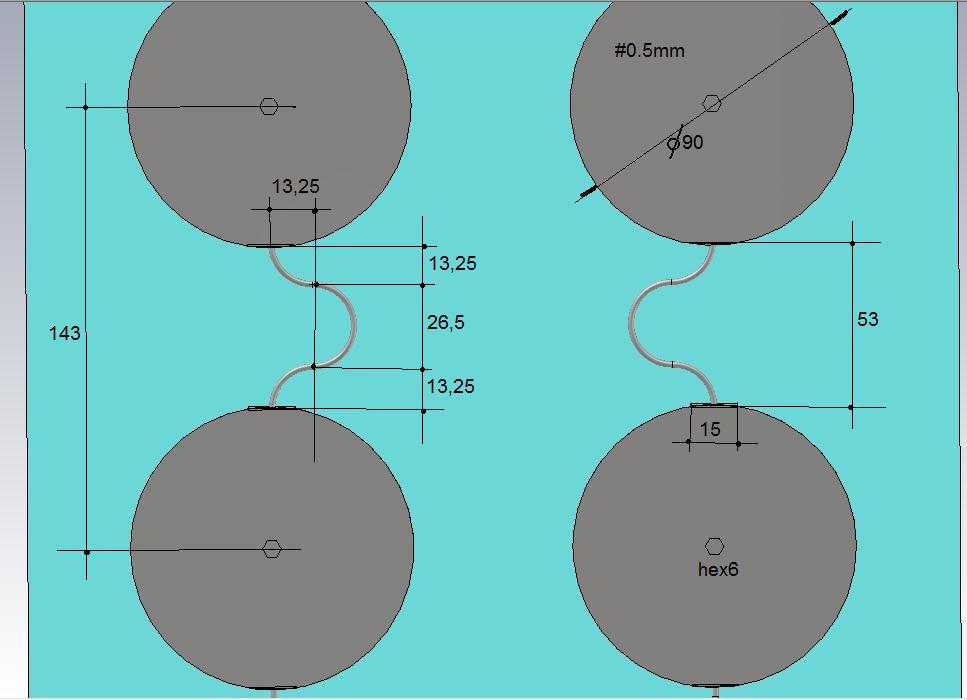

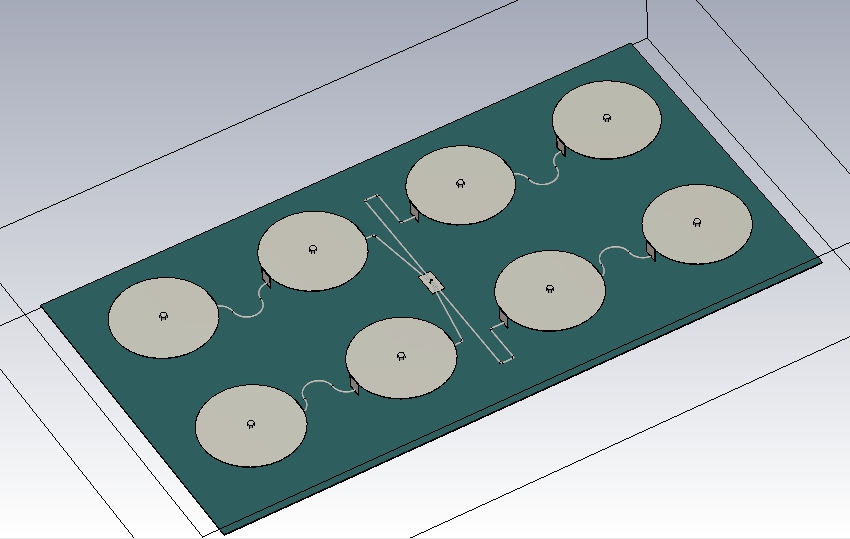

I have 8 round patches for 90 mm, I can make the diameter smaller, I can solder the plates to them for powering. I can make another 90 mm, like 9 patches, I need a model of a good antenna, with dimensions and with a schedule for frequencies 1850-1765 MHz

Share this post


Link to post
Share on other sites

,,,okay but wait, I'm still working on this...!!!

Share this post


Link to post
Share on other sites

I'm not in a hurry! just for information.

Share this post


Link to post
Share on other sites

,,,this is for sure now...!!!

copper wire diameter= 2mm


1 person likes this

Share this post


Link to post
Share on other sites
3 hours ago, Admin said:

,,,this is for sure now...!!!

copper wire diameter= 2mm

not understood



Share this post


Link to post
Share on other sites

,,,the wire diameter for the adjustment line...!!!


1 person likes this

Share this post


Link to post
Share on other sites

2 mm wire is available

Edited by alansy

Share this post


Link to post
Share on other sites

Are the sizes of this antenna ready? can give? I want to do it.


Share this post


Link to post
Share on other sites

,,,good, now I'm working on this antenna ....!!!

Share this post


Link to post
Share on other sites

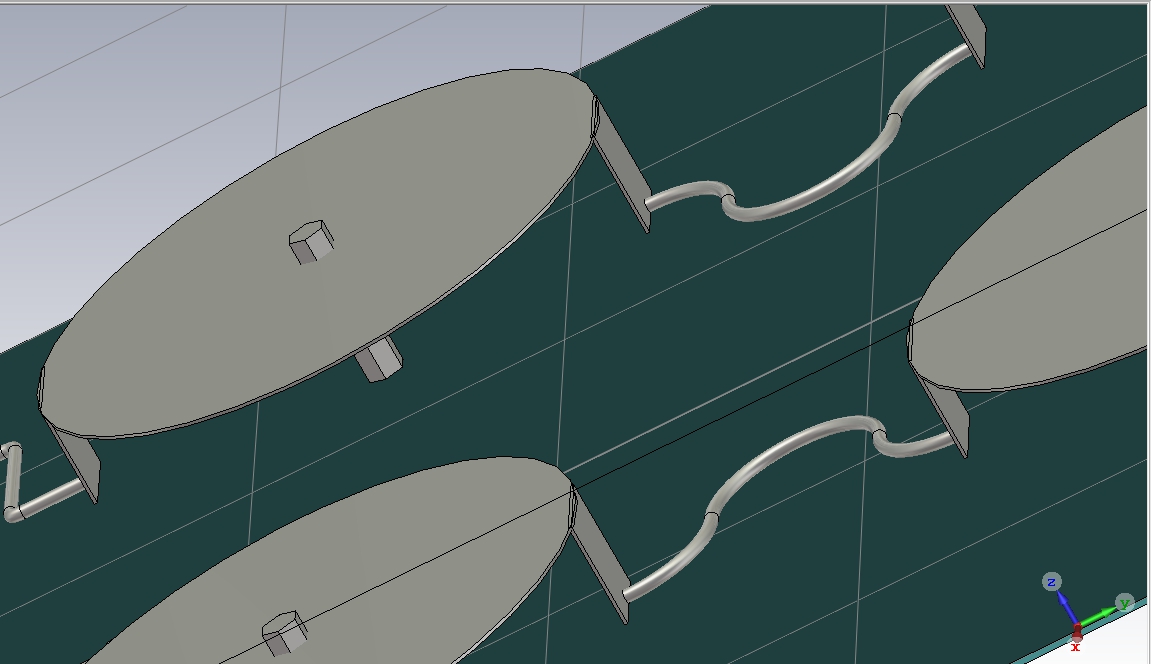

After several attempts with different antenna variants, I've come to that....MiMo Panel Antenna


But it must to  be optimized...!!!

Share this post


Link to post
Share on other sites

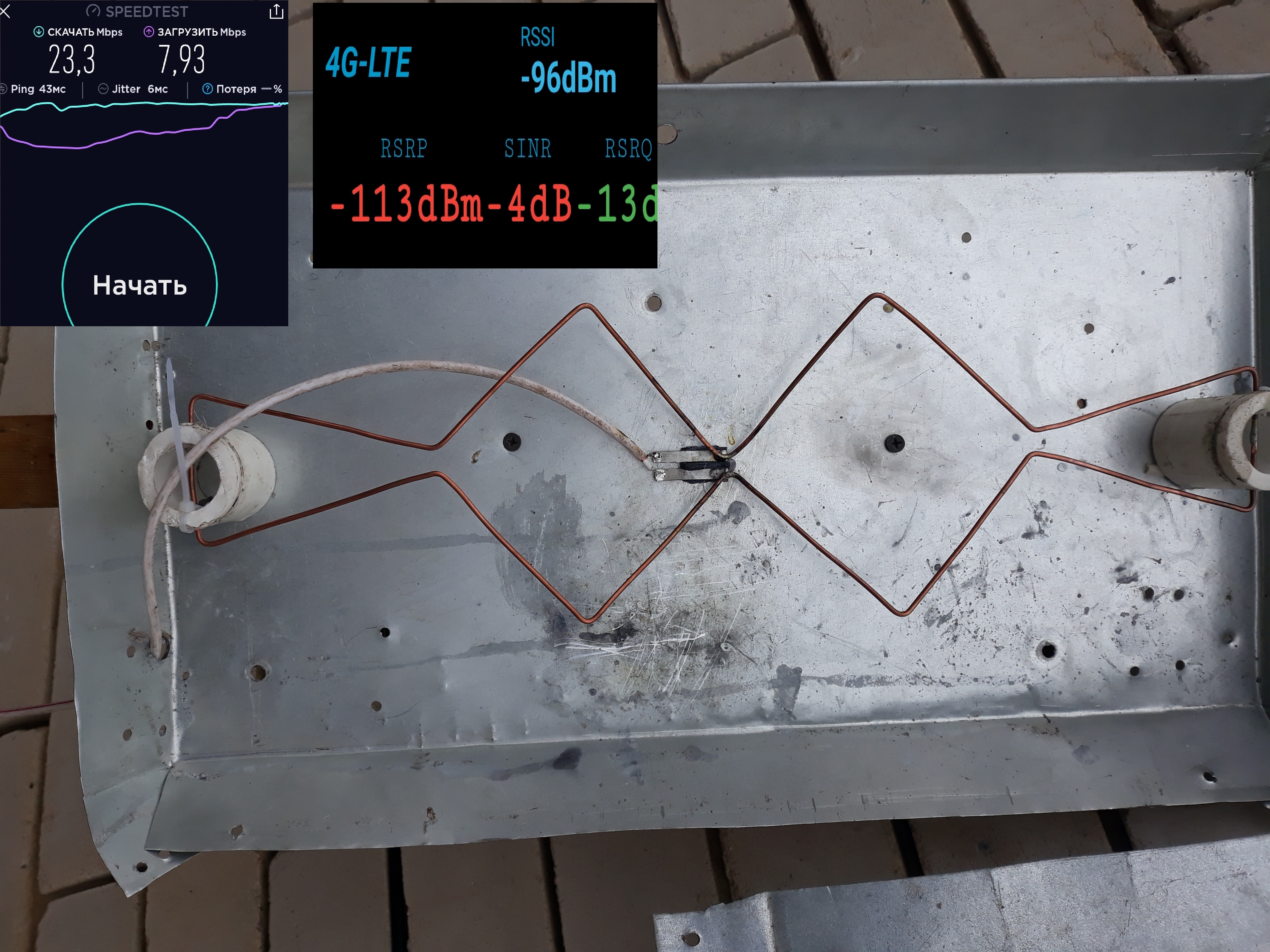

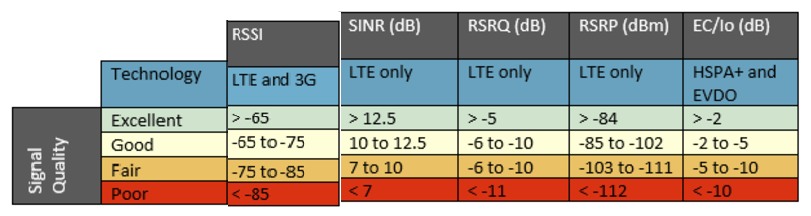

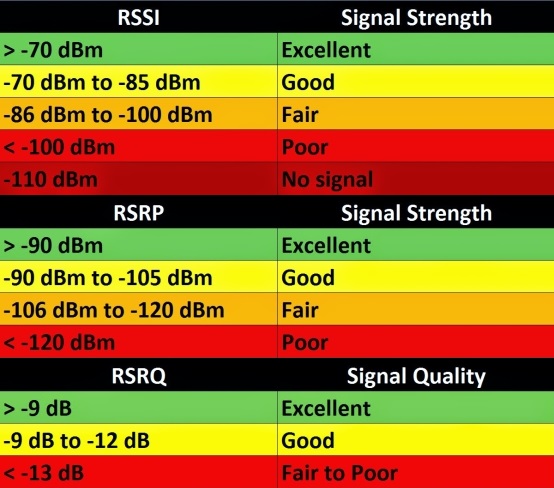

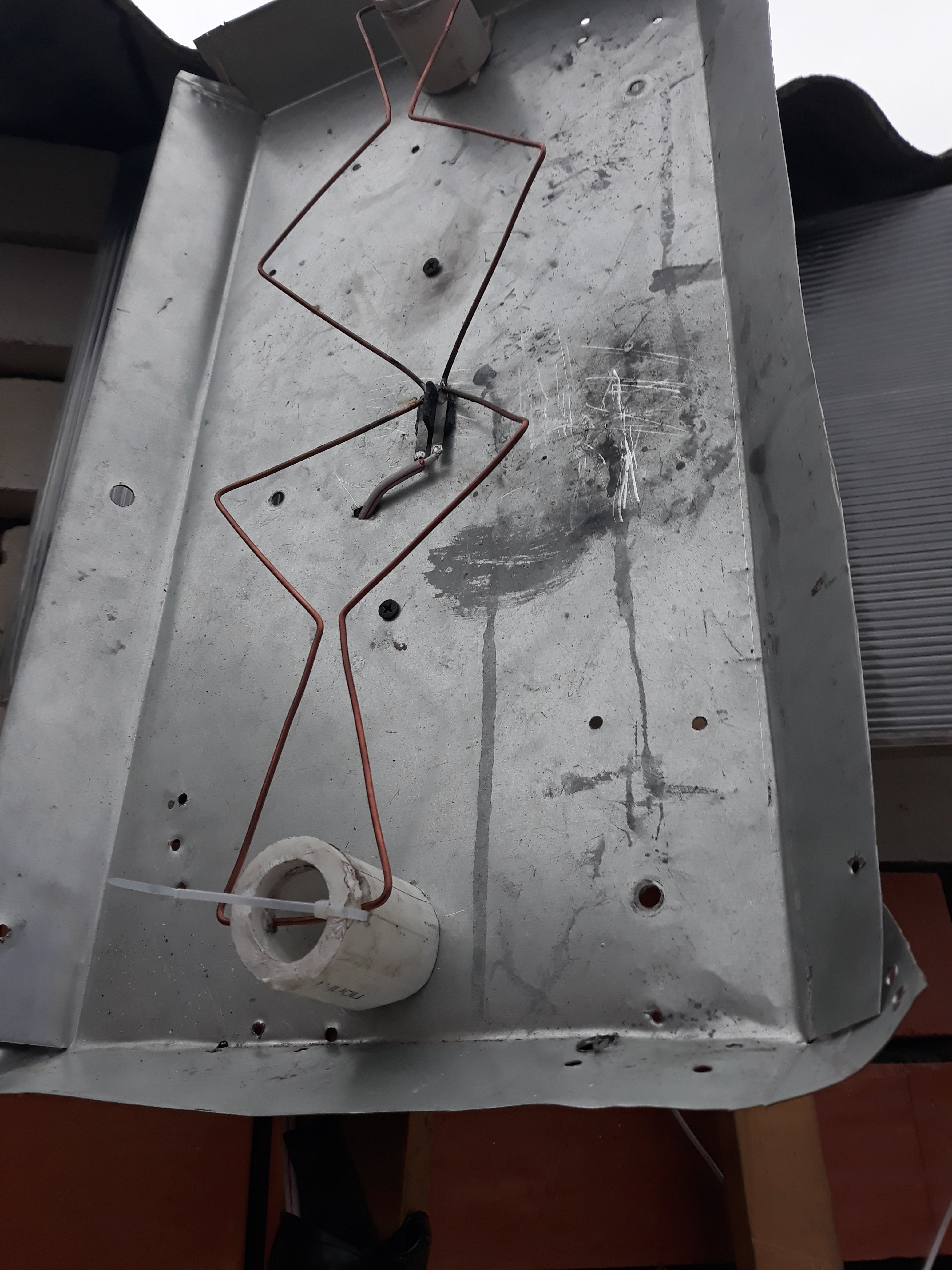

,,,fair to poor signal...!!!






,,,for LTE...

Building-my-LTE-mimo-antenna-prototype-Bi-Quad-antenna-LTE-signal-characteristics.jpg

Share this post


Link to post
Share on other sites

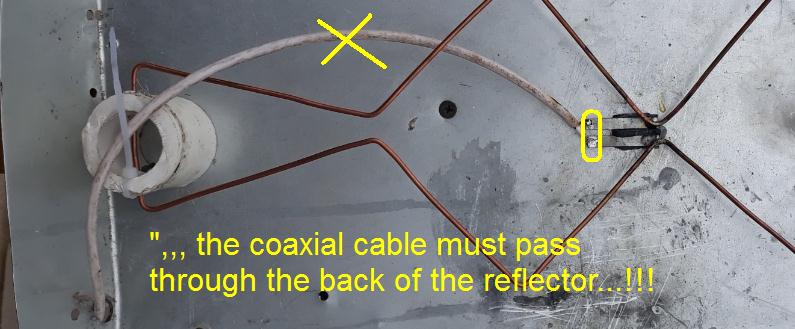

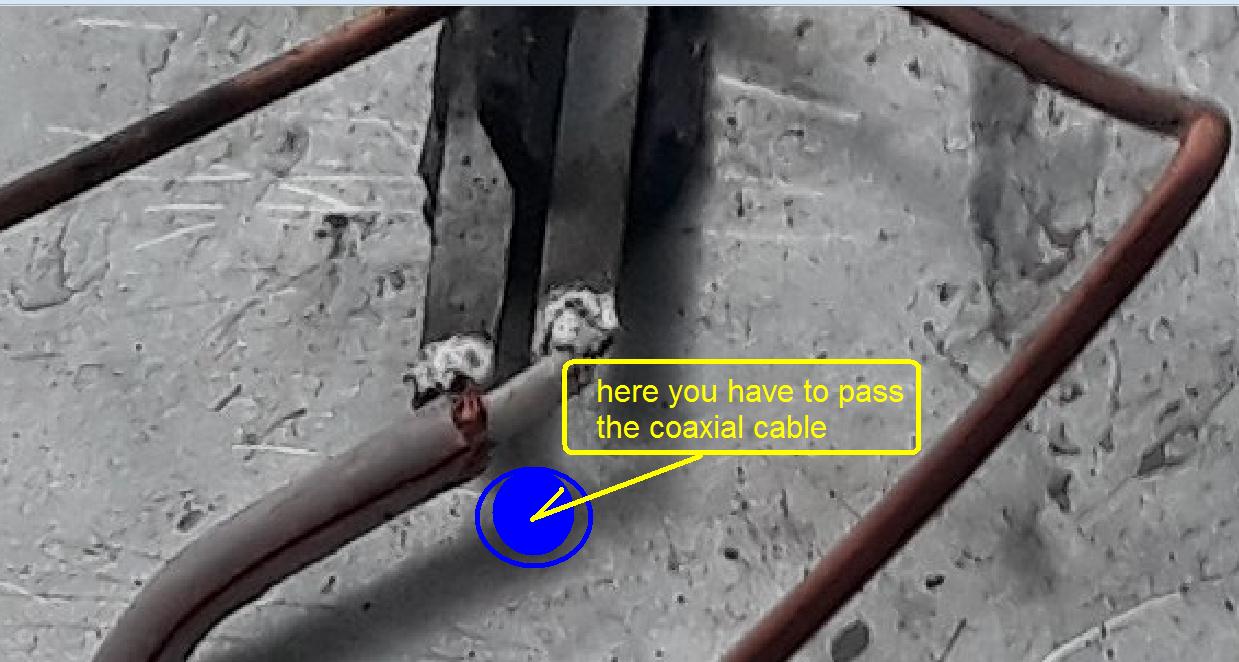

,,, and how does it go...???

Share this post


Link to post
Share on other sites

,,,about this antenna what do you think ..?

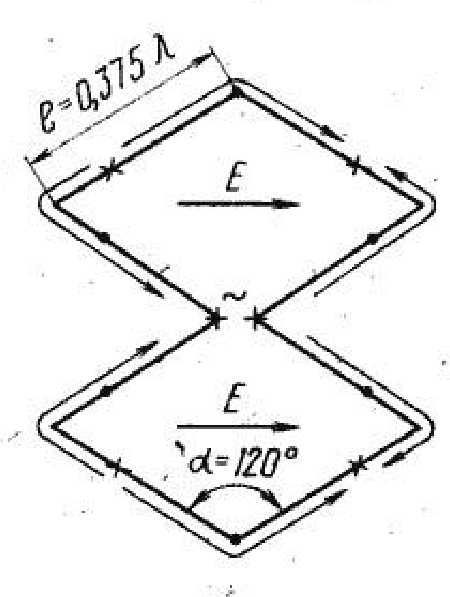

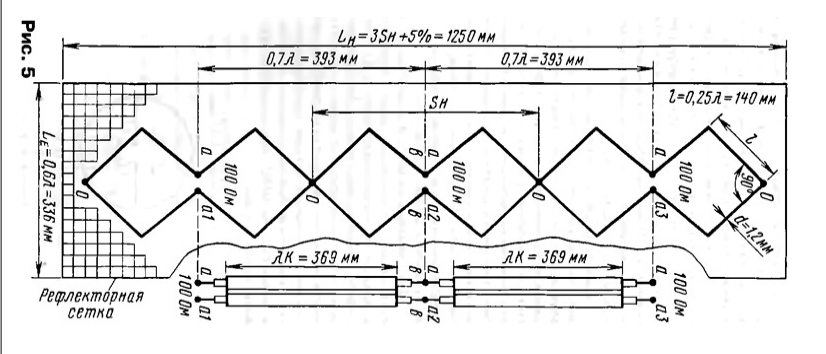

TV channel 29 lambda = 560mm






,,, and especially executed under this form...




Share this post


Link to post
Share on other sites
