bejonet

biquad antenna digital TV

93 posts in this topic

,,,okay ,I will try to do it...!!!

Share this post


Link to post
Share on other sites
On 12/17/2018 at 1:45 PM, Admin said:

Well, congratulations,,, !!!

,,,but with the antenna of the wire how many TV stations did you catch....???

with wire biquad antenna, i get 17 tv channel but only 13 with clear picture

Share this post


Link to post
Share on other sites

,,,so this means that the galvanized plate antenna is better...???

Share this post


Link to post
Share on other sites

yes... i am using that antenna until now.. placed on above ceiling

1 person likes this

Share this post


Link to post
Share on other sites

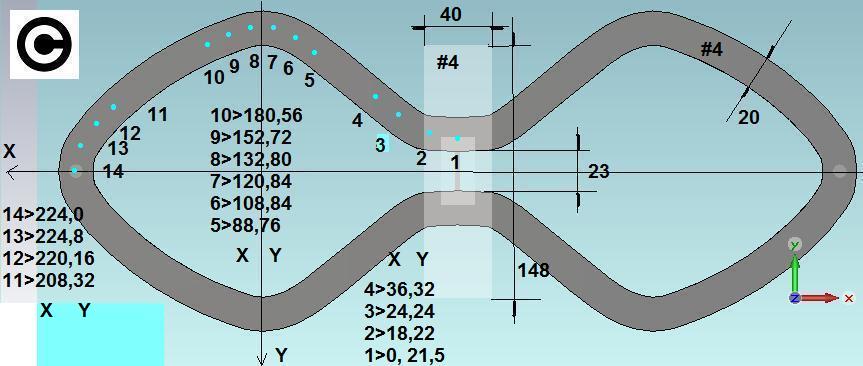

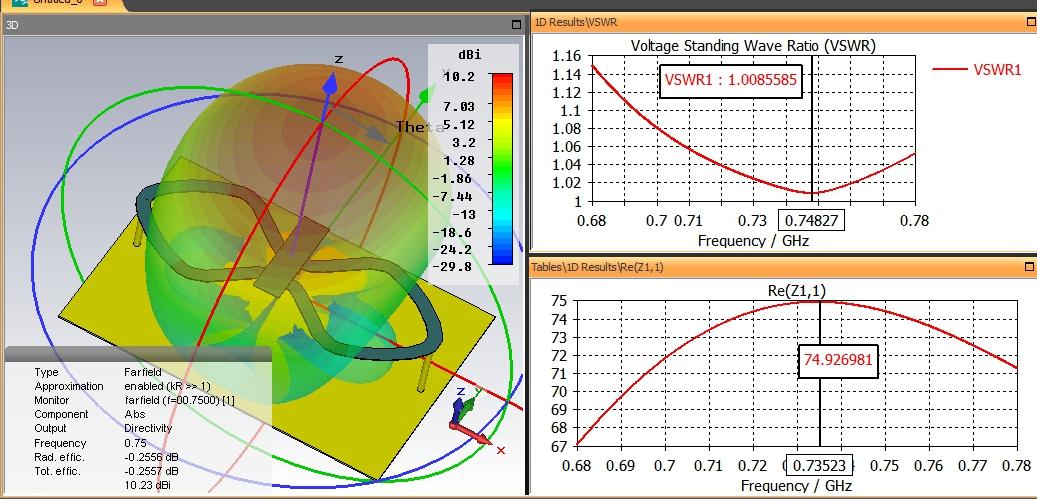

,,,vova, these dimensions multiply them by a coefficient k = 0.8 for the average frequency of 730 MHz




Share this post


Link to post
Share on other sites

благодарю!!:P



On 3/23/2019 at 9:20 AM, Admin said:

,,,Вова, эти размеры умножают их на коэффициент k = 0,8 для средней частоты 730 МГц




хорошо

благодарю

Share this post


Link to post
Share on other sites

Привет, Админ!
Не могу приступить к строительству антенны из-за что нет металла нужной толщены 3-4мм имеется только 1мм.
Если изготовить из 1мм, как повлияет на графики КСВ?



Hi, Admin!
I can not start building the antenna because there is no metal of the required thickness of 3-4 mm, there is only 1 mm.
If you make from 1mm, how will the graphics of the CWS affect?

Share this post


Link to post
Share on other sites

,,,hello vova...!!!
,,,the thickness of the material does not affect  the characteristics of the antenna too much...!!!

,,,actually Bejo , used it so thick, like  ... !!!

Share this post


Link to post
Share on other sites

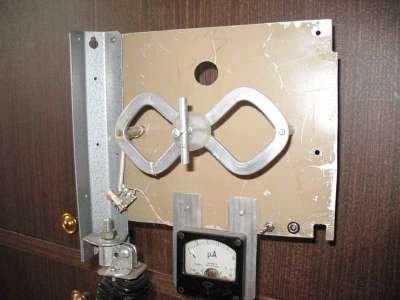

And this is Vova's biquad...




1 person likes this

Share this post


Link to post
Share on other sites

Спасибо, сверил размеры, пересчёт всё правильно!!!!

Thank you, checked the dimensions, recalculation is all right !!!!

Share this post


Link to post
Share on other sites

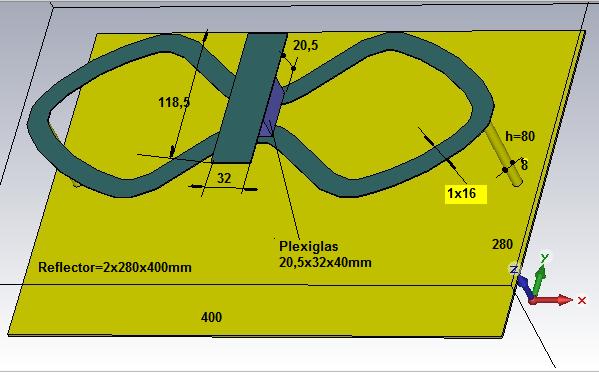

I think it would be best if you made the biquad antenna from the 4x16mm aluminum plate....!!!

Share this post


Link to post
Share on other sites

согласен!!! Но где взять листовой алюминий такой толщины? Это проблема и я думал над ней!Поэтому до сих пор не сделал! Есть труба алюм. 8,10.12.16, 20мм Есть медная трубка разная, есть ал.и медь полосы , но нужна ведь широкая. Поэтому латунь 1мм

I agree!!! But where to get sheet aluminum of such thickness? This is a problem and I thought about it! Therefore, I have not done it yet! There is a pipe alum. 8.10.12.16, 20mm There is a different copper tube, there is an al.and copper strip, but you need a wide one. Therefore brass 1mm

Share this post


Link to post
Share on other sites

I don't know what kind of aluminum you need BUT

if you can find old unused fridge ( big with large aluminum container ) then you have your aluminum sheet.

I was thinking about building this but i don't have a tools to cut such a shape  :(

Share this post


Link to post
Share on other sites

Another thing , why is this so large 20 mm ?

I have somehere original (but with freakin iron) it is just 7 mm wide piece of metal not 20 mm?

Share this post


Link to post
Share on other sites

,,,,good, you do not have to cut anything, there is flat-band aluminum....

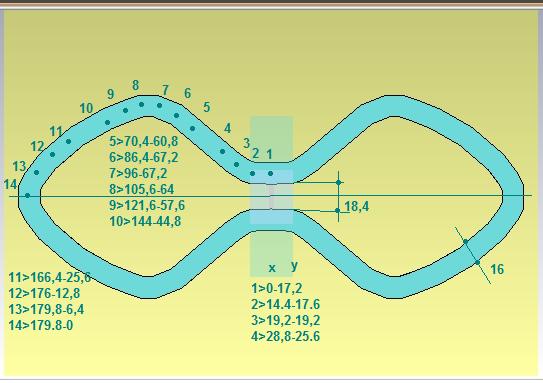

,,,biquad for 2,05GHz flat- band=5x10mm


Share this post


Link to post
Share on other sites

what you mean ..no need to cut ?

jomy .. you said:

Quote

ova, these dimensions multiply them by a coefficient k = 0.8 for the average frequency of 730 MHz

so i think this antenna is for UHF TV ?

or i get it something very wrong ..again?

Share this post


Link to post
Share on other sites

One  question more joMy

Original ..let say fabticated varsions have ..balun 300/75 ohm ..

but when i tried to pick up something i see no difference between antenna with

baloon transformar and antenna without with direct coax cable connection..?

how is that possible?

Share this post


Link to post
Share on other sites

,,,well, but I do not believe that anymore....!!!

,,,watch and understand...!!!


Share this post


Link to post
Share on other sites
On 4/18/2019 at 5:53 PM, vova.gumerov said:

согласен!!! Но где взять листовой алюминий такой толщины? Это проблема и я думал над ней!Поэтому до сих пор не сделал! Есть труба алюм. 8,10.12.16, 20мм Есть медная трубка разная, есть ал.и медь полосы , но нужна ведь широкая. Поэтому латунь 1мм

I agree!!! But where to get sheet aluminum of such thickness? This is a problem and I thought about it! Therefore, I have not done it yet! There is a pipe alum. 8.10.12.16, 20mm There is a different copper tube, there is an al.and copper strip, but you need a wide one. Therefore brass 1mm


i have made it and using at indoor, material is 0,3-0,4 galvanize sheet, change plexiglass with Styrofoam, this is good TV antenna for me..

Share this post


Link to post
Share on other sites

I think that  we have here big miss-understanding.

I was talking about biquad for UHF TV not for wifi-biquad ?

That is why i said that isee no difference in reception

between UHF-biquad  with  OR without baloon transformer

because i tested it :  as i say  I tested fabricated version with and without asimetric block.

Of course only difference in RX is when i used biquad WITH and WITHOUT reflector.

Share this post


Link to post
Share on other sites

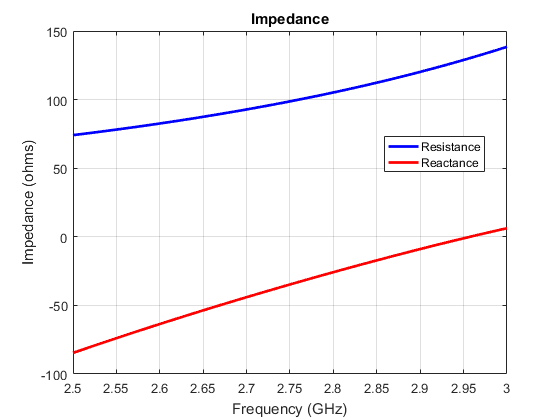

", it does not matter if it is wifi or uhf, the impedance is the same...!!!

Share this post


Link to post
Share on other sites

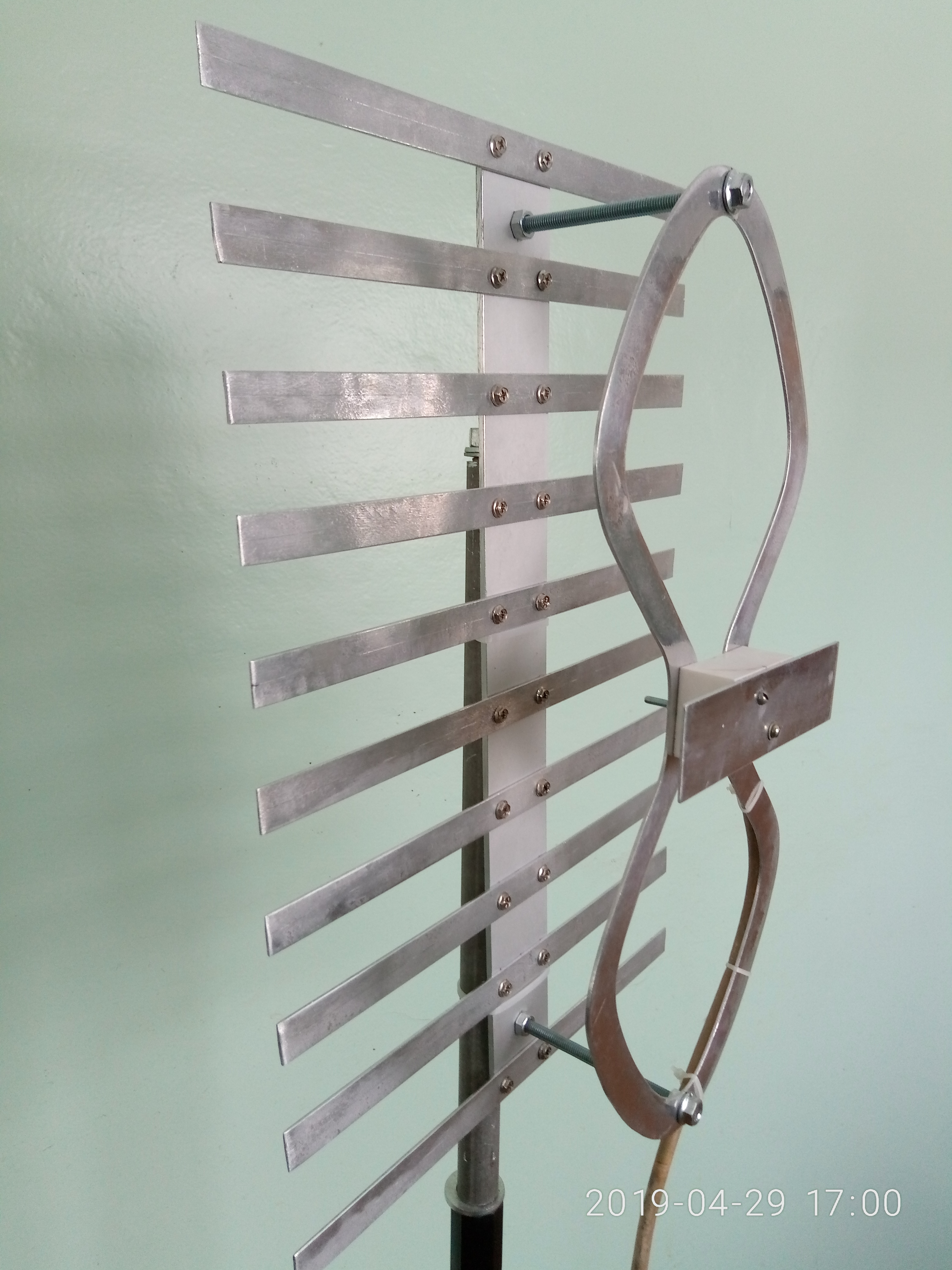

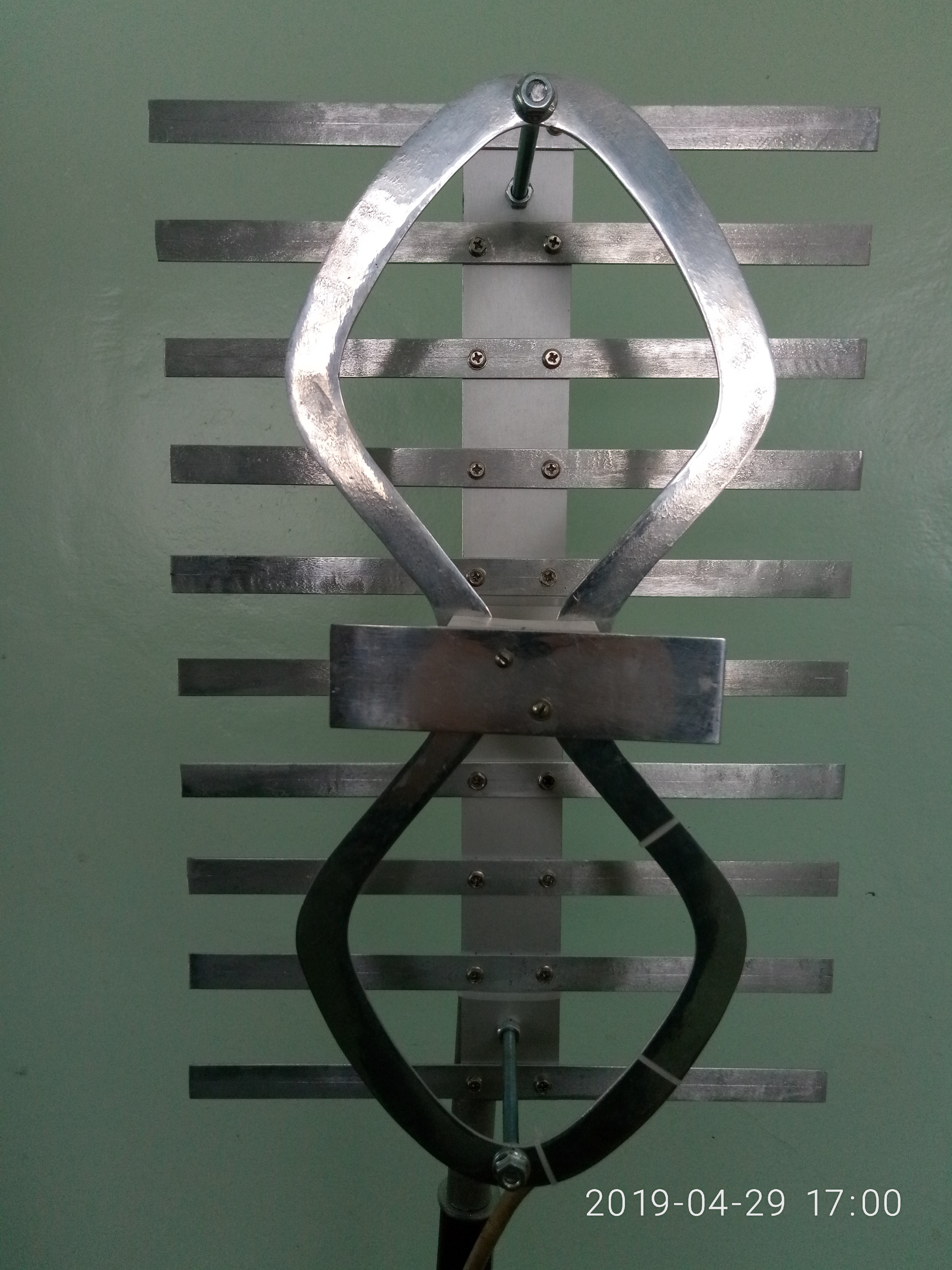

Привет, вот что получилось у меня.
Работает в городе нормально, в лесу на даче проверю позже.



Hi, that's what happened with me.
It works in the city normally, in the forest at the dacha I will check later.
