Petra-9 2x2 MIMO BOX antenna

37 posts in this topic

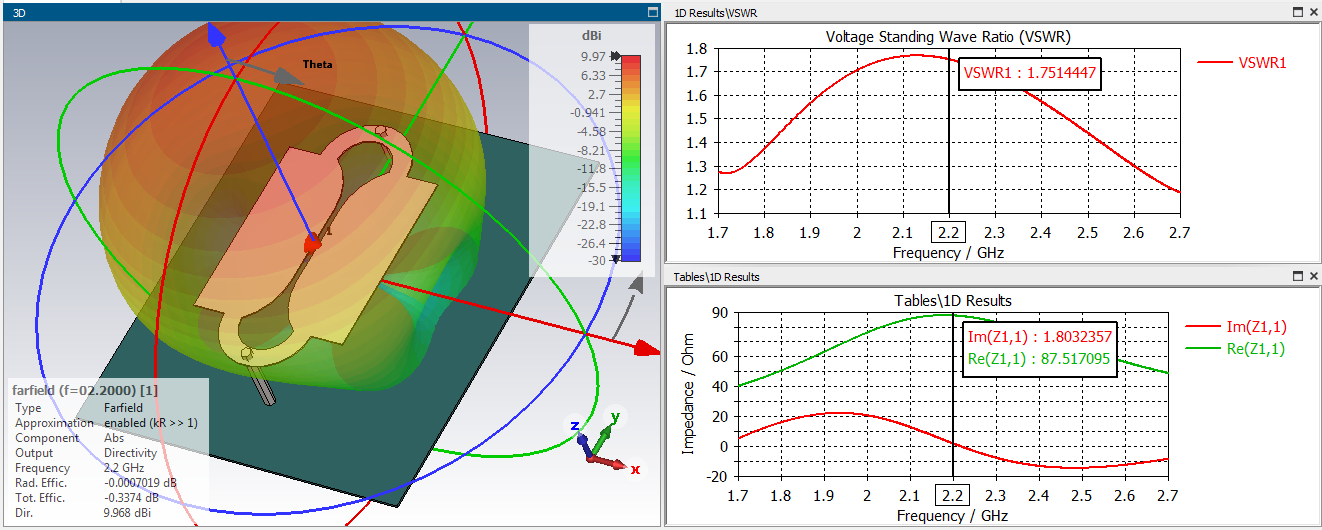

,,,but the simplest would be like that...


4 people like this

Share this post


Link to post
Share on other sites

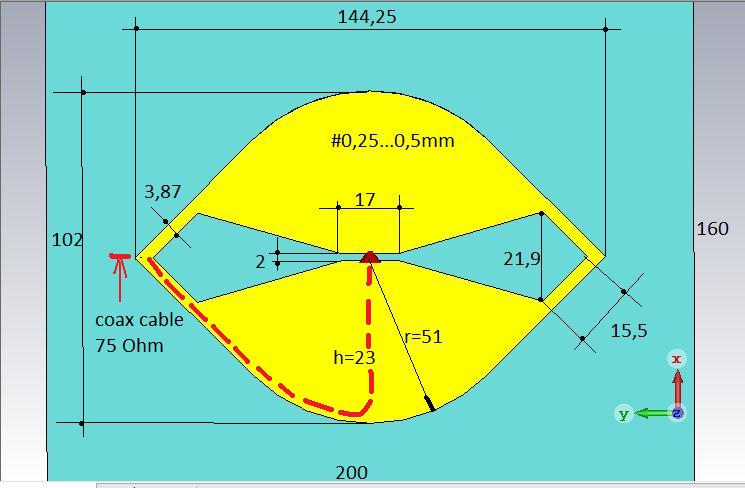

it would be very chic to transfer it to 75 Ohm cable


Edited by lrg
1 person likes this

Share this post


Link to post
Share on other sites

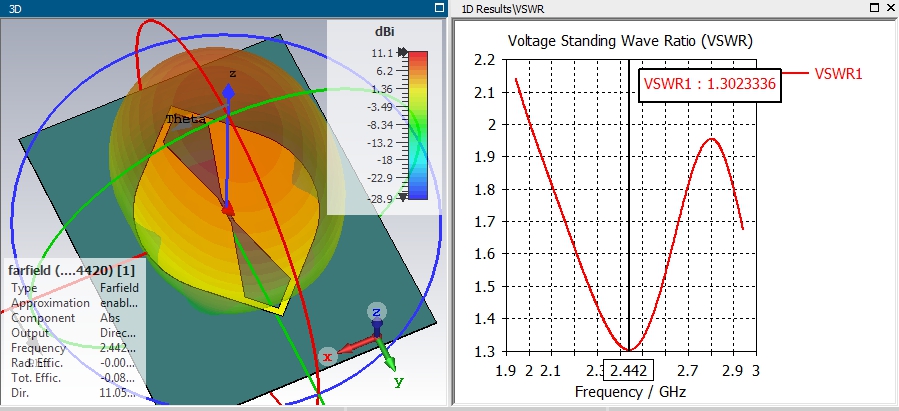

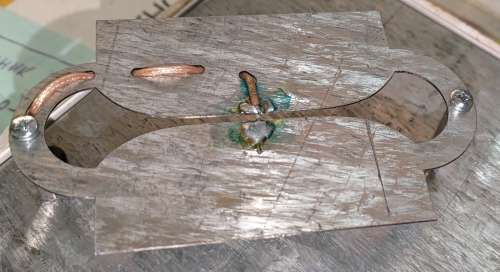

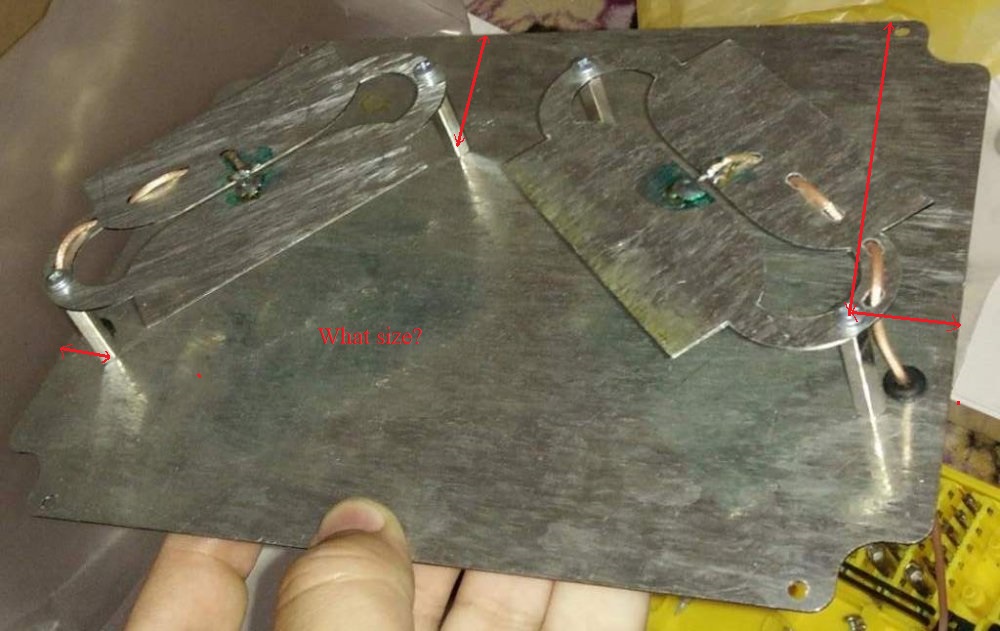

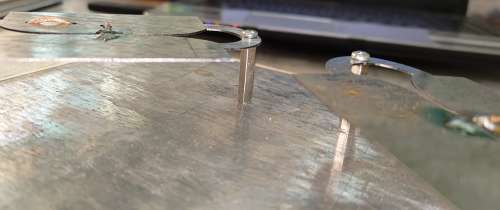

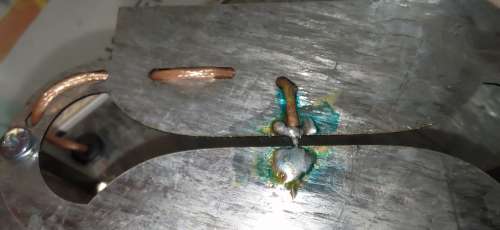

Irg,,,this works too...!!!
with few changes..!!!

Share this post


Link to post
Share on other sites

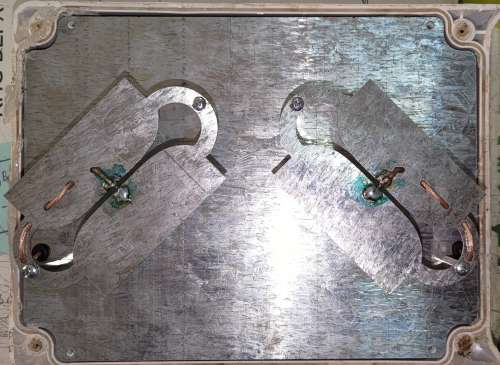

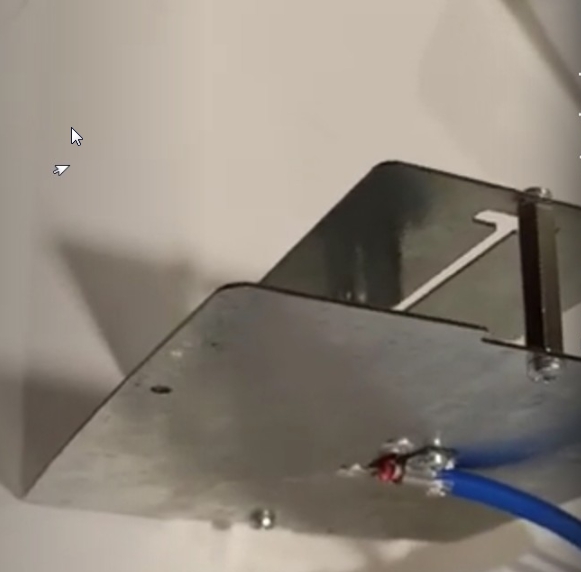

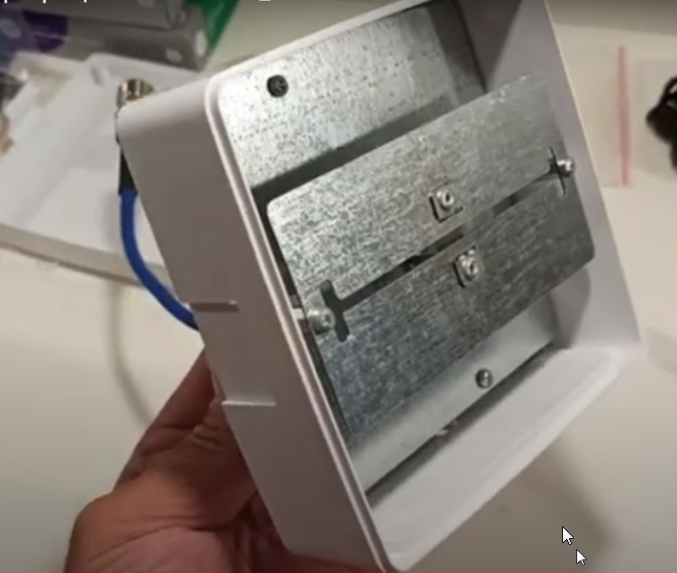

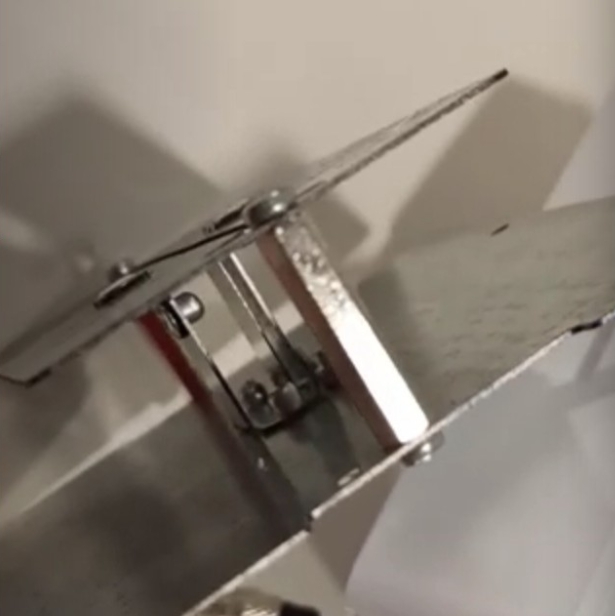

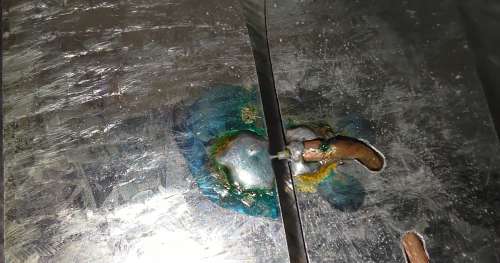

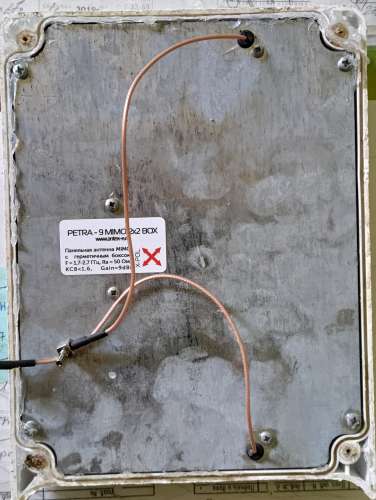

This is the original reflector(view-back)...


1 person likes this

Share this post


Link to post
Share on other sites

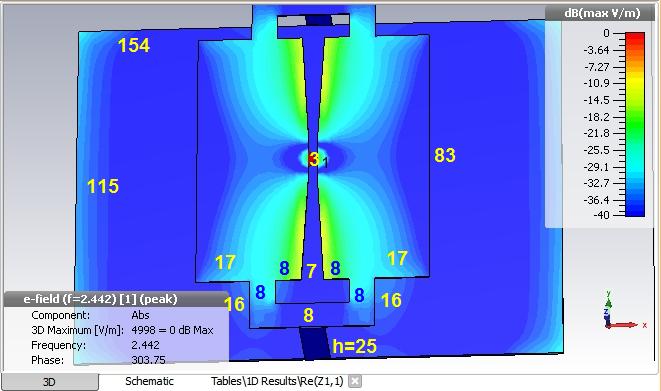

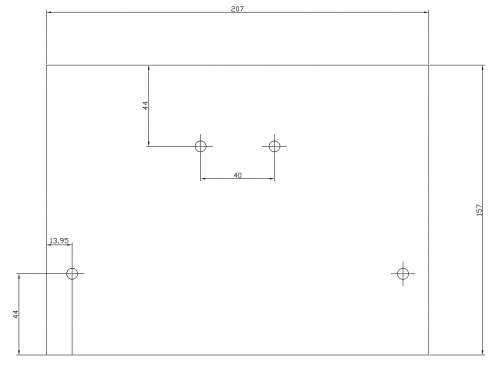

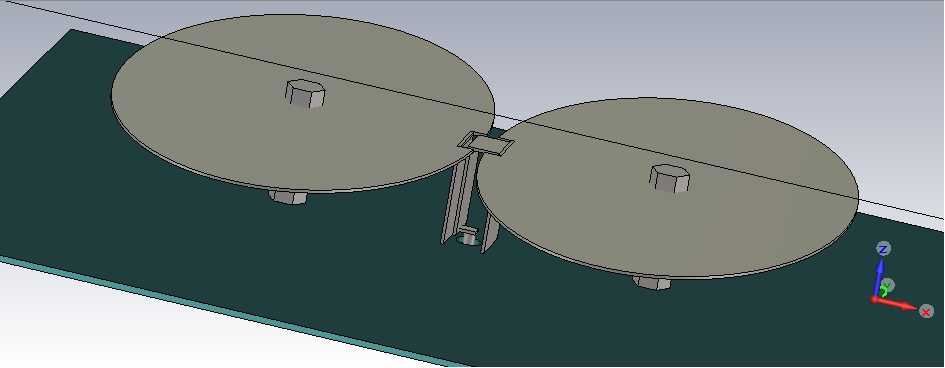

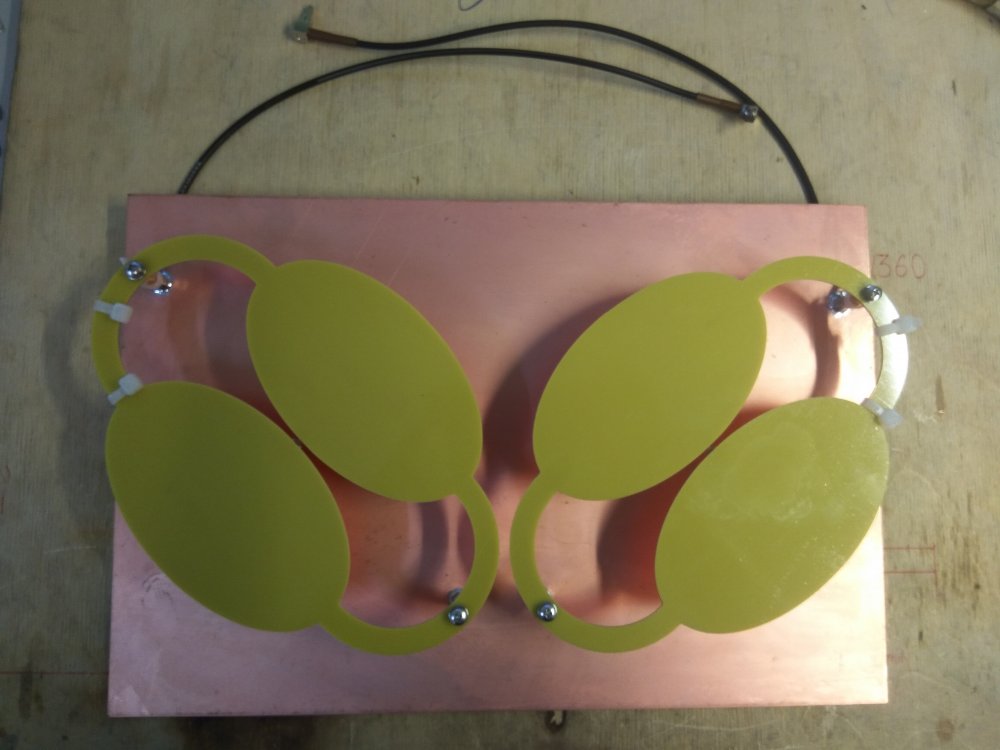

,,, a model much easier to build...










1 person likes this

Share this post


Link to post
Share on other sites

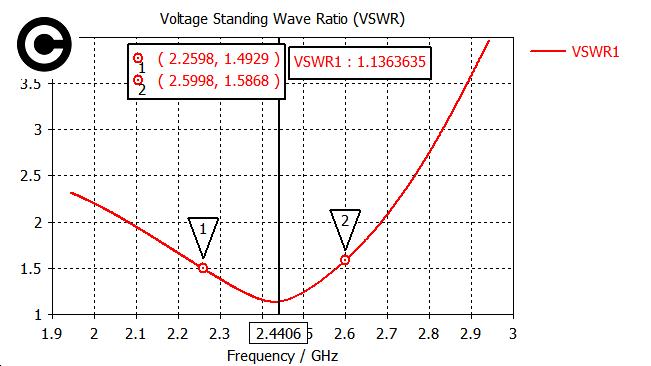

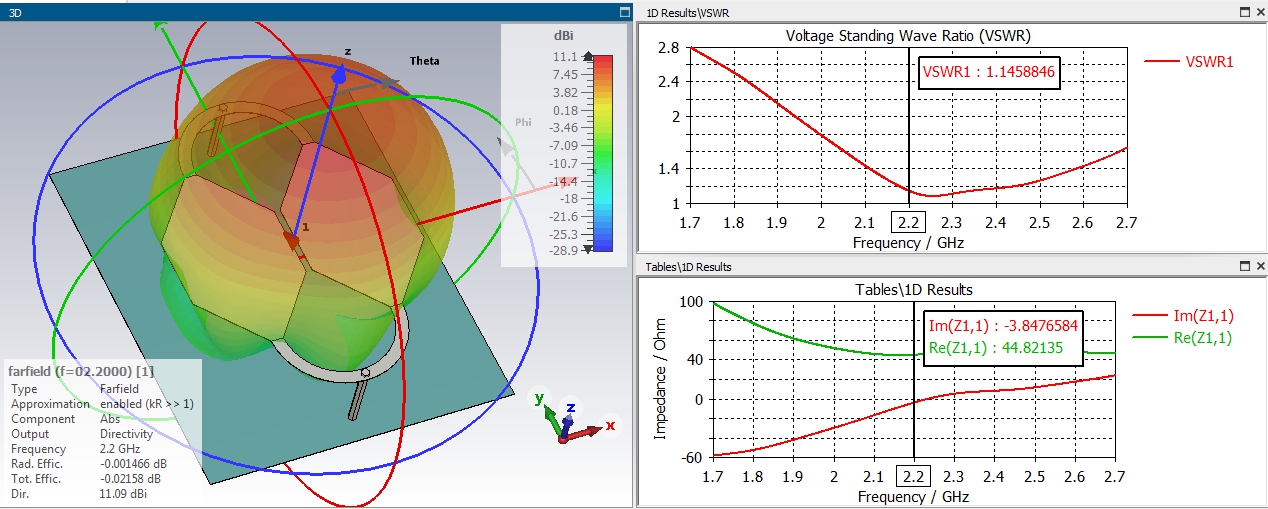

,,,much better...!!!

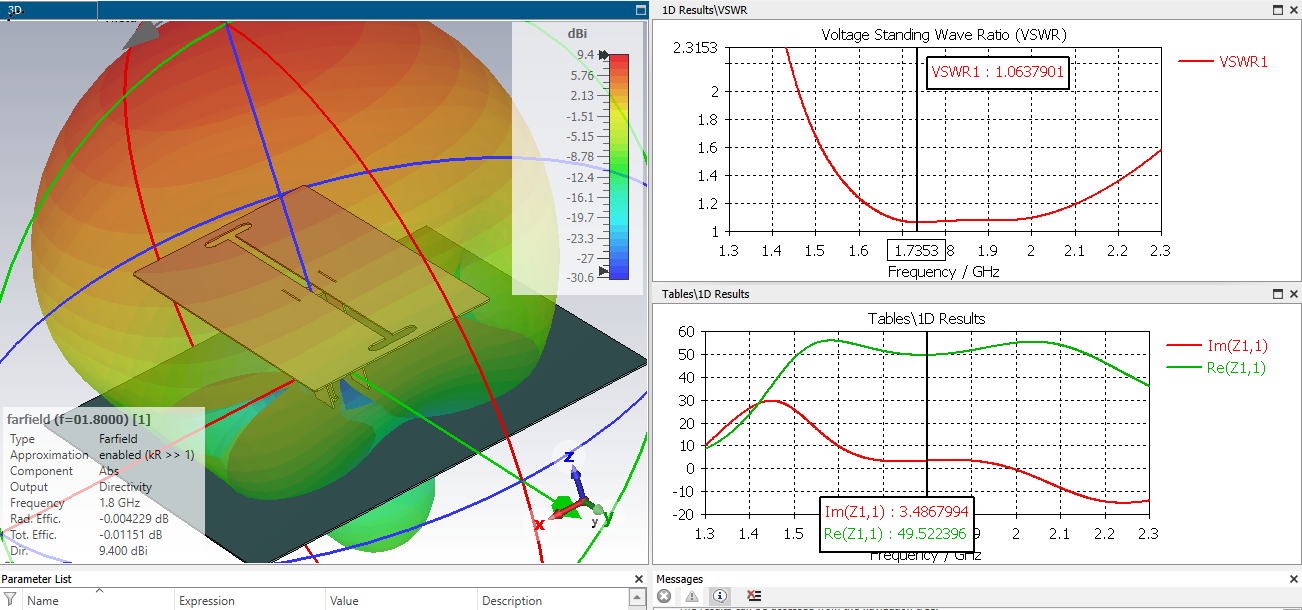

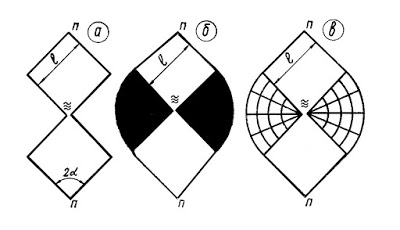

,,, from this idea...

формы ант ок.jpg

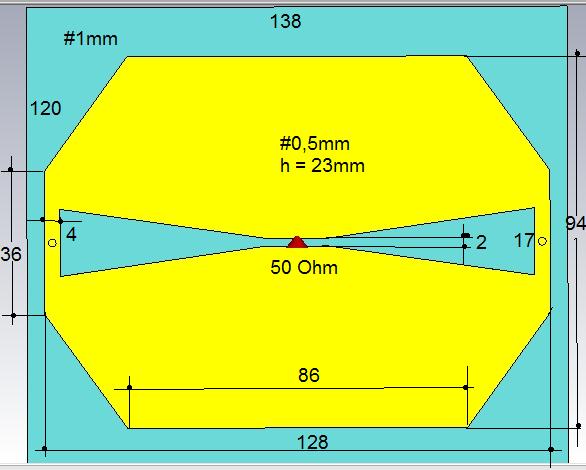

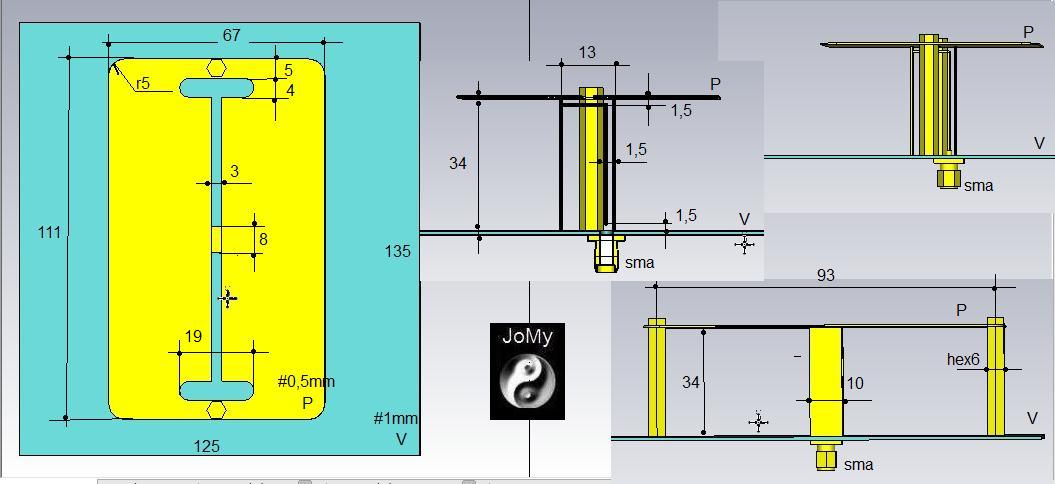

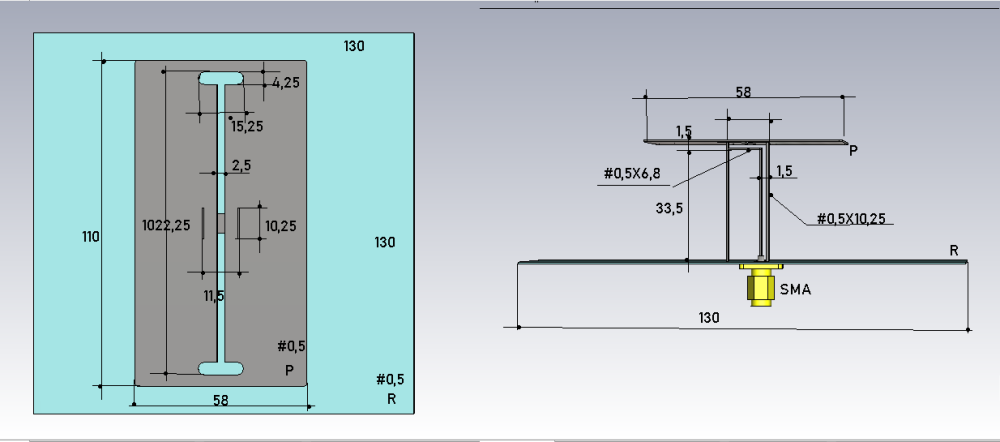

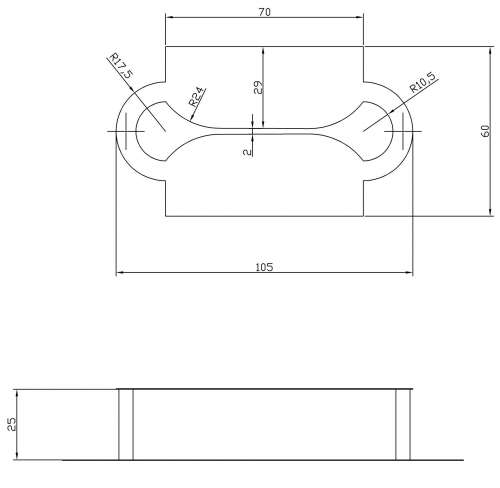

,,, and these are the dimensions of the antenna...






1 person likes this

Share this post


Link to post
Share on other sites

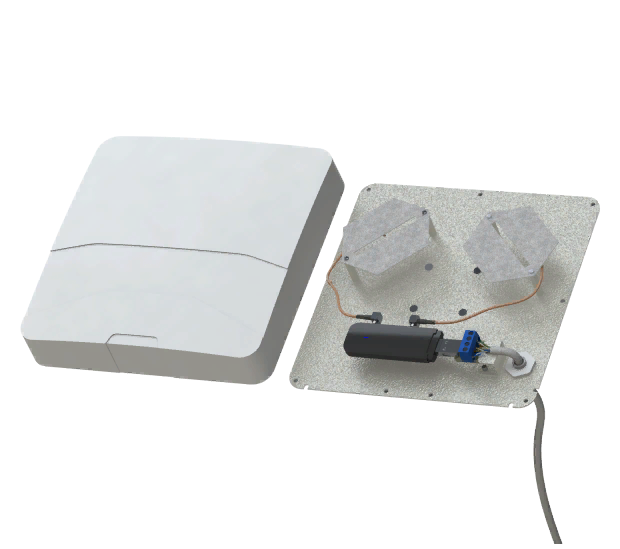

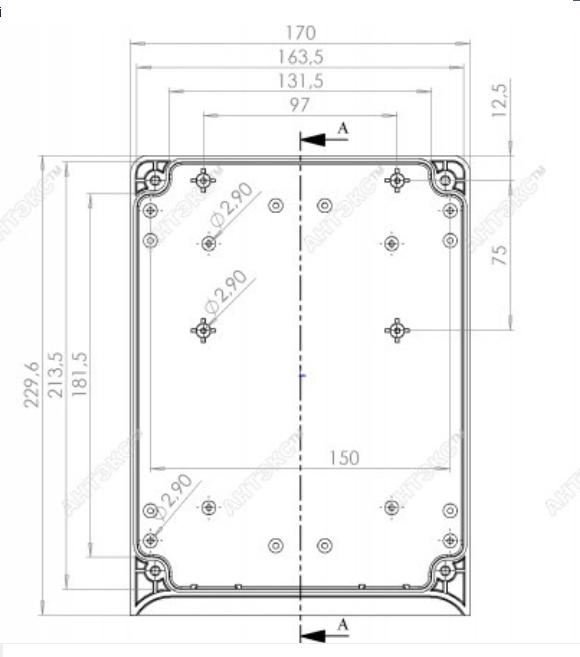

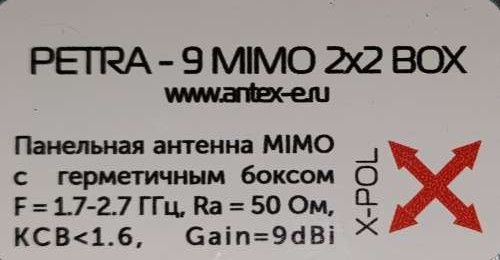

Panel Antex Antenna Petra-9 turns into Petra-20 without changing dimensions(125x135x56mm)...




Share this post


Link to post
Share on other sites

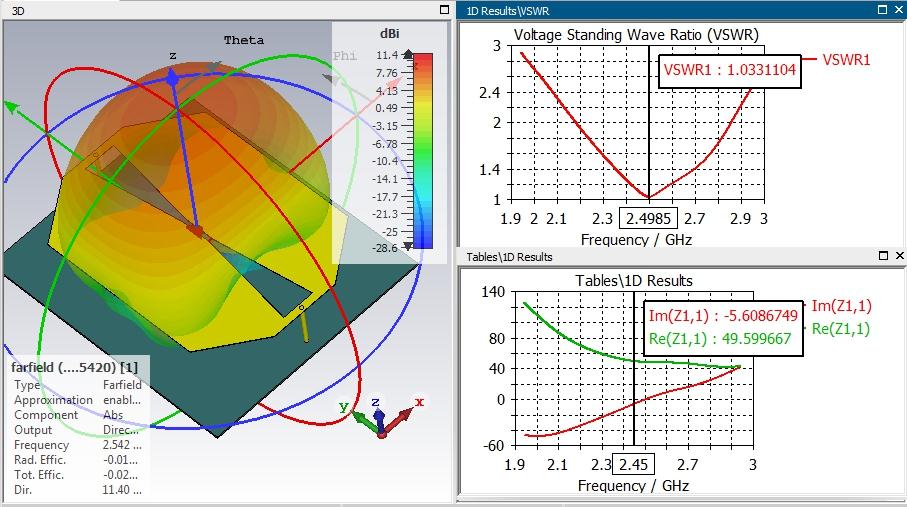

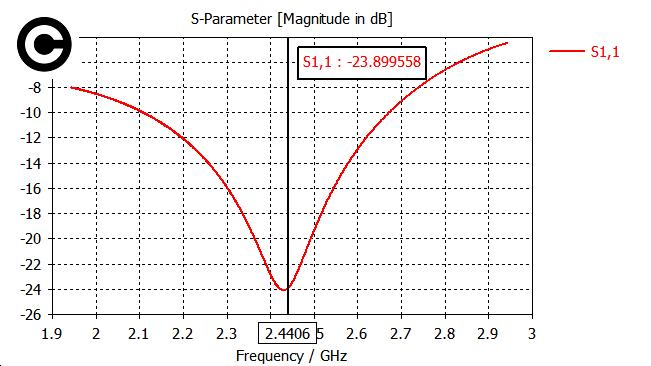

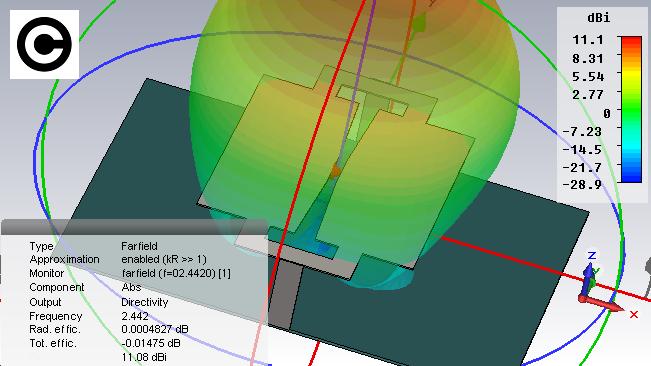

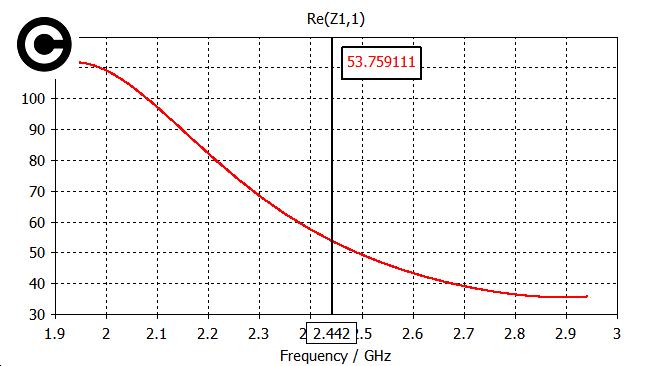

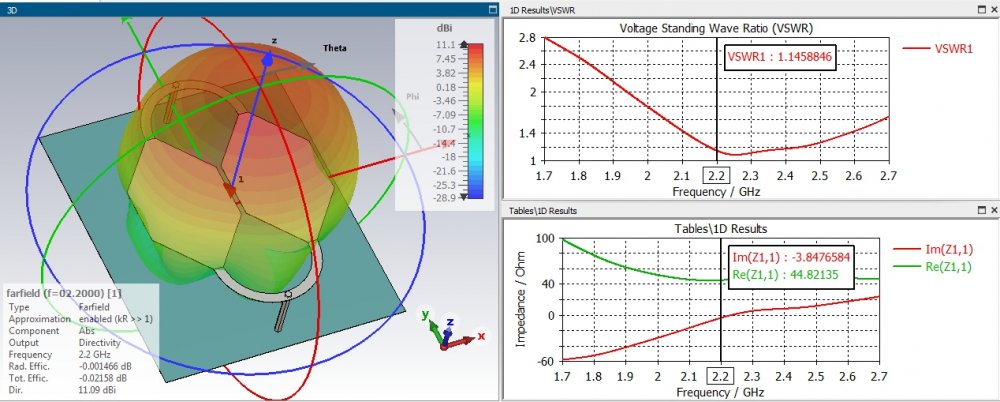

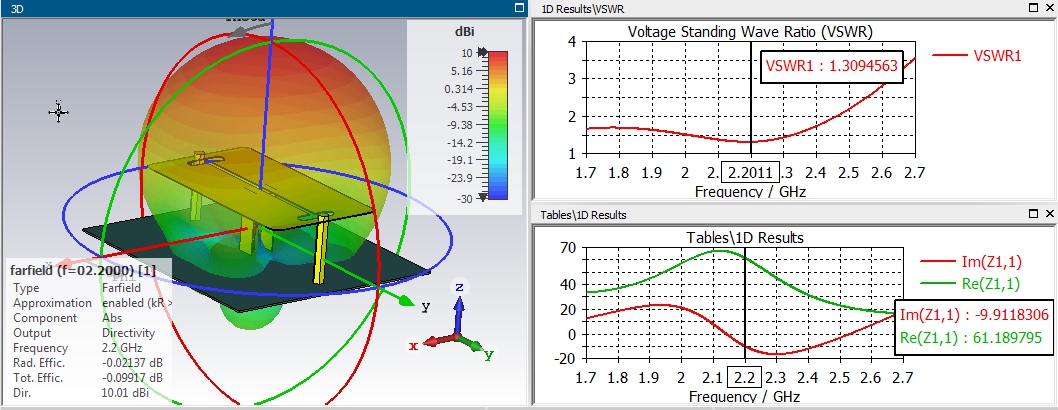

,,, and because it's still about Petra20, I tried to do a simulation of this antenna with my own dimensions...



2 people like this

Share this post


Link to post
Share on other sites
