Admin

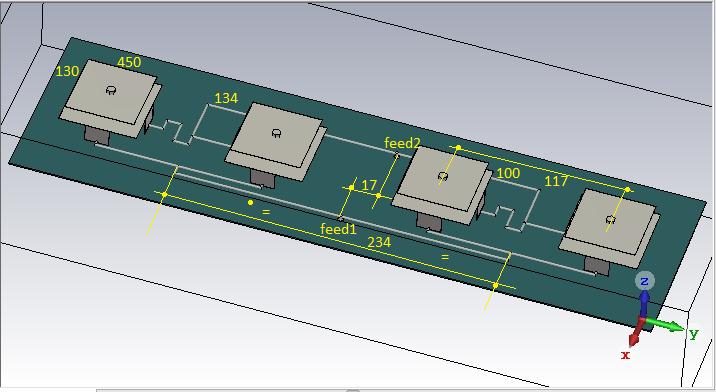

Sector Antenna 2,442GHz

89 posts in this topic
On 1/21/2020 at 2:47 PM, Admin said:

Raul, if you have such an antenna, you can post a few details and dimensions ... ???

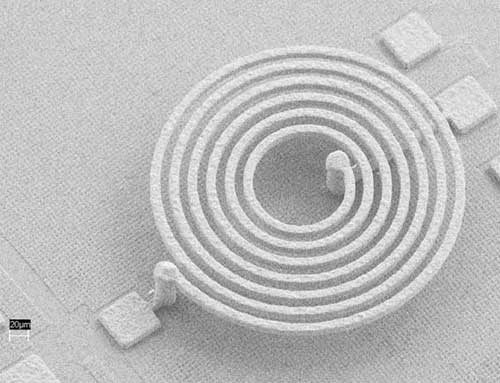

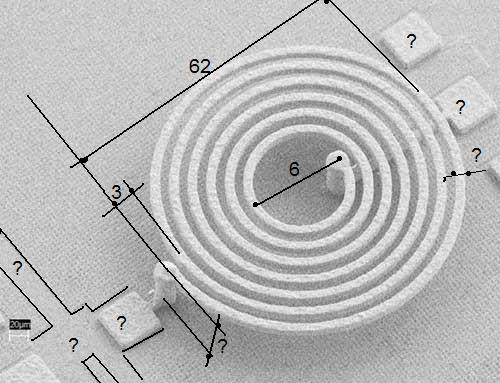

Design of Coil antenna
Coil inner diameter: 6 mm
Number of turns: 7 turn

Wire Diameter: 1 mm

Spacing between turns: 3 mm


Admin can you simulate this design in CST? I think this design is match to the wave vibration.

Turn Antenna.jpg


1 person likes this

Share this post


Link to post
Share on other sites

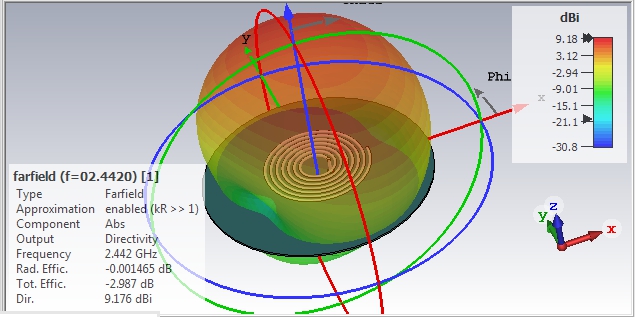

Total oouter diameter of circle: 61.999 mm

Wire lenght : 747.687 mm

Share this post


Link to post
Share on other sites

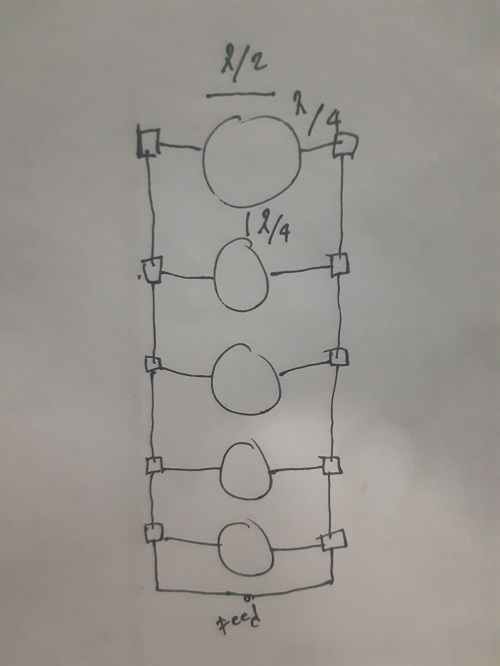

Raul, this sector antenna is very interesting, if you have one, I would be interested in more details and dimensions....!!!



Share this post


Link to post
Share on other sites
On 1/25/2020 at 2:47 PM, Admin said:

Raul, this sector antenna is very interesting, if you have one, I would be interested in more details and dimensions....!!!



Ok admin. I will make detail. Wait..



Share this post


Link to post
Share on other sites

If one line charged can give 9 dBi i think every additional one charged can give 3dBi power. If we put five or seven charged maybe can make upto 45 dBi



Share this post


Link to post
Share on other sites

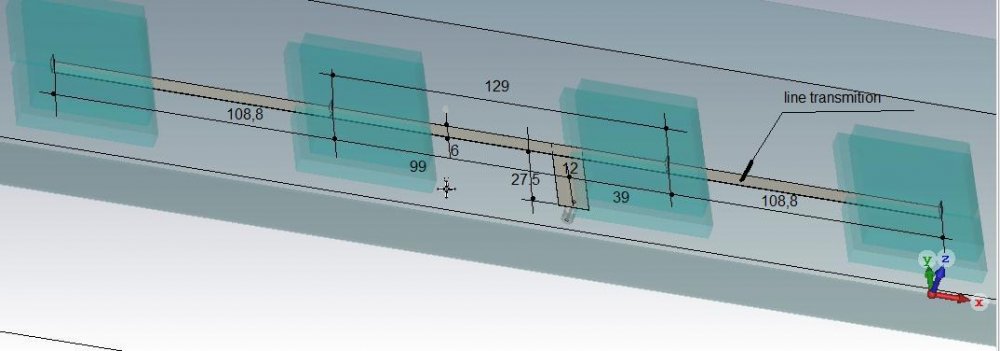

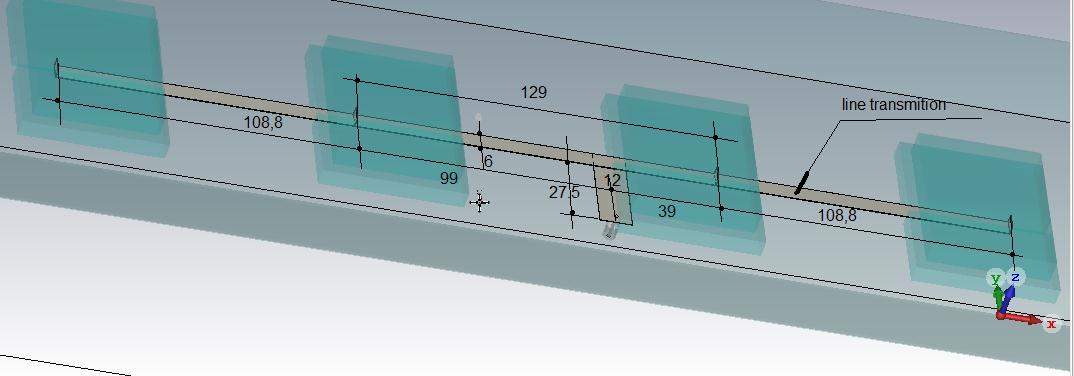

,, I would like to see the connection lines between spirals and dimensions >>> !!!!

Share this post


Link to post
Share on other sites
On 28/1/2020 at 8:20 AM, Raul said:

If one line charged can give 9 dBi i think every additional one charged can give 3dBi power. If we put five or seven charged maybe can make upto 45 dBi



each unit 9 db

2 of those 12 dbi max

4 of those 15 dbi max

8 of those 18 dbi max

Under IDEAL conditions...(feed network. dielectric losses , mismatch etc)

up to  20 ...22...24 dbi is achievable on 2.4ghz (over a 1 meter area at 24dbi)...more than that is BALONEY...Bullshit...never seen...never happen

Share this post


Link to post
Share on other sites
On 5/9/2020 at 10:33 PM, clanon said:

each unit 9 db

2 of those 12 dbi max

4 of those 15 dbi max

8 of those 18 dbi max

Under IDEAL conditions...(feed network. dielectric losses , mismatch etc)

up to  20 ...22...24 dbi is achievable on 2.4ghz (over a 1 meter area at 24dbi)...more than that is BALONEY...Bullshit...never seen...never happen

No i mean not that.

Above is bad antenna. Very high vswr

Share this post


Link to post
Share on other sites

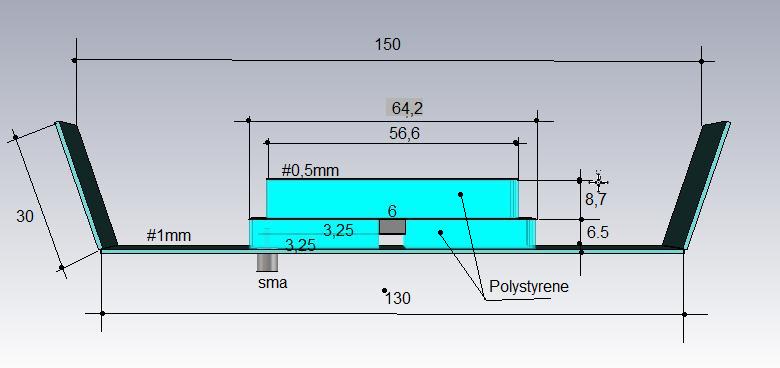

I wonder, is it possible to reduce the back reflector width to 120mm, and how bad is the impact if I do so.




Share this post


Link to post
Share on other sites

,,, try it, but don't post so many pictures...!!!!

1 person likes this

Share this post


Link to post
Share on other sites

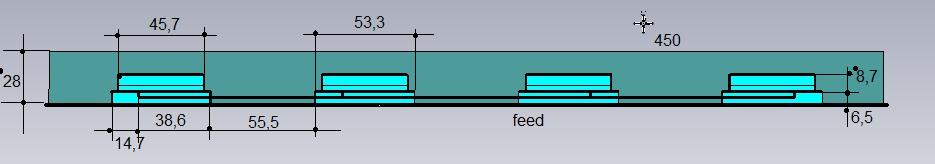

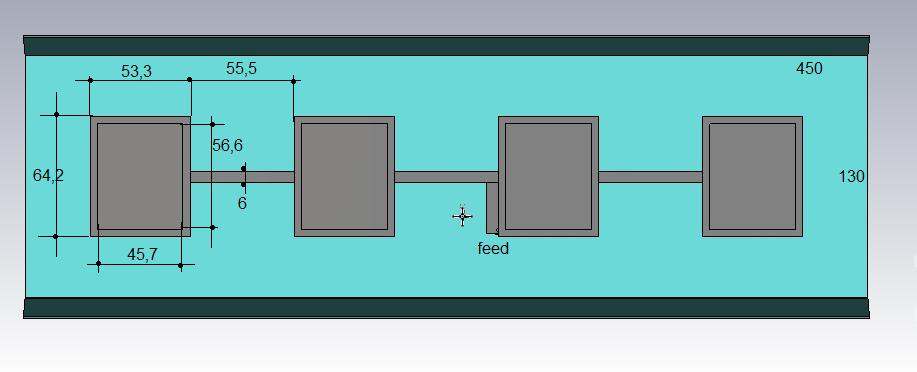

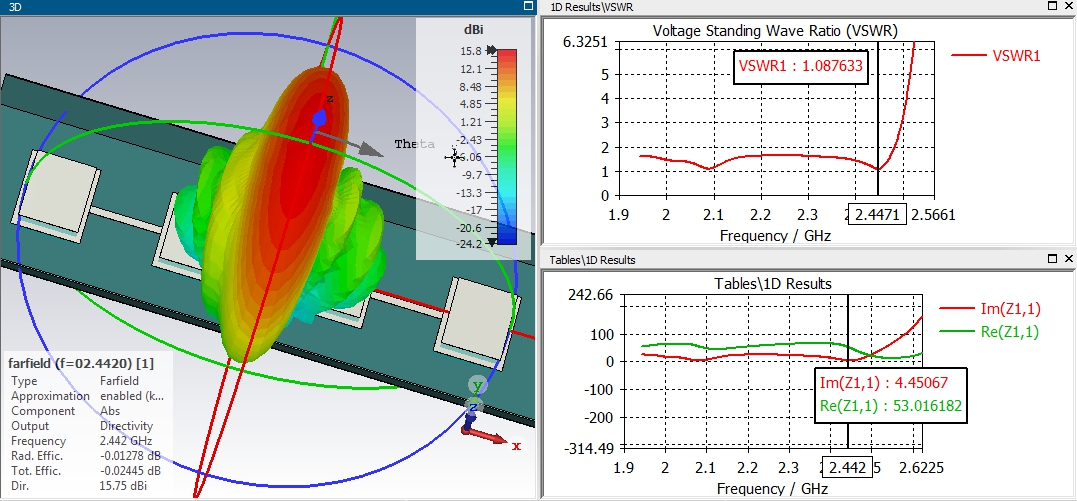

,,, at the request of the user "Curb S. Gutter", I tried to optimize this antenna for a wider frequency band...






2 people like this

Share this post


Link to post
Share on other sites
On 2/22/2021 at 5:57 PM, Admin said:

,,, at the request of the user "Curb S. Gutter", I tried to optimize this antenna for a wider frequency band...









Where can I find such a dialectical polystyrene? Is it suitable in a building materials store? I'm sorry for the stupid question, as I understand it, you need a material with certain characteristics of dialectical permeability?



Share this post


Link to post
Share on other sites
