Sector Antenna 2,442GHz

49 posts in this topic

Yes, but not with this patch geometry...!!!

Share this post


Link to post
Share on other sites
On 1/9/2018 at 9:50 PM, Admin said:

A new patch format...for broadband


You have detail size for this antenna ?

Share this post


Link to post
Share on other sites

,,,good, if you look carefully on this site, you will find what you are interested in ... !!!

1 person likes this

Share this post


Link to post
Share on other sites
On 4/23/2017 at 8:35 PM, Admin said:

After an idea of Vman...


this one?? but with eight patch right...

I think not easy to find wire with 1,6 size,  if i change the wire size to 1.5 or 2 mm. is there a change in antenna measurement, maybe the distance between the patch and the reflector, or the size of the patch or other?

or do you have to still use the wire size to get best results?

Edited by bejonet

Share this post


Link to post
Share on other sites

,,,this is better,this is the best...


3 people like this

Share this post


Link to post
Share on other sites
51 minutes ago, bejonet said:

and where i found the detail...?



1 person likes this

Share this post


Link to post
Share on other sites

good thank you,, but it is for 1800mhz, that i need is 2300-2700mhz

Share this post


Link to post
Share on other sites

Yes, you are right, at this antenna I did not give details, I will post them later...!!!

1 person likes this

Share this post


Link to post
Share on other sites

thank you, will remain faithful to wait for the results of the details

Share this post


Link to post
Share on other sites

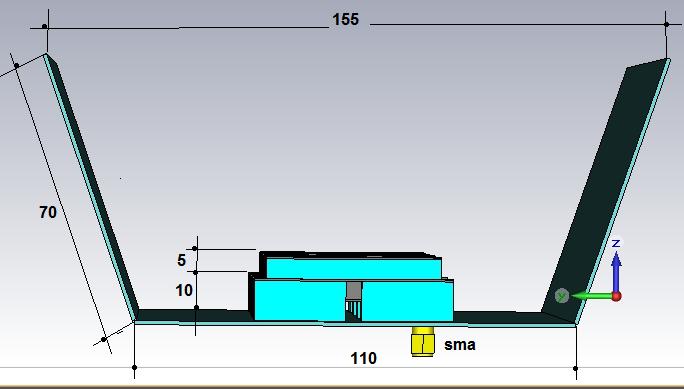

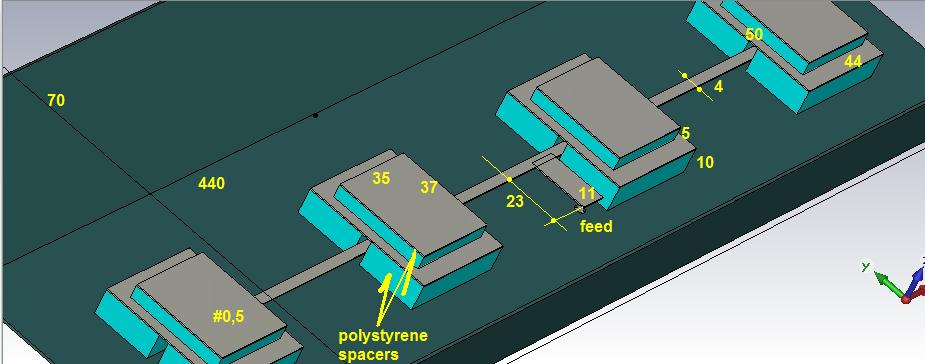

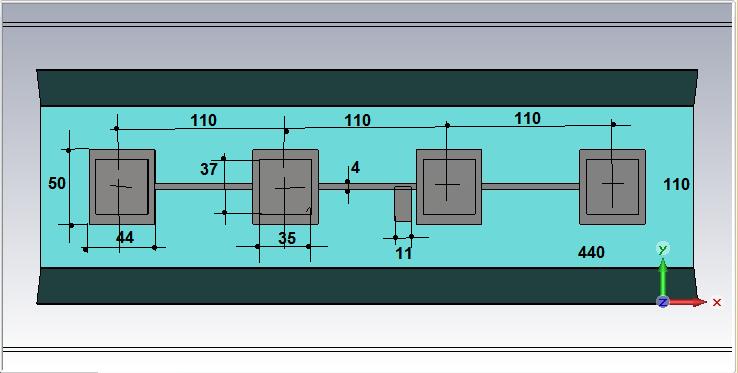

,,,that's it...!!!







3 people like this

Share this post


Link to post
Share on other sites

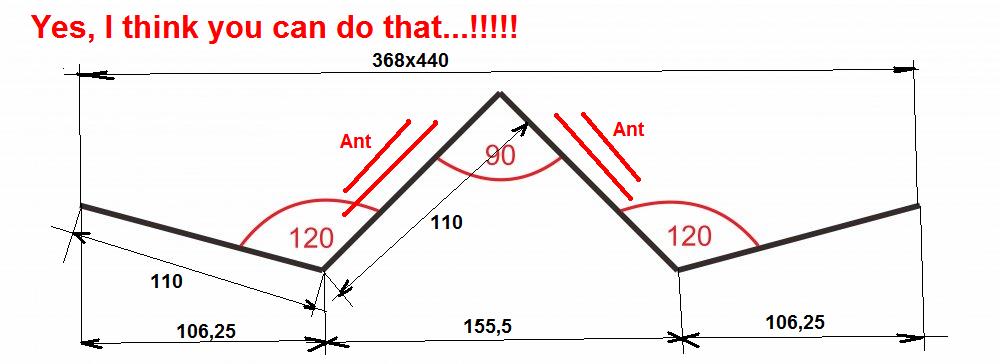

On 12/3/2018 at 7:28 PM, Admin said:

,,,that's it...!!!

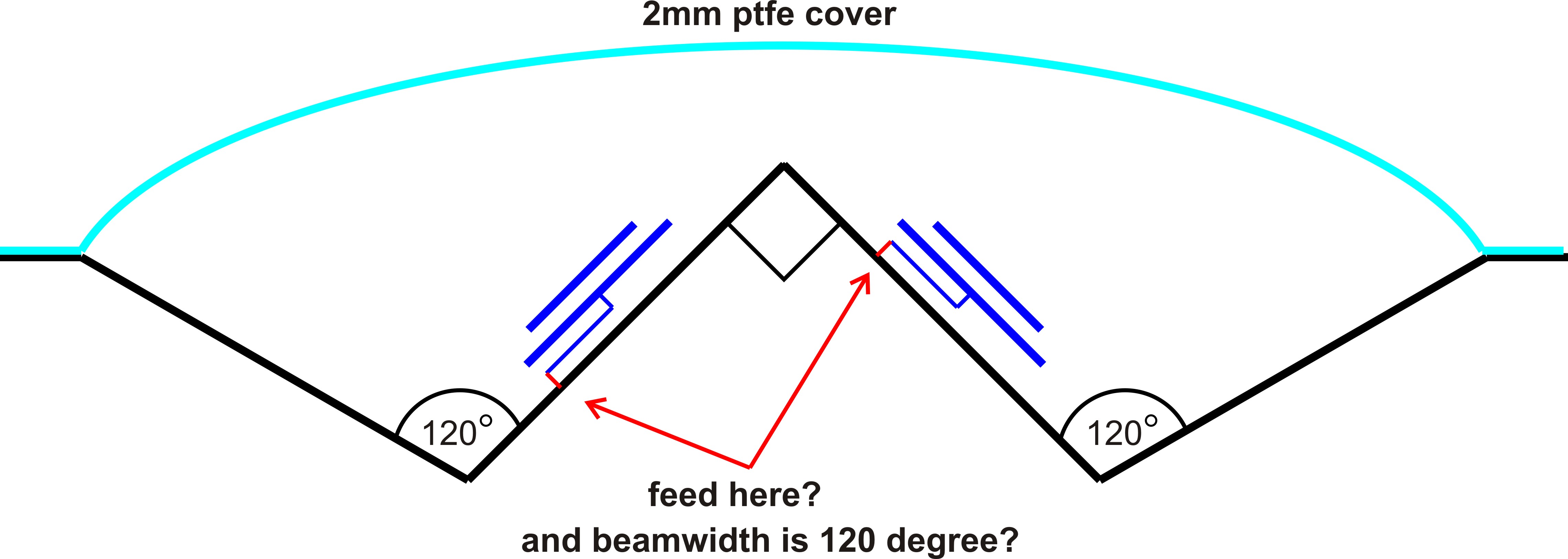

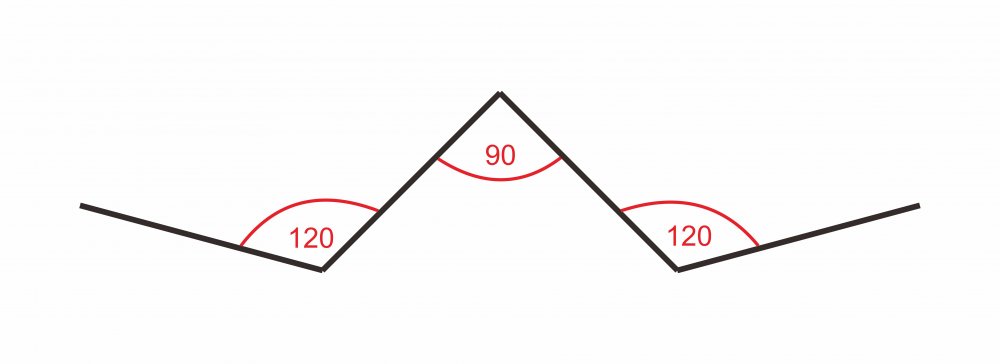

how to create wings reflektor?

Share this post


Link to post
Share on other sites

chances are less precision, because cutting by scissors,,,

just make the reflector





it is possible for mimo???

WhatsApp Image 2018-12-06 at 3.38.37 PM2.jpg

Edited by bejonet
1 person likes this

Share this post


Link to post
Share on other sites

...for MiMo ...not in this case...!!!!

Share this post


Link to post
Share on other sites

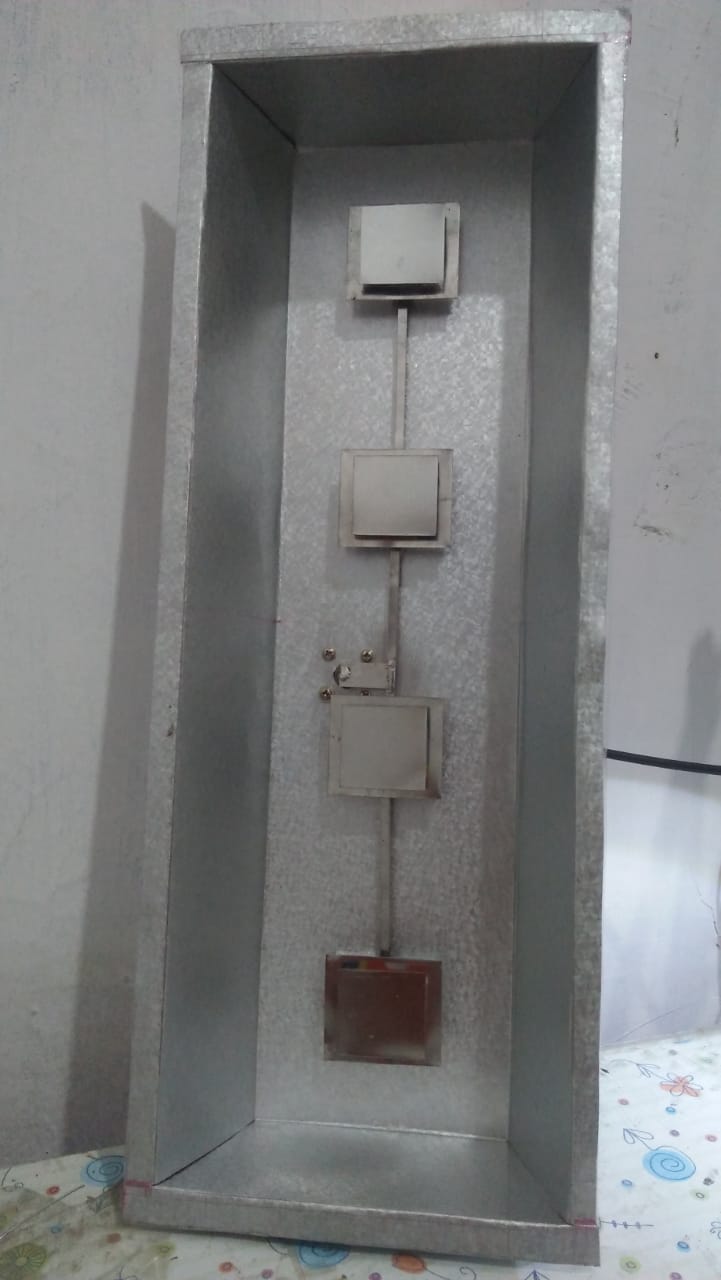

the antenna is finished, can it use the teflon sheet to cover it?

WhatsApp Image 2018-12-09 at 4.24.14 PM.jpeg

2 people like this

Share this post


Link to post
Share on other sites

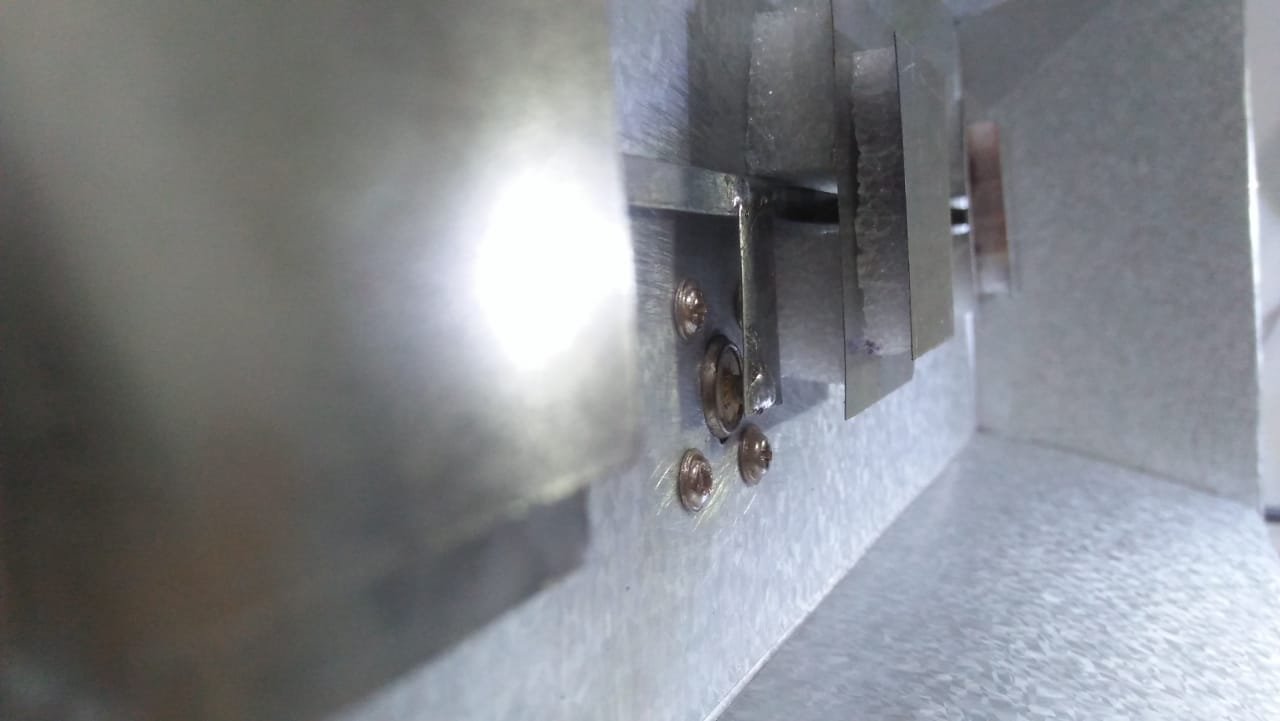

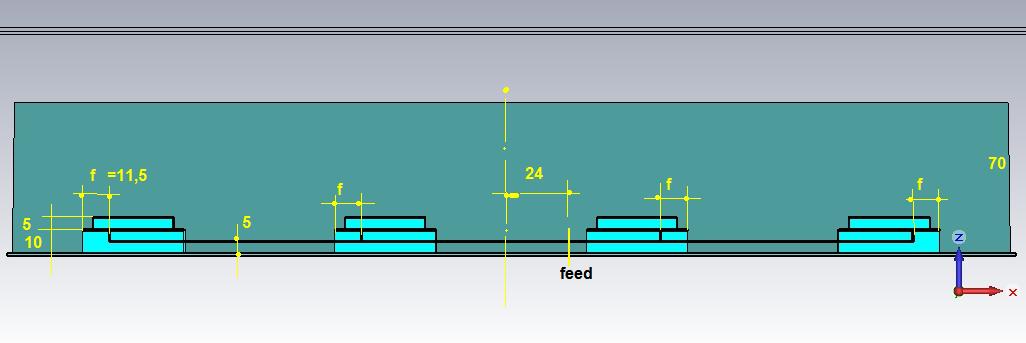

for the feed, whether it is right on the edge or there is a distance from the edge

WhatsApp Image 2018-12-09 at 4.41.44 PM.jpeg

1 person likes this

Share this post


Link to post
Share on other sites

,,,it"s good...!!!

Tell me, are you taking the test today?



Share this post


Link to post
Share on other sites

yes, i was tested and it working very good, i like it

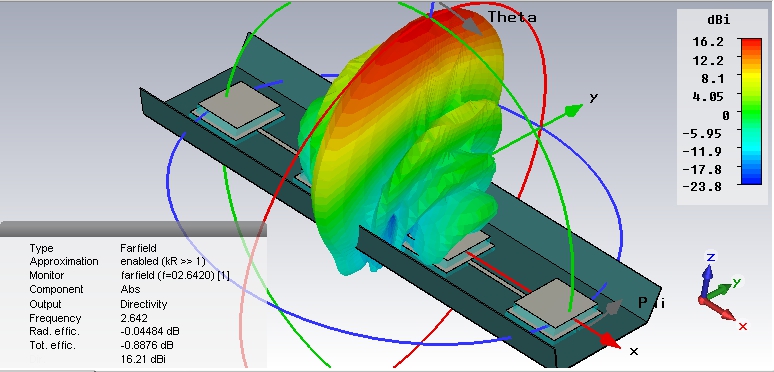

what polarization and angle beamwidth for this antenna?

if add more patch, can be increase the gain?

1 person likes this

Share this post


Link to post
Share on other sites

hi admin...



it is posible to copy mantbox reflector for this sector antenna???, mimo with single polarization of course..


Share this post


Link to post
Share on other sites

wow... it is big antenna..

possibility of problems with wind gusts

Share this post


Link to post
Share on other sites

,,,you can do instead of 110mm to 95mm , but the gain in directivity will be lower....!!!

Share this post


Link to post
Share on other sites
