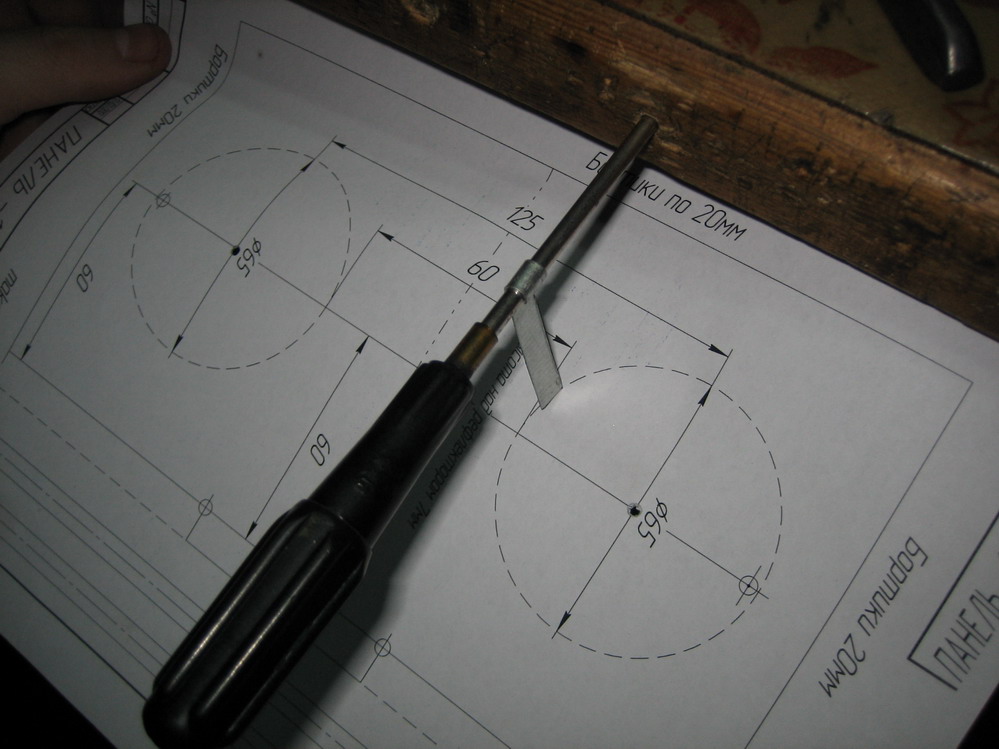

Panel antenna 12dBi

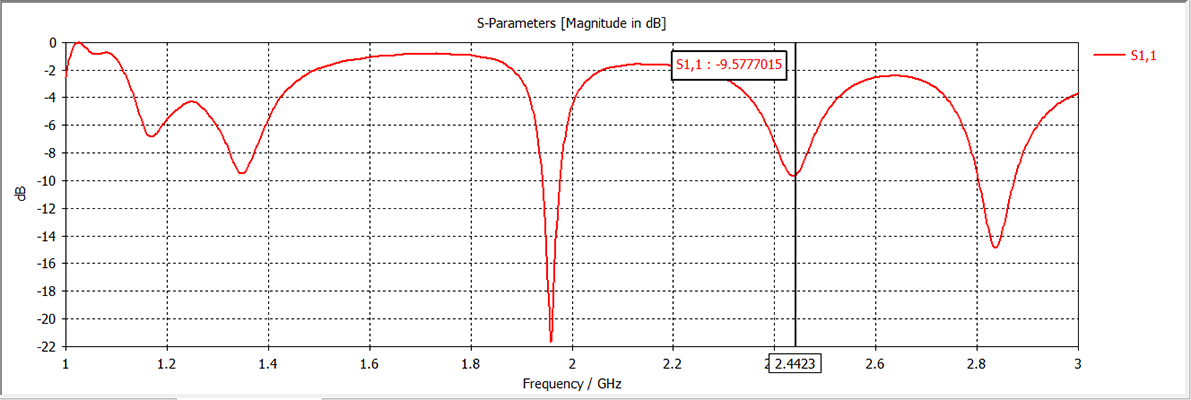

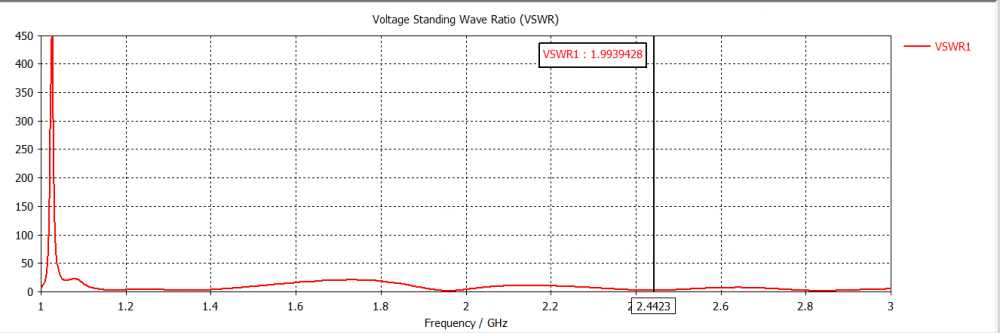

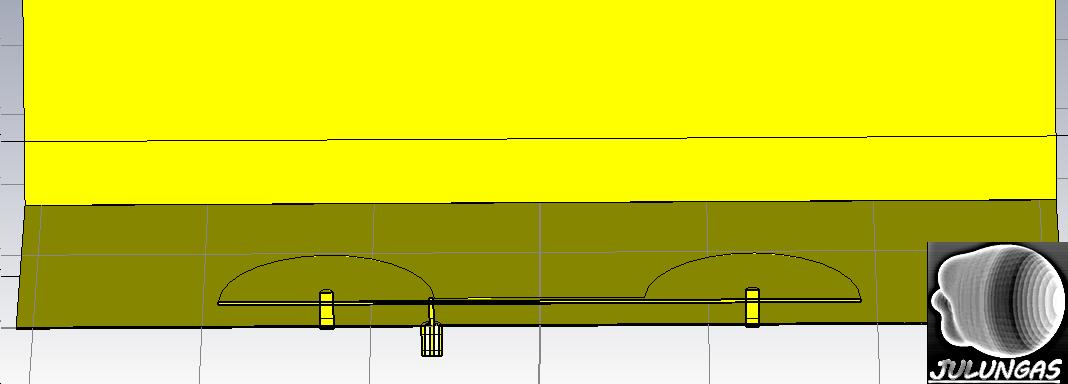

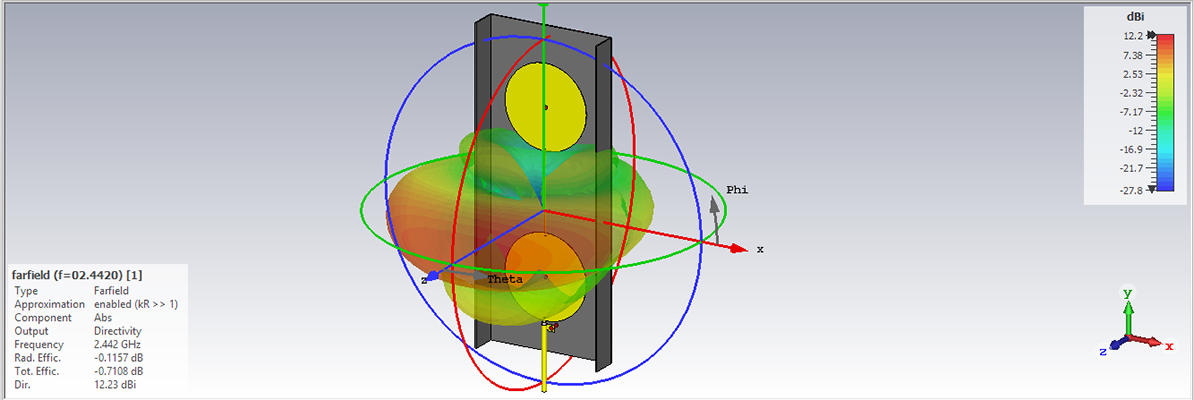

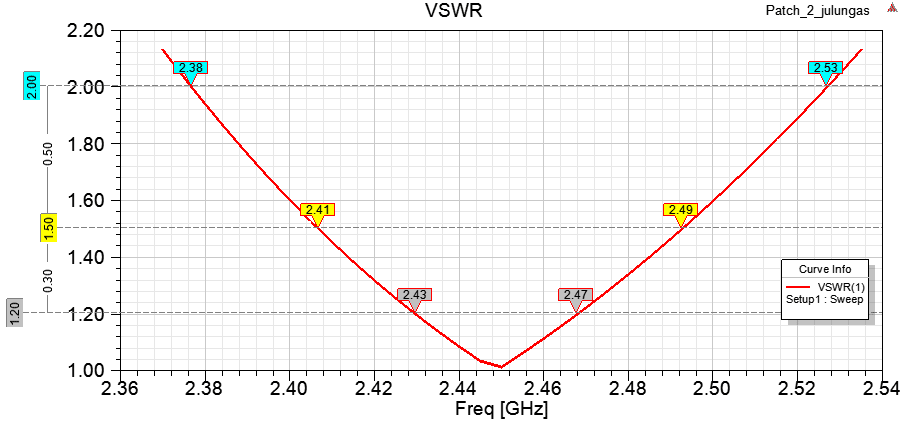

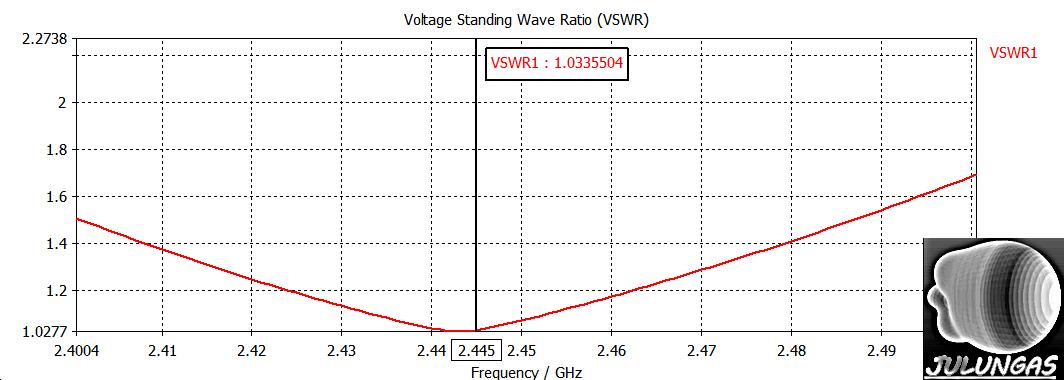

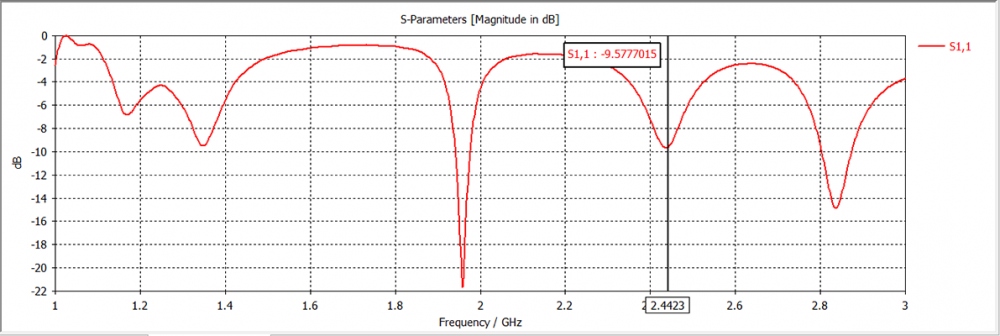

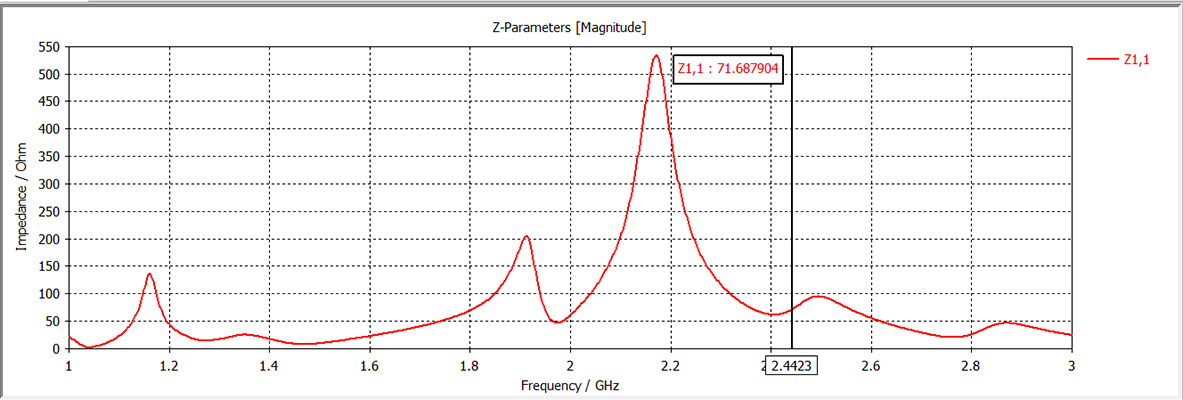

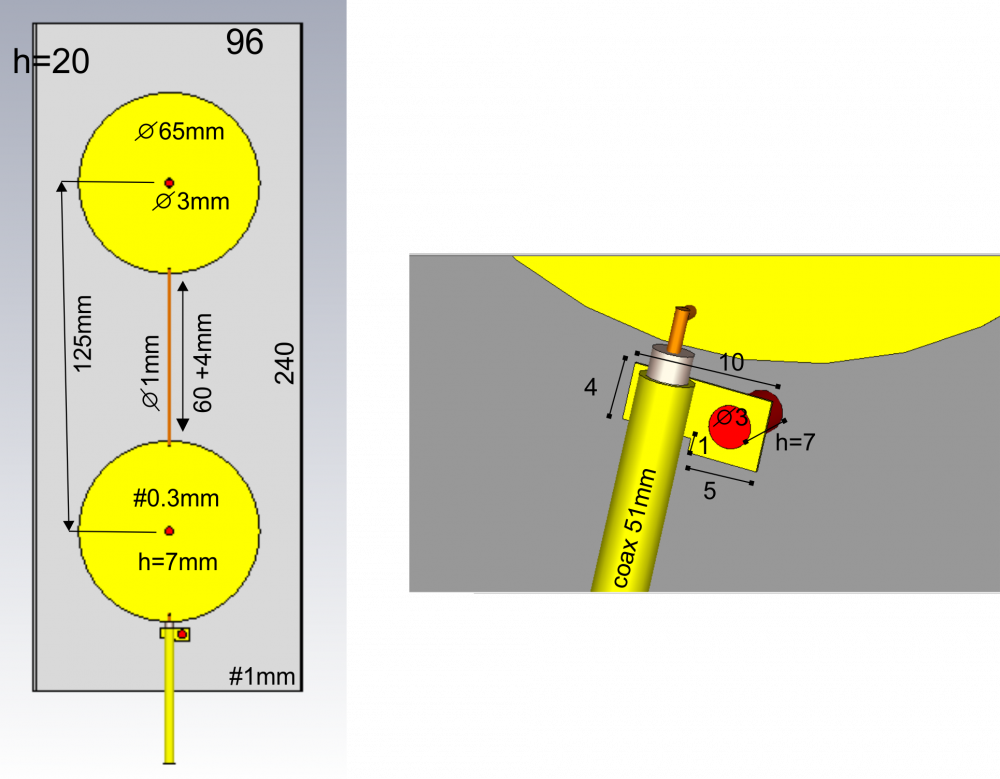

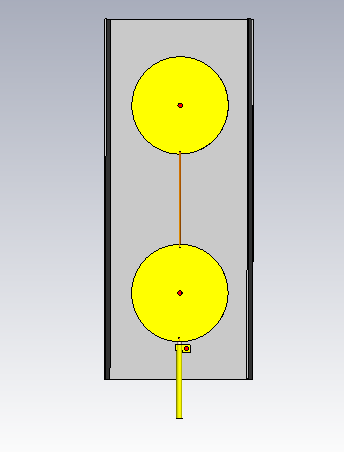

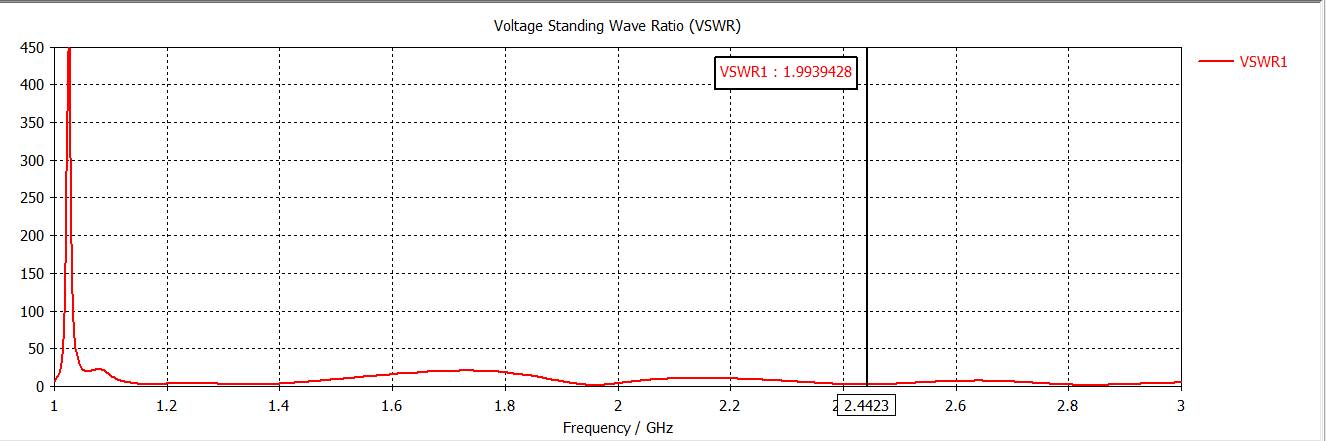

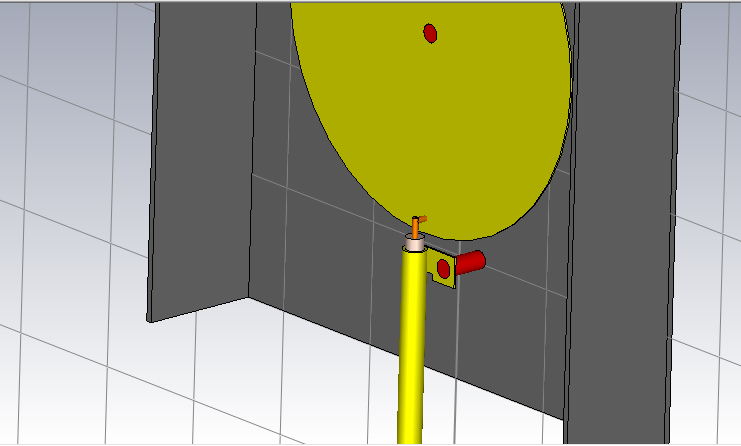

my simulation antenna, it is will work or not?

Spoiler




Spoiler









Spoiler




1 person likes this

Share this post


Link to post
Share on other sites

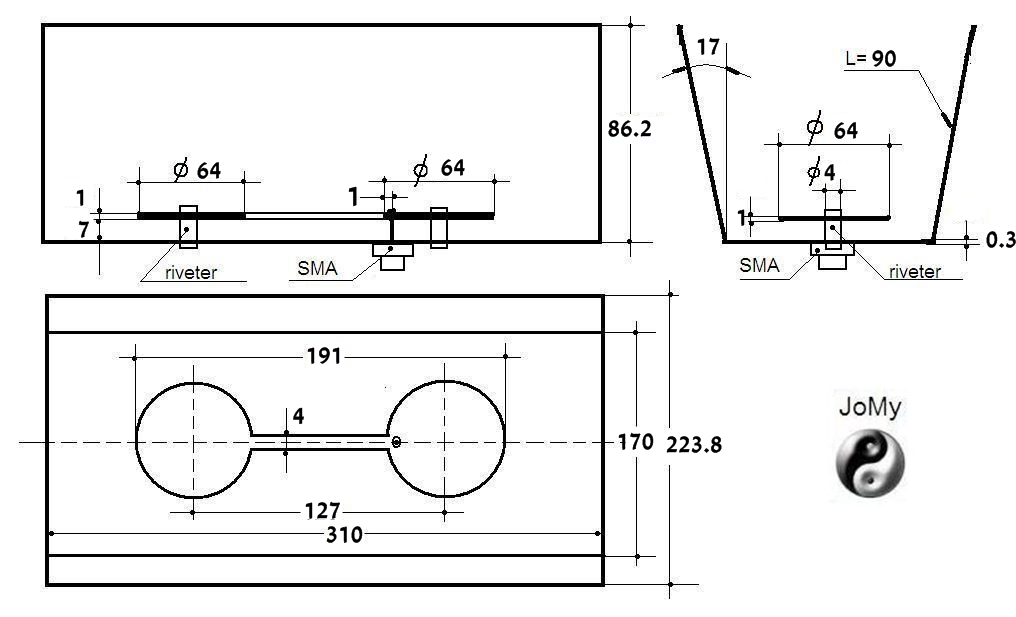

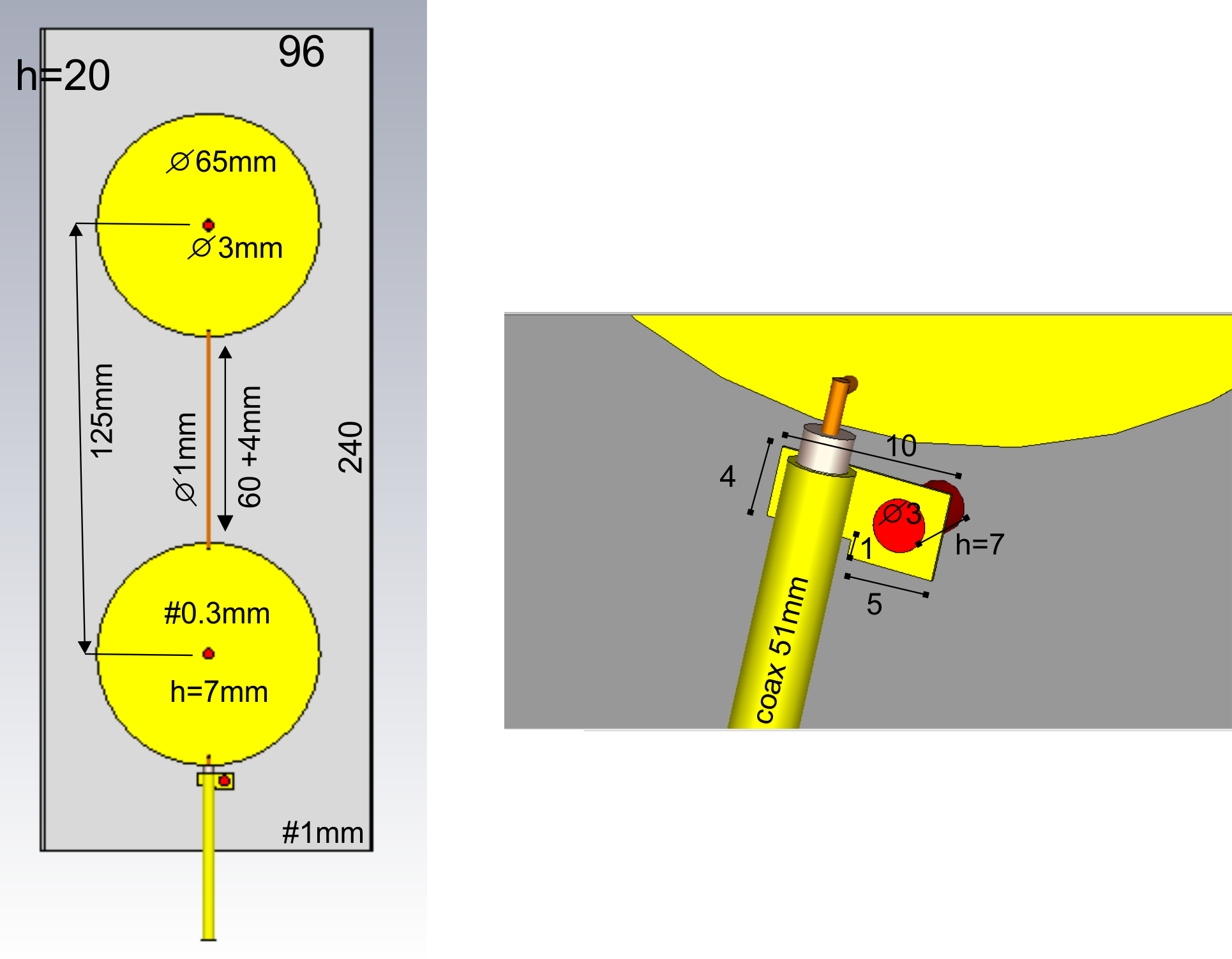

,,, put the dimensions ... !!!

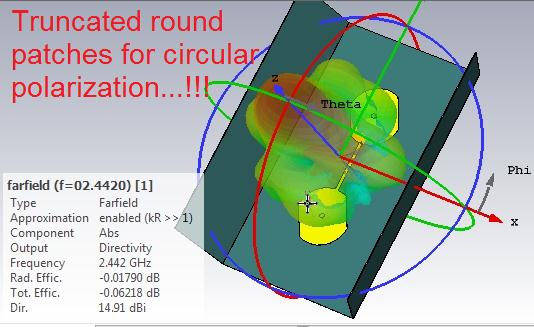

and this is Eric's picture...


Share this post


Link to post
Share on other sites

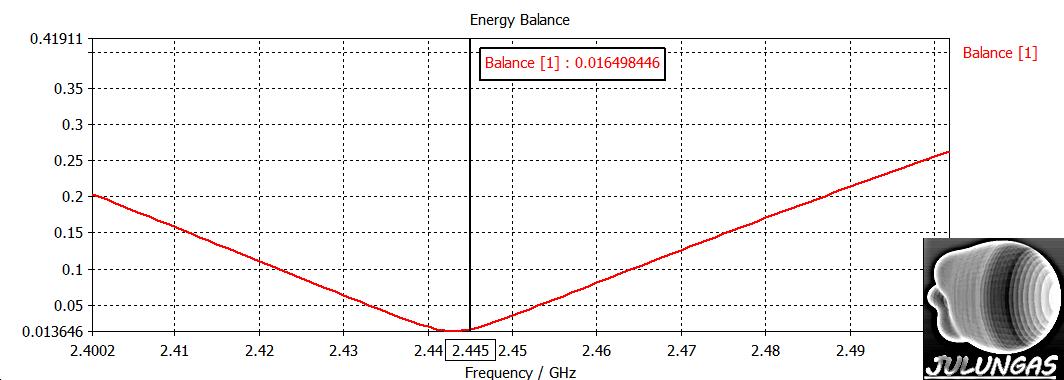

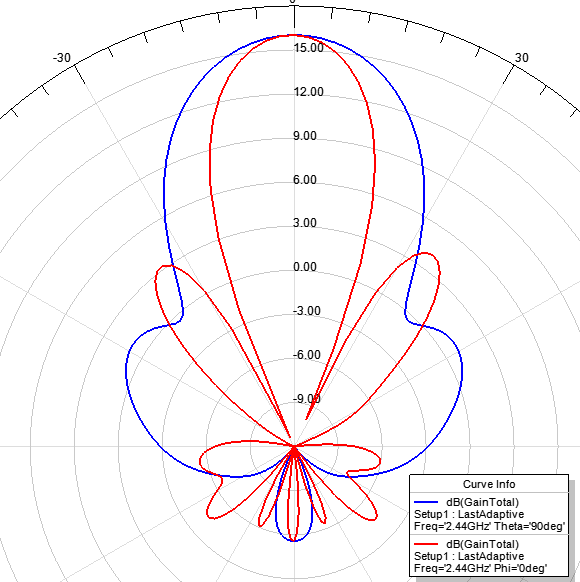

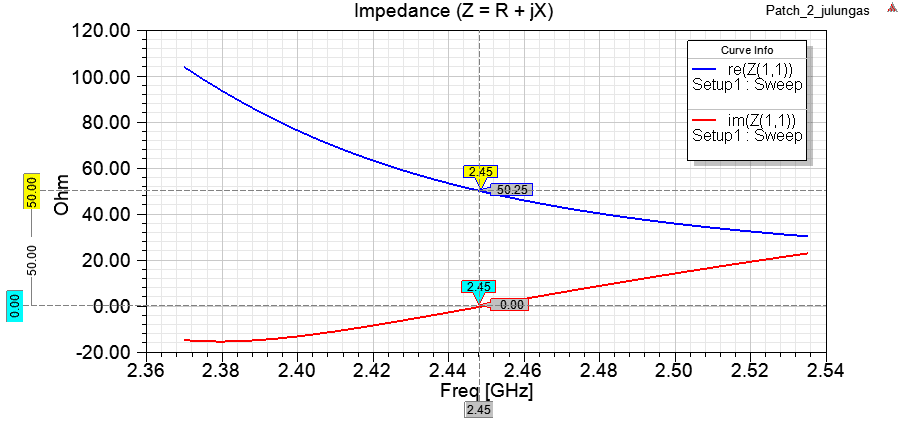

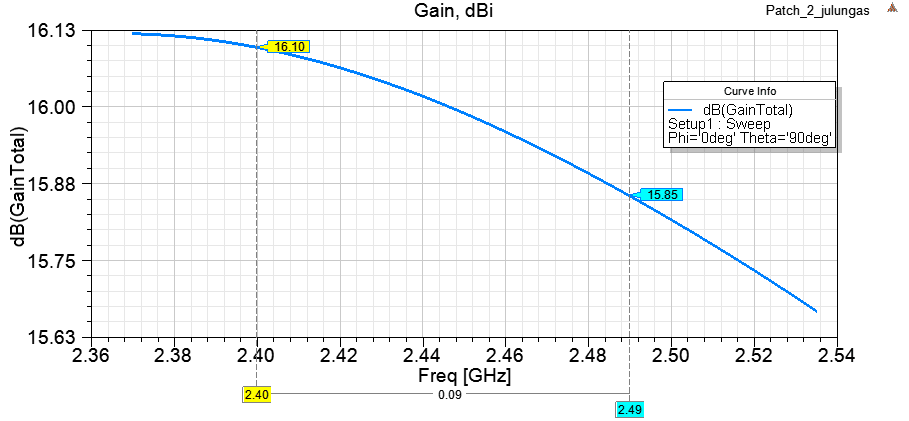

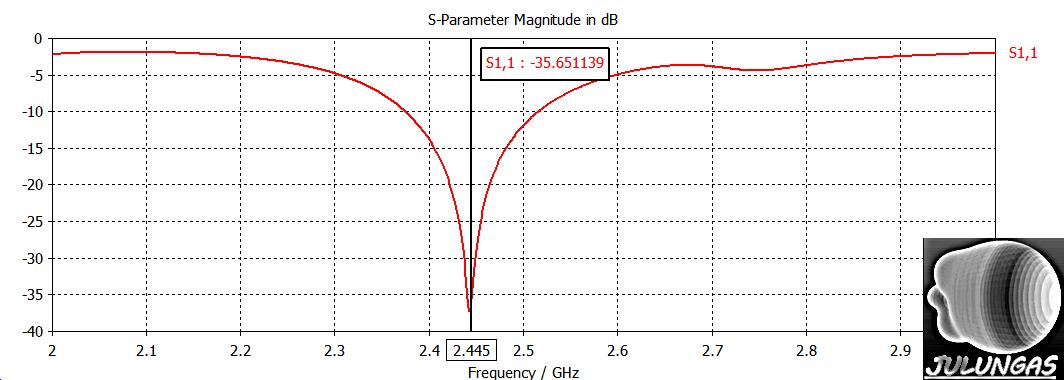

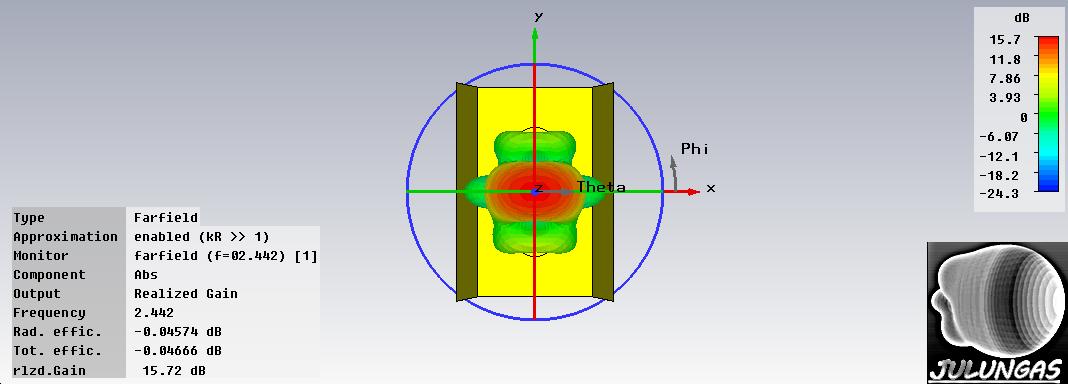

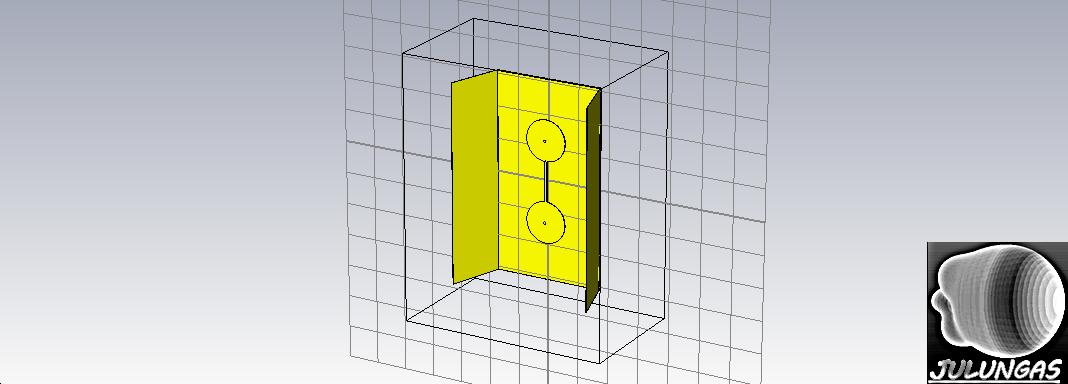

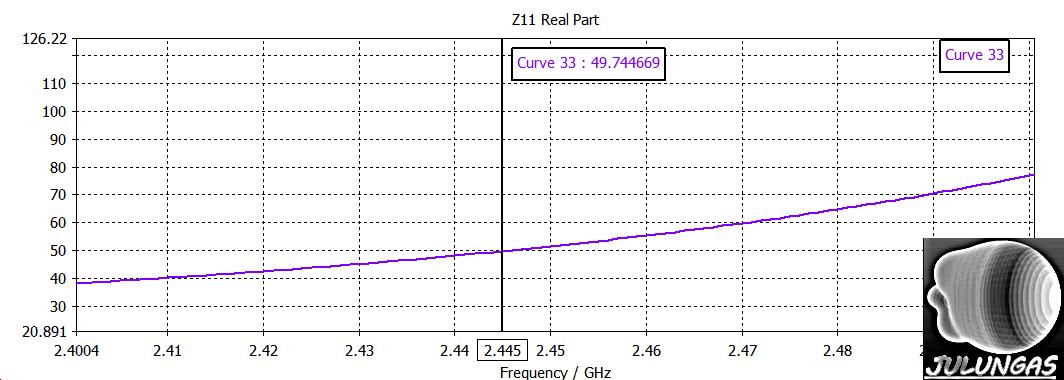

This is an achievement of my Mexican friend, Julungas...









4 people like this

Share this post


Link to post
Share on other sites
7 hours ago, Hamza said:

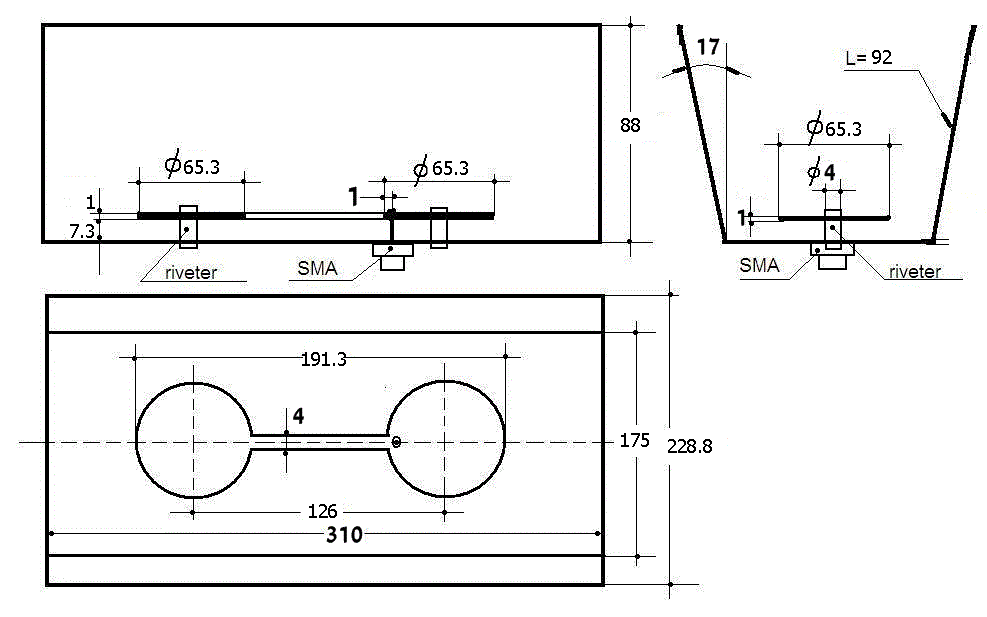

i think when the diameter 65.3 mm is better



,,,it must be tested... !!!

1 person likes this

Share this post


Link to post
Share on other sites
37 minutes ago, Hamza said:

Sorry monsieur Jomy that's what I found on the site .

,,,never mind...!!!

Share this post


Link to post
Share on other sites

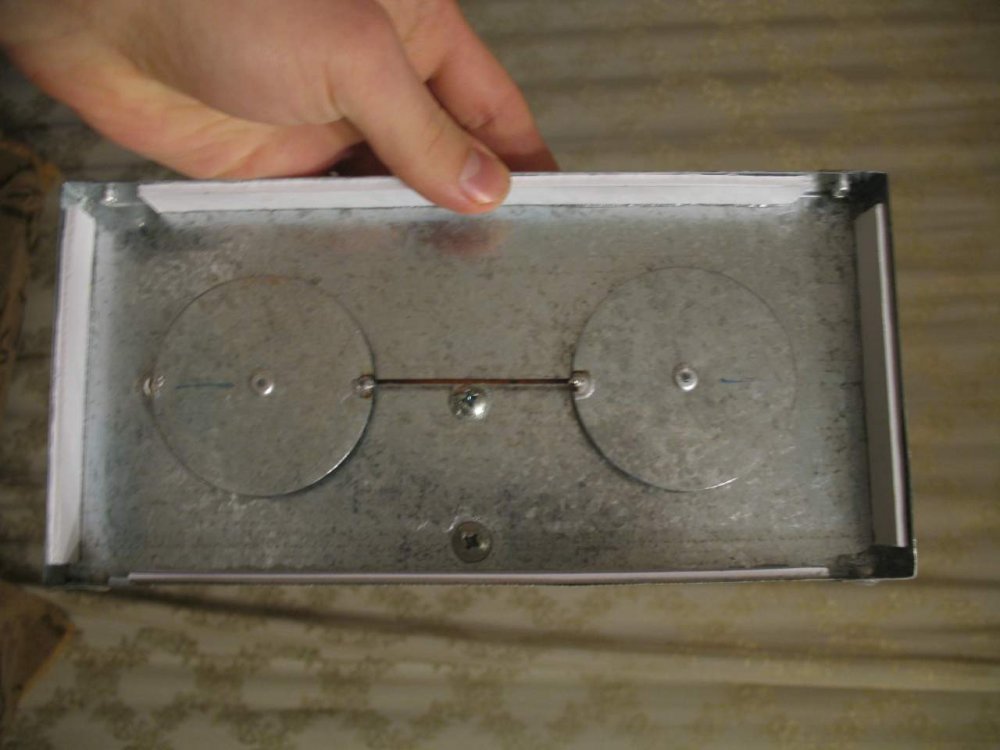

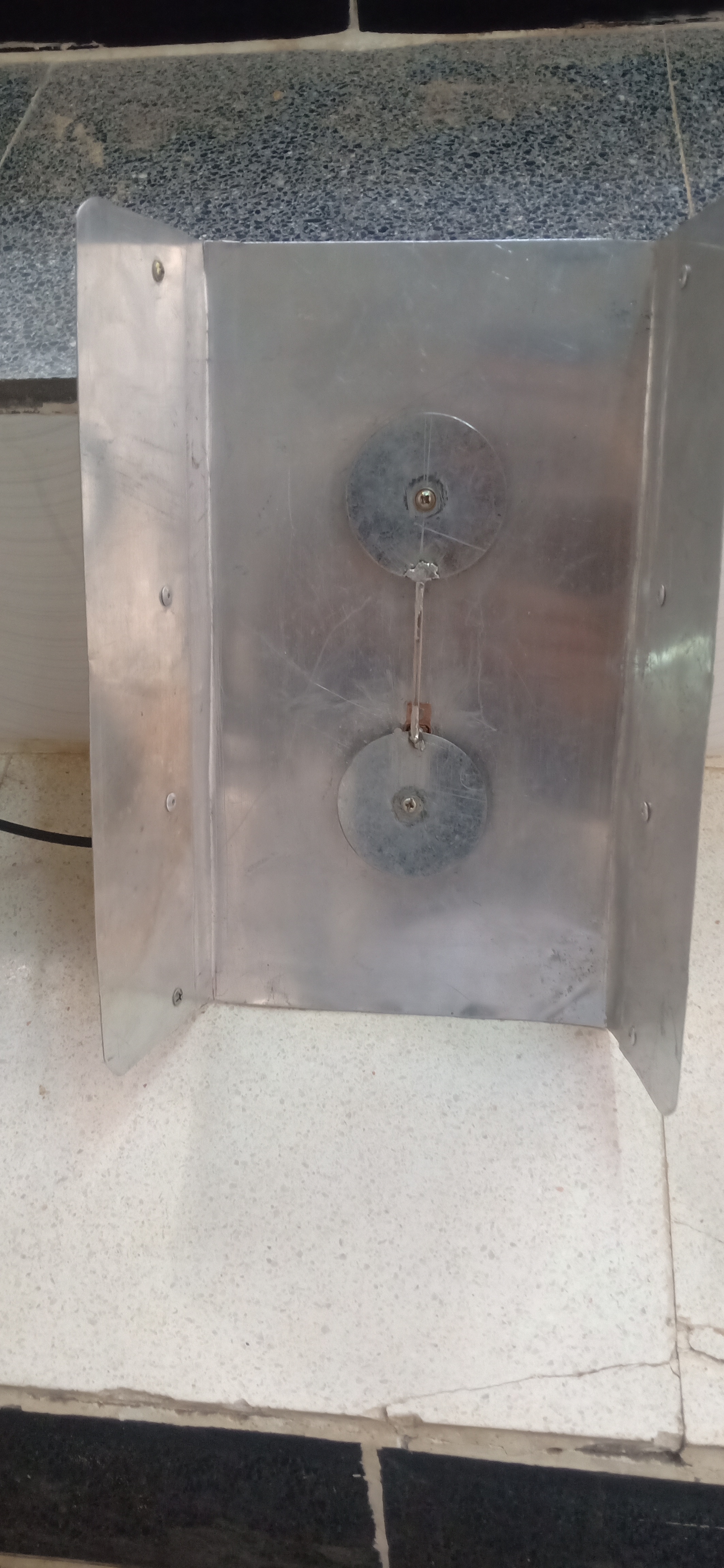

My hand made according to your friend julungazIMG20201101104456.jpg

1 person likes this

Share this post


Link to post
Share on other sites

"Yes, Julungas is an old mexican friend of mine...!!!

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Hamza said:

My hand made according to your friend julungazIMG20201101104456.jpg

you could put HINGES on the wings sides) for transportation...(make it portable)

Share this post


Link to post
Share on other sites

,,, yes, hinges for adjusting the inclination of the wings between 17 ---- 33 degrees...!!!!

Share this post


Link to post
Share on other sites
50 minutes ago, Admin said:

,,, yes, hinges for adjusting the inclination of the wings between 17 ---- 33 degrees...!!!!

Yes 107 degree is the best   it took 1hours and half  to finish it   .thankfully I had already  2 disks 64.2 mm diameter. I got 57 % signal  with double biquad and 83 % signal with this Julungaz antenna. It's worth to Make.

Share this post


Link to post
Share on other sites
1 hour ago, Hamza said:

.I got 57 % signal  with double biquad and 83 % signal with this Julungaz antenna.

so it's about 6 db more...(26% difference)

Share this post


Link to post
Share on other sites
30 minutes ago, clanon said:

so it's about 6 db more...(26% difference)

Yes  16 DBI estimated ...

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:


Great

32 minutes ago, clanon said:

so it's about 6 db more...(26% difference)

Yes  16 DBI estimated ...

Share this post


Link to post
Share on other sites
