sandeepv

SMA connector design

45 posts in this topic

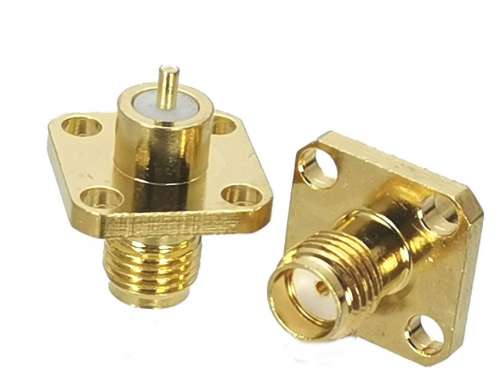

Jomy, here from here I take these connectors. What size will be - I do not know. These, and others in my country, they are not. While I ordered 10 pieces. If it's ok, I'll order a lot.

https://ru.aliexpress.com/item/10pcs-lot-N-Type-N-Female-RF-Coaxial-Adapter-Connector-Free-shipping/32506167617.html?spm=2114.13010608.0.0.L438FM

Edited by chilanzar2

Share this post


Link to post
Share on other sites

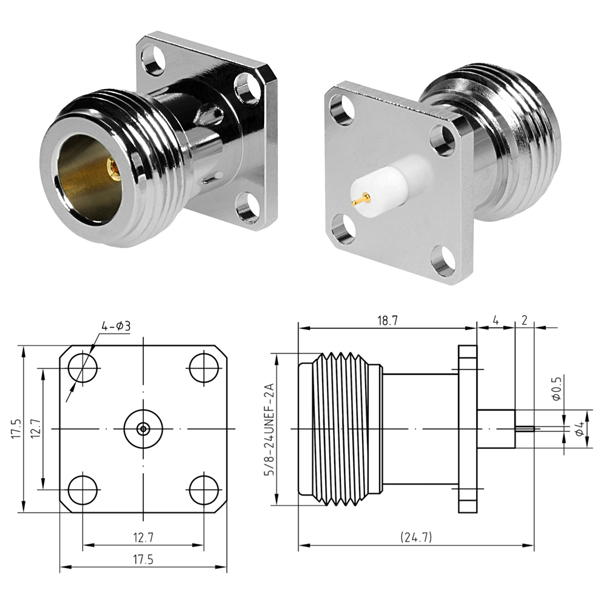

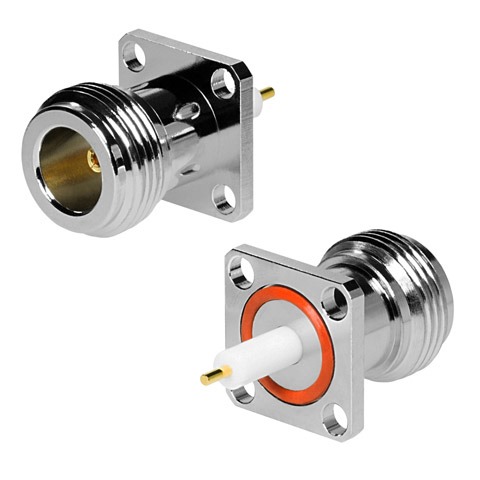

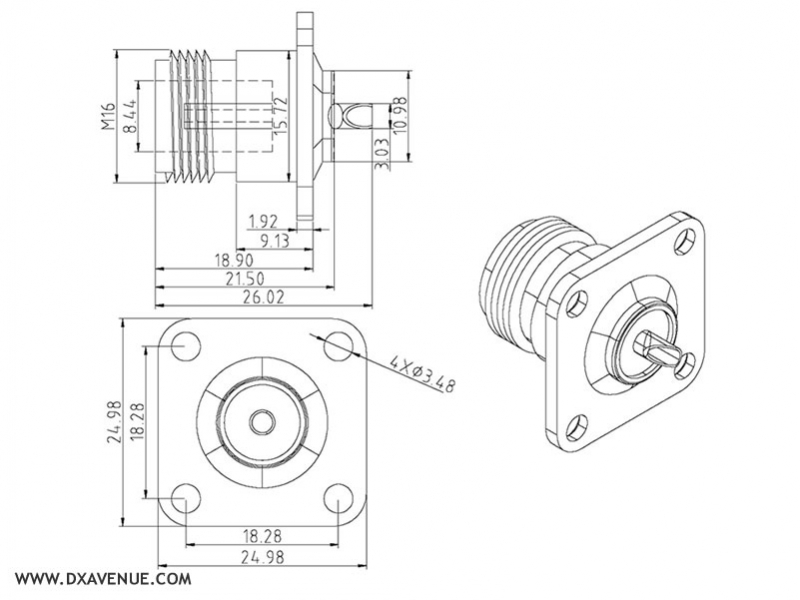

Yes, they are good, but you must have a Male-Female

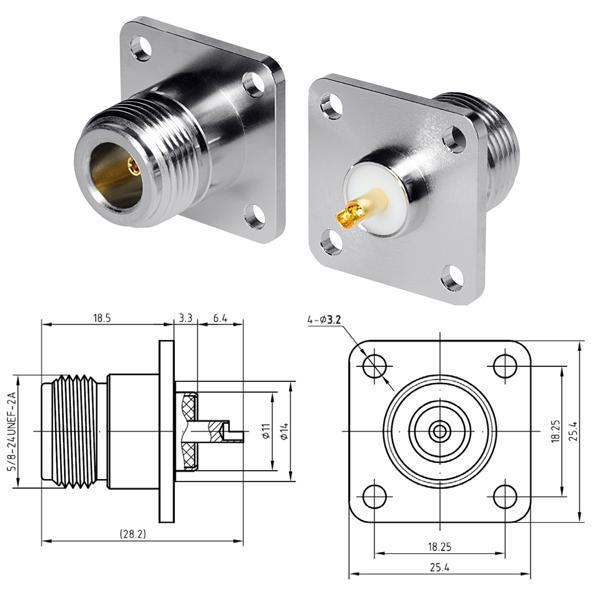

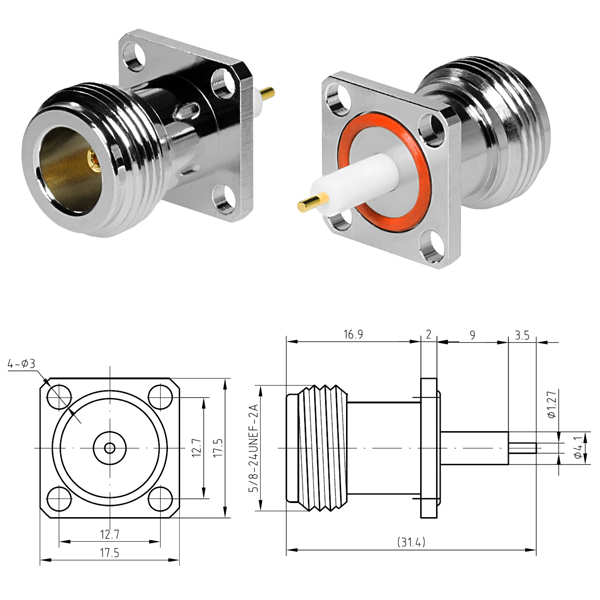

They are good so (NP245-n-st)








1 person likes this

Share this post


Link to post
Share on other sites

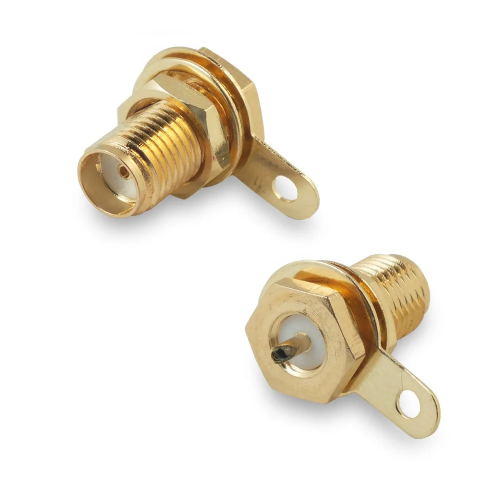

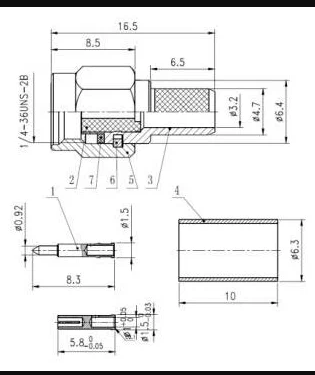

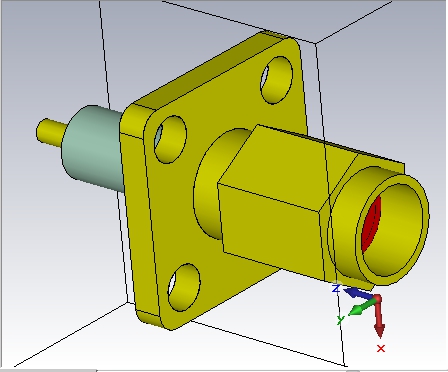

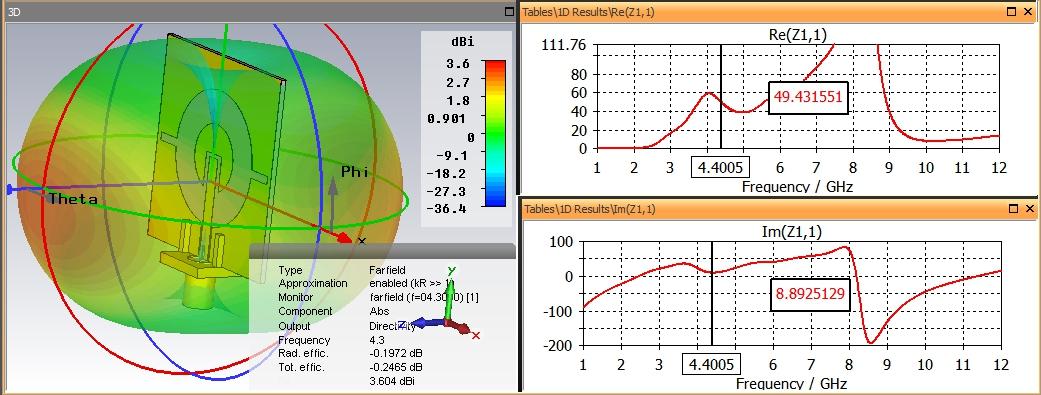

,,,a long core miniature connector SMA...






sma.cst

1 person likes this

Share this post


Link to post
Share on other sites

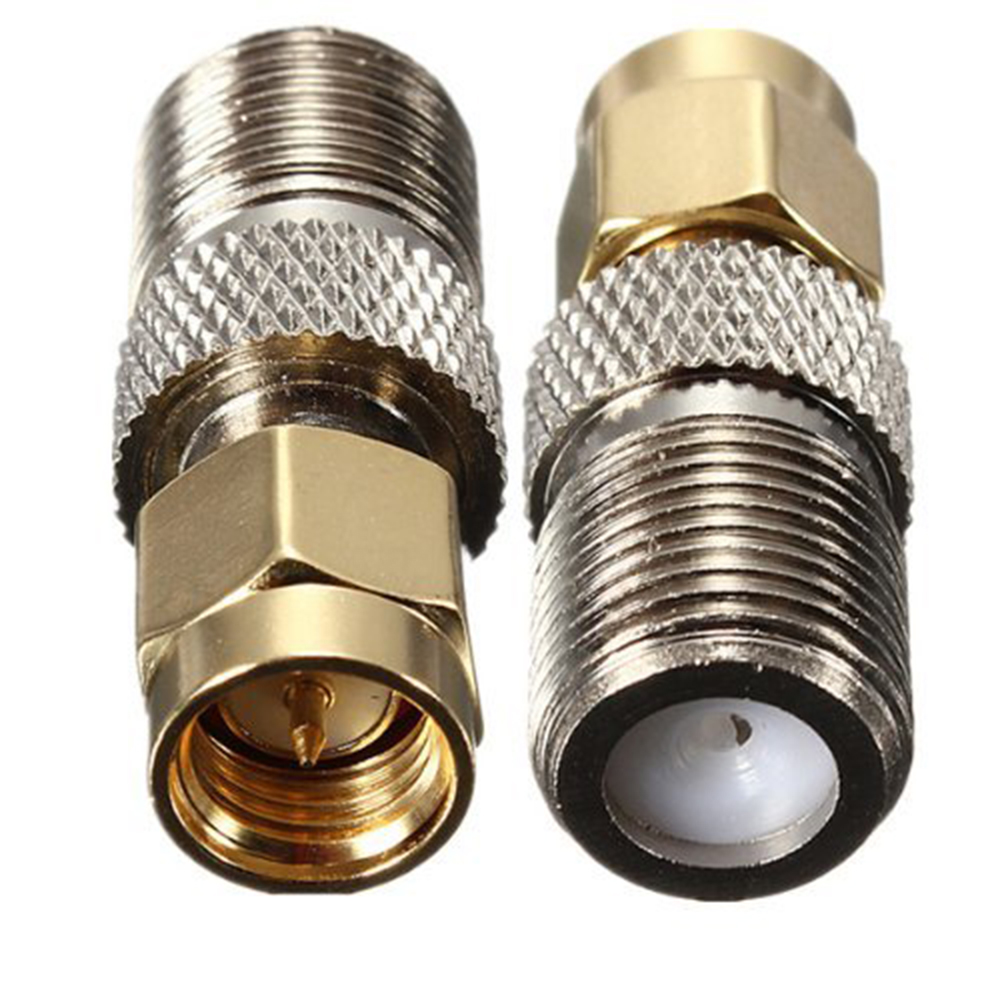

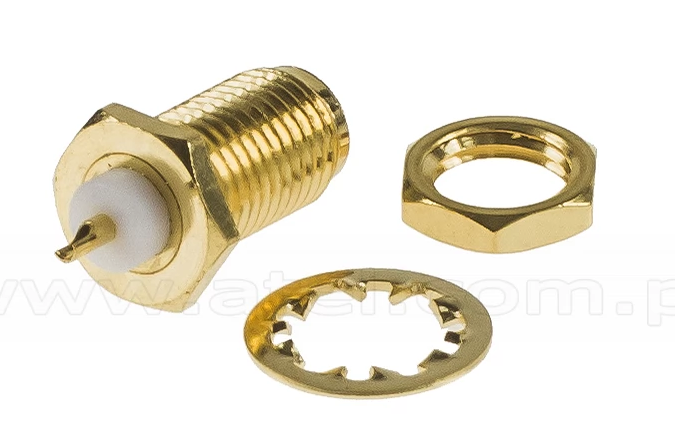

2 PCs F female to SMA male plug straight glodplate TV jack F/F RF connector f - SMA adapter


Interface types are Included in RF adapter, such as SMA, TNC, N and BNC, which are available in male, female, plug, Jack, receptacle gender, In 50 Ohm and 75 Ohm impedance and in standard polarity or reverse polarity.

Share this post


Link to post
Share on other sites

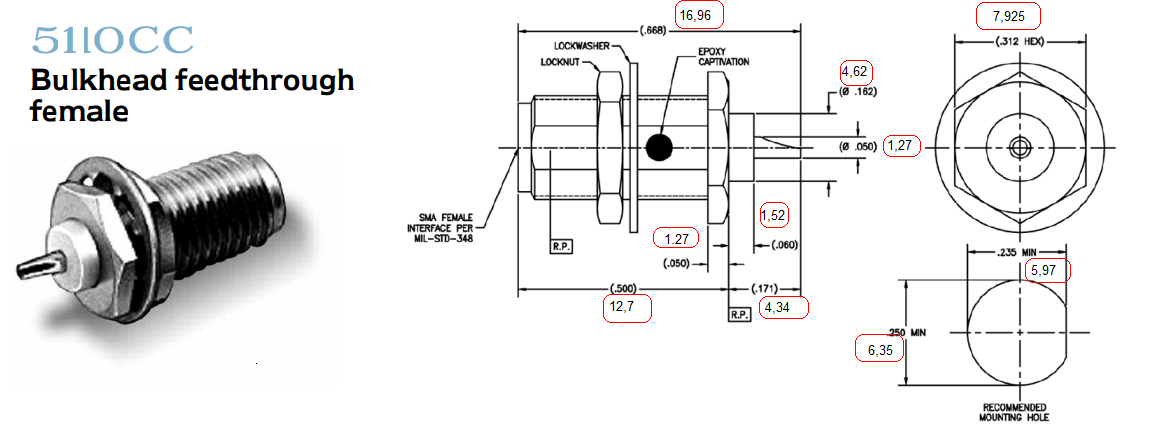

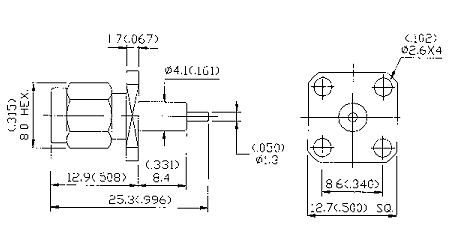

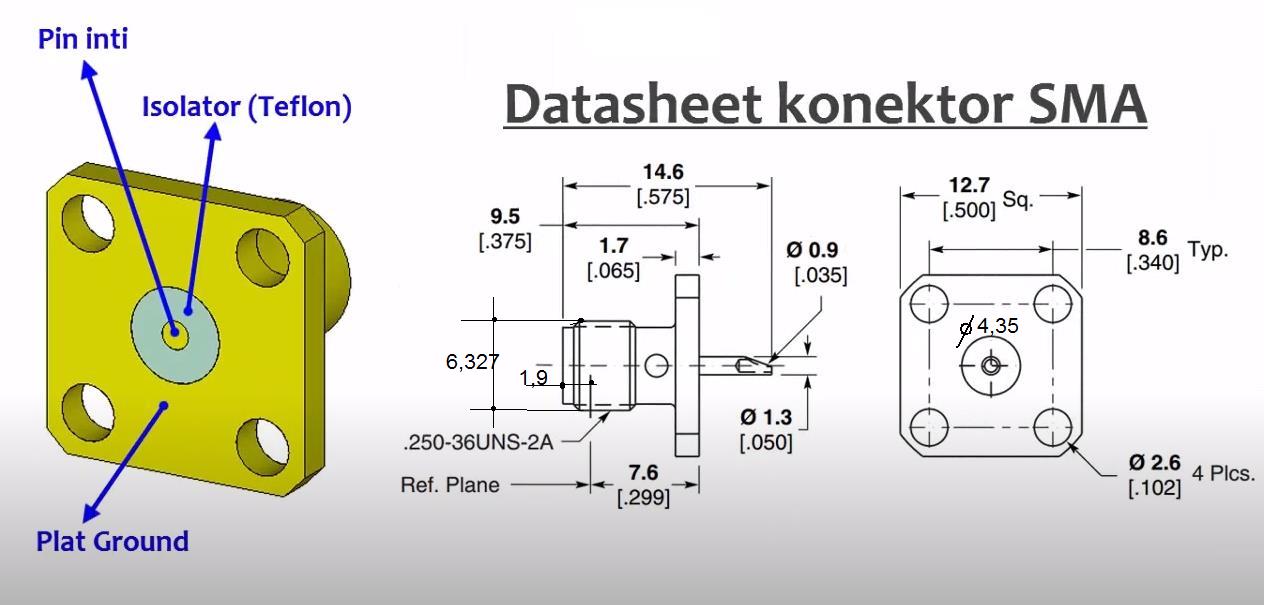

Connector types and sizes(SMA Series)...The specifications below are general specifications for all SMA connectors.

The specifications below are general specifications for all SMA connectors. Specific specifications for VSWR, insertion loss, and RF leakage for each connector is available from the factory upon request. Specifications in the following table are recommended for any procurement documents or drawings. In the event of any conflict between these specifications and General Specification MIL-PRF-39012 and MIL-PRF-83517, these specifications shall govern. These specifications are subject to change according to the latest revision of MIL-PRF-39012 and MIL-PRF83517.

2-SMA.pdf

1 person likes this

Share this post


Link to post
Share on other sites

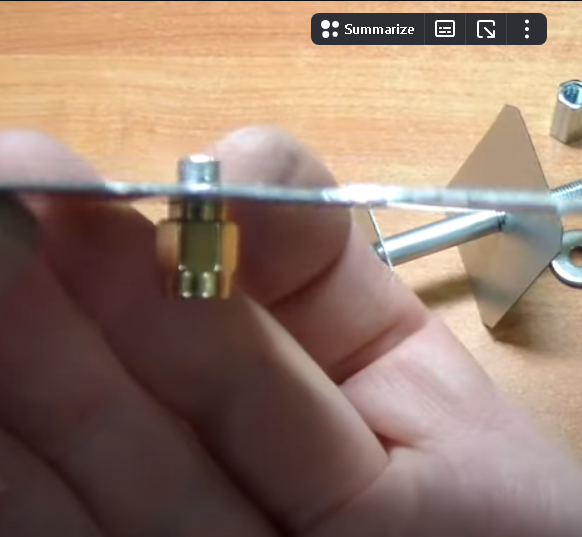

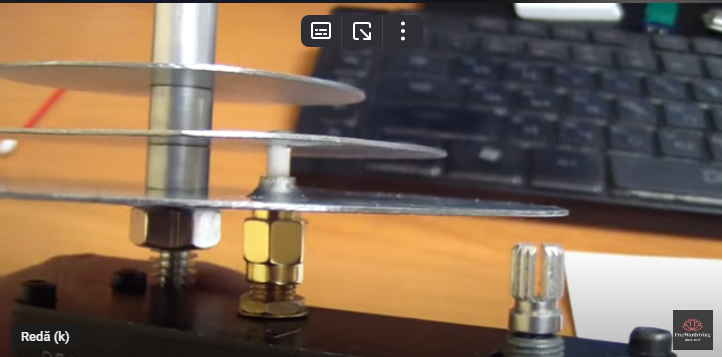

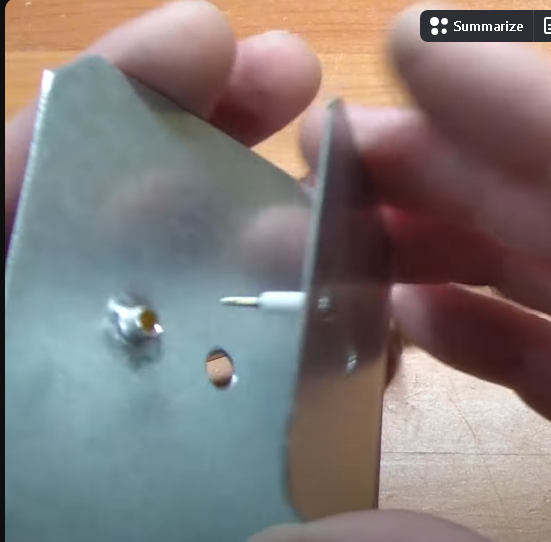

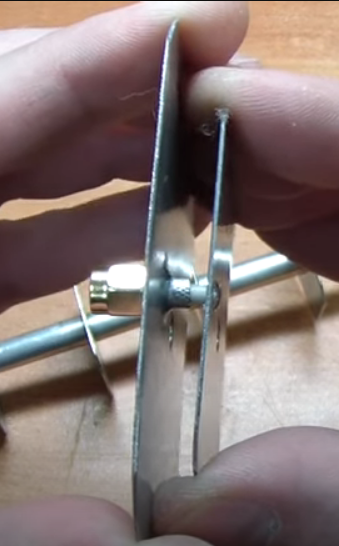

,,,here is how to connect an antenna with RP-SMA connectors(by Egor user)...

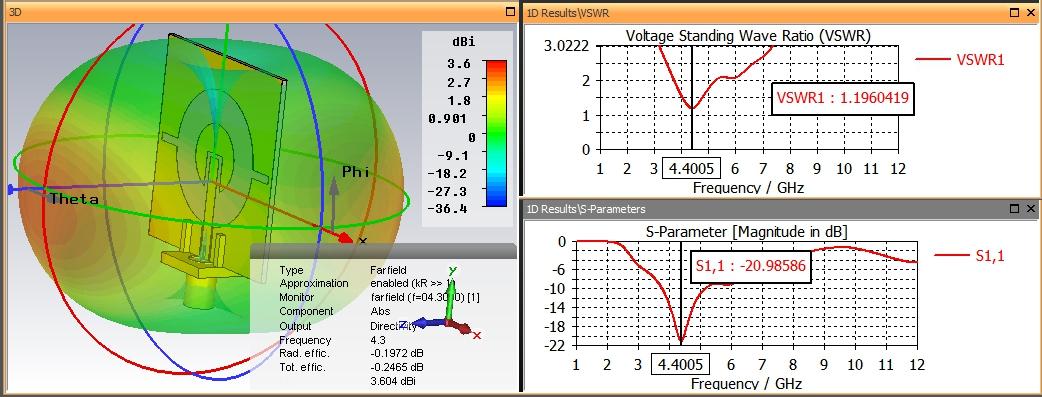

,,,and here is the CST file...

sma Egor.cst

Share this post


Link to post
Share on other sites
On 4/25/2017 at 5:05 PM, Admin said:

Да, они хороши, но у вас должен быть Мужчина-Женщина.

Они такие хорошие (НП245-н-ст)

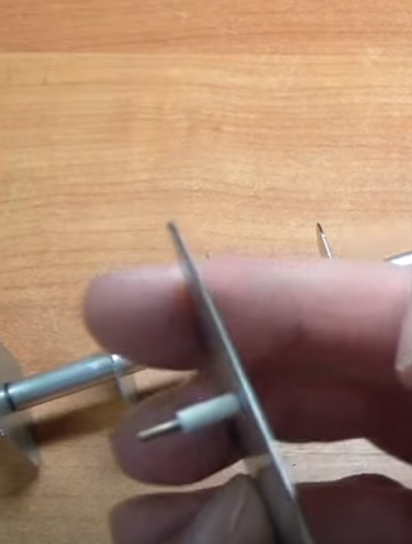

But if the distance between the reflector and the antenna disk is smaller, and the length of the central core of the connector is longer, then does the core need to be shortened? Is it possible?

Share this post


Link to post
Share on other sites

,,,yes, both the central connector and the Teflon insulation can be shortened...!!!

,,,this is CST-file...

N-P245 mufa.cst

Share this post


Link to post
Share on other sites

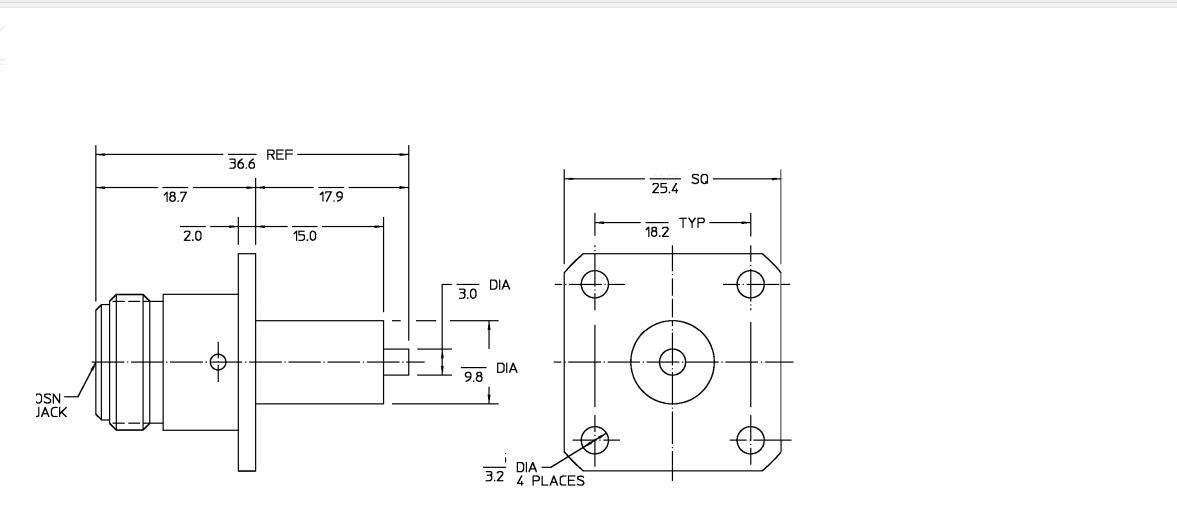

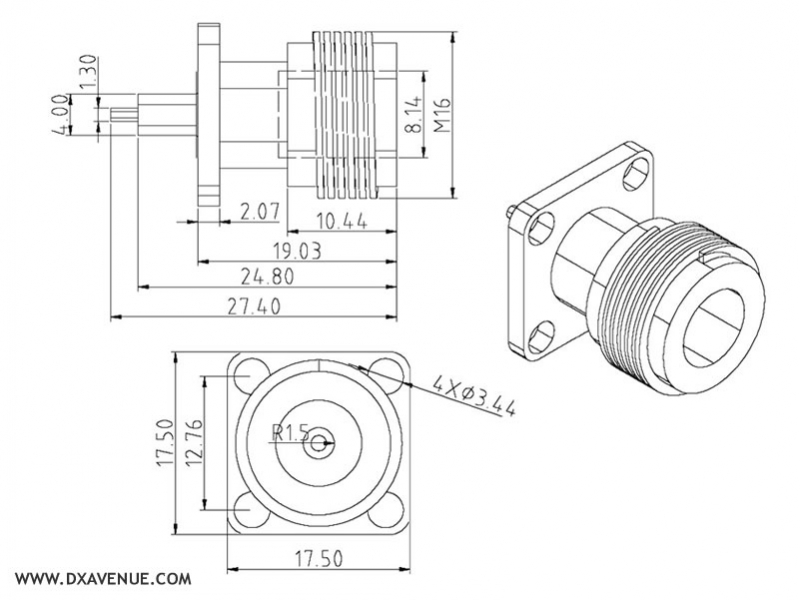

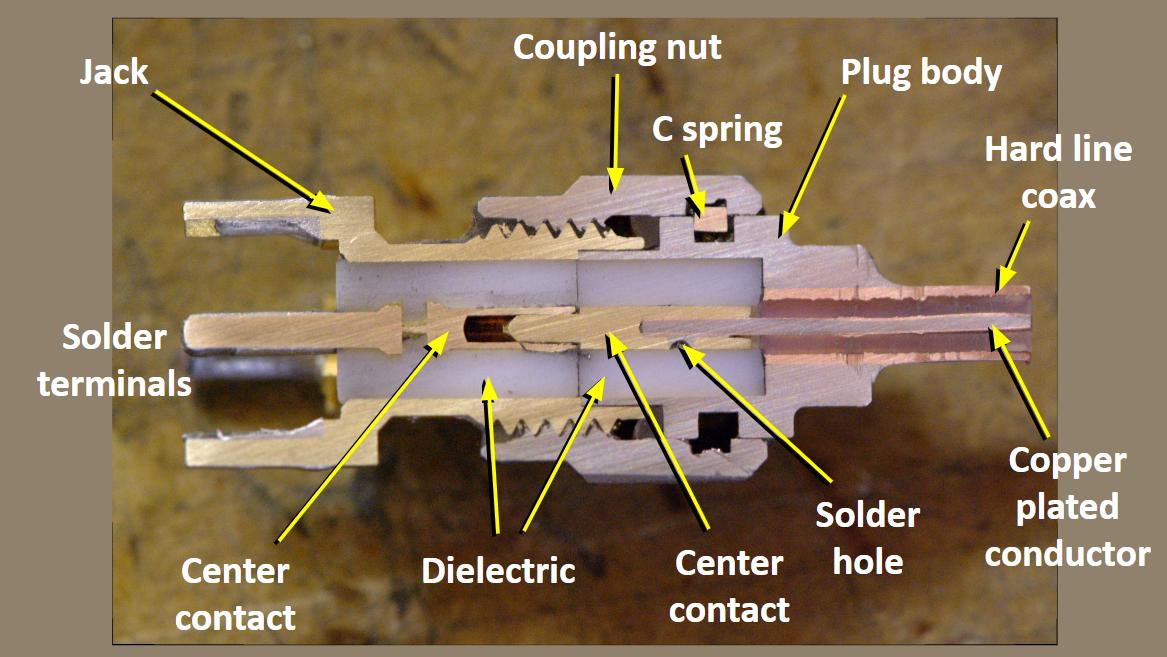

,,,inside(section) of the connectors...


1 person likes this

Share this post


Link to post
Share on other sites

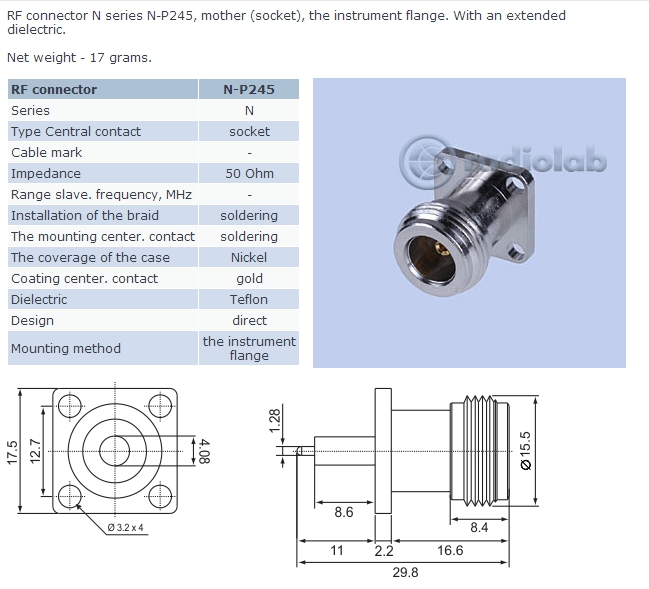

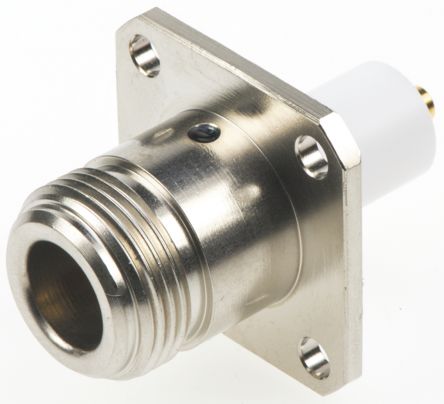

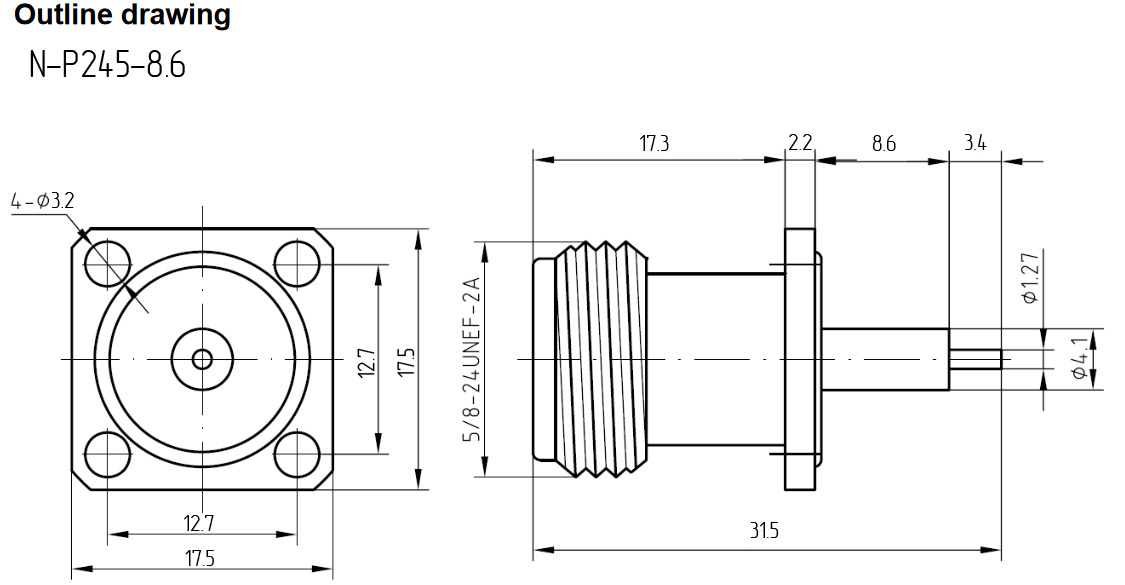

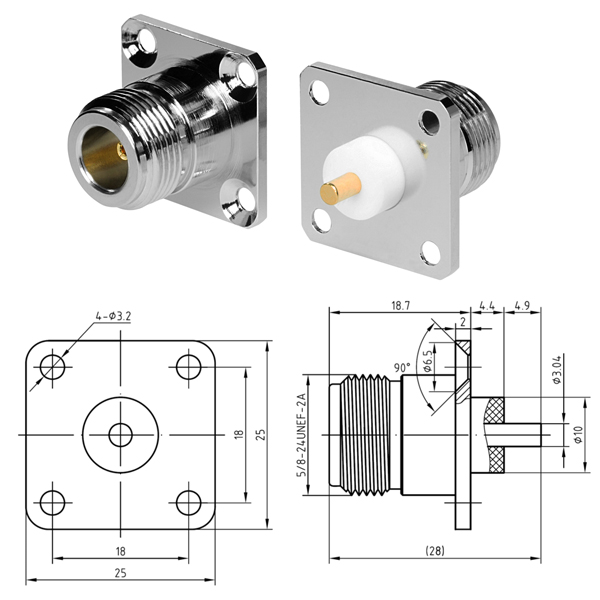

N-type socket / female N-P245 instrument flanged RF connector, for soldering, extended dielectric, 50 ohms

The N-Type connector was developed in 1940 at Bell Labs by Paul Neill, and the" N " in the connector's name appeared due to the first letter of his last name. Initially, the connector was developed for frequencies up to 1 Gigahertz, but later its potential for use was revealed at very high frequencies reaching 11 GHz, and thanks to the subsequent refinement by Julius Botka of Hewlett-Packard, the connector was used in systems operating at frequencies up to 18 GHz and can rightfully share the glory of one of the most popular devices in the world today. the most common high - frequency connectors with its predecessor-UHF. The connector has not found much recognition among radio amateurs and civilian users, but it has gained constant popularity among professionals and is used in mobile communication infrastructure, wireless data transmission (WiFi), paging and cellular communication systems, as well as in cable TV networks, standardized according to the MIL-C-39012 protocols.






sma N-P245.cst

Share this post


Link to post
Share on other sites
