,,,41,6mm...!!!
(48,7+34,5)/2 = 41,6mm-1,5mm=40,1
-
-
", that's your antenna ... !!!
1 person likes this -
I don't know, I have to study...!!!
-
And how do you want to do this?
-
I think this one...
-
,,,yes dear tcl32...!!!
-
I wrote to you above that the antenna has a 240-300 ohm impedance, so you need to adapt for a 75 ohm cable.
,,,something like that...
-
The impedance is highly dependent on the construction details. In general, you can expect 100-400 ohms of impedance. The nominal impedance is generally considered to be 400 ohms.
1 person likes this -
1) 240---300 Ohm
2) ,,,no...!!!
-
,,,the antenna according to E. Spindler....470 - 790 MHz
2 people like this -
And yet, this antenna is not really good ...
-
No, the drawing is very good...!!!!
I'm going to make a simulation on this antenna.
-
,,, good, put the dimensions if you can ... !!!
-
Universal remote panel antenna for receiving and amplifying digital TV (DVB-T, DVB-T2) and analogue (UHF) channels. Connector type - F-female.
Electrical characteristics
Operating frequency range, MHz 470-790
Gain, dBi 7.5-9.5
The width of the days in H-plane, degrees 59÷91
Days width in E-plane, degrees 49-80
Input impedance, Ohm 75
SWR in the frequency range, not more 1.8
Polarization vertical/horizontal/inclined
Mechanical characteristics
Weight with mount, g 1840
Overall dimensions without mounting, m 0.3 x 0.3 x 0.12
Connector F-female
The mast diameter, mm 30÷52
The emitter material, the coating galvanized steel, plastic coating
Material of protective box Polycarbonate+ABS
Operating temperature range, gr. Celsius -40...+60
-
StationBox 5 GHz 20 dBi SISO....
2 people like this -
,,,for another form of antenna ... ???
-
4 people like this -
1 person likes this -

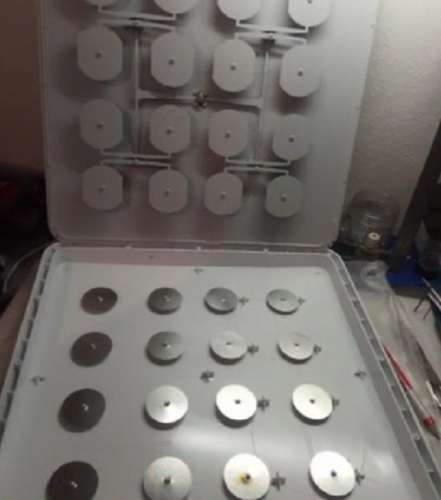

Powerful wide-band antenna 2G/3G/4G/WIFI. Strengthening 17.5-20.0 dBi.It is recommended to use complete with universal modems Huawei Е392,E3276(M150-1) and the usual 3G and 4G modems.
Electrical characteristics
Operating frequency range, MHz 1700-2700
The gain in the GSM1800 band, dBi 17,5-18
The gain in the 3G range (1.9 to 2.2 GHz), dBi 18-19
The gain in range of WIFI (2.4 GHz), dBi 19,5
The gain in the range of 4G (LTE), dBi 19,5-20,0
The width of the days in H-plane, degrees 15-26
Days width in E-plane, degrees 15-26
The sidelobe level is not more -12dB
The level of cross-polarization, not more -25dB
Input impedance, Ohm 50
The CWS in the range of GSM 1800, nothing more 1.6
The CWS in the range of 3G/4G/WIFI, not more 1.4
Permissible power watts 50
Polarization vertical/horizontal
Mechanical characteristics
Weight with mount, g 3195
Mount mast diameter 20-52mm
Overall dimensions without mounting, m 0,45х0,45х0,06
Allowable wind speed, m/sec 20
Connector N-female
Material of protective box Polycarbonate+ABS
Antenna material galvanized steel
Fastener material steel
Protective coating powder polymeric paint
1 person likes this -
,,,yes, this panel antenna is very good and is broadband....!!!
1 person likes this -
Ultra Long Distance Indoor and Outdoor WLAN Wireless USB Adapter
1W High Power 28dBm w/Hi-Gain 14dBi Patch/Panel Antenna
Improving 12X Signal Reception and Distance and 6xSpeed
Specification :
Model Name Outdoor Plus
ChipsetRalink RT3070
Standard IEEE 802.11b, IEEE 802.11g (WIFi Compatible), 802.11n
Frequency Band 2.412GHz ~ 2.484GHz unlicensed ISM band
Data Rate IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps
Output power 28±1.5dBm (1000 mw)
Power Consumption Transmit:＜1000mA Receive:＜600mA
Antenna
14 dBi directional panel antenna built-in
Operating RangeUp to 2000 meters (Depending on surrounding environment)
Security WEP (64/128/256bit), WPA, WPA-PSK, WPA2 TKIP/AES, WPA2-PSK
Modulation 802.11b: BPSK,QPSK, CCK 802.11g: OFDM
I/O Interface USB2.0/1.1
Operating System Windows XP, SP2, Vista, 7, 8, MAC, Linux
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +80°C
Humidity 10 ~90% (non-condensing)
Channel 2412~2462 MHz (US) 11 channels, 2412~2472 MHz (EU) 13 channels 2412~2484 MHz (Japan) 14 channels
LED Link/Active
Certification FCC RoHS compliant
1 person likes this -
,,,another achievement of com666 user...
-
Electrical characteristics
Operating frequency range, MHz 1900÷2180
Gain, dBi 19-20
The width of the days in H-plane, degrees 16÷18
Days width in E-plane, degrees 16÷18
The sidelobe level, dB, not more -13
The ratio of forward/back, dB 24
Input impedance, Ohm 50
SWR in the frequency range, not more 1,5
Permissible power watts 10
Polarization vertical/horizontal/inclined
Mechanical characteristics
Weight with mount, g 3350
Overall dimensions without mounting, m 0,45х0,45х0,05
Connector N-female
Antenna material steel, galvanized steel
Protective coating powder polymeric paint
Material of protective box ABS+polycarbonate
in HF, VHF and UHF
Posted
Antenna CIFRA-30 with built-in amplifier is used for receiving and strengthening of TV signals with DVB-T, DVB-T2 and analog TV UHF band. The type of the antenna-resonator. Recommended for use at distances up to 20-30 km from a TV repeater.
The antenna gain, dBi 7.5-9.5
Gain built-in amplifier, dB19÷22
