RF Elements StationBox 5 17dBi MIMO

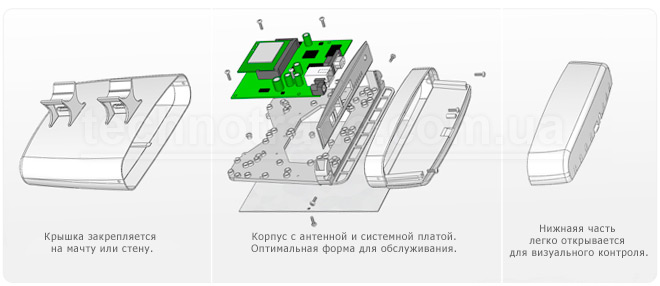

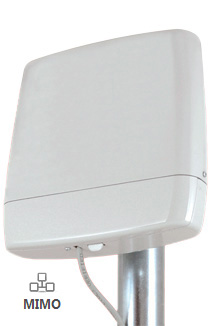

RF Elements StationBox 5 GHz 17 dBi MIMO is a plastic enclosure with integrated MIMO antenna 17 dBi, in which you install cards in the routers.

The case is designed to create weatherproof access points that are installed outdoors.

Quality ABS plastic material the case provides reliable protection circuit Board router from moisture and sunlight. StationBox can be used at subzero temperatures.

StationBox secured with plastic ties that come in the kit. To adjust the case at different angles you can buy a special mount NanoBracket.

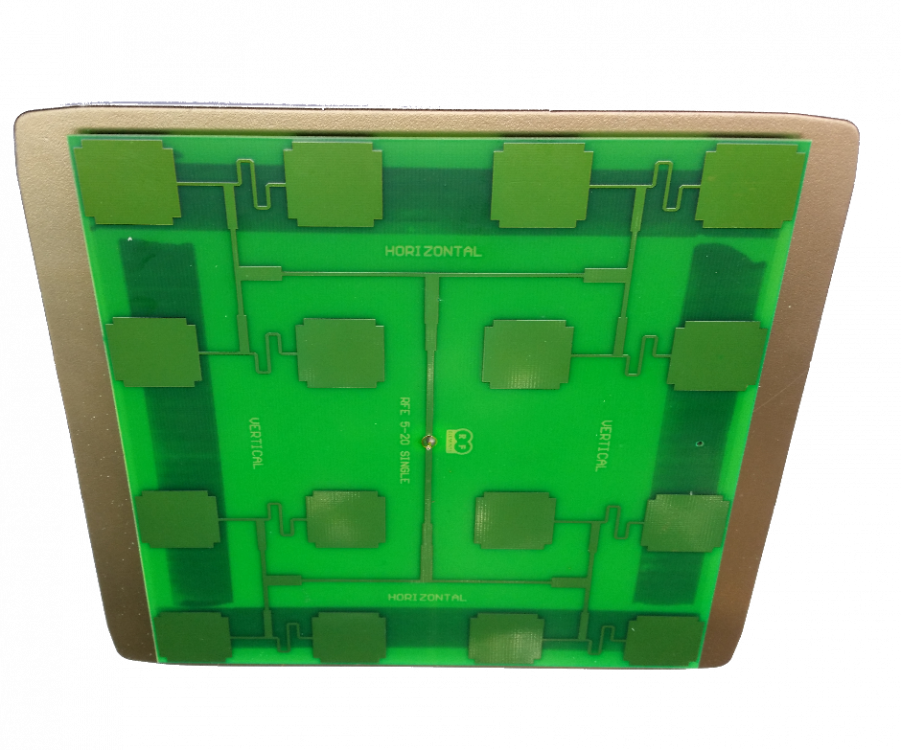

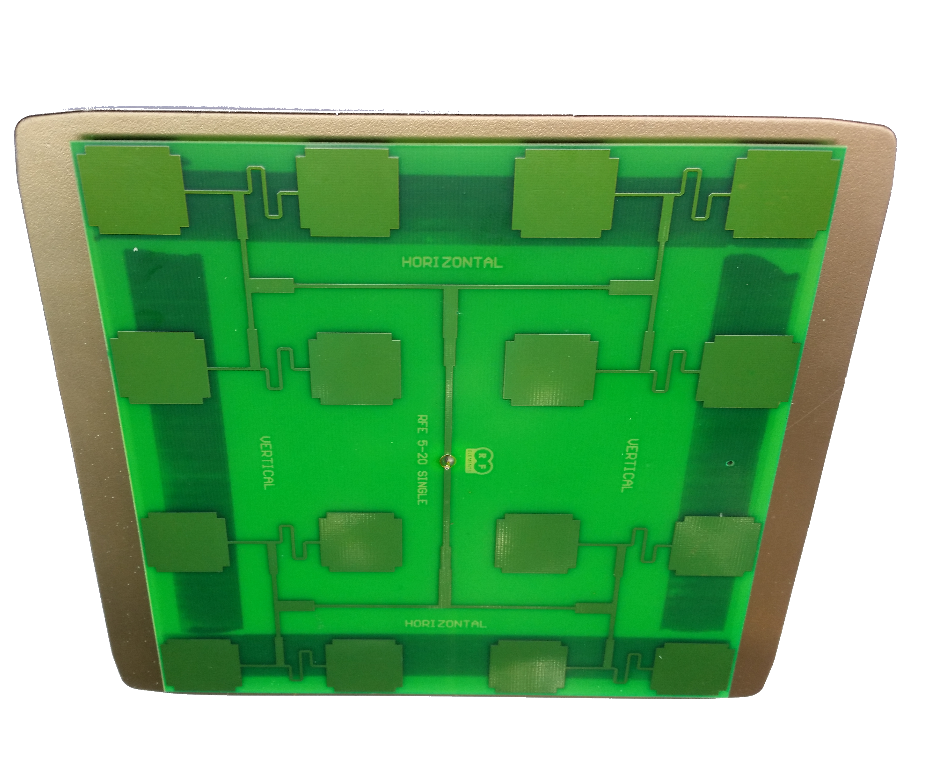

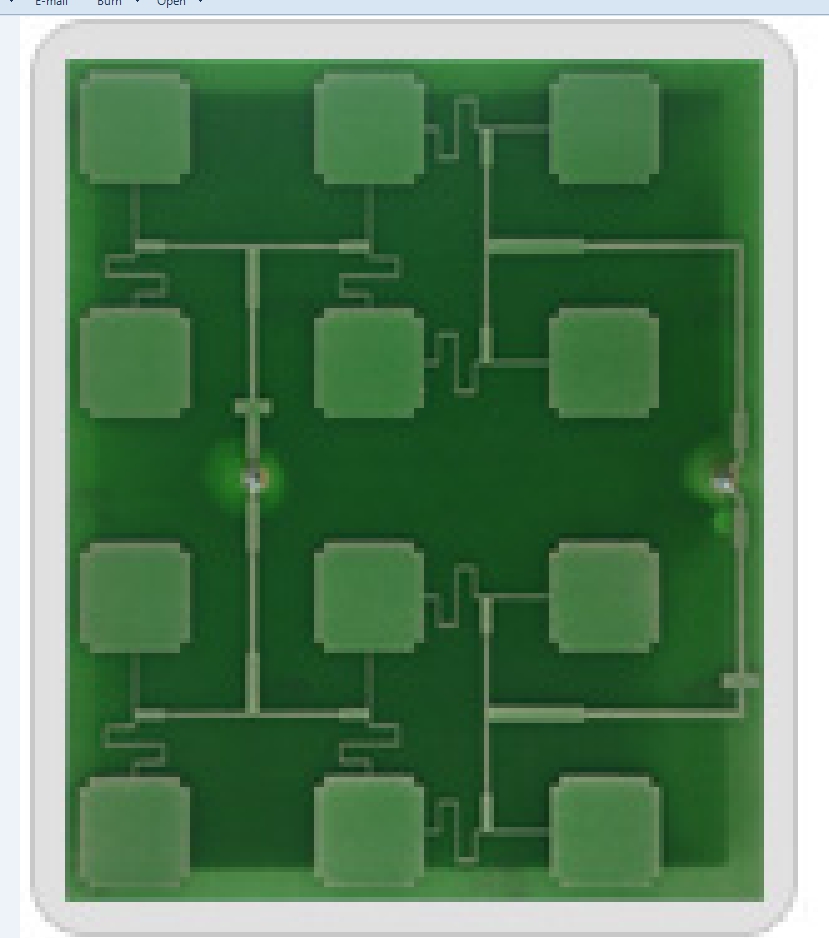

Built-in antenna 17 dBi designed to operate on the 5 GHz frequency and provides high-speed data transmission technology MIMO. To connect built-in antenna to the router using pigtails (adapters) that are purchased separately.



Weight:372 g

Dimensions:19 × 5 × 18.7 cm

Material:ABS plastic, UV-stabilized, weatherproof


Frequency:5 GHz

Gain:17 dBi



MikroTik:RB411, RB411A, RB411AH, Crossroads

Ubiquiti:WISPstation – possible to install 2 PCs,
RouterStation, RouterStation Pro
