aurel

BatWing antenna 2.4 ghz

42 posts in this topic

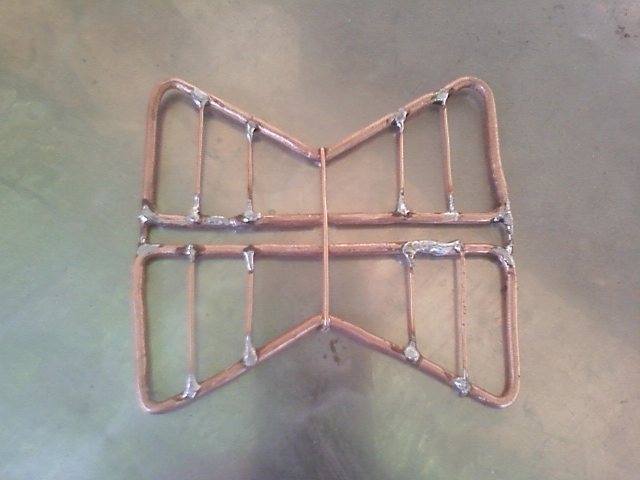

I don't see that here anyone post something like this .

I made it not very precise but dimensions are standard

i mean for such a antenna are



1 person likes this

Share this post


Link to post
Share on other sites

And here are dimensions..

I use this time 2.5mm2 copper wire, vertikal wires are 0.75mm.

I simply replace biquad shape with this one ..so distance from reflector is 17mm


Share this post


Link to post
Share on other sites

,,,good, I know the idea but more interesting would be if it was used as an omnidirectional antenna...!!!




1 person likes this

Share this post


Link to post
Share on other sites

Hi Jomy...

i even don't know that such antenna exists before ...

here in my country there is no such a antennas used for big transmitters the our uses wave guides with weird panel antennas.

This small work very well ..in fact work better than ordinary biquad

Share this post


Link to post
Share on other sites

,,,,good, I will do a simulation with this antenna...!!!

Share this post


Link to post
Share on other sites

Look

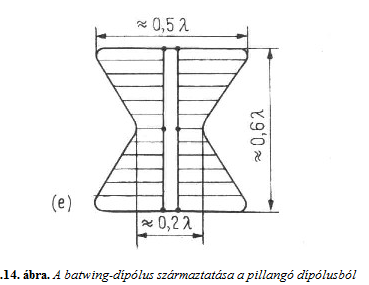

I just calculate dimensions given from this old hungary site and

my antenna in practice work very very good for vertical polarization

even i read somewhere that this antenna is best for horizontal polarization and is not

recommended for vertical.

as i said before distance from AP is cca 400 m

and signal strength is for 10% better than with ordinary biquad

do you can explain that for me?

Share this post


Link to post
Share on other sites

So as suggestion ...anyone who wish to try

remove your existing biquad from antenna and solder this element then check signal strength!

Share this post


Link to post
Share on other sites

Ok

i use it with reflector

ok ..resized...

Is that mean that sizes from old paper picture are wrong?


Share this post


Link to post
Share on other sites

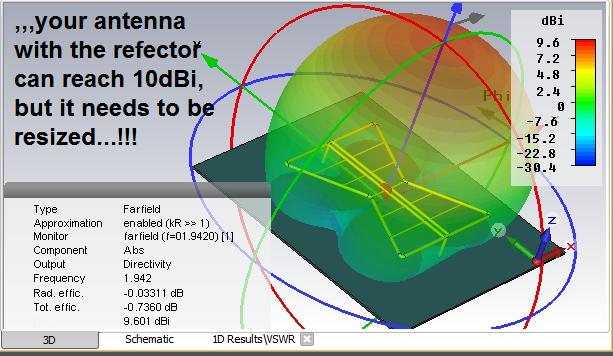

mostly ALL parameters CHANGE when you add a reflector...Z (Real and Reactive), Fr , Gain , etc...(imho)

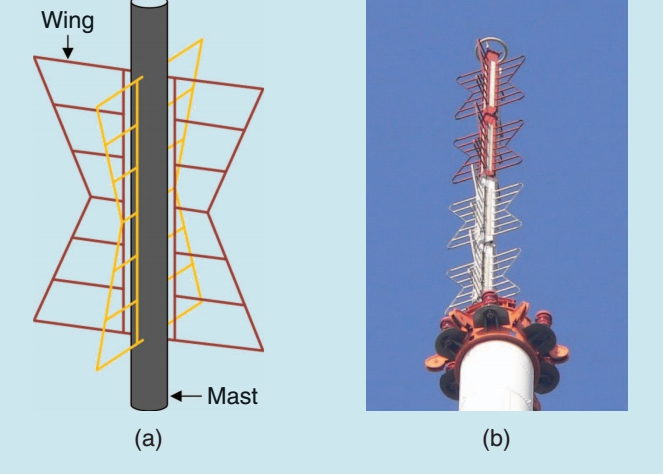

Bat wing antenna

"Batwing antennas generate a horizontally polarized signal. " "The "batwing" shape of the elements is used because it gives the antenna a widebandwidth of approximately 20% of operating frequency at a VSWR of 1.1:1"



Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, aurel said:

Ok

i use it with reflector

ok ..resized...

Is that mean that sizes from old paper picture are wrong?


,,,,show me from where did you took the picture ...???

Share this post


Link to post
Share on other sites

Clanon, yes that I know, but the dimensions .... ???

Share this post


Link to post
Share on other sites

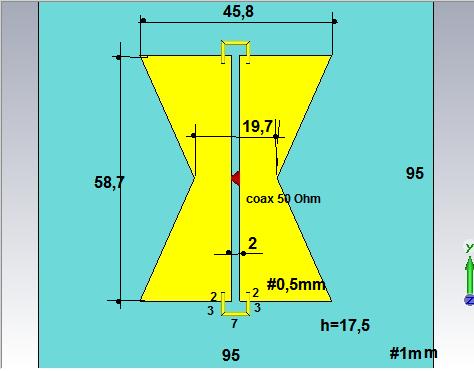

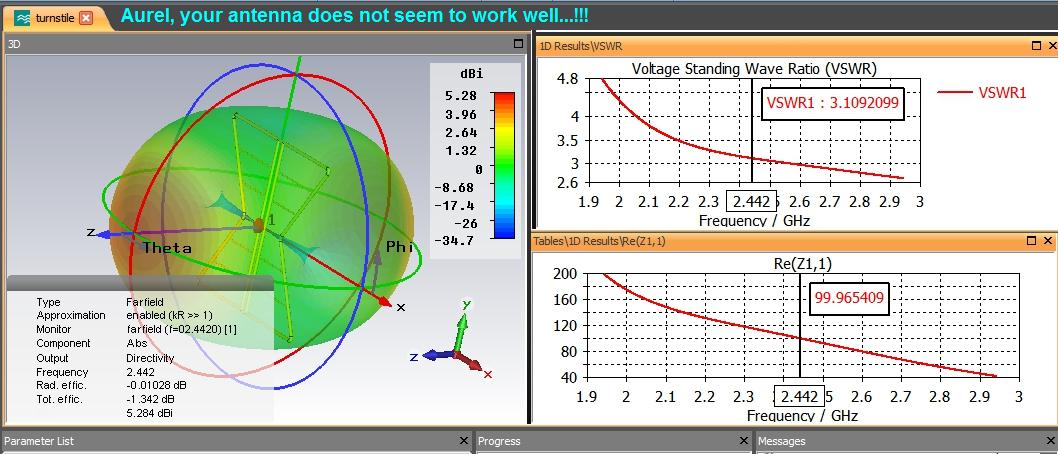

,,,that's the reality....!!!









2 people like this

Share this post


Link to post
Share on other sites

,,,but that's for the 75 ohm impedance...!!!

Share this post


Link to post
Share on other sites
Quote

,,,that's the reality....!!!

Ok

I can build this one again ..no problem ž

BUT how you get  0.5 lambda  that is 46 ...instead of 60 mm ?

and how you get  0.6 lambda that is 59 mm --- 72 mm ?



And  joMy ..i found on several sites that is stated that batwing have only 3db gain

so if mine have 5 that is better..he he !

I will try to build UHF TV version with aluminum wires to see how work as TV antenna with horizontal polarization !

Share this post


Link to post
Share on other sites
Quote

,,,but that's for the 75 ohm impedance...!!!

Yes  it is for 75 ohm..and i use 75 ohm cable

Share this post


Link to post
Share on other sites

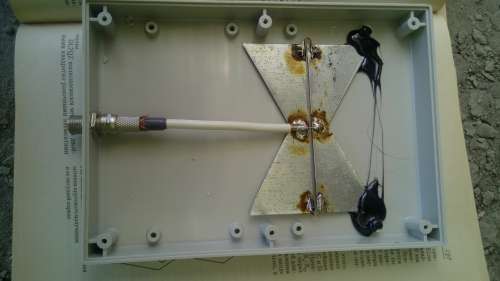

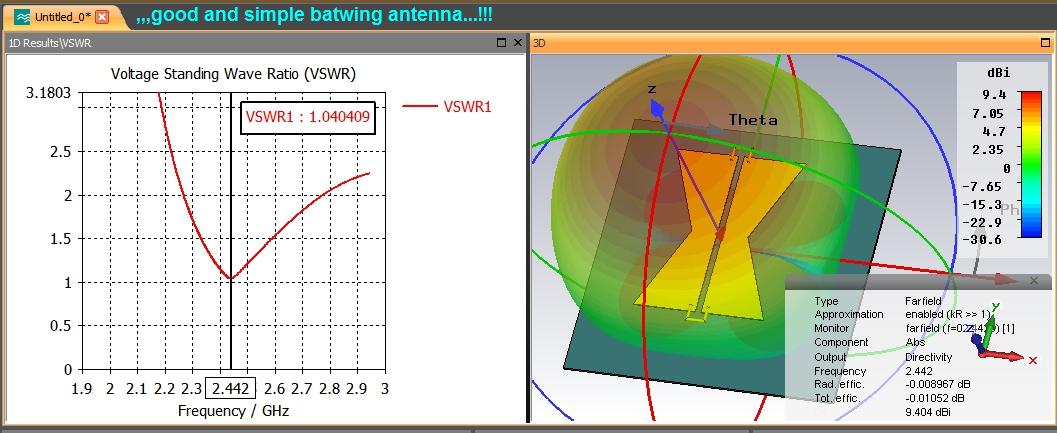

,,,simply the best. from comm666 user..!!!


Share this post


Link to post
Share on other sites

Yes i see that image before ..

Jomy ..what is the distance of inner wire

i assume 10mm ?  id benter is on 30 mm


Edited by aurel

Share this post


Link to post
Share on other sites

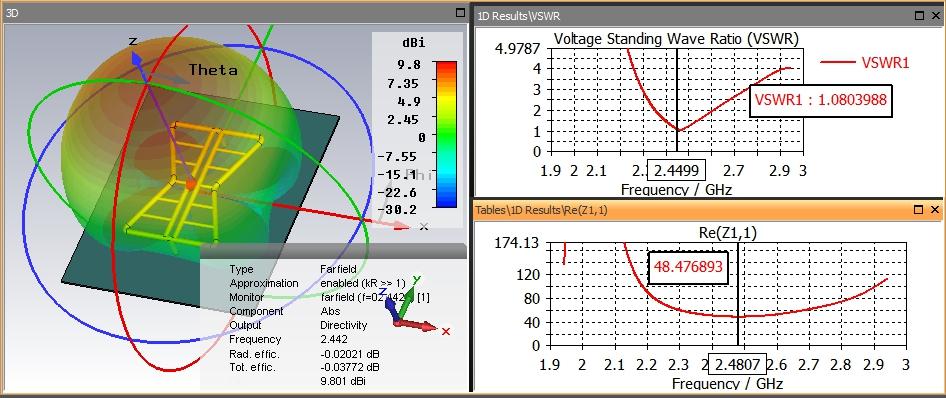

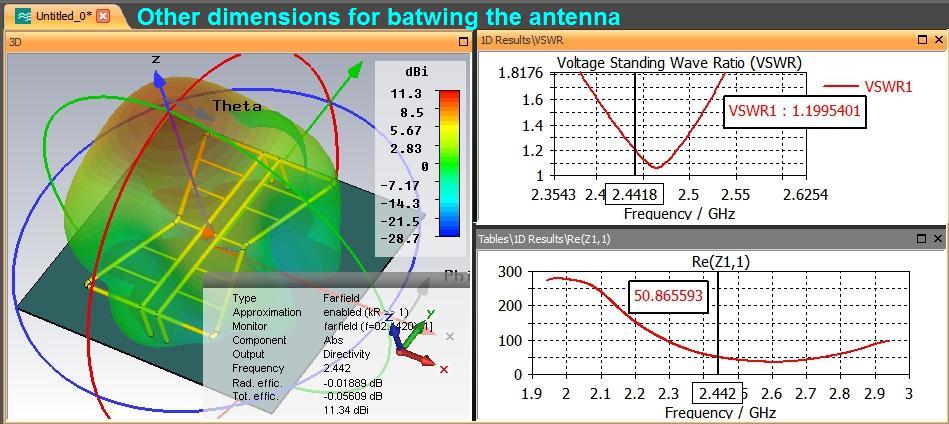

WOW

11dB ..that is very very good

..and the dimensions are ...in the image above or ?

Share this post


Link to post
Share on other sites
