Antenna for digital TV

35 posts in this topic
On 14.07.2017 at 0:01 PM, Admin said:

So you like it?

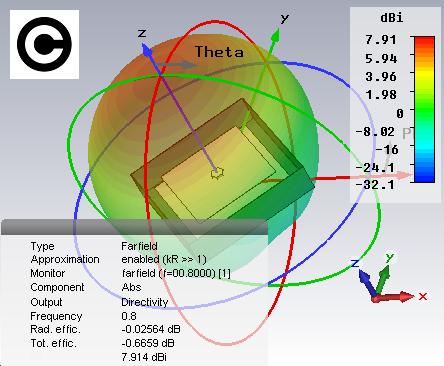

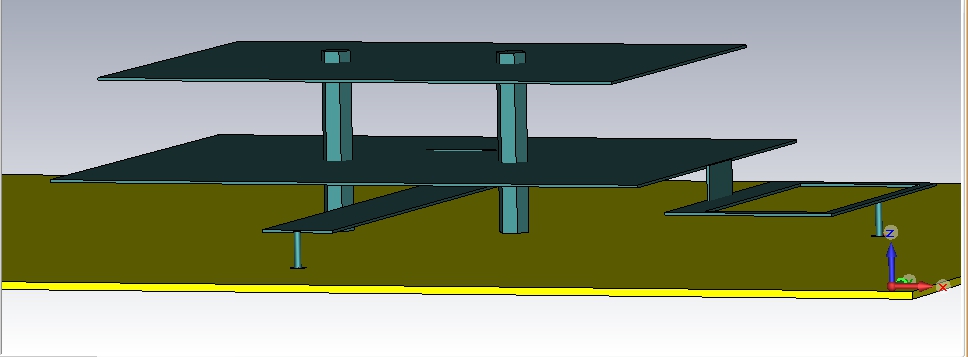

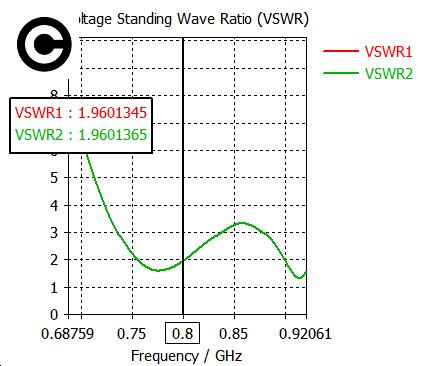

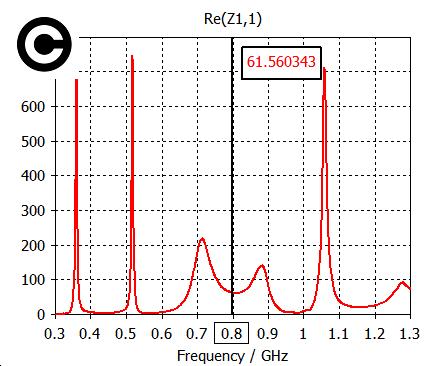

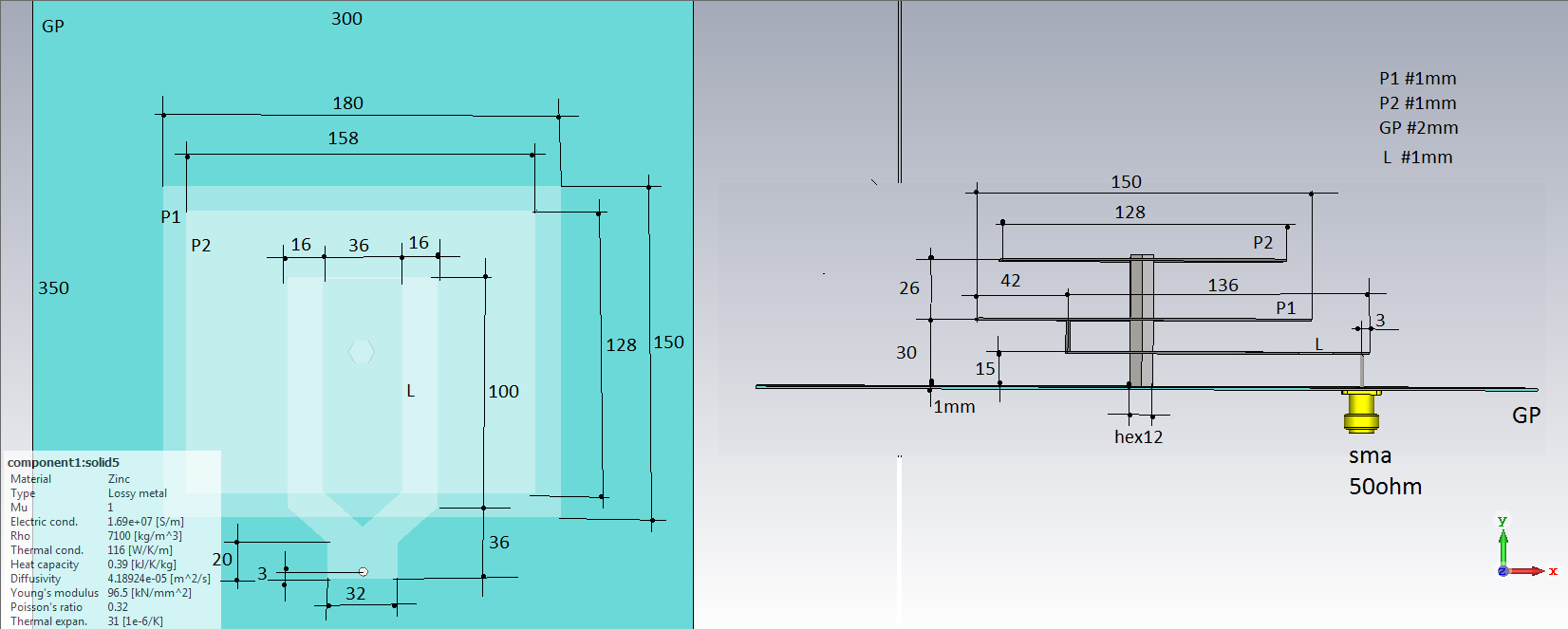

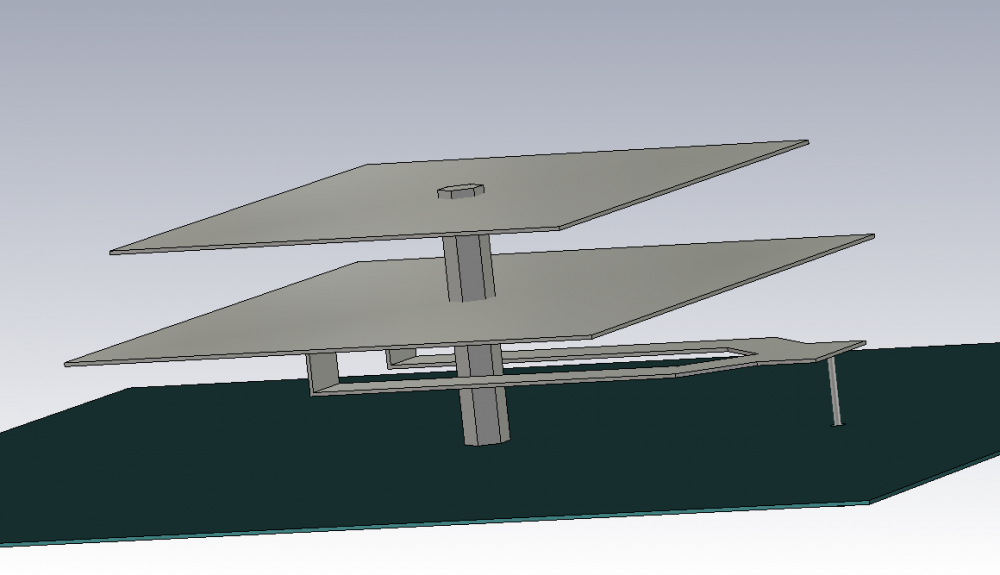

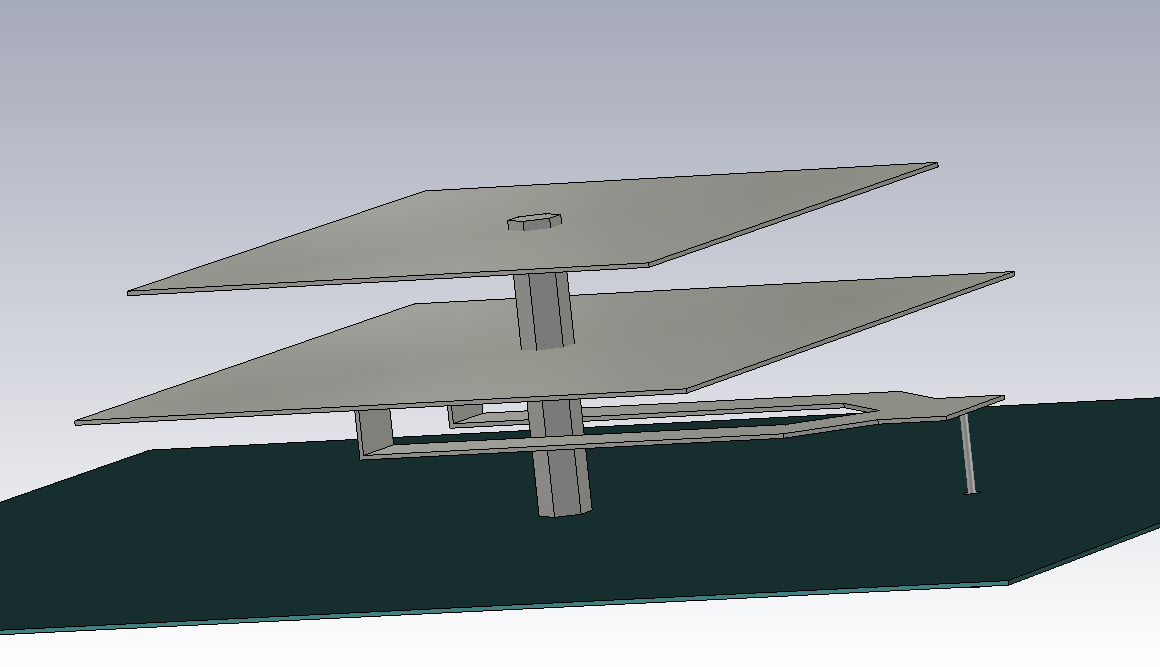

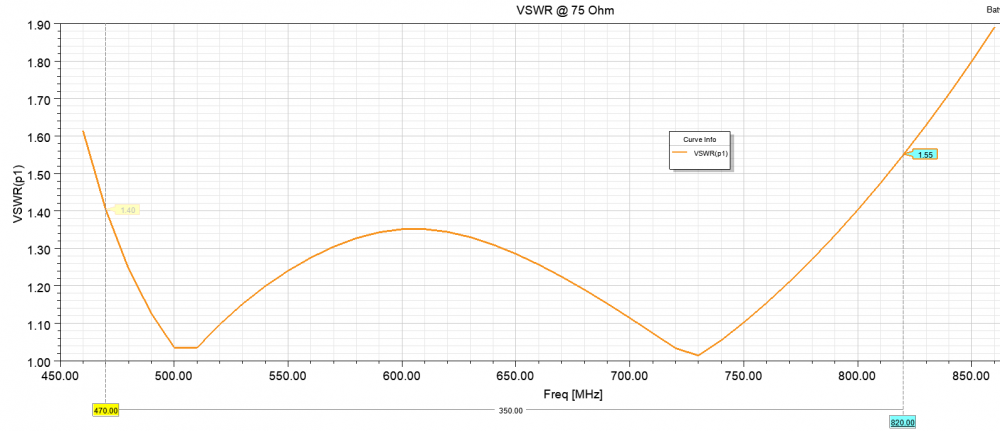

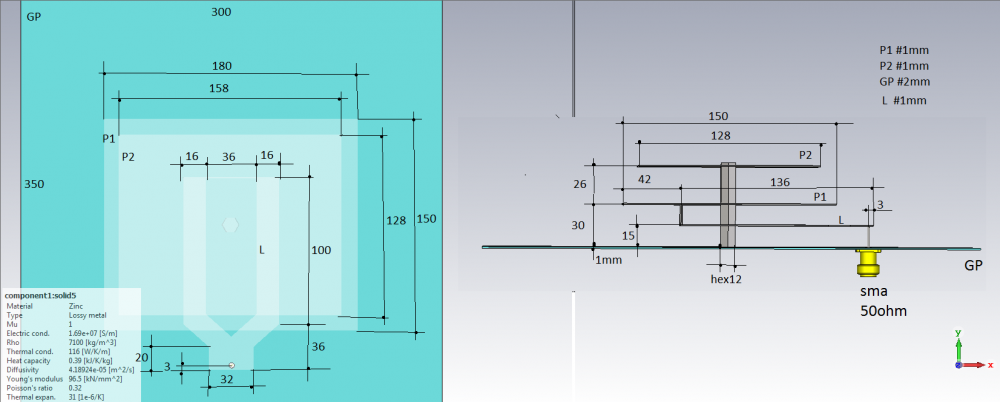

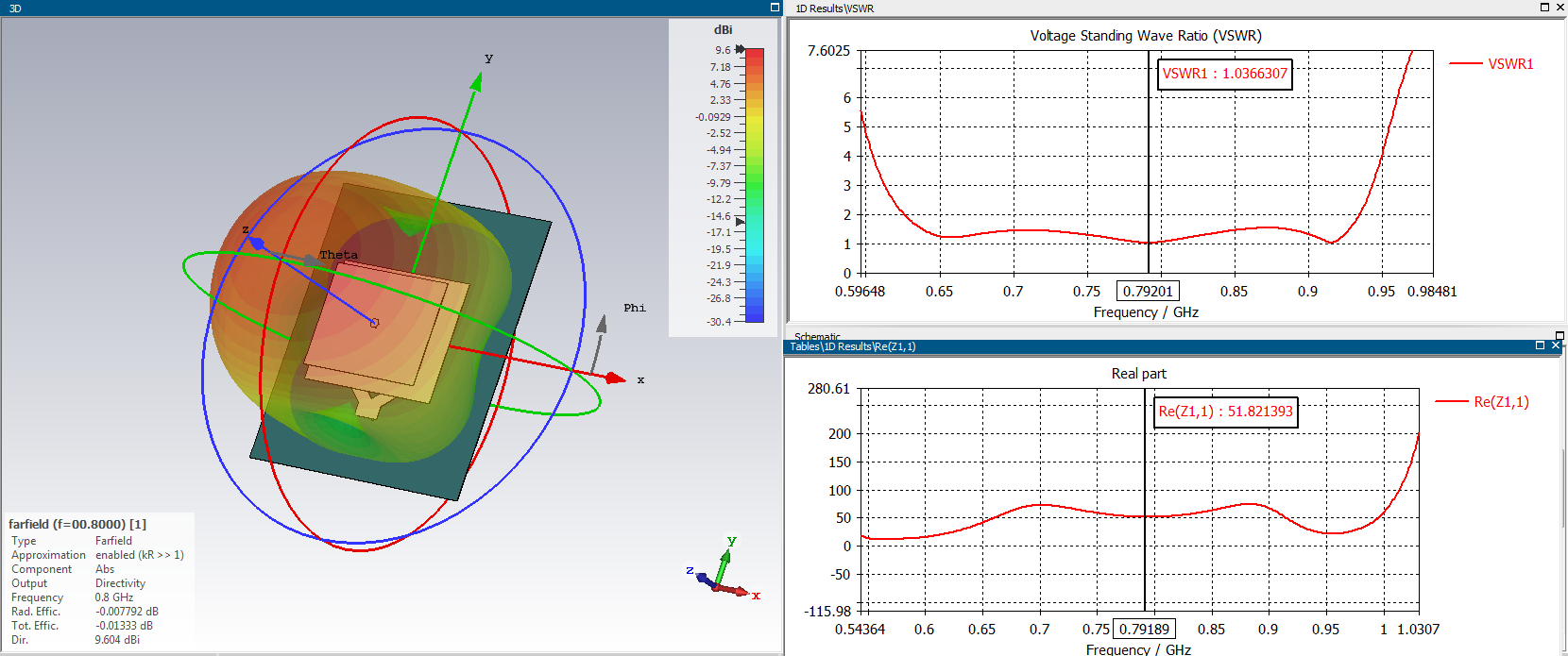

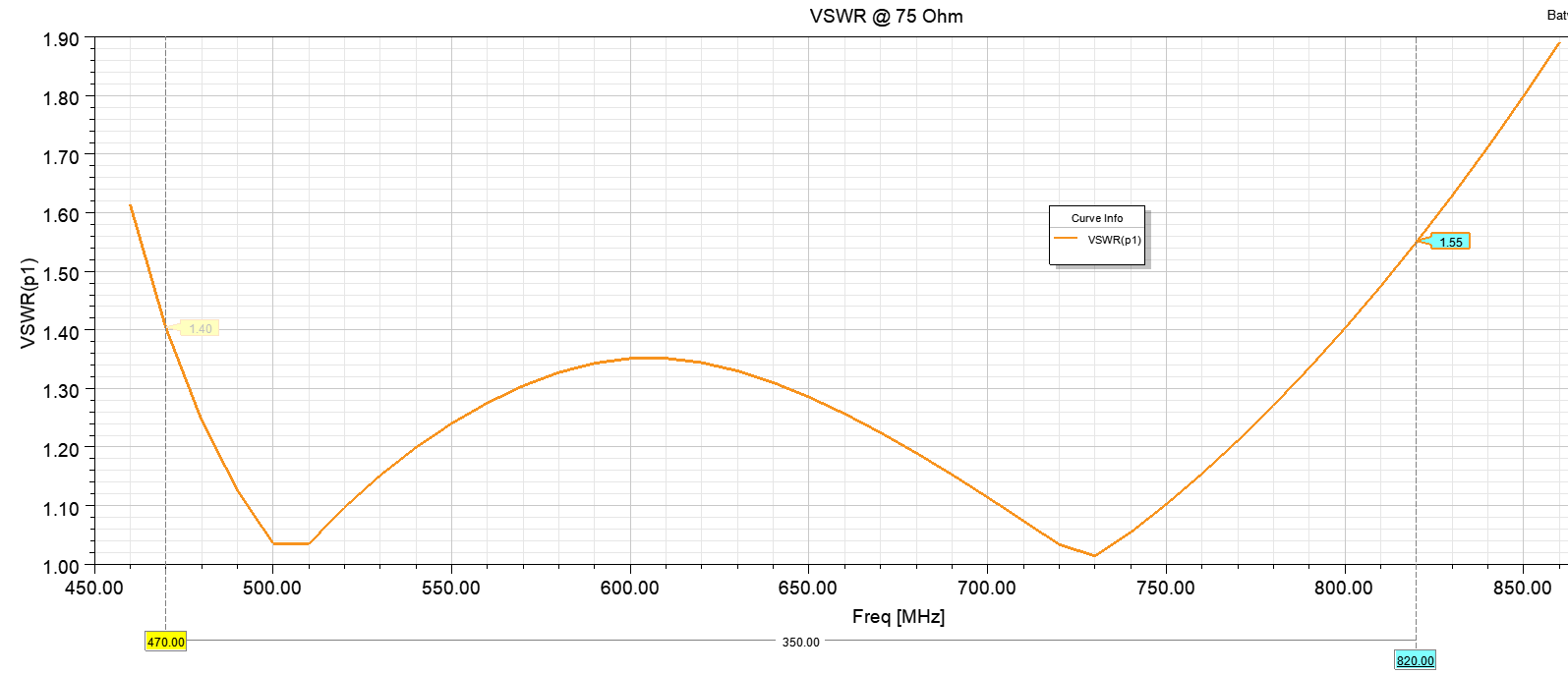

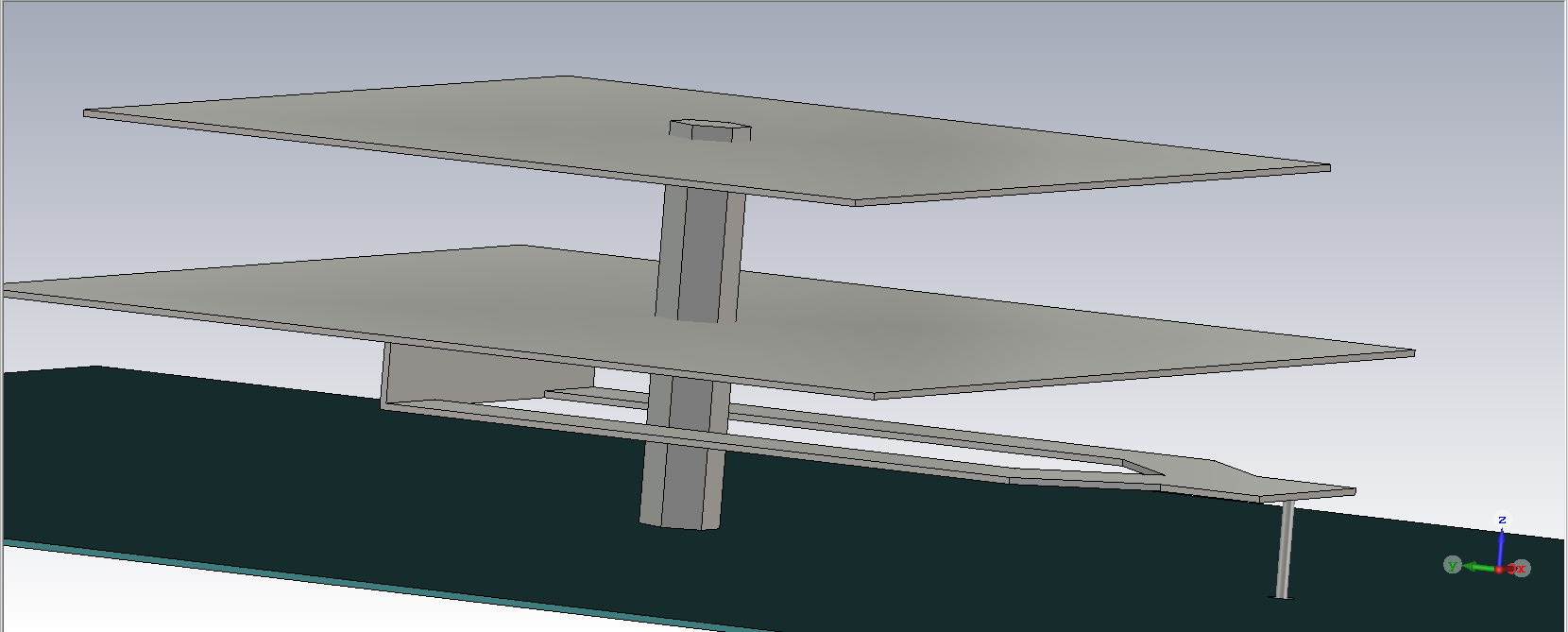

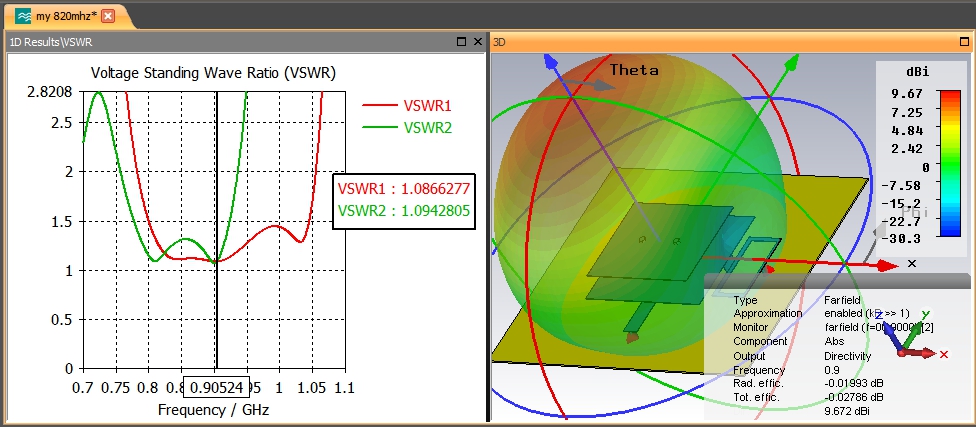

In my opinion, this patch is the optimal size of the reflector. Only slightly inferior vswr1 vswr2. This is enough for бэнд5. But, the dimensions are reduced.

Share this post


Link to post
Share on other sites

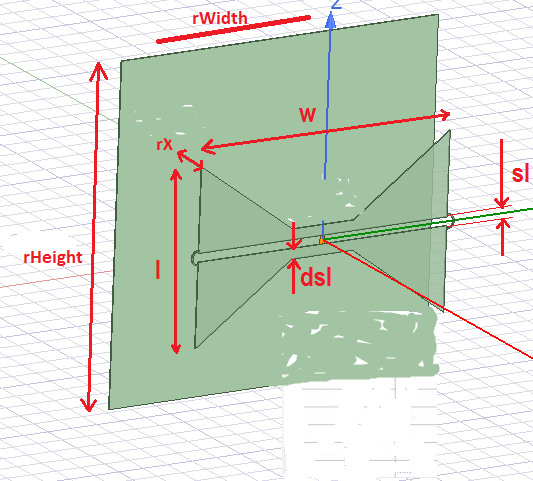

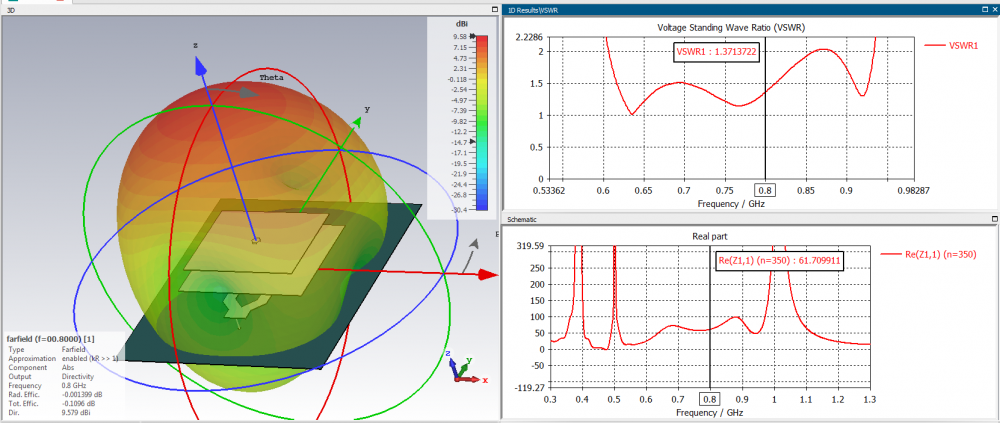

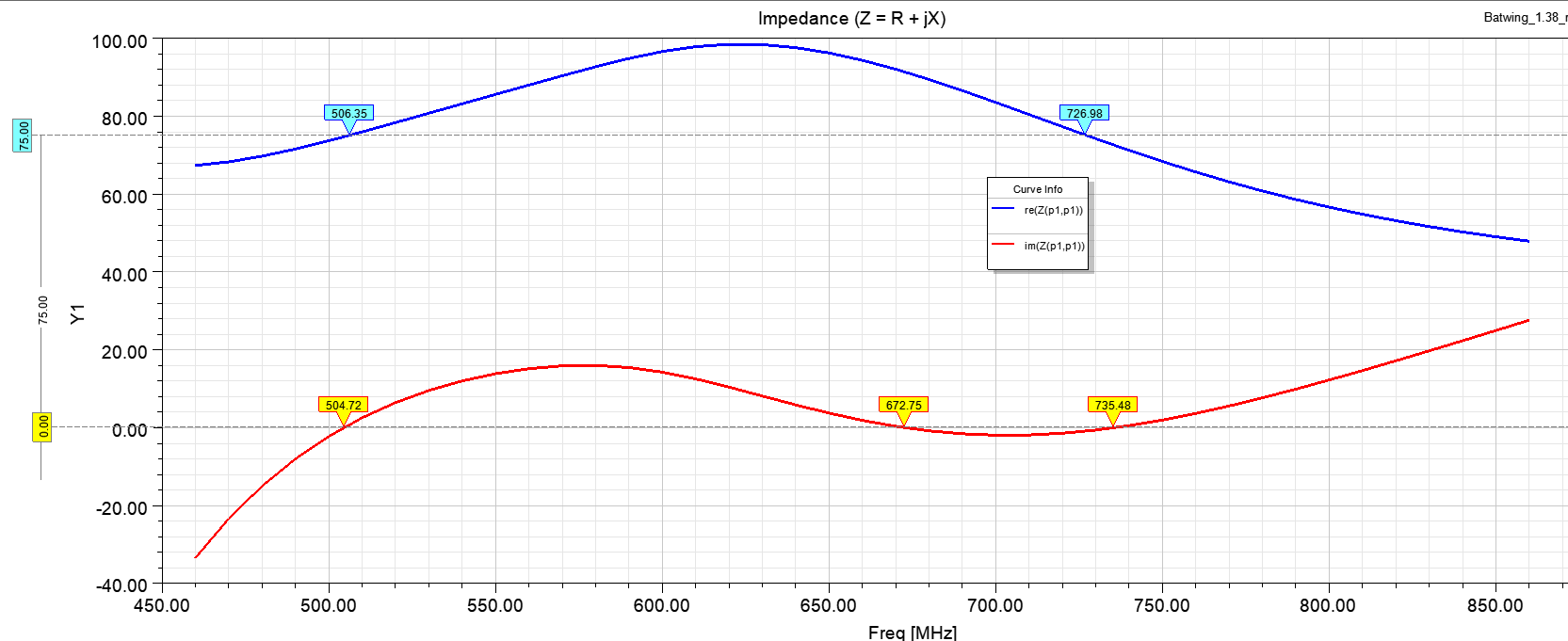

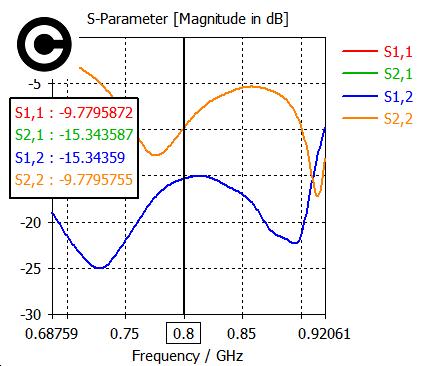

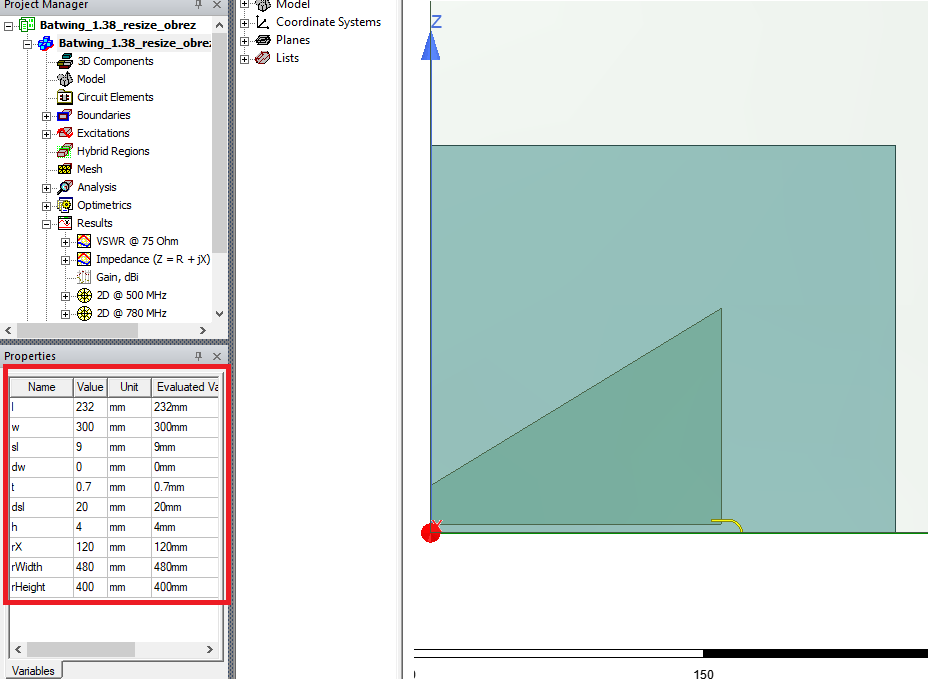

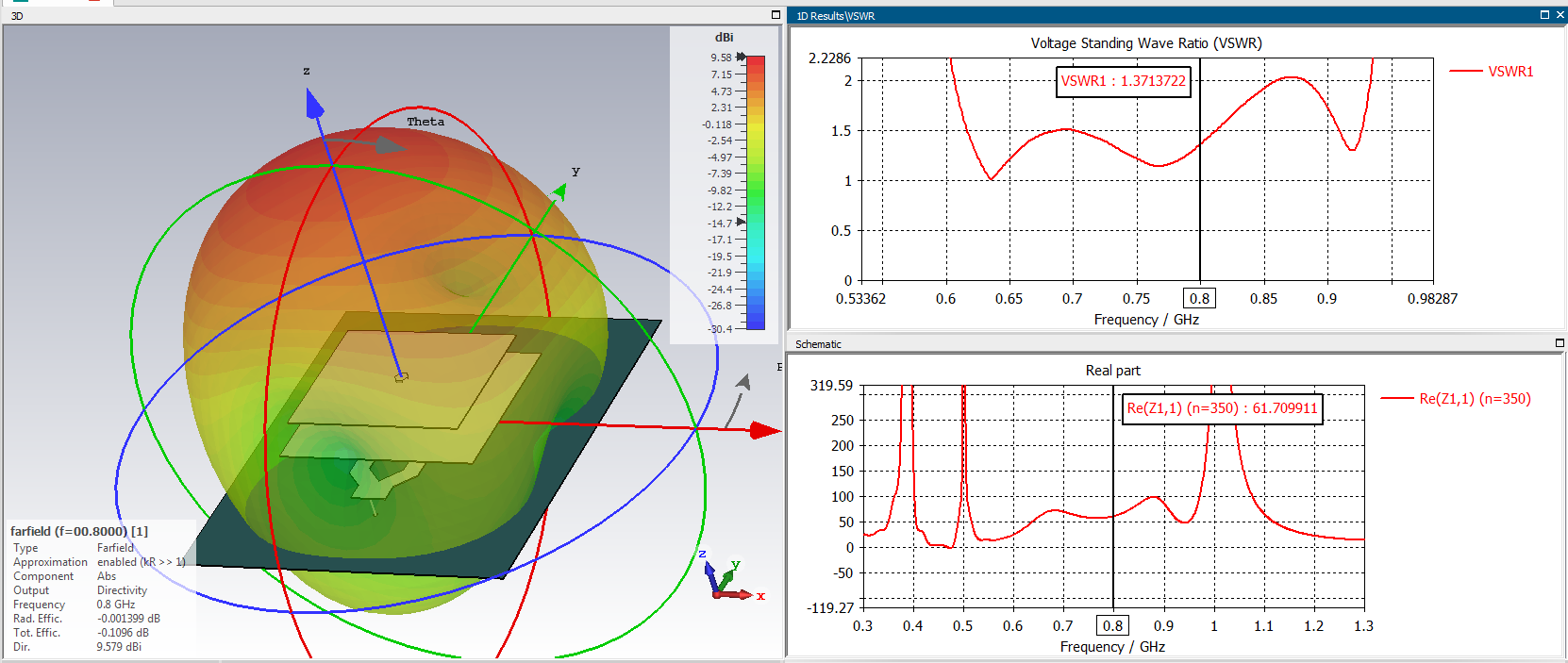

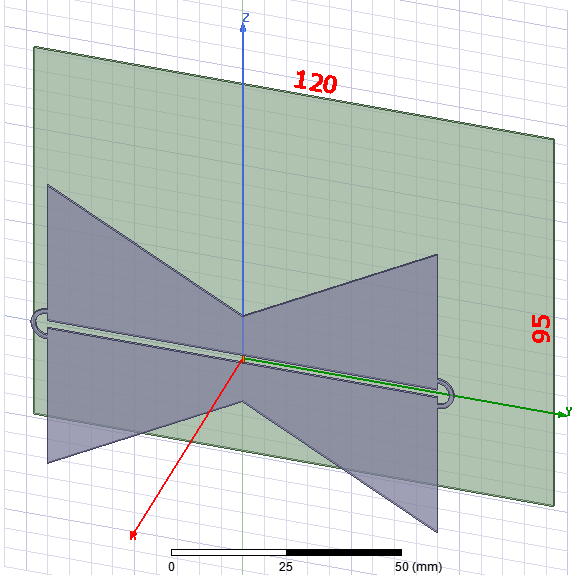

Yes, the dimensions are optimal but I can not adapt the second port

Share this post


Link to post
Share on other sites
On 13.07.2017 at 6:13 PM, Admin said:

Но я думаю, что для антенны LTE нужна круговая или эллиптическая поляризация ... !!!

Тебе нужна антенна ...


washing goes directly to N-type. This circular disk can be done under бенд5 ?

Edited by chilanzar2

Share this post


Link to post
Share on other sites

No,  it's not good,this patch does not have a uniform bandwidth  and the bandwidth is quite narrow....!!!

Share this post


Link to post
Share on other sites
27 minutes ago, chilanzar2 said:

band5    824 - 849    869 - 894

Very big patch....!!!!


Share this post


Link to post
Share on other sites

I did not understand. This circle can the second port be done? Or, better, two square patch antenna?

Share this post


Link to post
Share on other sites

better, two square patch antenna

1 person likes this

Share this post


Link to post
Share on other sites

I think the problem with the MiMo antenna is solved....!!!





3 people like this

Share this post


Link to post
Share on other sites

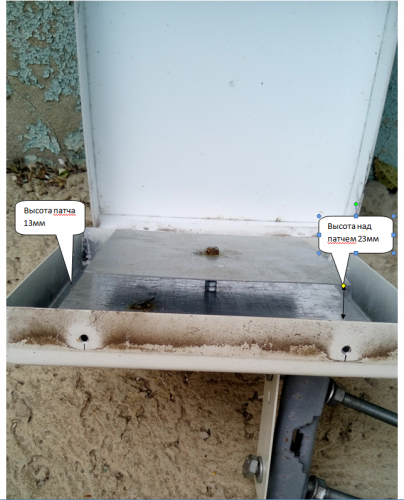

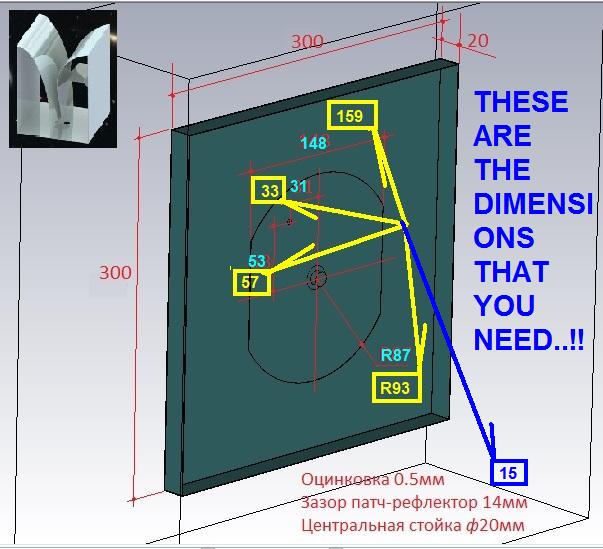

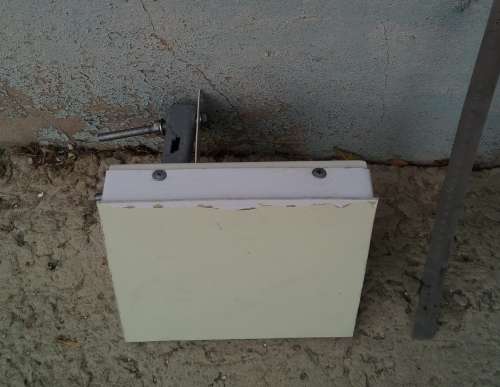

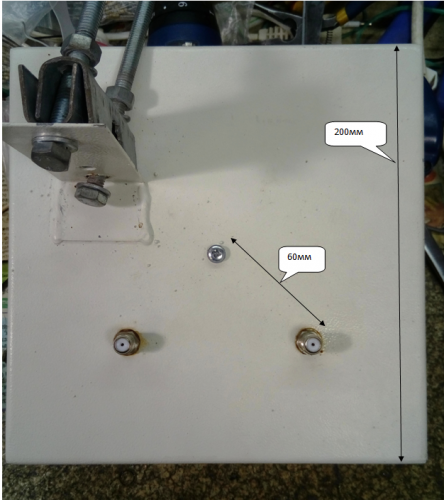

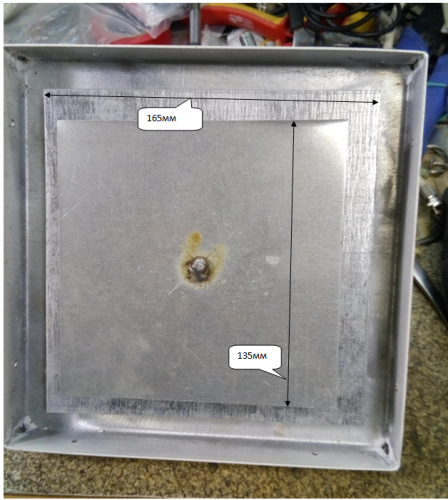

From the history of the issue with the patch. We LTE800 turned on earlier than the other ranges. Frequency 2600 was busy mmds TV. Now there is a gradual replacement for LTE800 LTE1800 or LTE2600. Therefore, these antennas released. In the photo panel mimo LTE800. Cover moisture resistant PVC does not warp and does not limp.
