60 Ghz Antenna

 dear alll



does someone know how to make a good antenna for 60 Ghz ?????

mikrotik has made 3 devices work on 60 ghz frequencyy

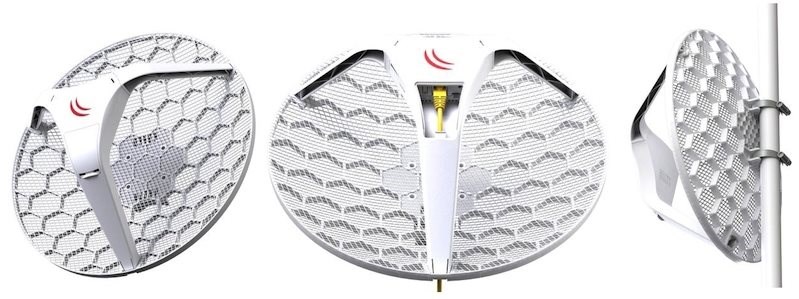

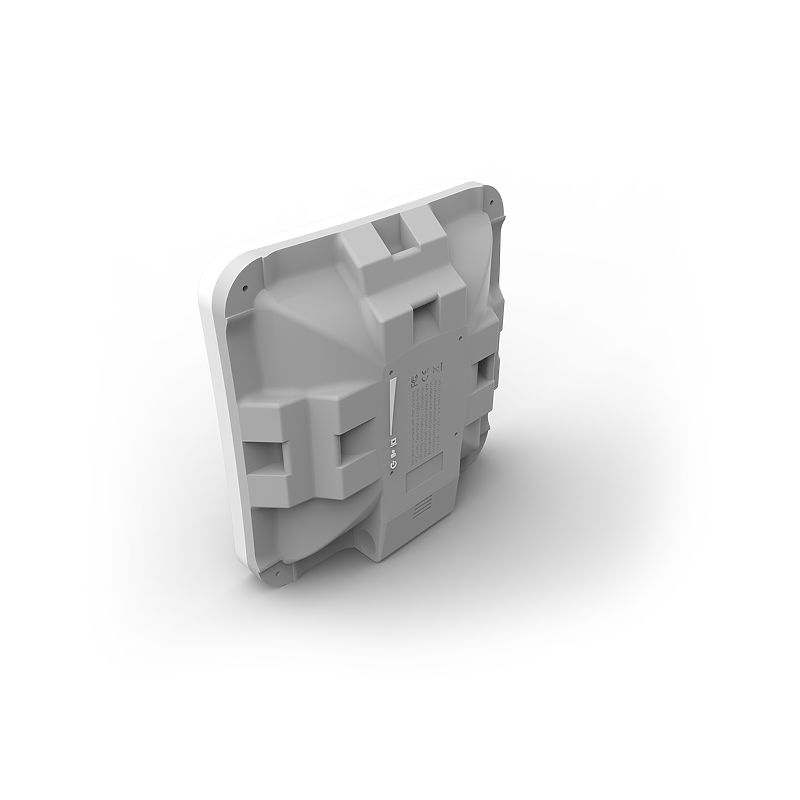

 sxt sq lite 60

lhg 60ghz

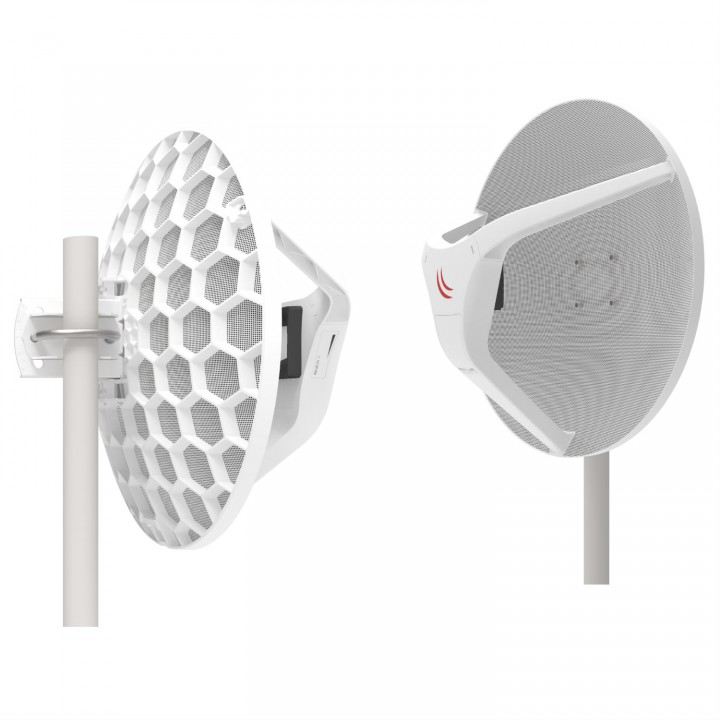

wireless wire 60 ghz

((((max distance is 1km ))))

can we make antenna parabolic dish for 60 ghz ?

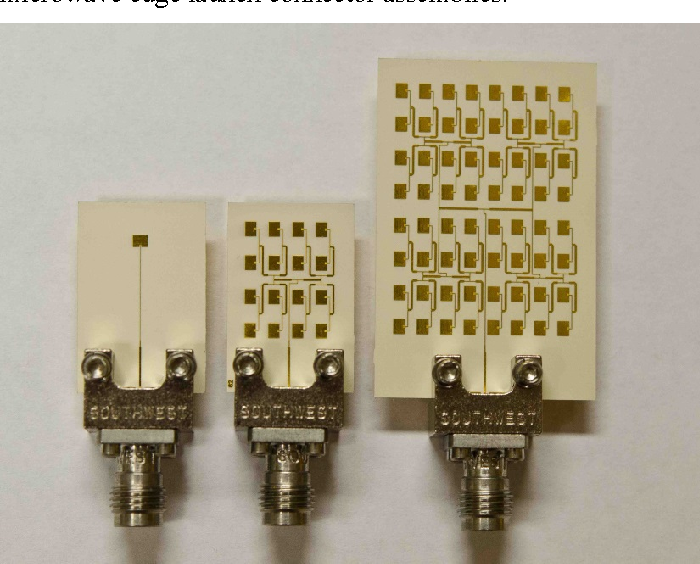

or patch with very small beamwidth angle ?




Share this post


Link to post
Share on other sites

A highly directional antenna, even at 60 GHz it is not problematic to do, because the focus and aperture is related mathematically through the square of the wavelength.
A = D / lambda^2 / 4 / Pi

A=aperture efficiencies

D=diameter of parabola

In terms of the parabolic mirror with the efficiency of the use of the aperture efficiencies 60% (very good feed)

Aperture efficiencies of typical antennas vary from 0.35 to 0.70 but can range up to 0.90.

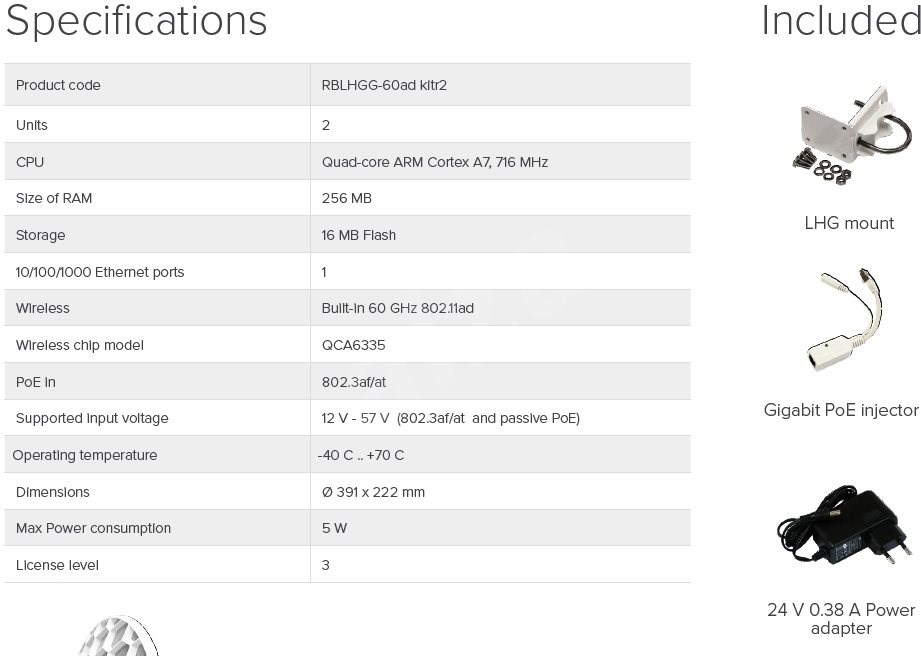

Dimensions of above parabola   Ø 391 x 222 mm

Share this post


Link to post
Share on other sites
45 minutes ago, Admin said:

A highly directional antenna, even at 60 GHz it is not problematic to do, because the focus and aperture is related mathematically through the square of the wavelength.
A = D / lambda^2 / 4 / Pi

A=aperture efficiencies

D=diameter of parabola

In terms of the parabolic mirror with the efficiency of the use of the aperture efficiencies 60% (very good feed)

Aperture efficiencies of typical antennas vary from 0.35 to 0.70 but can range up to 0.90.

Dimensions of above parabola   Ø 391 x 222 mm

haha i didnt understand nothing

just answer  yes or no can we make dish for 60ghz ?

and if you can send me photo or dimensions

Share this post


Link to post
Share on other sites

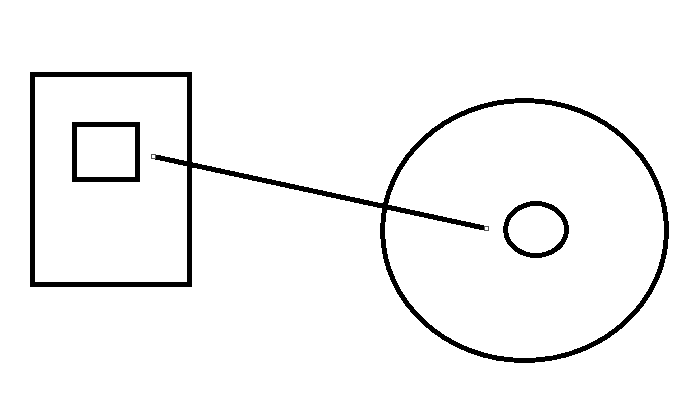

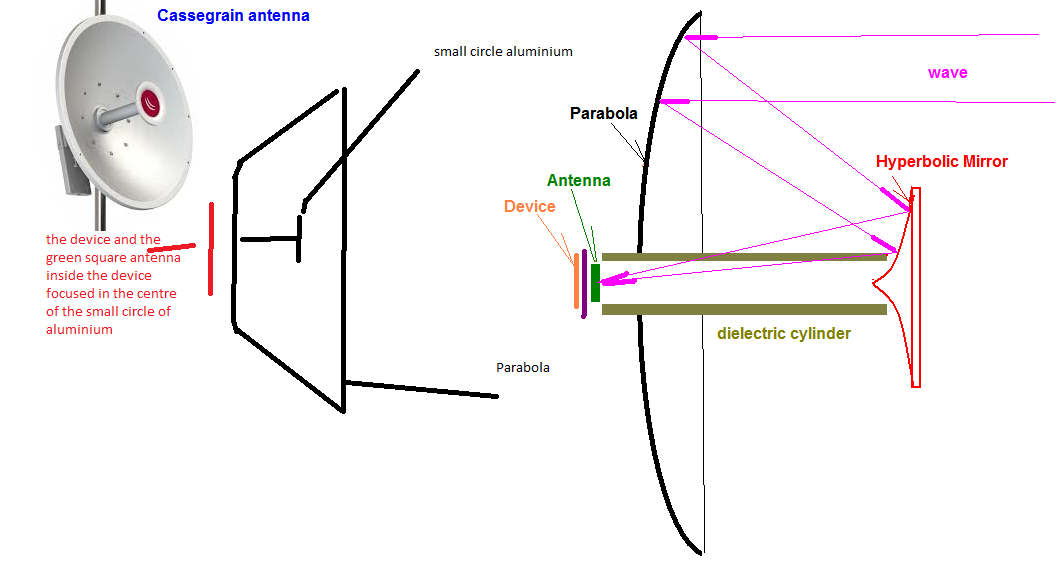

Can i make this way ?

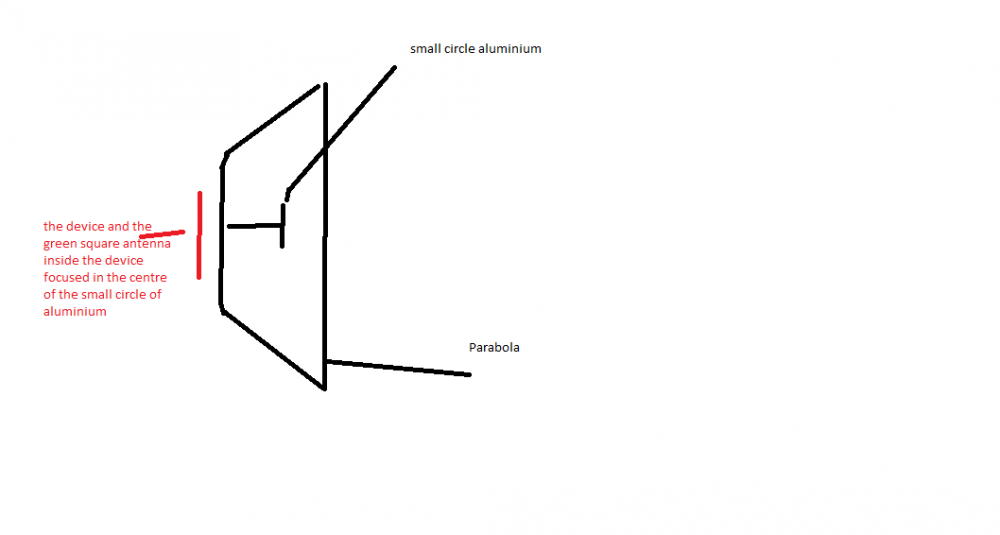

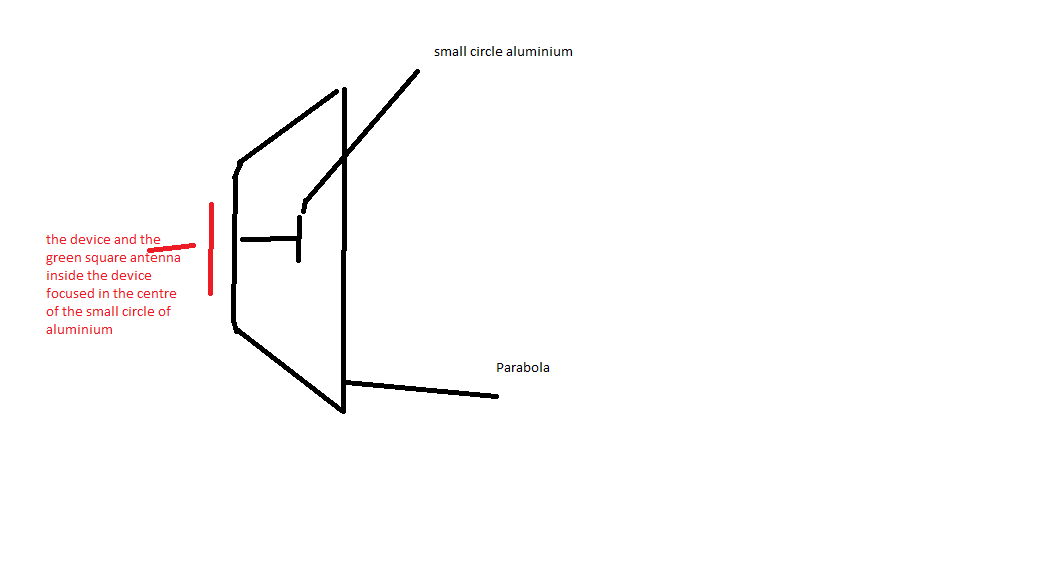

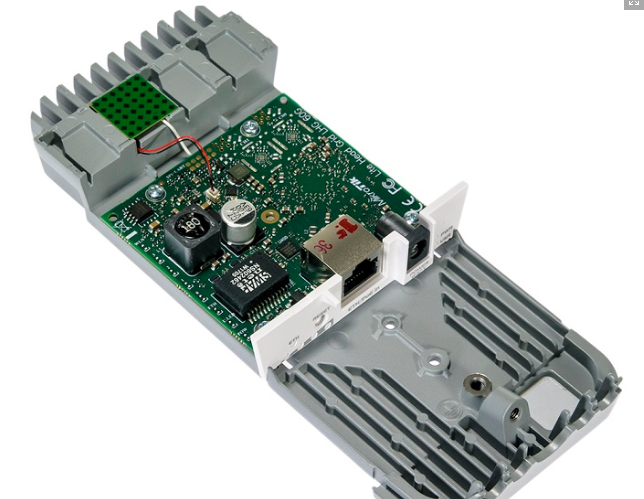

the antenna small green board i will attach it to centre of dish and the small green board will be faced to small aluminium circle reflector  , so the small aluminium circle reflector will also be faced the big

circle dish



Share this post


Link to post
Share on other sites

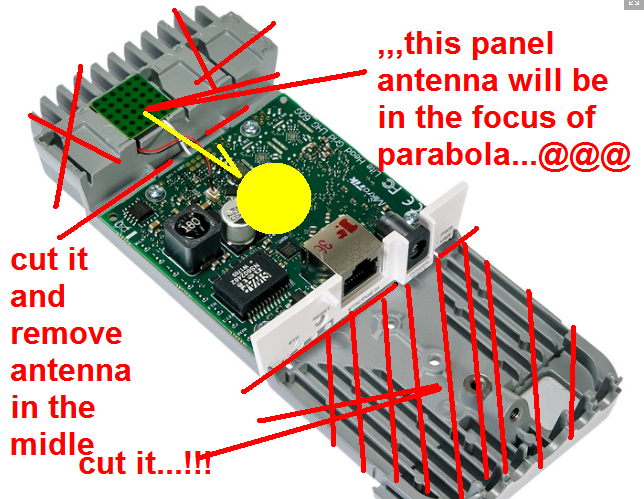

,,,no,the small green board it must to  be in the focus of parabola...!!!


Share this post


Link to post
Share on other sites
Just now, Admin said:

,,,no,the small green board it must to  be in the focus of parabola...!!!


yessssssssssss that what im talking about the small green board i will make it in the focus of parabola  butt with 2 reflector  ( small aluminium circle facing the parabola )

Share this post


Link to post
Share on other sites

,,,you can put the antenna on the back of the circuit(device)...!!!

Share this post


Link to post
Share on other sites

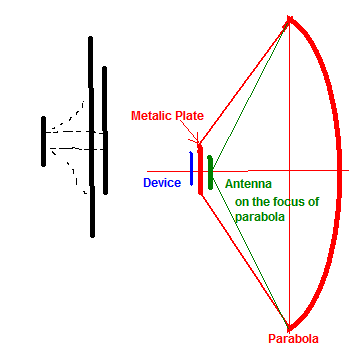

device on the right and the small circle reflector on the left .------> reflect to the parabola

Share this post


Link to post
Share on other sites

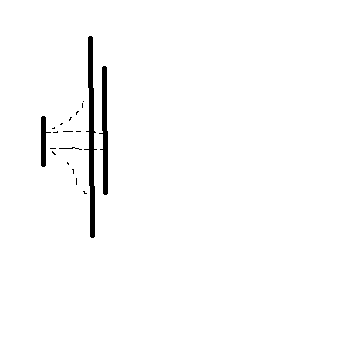

like thiss





Edited by Everzone

Share this post


Link to post
Share on other sites

,,,good, that's another fish food...


1 person likes this

Share this post


Link to post
Share on other sites
8 minutes ago, Admin said:

,,,good, that's another fish food...


exactly !!!!

can i make this with 60ghz ?

how much percent i will gain ?

how much more distance to ?

Share this post


Link to post
Share on other sites
2 minutes ago, Everzone said:

exactly !!!!

can i make this with 60ghz ?

how much percent i will gain ?

how much more distance to ?

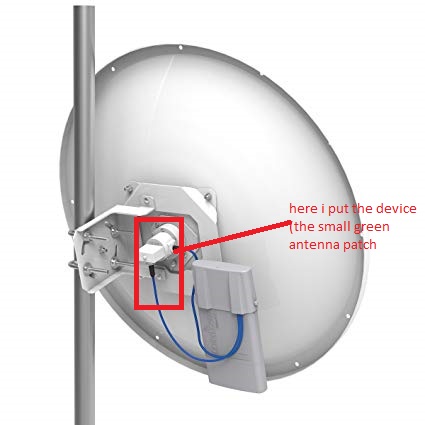

can i replace the dielectric cylinder in plastic tube in this case?

be cause im using the device patch

and the hyperbolic can be flat ?

Share this post


Link to post
Share on other sites

,,,until you make such a "jewel", show me what you have built so far in this field of antennas...!!!!

Share this post


Link to post
Share on other sites
42 minutes ago, Admin said:

,,,until you make such a "jewel", show me what you have built so far in this field of antennas...!!!!



45 minutes ago, Admin said:

,,,until you make such a "jewel", show me what you have built so far in this field of antennas...!!!!

i asked you a questions above

respond on them and i will show you when i have answers about my questions

and i will show you the result of the build  !!!!!!!!

Share this post


Link to post
Share on other sites

,,,but I want to see what antennas you've built up to now....!!!!

Share this post


Link to post
Share on other sites

freq 60Ghz not for long range
