Admin

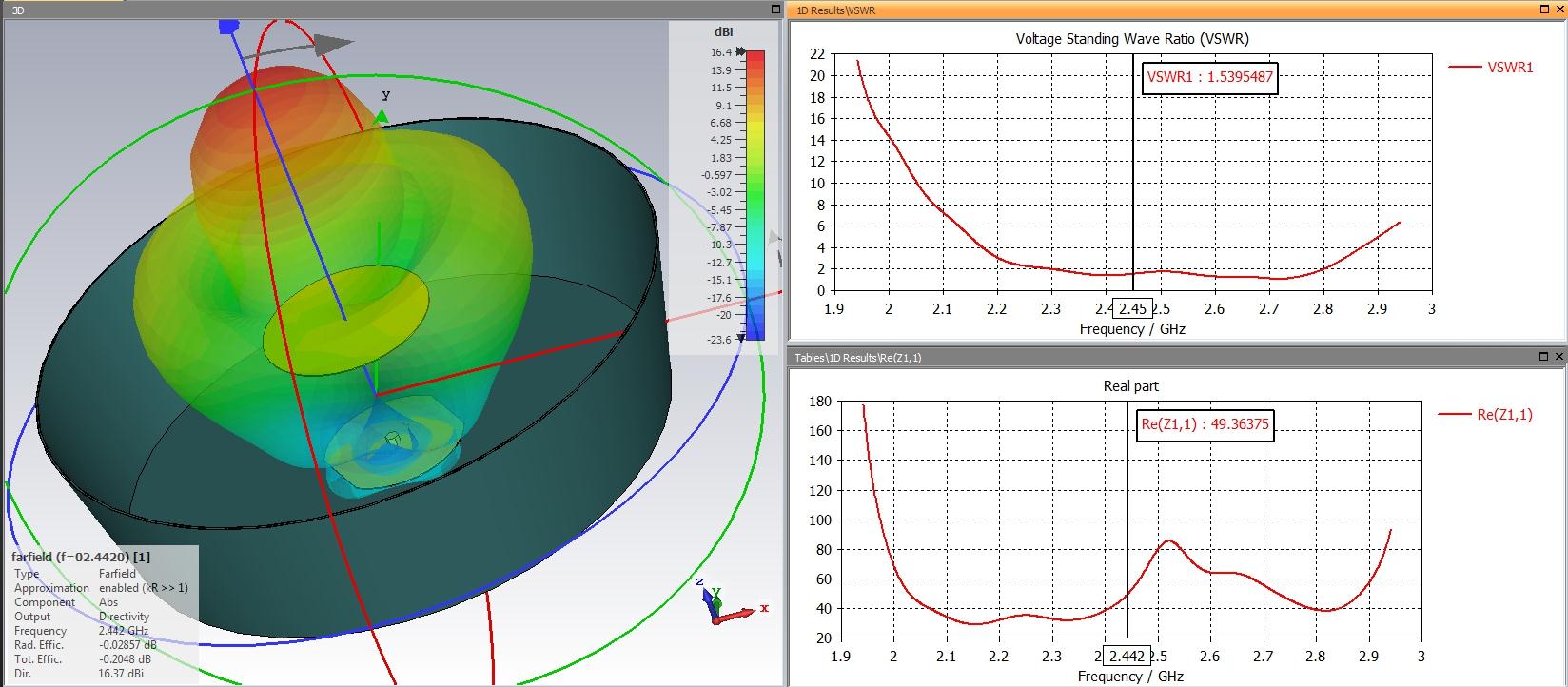

the Bucket as the Horn!

Of course, with a bucket we are trying to "step twice into the same river". Discussion metal bucket as the horn has already been discussed  on the internet. It is obvious that to draw energy from the twice same amount of space is impossible.
Please note that the effectiveness of the example is superior to the dual mirror system and is comparable with them on bandwidth supports.

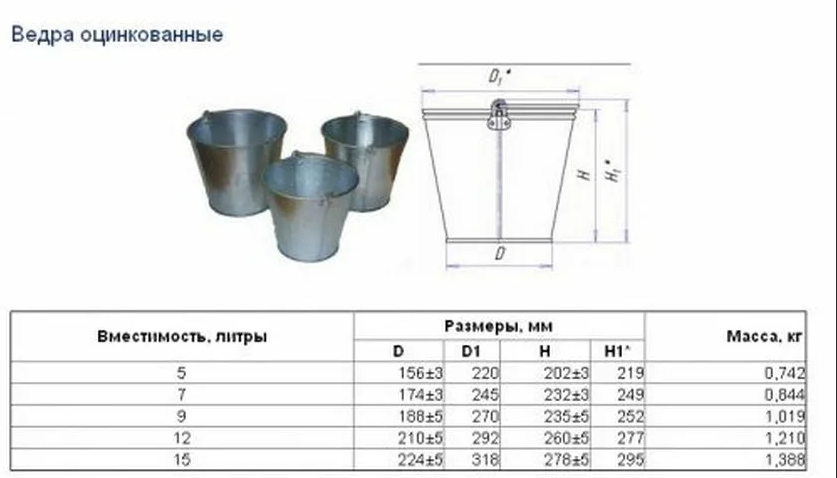

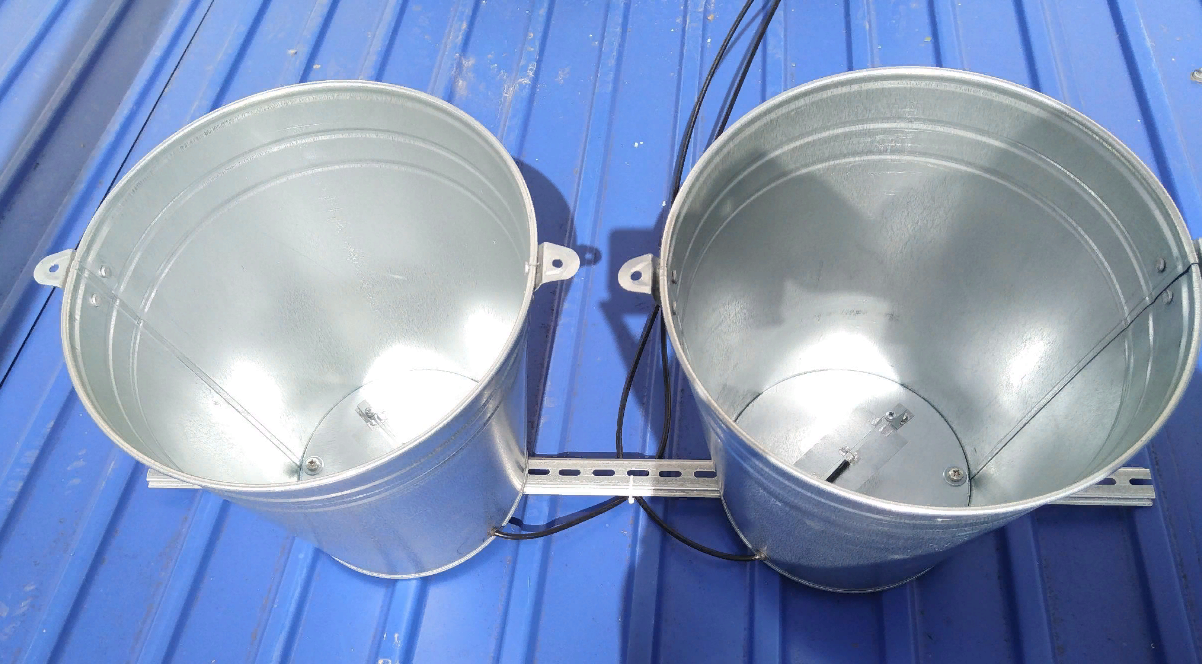

Use galvanized buckets as the mouthpiece, which probably can be discussed in detail .

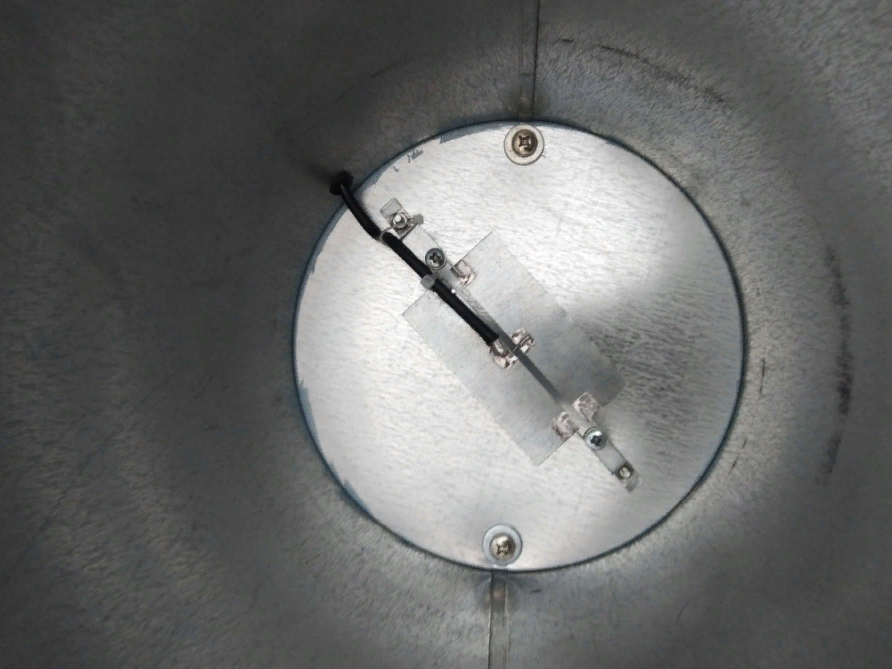

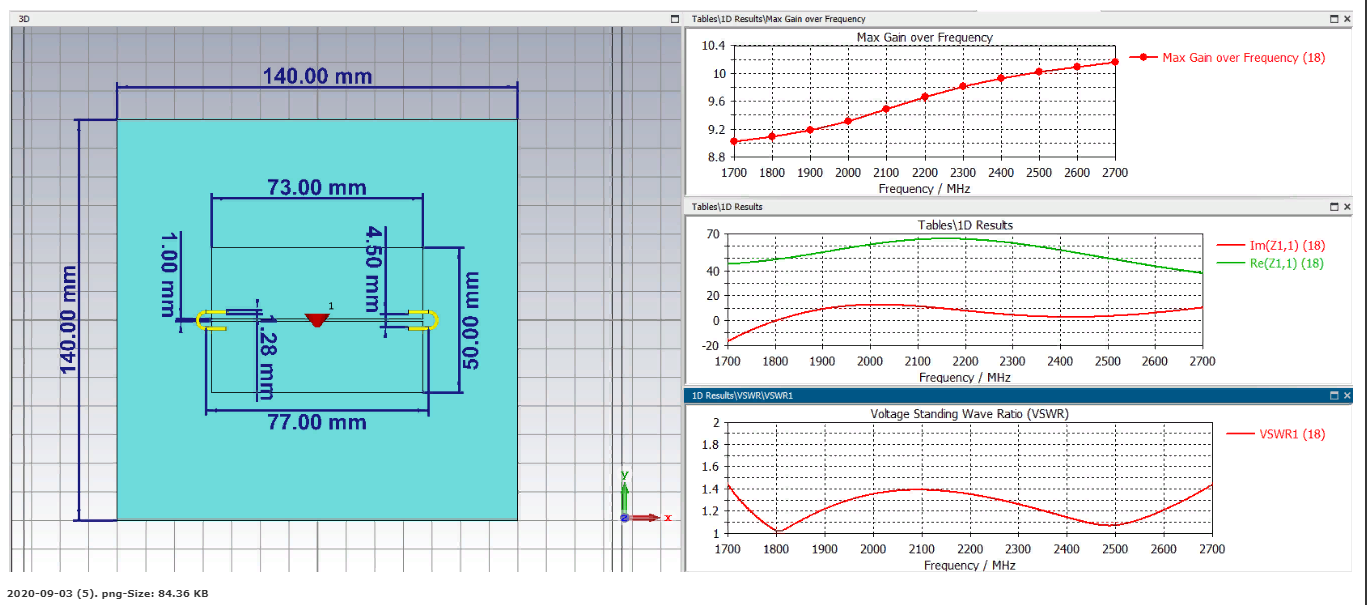

And in this example, dispelled some myths. In particular, square (rectangular) patch element easier to manufacture at home, allows you to easily build wideband antenna and can be used in circular polarization.

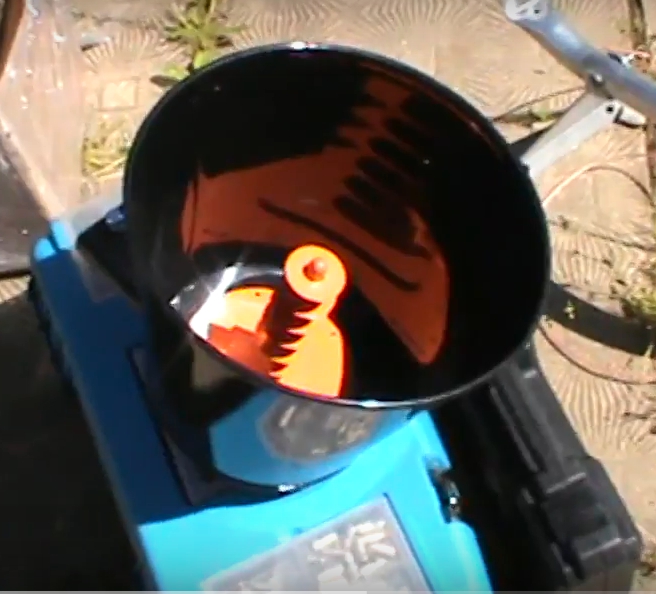

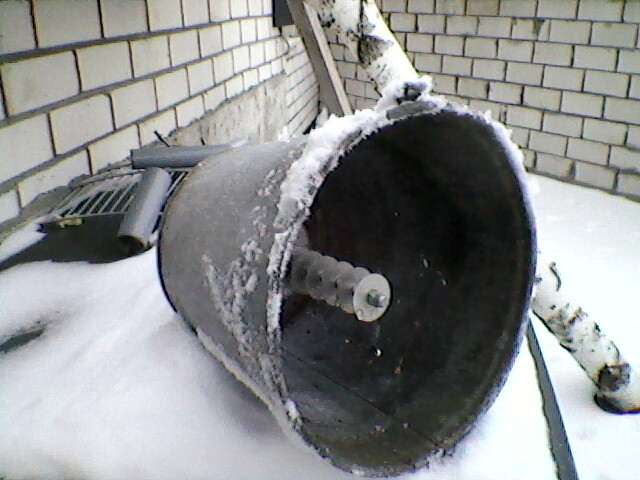

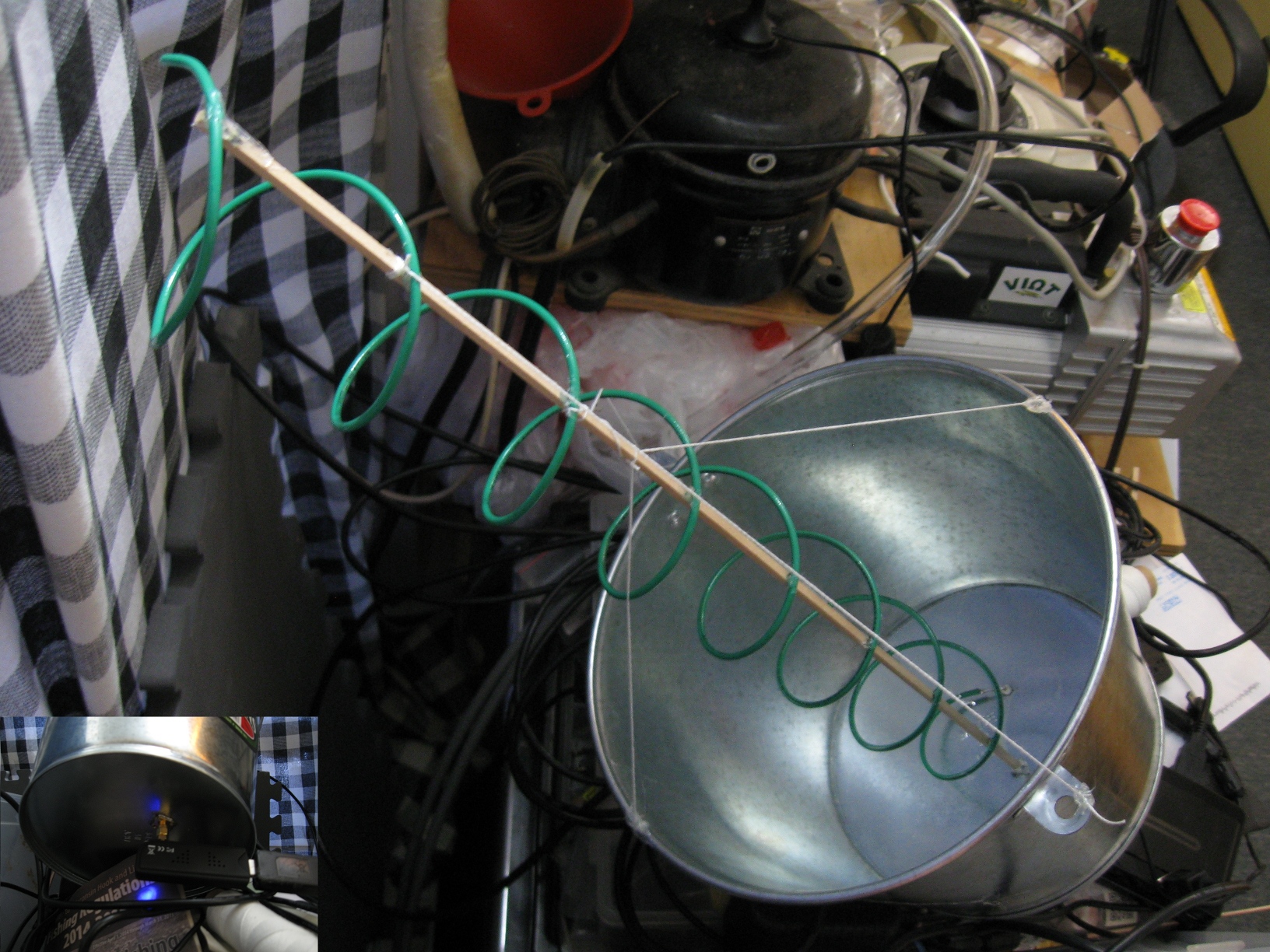

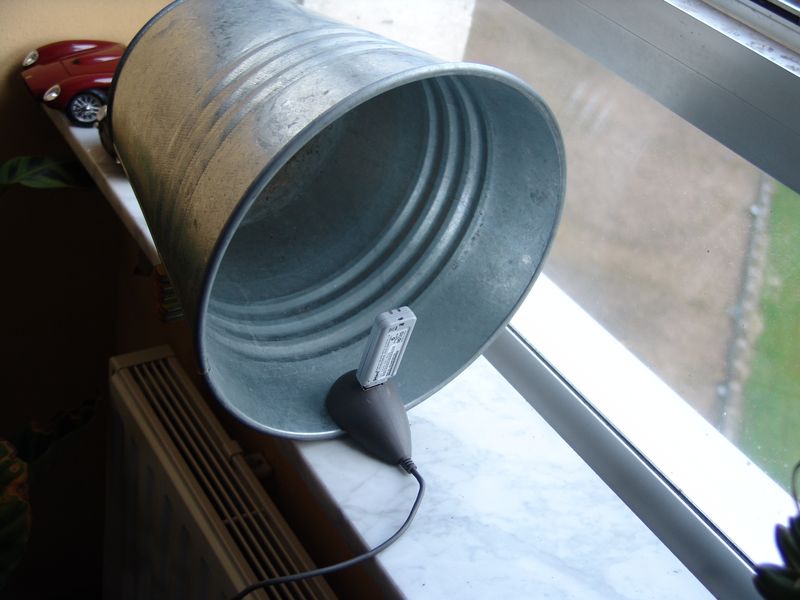

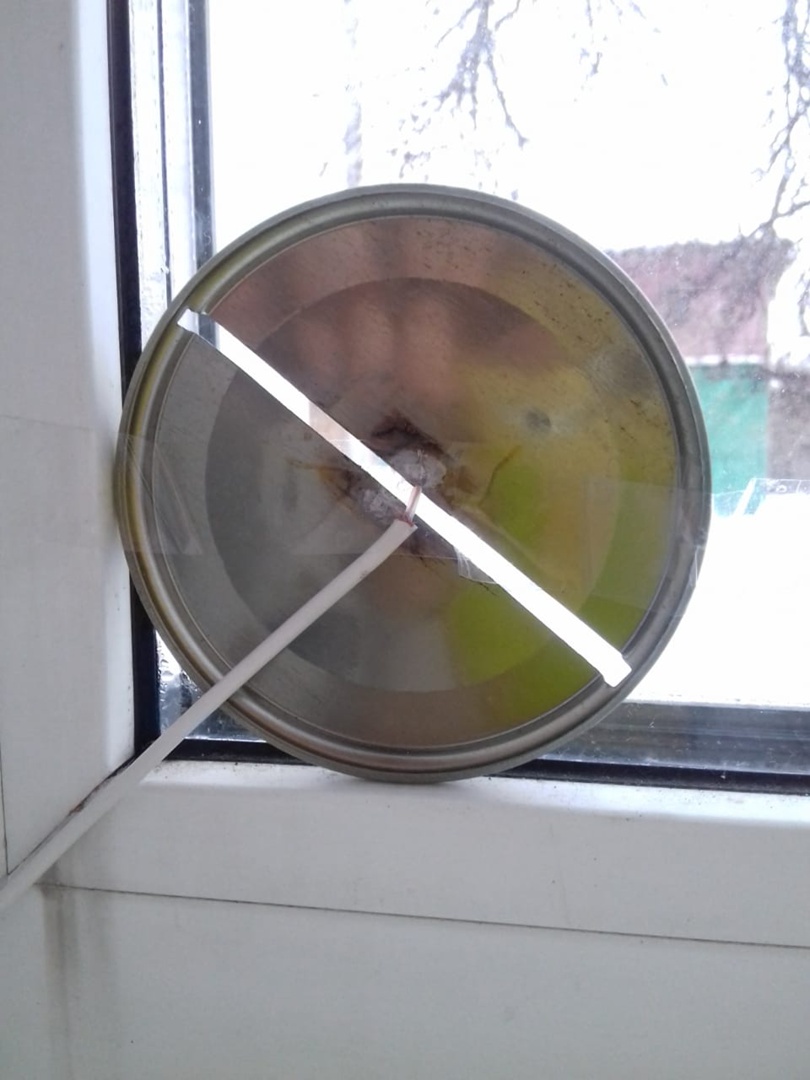

And here are the achievements of some predecessors...









Share this post


Link to post
Share on other sites

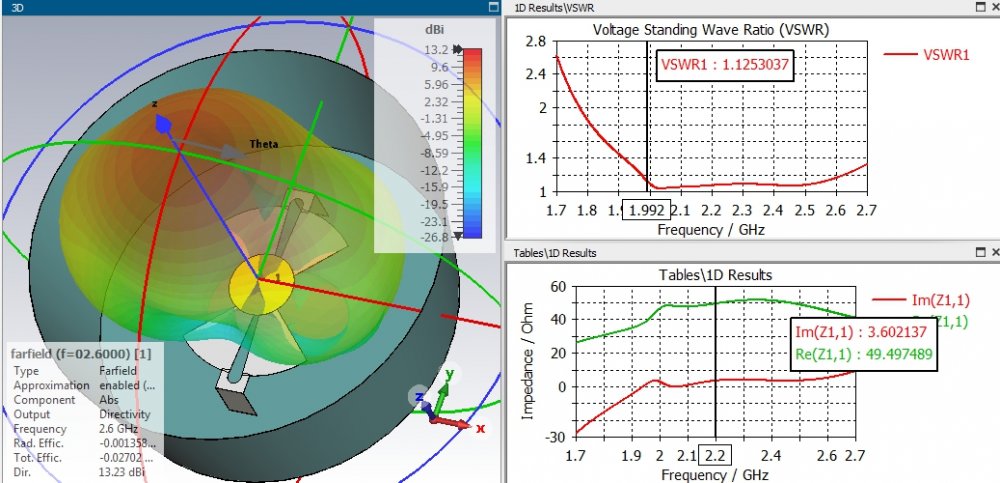

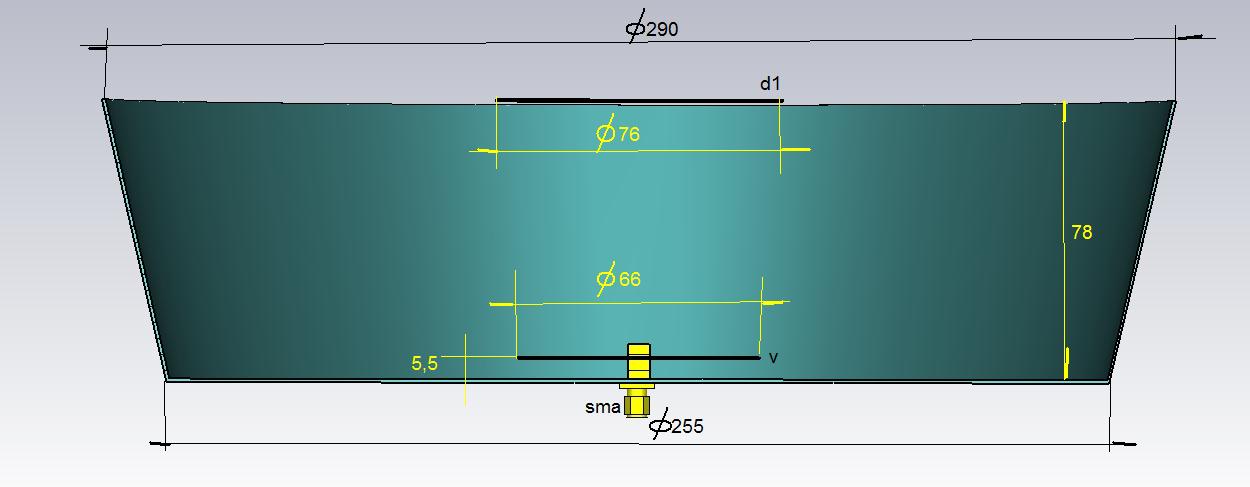

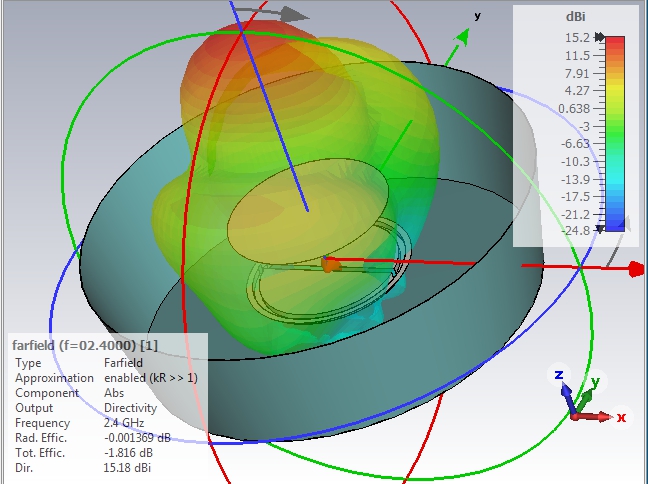

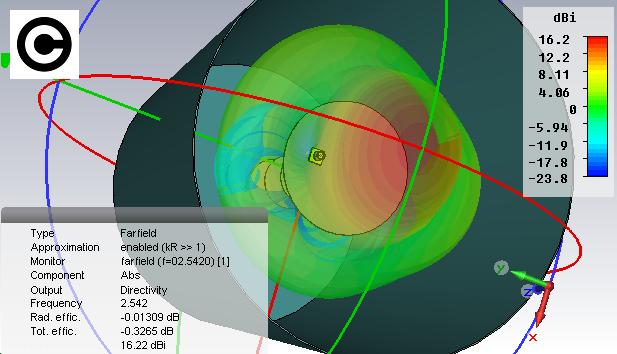

I tried to make a simulation with such a bucket but the antenna Bester I reversed it and that's what it came out...





,,,this solution is much easier to achieve and has the advantage of a better regulation of gain in directivity....!!!!

1 person likes this

Share this post


Link to post
Share on other sites

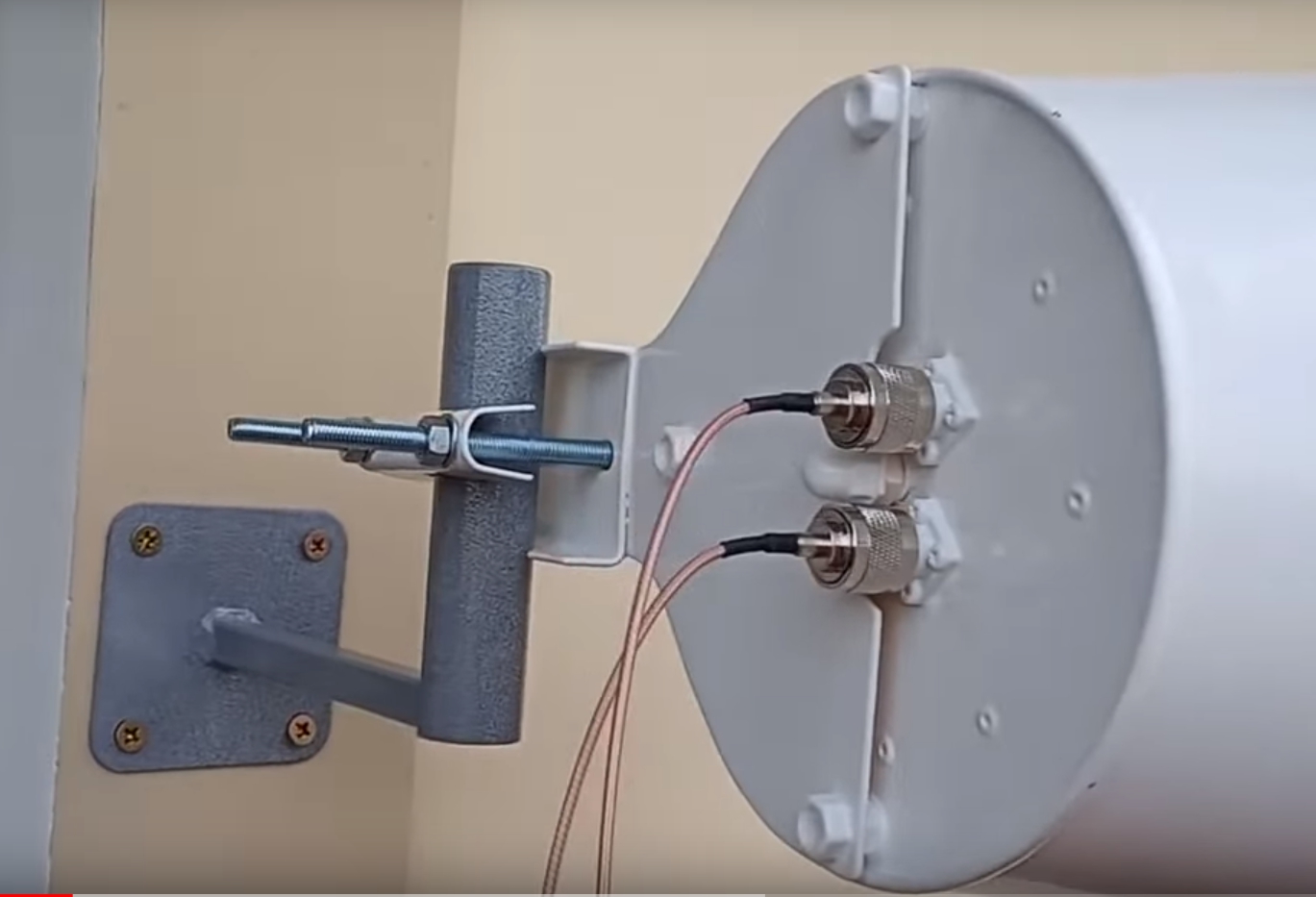

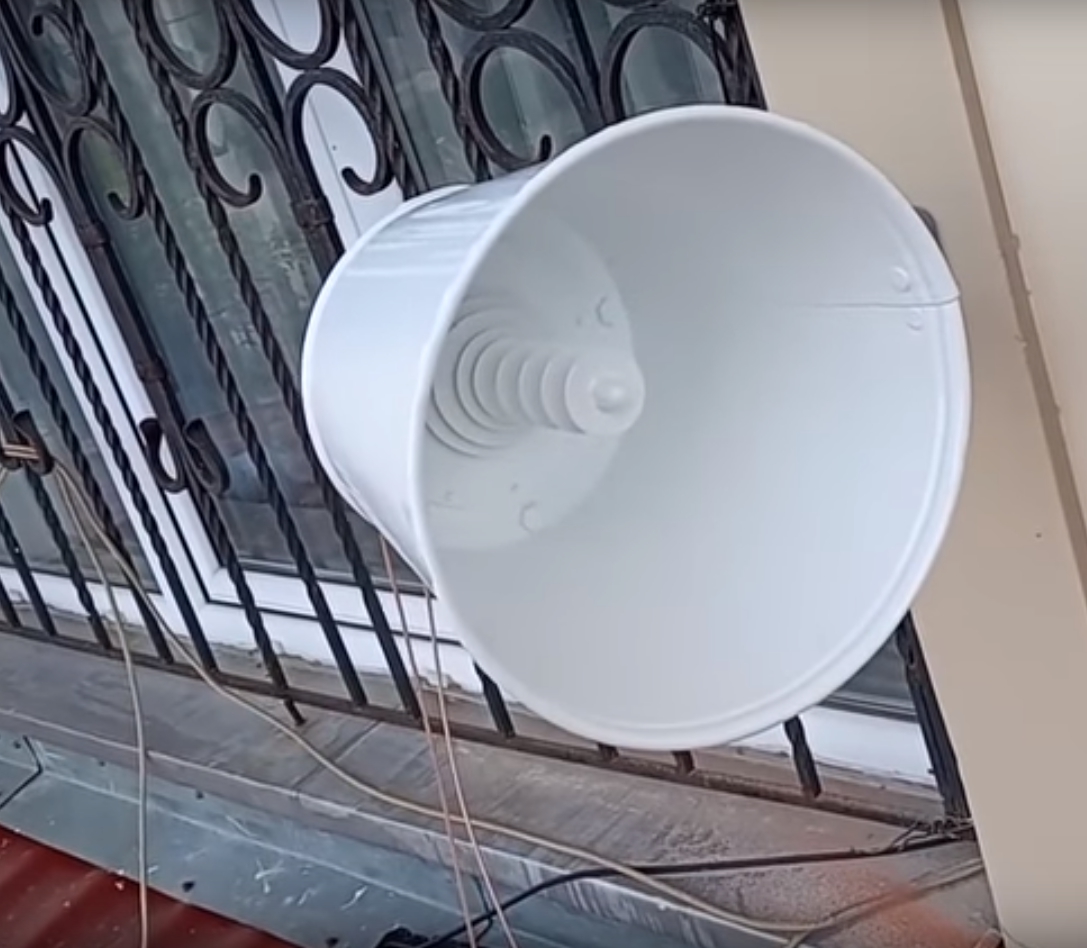

,,,another practical achievement...



Share this post


Link to post
Share on other sites
On 15/4/2019 at 0:55 PM, Admin said:

I tried to make a simulation with such a bucket but the antenna Bester I reversed it and that's what it came out...





,,,this solution is much easier to achieve and has the advantage of a better regulation of gain in directivity....!!!!

YEP , BACKFIRE antenna feed...

nasa yagi

Share this post


Link to post
Share on other sites

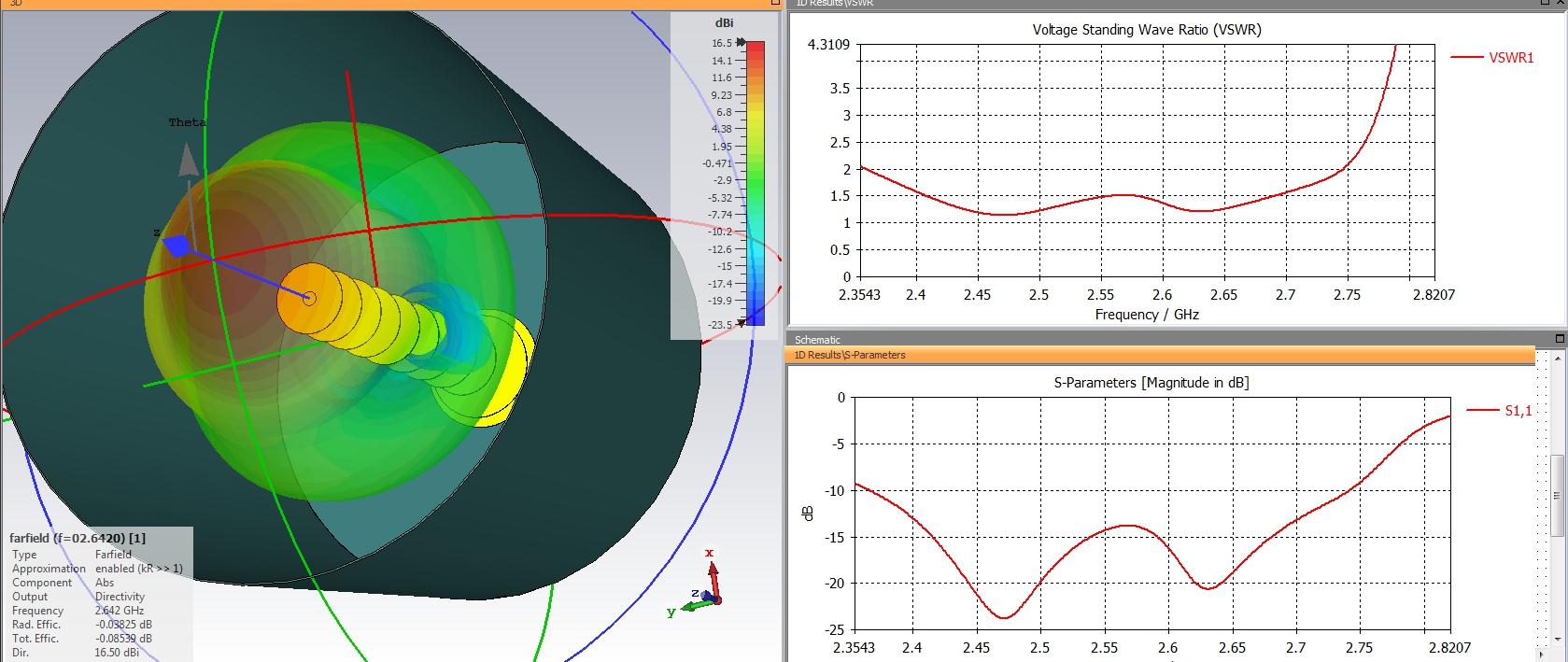

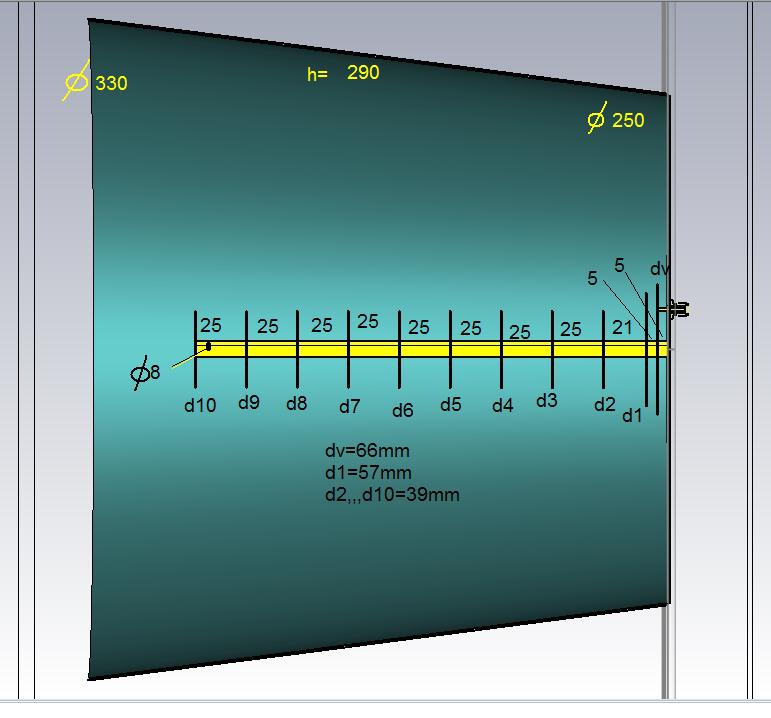

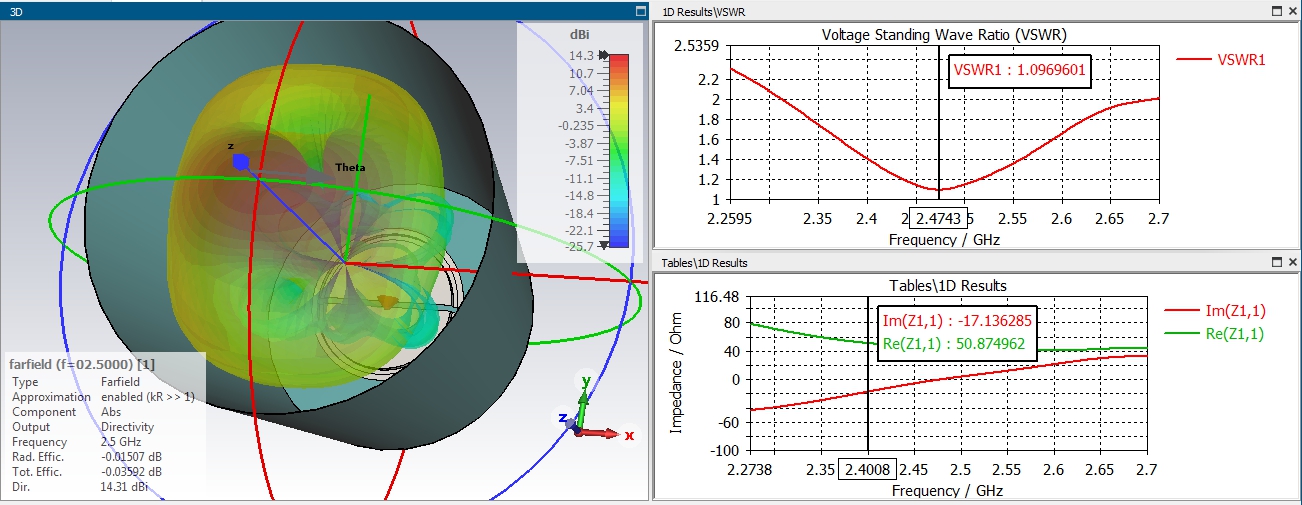

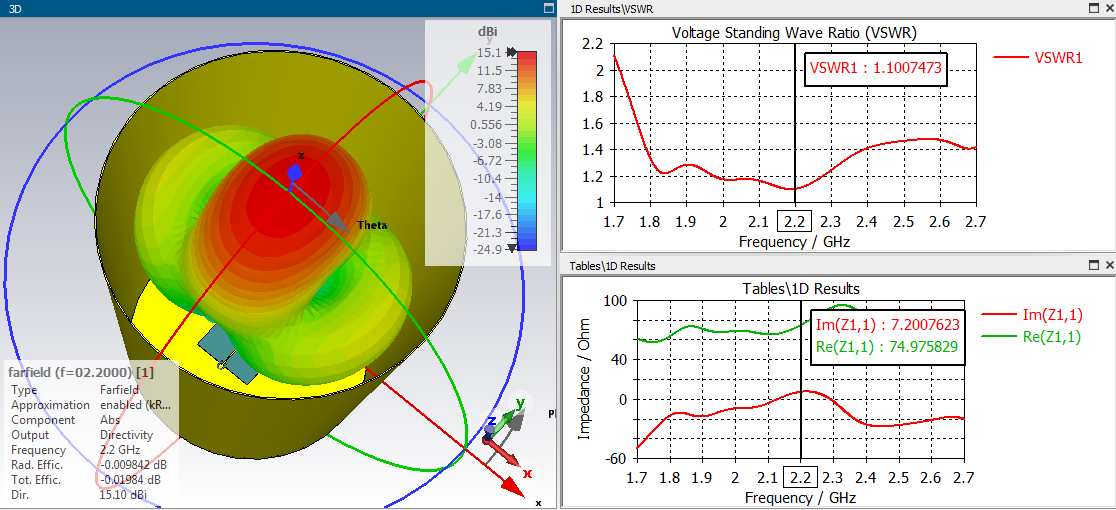

,,,frequency band 2.4 ... 2.7GHz...!!!

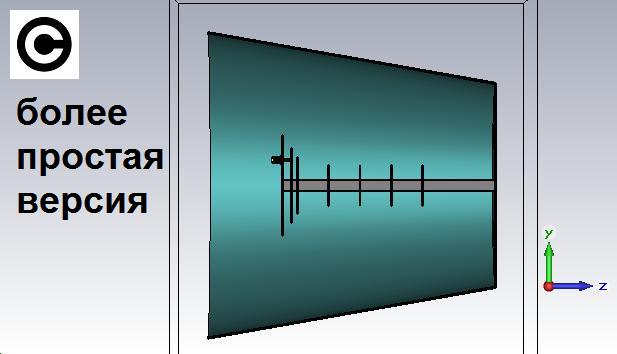

,,,if the antenna is overturned and will have 7 elements then it will be easier to build...!!!



Share this post


Link to post
Share on other sites

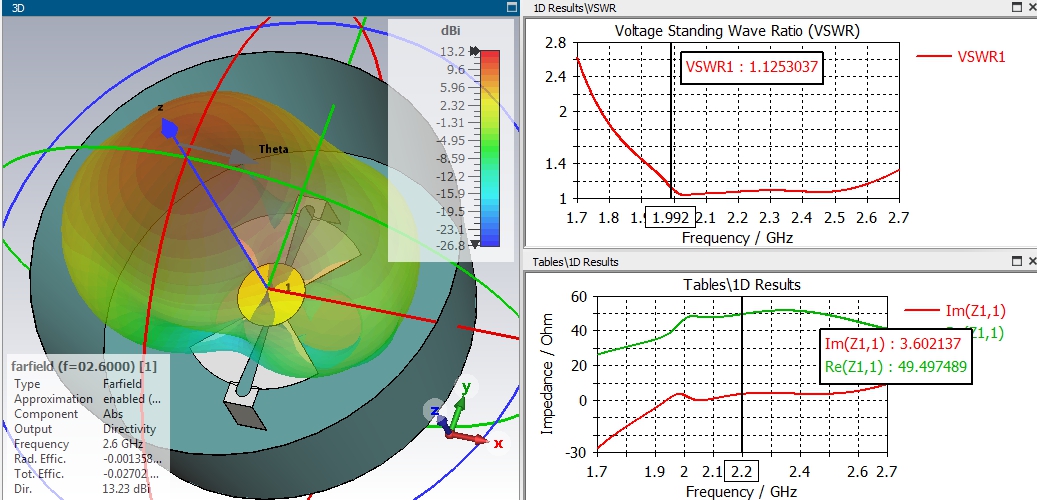

"and yet, the simplest option is the antenna SBF,  with conical reflector...




,,,the patch antenna(v) is Bester type...!!!
