BESTER BDM-2 MIMO 4G/LTE ANTENNA, 15-17 DB

79 posts in this topic

Salem
d'avoir répondu à mon post, c'est que l'on peut avoir un circuit explicatif qui me permettra d'implémenter mon antenne avec une impédance coaxiale de 75 ohms.
Merci

Edited by Samir

Share this post


Link to post
Share on other sites

Samir,, wait until I do a simulation for the 75 Ohm coaxial cable..!!!

Share this post


Link to post
Share on other sites

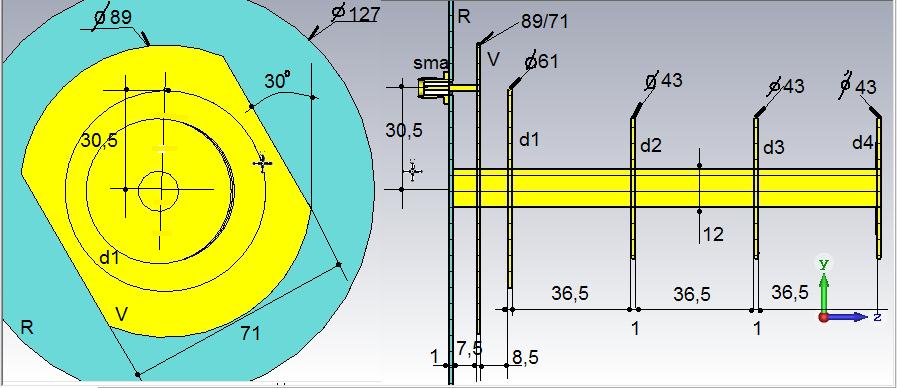

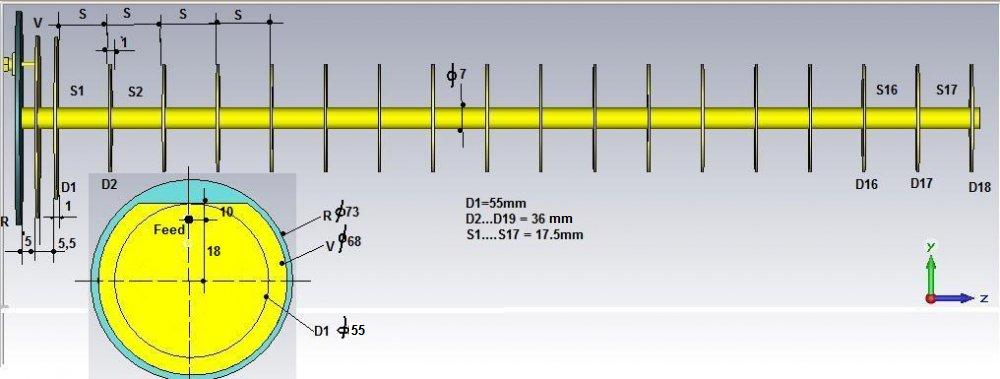

These are the dimensions for the 2.4GHz Bester antenna


1 person likes this

Share this post


Link to post
Share on other sites

Salem thanks for this 2.4ghz wifi antenna circuit i will make and then test

Share this post


Link to post
Share on other sites

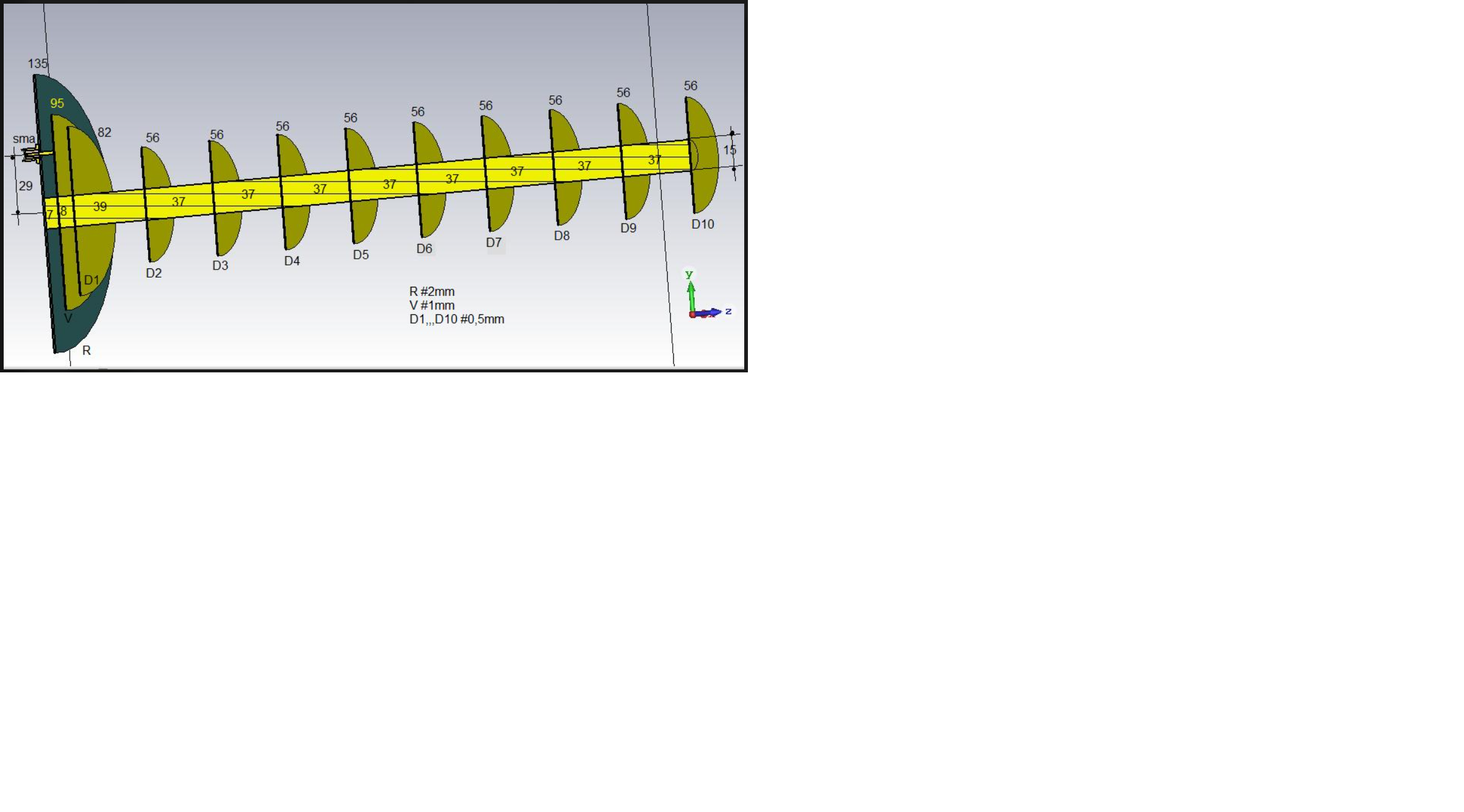

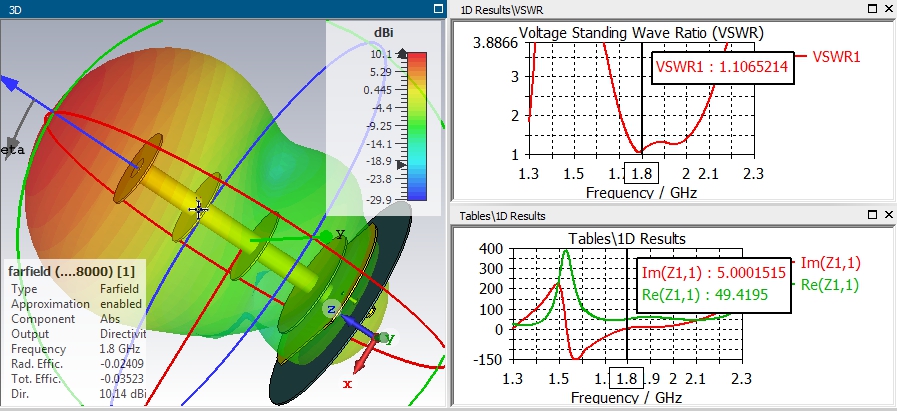

Salem, let me ask you this question about the design and modification of this 4G LTE 1800MHz antenna model, the diagram is attached, Question 1; do we have new model for 75 ohm coaxial cable

Yours sincerely

4G LTE 1800 Mhz.png

Share this post


Link to post
Share on other sites

 Samir, only English is spoken here ... !!!

,,,for 75 ohm cable the only difference is h1 and h2...!!!



Share this post


Link to post
Share on other sites

Admin, thanks for reminding me about using the English language on the forum. for the antenna, I will carry the corrections on my antenna at the level of the reflector and the vibrator Sincerely yours

Share this post


Link to post
Share on other sites
On 4/2/2022 at 5:27 AM, Admin said:

 Samir, only English is spoken here ... !!!

,,,for 75 ohm cable the only difference is h1 and h2...!!!



Hello Admin,

I would like use this antenna for 4G LTE (1800 Mhz) witha 75ohm cable. If I want to add the 2nd feed, should I put it at 120° as always?

Thank you

Share this post


Link to post
Share on other sites

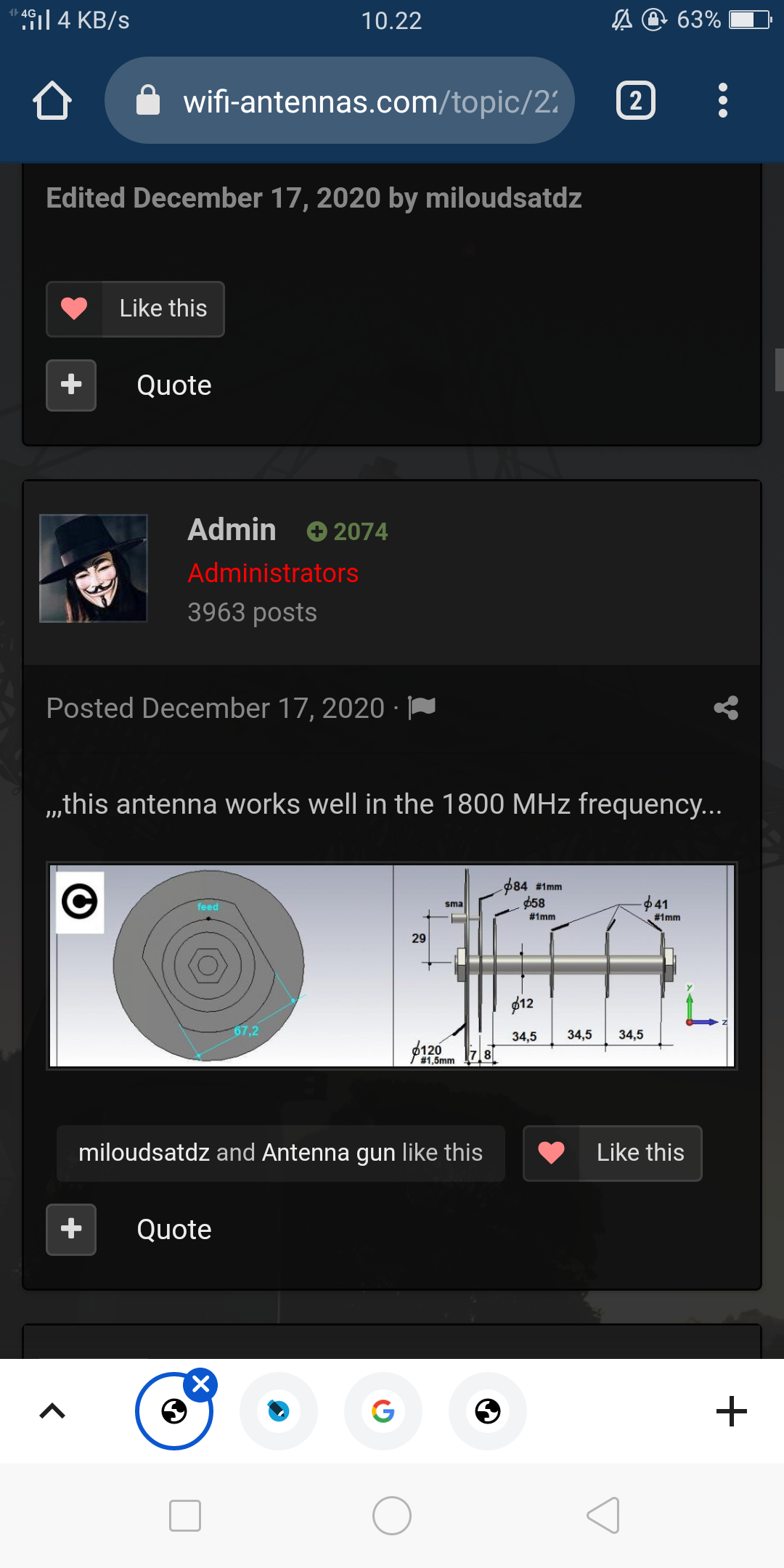

On 18/12/2020 at 8:01 AM, Admin said:

,,,miloudsatdz ,,, these are the optimal dimensions....



Hello Admin,

Can I use this antenna with a parabolic dish for 4G LTE (1800Mhz)? Is it the best solution or do you have other improvements?

Thank you

Share this post


Link to post
Share on other sites

Of course...!!!

1 person likes this

Share this post


Link to post
Share on other sites
1 minute ago, Admin said:

Of course...!!!

If I want put the 2nd feed. It should be placed at 120°. Correct?

Share this post


Link to post
Share on other sites

,,,yes...

Share this post


Link to post
Share on other sites

Can I get dual band antenna ...???


Share this post


Link to post
Share on other sites

,,, such as dual band,,,??, maybe, cross polarization...!!!

Share this post


Link to post
Share on other sites

hi admin can this use a 75 ohm cable or do you have to change the distance


Share this post


Link to post
Share on other sites

,,, for the impedance of 75 Ohm, the distance of 7 mm must be modified...!!!

1 person likes this

Share this post


Link to post
Share on other sites

I have 75 ohm material can you give a schematic? let's be clear thanks in advance.. healthy long life for admin

1 person likes this

Share this post


Link to post
Share on other sites

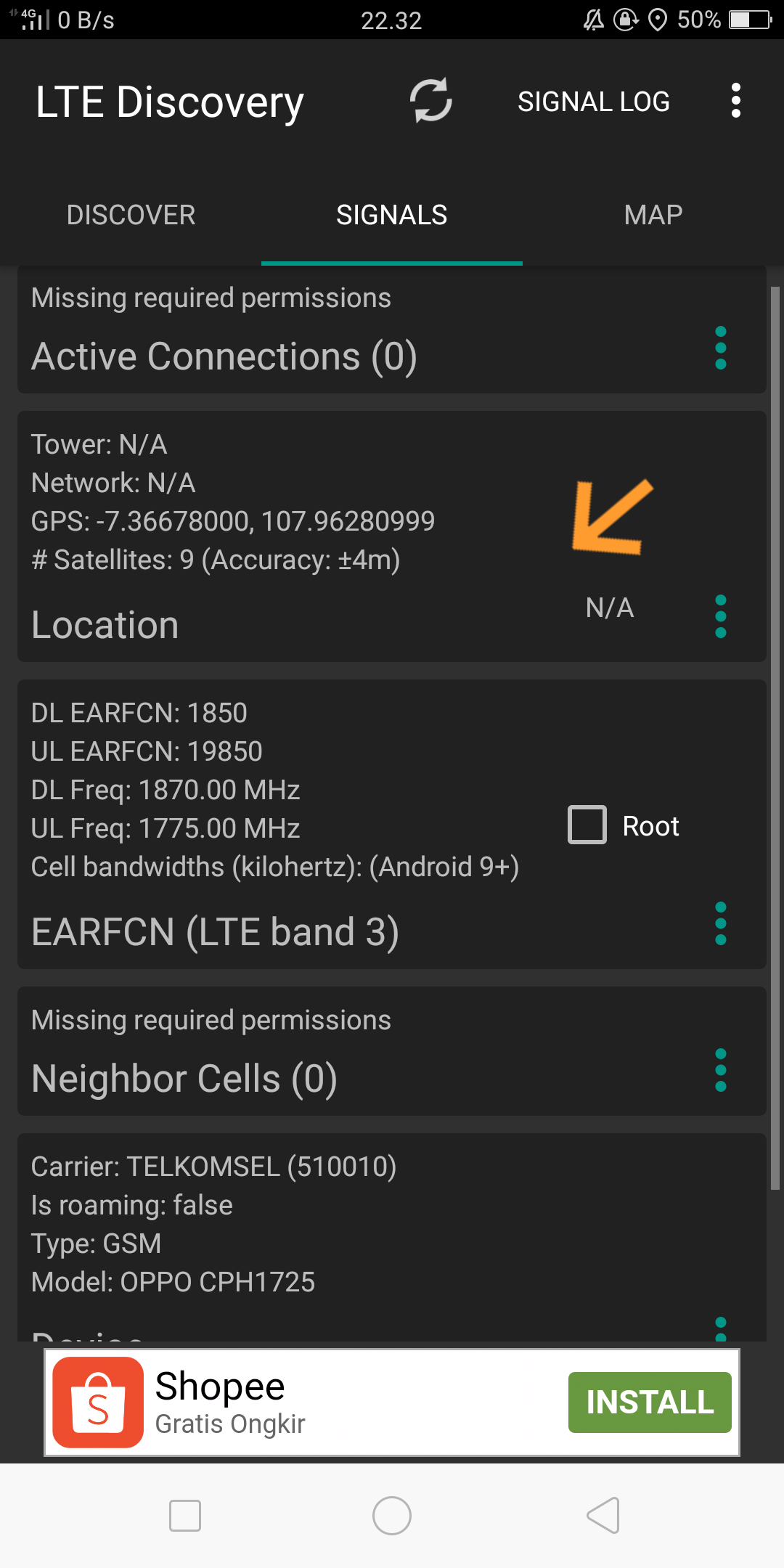

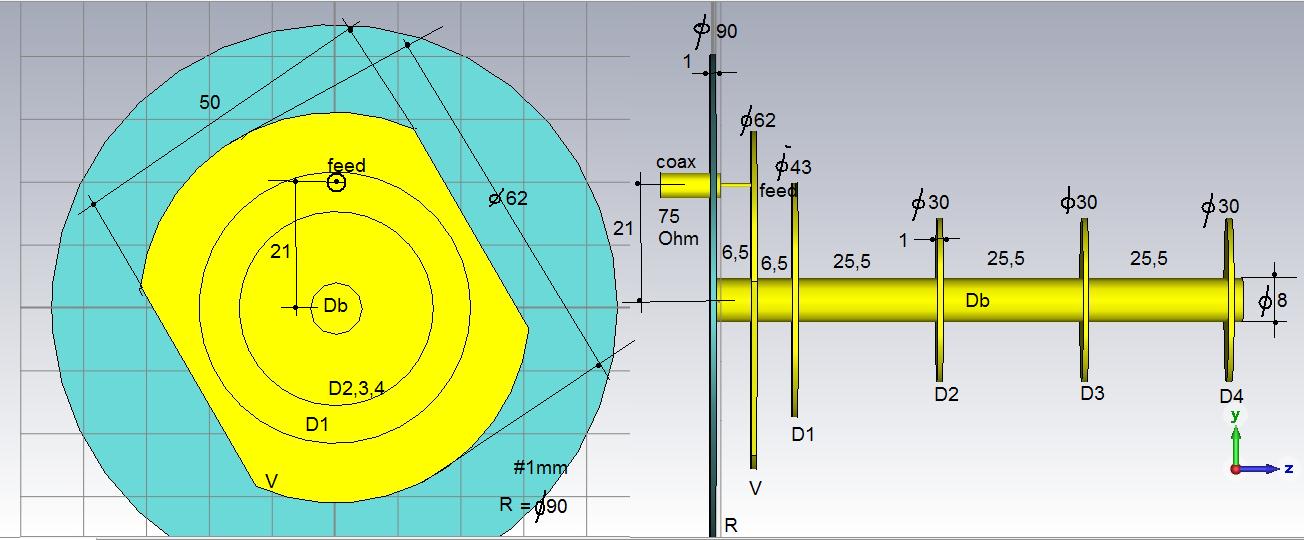

,,,okay, I will try...for the frequency of 1800 MHz...??/

Share this post


Link to post
Share on other sites

Dedewe,how would that be...



1 person likes this

Share this post


Link to post
Share on other sites

and I will try to apply it in the real world thank you admin and God who will repay your kindness

Share this post


Link to post
Share on other sites

How about mimo system. The. Decoupling. Of. 2 ports 120 degree.  Is it. Good. ?  I want   to  see the s1s2. !!? Thanks by advance jomy

Share this post


Link to post
Share on other sites

,,,it is possible, but the isolation between the ports is not good..!!

Share this post


Link to post
Share on other sites
On 12/18/2020 at 10:31 AM, Admin said:

,,,miloudsatdz ,,, these are the optimal dimensions....



Can I build this antenna with galvanized steel sheet? Does it work or it Must  be double sided pcb?

Edited by Noob anten
