MikroTik QRT 5 antenna

31 posts in this topic
On 11/22/2020 at 0:06 AM, Admin said:

Clanon, this antenna is very difficult to build ... !!
,,,try to post something simpler...DIY...!!!

hahha lol

1 person likes this

Share this post


Link to post
Share on other sites

yes it is very hard and wouldnt wastimg my time with such design



Share this post


Link to post
Share on other sites

but it would be really nice to see how it performs on the simulations...;)

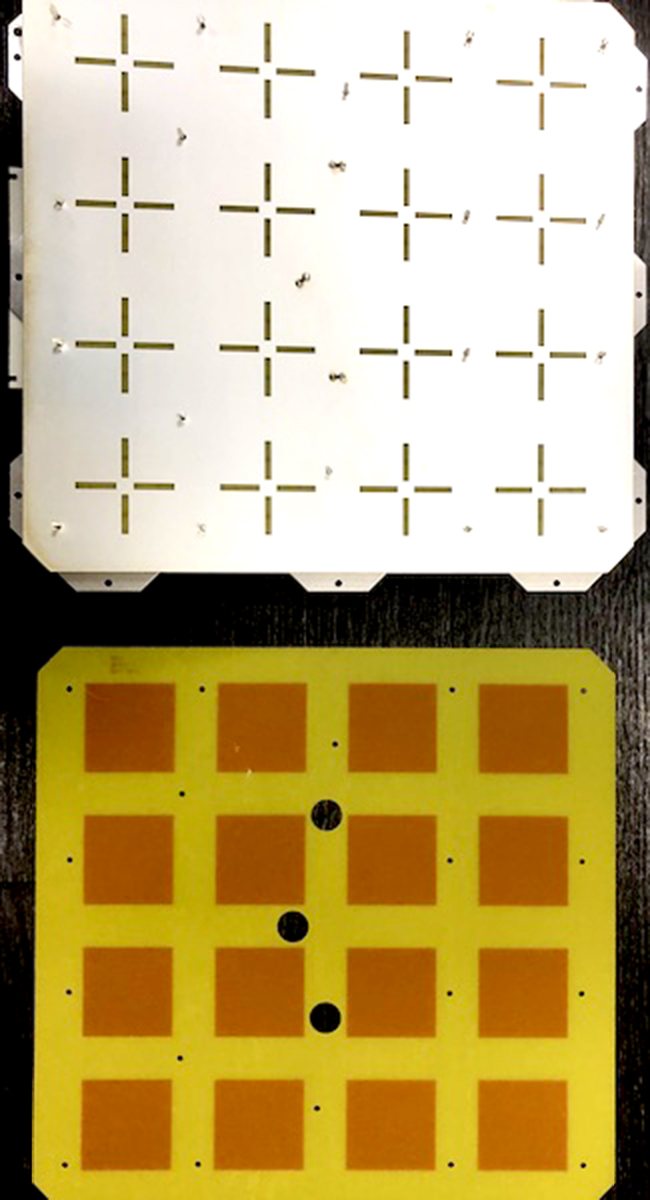

24dbi for 64 dipoles is NOT that good...(lots of losses apparently)

Share this post


Link to post
Share on other sites

Posted (edited)

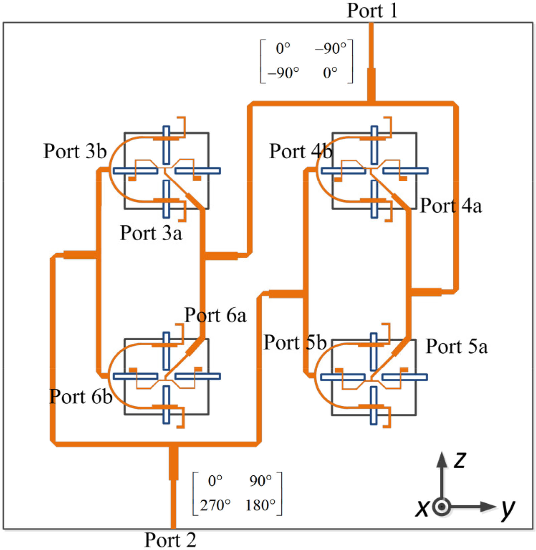

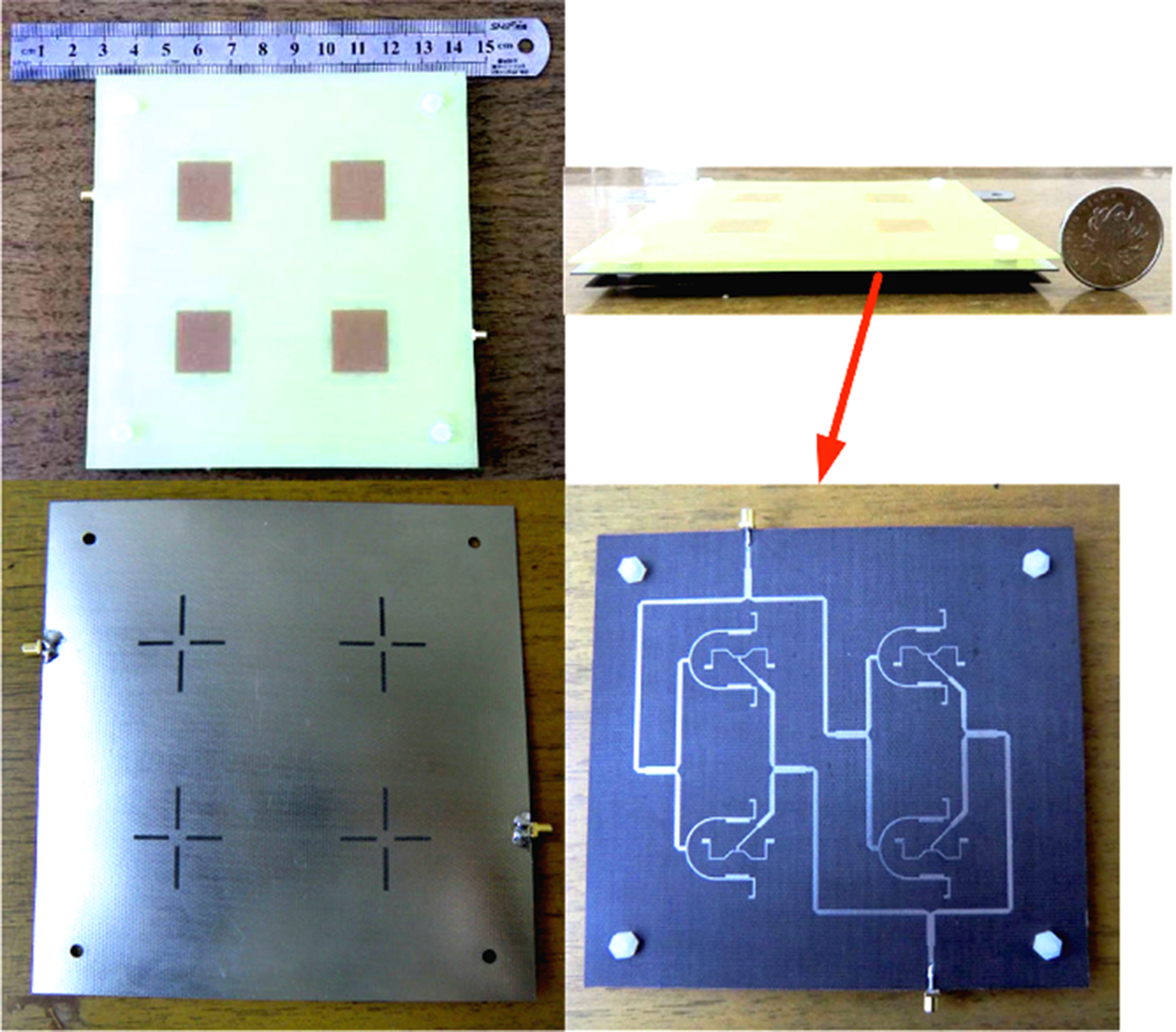

Original design from which this antenna was "borrowed"..."stolen"... Expanded to 24 db by MikroTik

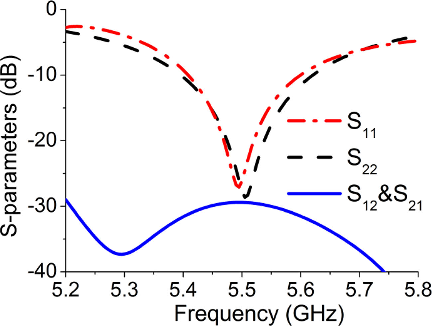

nice port separation , tho...





Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

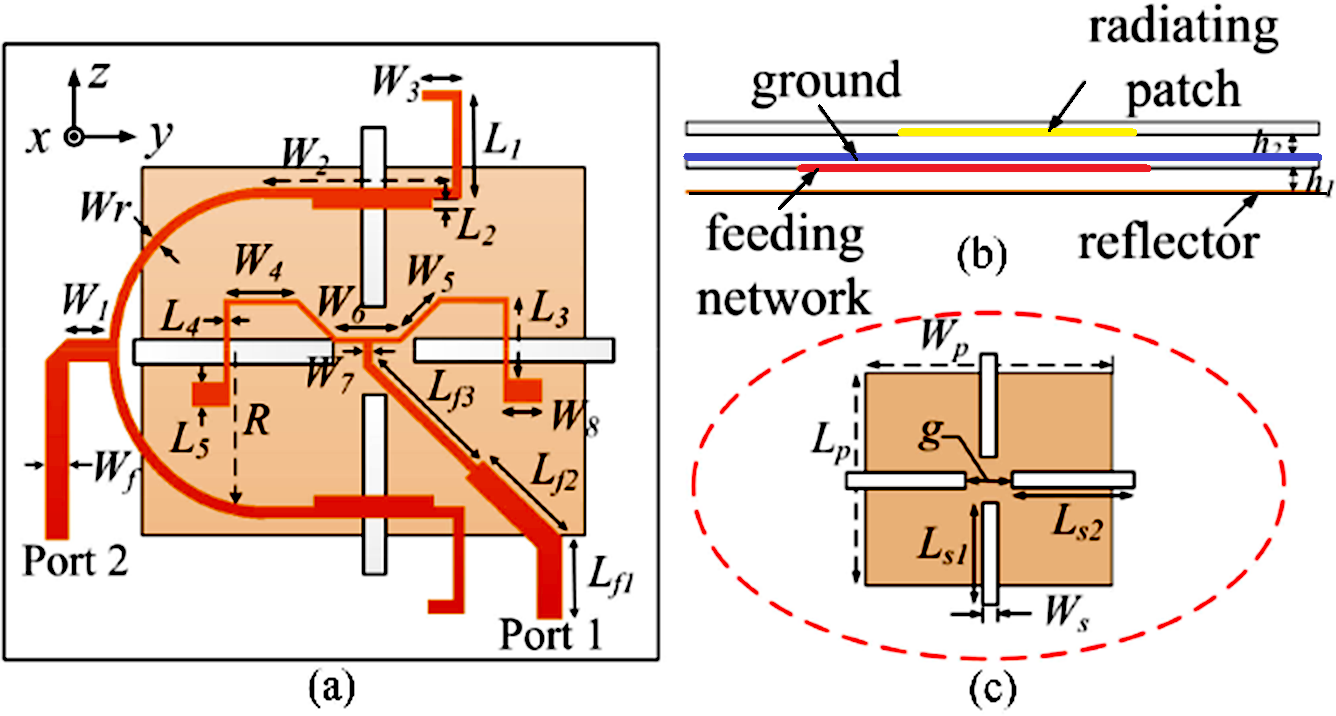

,,, and dimensions ... ??

1 person likes this

Share this post


Link to post
Share on other sites

The original PAPER is on IEEE ( paid log in )

ALL QRTs MiMo seems to use it...

trying to simulate it...so far no luck (i think it's PTFE the substrate...but NO DIMENSIONS ...yet
