Directional antenna 2.4 Ghz band of the FA20

33 posts in this topic

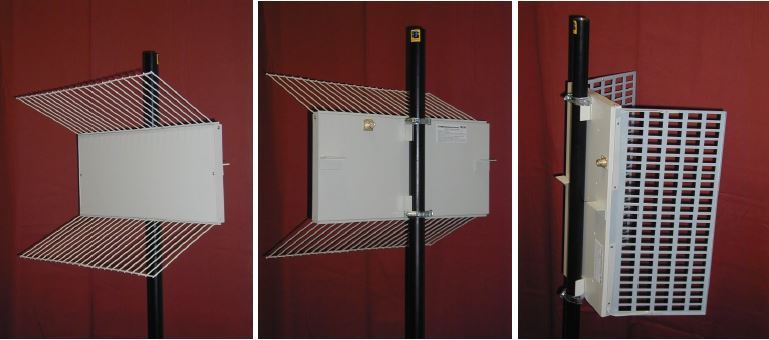

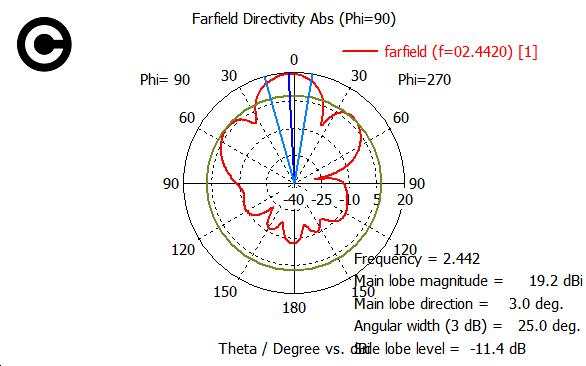

I have tried many times to make a simulation at this antenna but I was never satisfied with its results.










So I made a change to it, and I got some good results, especially with regard to the frequency bandwidth

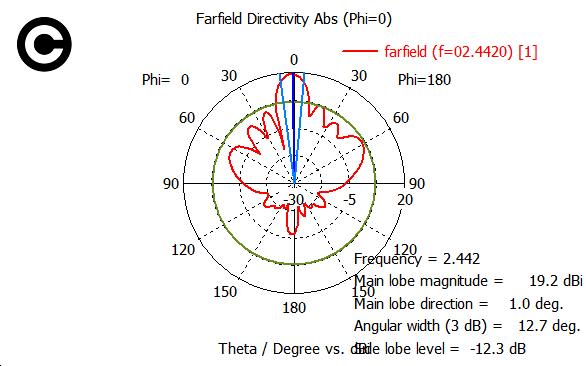

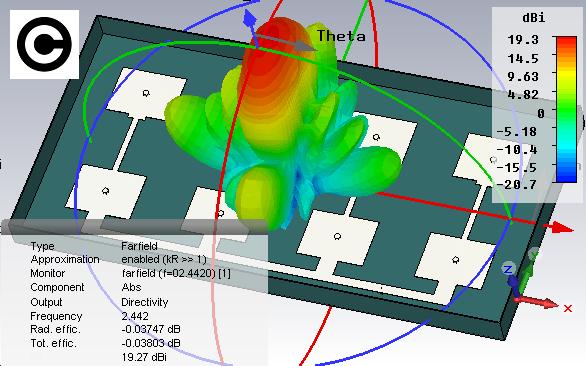

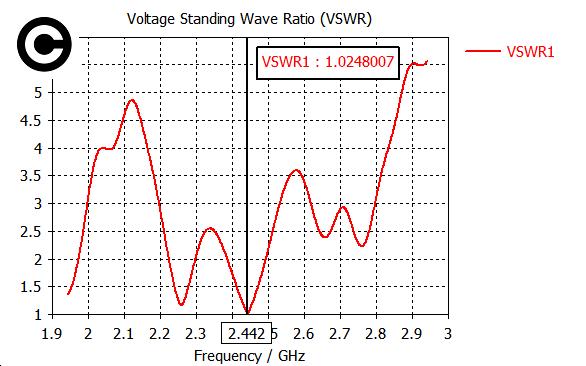

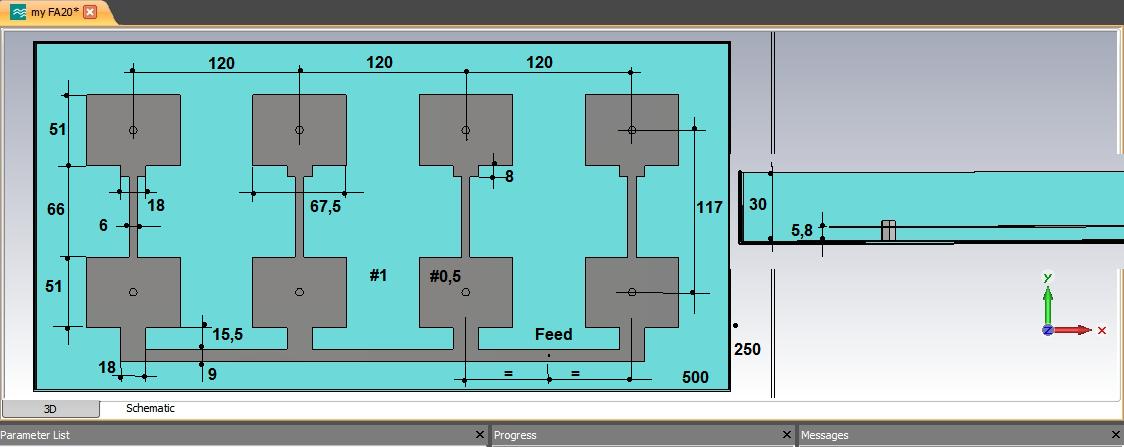

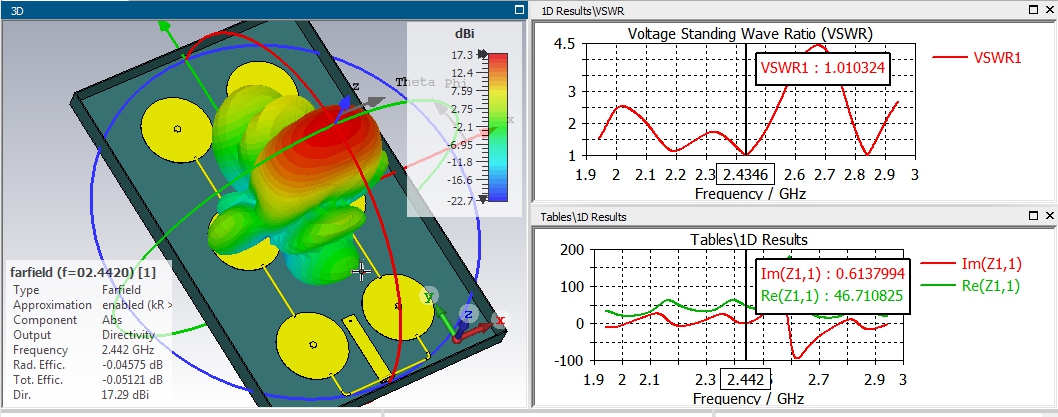

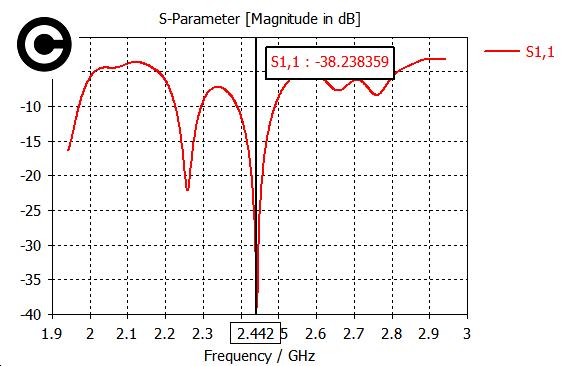

my FA20_06.jpg

my FA20_05.jpg

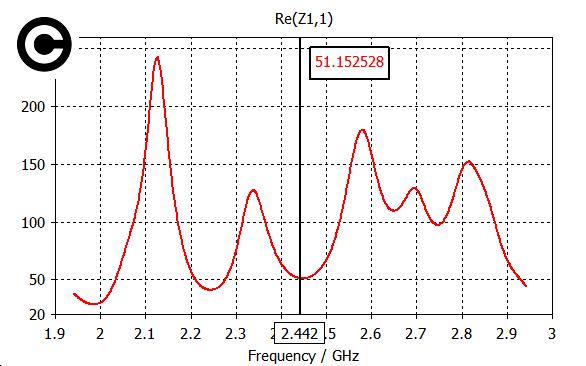

my FA20_04.jpg

my FA20_03.jpg

my FA20_02.jpg

my FA20_01.jpg




Share this post


Link to post
Share on other sites

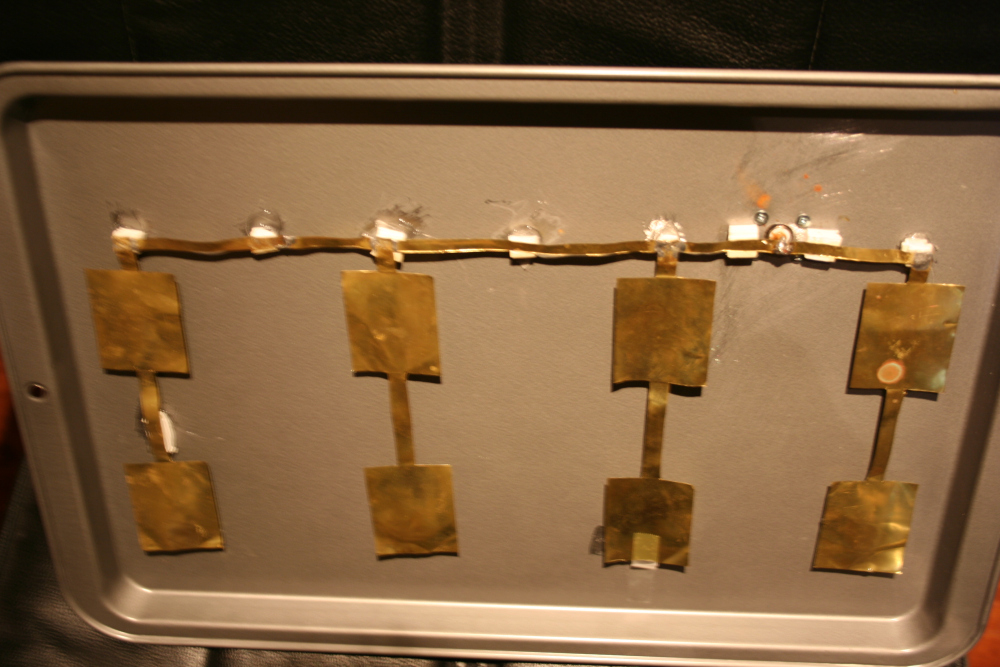

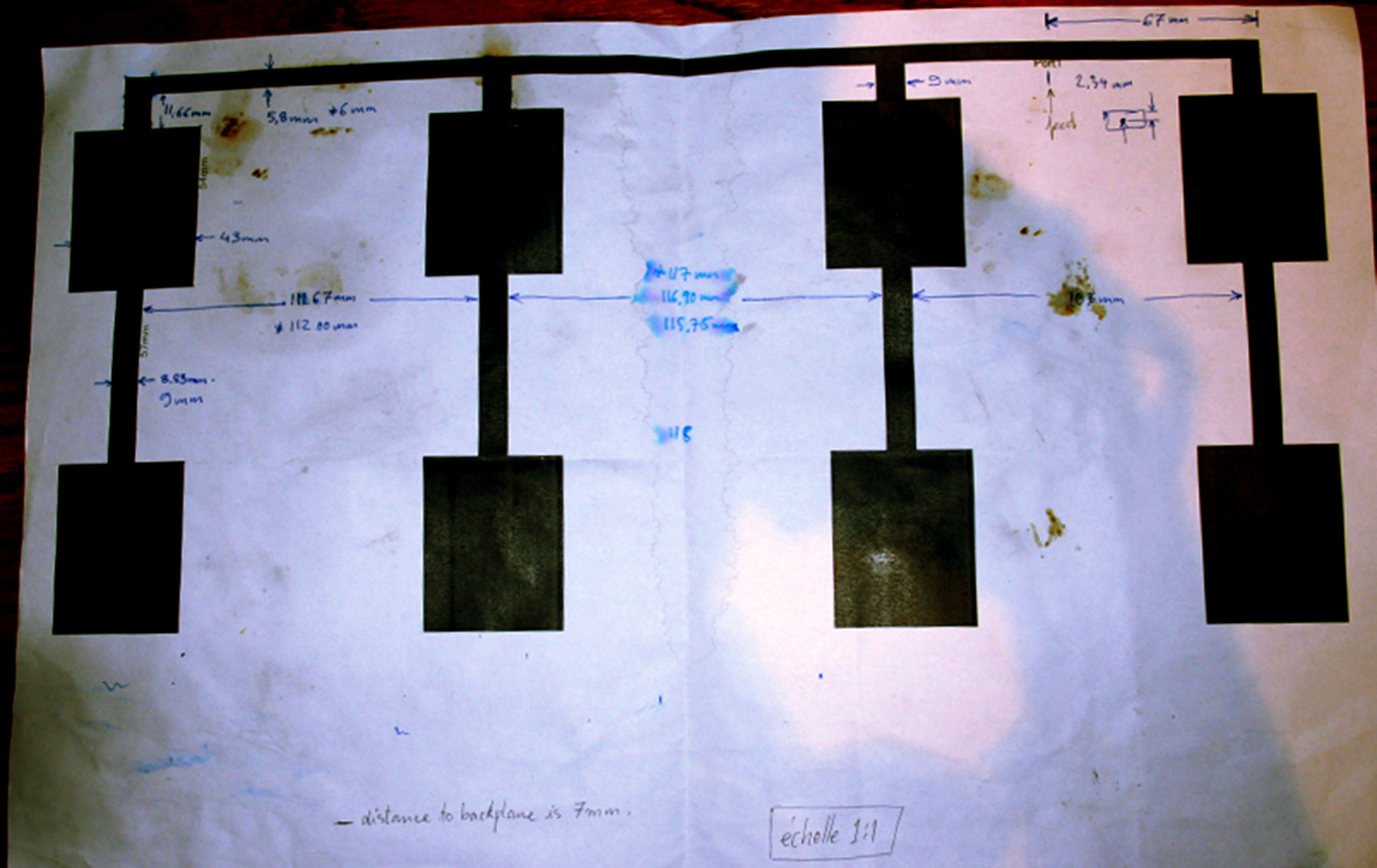

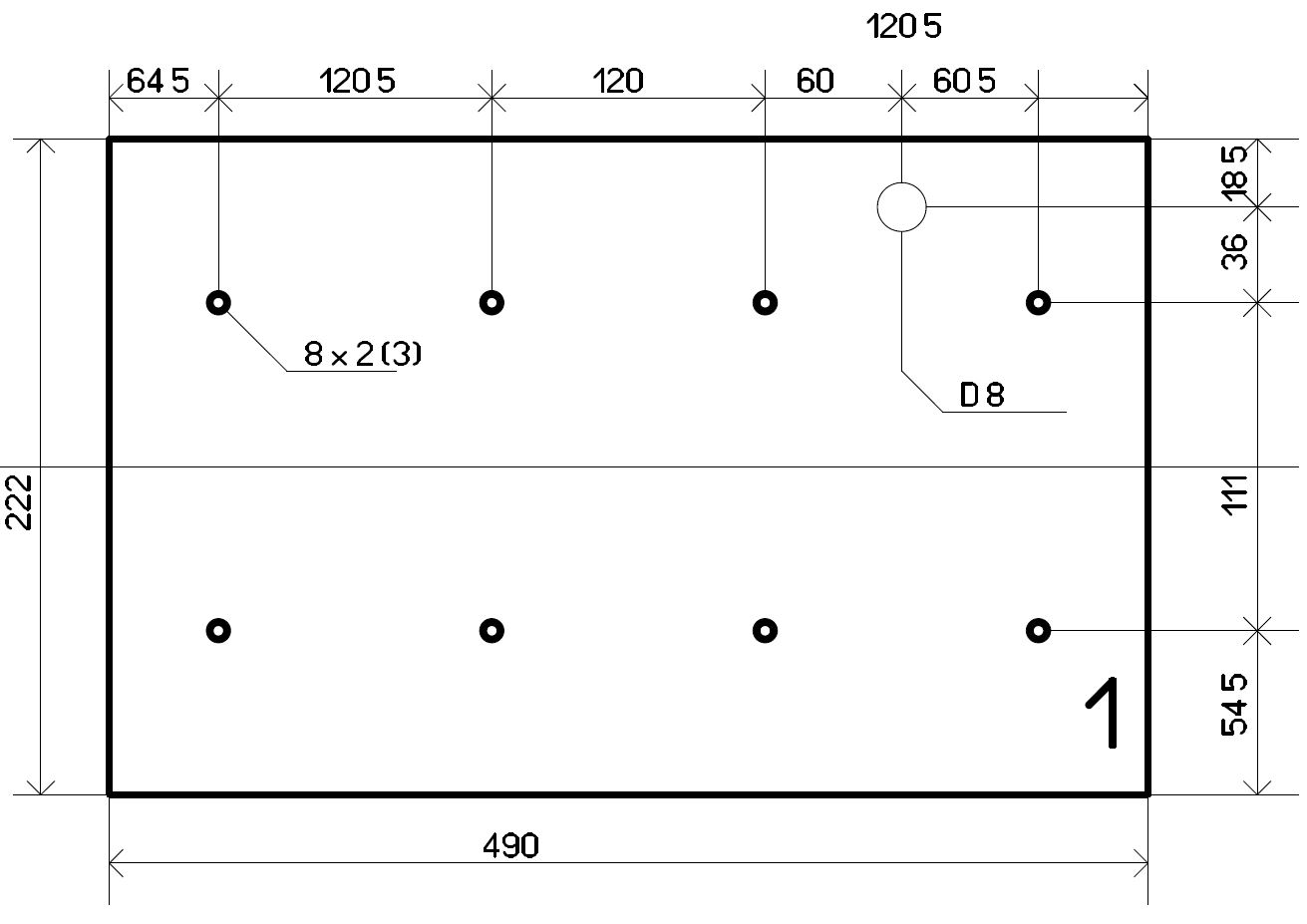

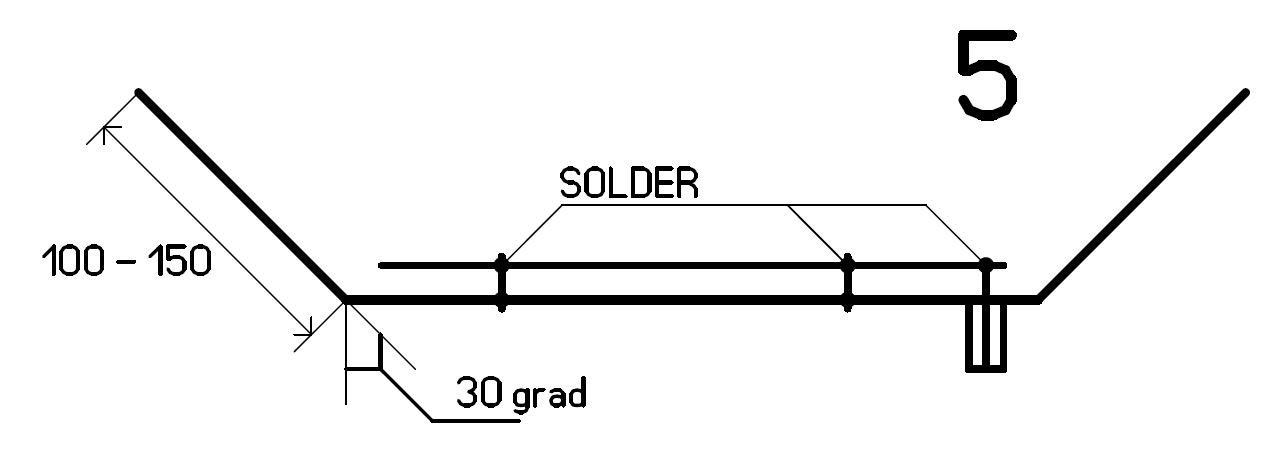

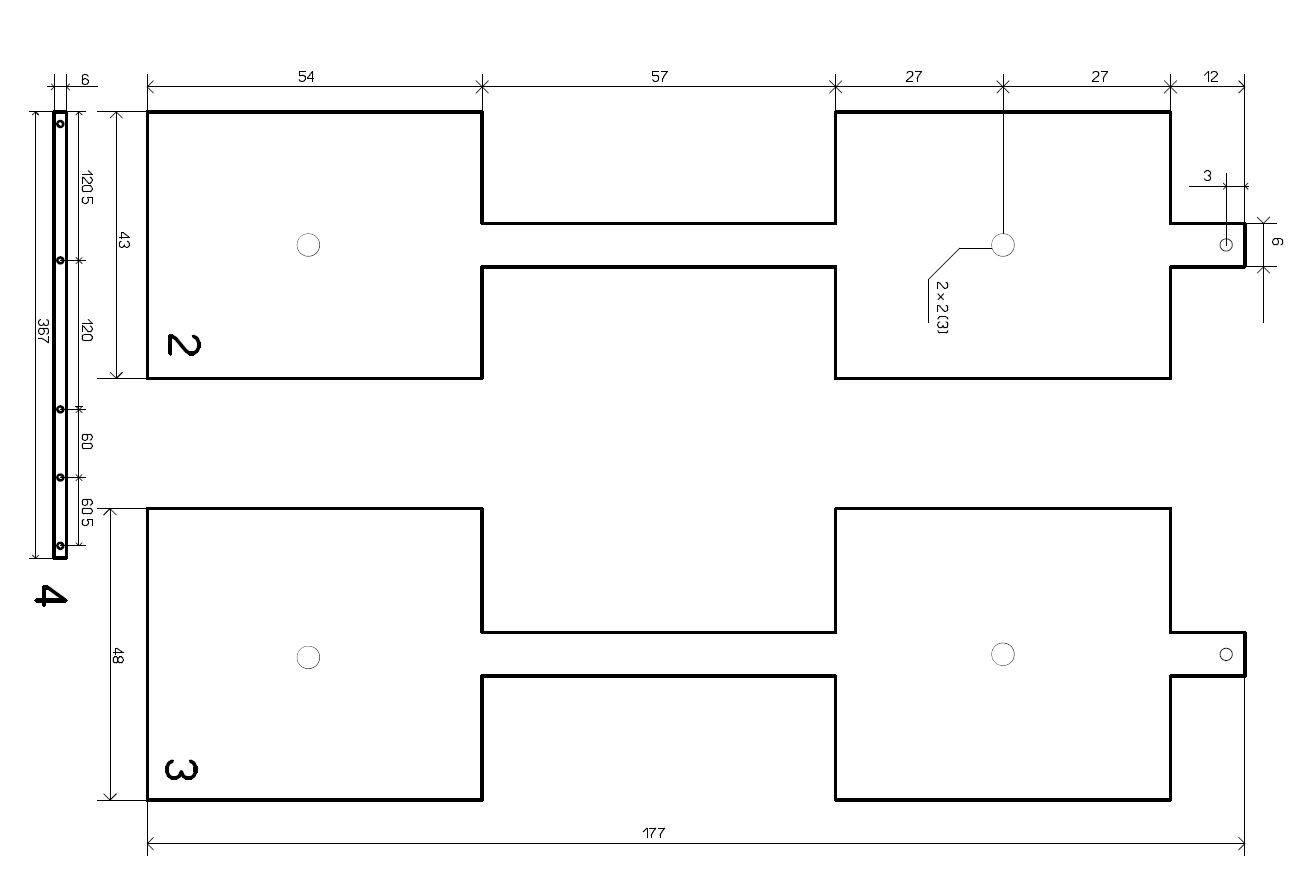

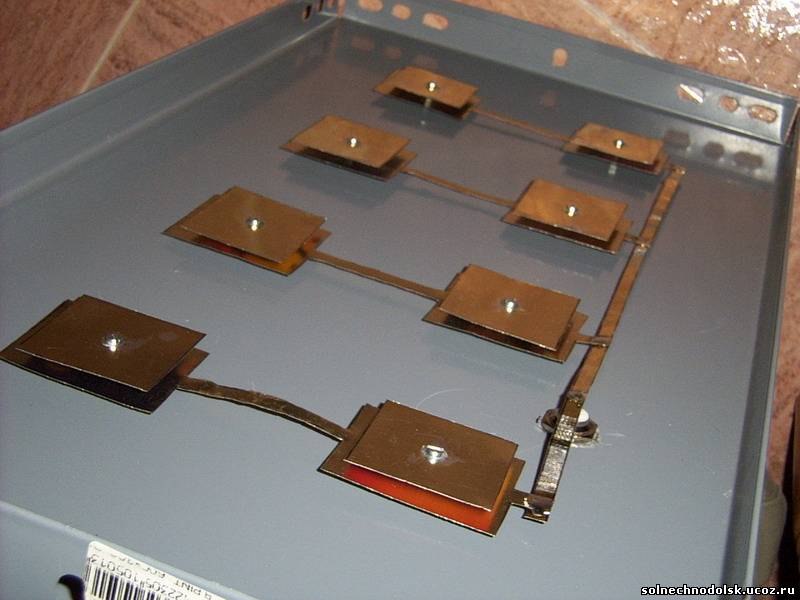

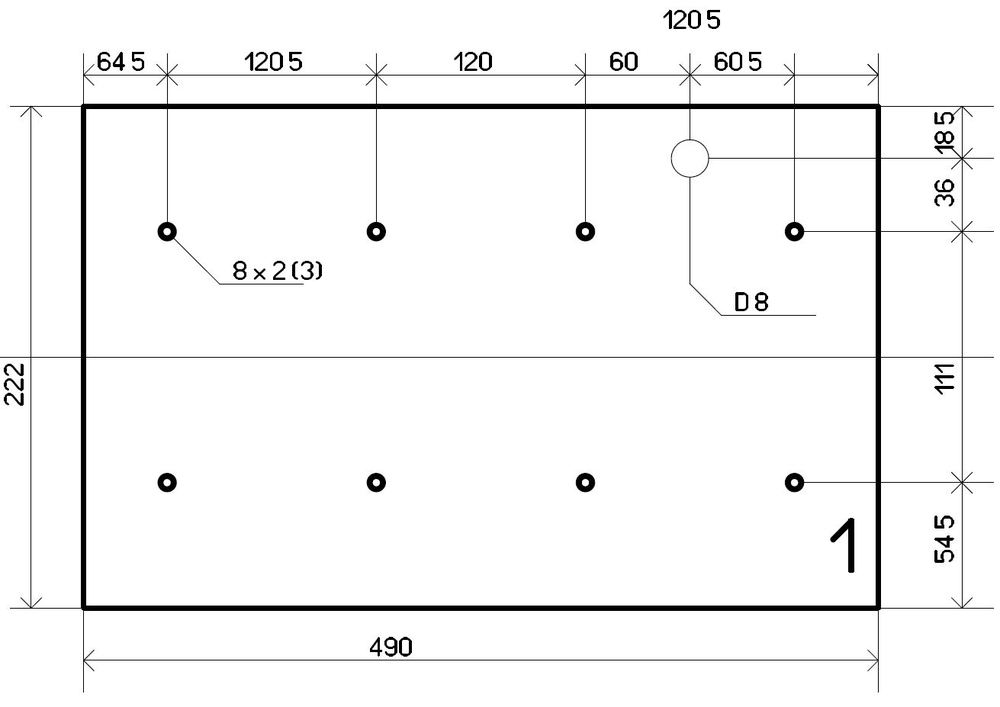

,,,otherwise constructive solutions...

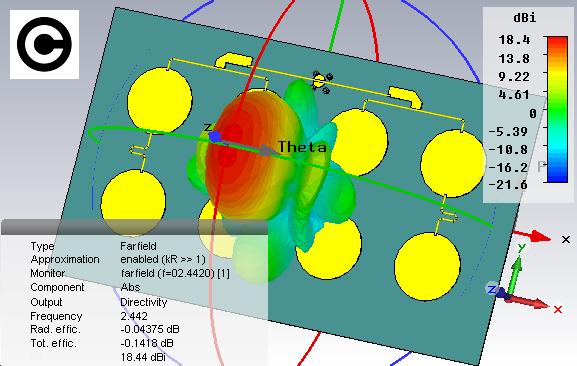

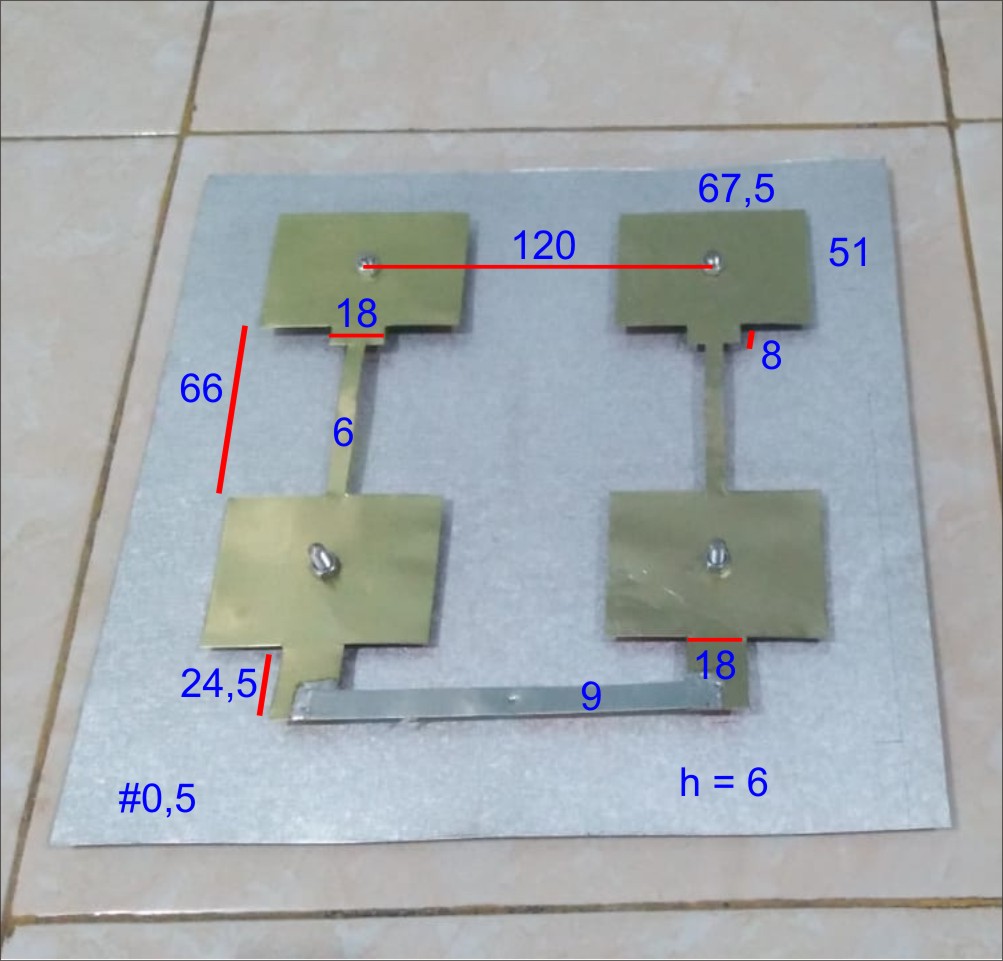

ALEX FA20_01.jpg

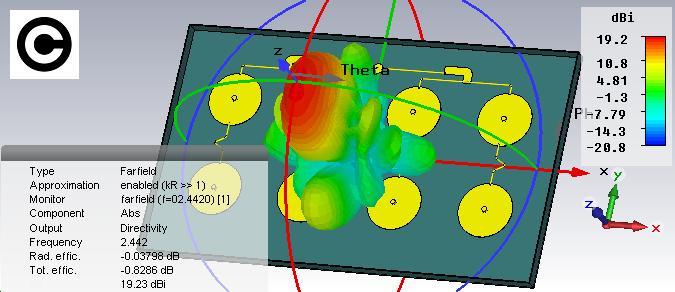

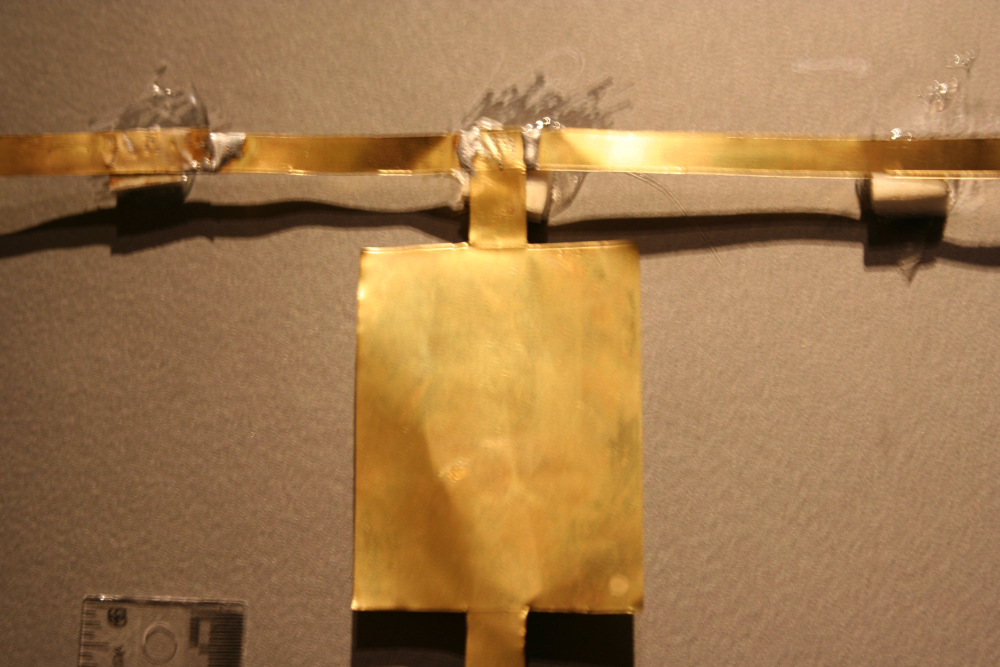

,,, with round patches and box reflector...

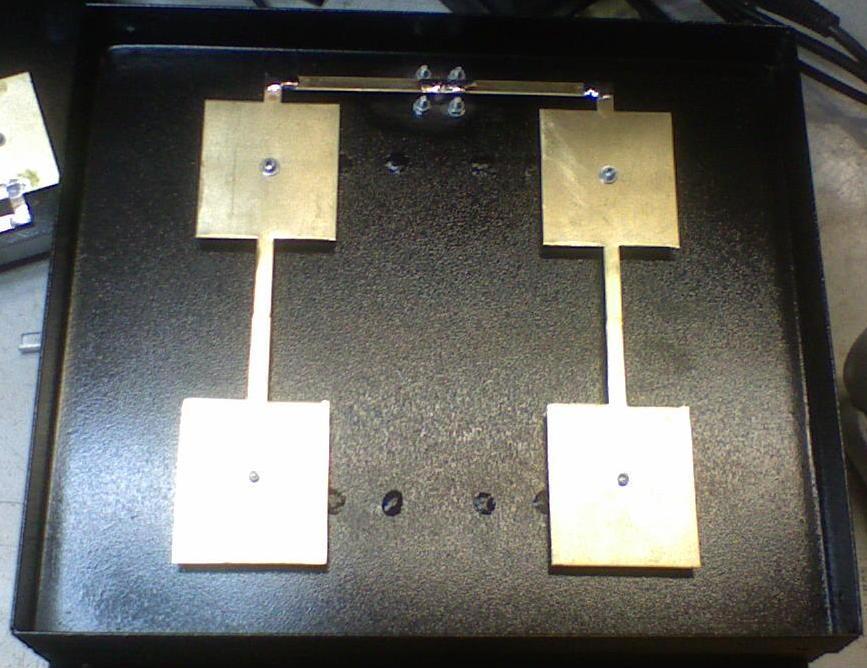

,,, with rectangular patches and box reflector...

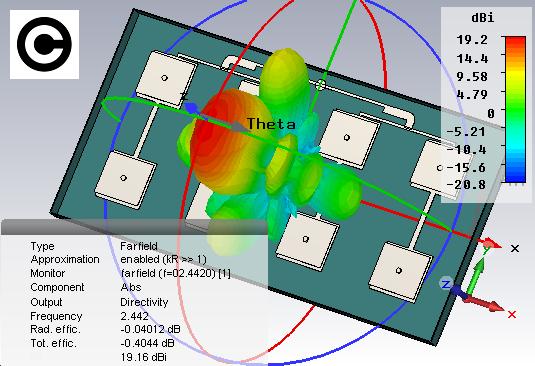

uwb fa20_01.jpg

1 person likes this

Share this post


Link to post
Share on other sites

Bejo, yes I know it....!!!

But can you still show where you found that...???!!!

Share this post


Link to post
Share on other sites

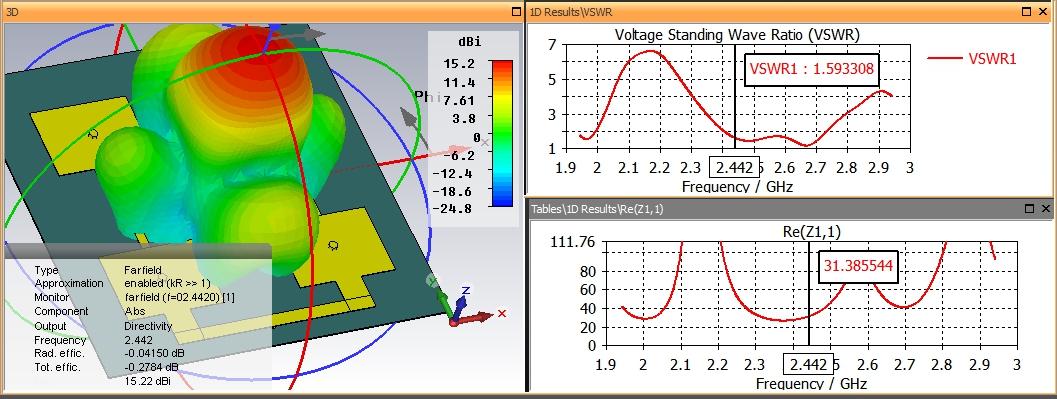

i know...my setting for the solver and or mi discrete port location must be REALLY OFF...



(closer to 0 db...i know)



Share this post


Link to post
Share on other sites

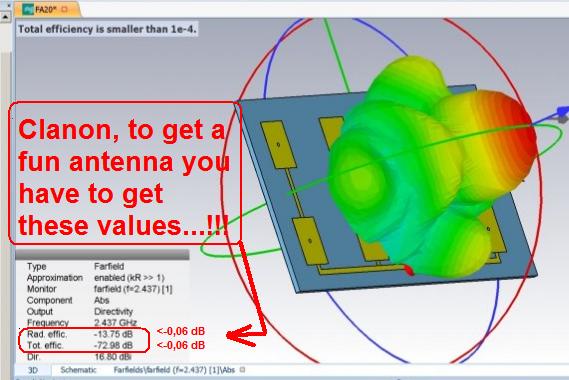

,,, and that's what you think... ???




2 people like this

Share this post


Link to post
Share on other sites

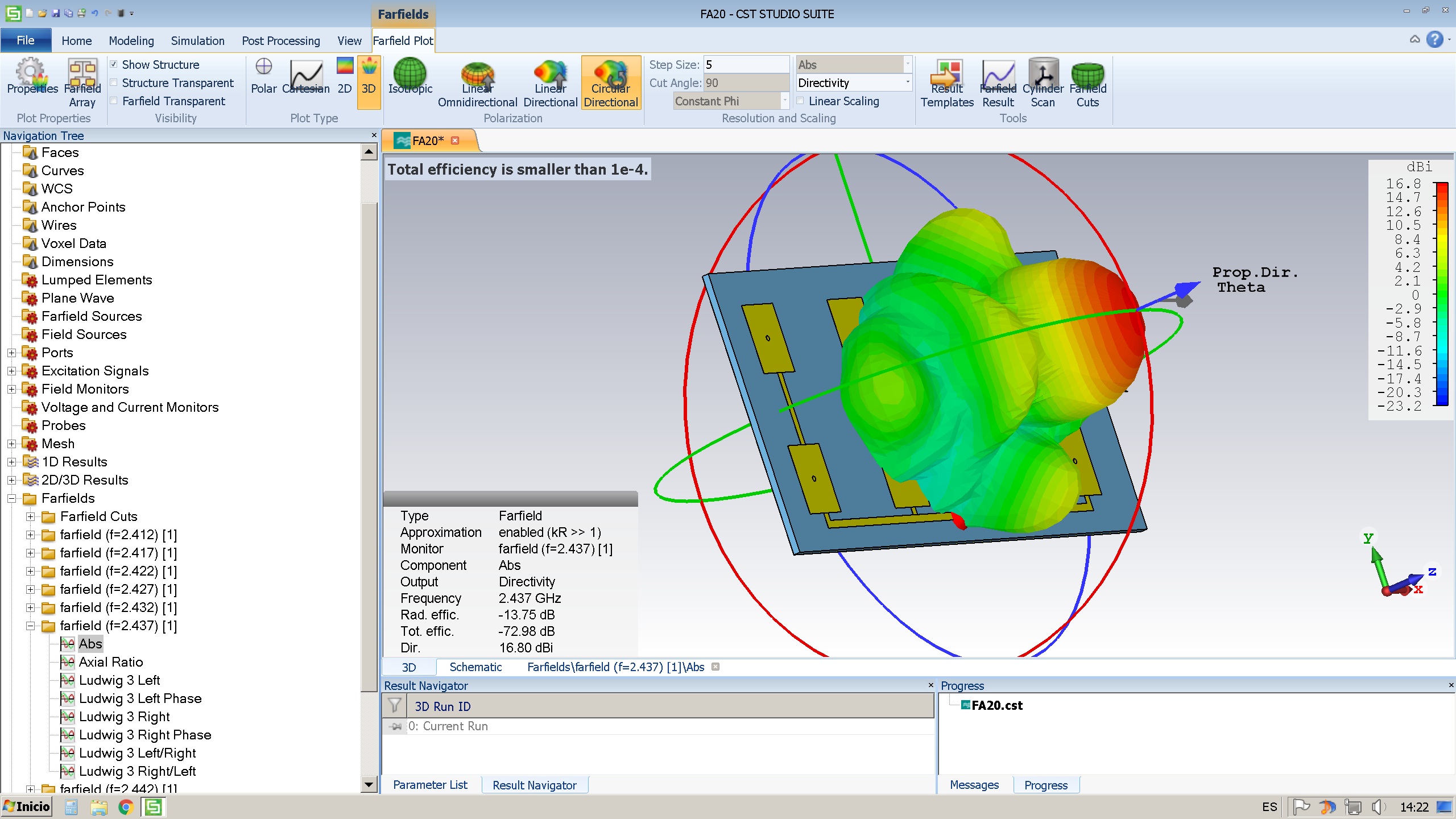

,,,good, these are the results of your antenna...


1 person likes this

Share this post


Link to post
Share on other sites

Ziroc I can only say again that you are really talented and that looks so cool. If I could do something which was half as good I would be so happy.

Share this post


Link to post
Share on other sites

jomy It's possible to add  add  rectangular directors to the half  Fa 20 get more gain close to the FA20  at least get smaller antenna ?

Share this post


Link to post
Share on other sites

Lan23 guys  tried that...(i did )

Fa20 Patches doesn't like DIRECTORS...reactivity and diagram goes "ape shit crazy"

this is the best i could do...16 dbi on 6 or 8 patches (20 cm by 18)

quarter FA20

1 person likes this

Share this post


Link to post
Share on other sites
18 hours ago, Hamza said:

jomy It's possible to add  add  rectangular directors to the half  Fa 20 get more gain close to the FA20  at least get smaller antenna ?

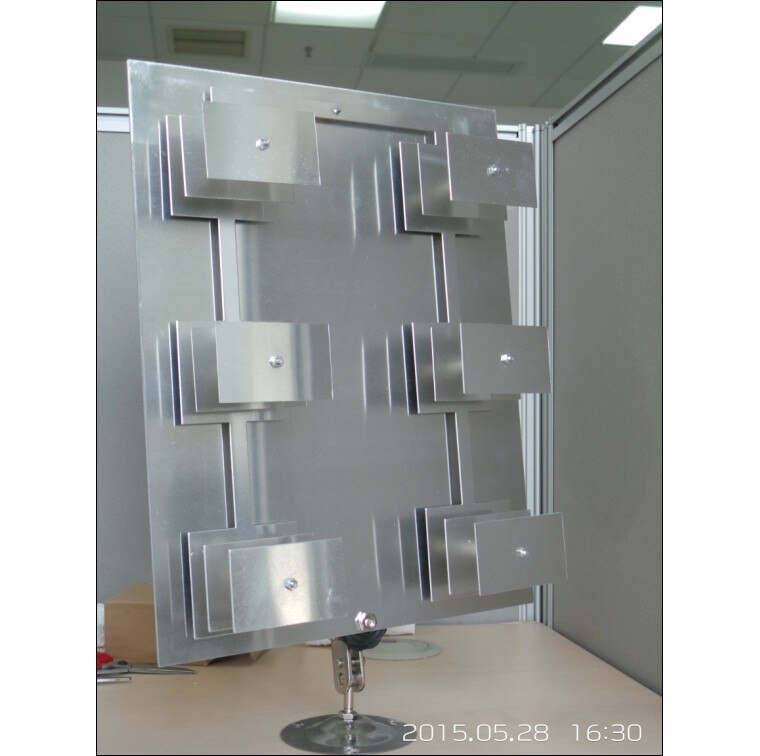

I think,only like this...

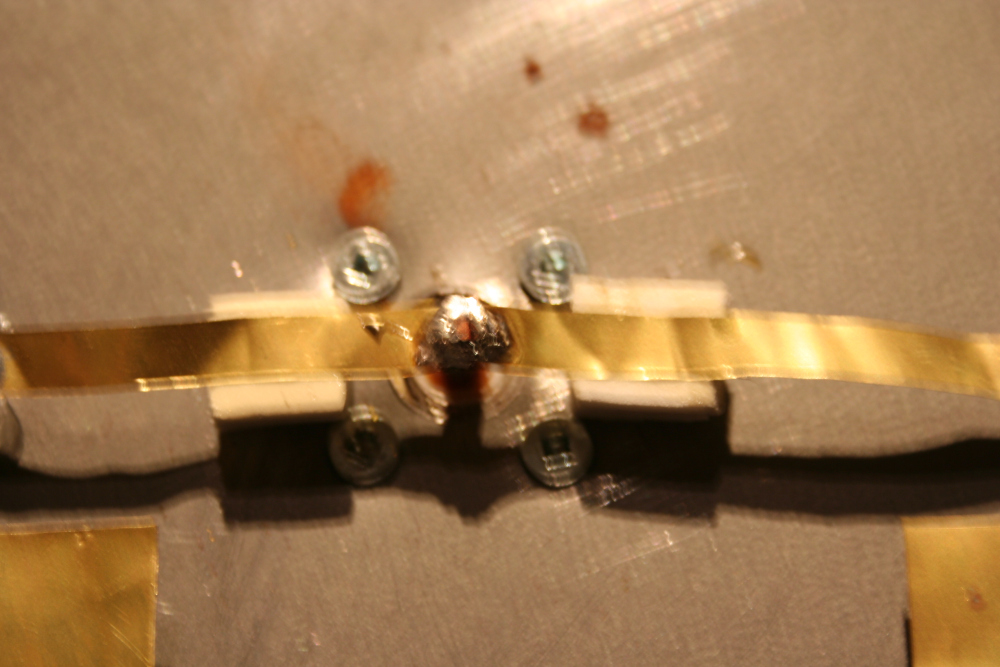

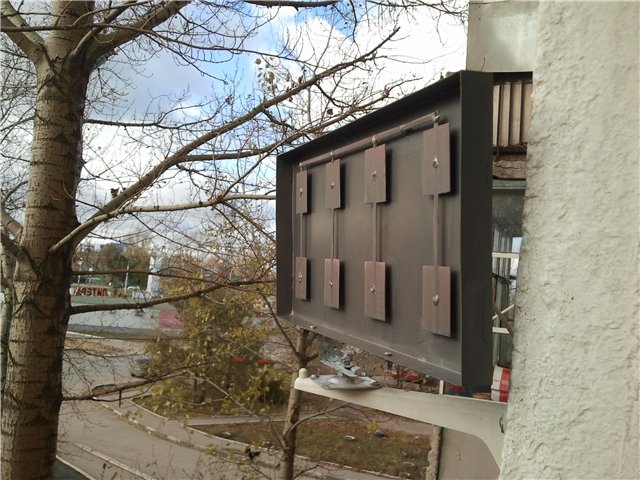

,,, here on the forum, I have such an antenna...!!!



1 person likes this

Share this post


Link to post
Share on other sites

Alot of loss ! It's just 17.5 DBI I think 3/4 Fa 20  it's better but I don't have the right dimensions of it

Share this post


Link to post
Share on other sites

which one the 8 patches (16db without flaps) or the 6 patches , you need...?

Share this post


Link to post
Share on other sites
On 26/12/2020 at 3:20 PM, clanon said:

which one the 8 patches (16db without flaps) or the 6 patches , you need...?

I would like to try the both (6 and 8 patches) thanks by advance clanon

Share this post


Link to post
Share on other sites
2 hours ago, Hamza said:

 Can FA 16 reach 17:DBI ?

nope , you need at least 6 patches and flaps...for that



1 person likes this

Share this post


Link to post
Share on other sites
