clanon

3/4 FA20

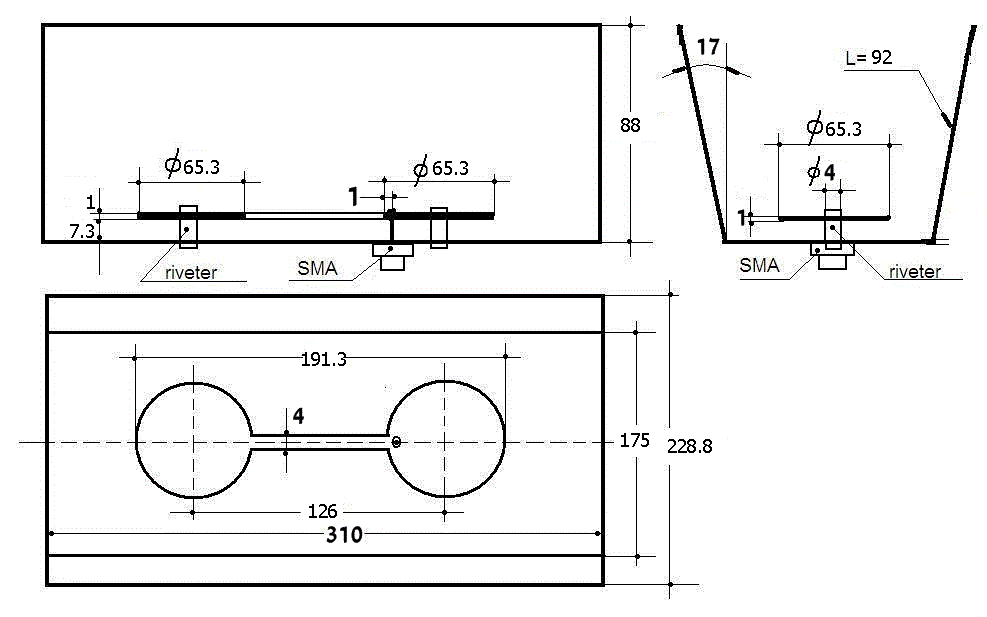

Trying to get more gain on small and easy footprint size, with FA20 patches as reference.

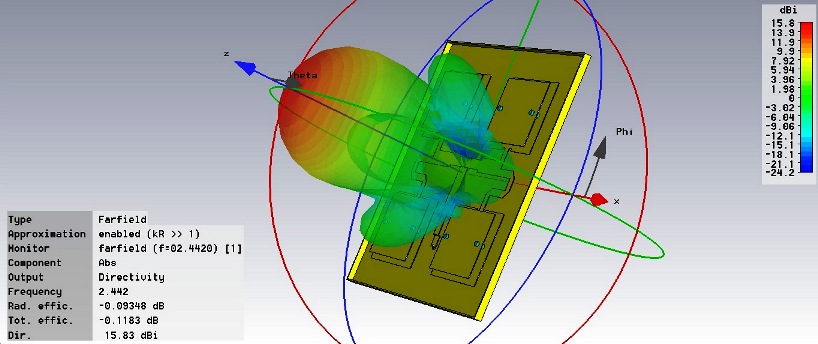

3 4 fa20.JPG

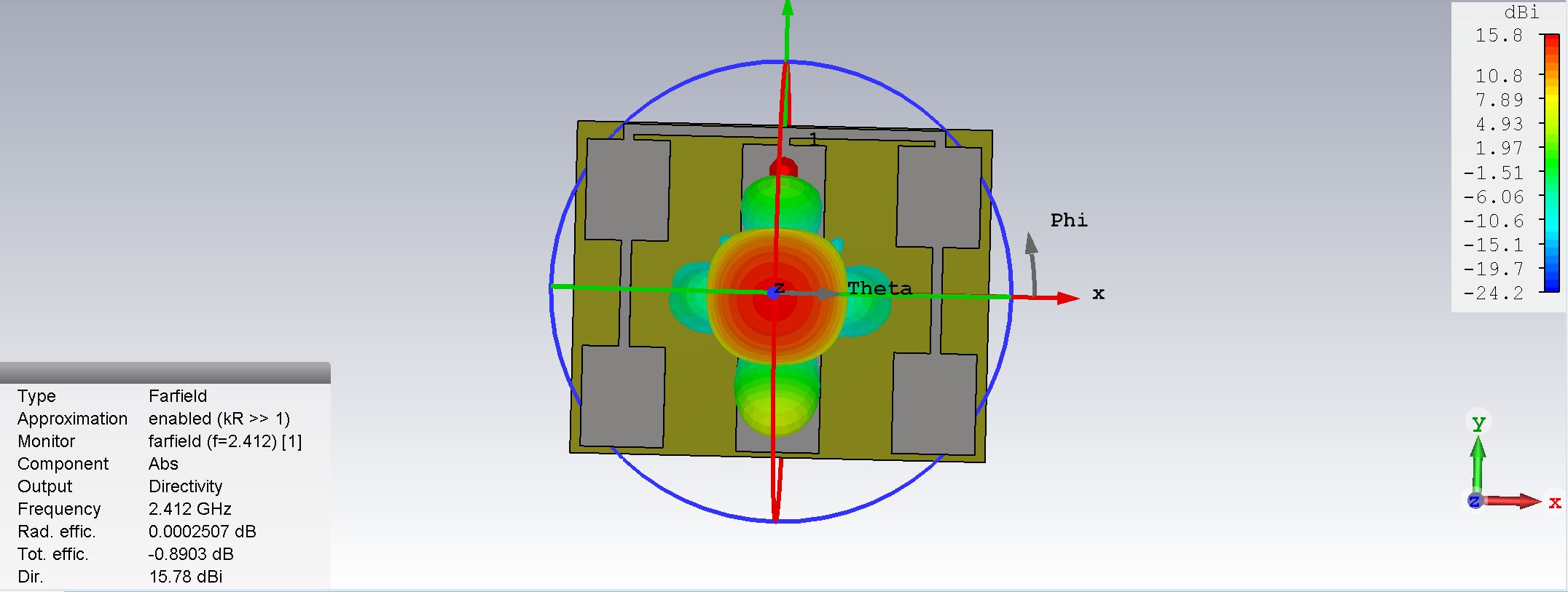

34 FA20.JPG



Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

When a transmission line is terminated with impedance, ZL that is not equal to the characteristic impedance of the transmission line, ZO, not all of the incident power is absorbed by the termination.  Some of the power is reflected back to the source so that phase addition and subtraction of the incident waves creates a voltage standing wave pattern on the transmission line. The ratio of the maximum to minimum voltage where the successive maxima and minima are spaced by 180˚ (λ/2) is known as the voltage standing wave ratio (VSWR).

Share this post


Link to post
Share on other sites

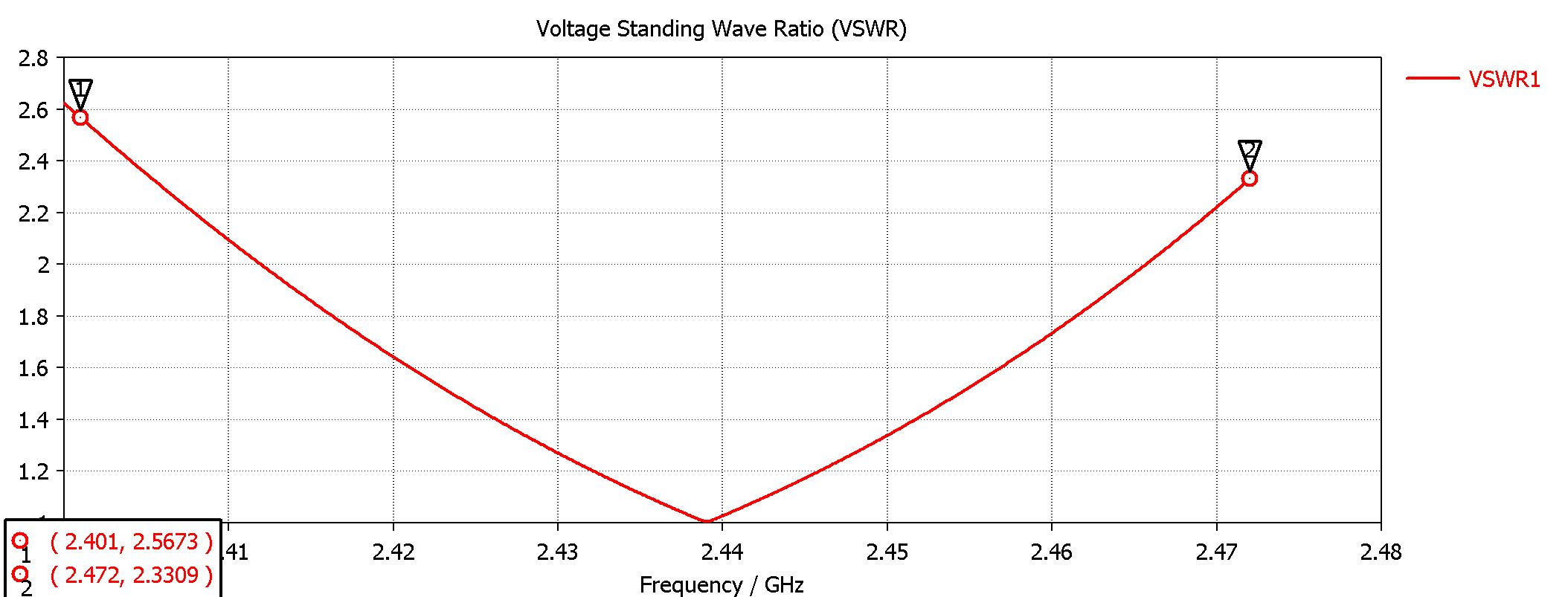

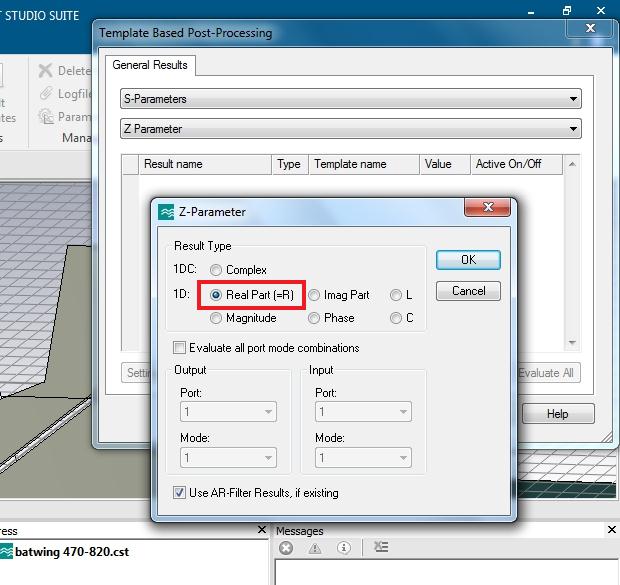

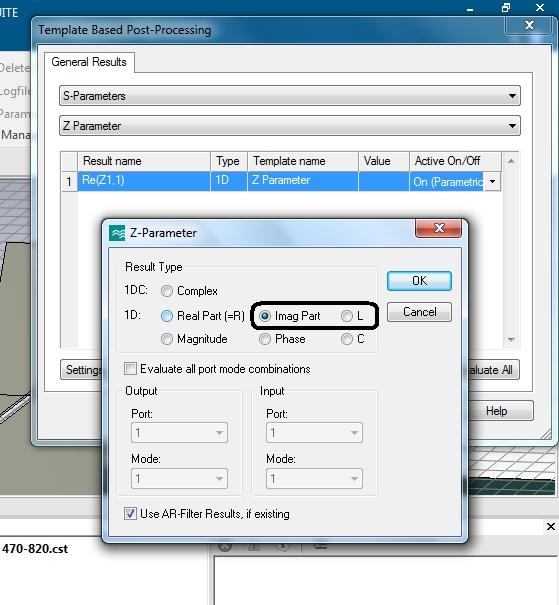

Yea...i've known what VSWR...from the ...ARRL BOOKs ...back in the 90's ... is...but i think the antenna is too capacitive...WHERE can i see the REACTIVE Z...? and find out

Share this post


Link to post
Share on other sites




,,, if you do not understand something, ask me ... !!!!

1 person likes this

Share this post


Link to post
Share on other sites

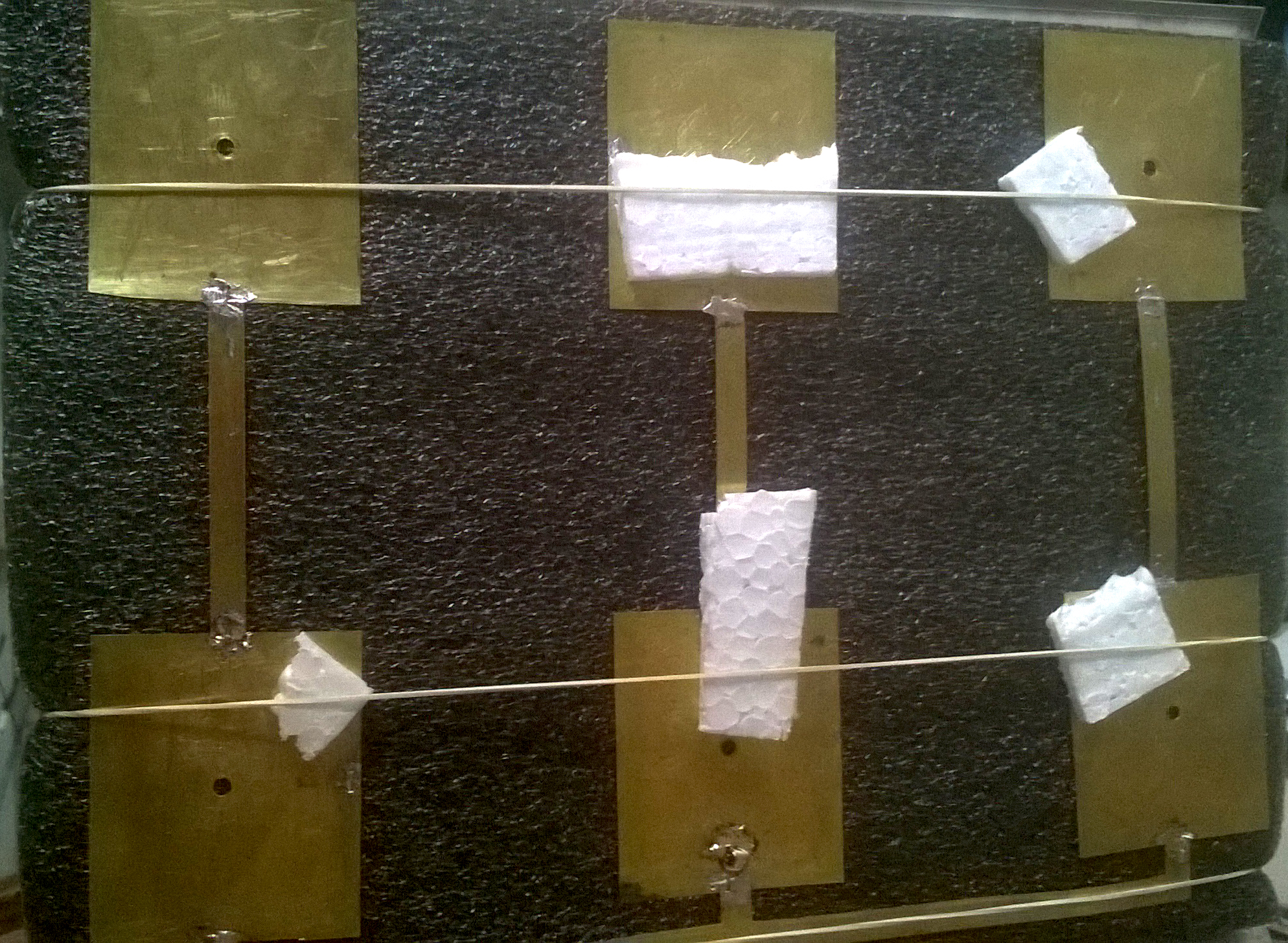

using 3mm Polystyrene foam (1.2) , and a capacitive disc to neutralize the antenna being too INDUCTIVE...

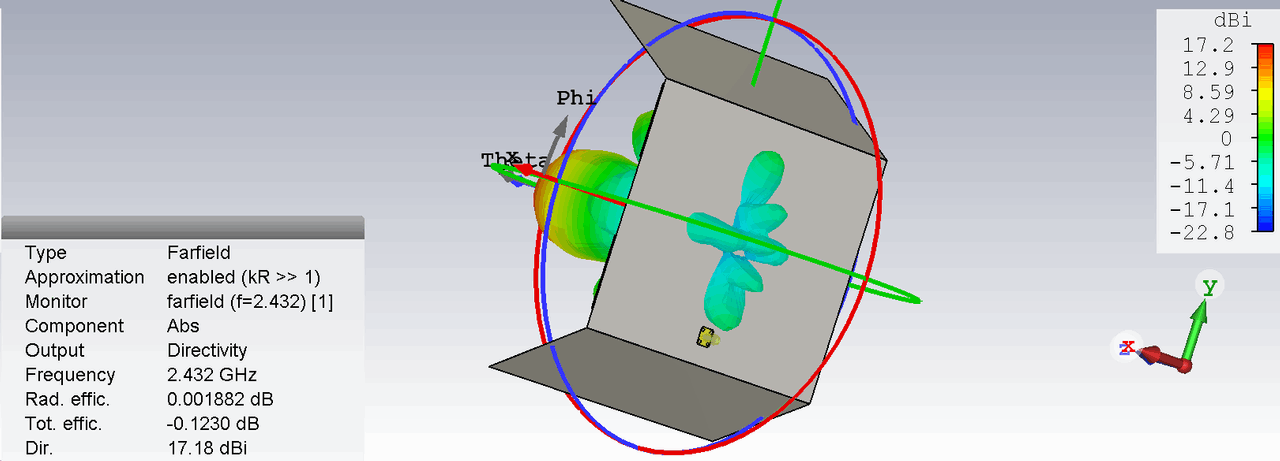

quarter fa20_01.gif

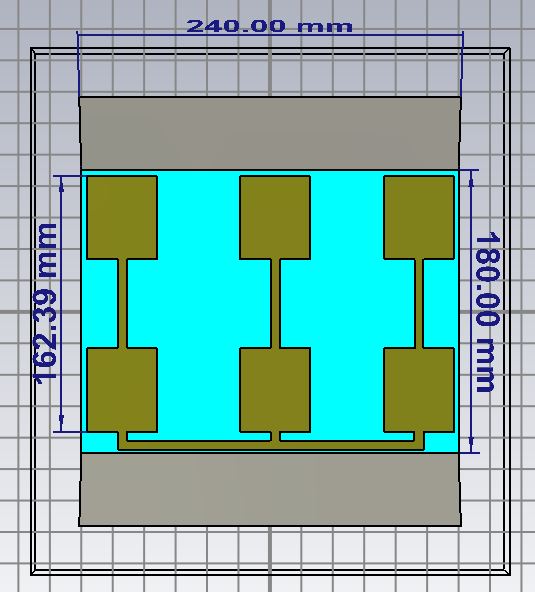

Not bad for a 180 by 240 cms...


Edited by clanon

Share this post


Link to post
Share on other sites

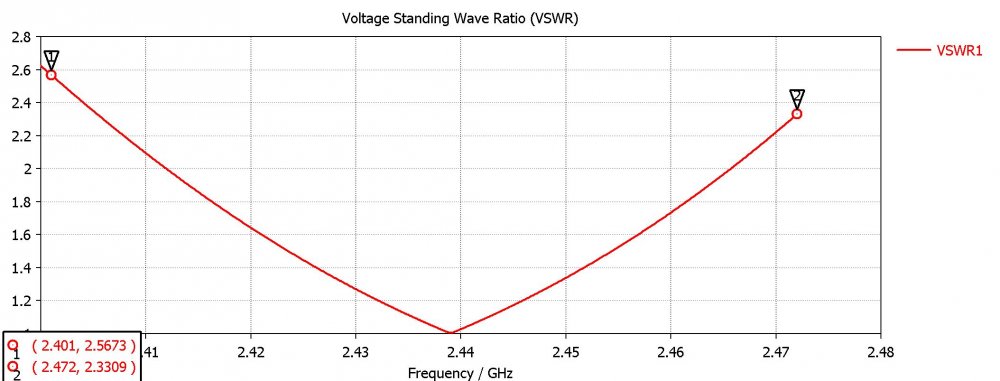

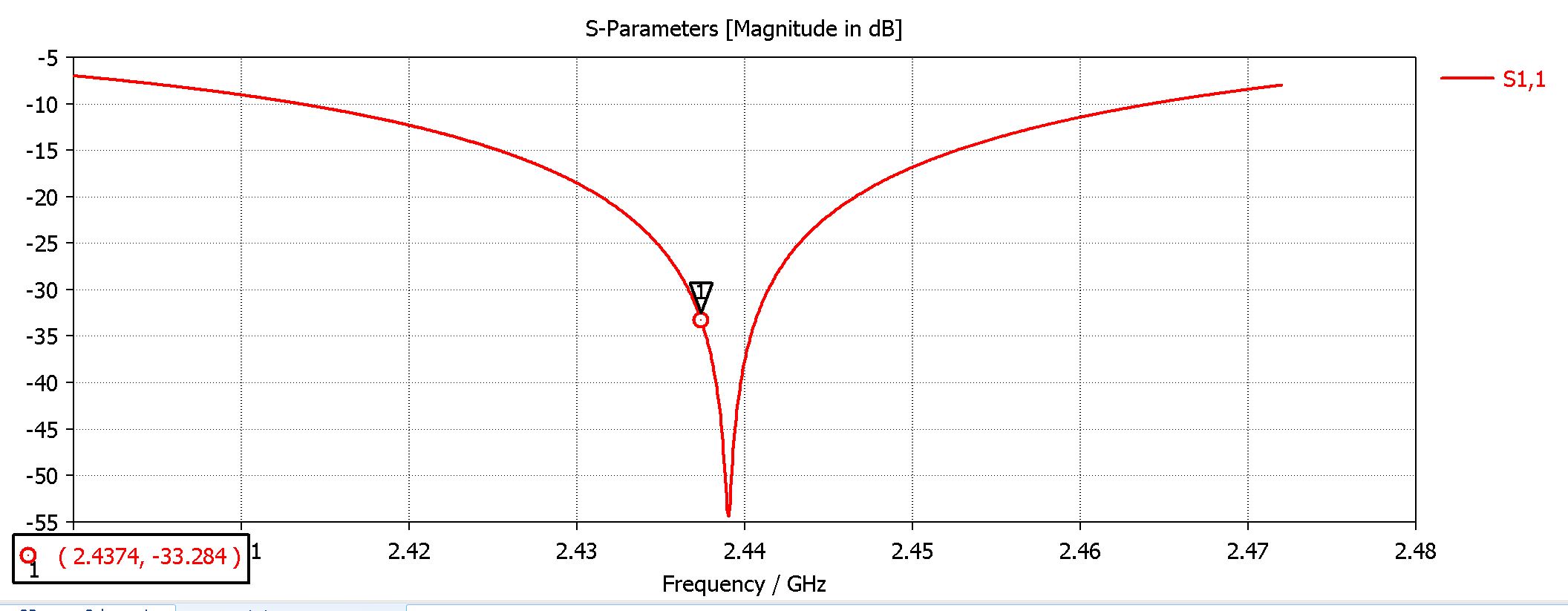

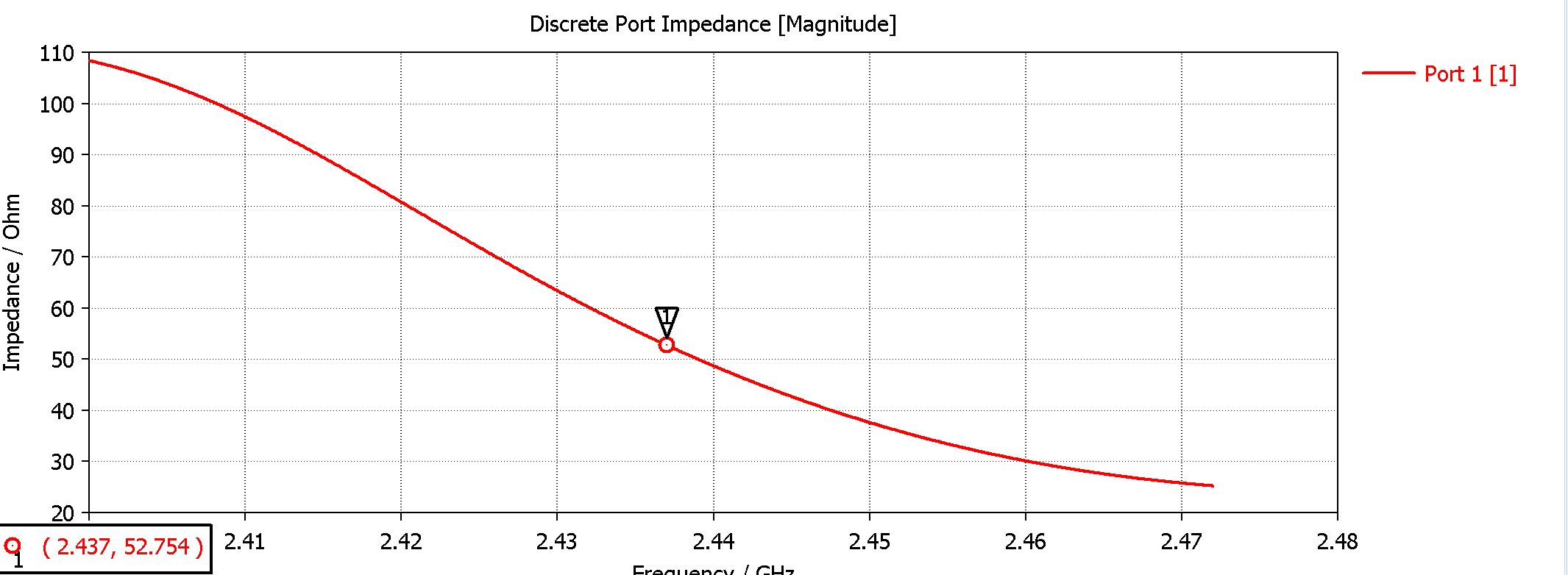

Doing the fine tunning , now...

very happy with the results , stability and Gain...!

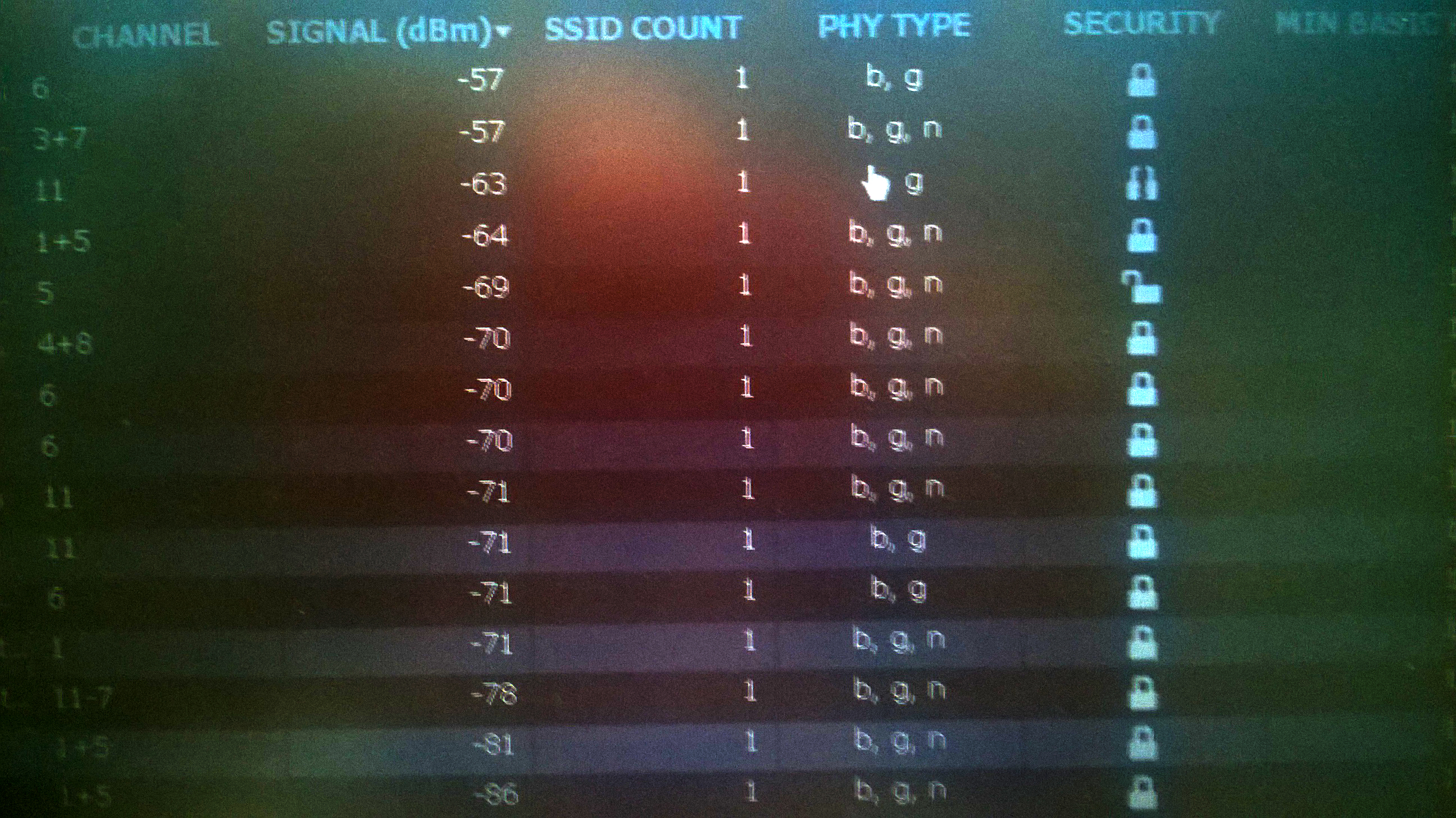

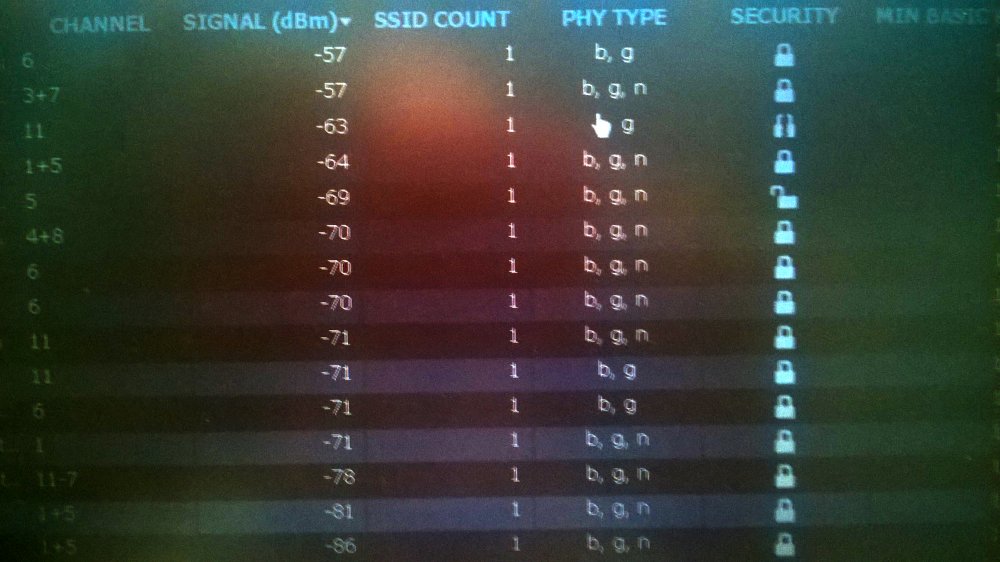

W7 showing 10 db more than linux on every Ap...(damn drivers for sure)



1 person likes this

Share this post


Link to post
Share on other sites

,,,very good, good luck ...!!!

1 person likes this

Share this post


Link to post
Share on other sites

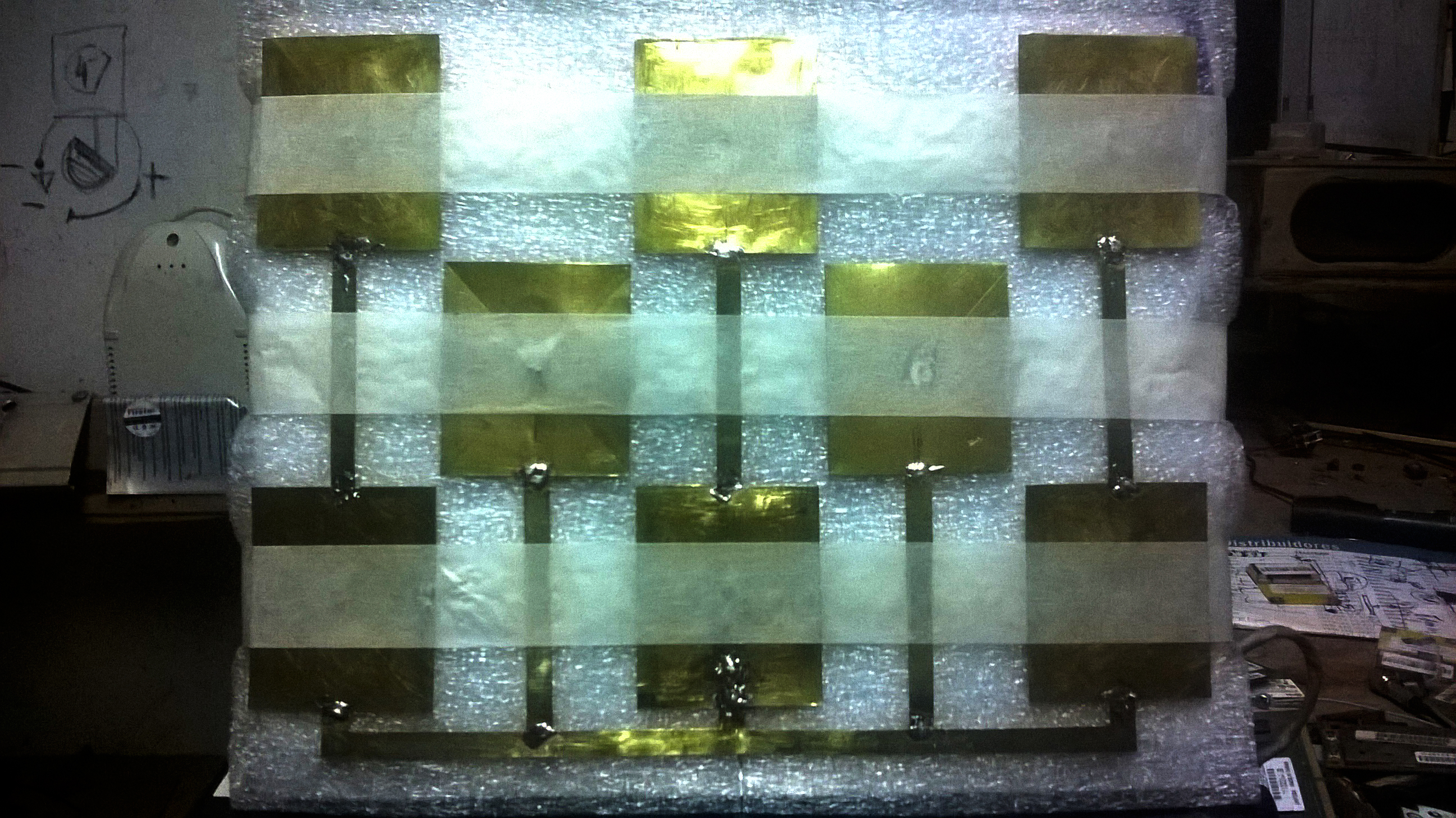

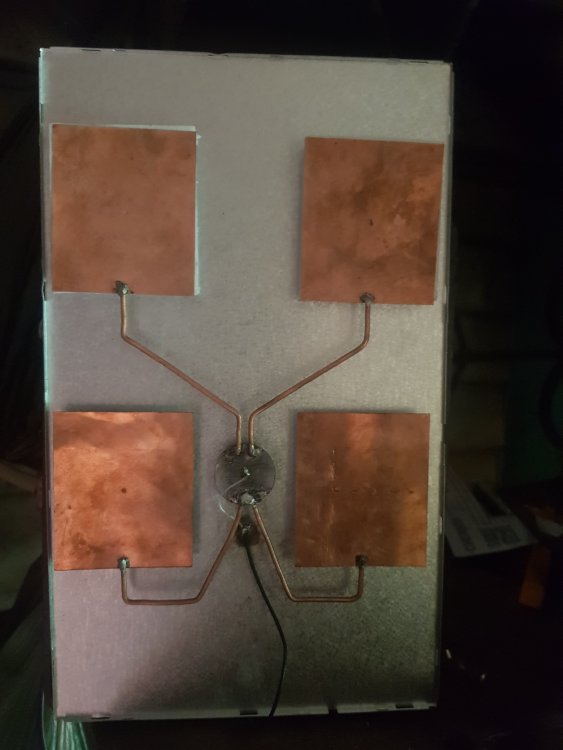

planning on REBUILD muy FA20 WITHOUT screws to reflector...this patches work better (lower VSWR) floating and NOT grounded!

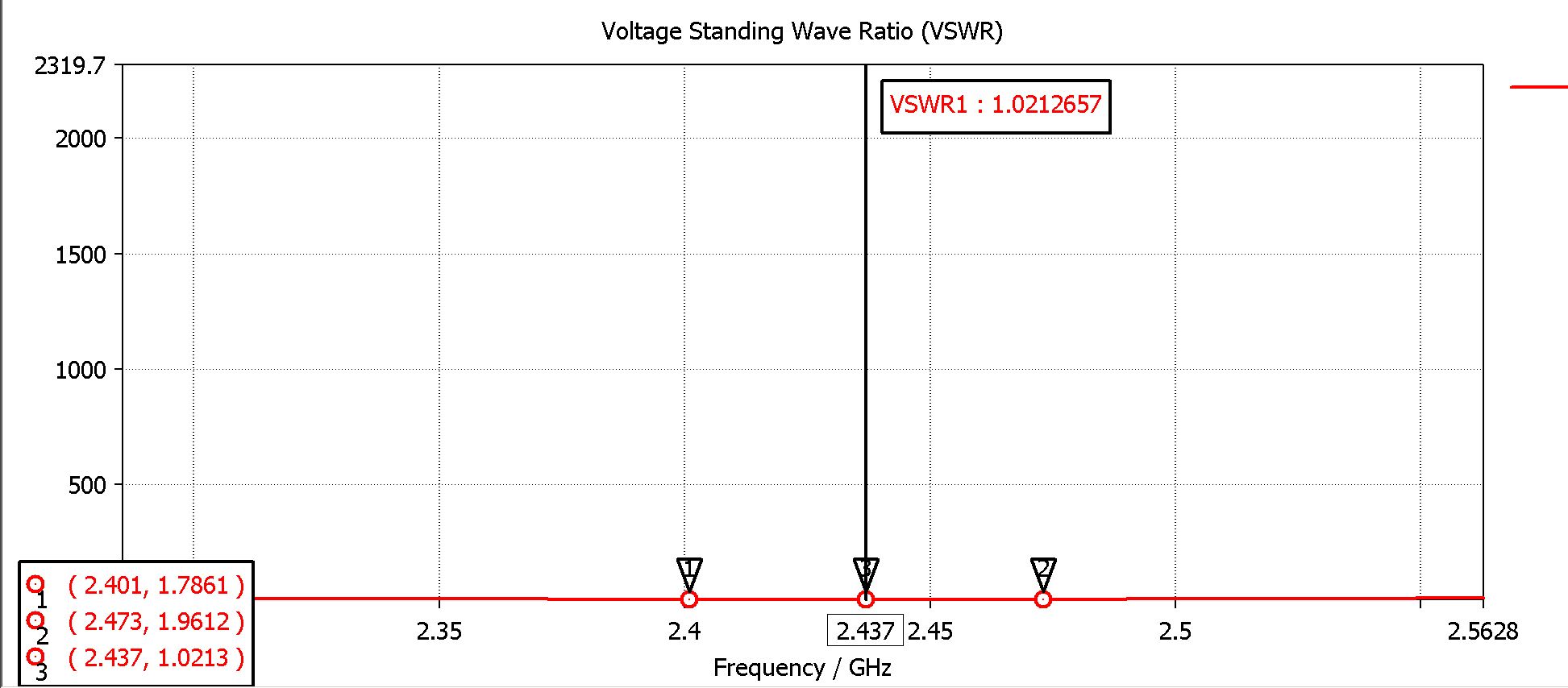

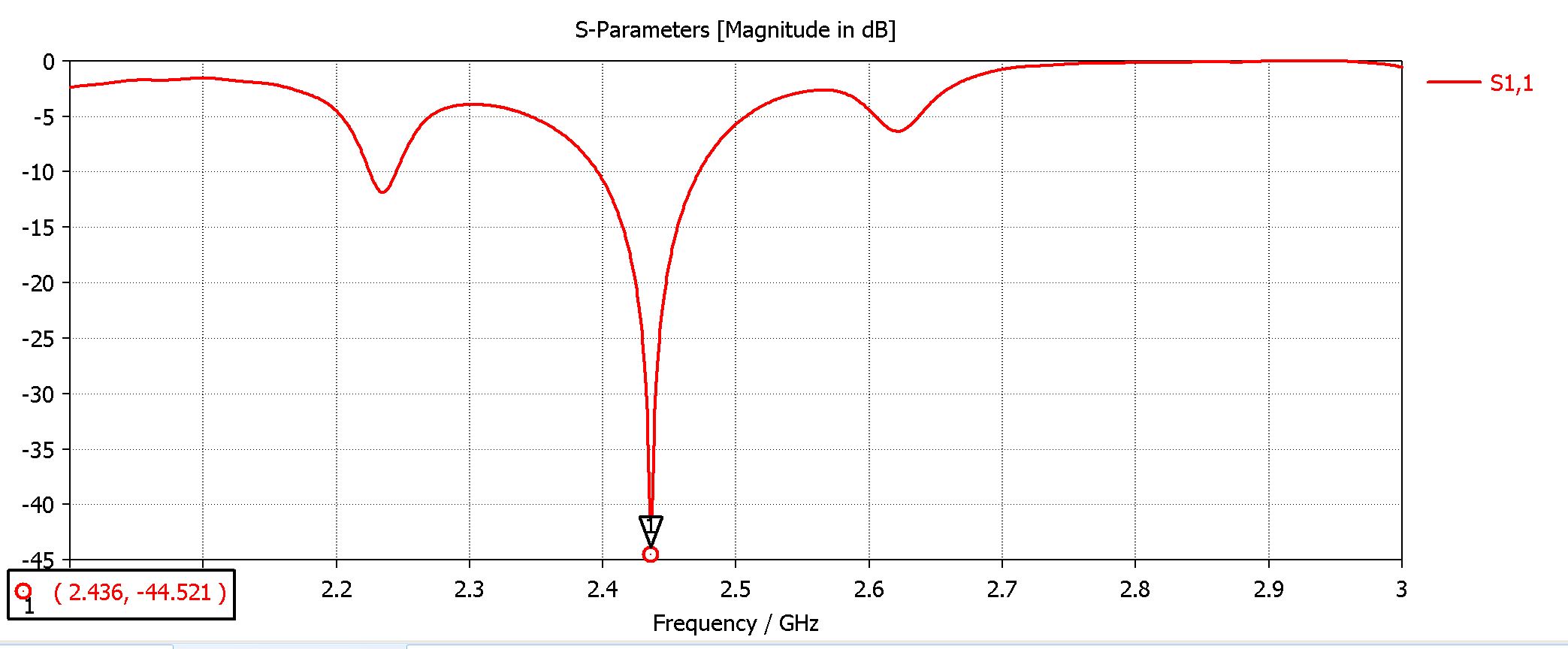

"Years later I had the chance to buy an Agilent Fieldfox Network/Spectrum Analyzer for my job, I quickly measured the VSWR and the result is stunning 1.2 VSRW from channel 1 to 11, it kind of confirm the simulation results

https://vswr1.wordpress.com/2011/12/03/fooling-around-with-design-of-the-antenna-fa20/

Edited by clanon

Share this post


Link to post
Share on other sites

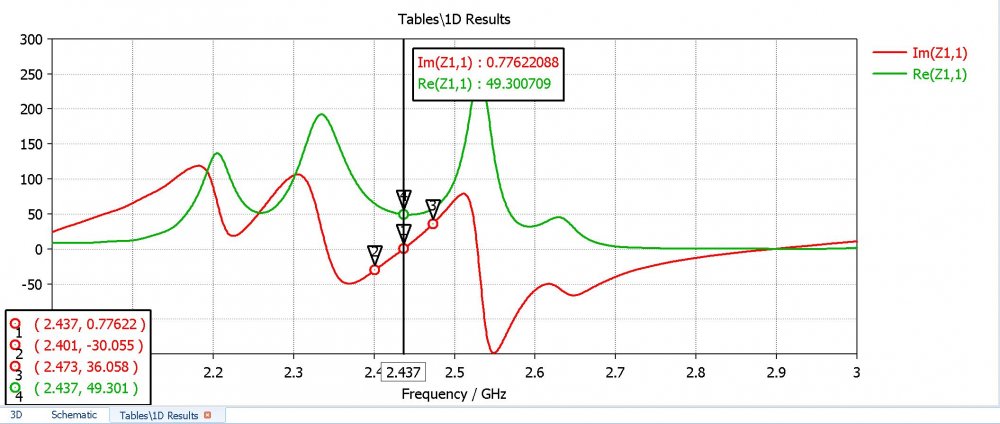

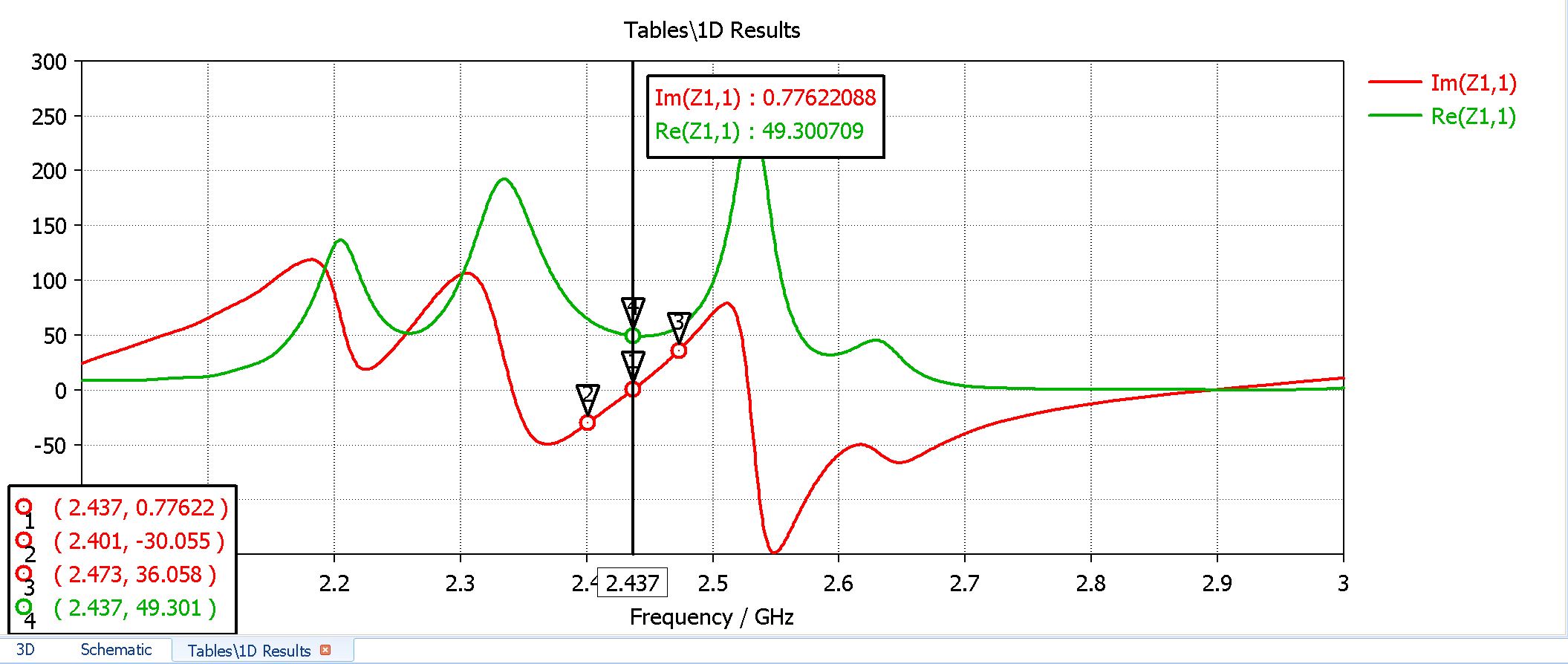

Changed Gain for stability

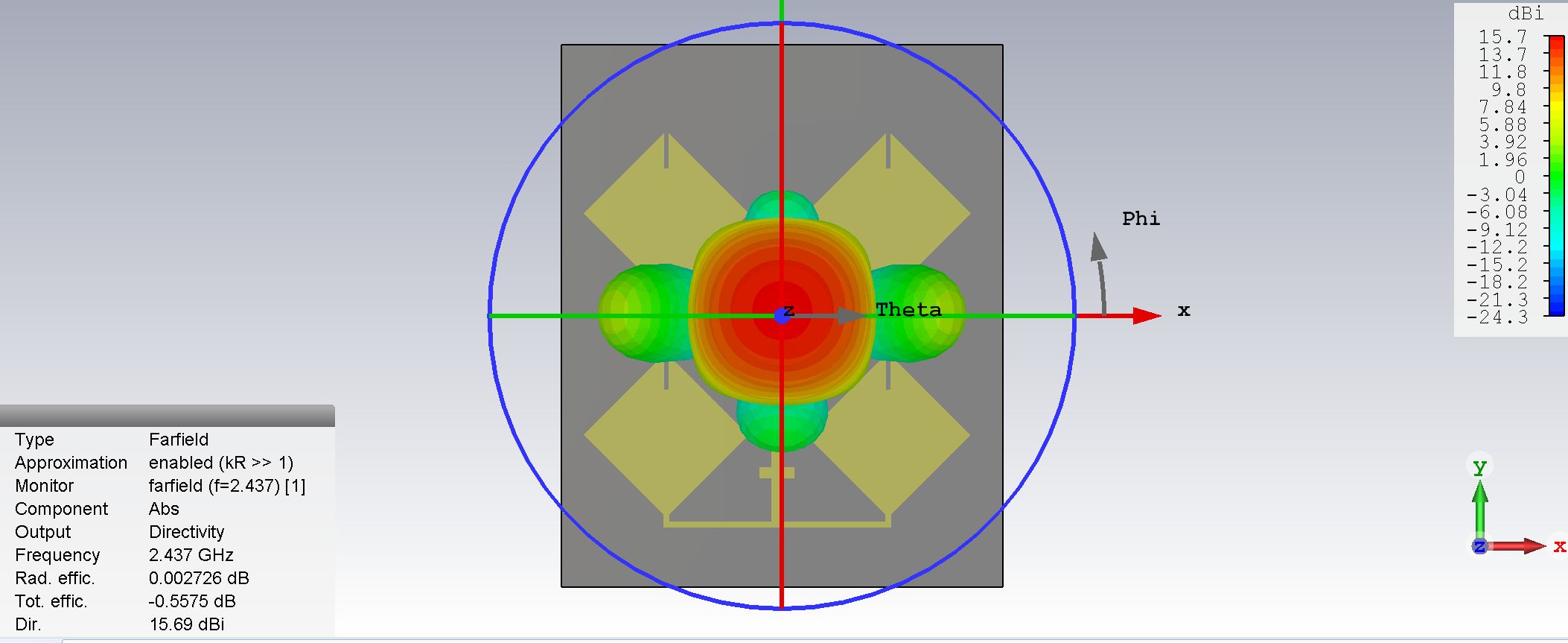

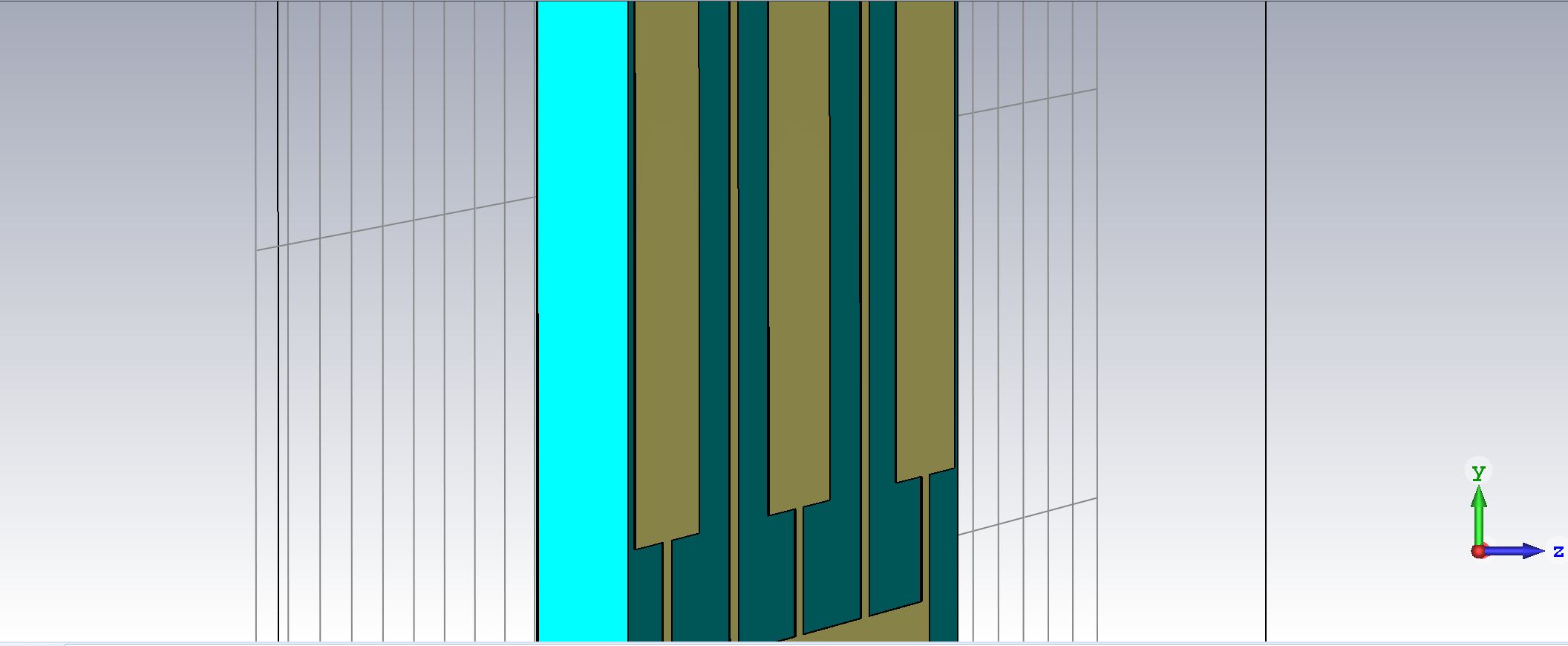

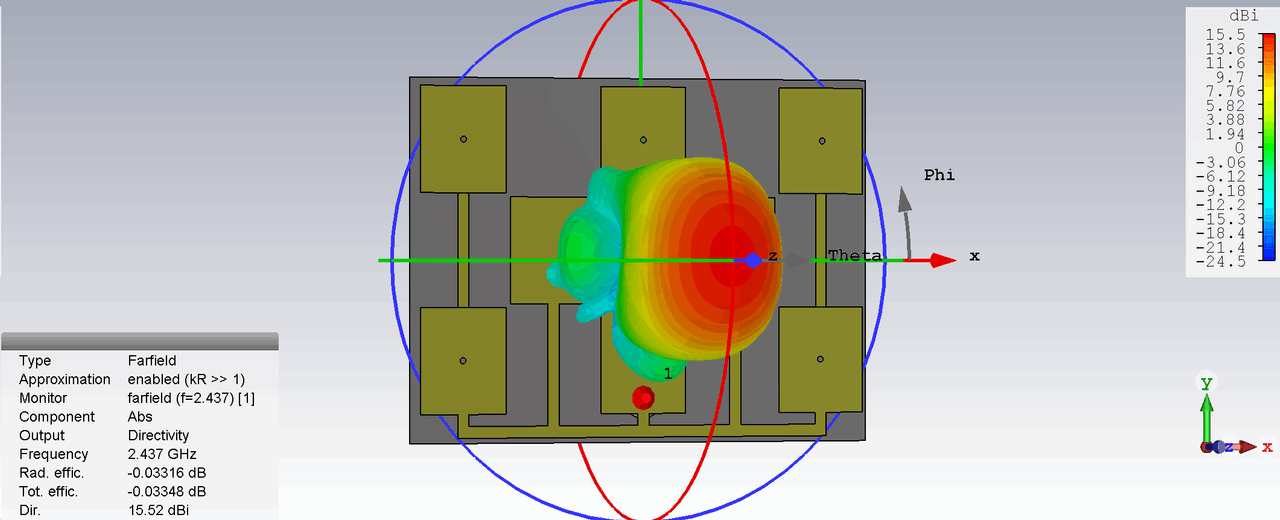

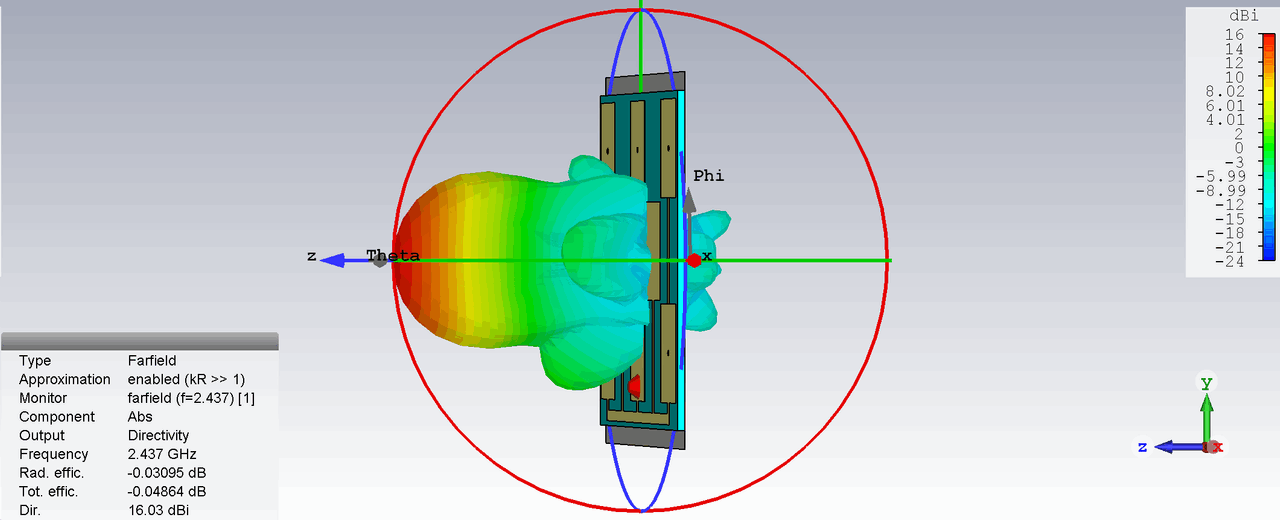

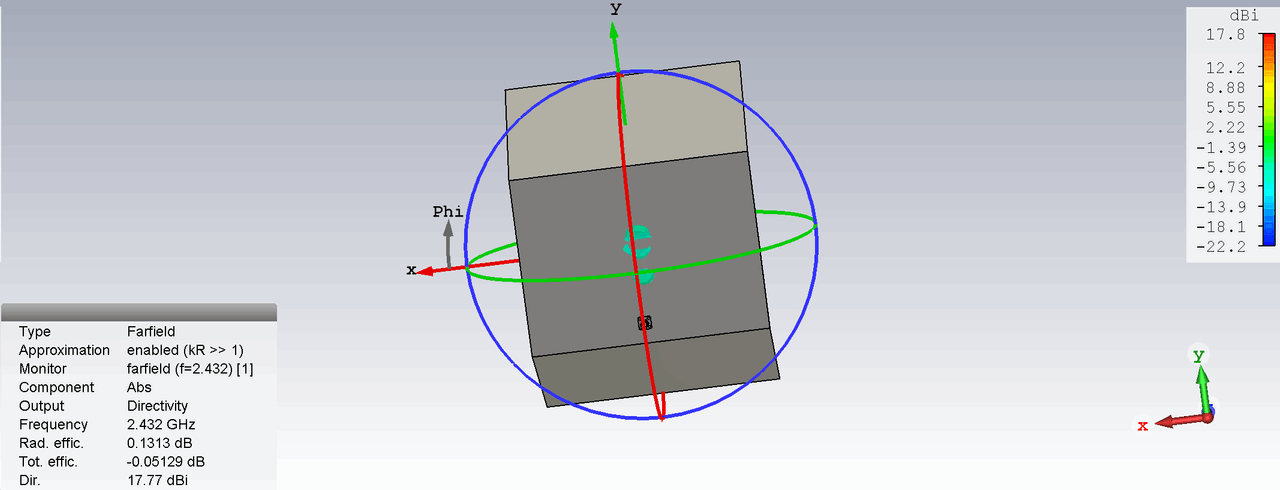

quarter fa20 17 wing perfect_01.gif

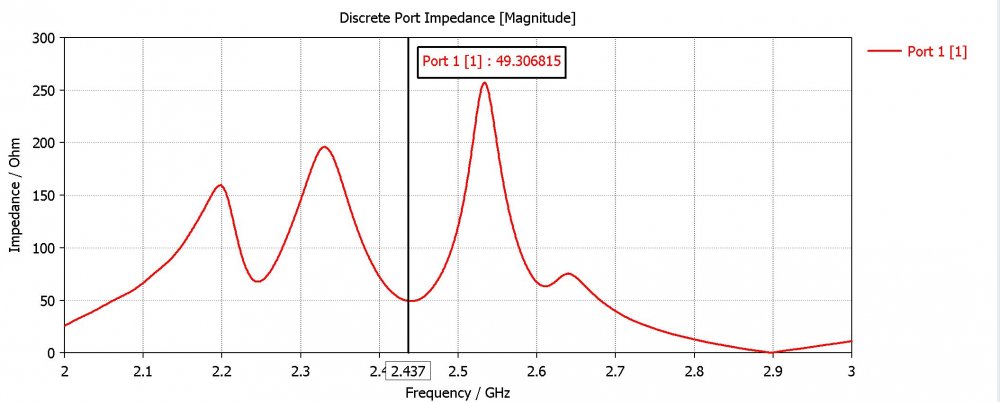

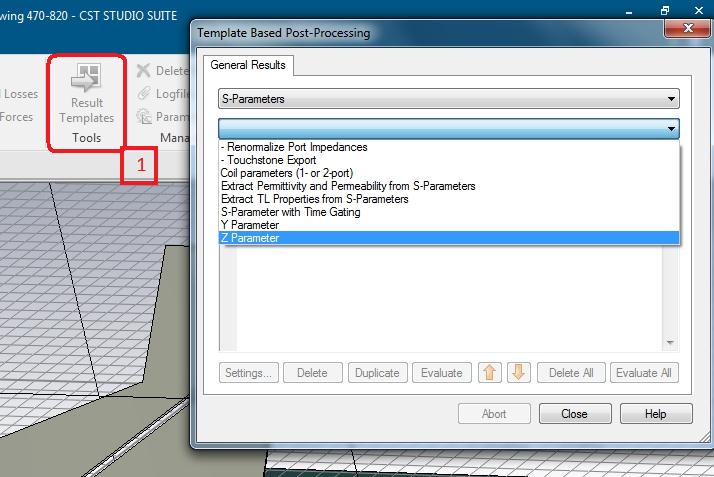

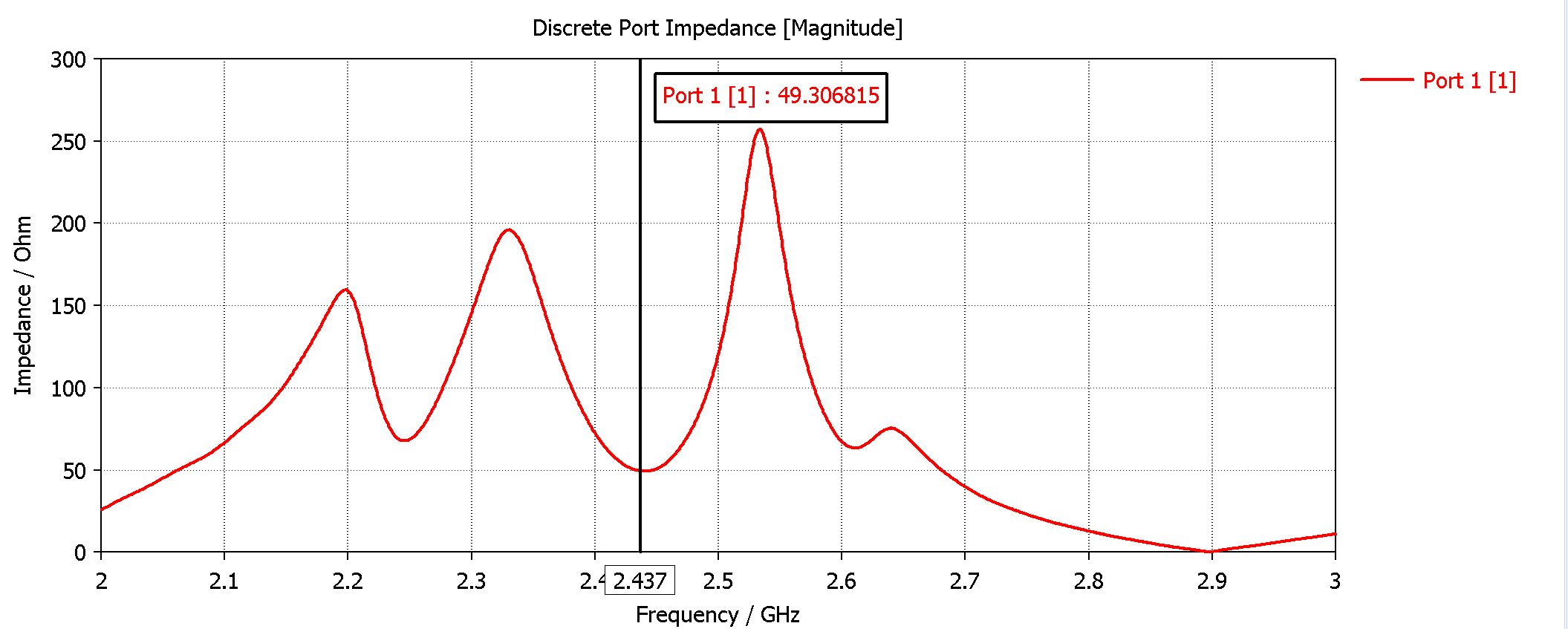

zi zr.JPG


Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,, good achievement ... !!!

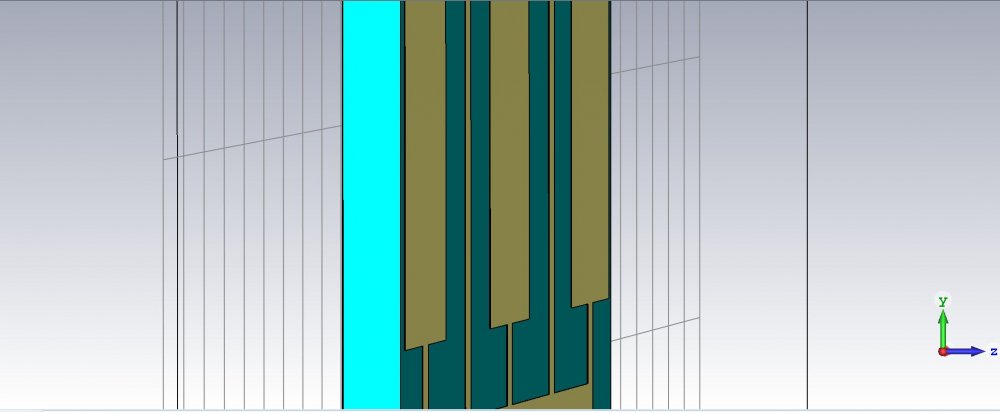

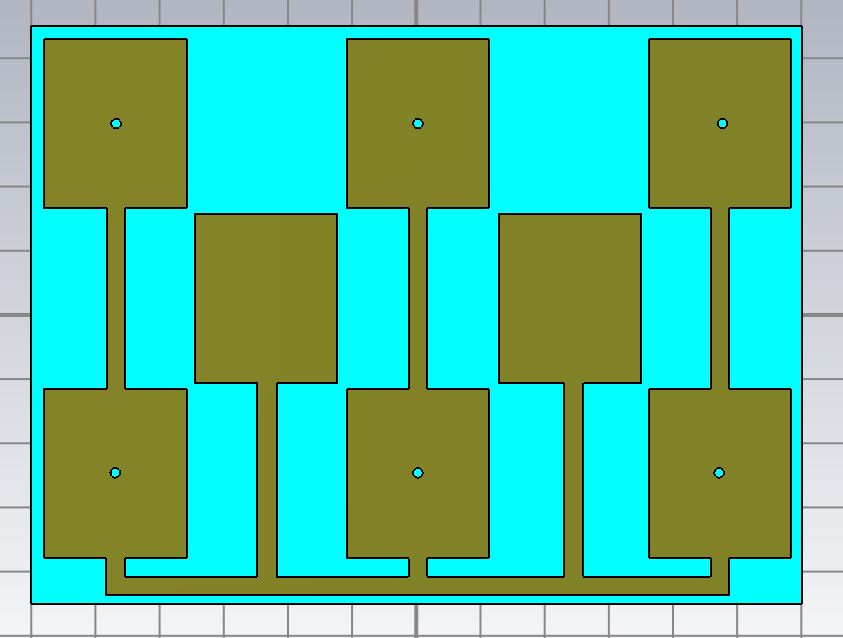

In your cst simulation,  the polystyrene spacer is missing...??

Share this post


Link to post
Share on other sites

HI , JOMY...its hidden...4mm Pes ,(1.2 )

I'm using it right now...stable and "discrete";)







Share this post


Link to post
Share on other sites
