Admin

AX-2017P panel 3G antenna (17 dBi, 50 Ω)

63 posts in this topic

 I think we should move the current topic to the topic..."Remo Street Connect 3G/4G Universal"

That's about the dimensions...


Share this post


Link to post
Share on other sites
On 9/30/2019 at 10:08 AM, Admin said:

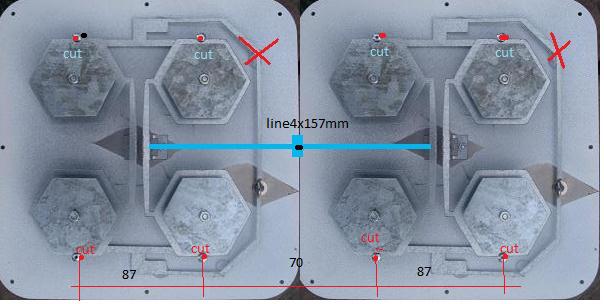

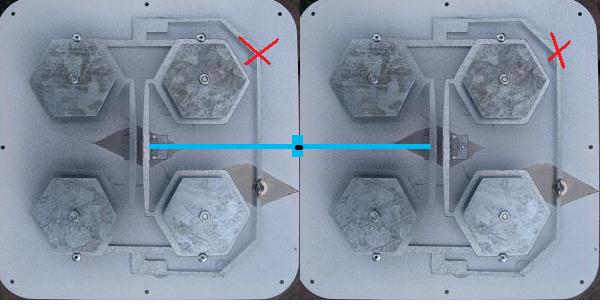

Николай, если вы возьмете две такие антенны и откажетесь от адаптивных линий для port2, а также сделаете горизонтальную регулировку между ними, вы получите антенну с коэффициентом усиления 17dBi..

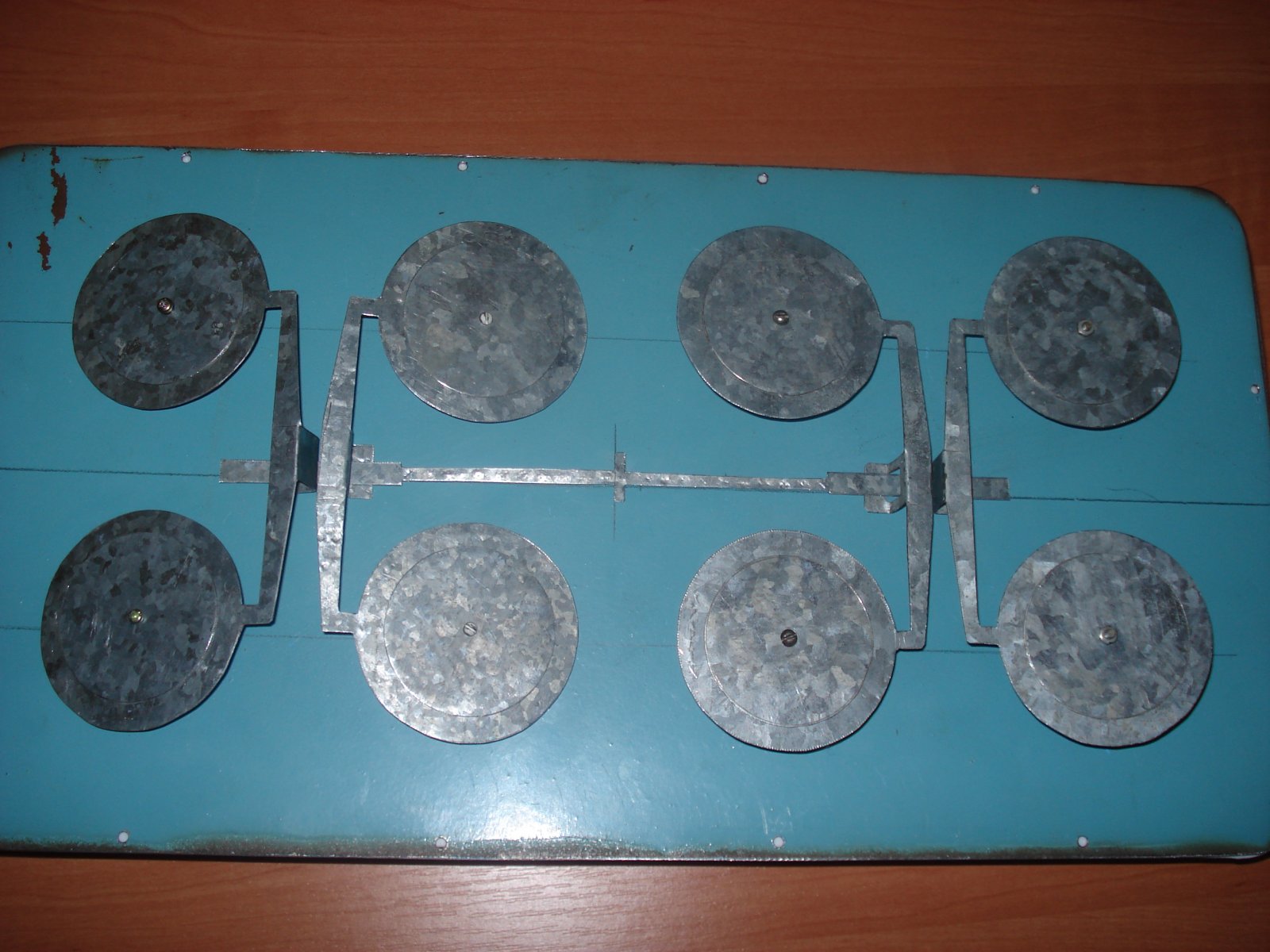

???????????)))))) Это заготовки для будущей антенны. Каждая секция в отдельности показала хорошие результаты. Нужно быть связанным вместе, я надеюсь, вы понимаете?

,,, ???????????)))))) These are blanks for the future antenna. Each section individually showed good results. Need to be tied together, I hope you understand?


Share this post


Link to post
Share on other sites

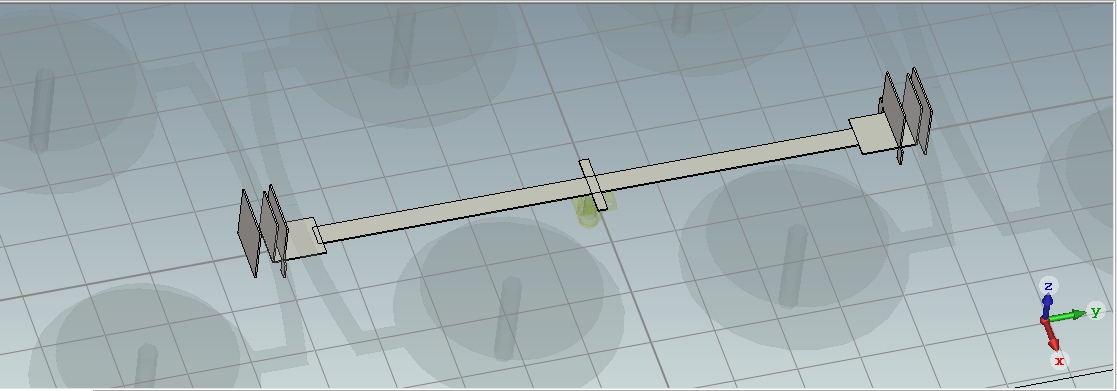

 Nickol, be careful how you position the transmission lines...


1 person likes this

Share this post


Link to post
Share on other sites

"Sorry, I took care of Remo, but it solves your problem ... !!!

Share this post


Link to post
Share on other sites
15 часов назад, сказал админ:

- Извините, я позаботился о римо, но это решает вашу проблему ... !!!

????Я очень разочарован....

Share this post


Link to post
Share on other sites

,,, why ... ???

,,,all elements should be excited in-phase...!!!




 ,,,and it is best to make the adjustment with the inclined sides...


2 people like this

Share this post


Link to post
Share on other sites

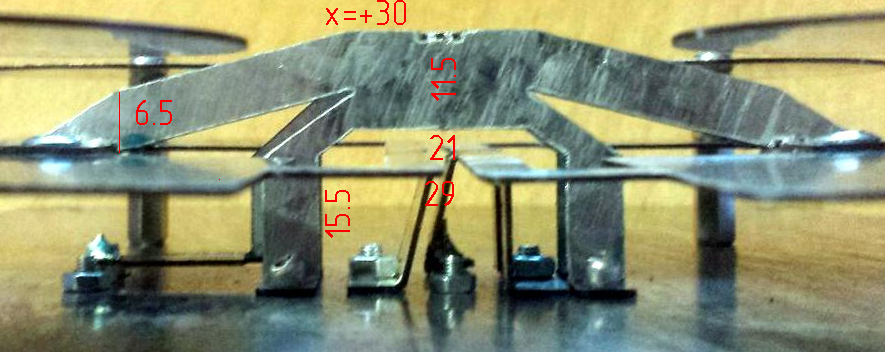

Админ, не скажете ли мне длину согласующего трансформатора для частоты 2100 МГц, учитывая укорочение? Спасибо.

Share this post


Link to post
Share on other sites

,,,вы можете взять трансформатор из Ремо...!!!

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,,вы можете взять трансформатор из Ремо...!!!

Спасибо! Антенна почти готова, может быть, завтра я сделаю первый тест, если все пойдет хорошо ...

Thank! The antenna is almost ready, maybe tomorrow I will do the first test if everything goes well ...

1 person likes this

Share this post


Link to post
Share on other sites

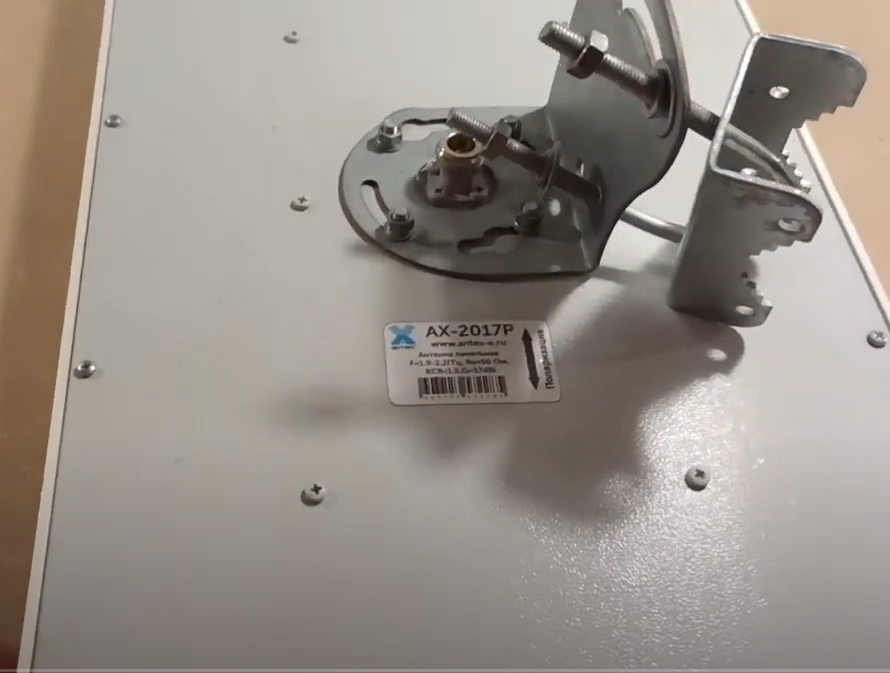

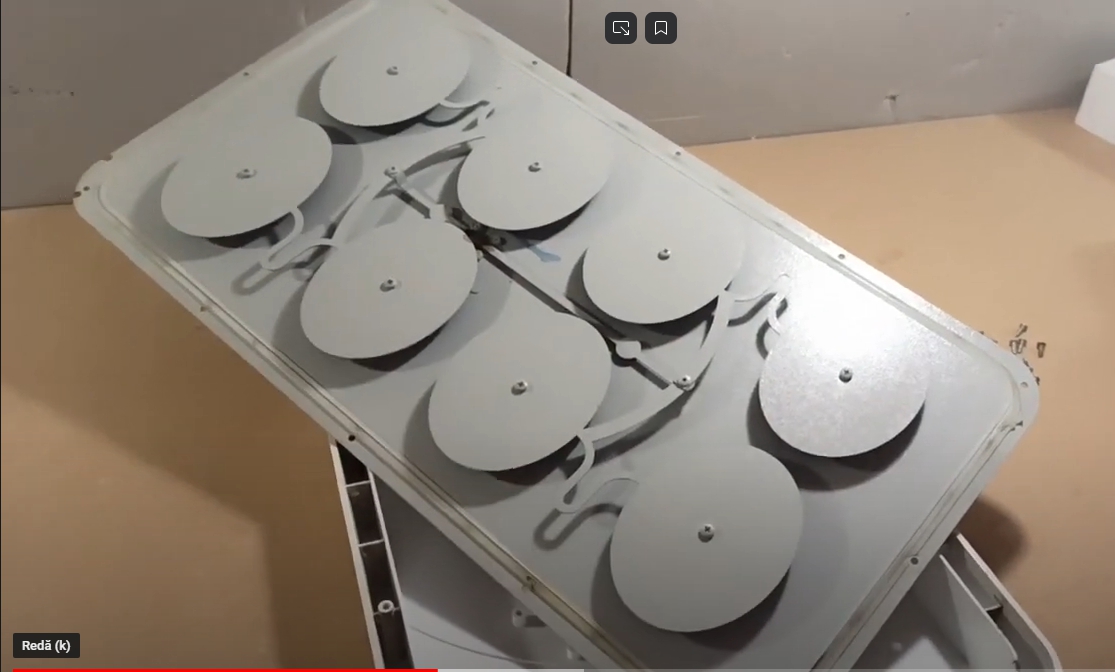

The AX-2017PF panel antenna is intended for use in a set with 3G modems (routers). The antenna type is common-mode array. It is recommended for use at the borders of service areas, when the 3G signal level is weak and unstable, as well as in the case of a long connecting cable between the modem and the antenna installation point.

The AX-2017PF is a version of the AX-2017P antenna, but only for a 75 ohm cable. The antenna uses an F-female connector (a conventional TV connector with a thread), which makes it possible to make cable assemblies directly by the user without resorting to the help of specialists, without using special tools. By using a SAT703 TV cable instead of a 50 ohm cable, you can save a lot of money .

Electrical characteristics

Operating frequency range, MHz 1900-2200

Gain, dBi 16÷17

Bottom width in the H-plane, deg 32÷40

Bottom width in the E-plane, deg 16÷19

Side lobe level, dB max -13

Forward / backward ratio, dB not less 20

Input impedance, Ohms 75

SWR in the operating frequency range, max. 1,5

Permissible power, W 10

Polarisation vertical/horizontal

Mechanical characteristics

Weight with mounting, g 1800

Overall dimensions without mounting, m 0. 45x0. 24x0. 05

Connector F-female

Antenna Material steel, galvanized steel


Protective coating powdered polymer paint

Material of the protective box Polycarbonate+ABS




1 person likes this
