Irradiator 2100 MHz, LTE MIMO base Bester.

,,,,,the user Ismail ask me...." Could you count the antenna of the threads http://www.lan23.ru/forum/showthread.php?t=12338------------ 2100 MHz 75 Ohm F connector under variant MIMO . For satellite dish 60 cm (short throw) with an angle of 70°..."

,,,,good, i'm trying to help him, with what I can .... !!!

,,,but let me try out an option with an extra directory first...


1 person likes this

Share this post


Link to post
Share on other sites

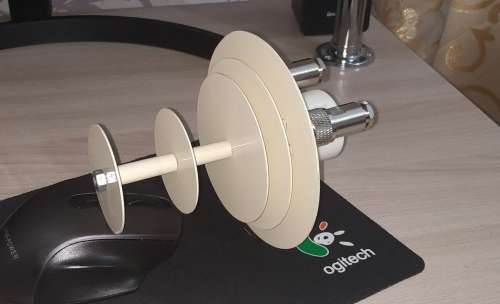

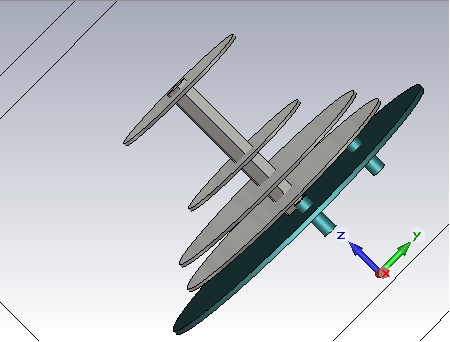

,,,after a few attempts, I managed this improved version with a good isolation between ports...

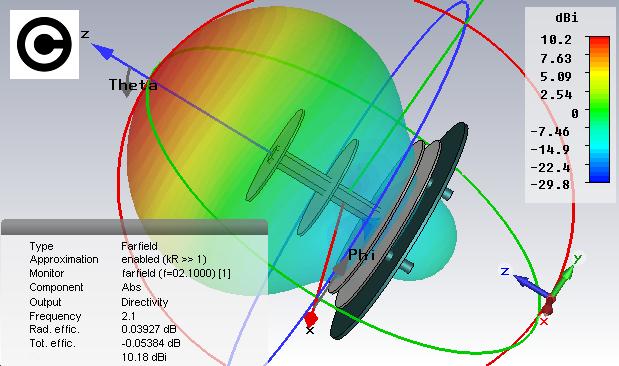

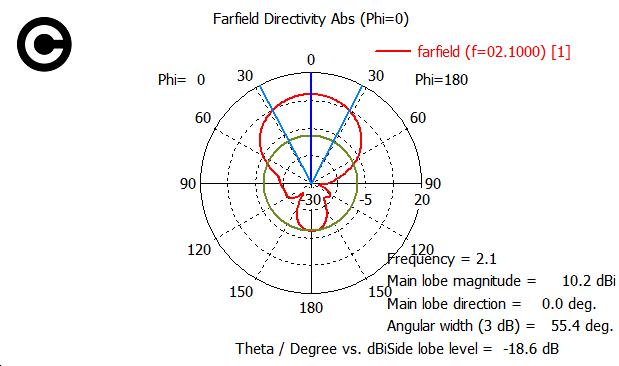

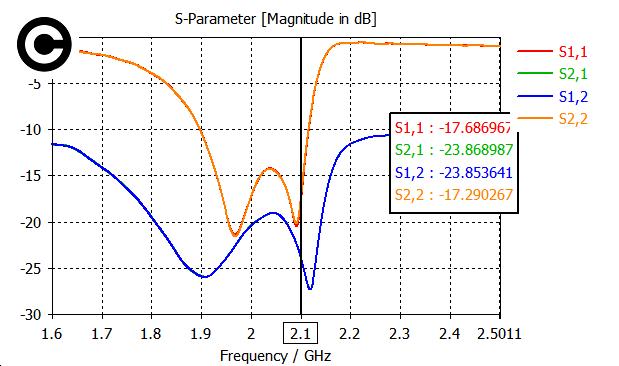

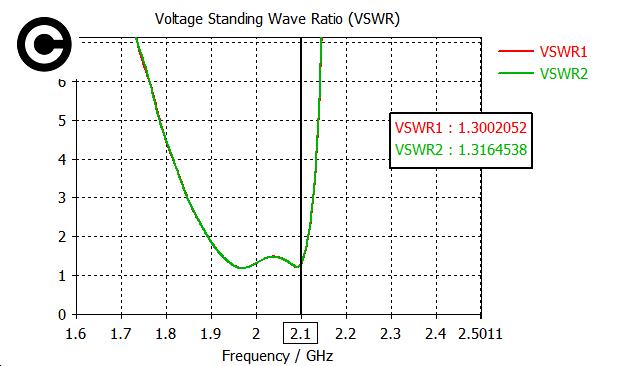

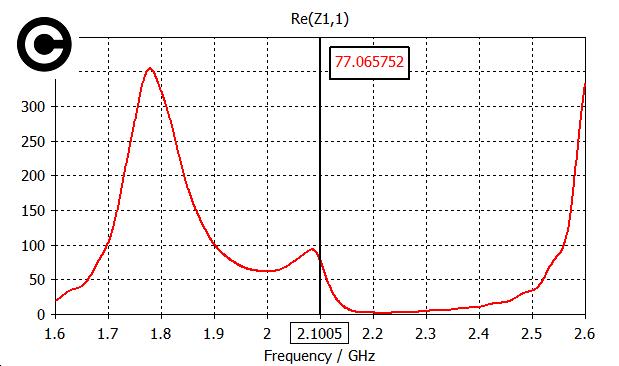

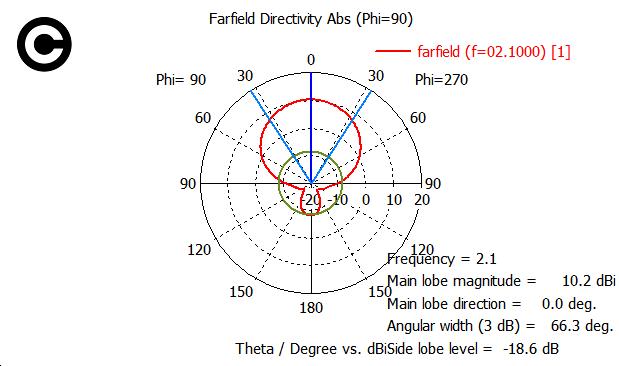

,,, as you can see, the isolation between ports is good for this antenna...!!!!

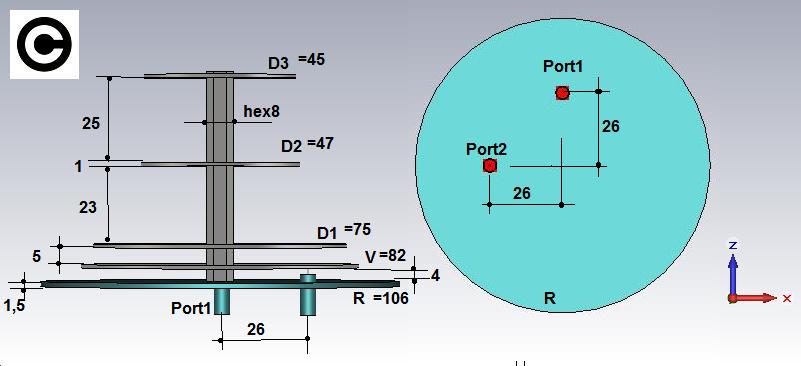

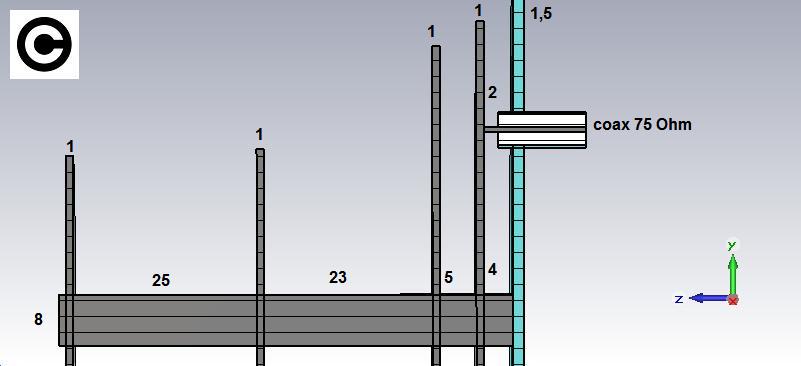

,,, and below the technical construction details ...








5 people like this

Share this post


Link to post
Share on other sites

different example this antenna not work in my Country because the LTE network use 1800 mhz only

2100 mhz use in 3G network  all network mobile



thanks

Share this post


Link to post
Share on other sites

,,, this antenna is very similar to Olkhon MIMO antenna 2 x 13 dBi (1700-2700 MHz) , but I don't know why it doesn't have such a wide frequency band...!!!!

,,,,,,, anyway, if you want, I'll try to do a simulation for the 1800 MHz frequency...!!!





1 person likes this

Share this post


Link to post
Share on other sites



17 hours ago, Admin said:

,,, this antenna is very similar to Olkhon MIMO antenna 2 x 13 dBi (1700-2700 MHz) , but I don't know why it doesn't have such a wide frequency band...!!!!

,,,,,,, anyway, if you want, I'll try to do a simulation for the 1800 MHz frequency...!!!



Yes Jomy please!

Share this post


Link to post
Share on other sites
On 12/16/2020 at 8:05 PM, Admin said:

,,, this antenna is very similar to Olkhon MIMO antenna 2 x 13 dBi (1700-2700 MHz) , but I don't know why it doesn't have such a wide frequency band...!!!!

,,,,,,, anyway, if you want, I'll try to do a simulation for the 1800 MHz frequency...!!!





Following

Share this post


Link to post
Share on other sites

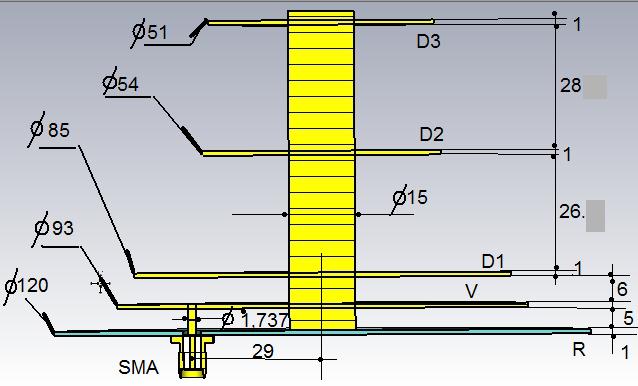

,,, these are the dimensions for the 1800 MHz frequency...


2 people like this

Share this post


Link to post
Share on other sites
7 hours ago, Admin said:

,,, these are the dimensions for the 1800 MHz frequency...


thank you ADMIN

i will try it , but using the 75ohm cable

1 person likes this

Share this post


Link to post
Share on other sites

,,, for the 75 Ohm cable, it needs to be resized...!!!

1 person likes this

Share this post


Link to post
Share on other sites
3 hours ago, Admin said:

,,, for the 75 Ohm cable, it needs to be resized...!!!

The problem is that the 50-ohm cable is not available  to me
