Budget universal antenna Petra Lite Box c the dustproof and splashproof housing for 3G/4G USB modem. CRC9 connectors. F=1700-2700 MHz. GAIN=9dBi. Polarization X-pol. Standards: LTE-A, LTE1800, LTE2600, UMTS2100, WIFI.




2 people like this

Share this post


Link to post
Share on other sites

Hi, buddy...!!!

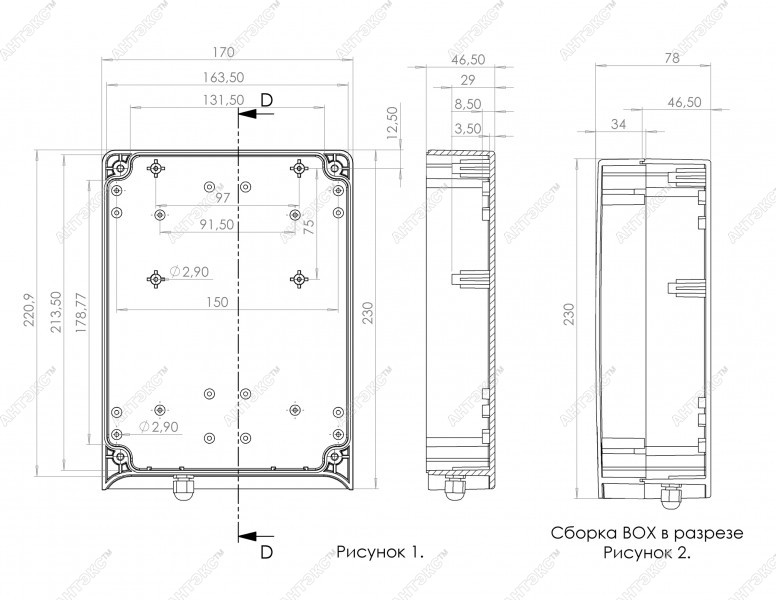

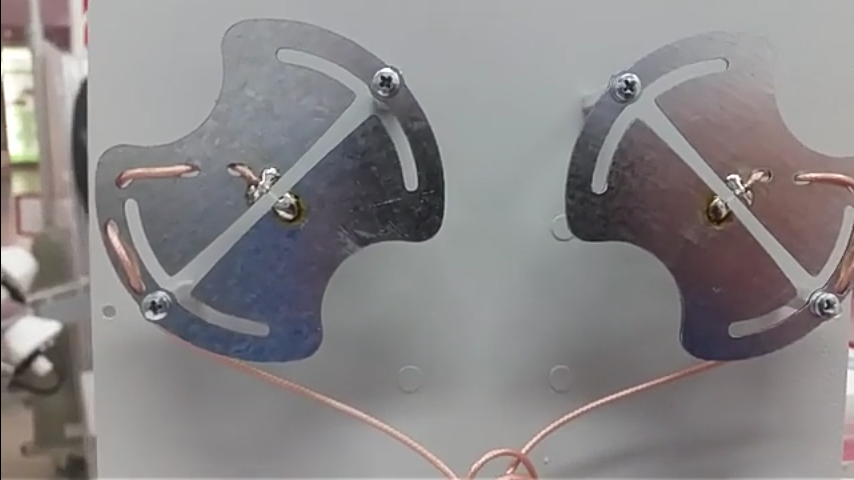

You have the dimensions at this antenna... ???

The box has these dimensions... ???


Share this post


Link to post
Share on other sites

 PETRA LITE BOX

Operating frequency range, MHz 1700-2700

Gain, dBi 8,5÷9,5

Dimensions without stand, m 0,2x0,2x0,06

Operating frequency range, MHz 1700-2700

Gain, dBi 8,5÷9,5

Days width, in horizontal plane, degree 56÷75

Days width, in vertical plane, degrees 56÷75

Ratio forward/back, dB15÷20

Isolation between the ports in the range 1700-2700МГц, not less 22dB

Input impedance, Ohm 50

VSWR in operating frequency range at the inputs, no more 1,6

Permissible power watts 10

The slope of the polarization of the received/radiated waves +45 ° /-45° (X-pol)






1 person likes this

Share this post


Link to post
Share on other sites

Yes, it looks like it works pretty well ... !!!


2 people like this

Share this post


Link to post
Share on other sites

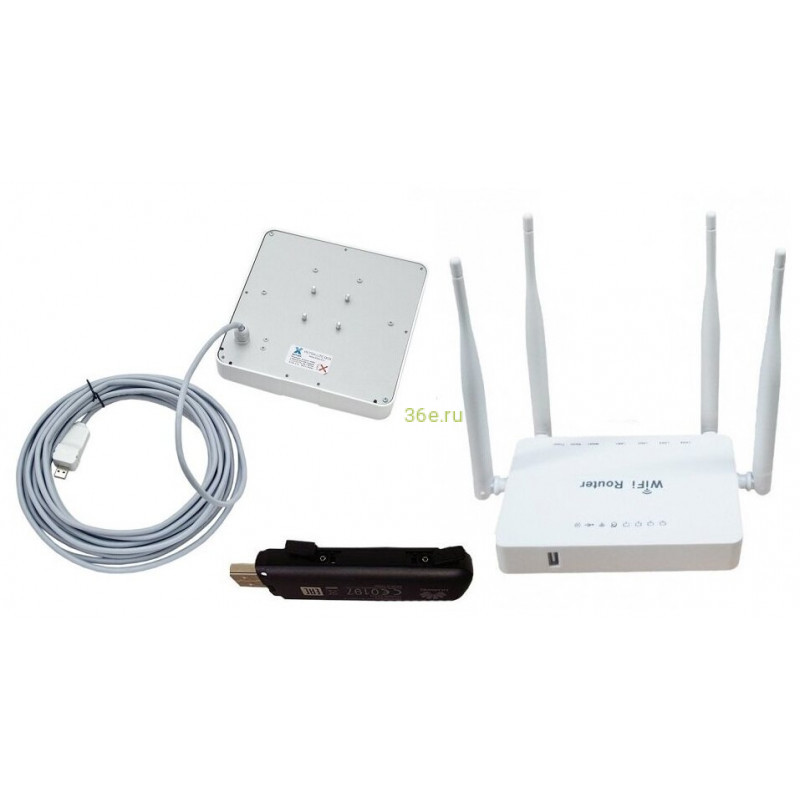

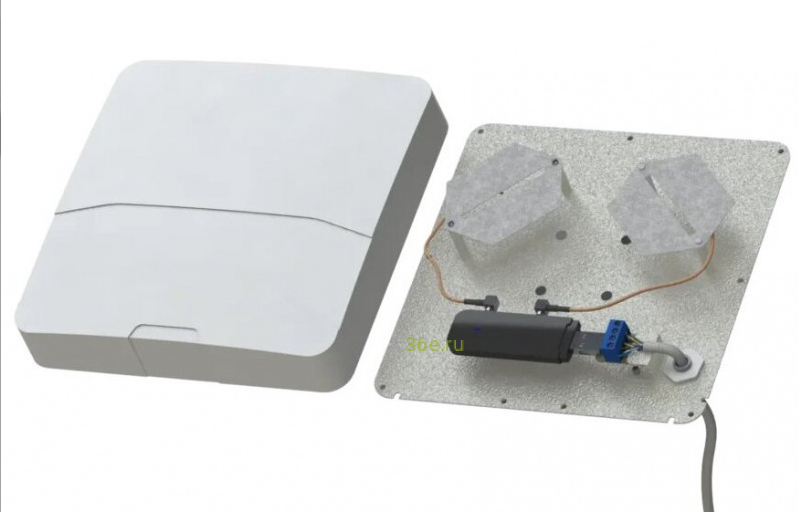

A window sill Internet access point was created based on the Petra Lite Box, which with a USB extension cable, but the real application of which I always questioned, but always saw a certain antenna potential, and now with the advent of AX-Box-3 everything in my head grew and my hands bore .
Another LTE boat was born, capable of catching a signal from a window sill for a 3g 4g USB modem, which in turn works with the AXR-1PoE router. This is basic, but there are pleasant things, for example, a sim injector.





Share this post


Link to post
Share on other sites
On 11.02.2019 at 7:32 PM, Admin said:

Yes, it looks like it works pretty well ... !!!


Do you have the dimensions of the model?

Share this post


Link to post
Share on other sites
On 09.12.2019 at 7:01 PM, Admin said:

,,,yes...!!!

Antex has a range of 1700-2700 with VSWR = <1.6, did you get a slightly different range, cover? or dimensions ?
Can I see your dimensions or file ?

Share this post


Link to post
Share on other sites

,,, yes, it is possible, these are the measurements of the manufacturer...!!!


,,,,maybe my copy attempt needs to be resized...!!!

Share this post


Link to post
Share on other sites

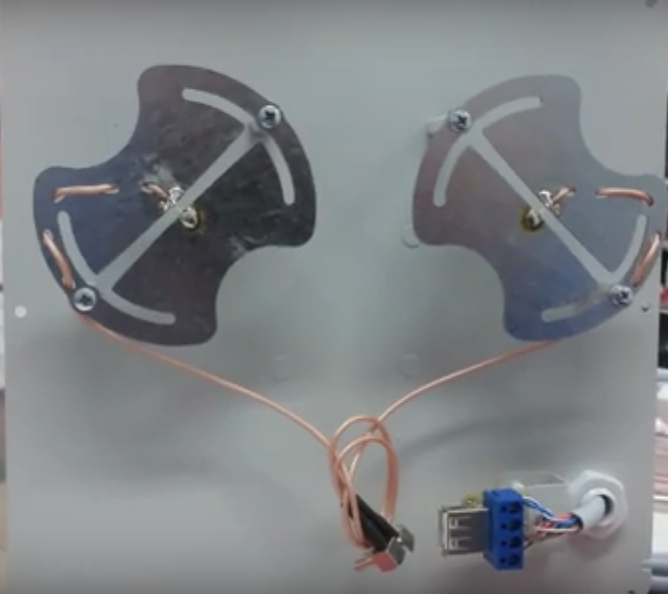

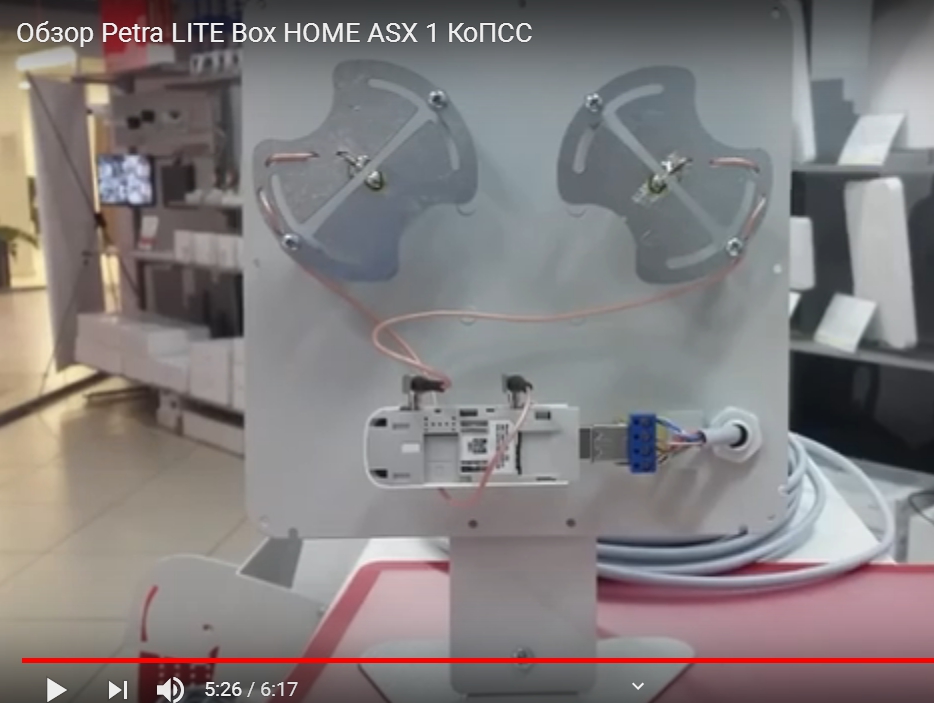

Turning a Petra Lite Box home antenna with a 10-meter USB extension cable into a street Internet access point with a 30-meter twisted-pair FTP cable is a couple of trivialities using the AXR-1PoE router, RJ-45 cable gland and the street option for attaching box antennas .
Dismantling the elements of the USB extension cord, four holes for the M4 screws, ripping the existing PG-7 hole to 20 mm to tighten the RG-45.

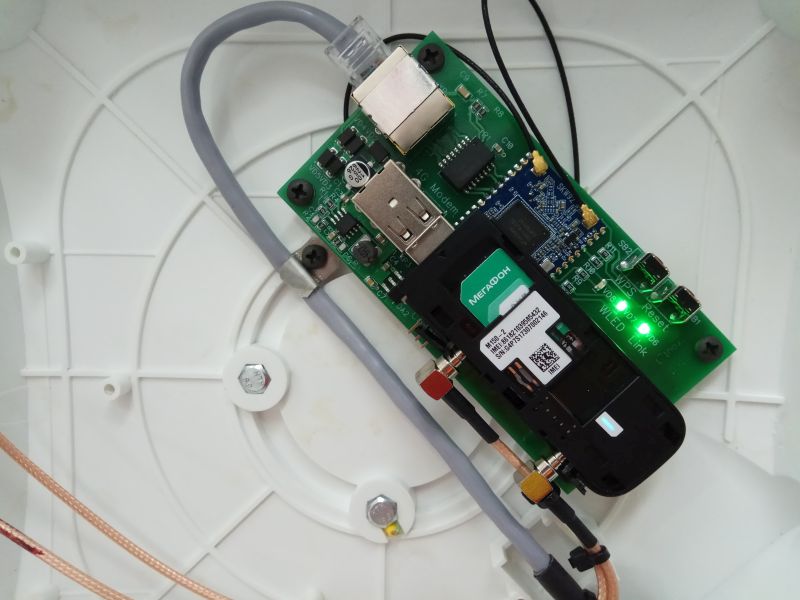

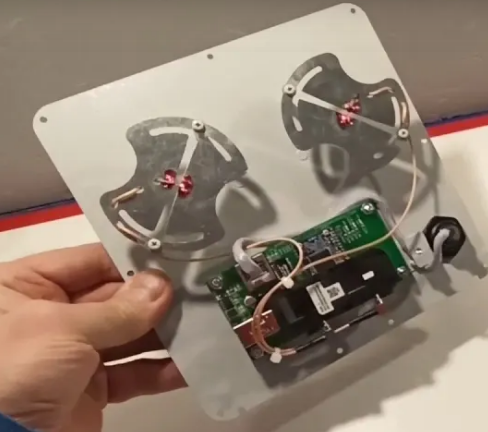

,,,,and this it"s AXR-1Poe router with modem...


Share this post


Link to post
Share on other sites

Petra-9 turns into Petra-20

For the manufacture of a strong UMTS 2100 antenna, which it needed in a repeater gain circuit, must be used a small Antrax Petra-9 panel antenna.
Petra-9 is used as a service (internal) antenna, but with a little refinement it can become an irradiator for an offset mirror.



Share this post


Link to post
Share on other sites

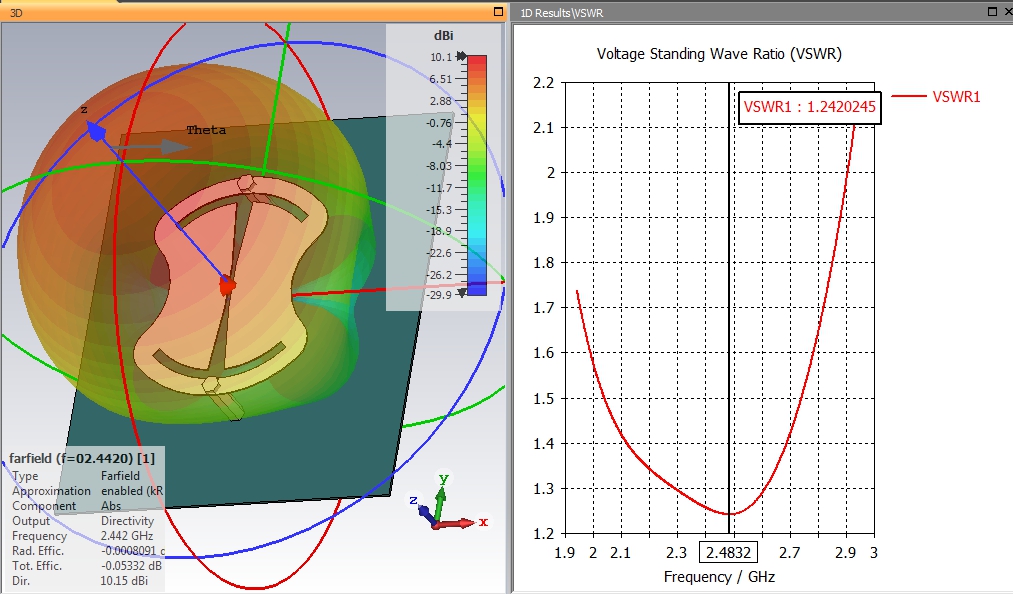

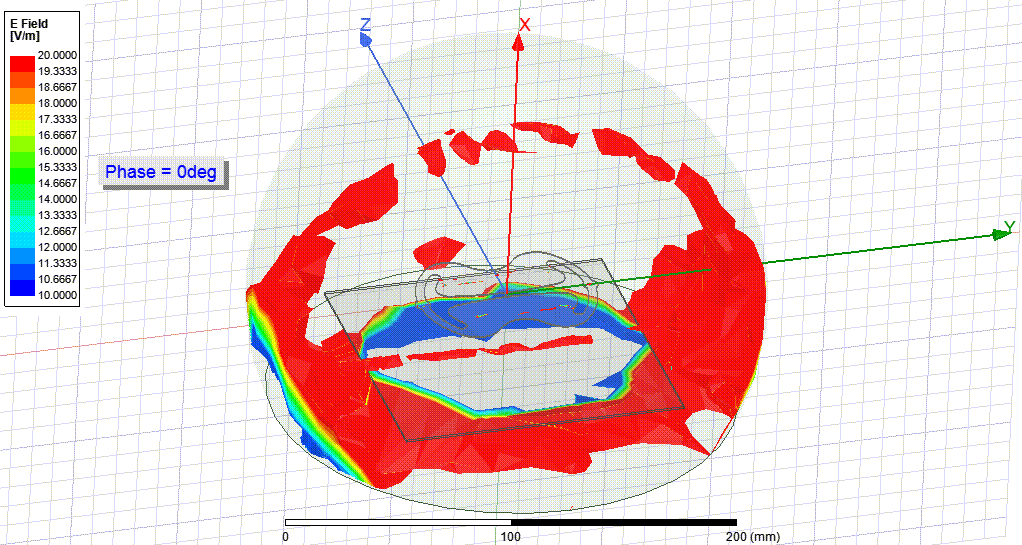

How close am i...?

don't know much about LTE range...

but i really like the SMOOTHNESS of this one...

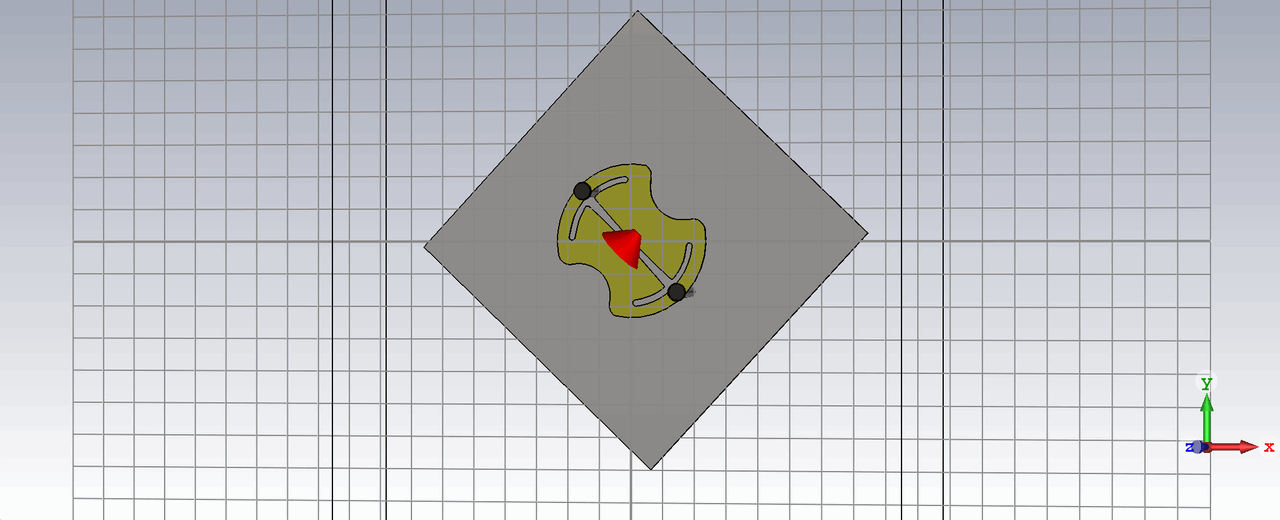

PETRA OK_01.gif

Share this post


Link to post
Share on other sites

 ,,, yes, this antenna is good ... you can also post cst * files...!!!

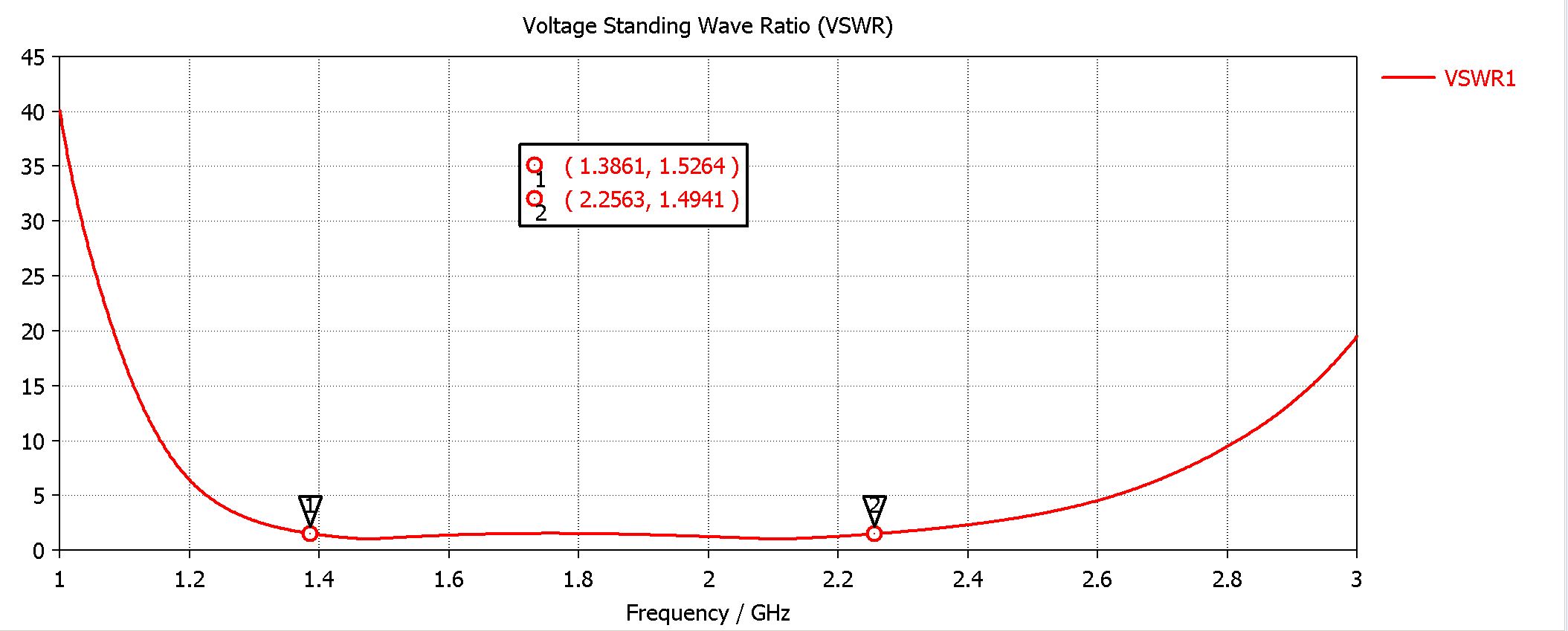

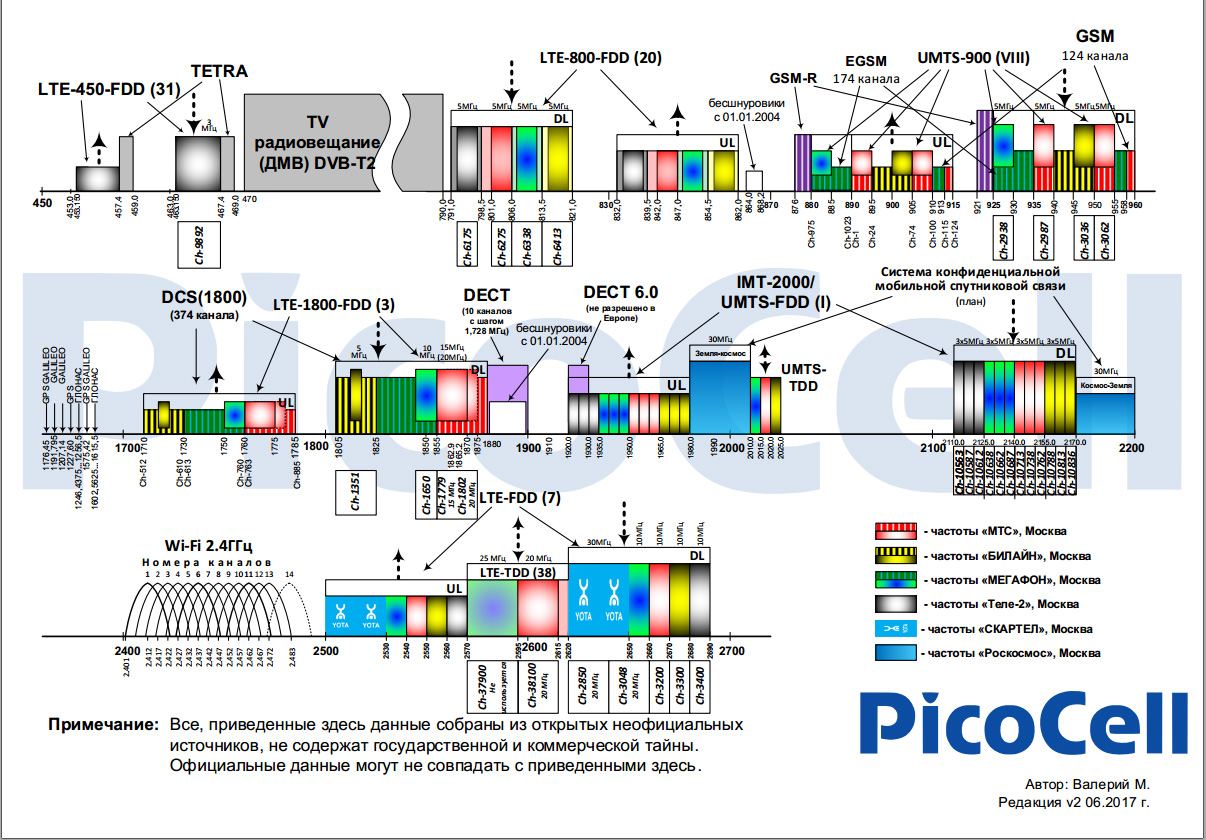

,,, these are the frequencies for LTE...


1 person likes this

Share this post


Link to post
Share on other sites

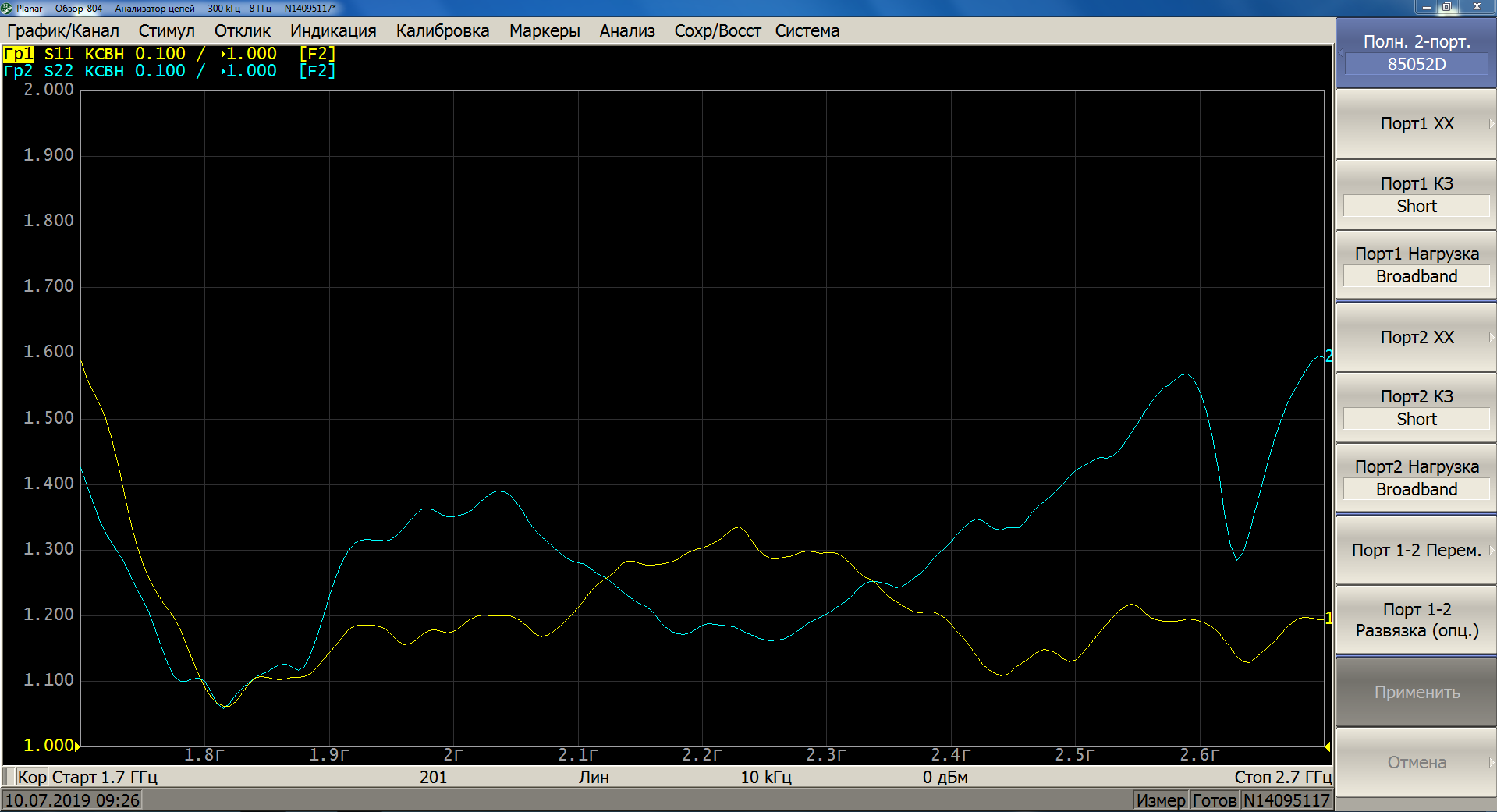

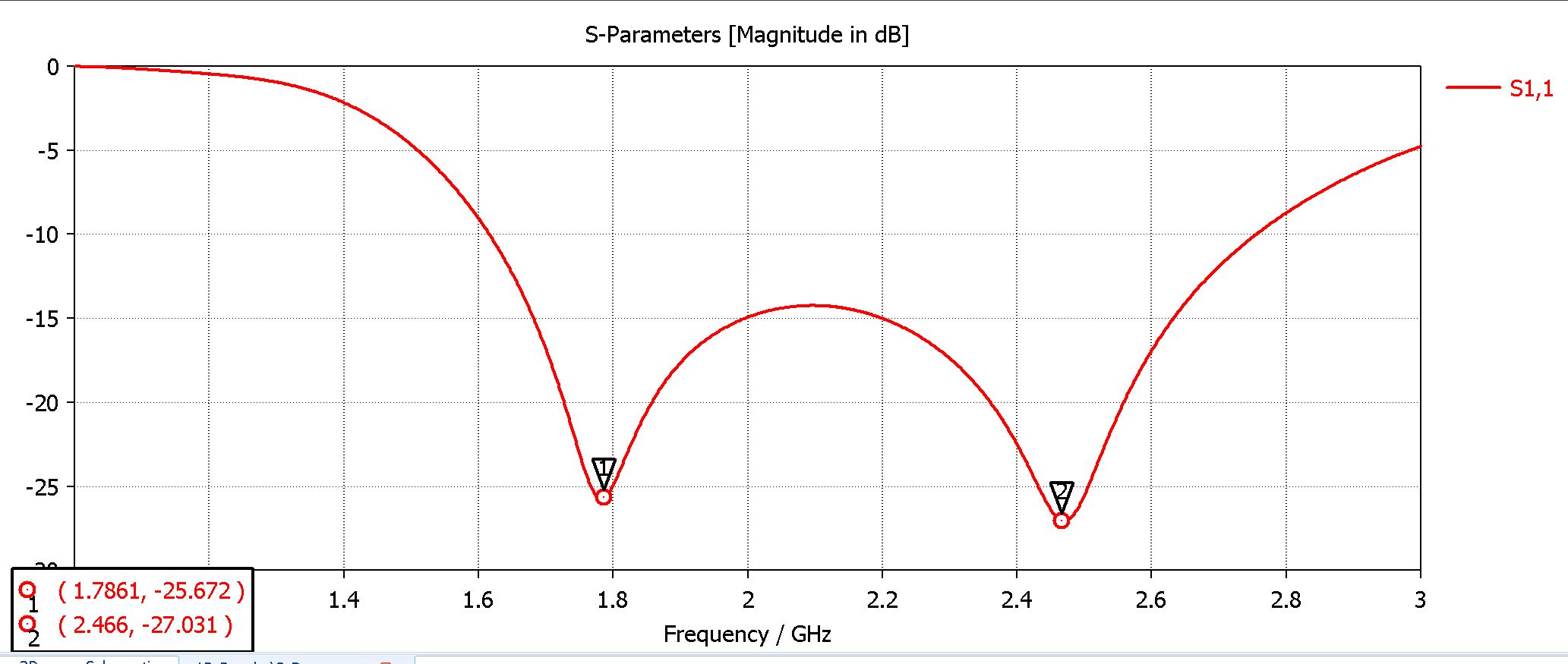

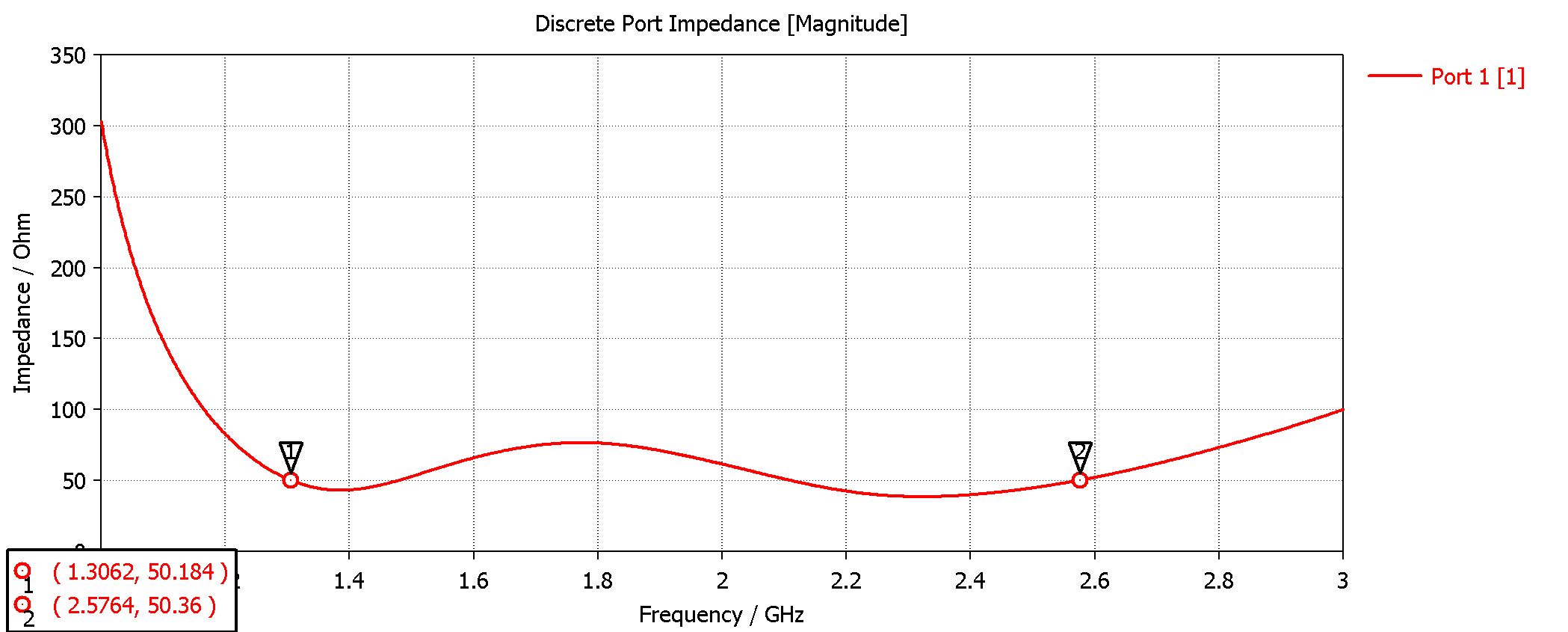

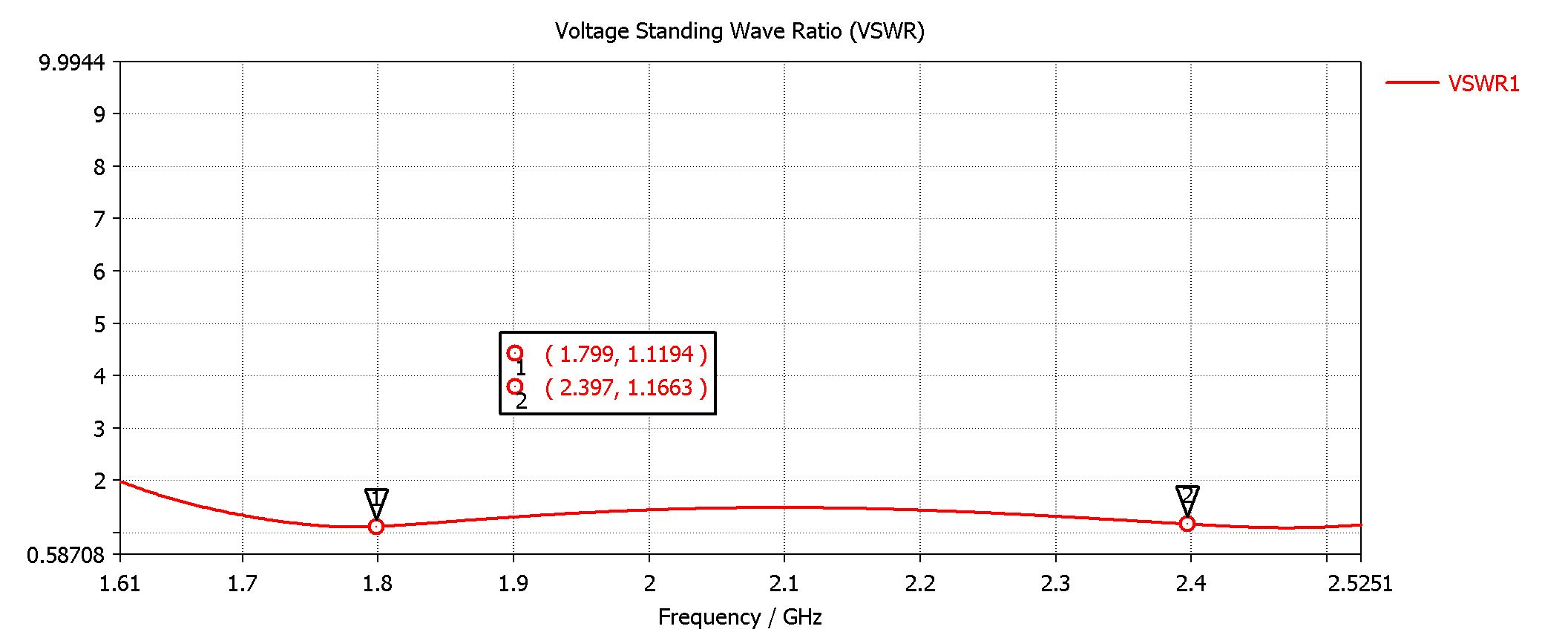

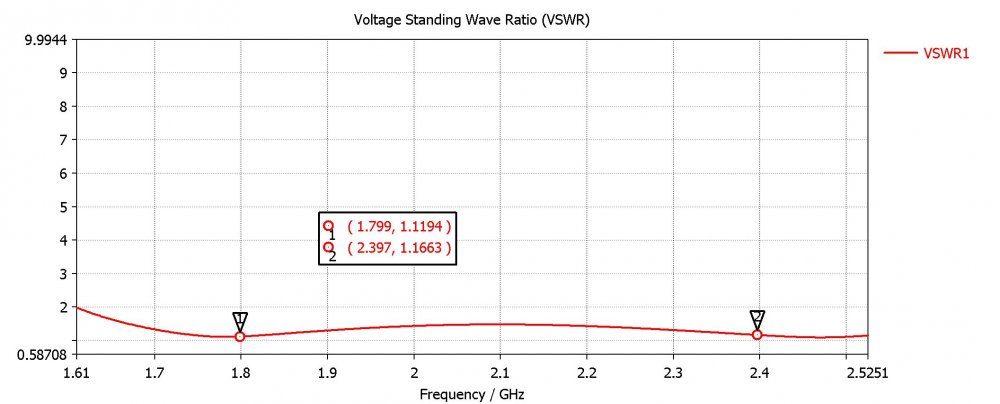

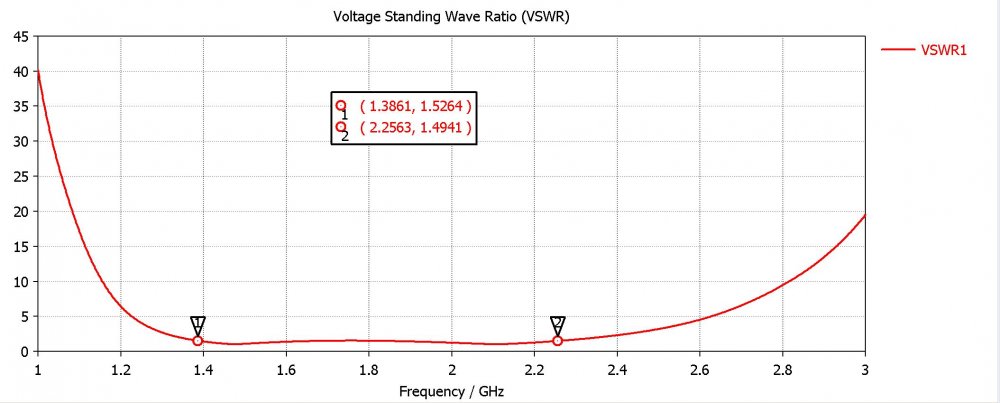

is it possible , Jomy ,...that it has TWO resonances ?...and that they are at 1.8 and 2.4 ghz...does it makes sense...?

Edited by clanon

Share this post


Link to post
Share on other sites

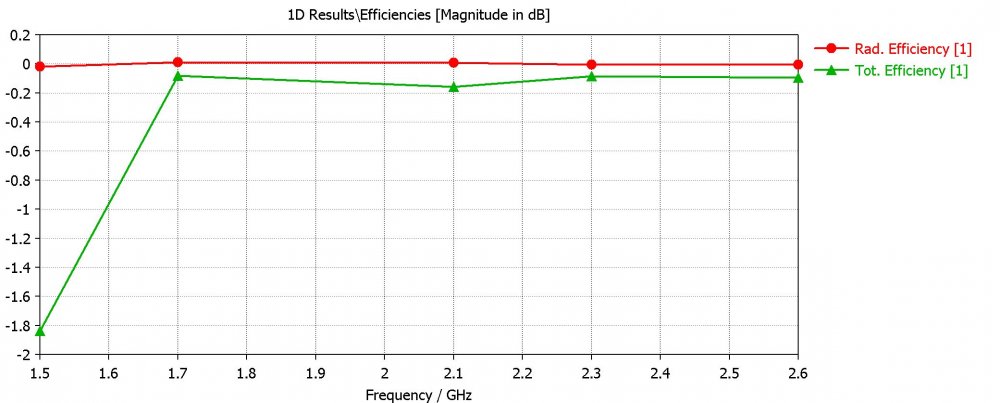

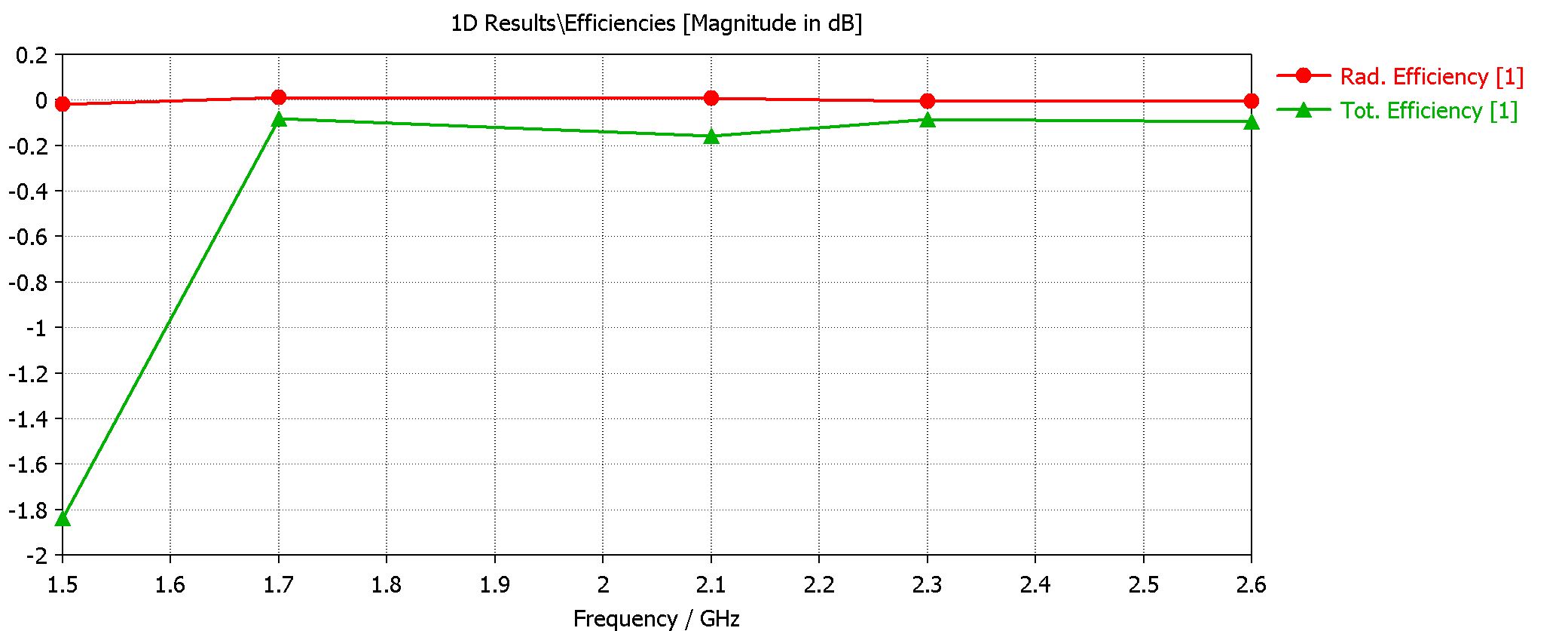

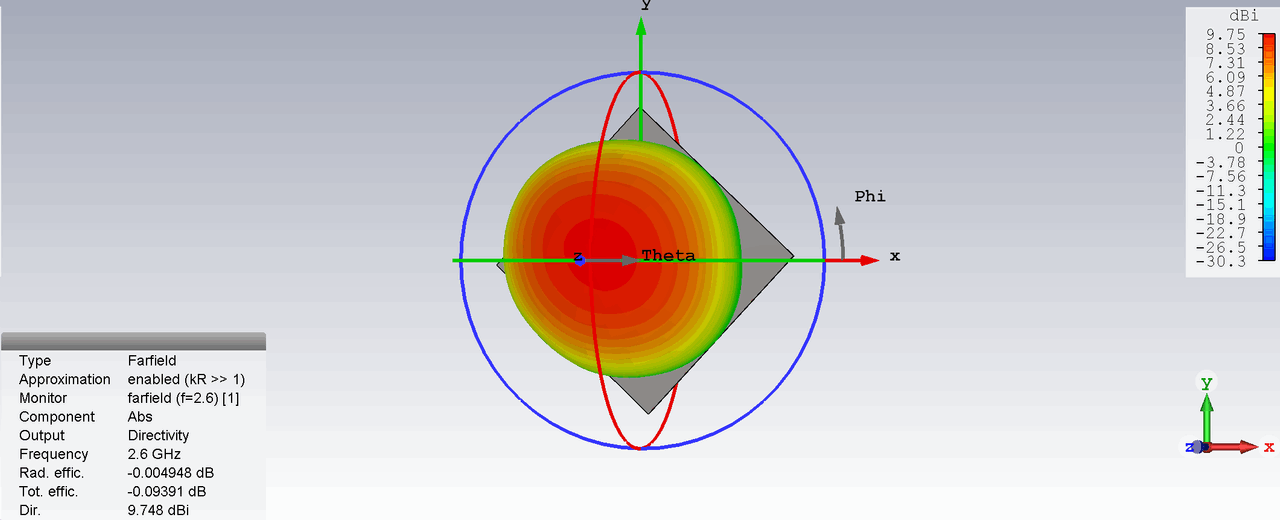

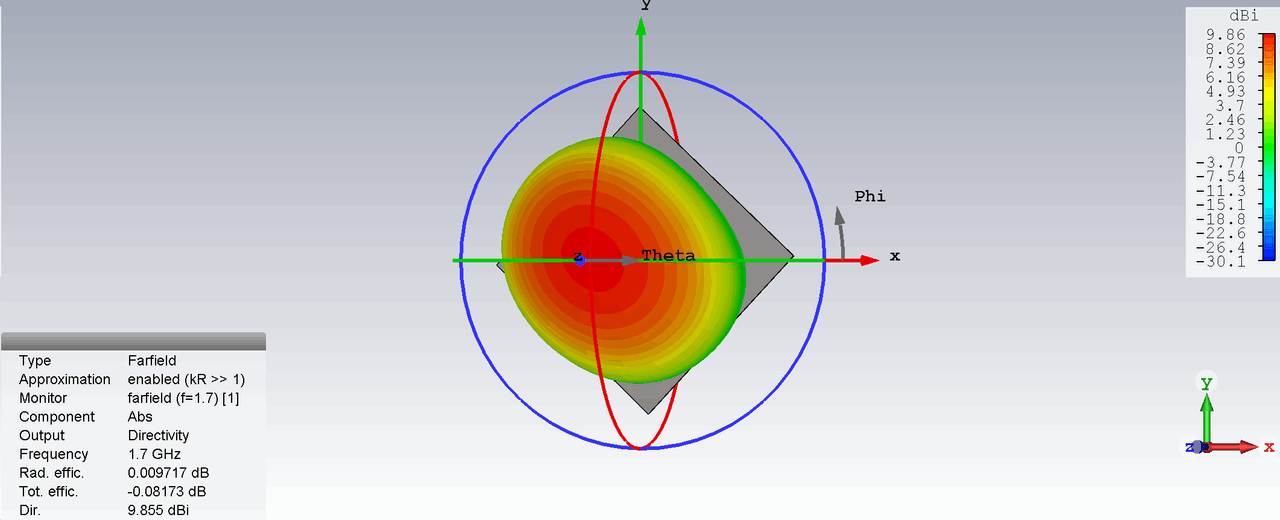

9,5 DBI average from 1.7 to 2,6...



Edited by clanon

Share this post


Link to post
Share on other sites

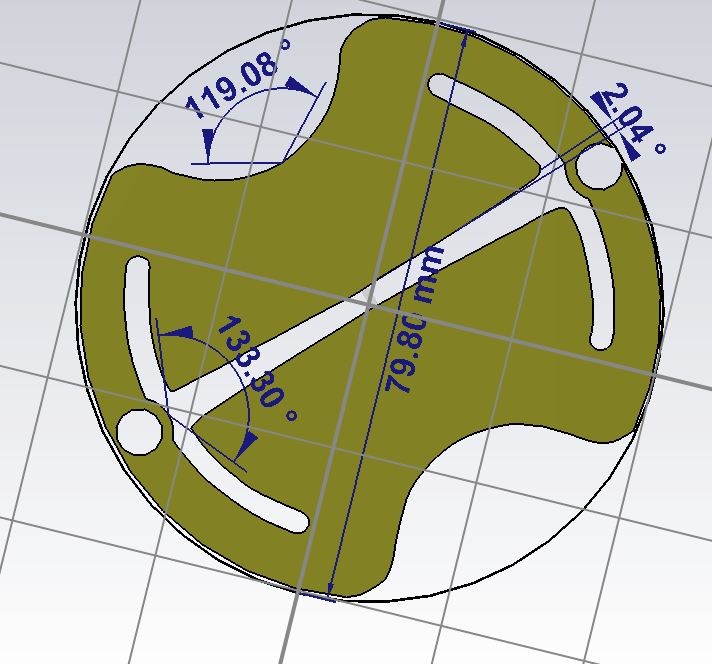

,,, the coaxial cable is connected in the center...


1 person likes this

Share this post


Link to post
Share on other sites
