Antenna with wire elements

81 posts in this topic

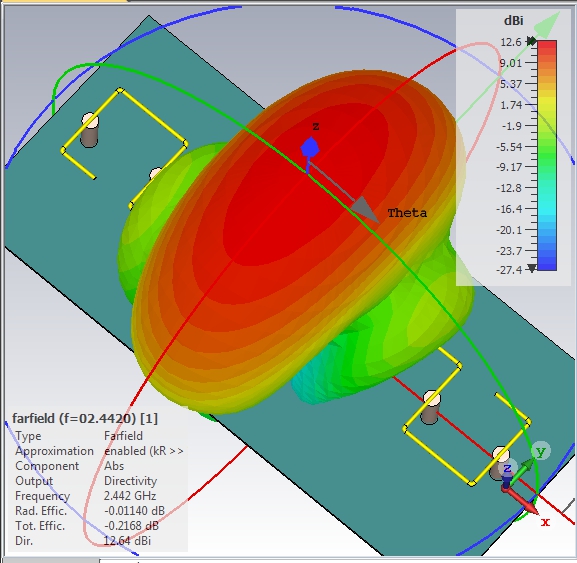

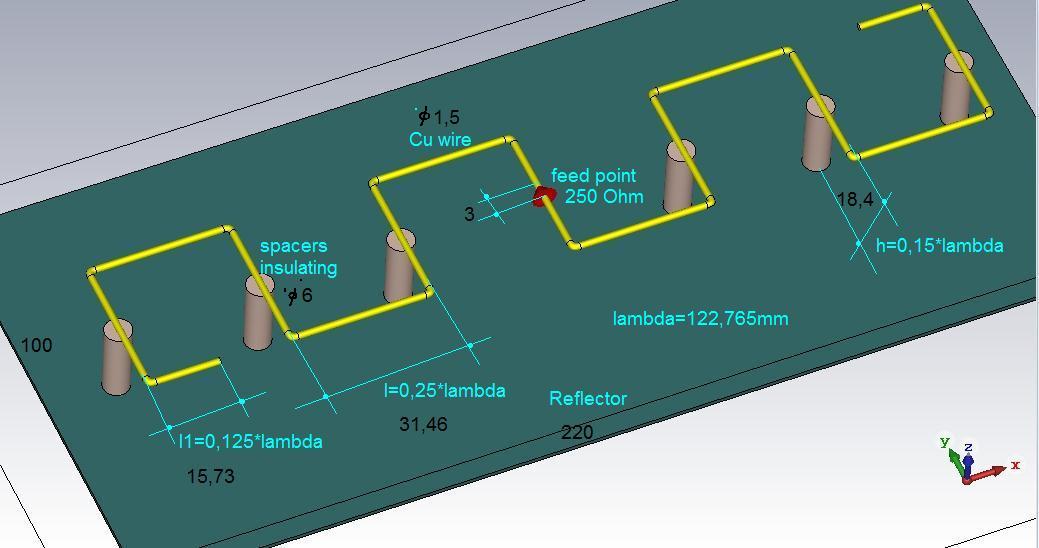

,,,this is the last simulation of the zig-zag antenna...!!!







Share this post


Link to post
Share on other sites

Thanks

So it is not 19 dB than maximum is 12 dB

let say little bit less than double - biquad which is 14 ,,, i think ..right?

Share this post


Link to post
Share on other sites

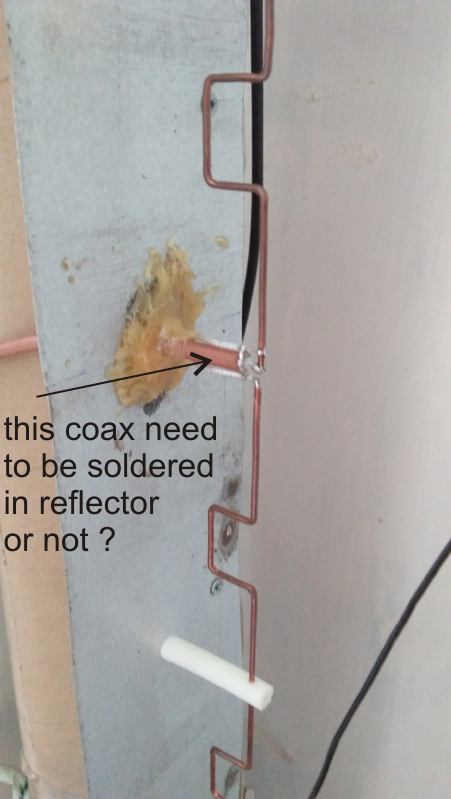

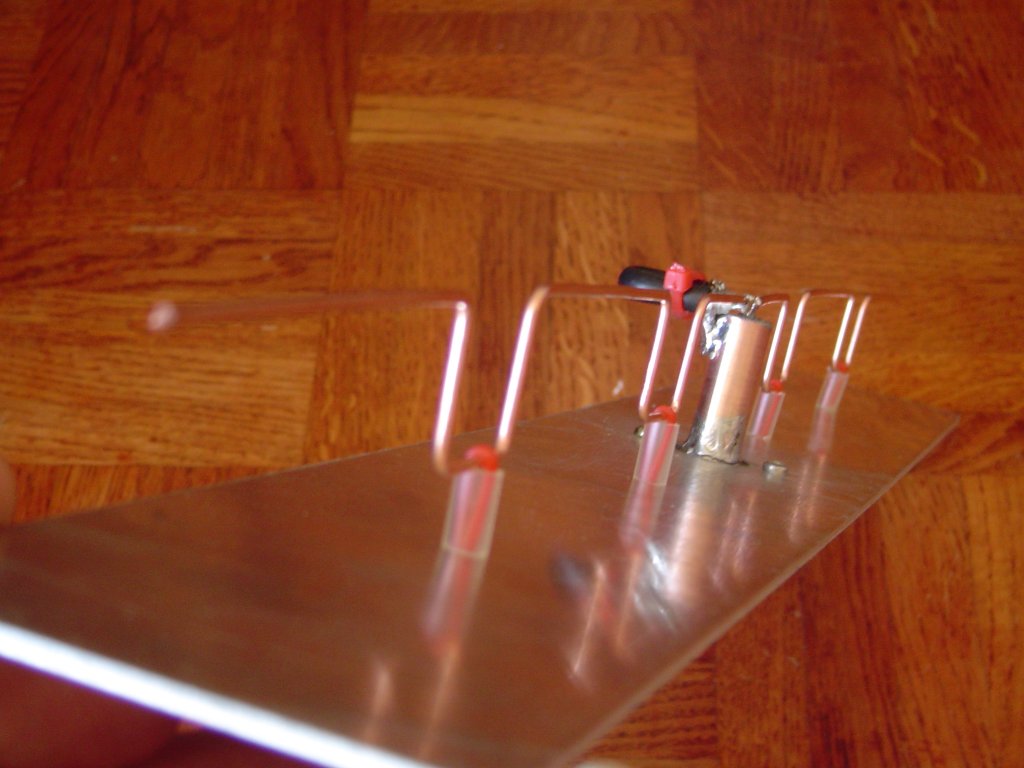

I just cut the Cu wire but i use 2.5mm2 - ordinary electric cu wire which is

wider so maybe i get better results..who knows.

anyway antenna is easy to build...

Share this post


Link to post
Share on other sites

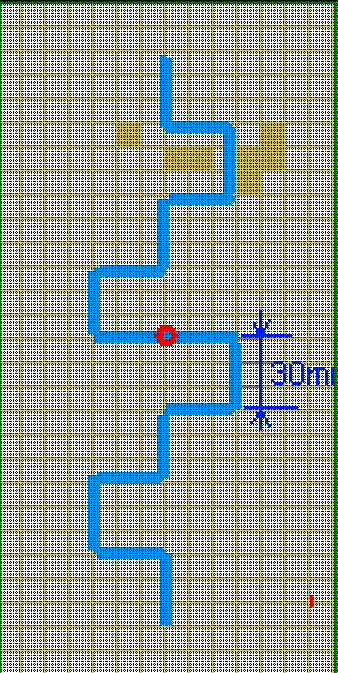

Do you can simulate ...design i show in the image above?

if is not problem ..i don't have that CST program.

Share this post


Link to post
Share on other sites
9 minutes ago, aurel said:

Do you can simulate ...design i show in the image above?

if is not problem ..i don't have that CST program.

,,,okay ,I will try...!!!

Share this post


Link to post
Share on other sites
1 hour ago, aurel said:

Thanks

So it is not 19 dB than maximum is 12 dB

let say little bit less than double - biquad which is 14 ,,, i think ..right?

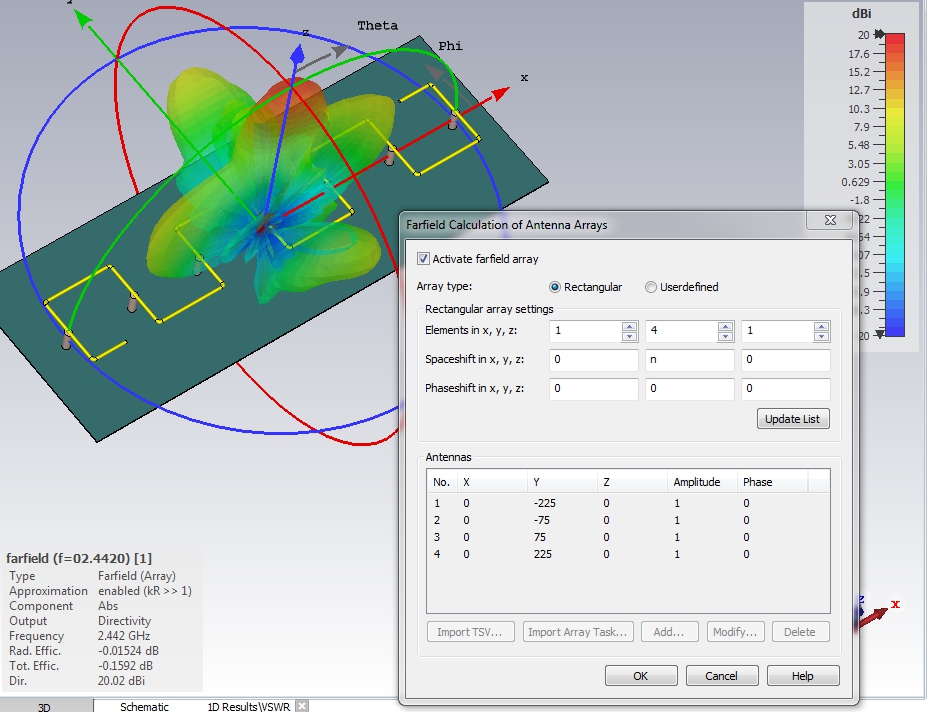

20dBi, got with four such antennas...!!!

with the dipole side = 57mm




Share this post


Link to post
Share on other sites
6 hours ago, aurel said:

What you think about this shape?




,,,why this antenna does not work ... ???




Share this post


Link to post
Share on other sites
Quote

,,,why this antenna does not work ... ???

Yes why...bad design probably...:o

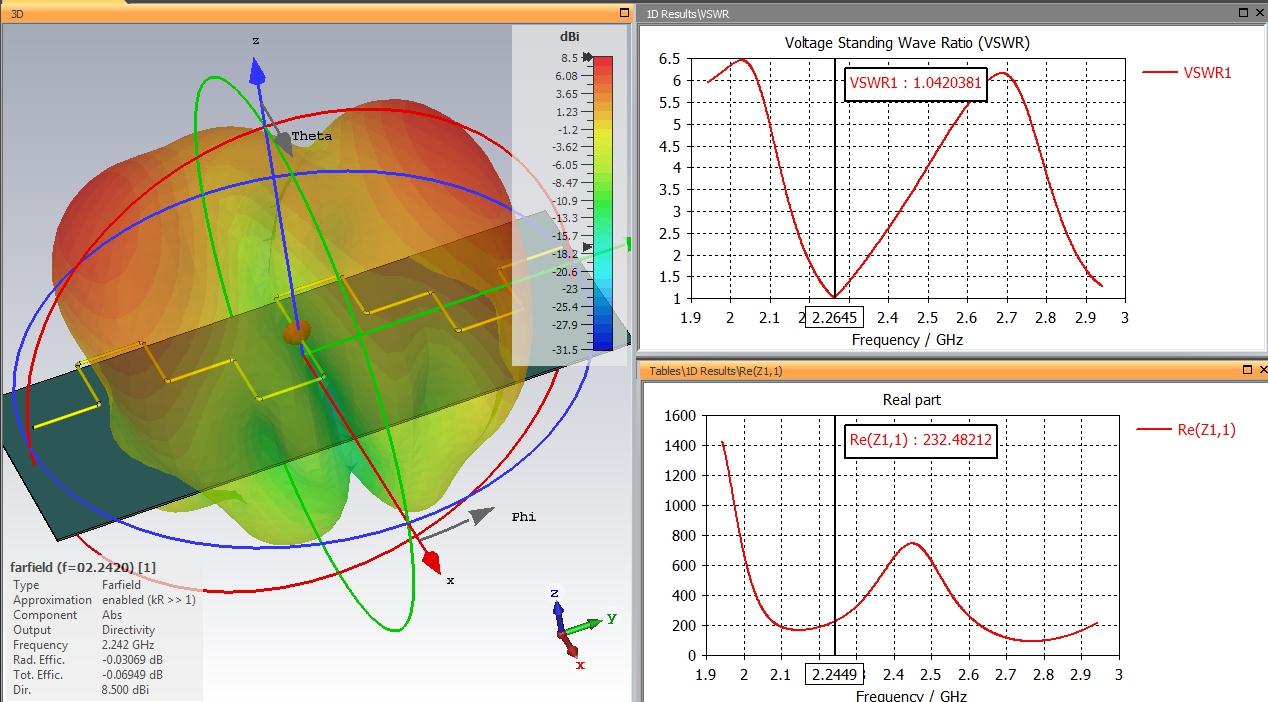

I don't understand this diagrams very well but i see f= 2.2  not 2.4ghz

is that mean something?

Share this post


Link to post
Share on other sites

Is there any other freeware program which can replace CST maybe ?

i mean for wire antennas?

Share this post


Link to post
Share on other sites
7 minutes ago, aurel said:

Is there any other freeware program which can replace CST maybe ?

i mean for wire antennas?

https://qsl.net/4nec2/

1 person likes this

Share this post


Link to post
Share on other sites

Auuu

that one was lame...

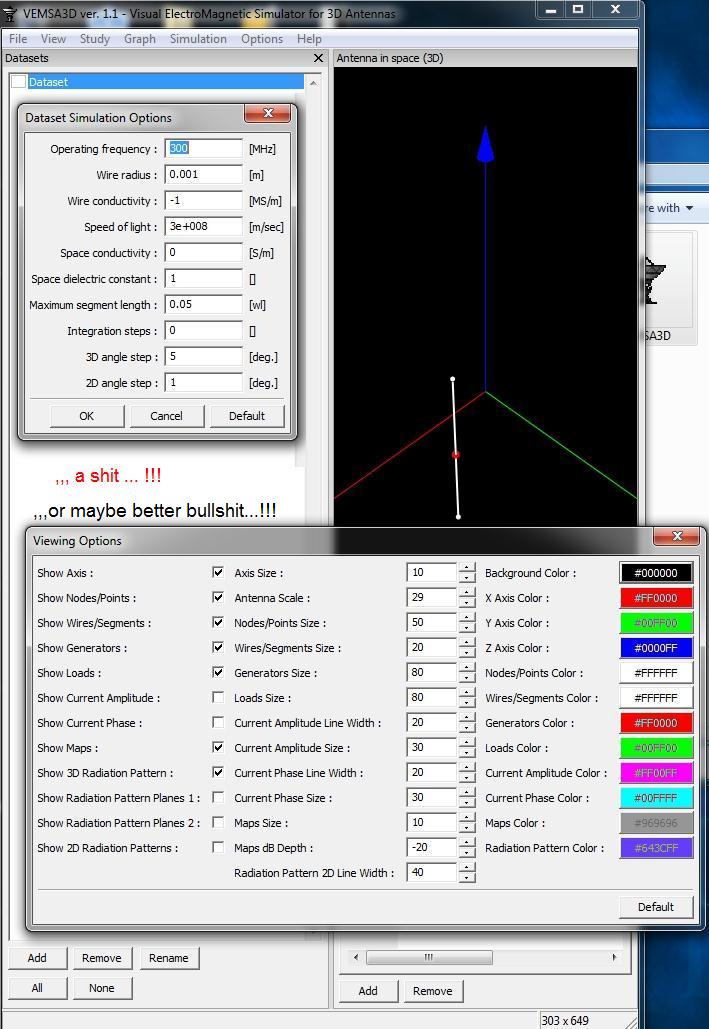

I found on source forge program called VEMSA3D but i don't know how to work with it?

Share this post


Link to post
Share on other sites

,,, this is not an antenna simulation program ... !!!

Share this post


Link to post
Share on other sites

ahhh

it is attempt to create something useful

In fact - we can create wire antenna adding nodes but is tooo slow.

Share this post


Link to post
Share on other sites

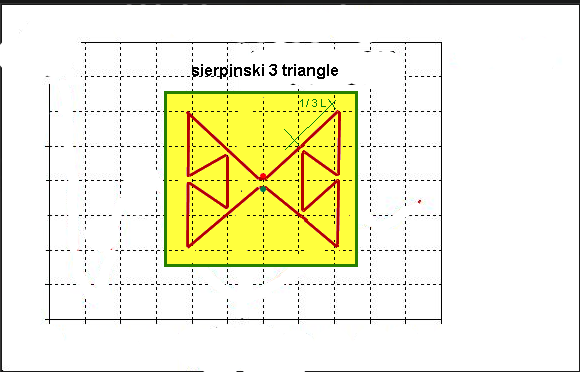

I found this image ..about printed wire

sierpinski fractal


Share this post


Link to post
Share on other sites

Yes, as far as I remember, I have done this fractal antenna on a forum...!!!

Share this post


Link to post
Share on other sites

I found this antenna on some radio amateur site YU ..i think

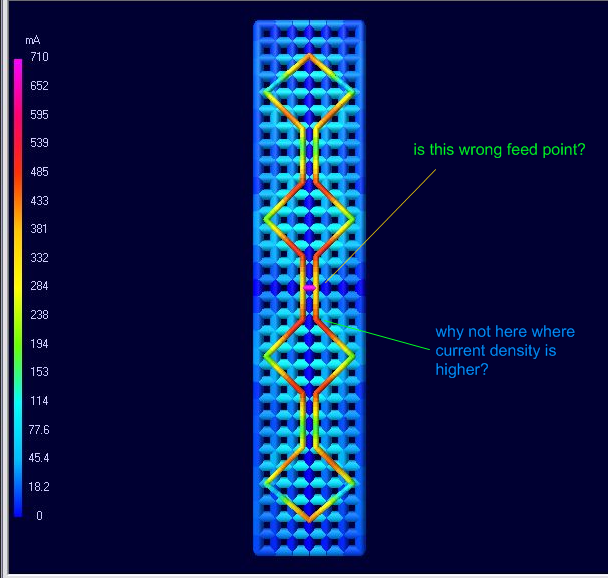

and i don't get it why is connection point here where IS NOT maximum of current density?




Share this post


Link to post
Share on other sites
